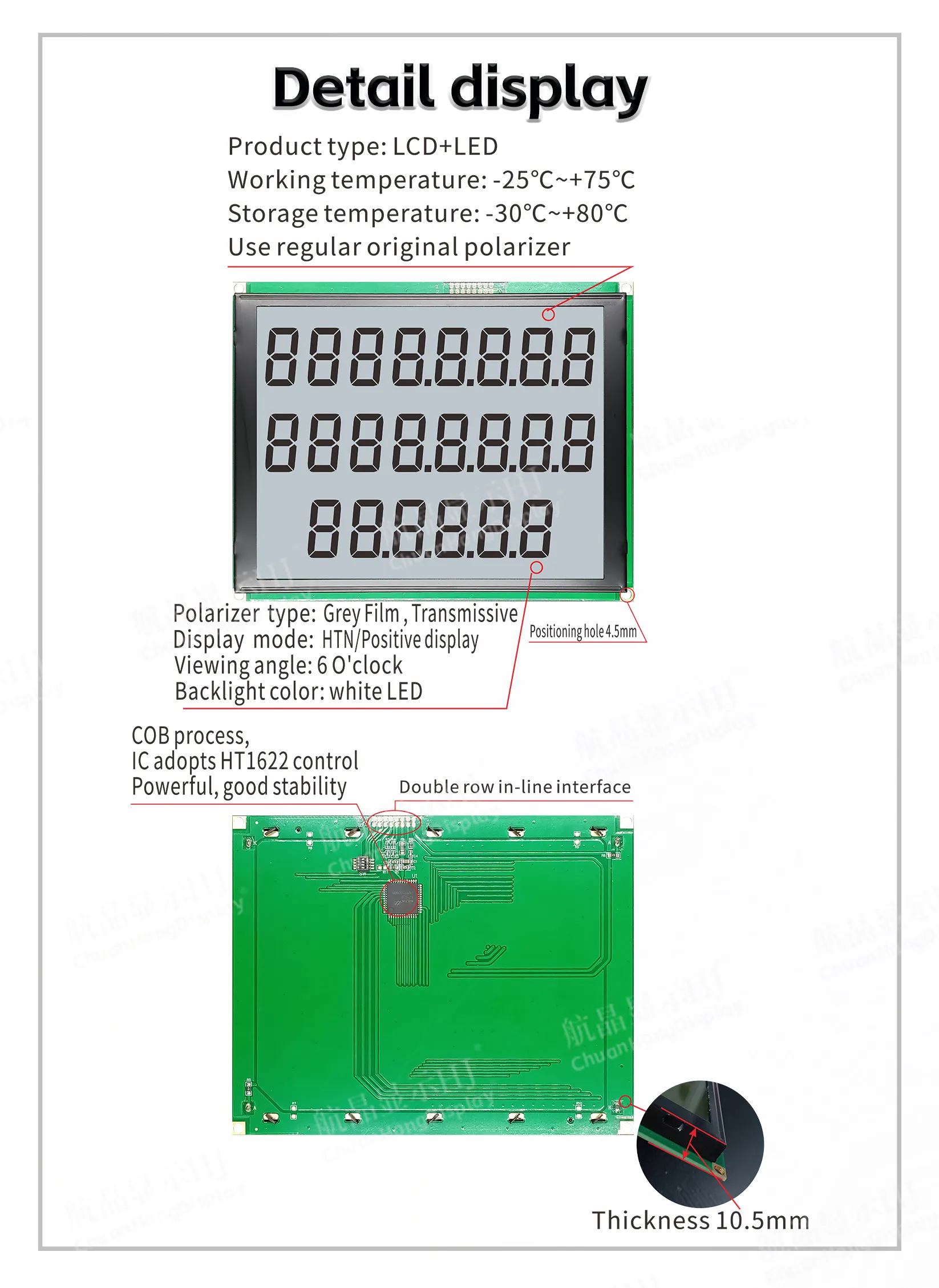

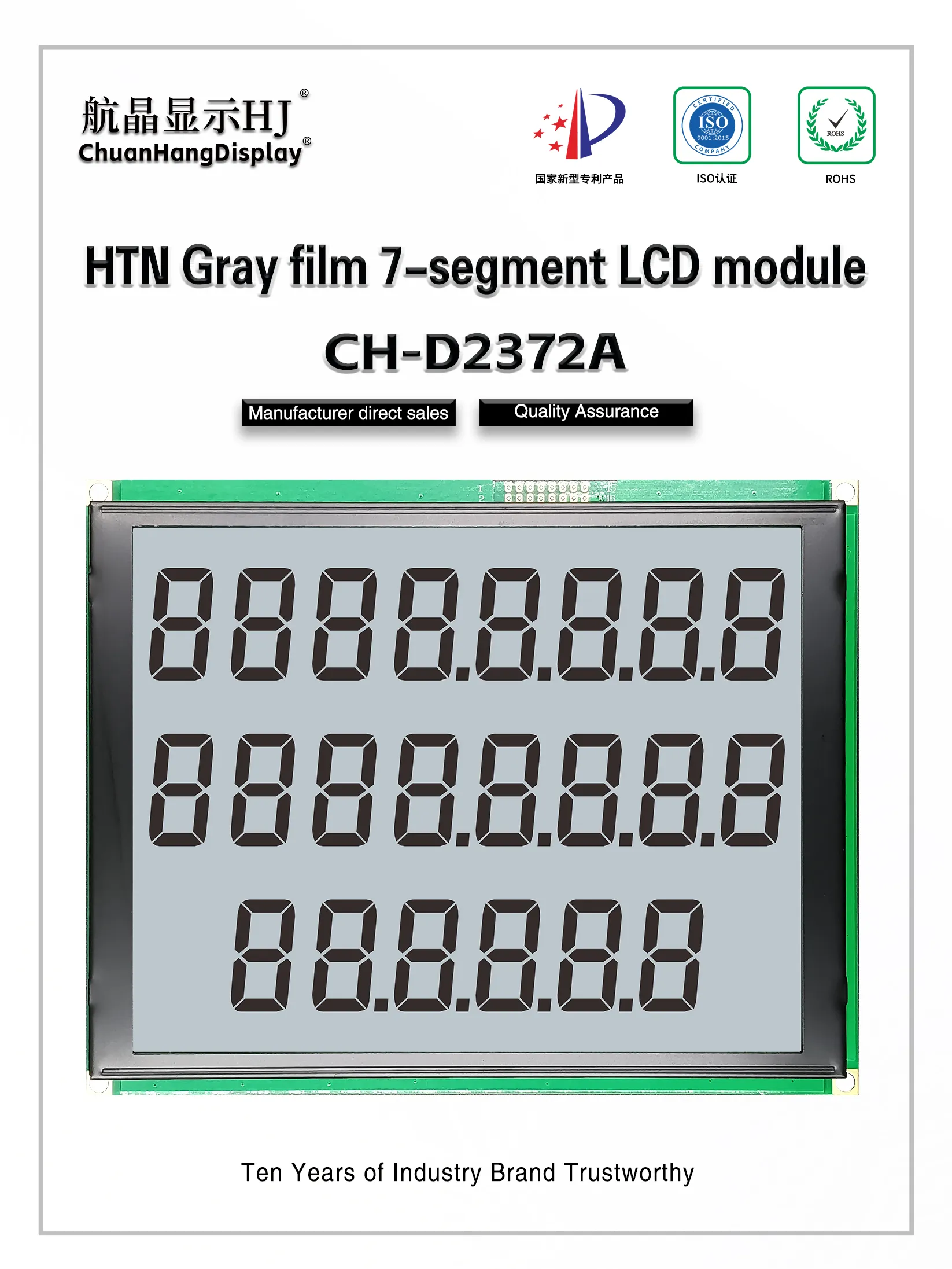

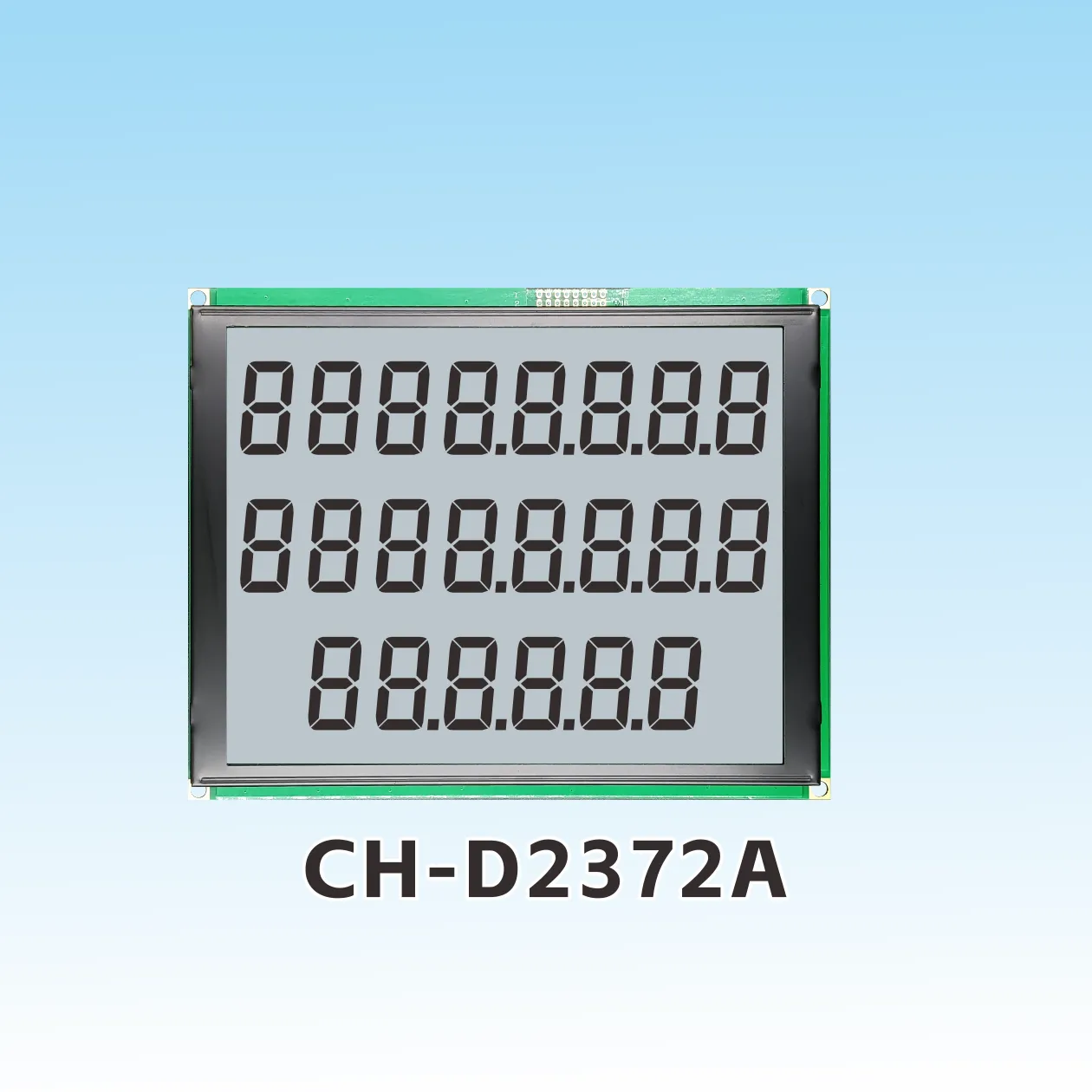

Product Description
LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/full penetration

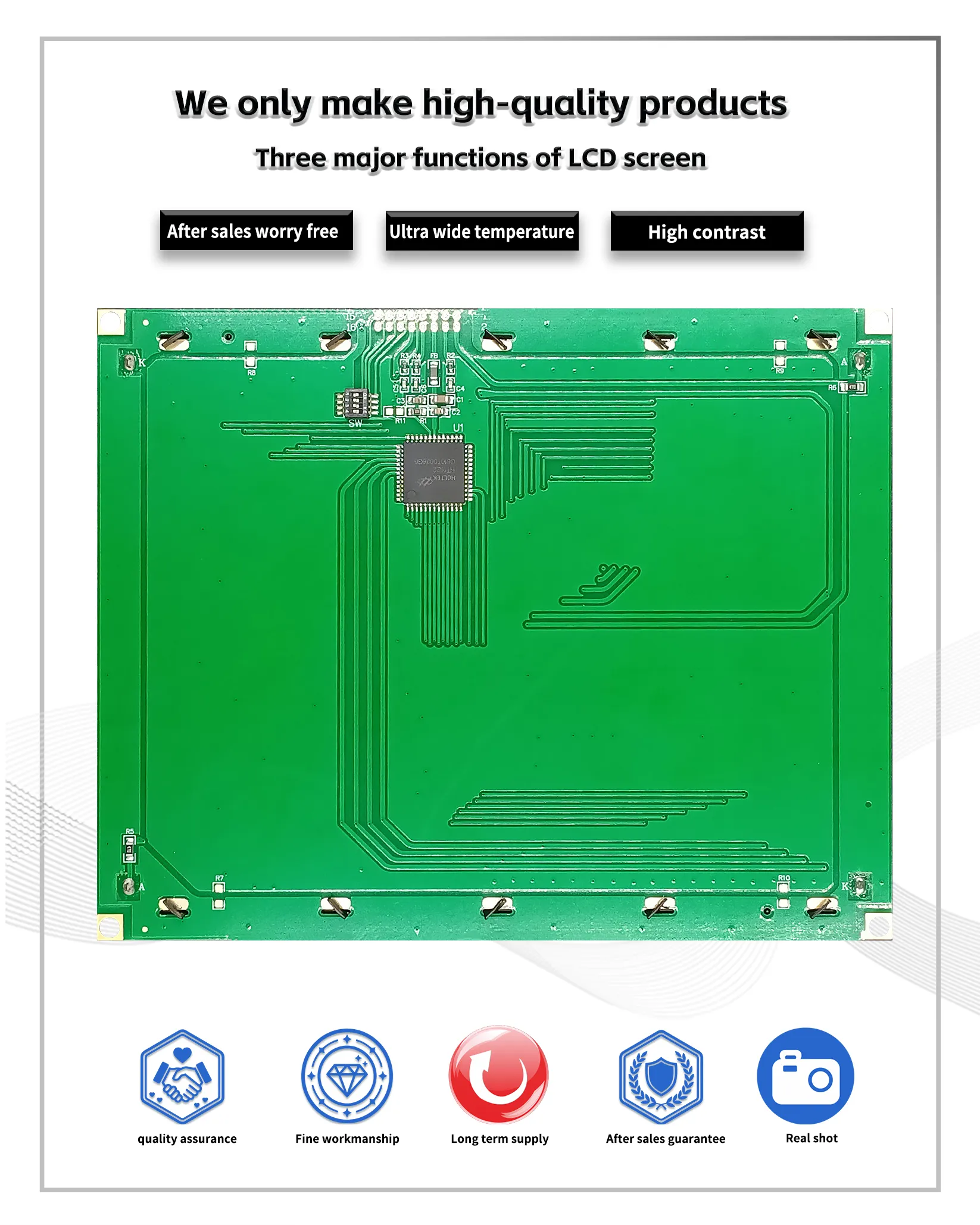

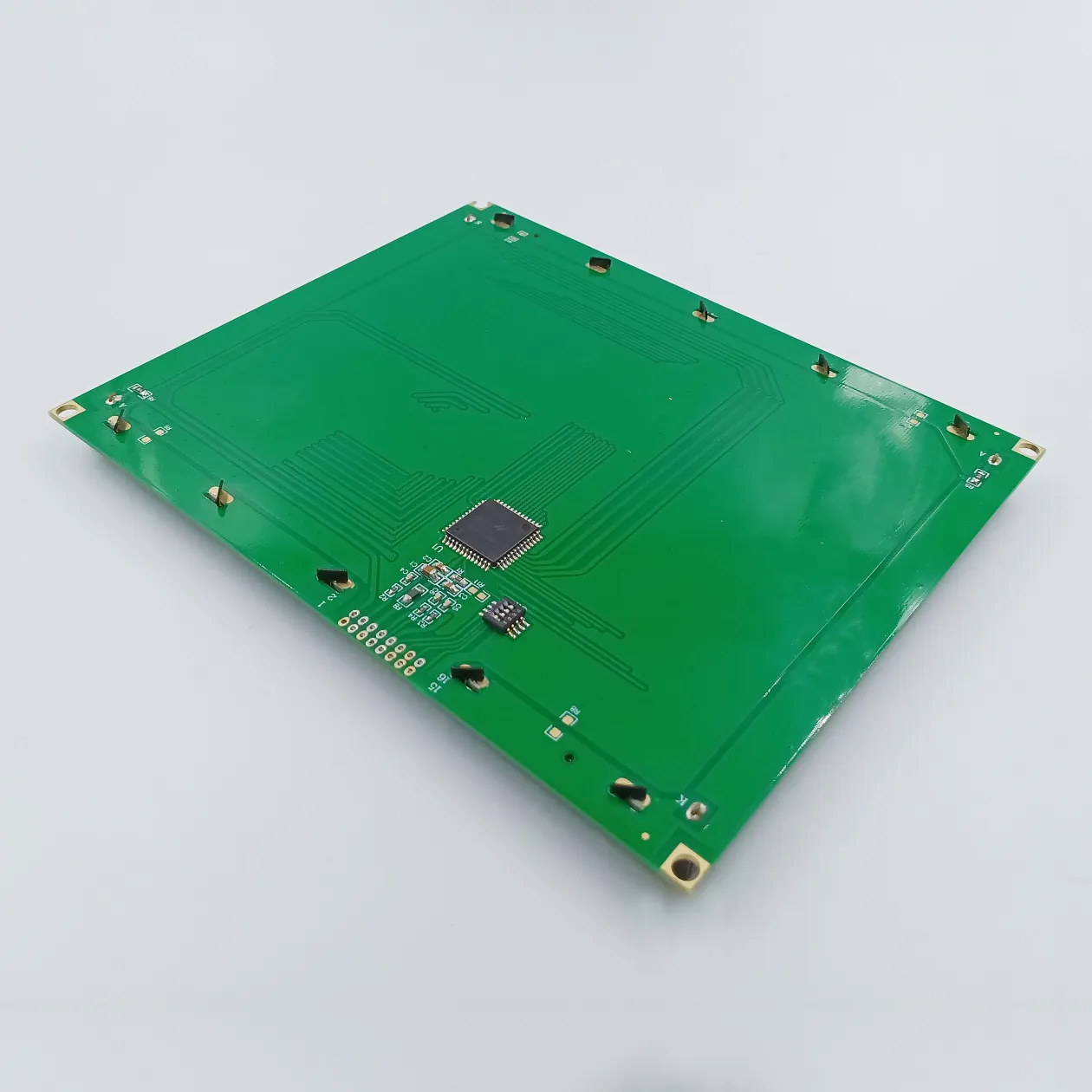

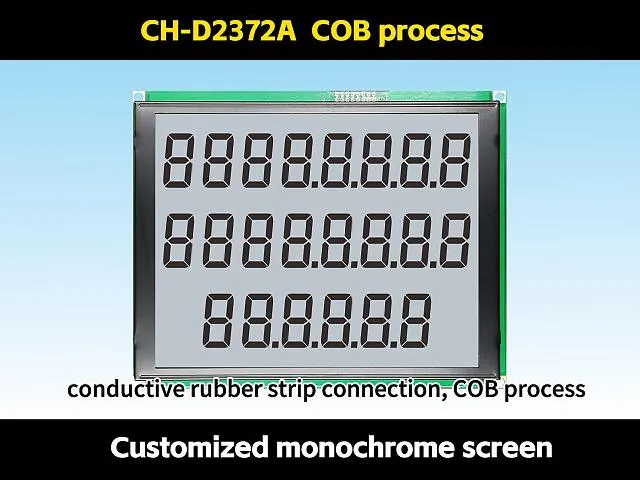

Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1622
Working Voltage: 5.0V
Operating Temperature: -25~75℃
Connection Method: Conductive strip
Backlight ：White LED
Application industry: Refueling machine
Video Presentation

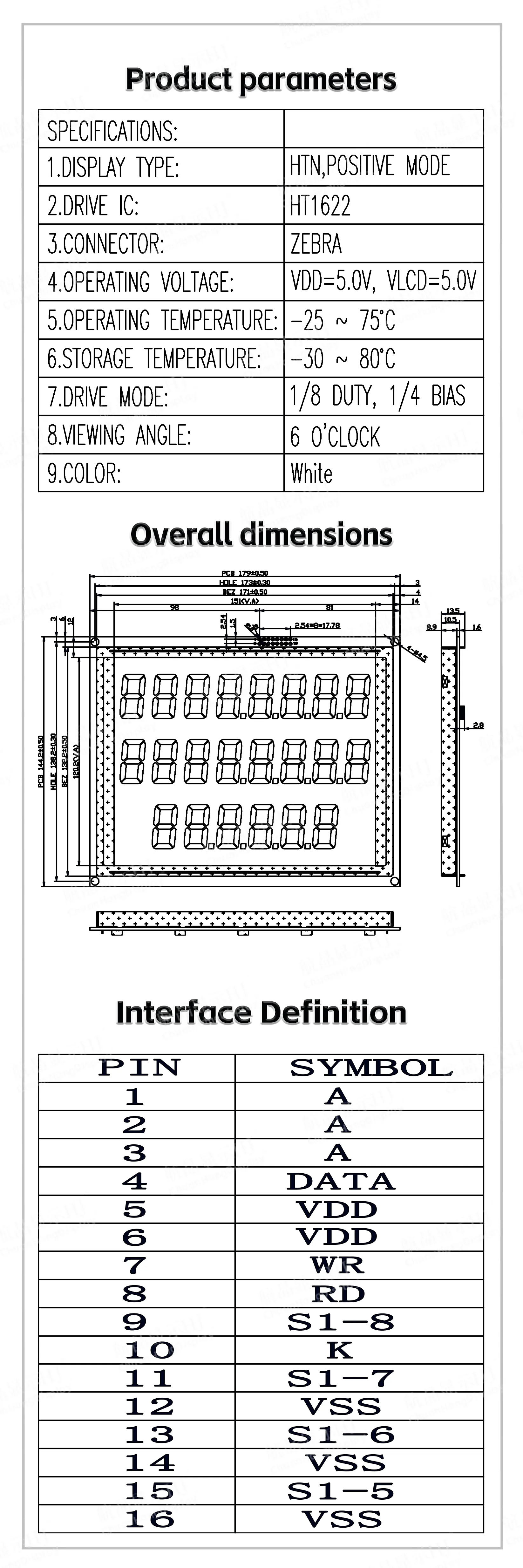

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH-D2372A
Display ModePositive Display Display SizeCustomized
Outline Dimension(L*W*H)179.00x144.20x13.50mmVisible Area(L*W)/
Active Area(L*W)151.00x120.20mmCharacter Size(L*W) /
TypeCOBConnection MethodConductive strip
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1622
Operating Temperature-25℃~+75℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES
Product Datasheet

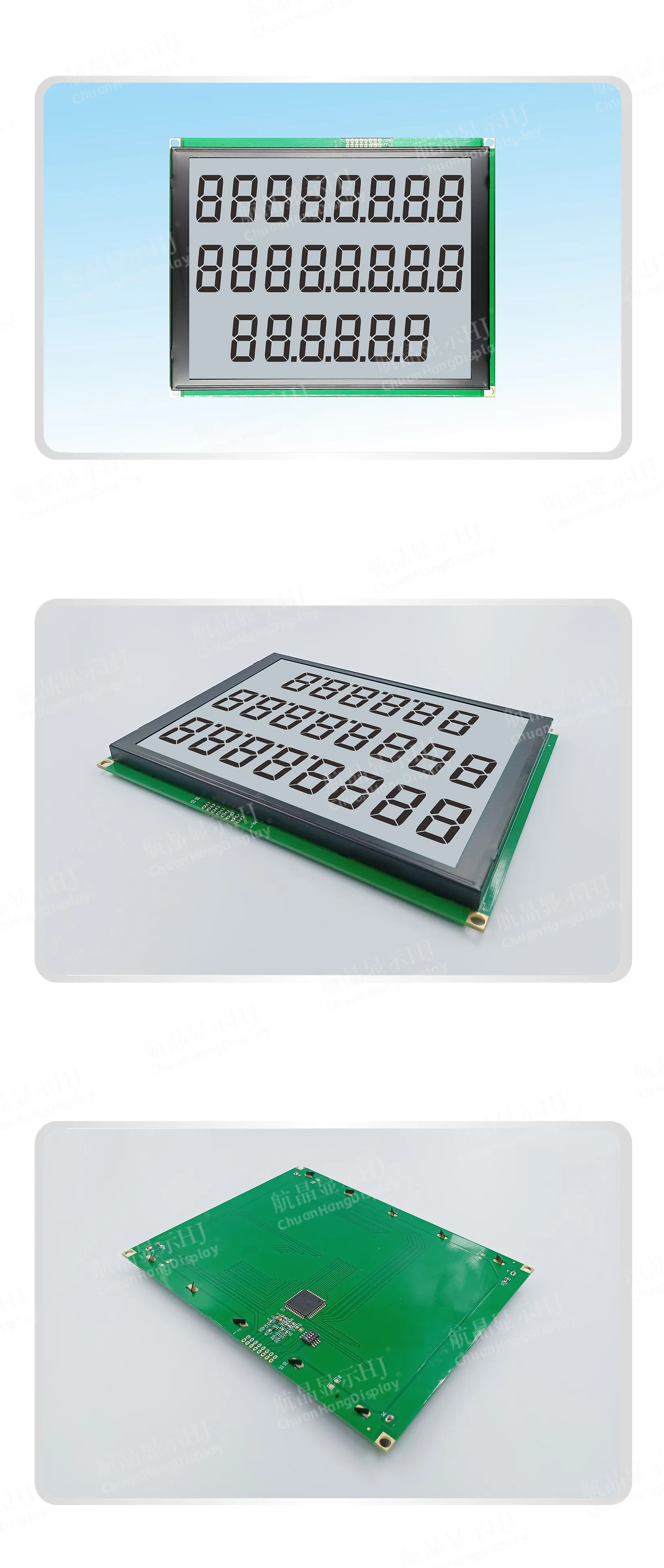

Product Display
