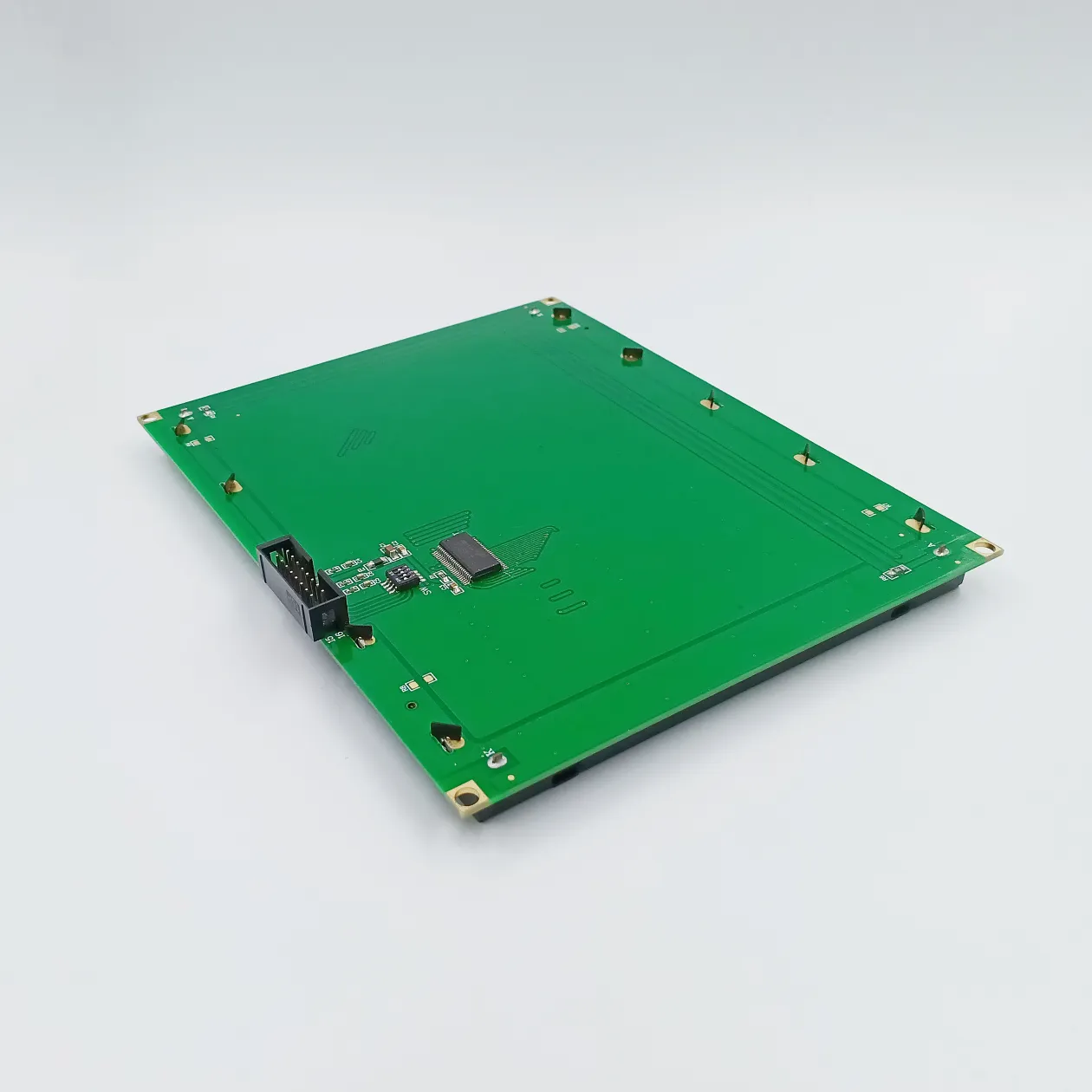

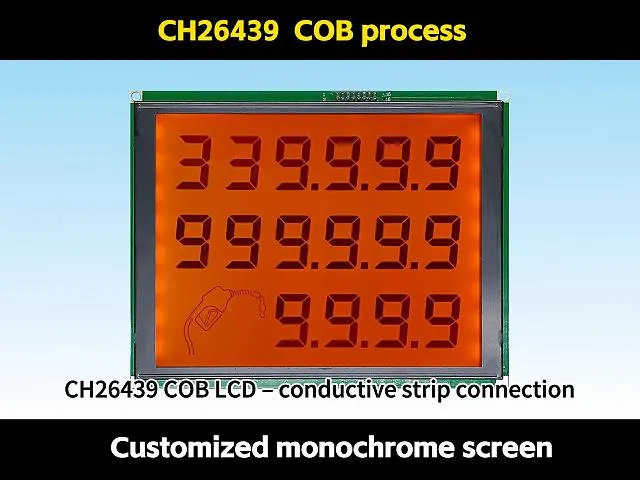

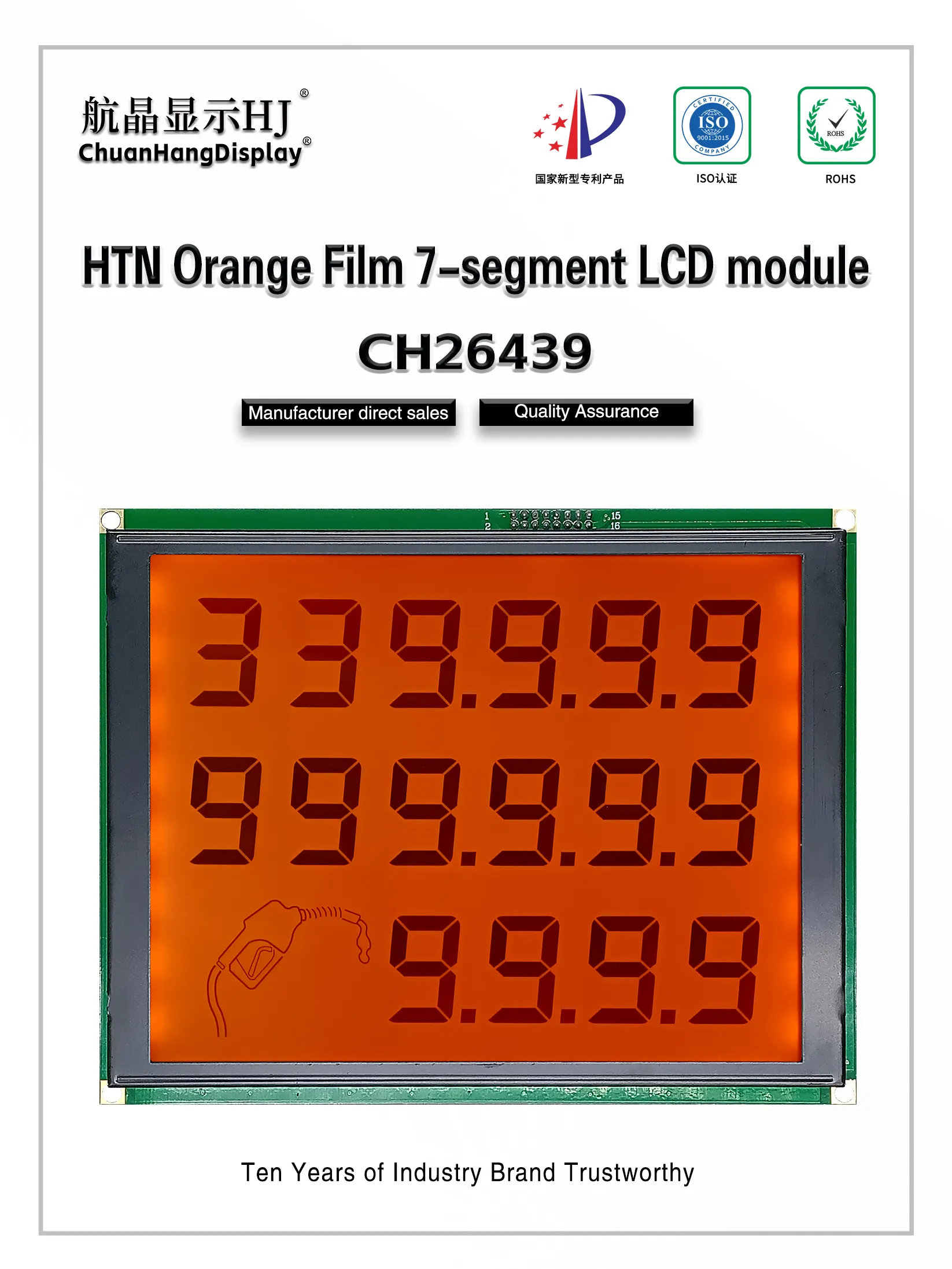

CH26439 the seven segment display

CH26439 the seven segment display

PRODUCTS CENTER

CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display
CH26439 the seven segment display

CH26439 the seven segment display

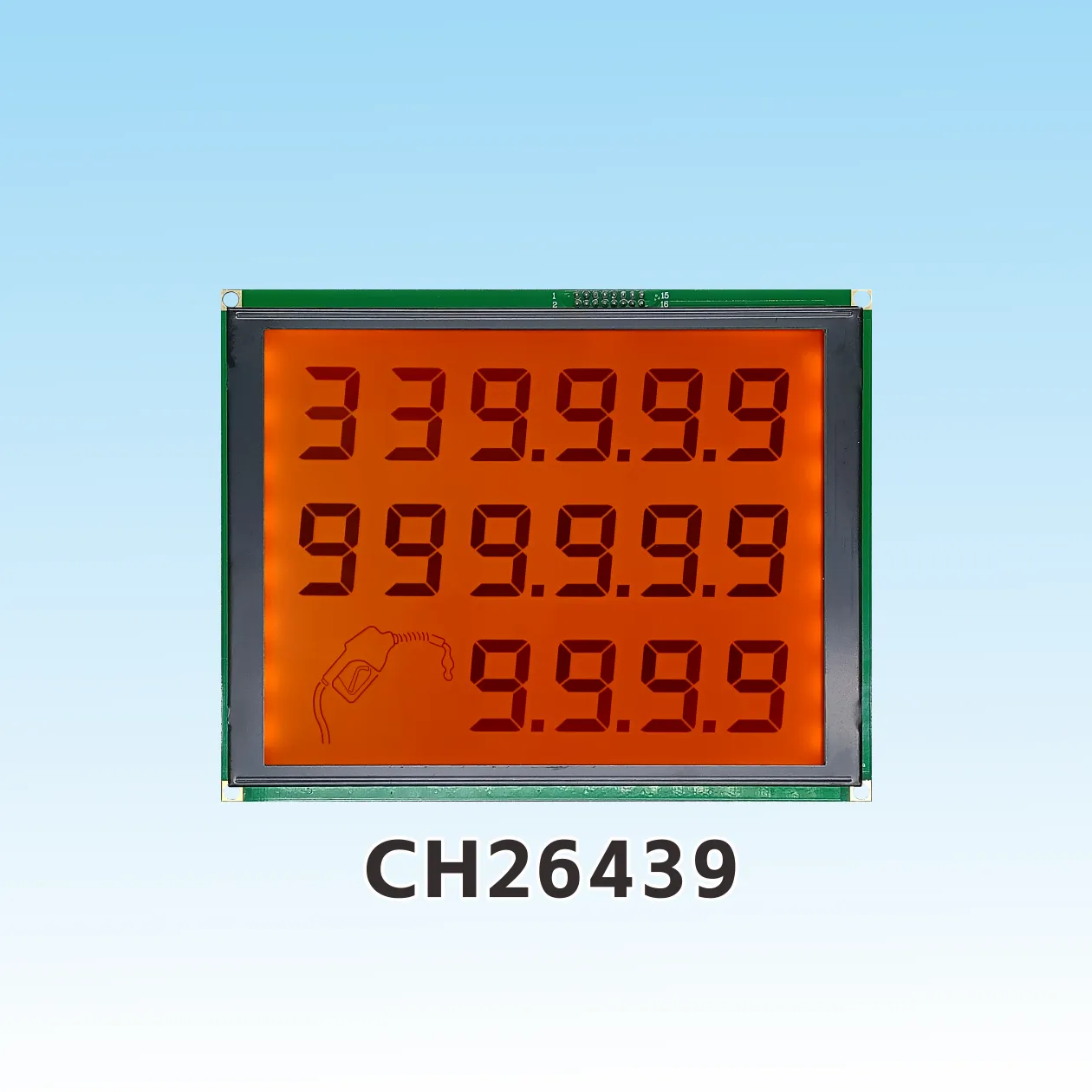

Product Description
LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/full penetration
Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1621B
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight ：White LED
Application industry: Refueling machine
Video Presentation

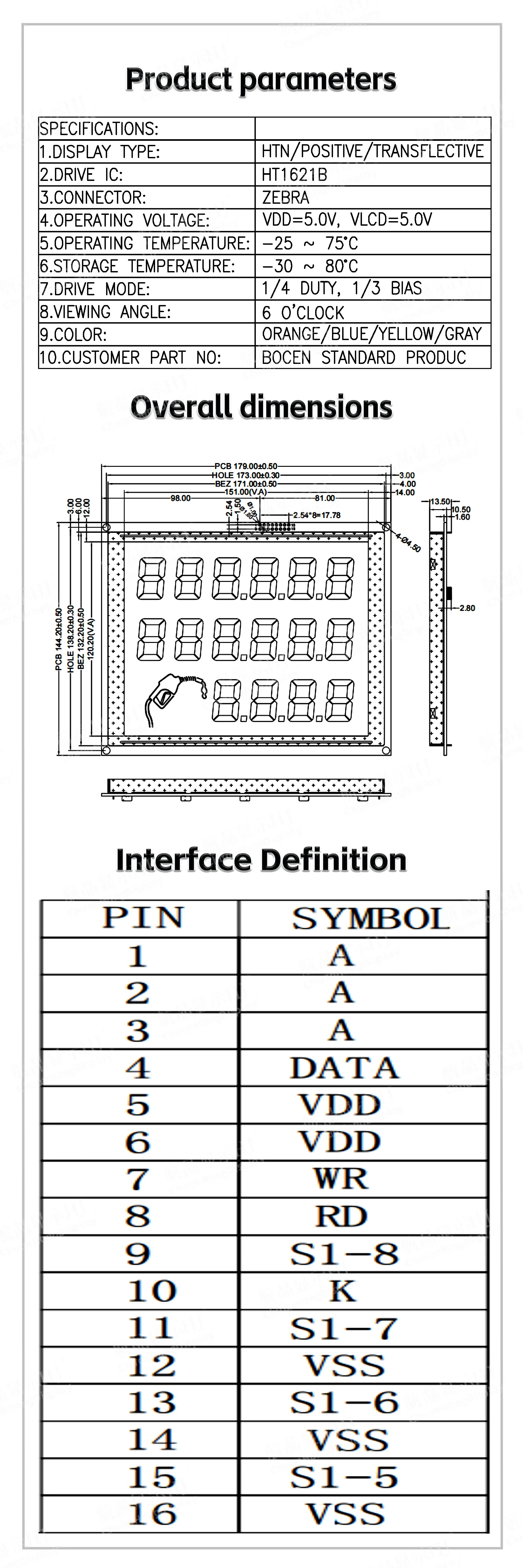

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH26439
Display ModePositive Display Display SizeCustomized

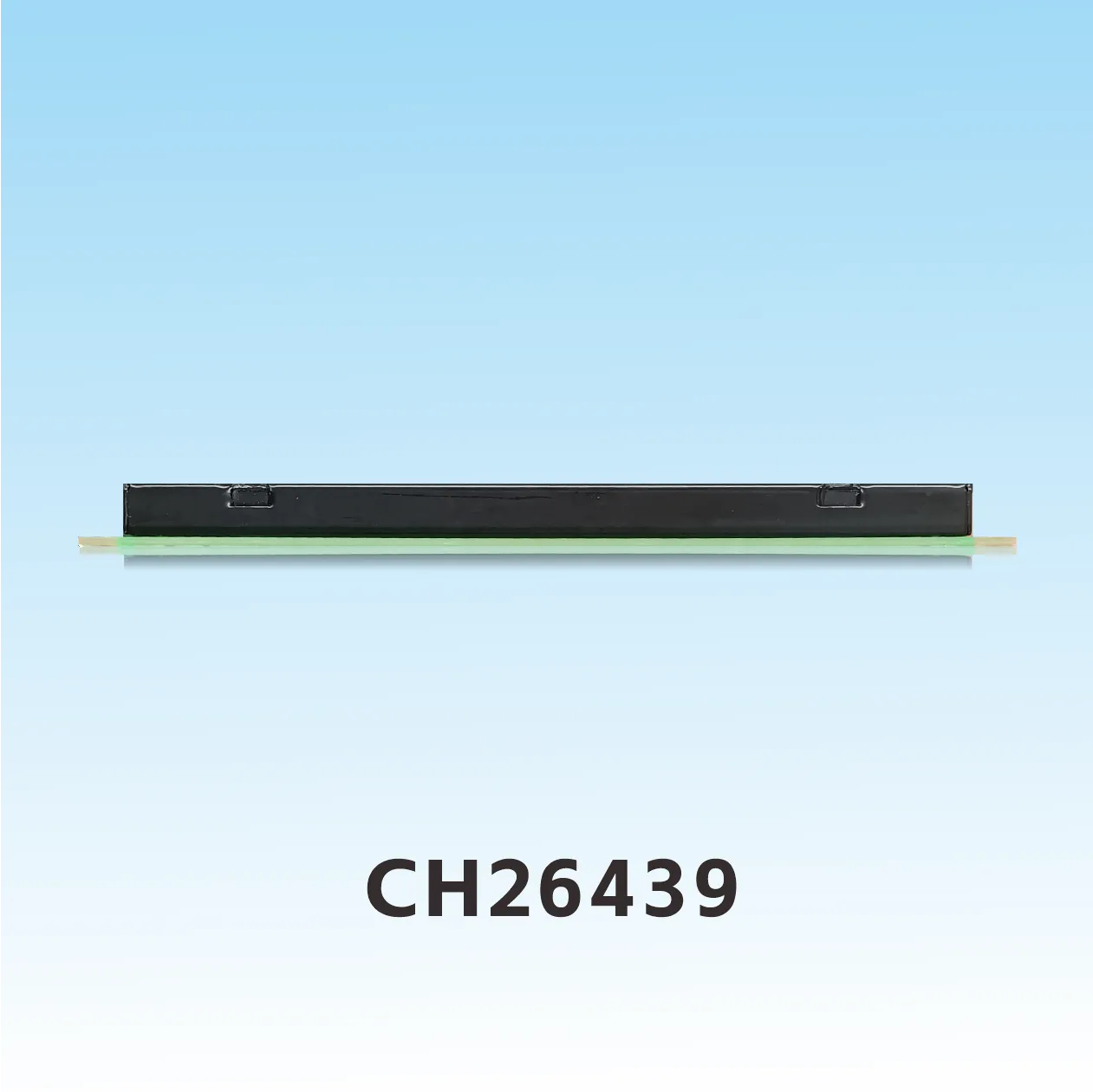

Outline Dimension(L*W*H)179.00x144.20x13.50mmVisible Area(L*W)/
Active Area(L*W)151.00x120.20mmCharacter Size(L*W) /
TypeCOBConnection MethodConductive strip
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1621B
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES
Product Datasheet

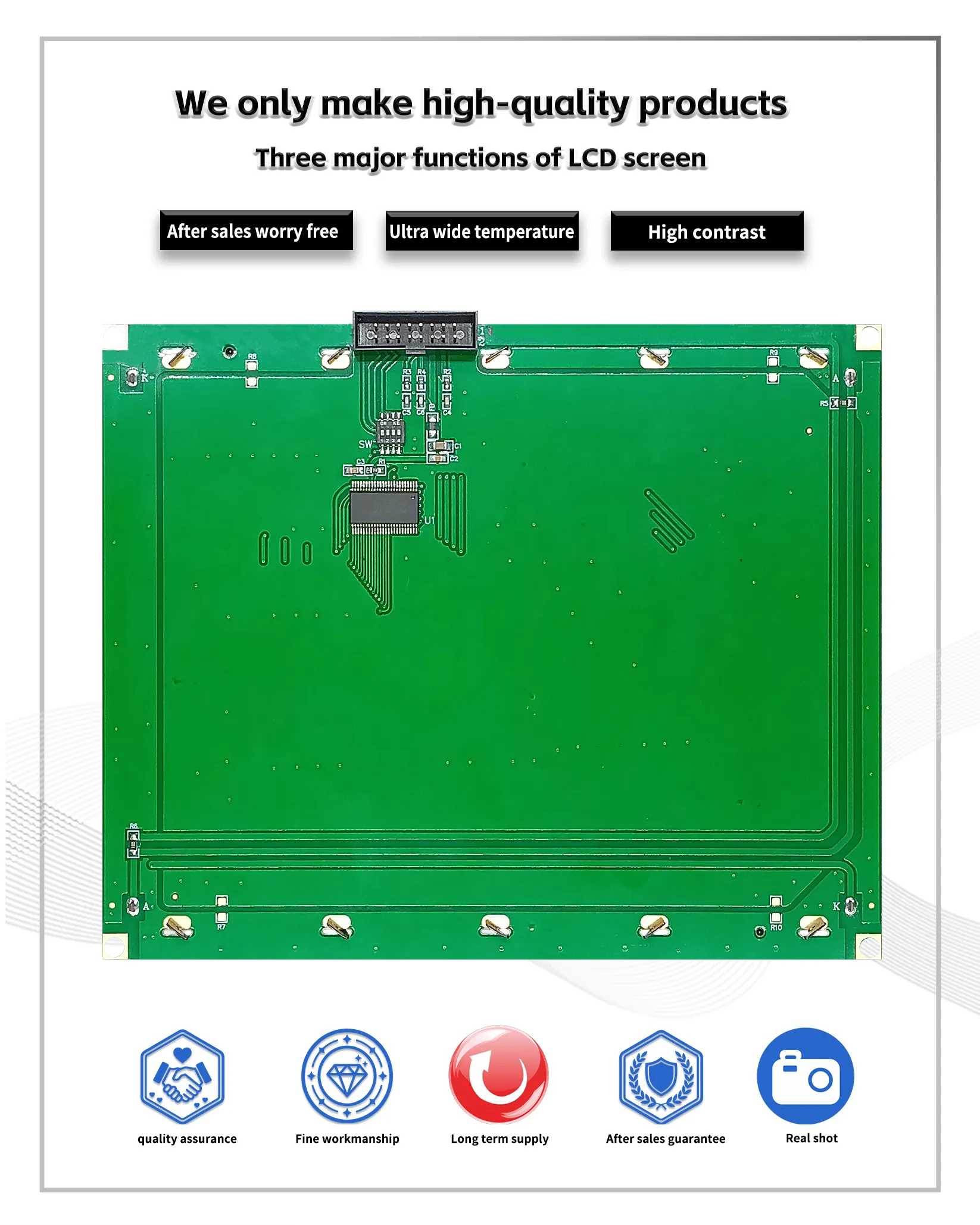

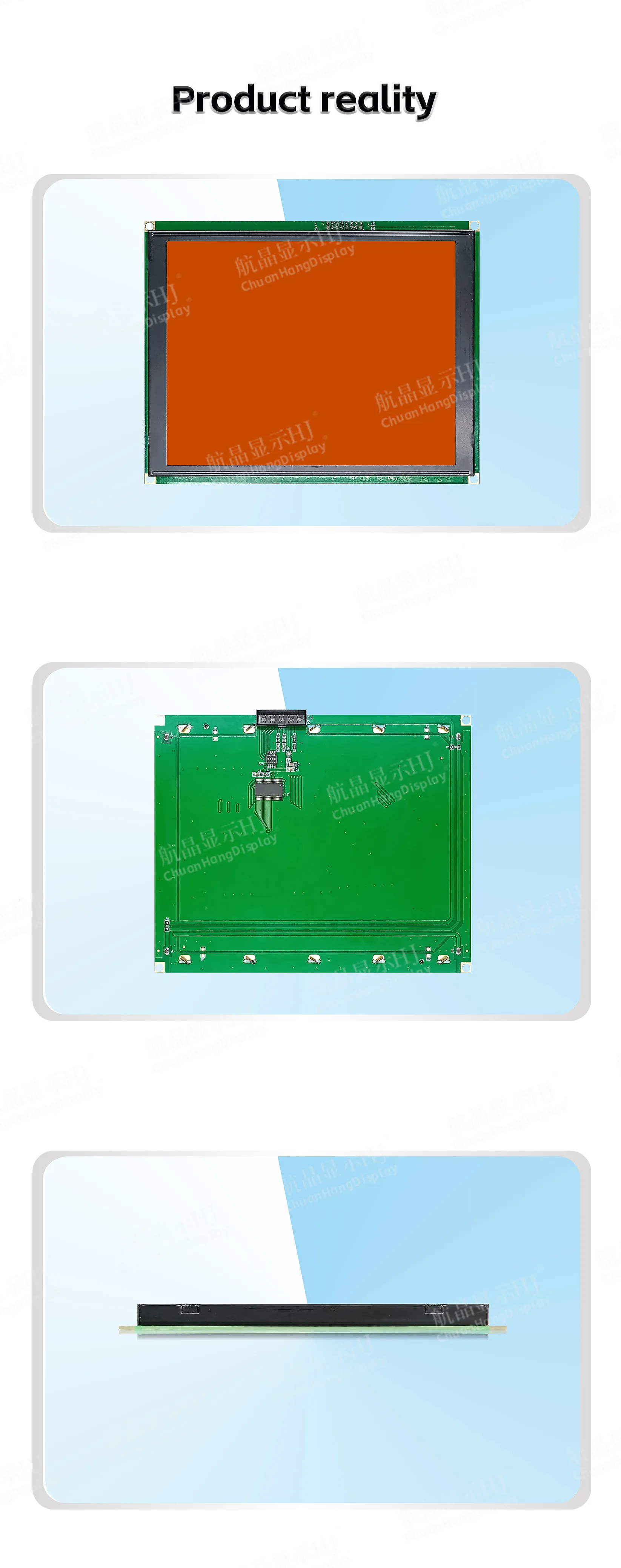

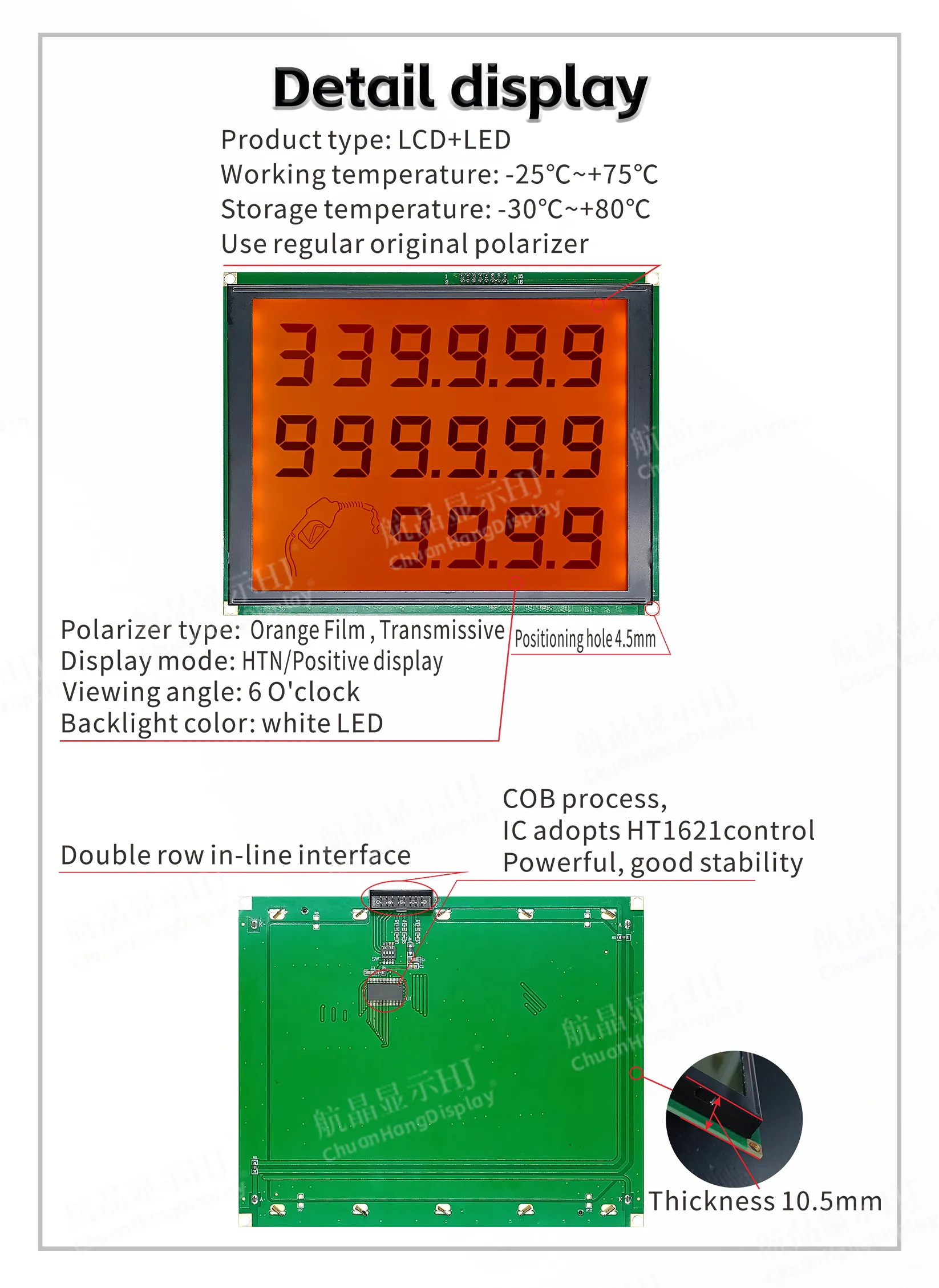

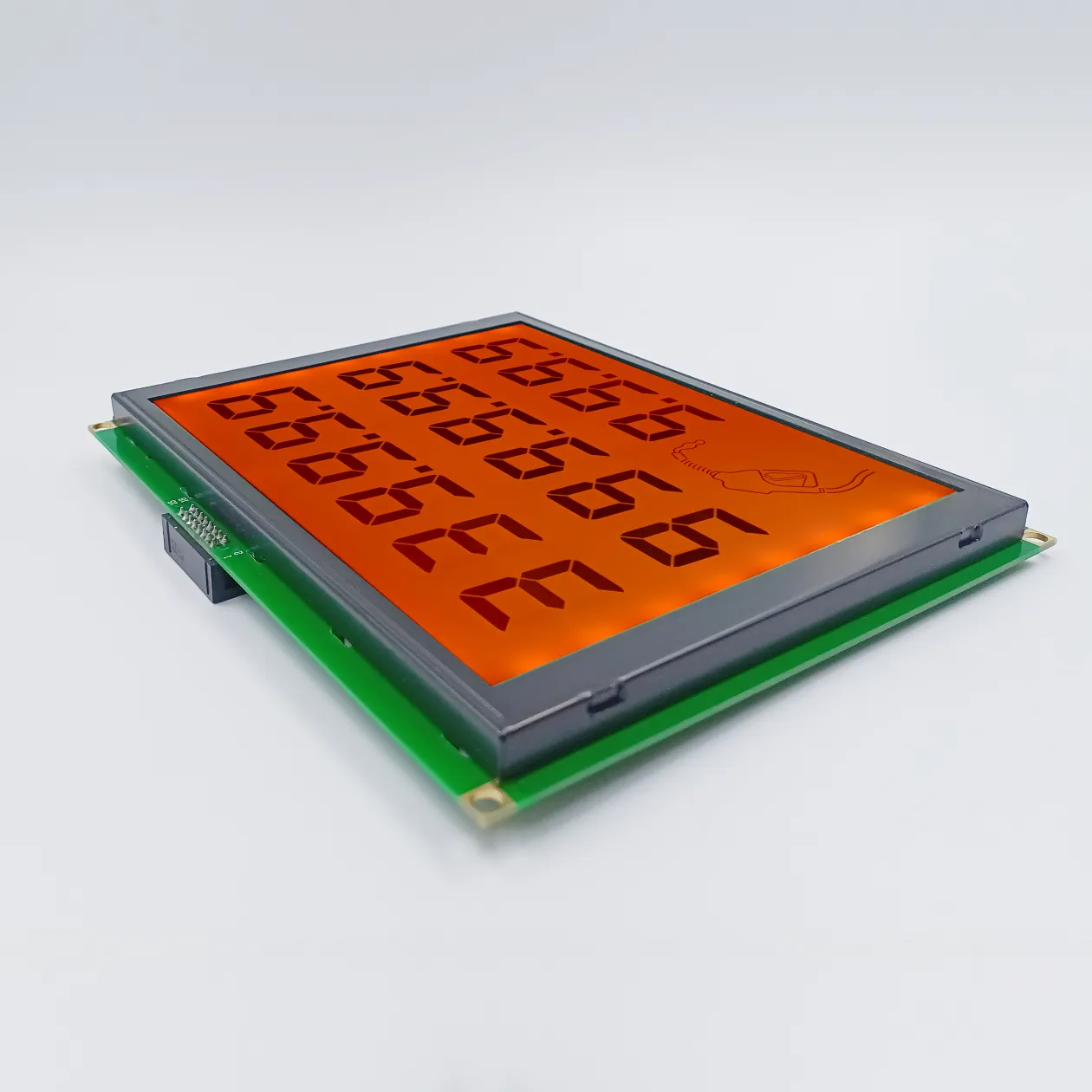

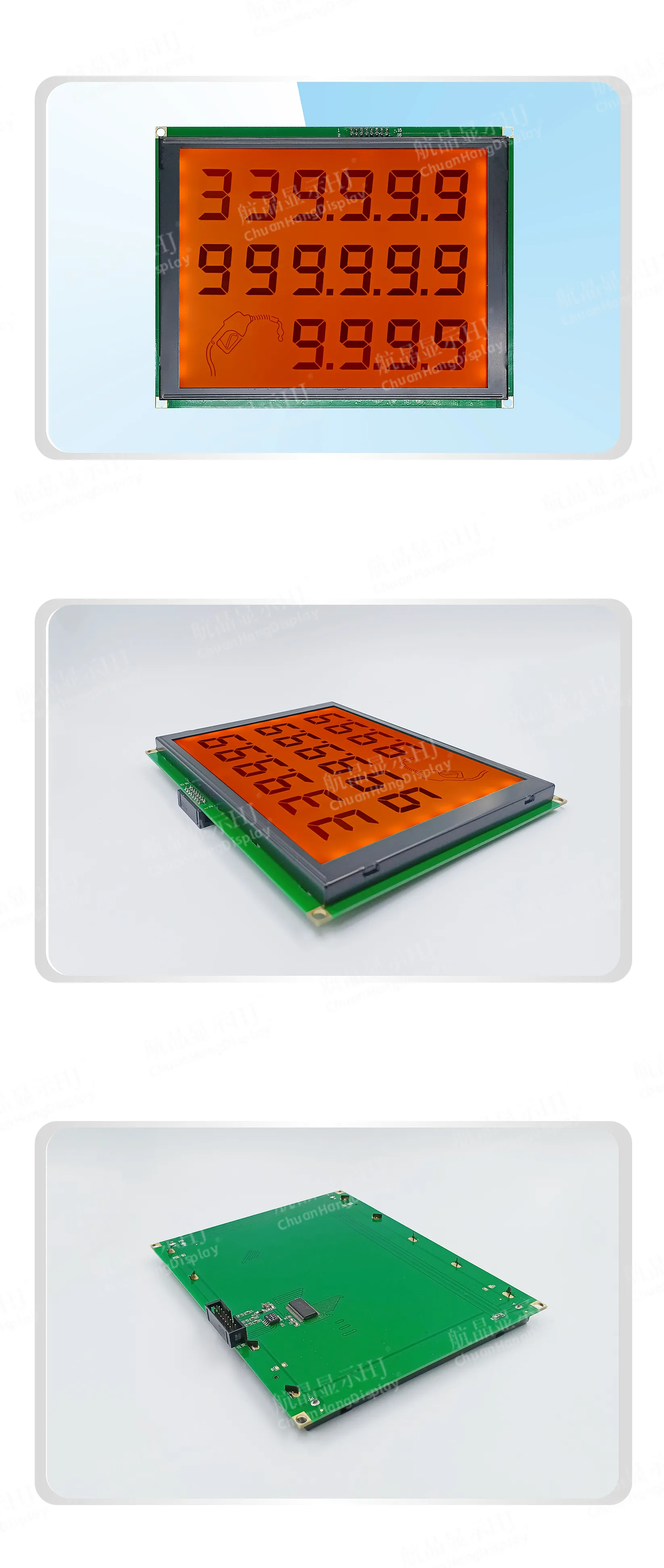

Product Display

CH-D2372A the seven segment display Previous：

CH-D2372A the seven segment display

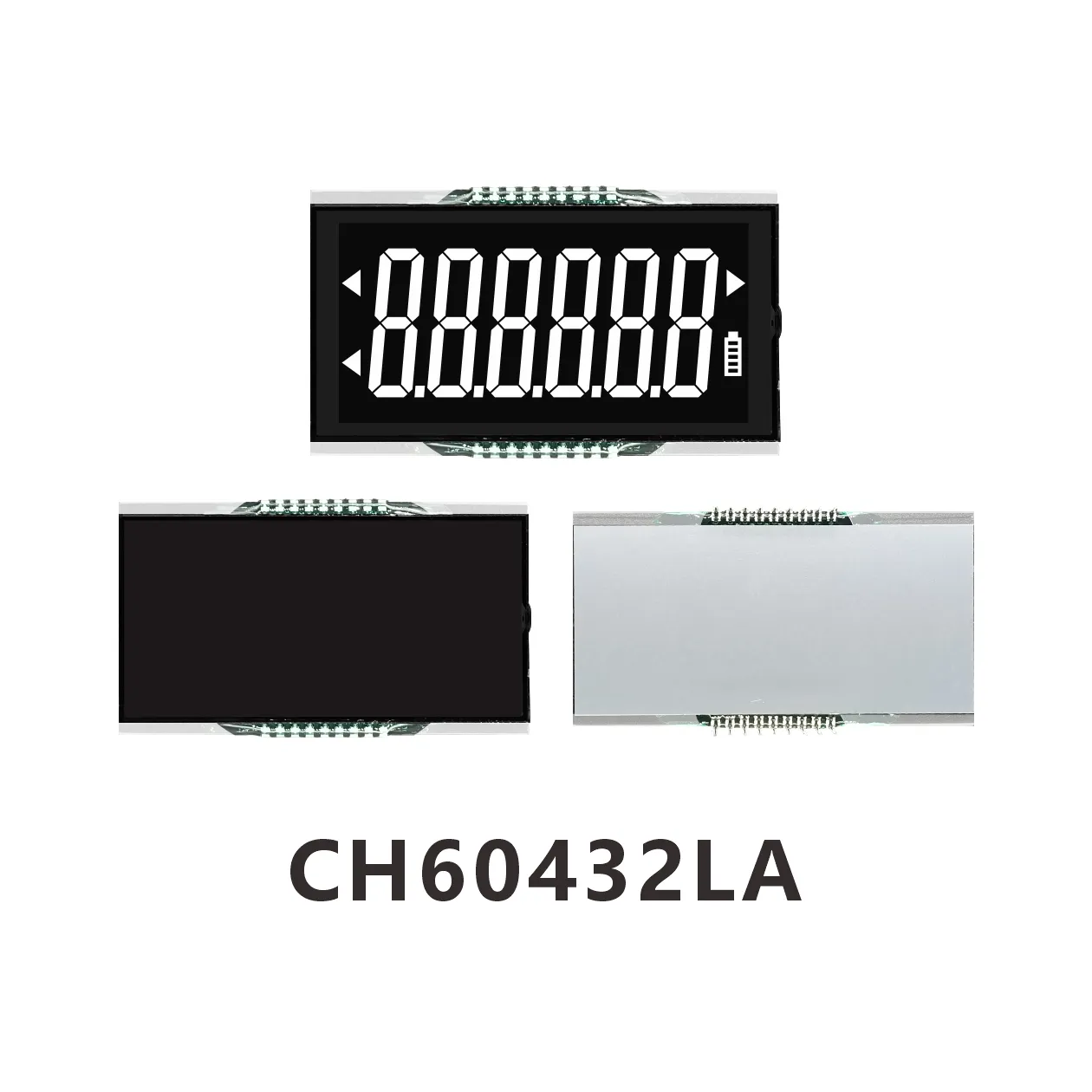

CH604324LA Electronic scale LCD Next：
