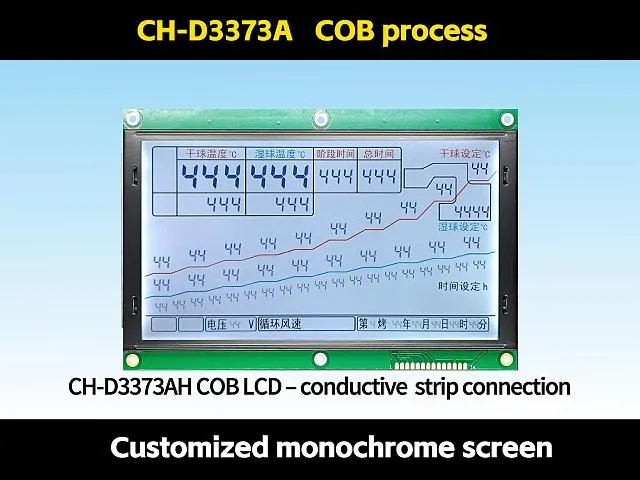

Product Description
LCD Material: HTN LCD
Display Mode: Positive Display
Polarizer Type: Grey film/full penetration
Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1621
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight :White LED
Application industry: Tobacco curing machine
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH-D3373A
Display ModePositive Display Display SizeCustomized
Outline Dimension(L*W*H)190.00x123.00x12.0mmVisible Area(L*W)/
Active Area(L*W)168.4x91.3mmCharacter Size(L*W) /
TypeCOBConnection MethodConductive strip
Supply Voltage3.3V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1621
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES

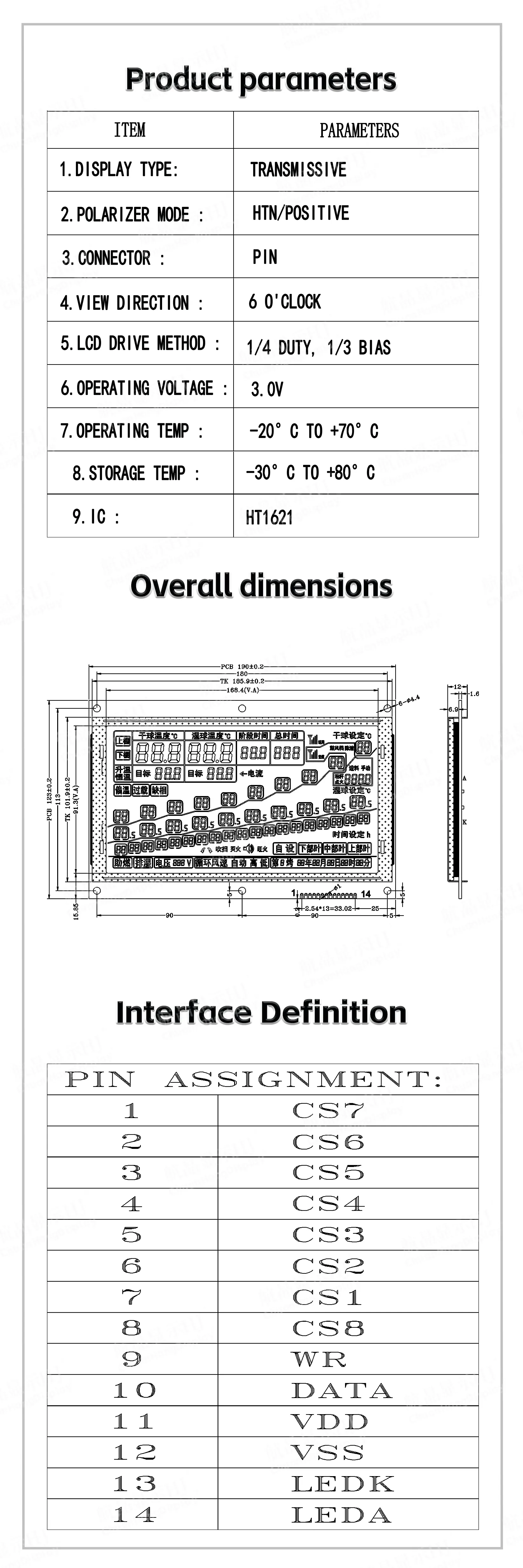

Product Datasheet

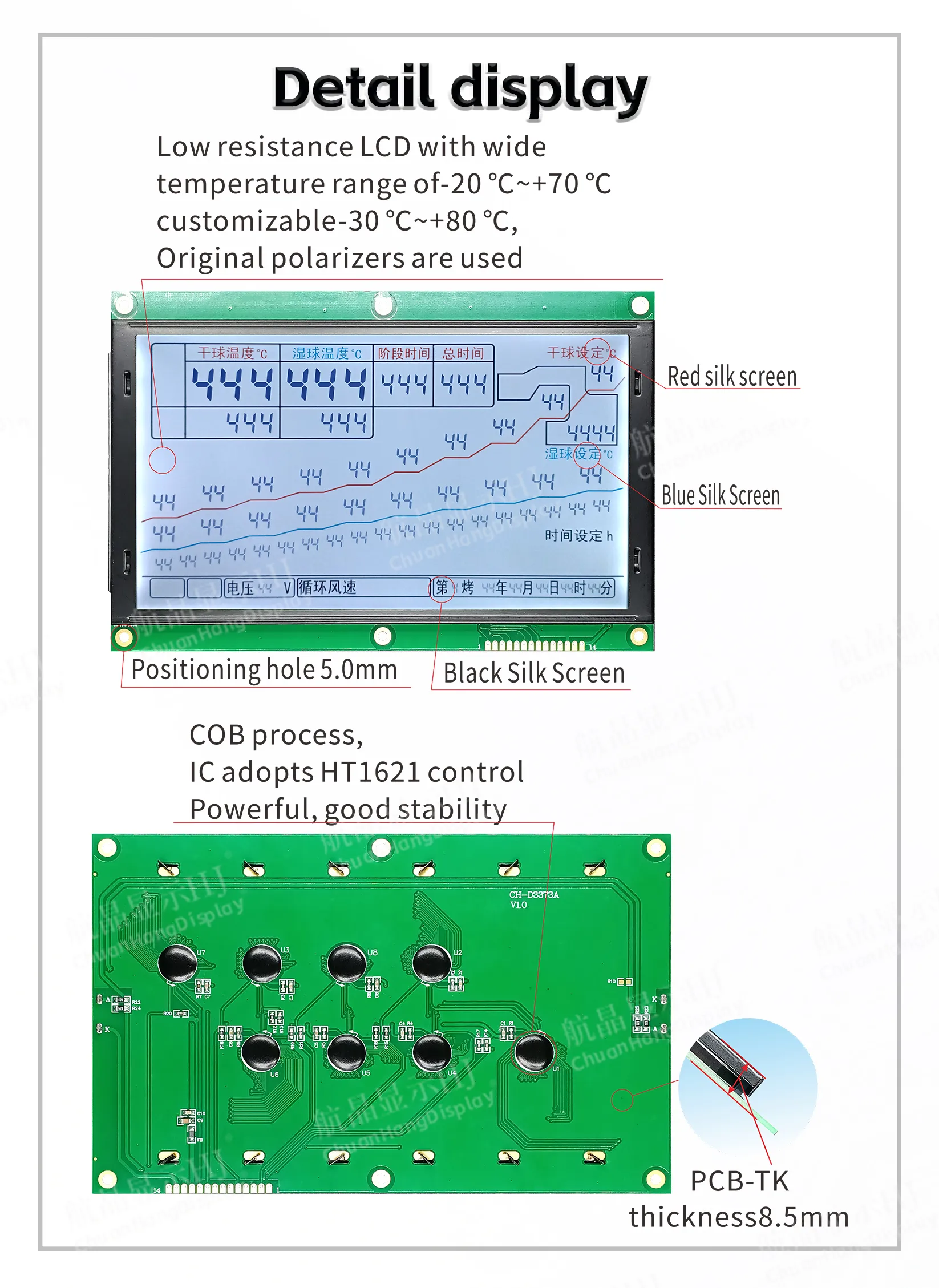

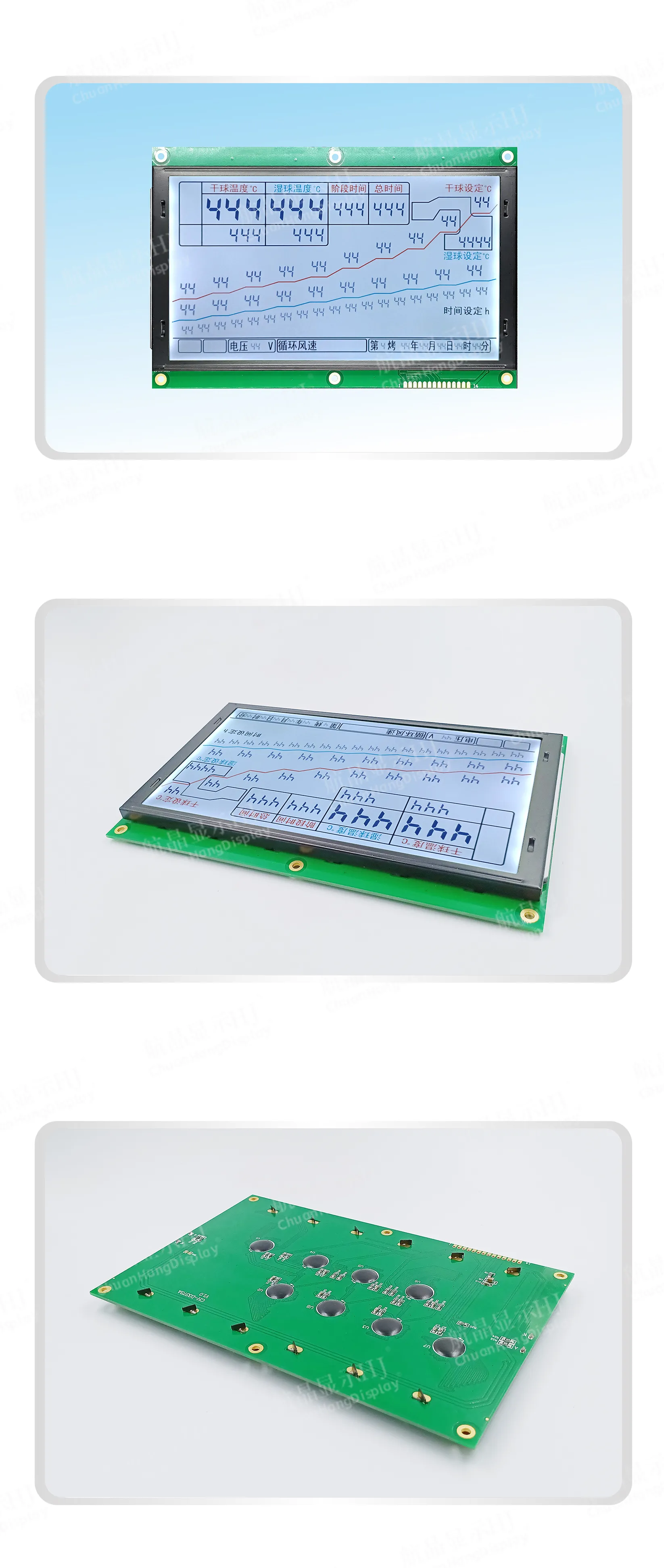

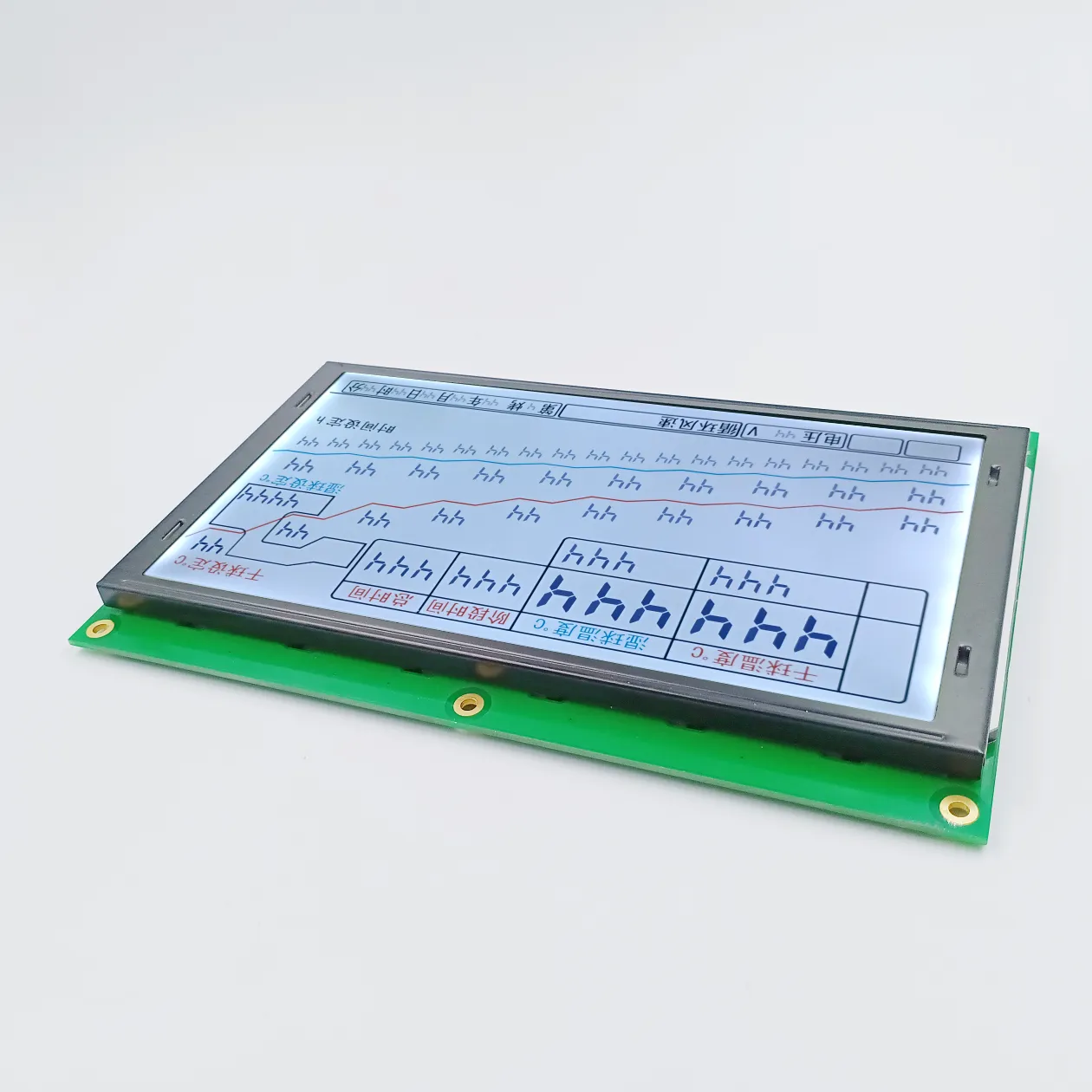

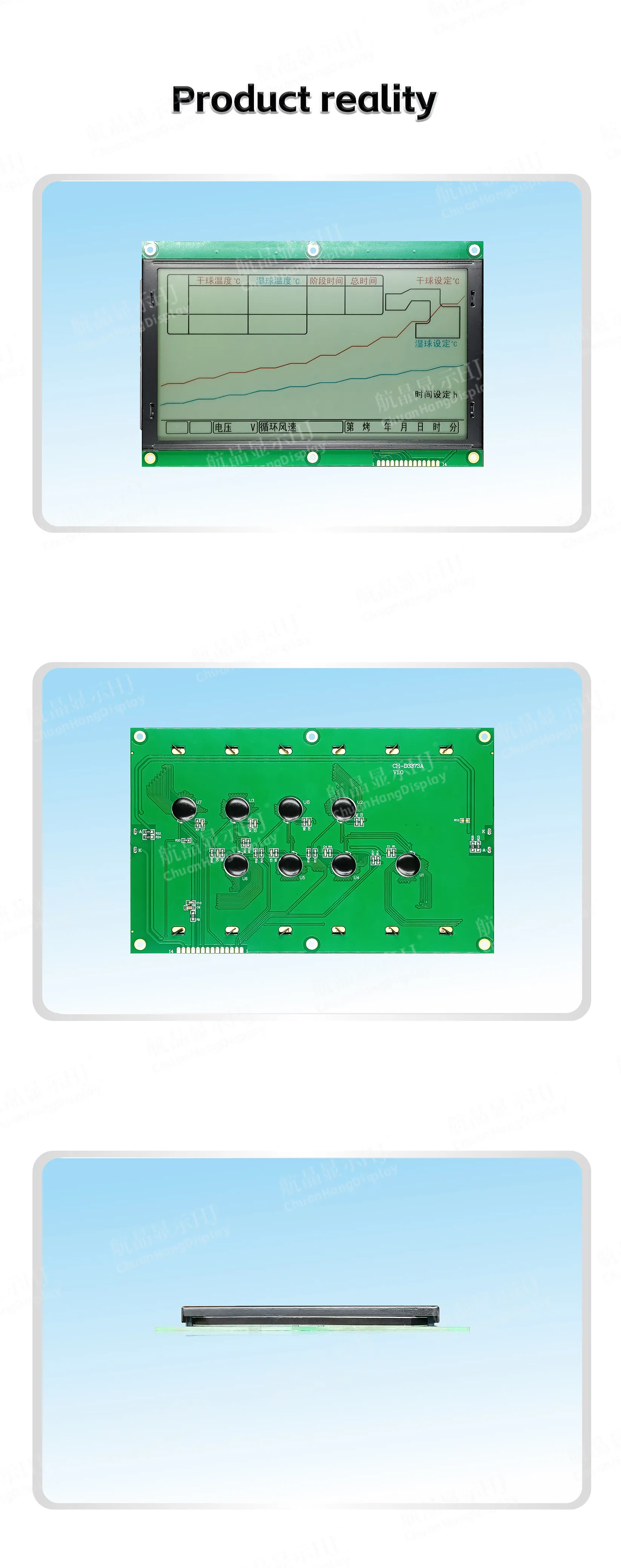

Product Display
