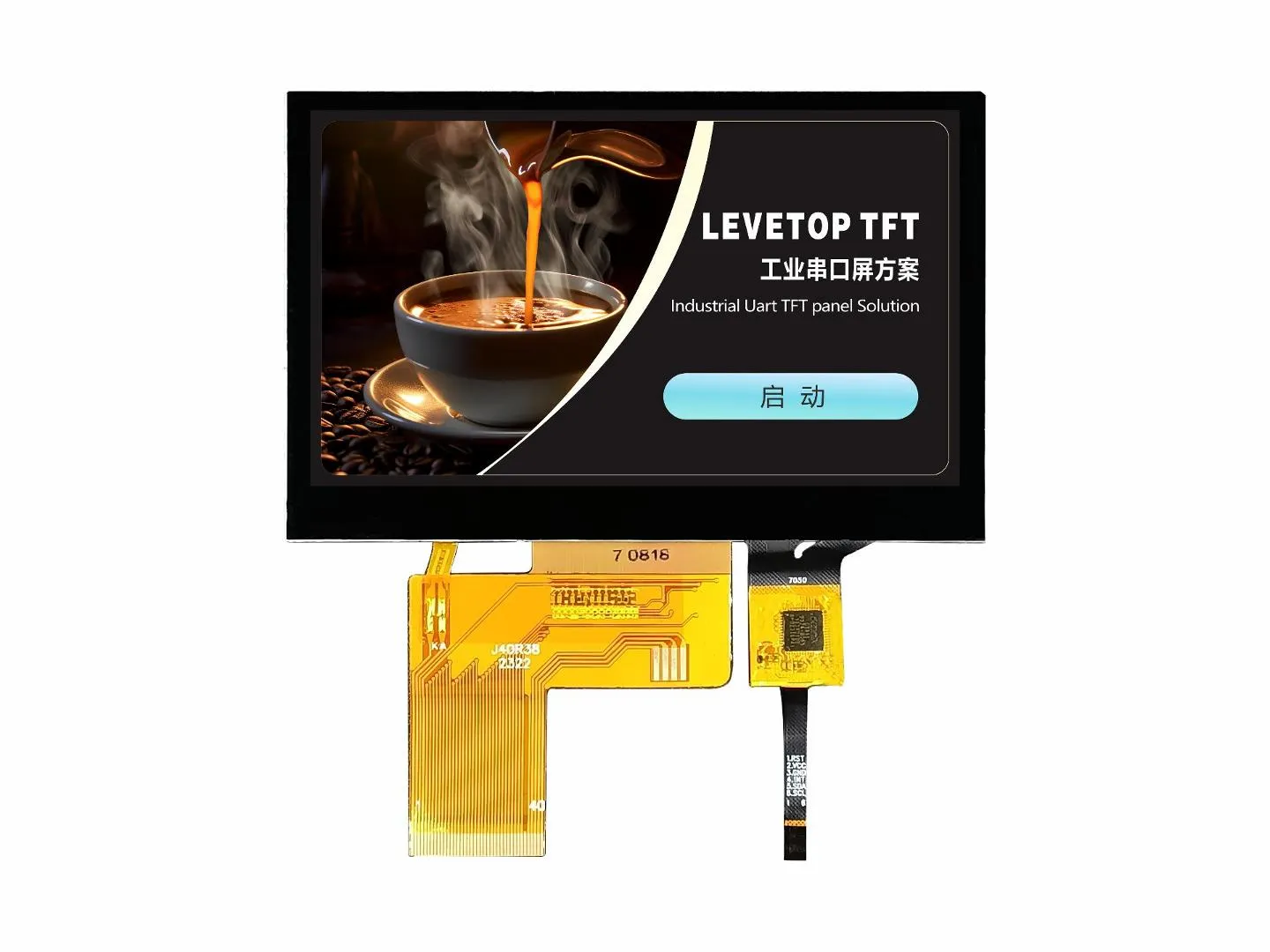

4.3"TFT capacitive touch

4.3"TFT capacitive touch

PRODUCTS CENTER

4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch
4.3"TFT capacitive touch

4.3"TFT capacitive touch

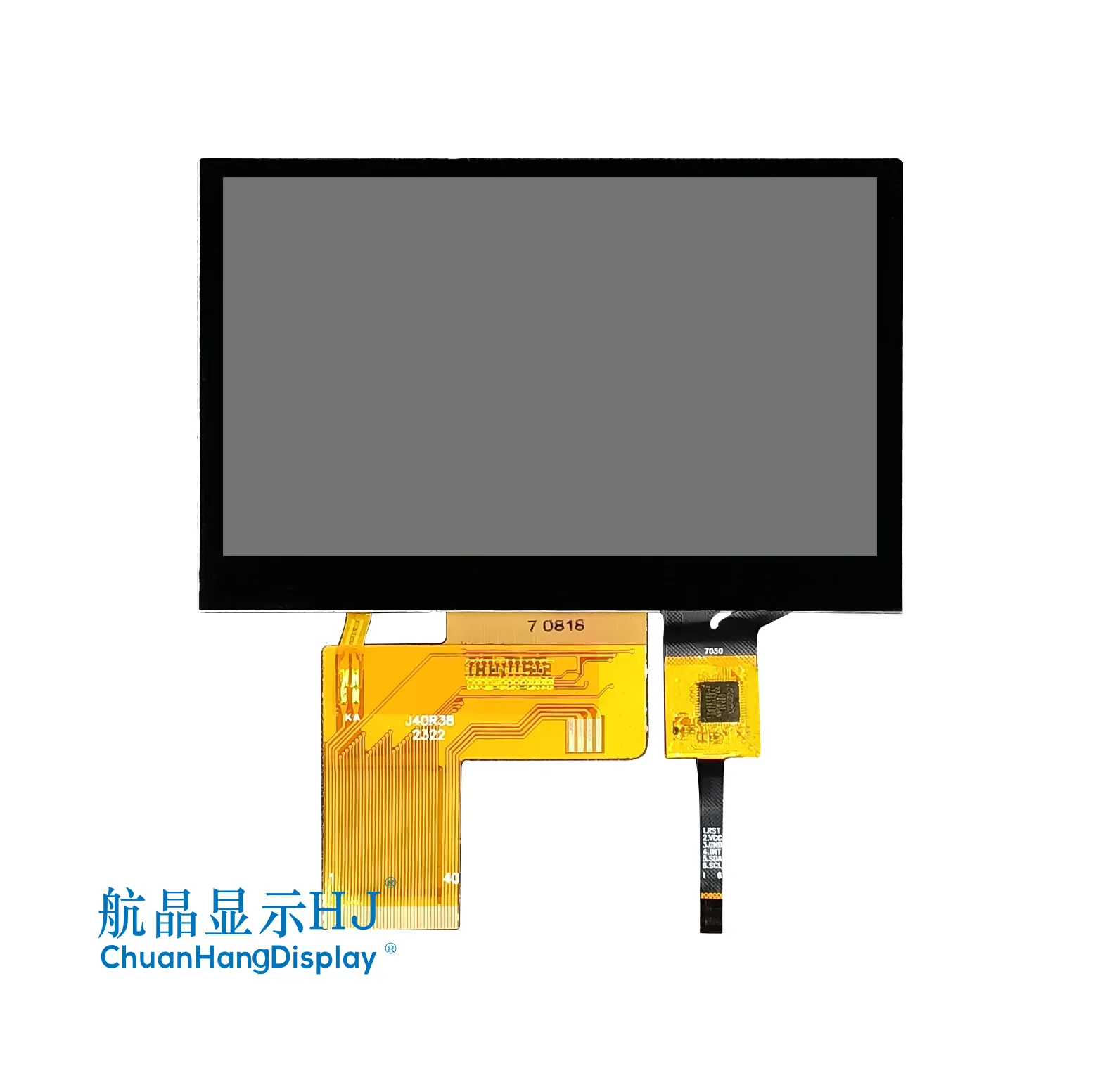

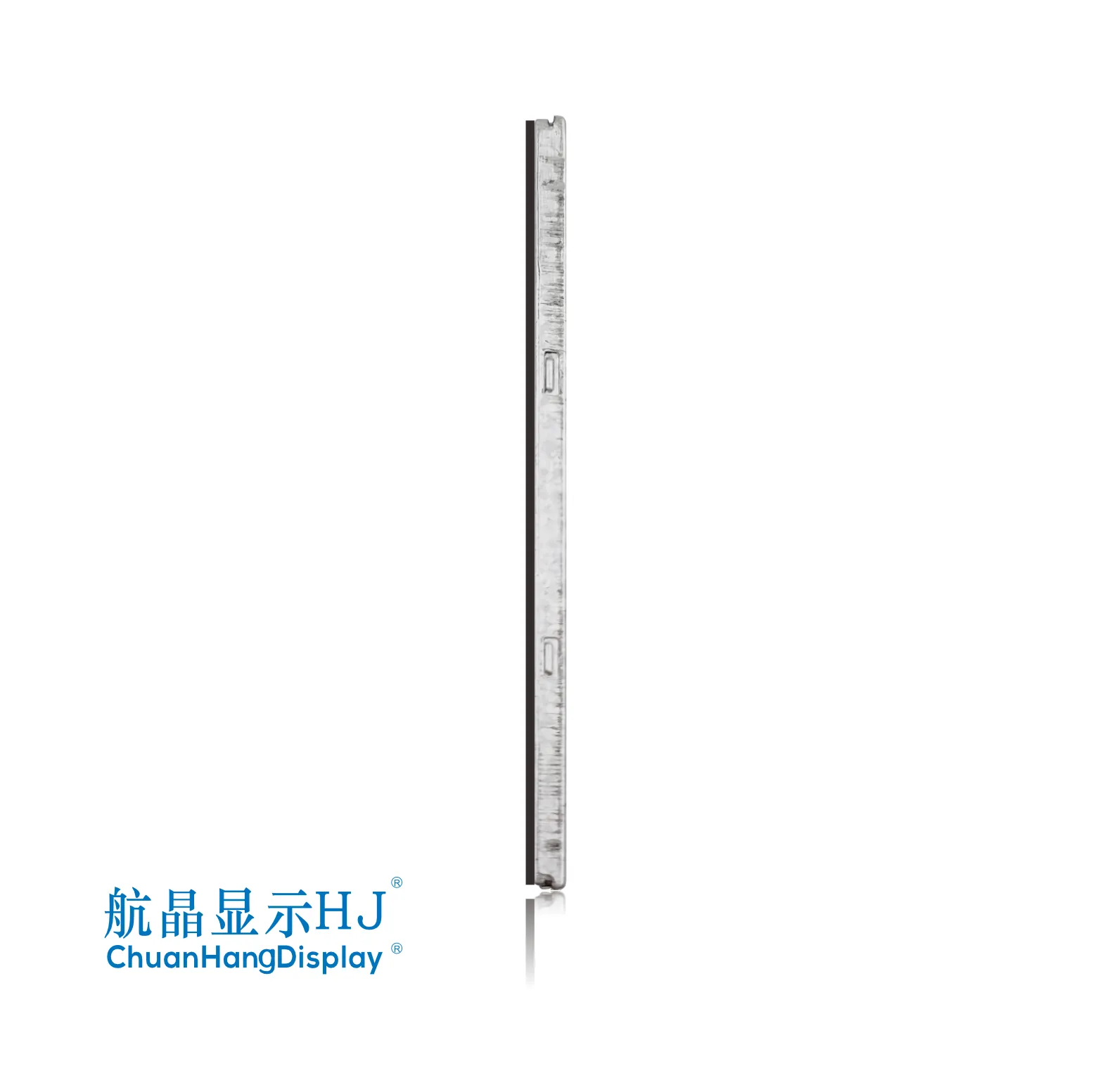

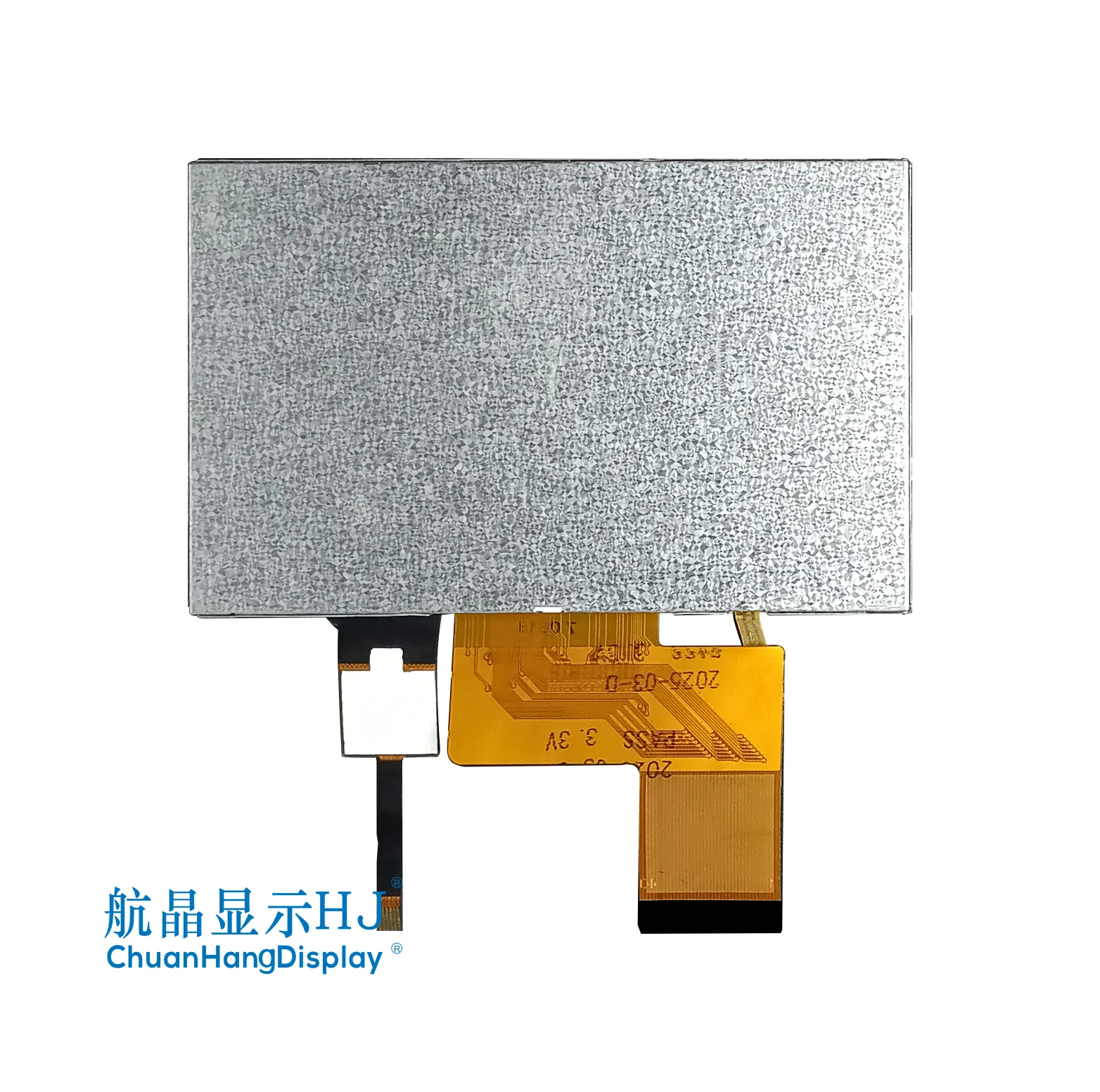

Product Description
Product size: 4.3 inches
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7262
Interface type: Parallel port 8-bit/16-bit
Module size: 104.9x66.5x2.5mm
Display area: 95.04x53.86 mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Display color: TFT
Capacitive touch: GT911 chip
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH430-GT
Resolution 800xRGBx480 Screen size 4.3”

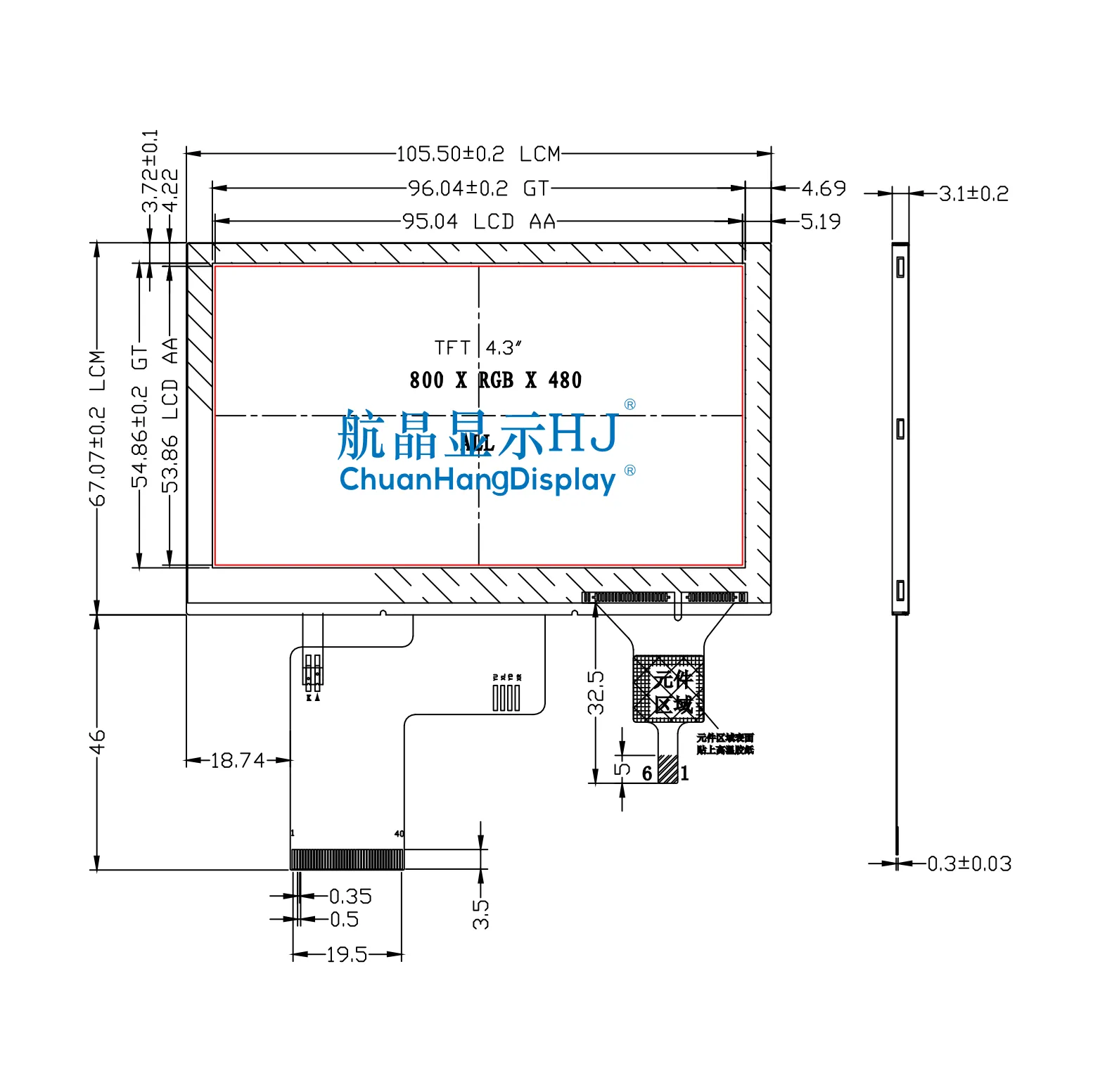

Outline Dimension(L*W*H) 105.50x67.07x3.1mm Visible Area(L*W)
Active Area(L*W) 95.04x53.86mm Type COG
Communication interface Parallel port 8-bit/16-bit Operating Voltage 3.3V
Interface Type 40PIN Viewing Direction IPS Full perspective
Capacitive touch chip GT911 chip Driver IC ST7262
Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃
Production capacity Self-produced Whether to bring PCB NO

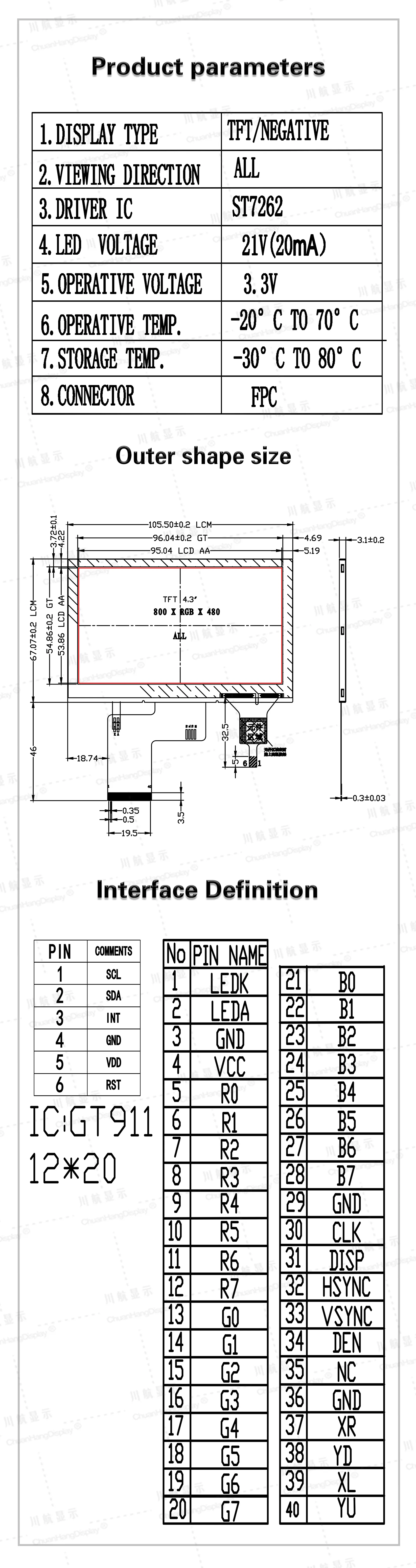

Product Datasheet

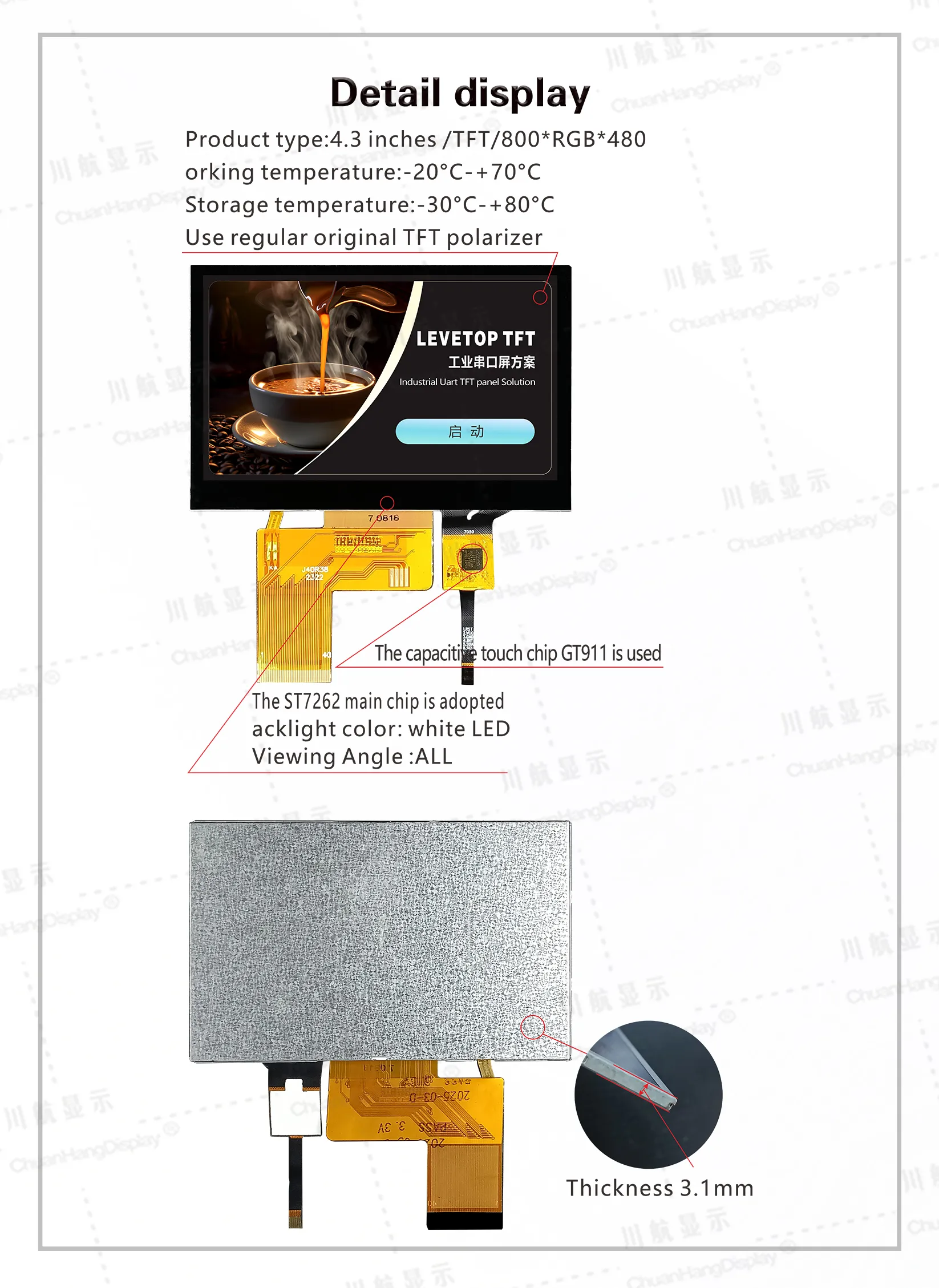

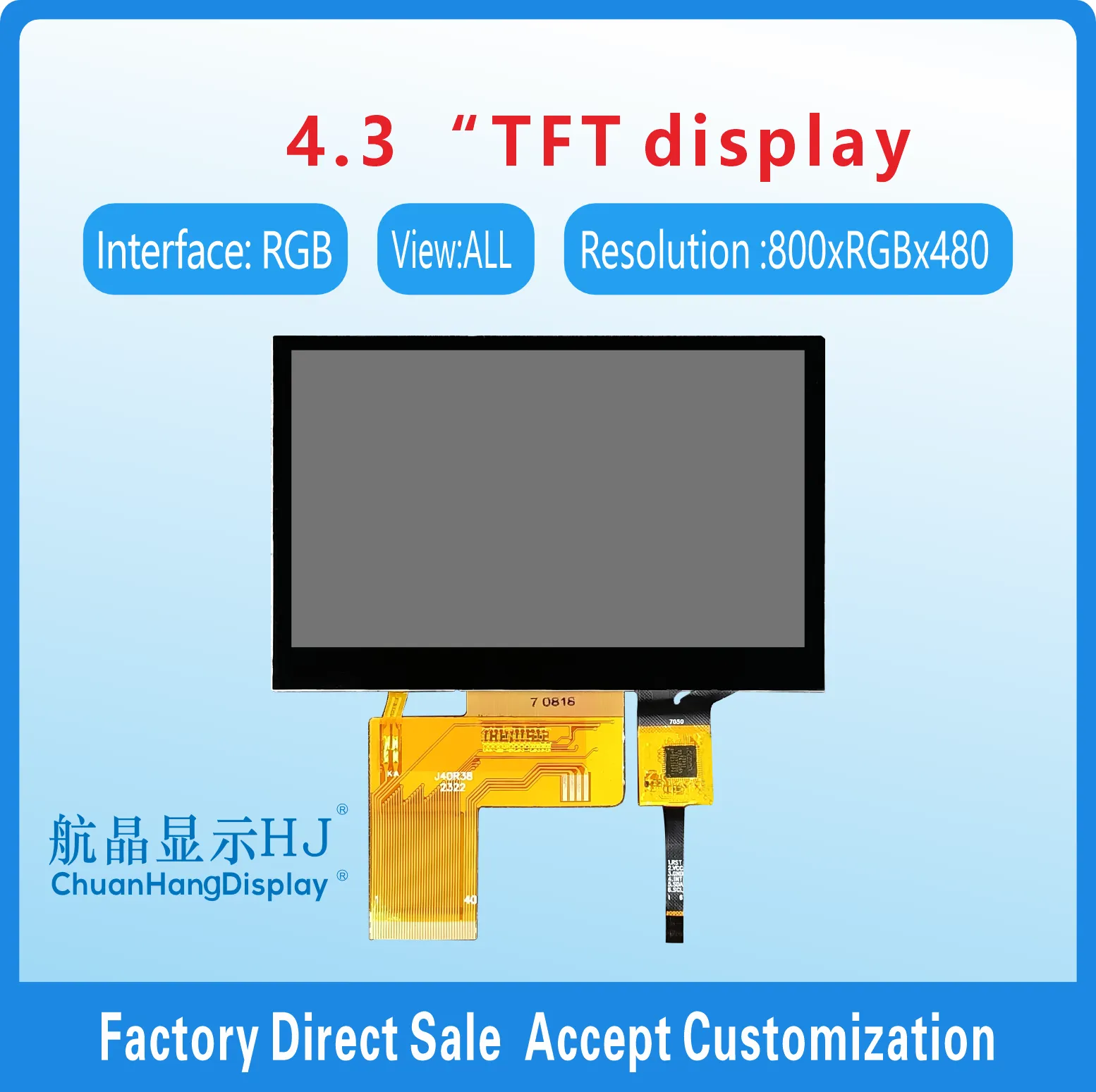

Product Display

4.3“TFT LCD display Previous：

4.3“TFT LCD display

4.3" TFT resistance touch screen Next：

4.3" TFT resistance touch screen

Product Label: with capacitive touch 4.3 inch 4.3"TFT capacitive touch RGB interface tft ips lcd screen 4.3 inch 800*480 high brightness full viewing angle
