Product Description
Product size: 4.3 inches
Resolution: 480xRGBx272
Viewing angle: IPS full viewing angle
Driver chip: ST7262
Interface type: Parallel port 8-bit/16-bit
Module size: 105.50X67.07X3.1mm
Display area: 95.04*53.86mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Display color: TFT
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH430
Resolution480xRGBx272 screen size4.3”
Outline Dimension(L*W*H)105.50X67.07X3.1mmVisible Area(L*W)
Active Area(L*W)95.04*53.86mmTypeCOG
Connection MethodFPCOperating Voltage3.3V
Interface Type40PINViewing DirectionIPS Full perspective
Communication interfaceParallel port 8-bit/16-bitDisplay ColorTFT
Driver ICST7262Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃Backlight parameters
production capacitySelf-producedWhether to bring PCBNO

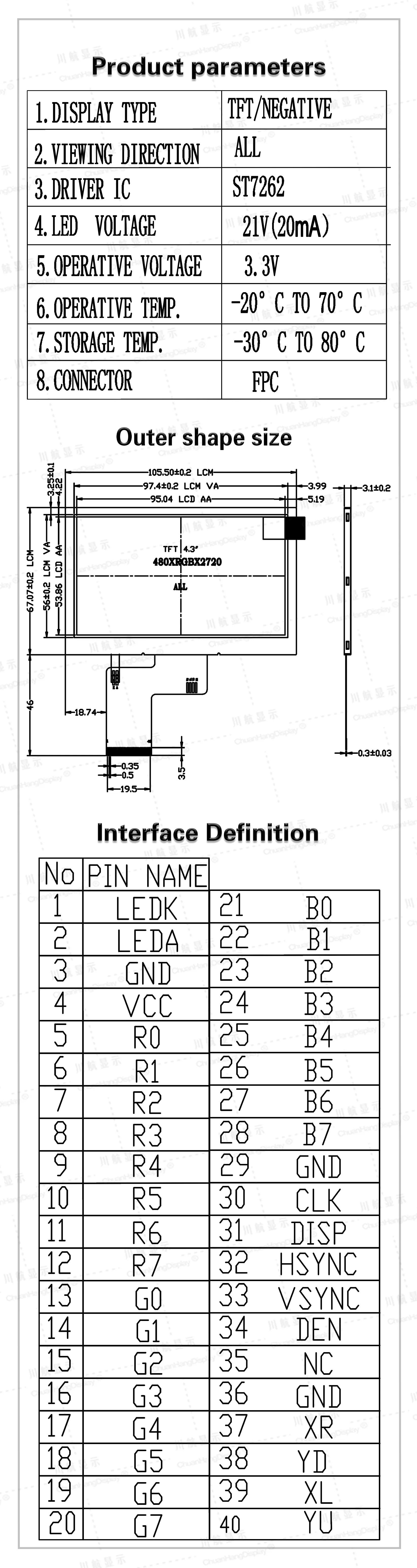

Product Datasheet

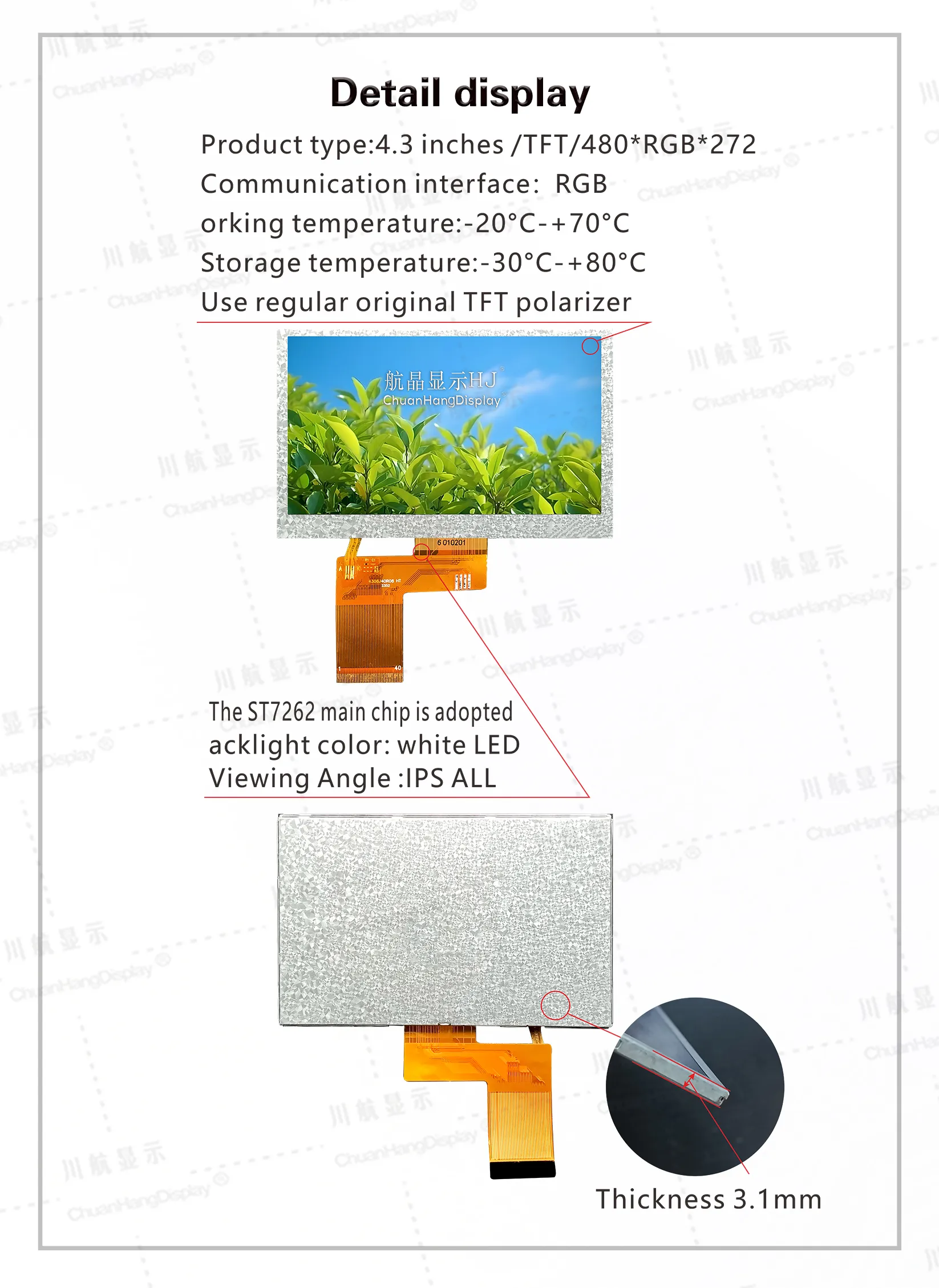

Product Display
