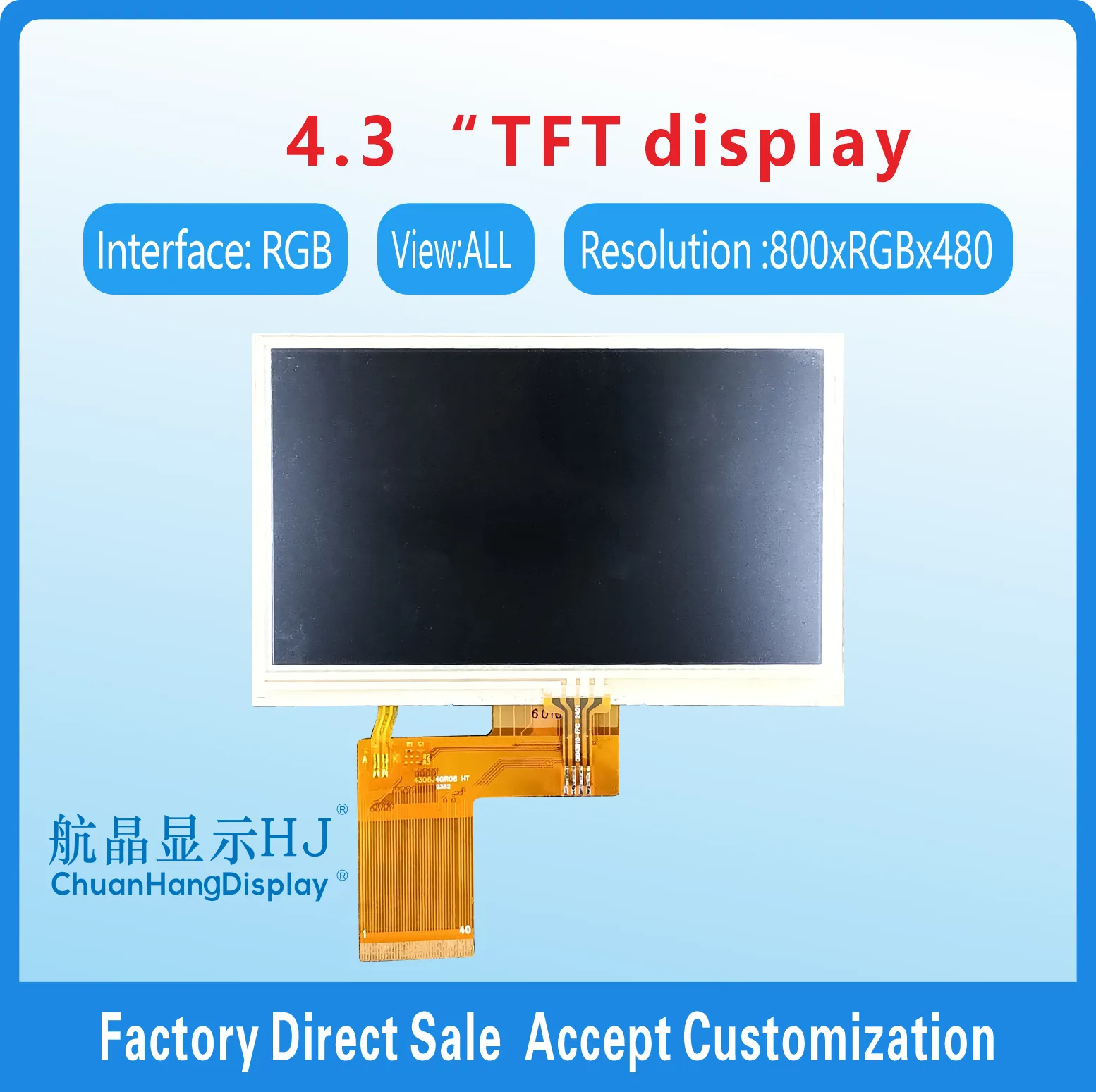

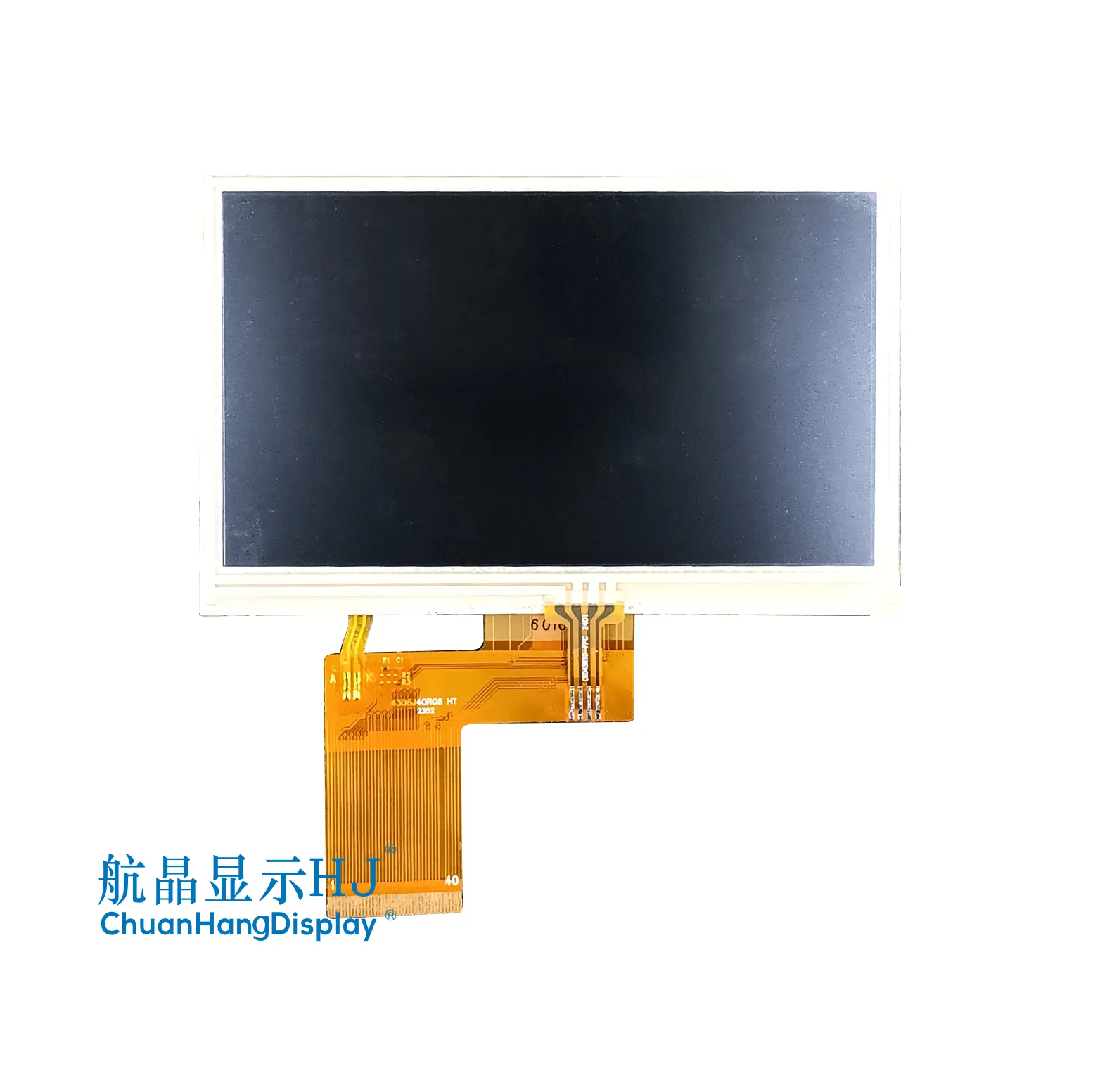

4.3" TFT resistance touch screen

4.3" TFT resistance touch screen

PRODUCTS CENTER

4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen
4.3" TFT resistance touch screen

4.3" TFT resistance touch screen

Product Description
Product size: 4.3 inches
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Touch screen: resistive touch
Driver chip: ST7262
Interface type: RGB
Module size: 104.9*66.5*2.5 mm
Display area: 95.04*53.86 mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃-70℃
Storage temperature: -30℃-80℃
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH430-TP
Resolution 800xRGBx480 screen size 4.3”

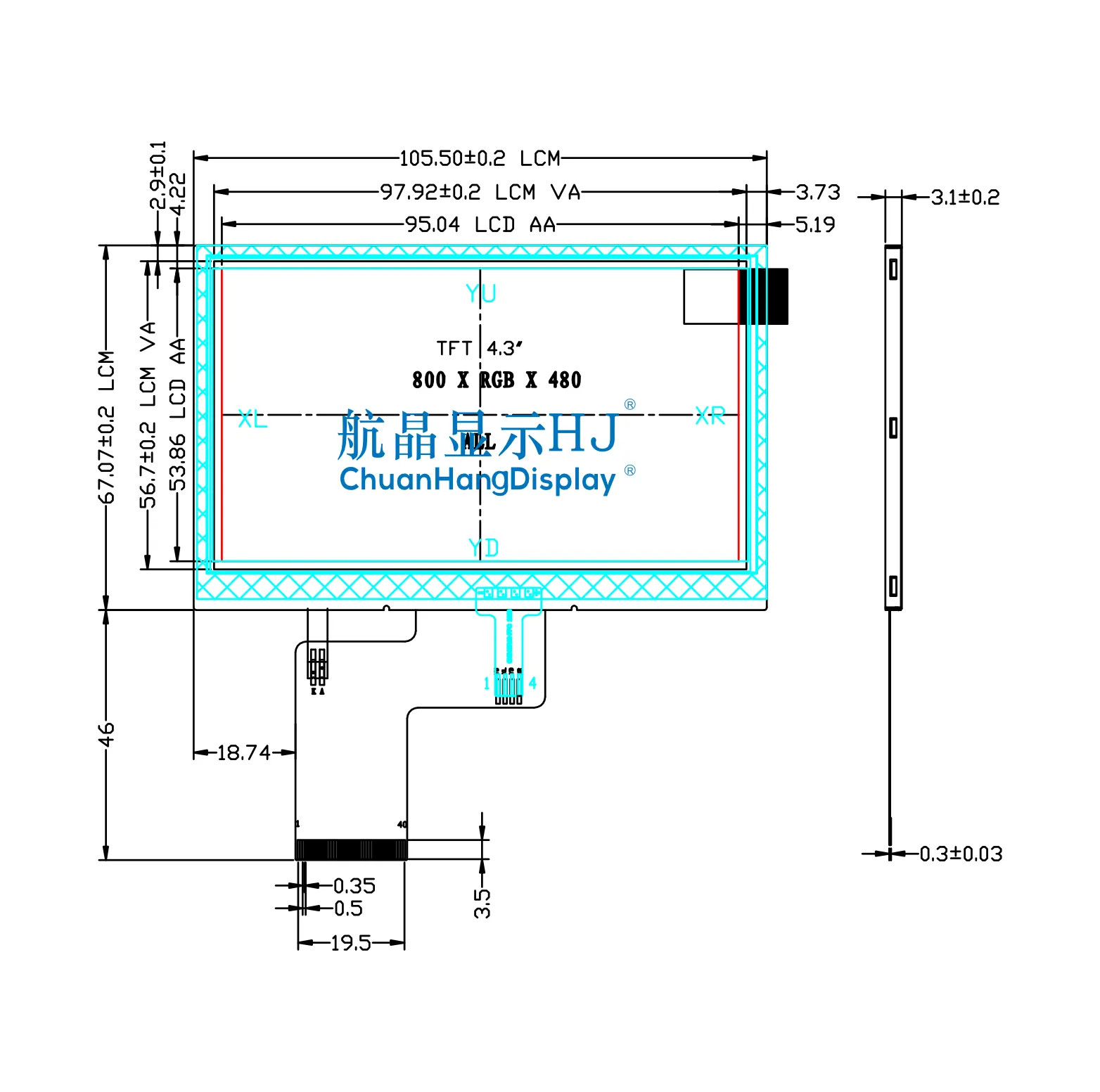

Outline Dimension(L*W*H) 105.50x67.07x3.1mm Visible Area(L*W)
Active Area(L*W) 95.04x53.86mm Type COG
Connection Method FPC Operating Voltage 3.3V
Communication interface Parallel port 8-bit/16-bit Viewing Direction IPS Full perspective
Type of touch Resistance touch Interface Type 40PIN
Driver IC ST7262 Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃ Display color TFT
production capacity Self-produced Whether to bring PCB NO

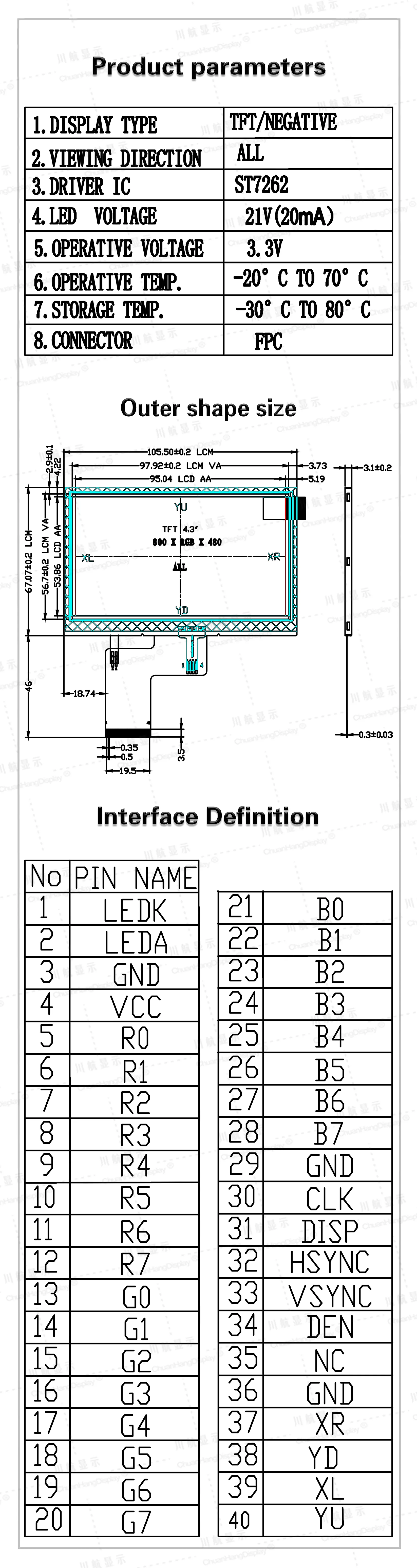

Product Datasheet

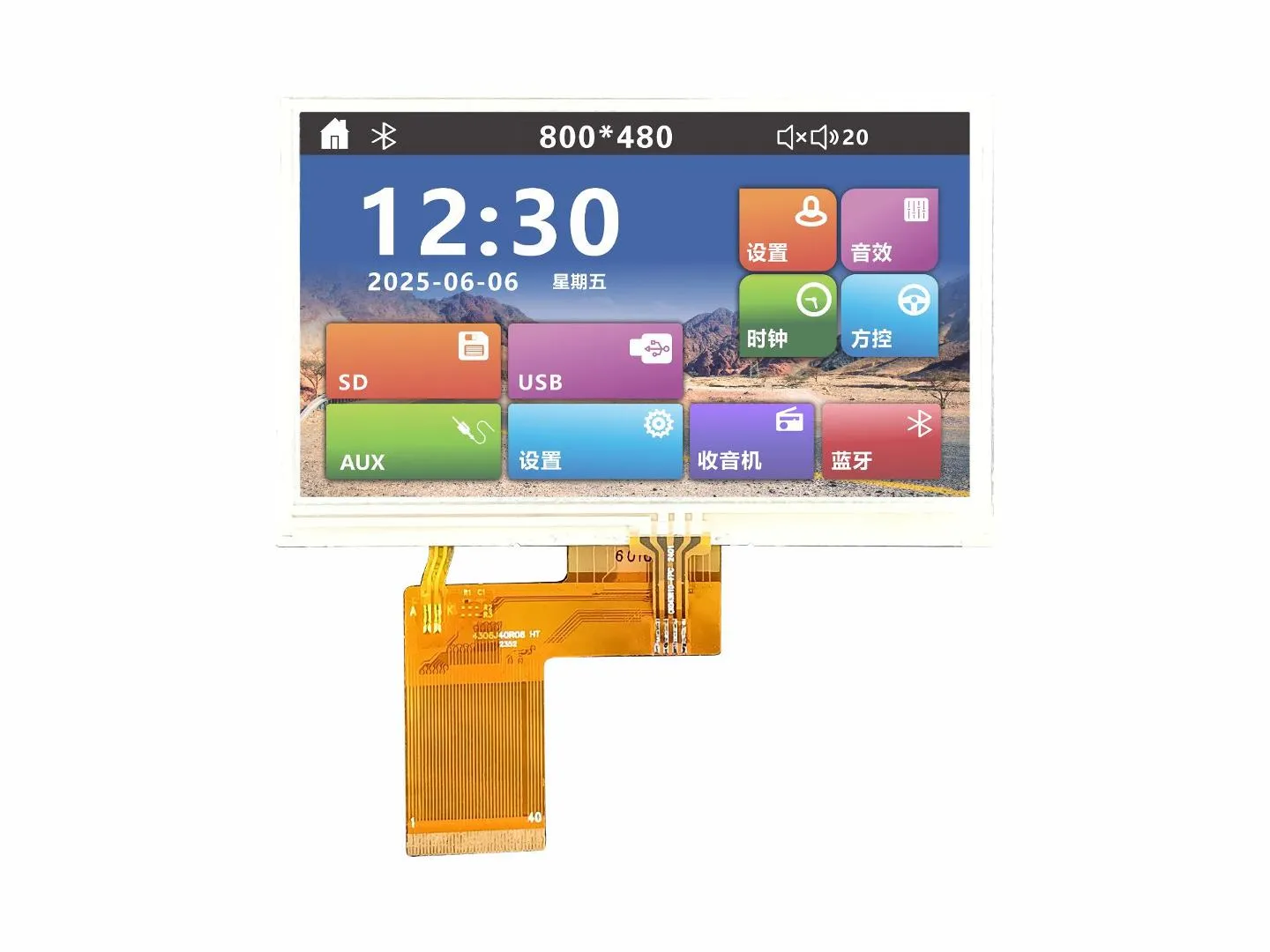

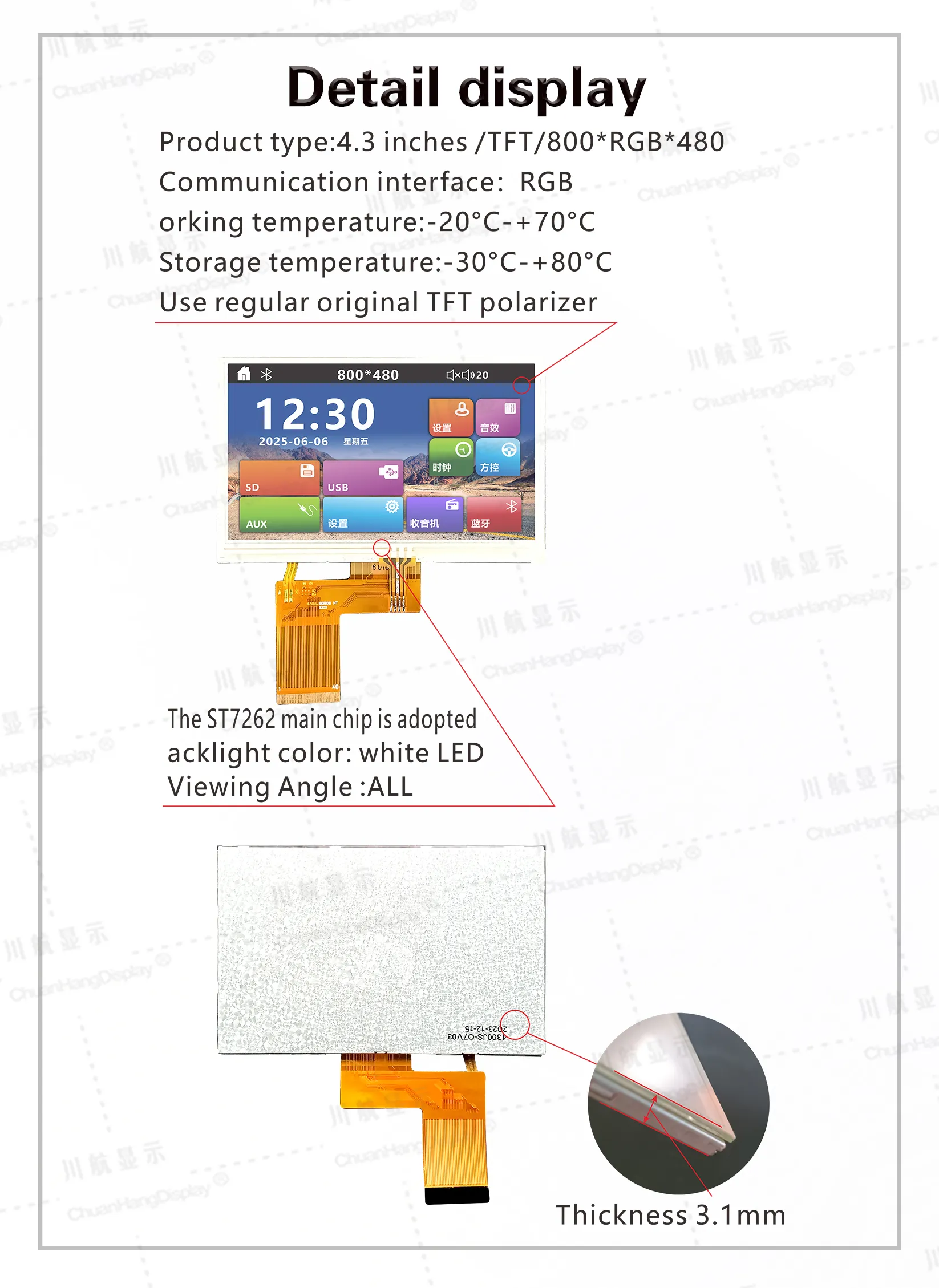

Product Display

4.3"TFT capacitive touch Previous：

4.3"TFT capacitive touch

Next：

There is nothing left.

Product Label: High Brightness RTP 4.3 Inch Resistive Touch Panel 4.3 Inch 800 X 480 Rgb Interface Industrial TFT LCD Module with Resistive Touch Panel
