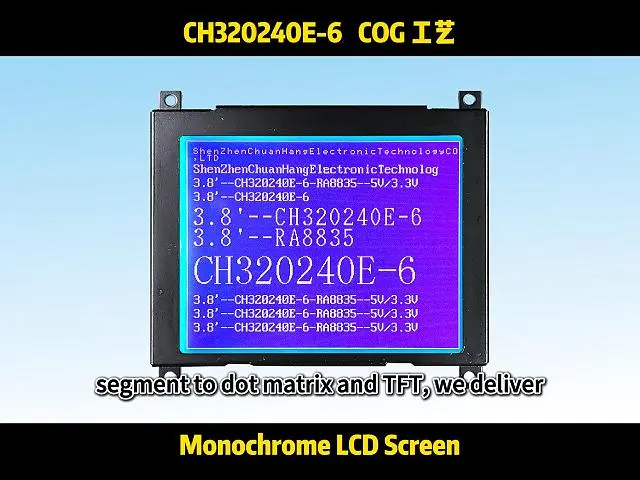

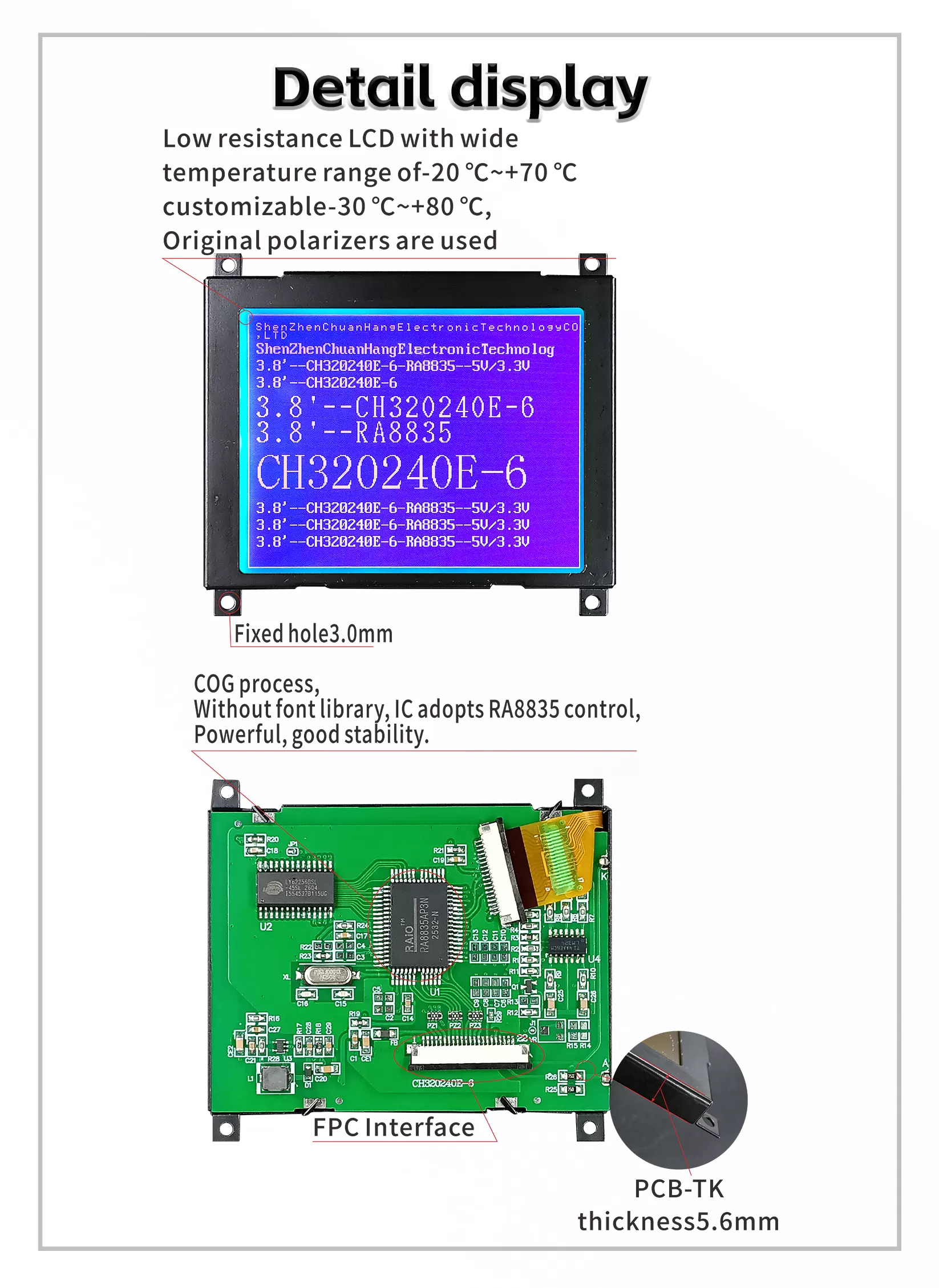

CH320240E-6
Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH320240E-6 |
| Resolution | 320x240 | screen size | 3.8" |

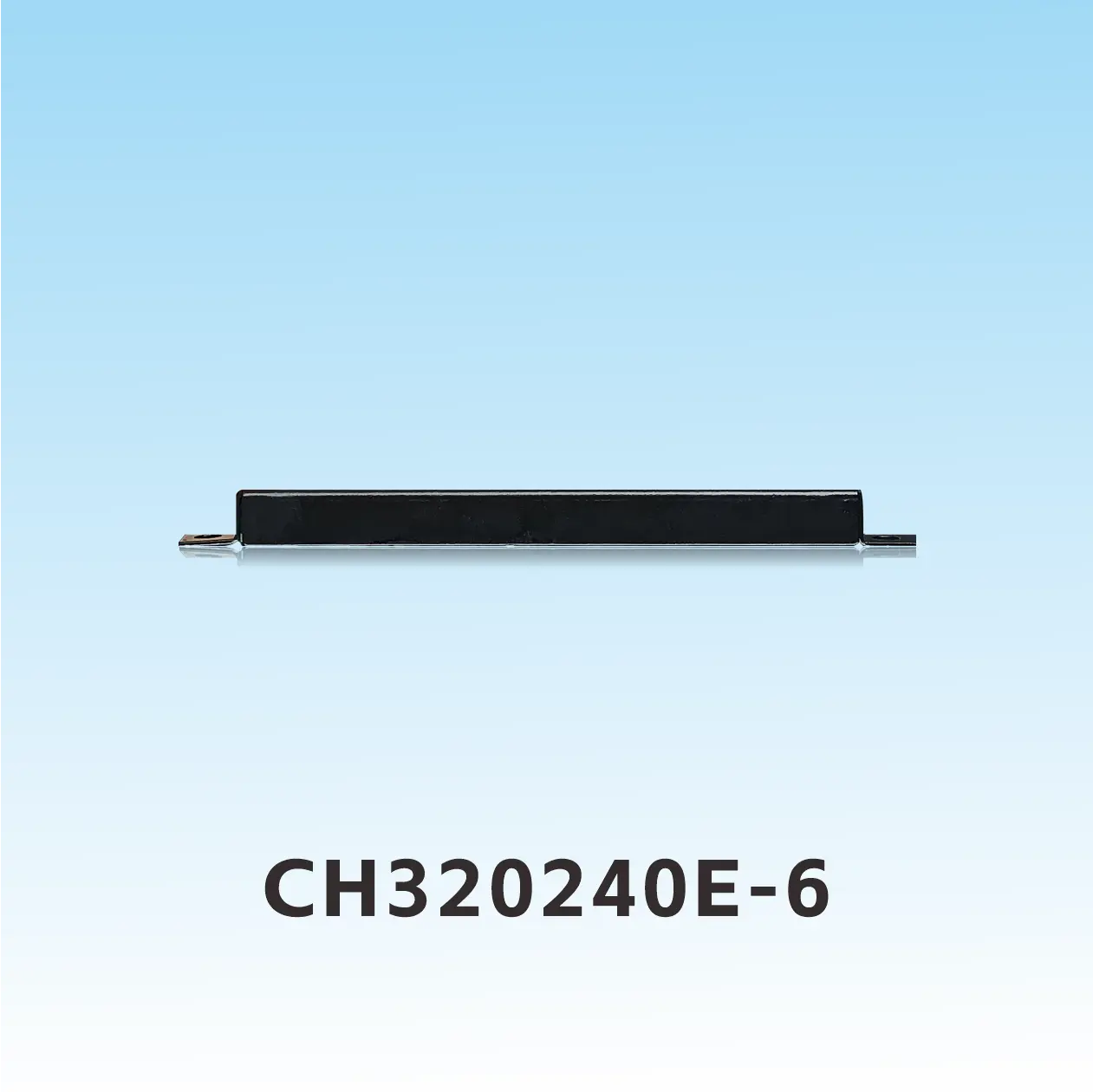

| Outline Dimension(L*W*H) | 94.7x83.3x12.0 mm | Visible Area(L*W) | 79.2x60.0 mm |
| Active Area(L*W) | 76.78x57.58 mm | Dot Size (mm) | 0.225(L)x0.225(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 5V/3.3V | Interface Type | MCU |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/240Duty,1/16Bias |
| Display Type | Driver IC | RA8835 | |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 5V/3.3V | production capacity | Self-produced |

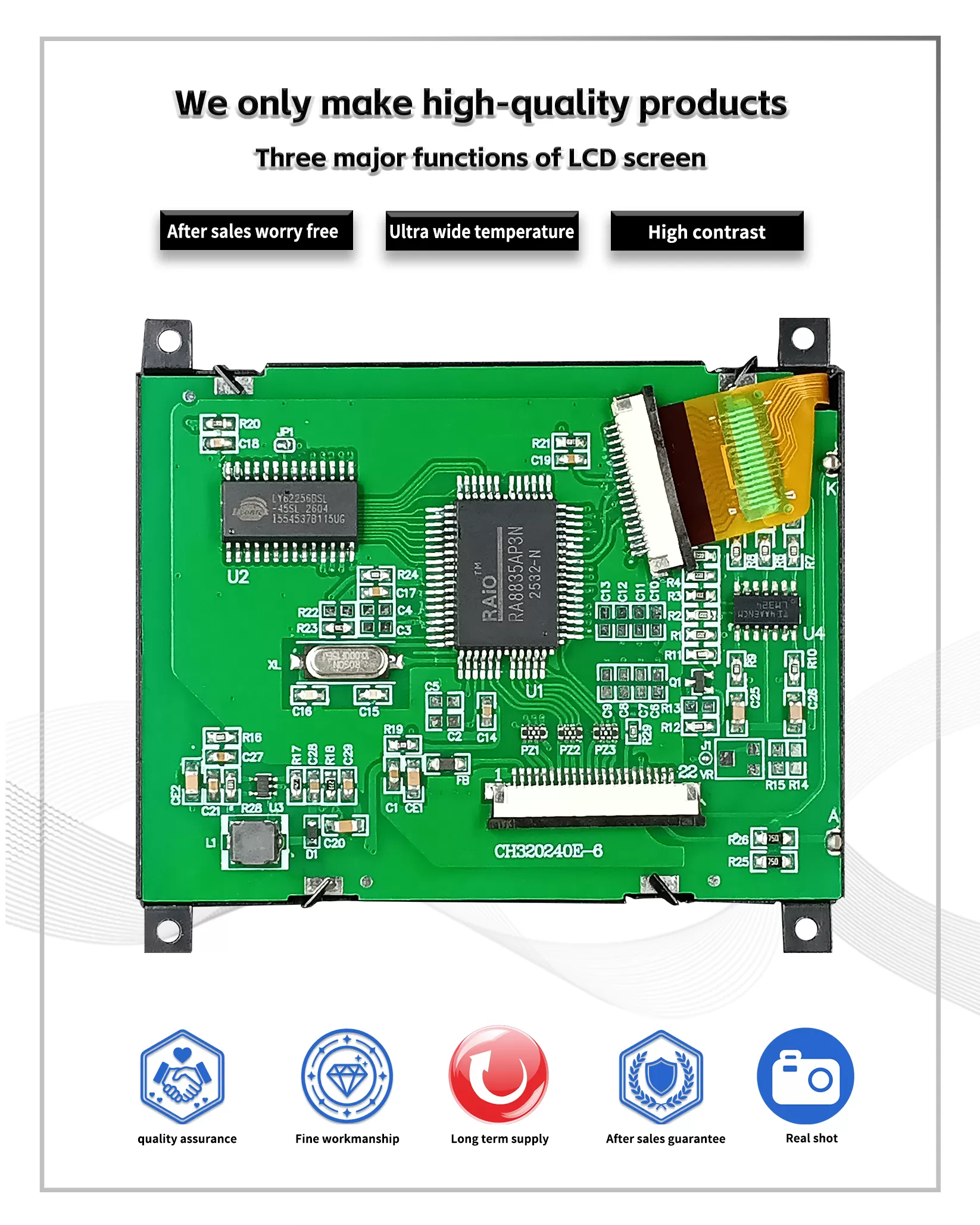

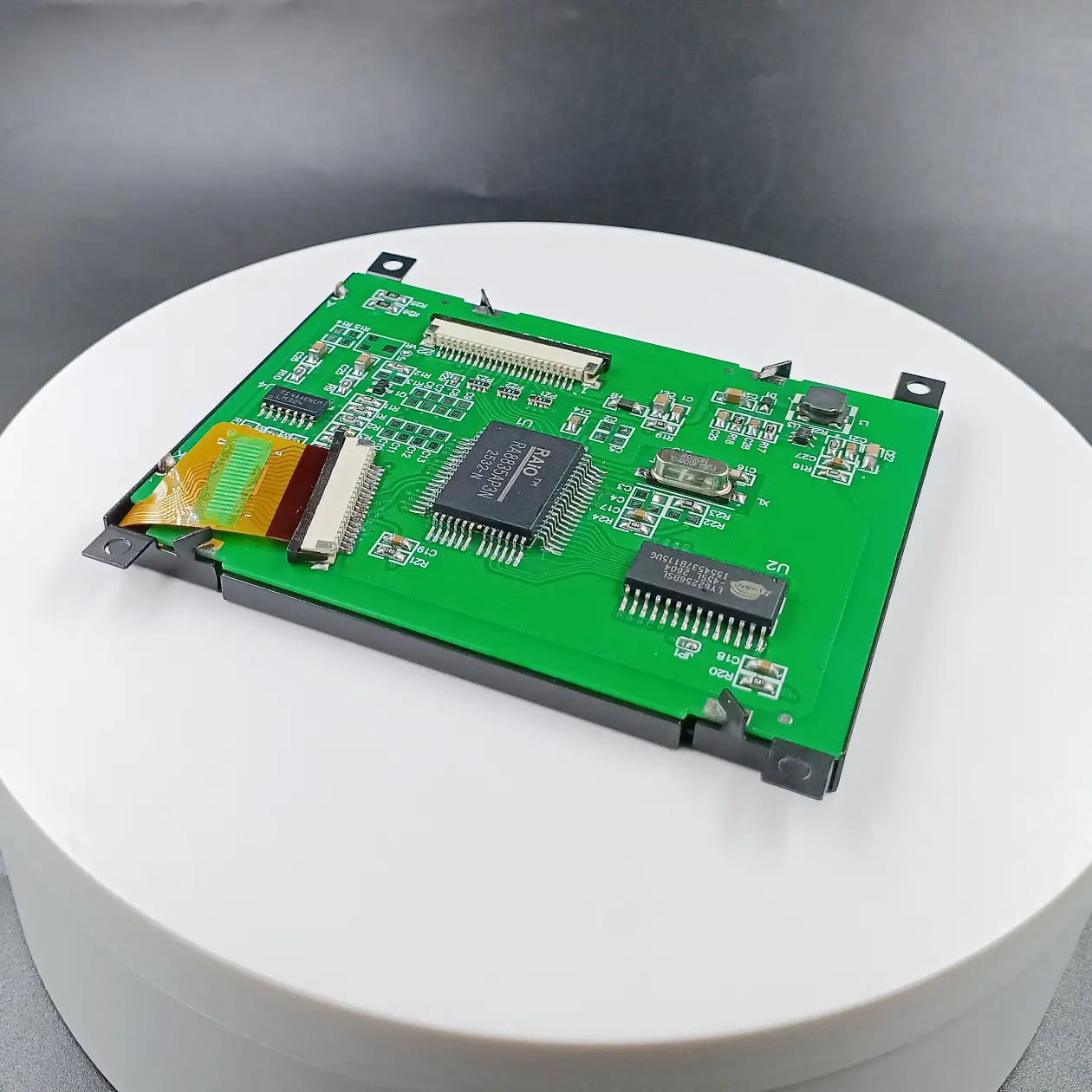

| Character libraries | Whether to bring PCB | Yes |
