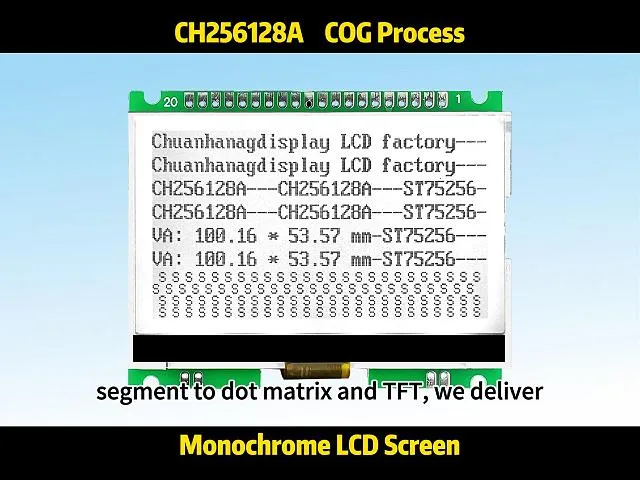

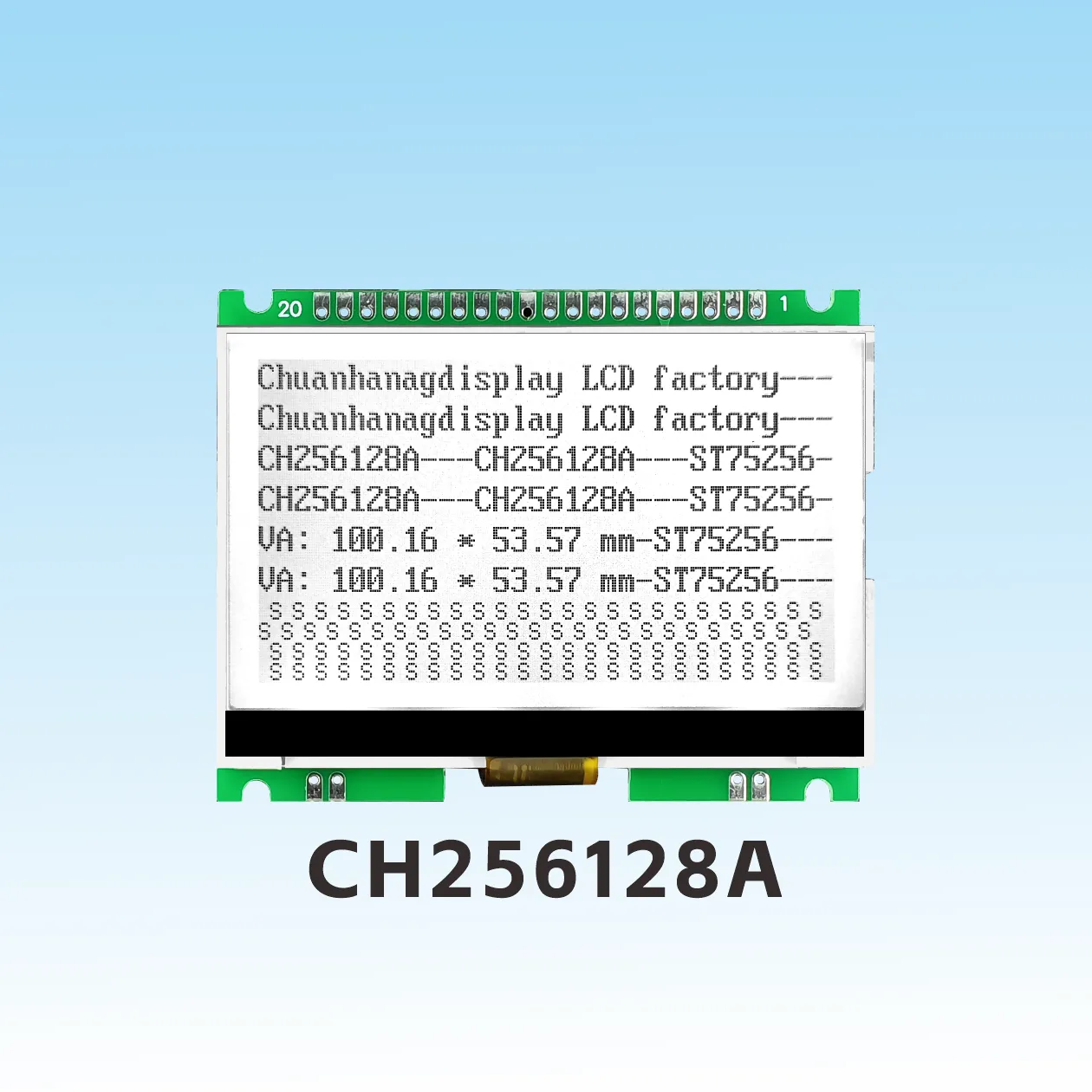

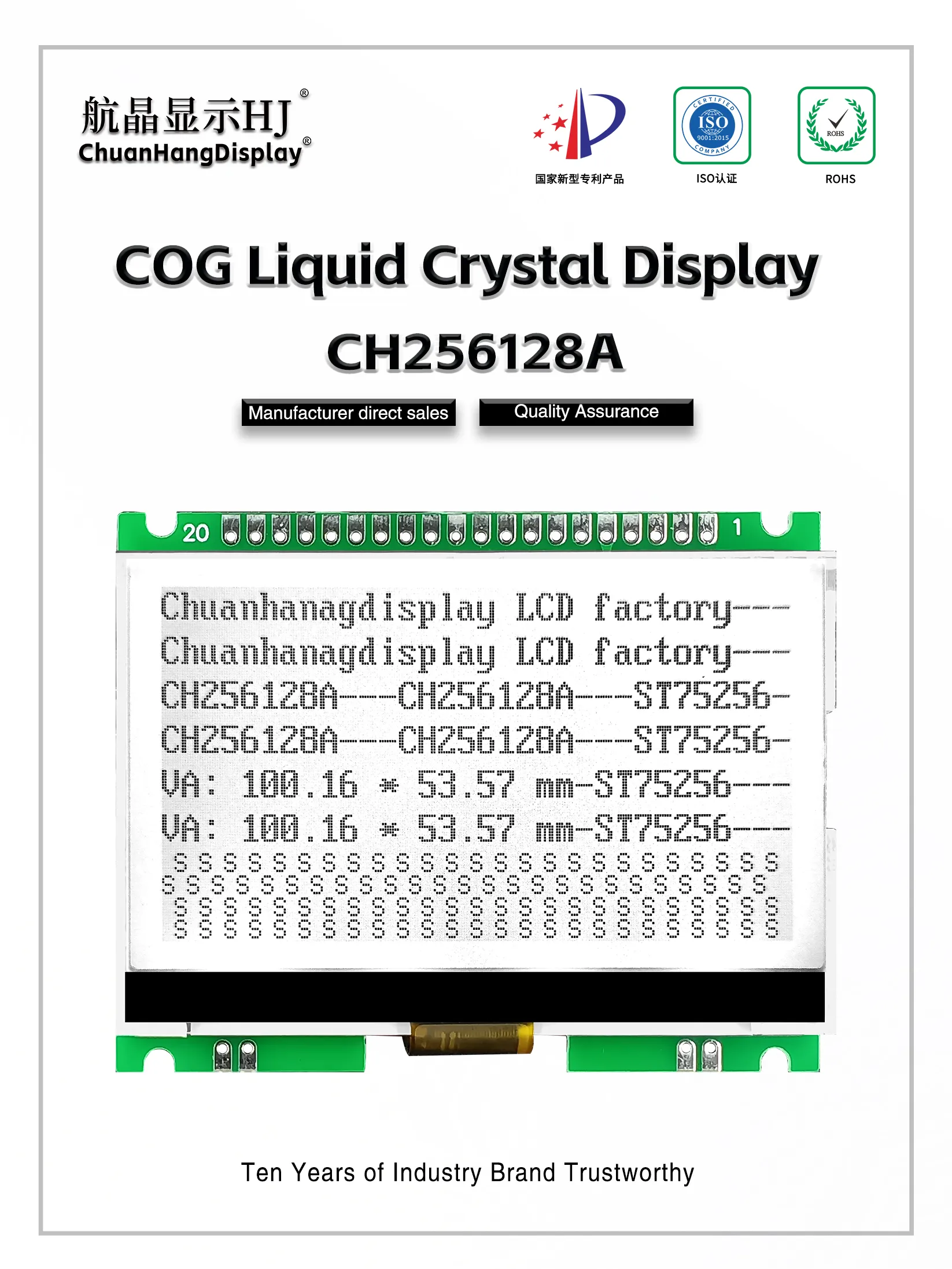

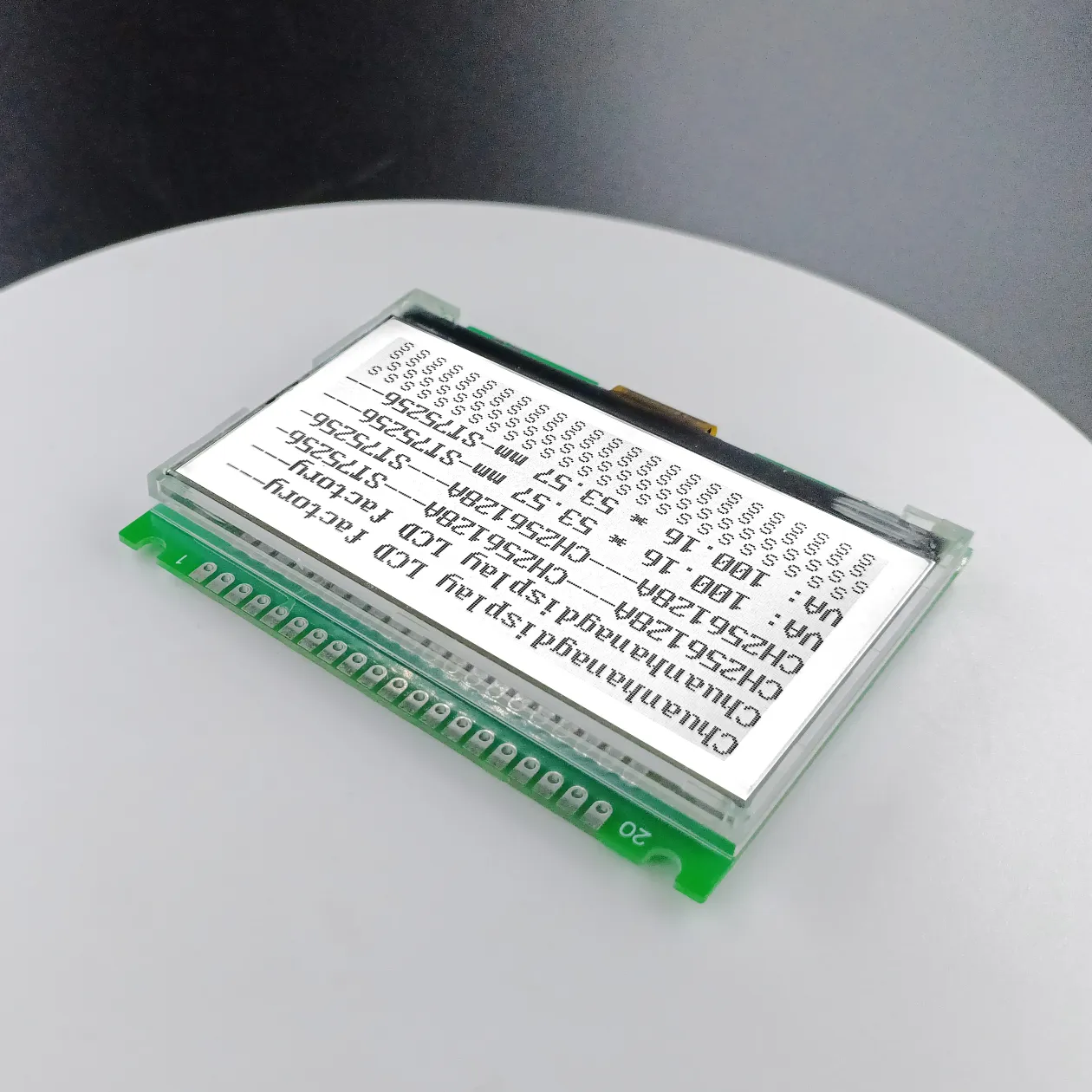

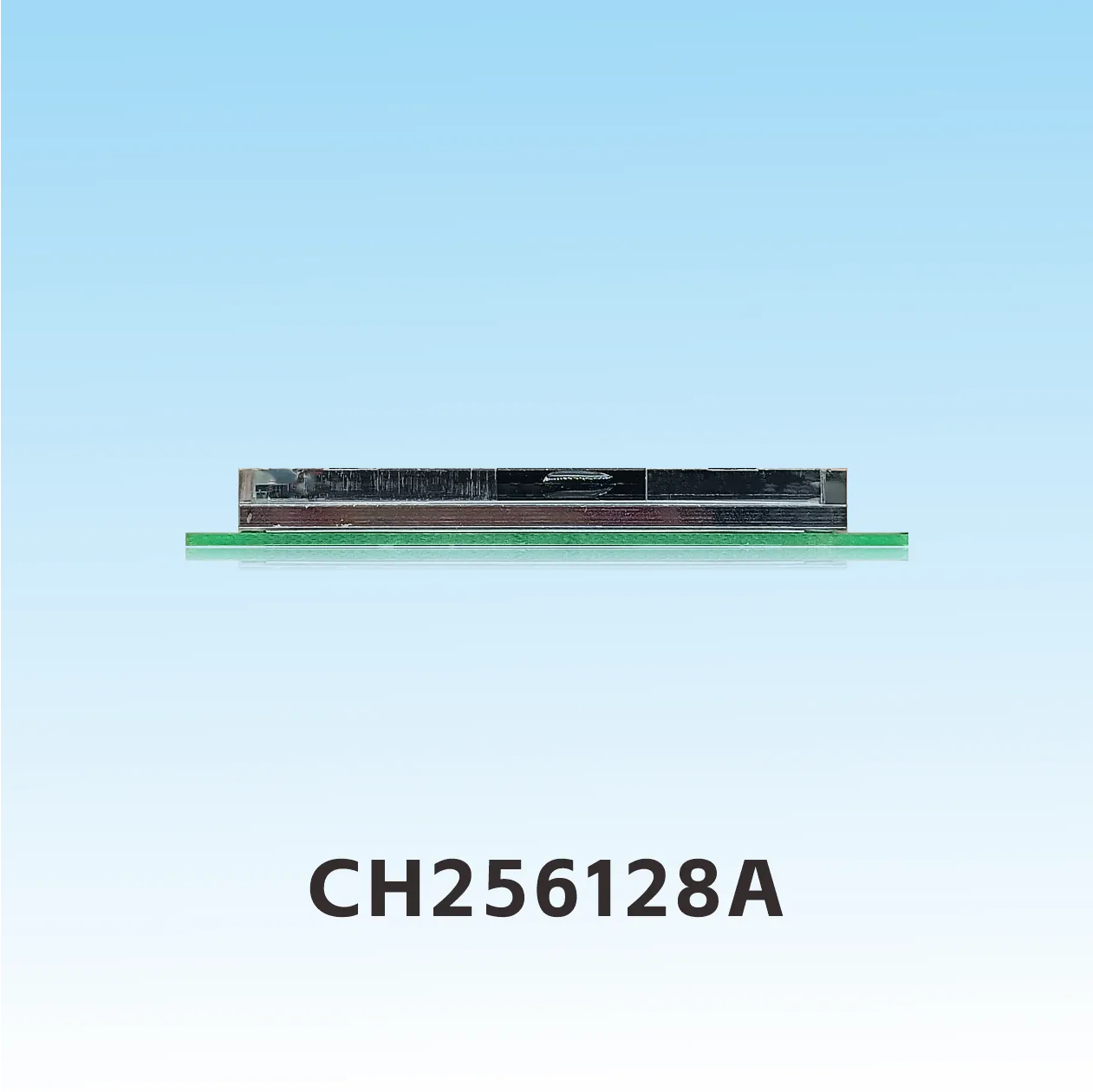

CH256128A 256x125 lcd

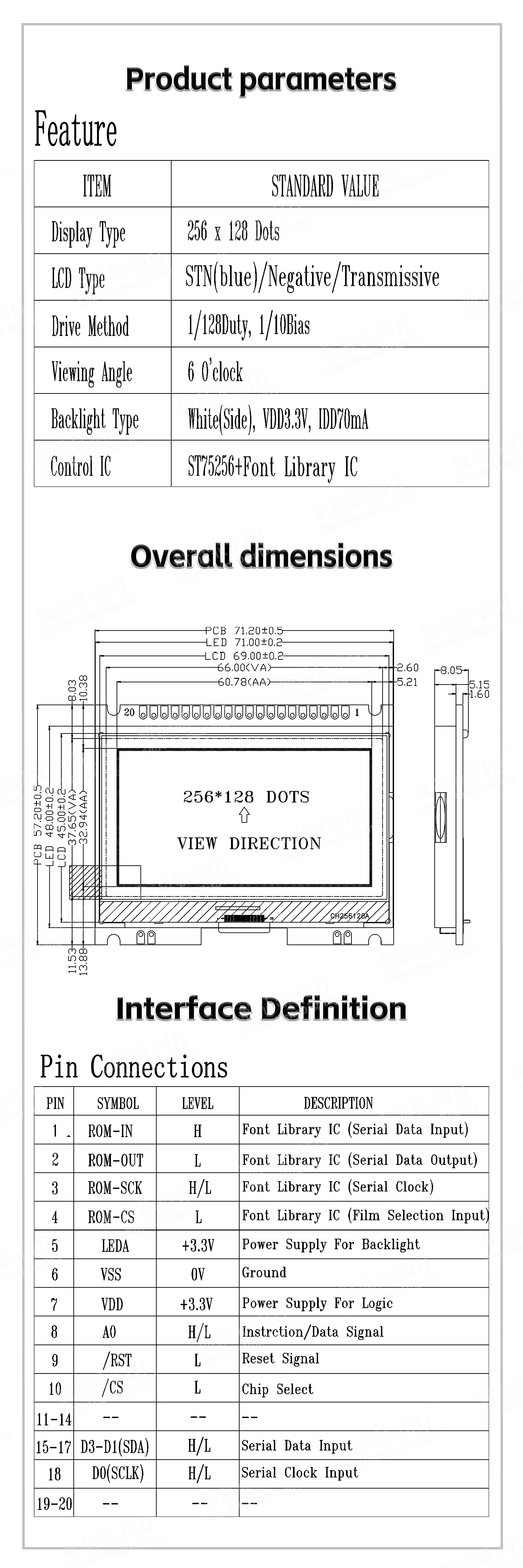

Product Description
Display format: 256*128
Product Model: CH256128B

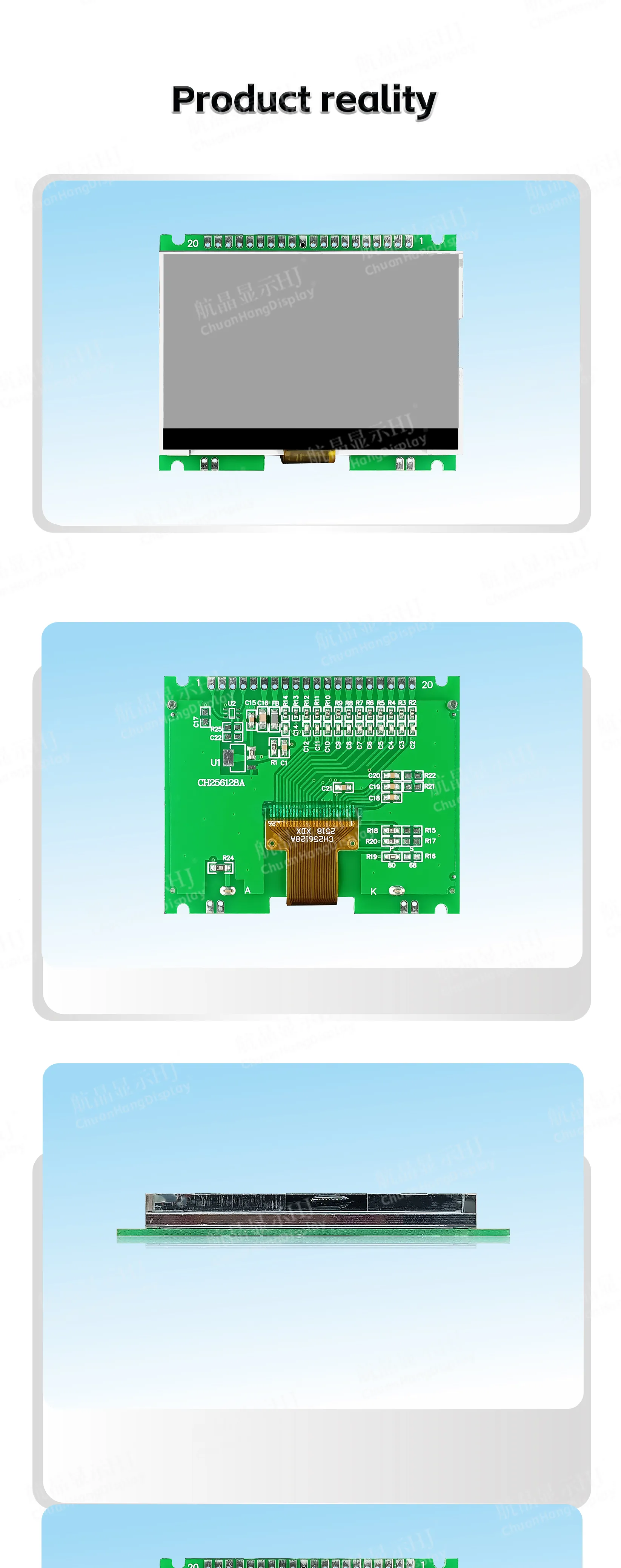

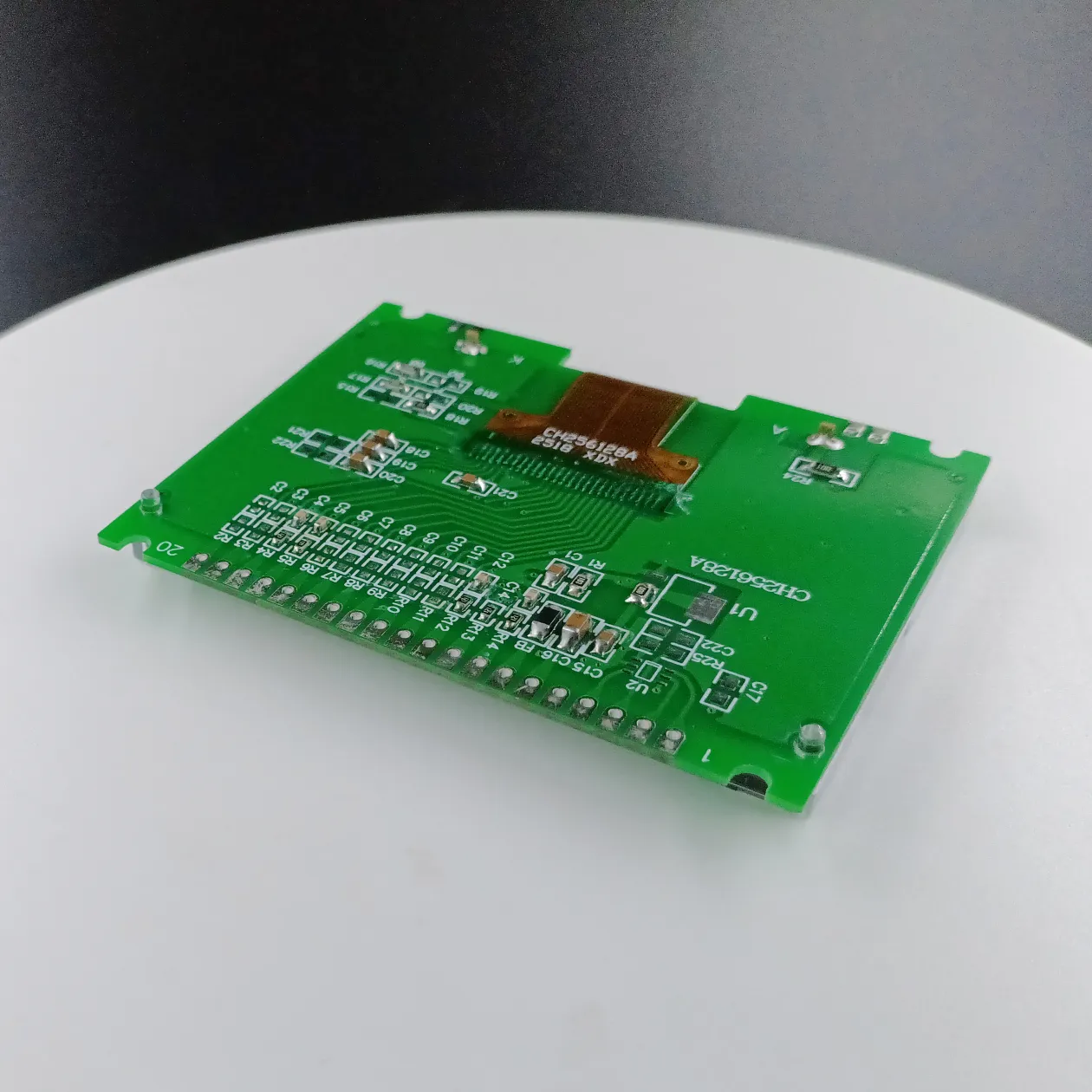

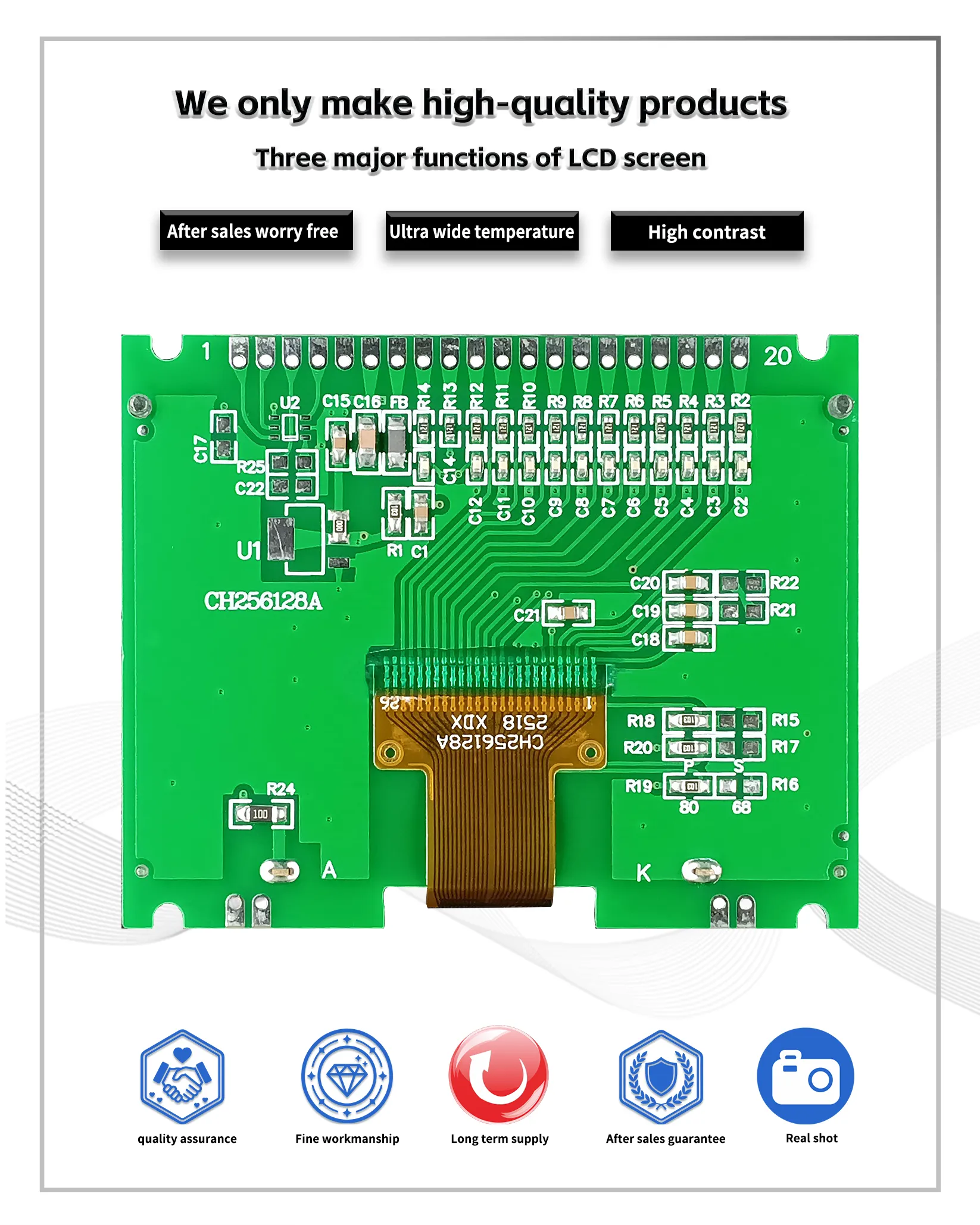

Product structure: LCD + LED + PCB
Dimensions (mm): 104.92*72.83*9.30mm ，Visual area (mm): 100.16*53.57mm， Effective area (mm): 93.16*46.57mm ,Dot size (mm): 0.344*0.344mm
View direction: 6 O'CLOCK
Perspective Interface: Serial and parallel ports are optional

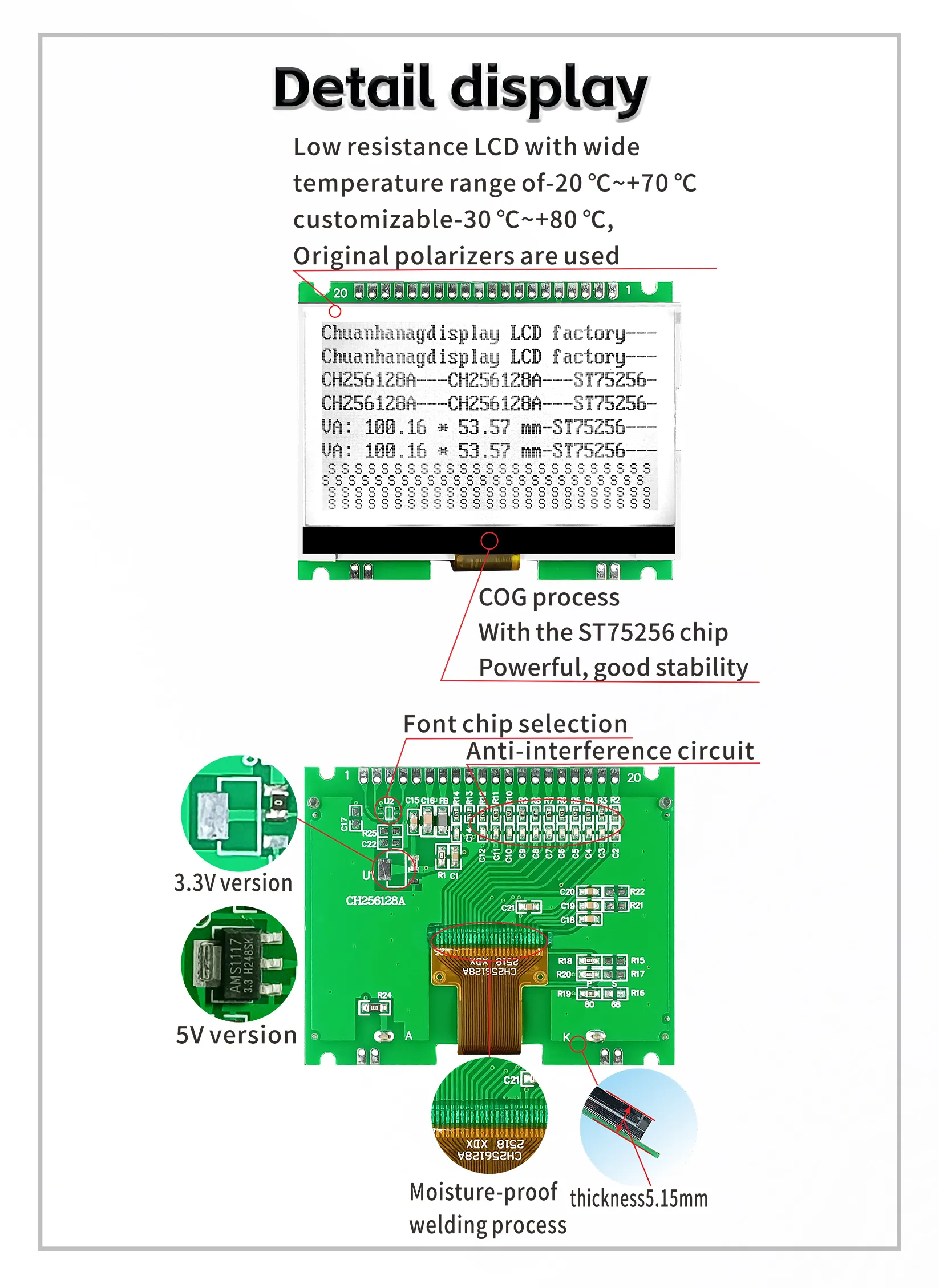

Drive chip: ST75256
Font library chip: GT20L16S1Y
Operating voltage: 3.3V, 5V optional
Operating temperature: -20+70
Display color: STN (blue film), FSTN (grey film)
