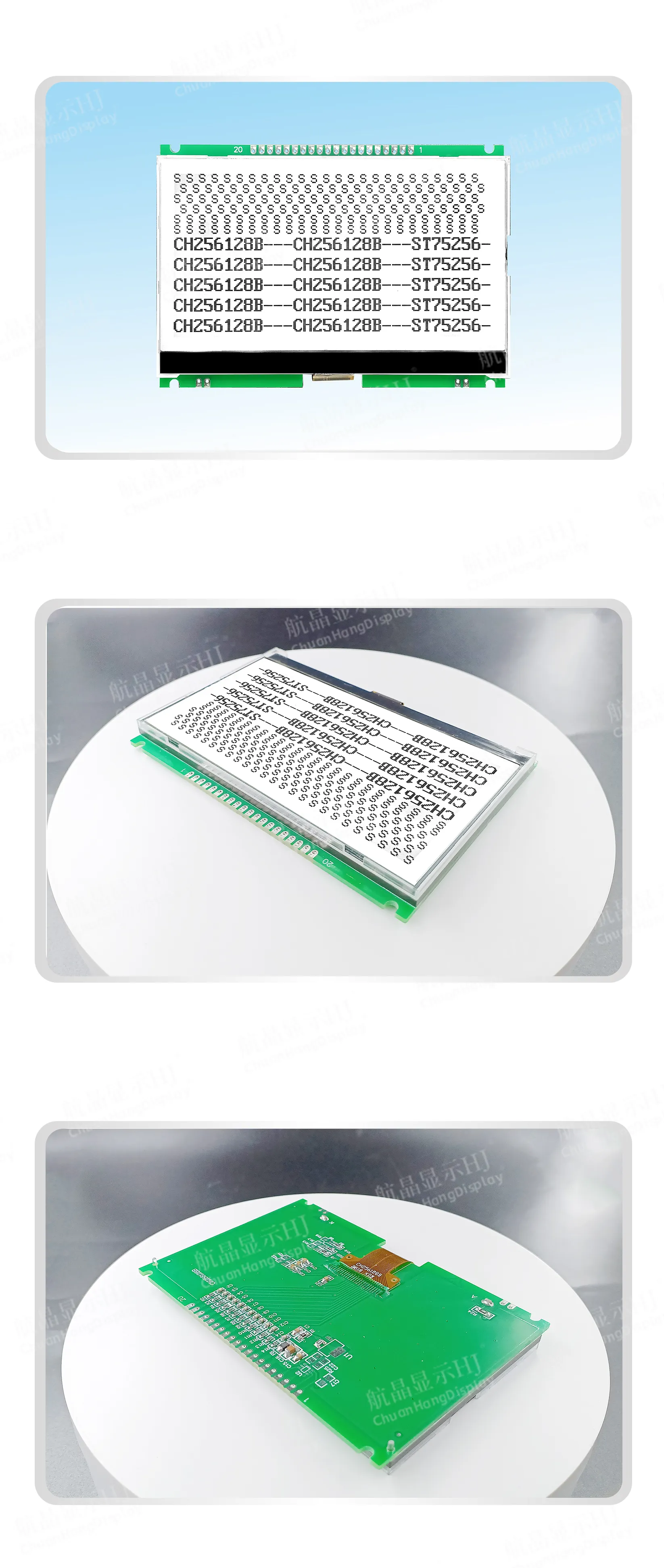

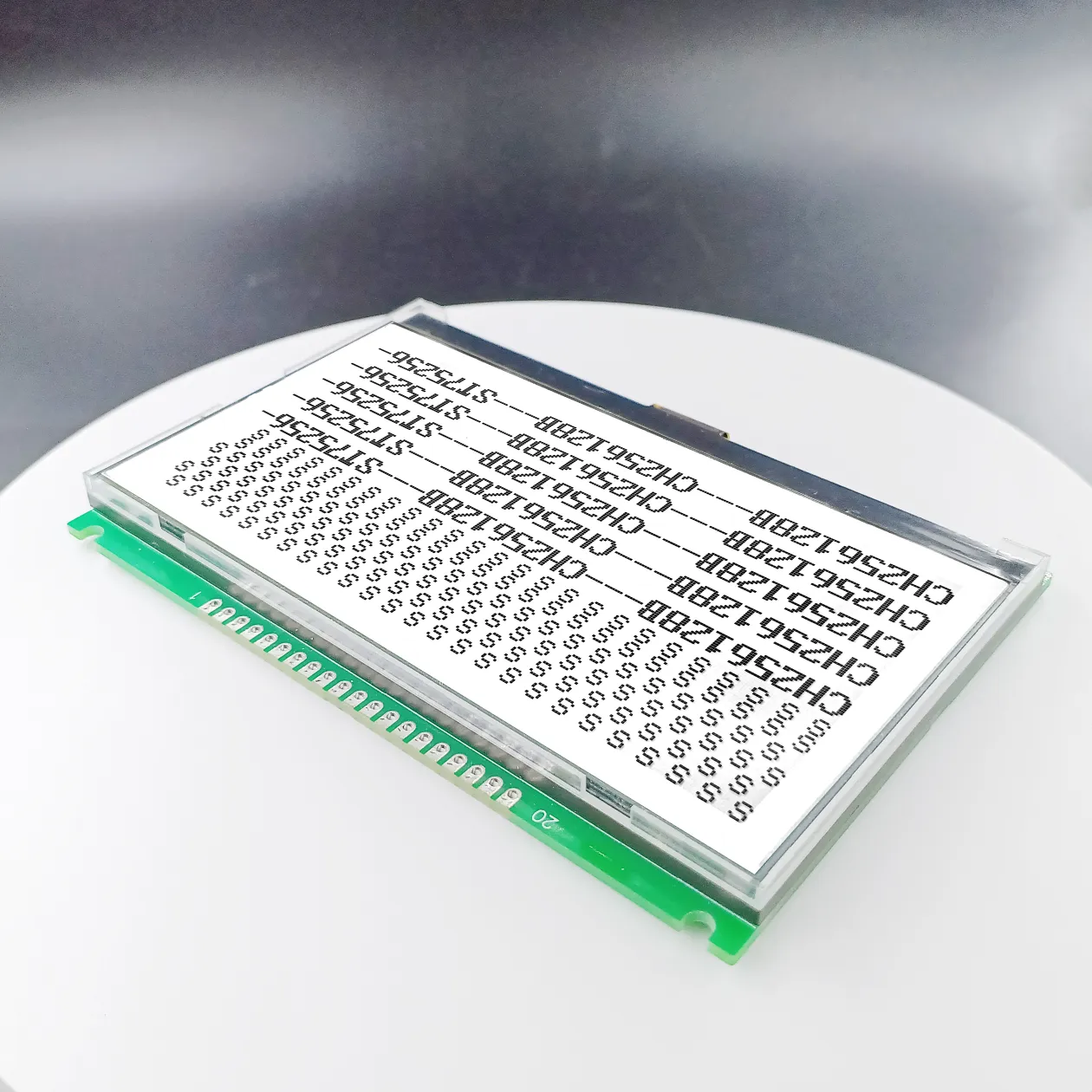

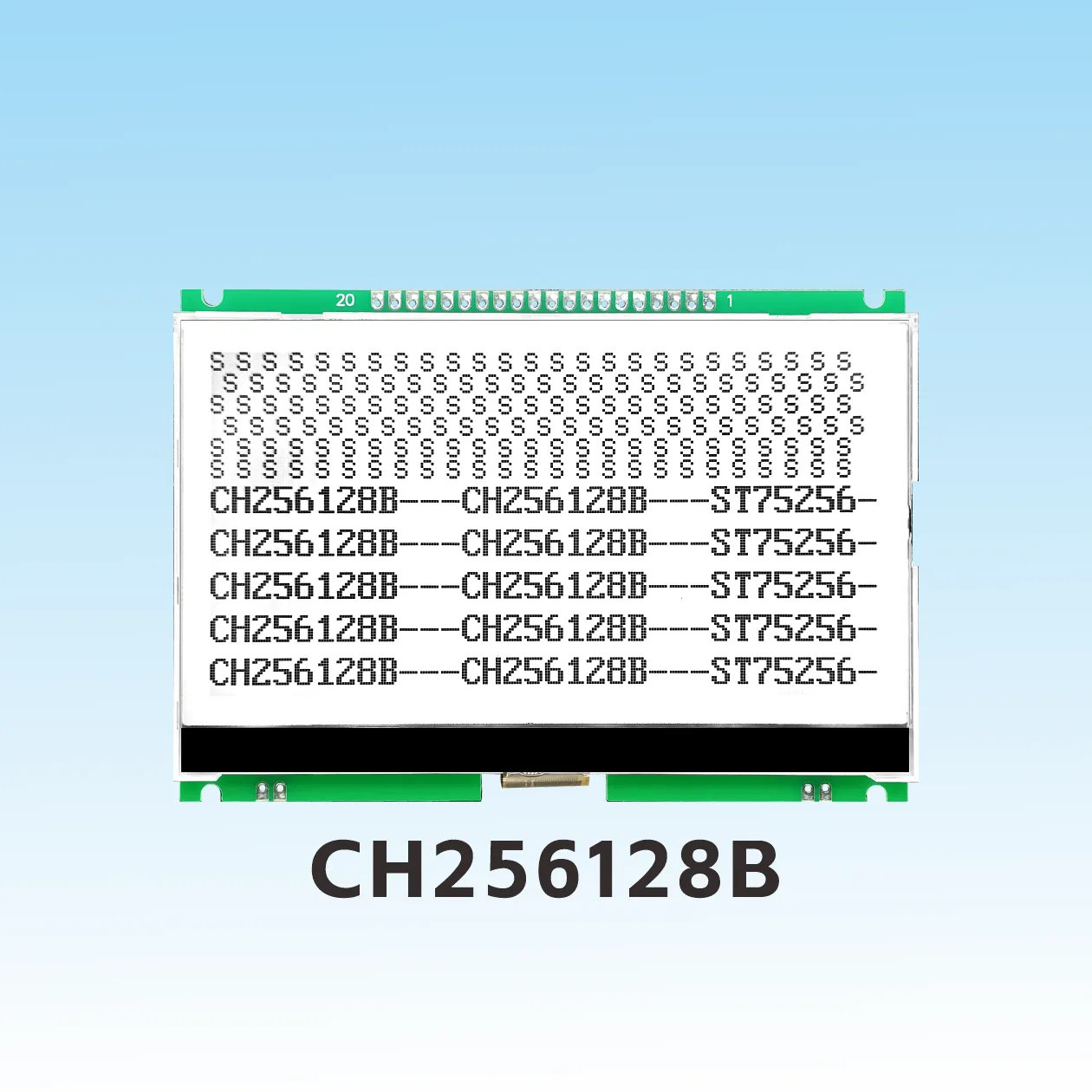

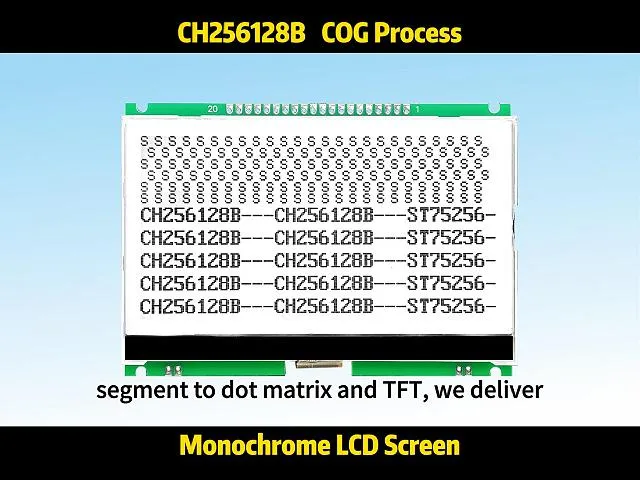

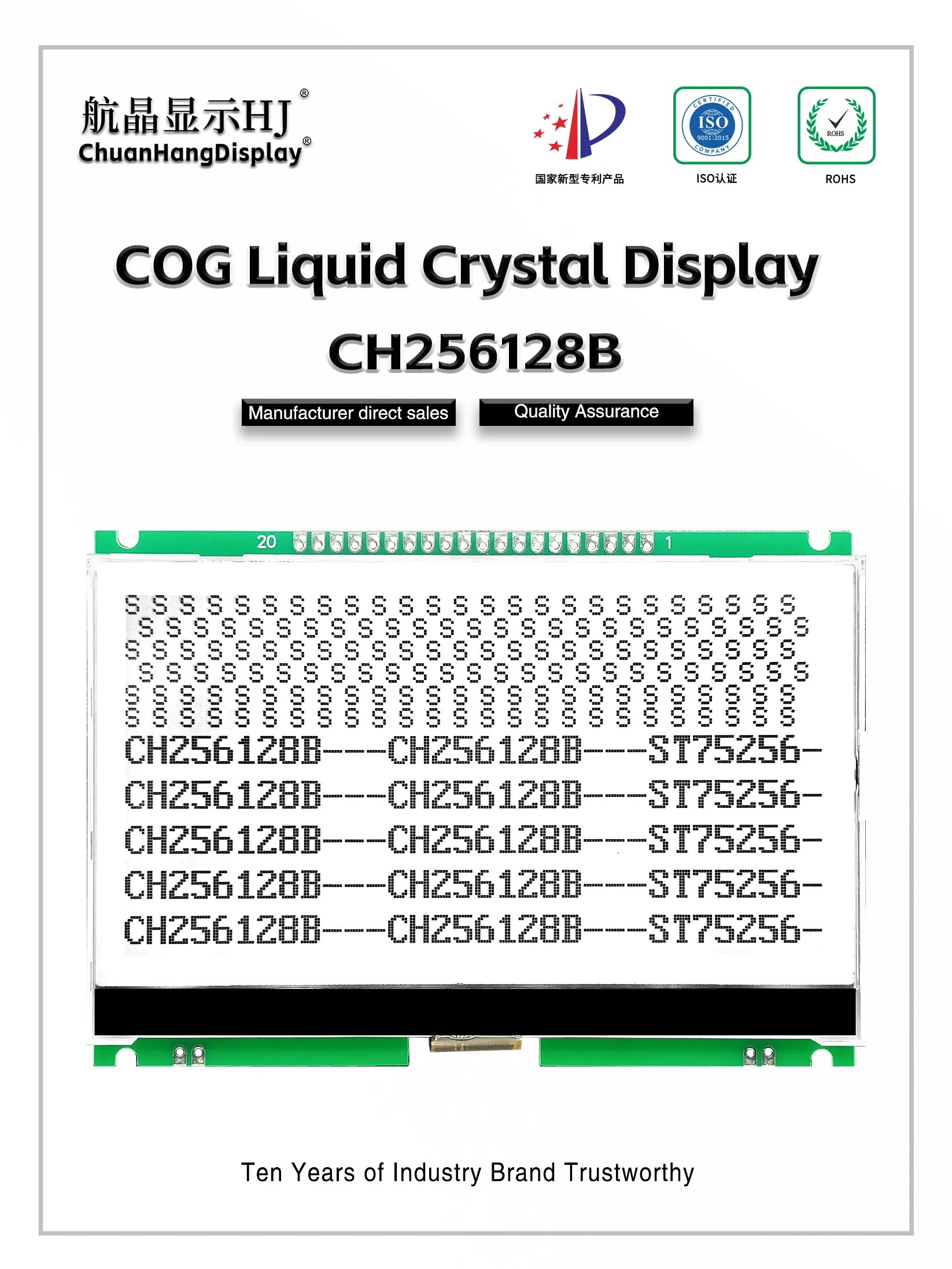

CH256128B

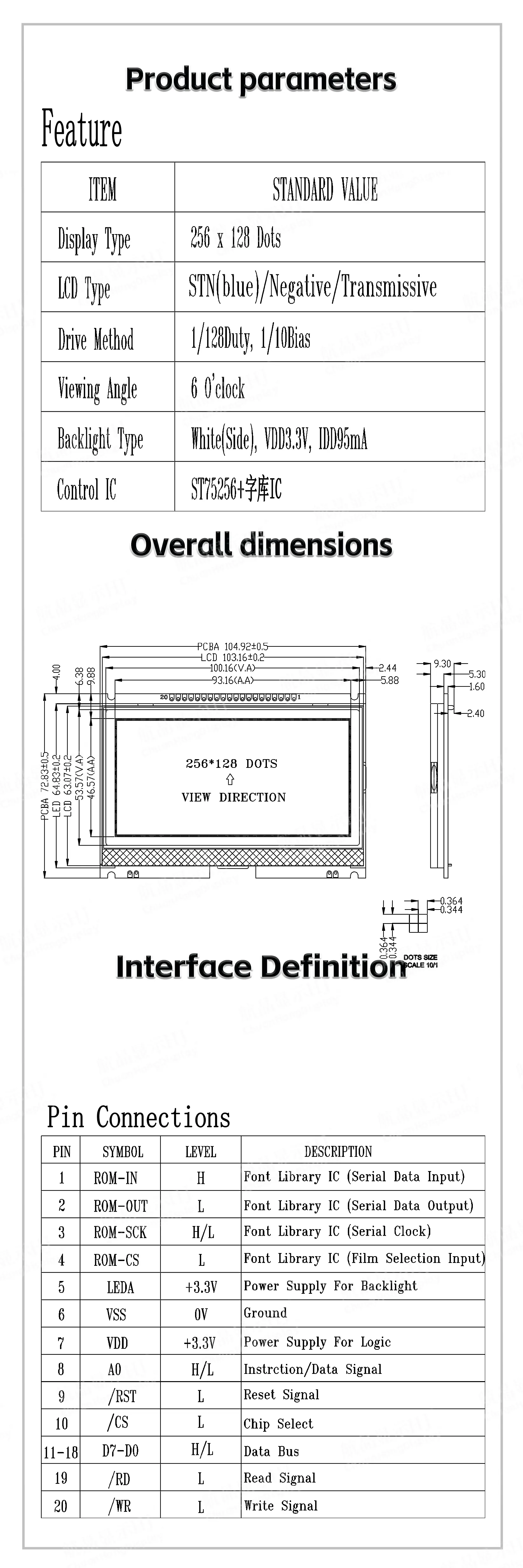

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH256128B |
| Resolution | 256x128 | screen size | |

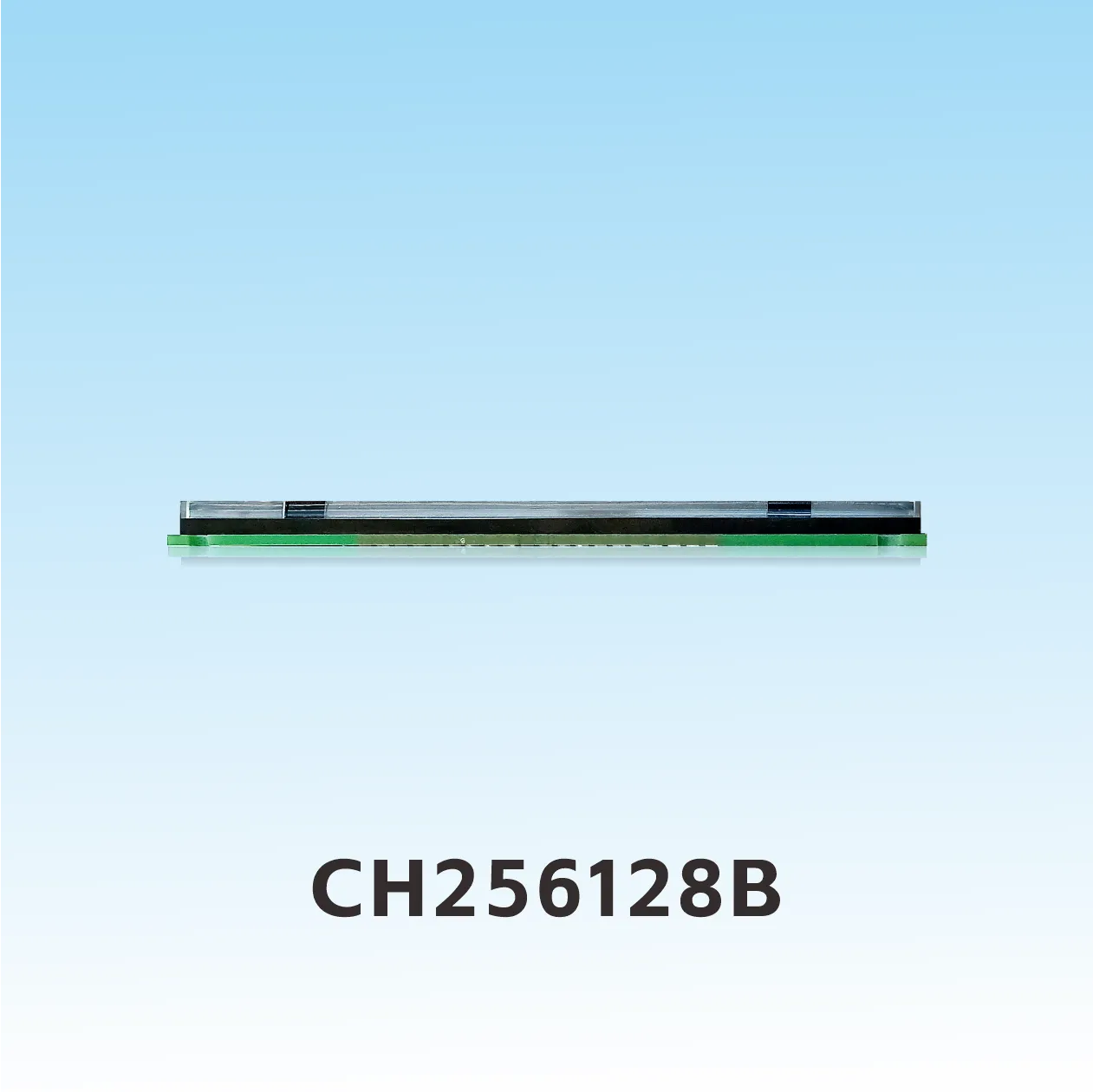

| Outline Dimension(L*W*H) | 104.92x72.83x9.30mm | Visible Area(L*W) | 100.16x53.57mm |
| Active Area(L*W) | 93.16x46.57mm | Dot Size (mm) | 0.344(L)x0.344(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V/5V | Interface Type | MCU/SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/128Duty,1/10Bias |

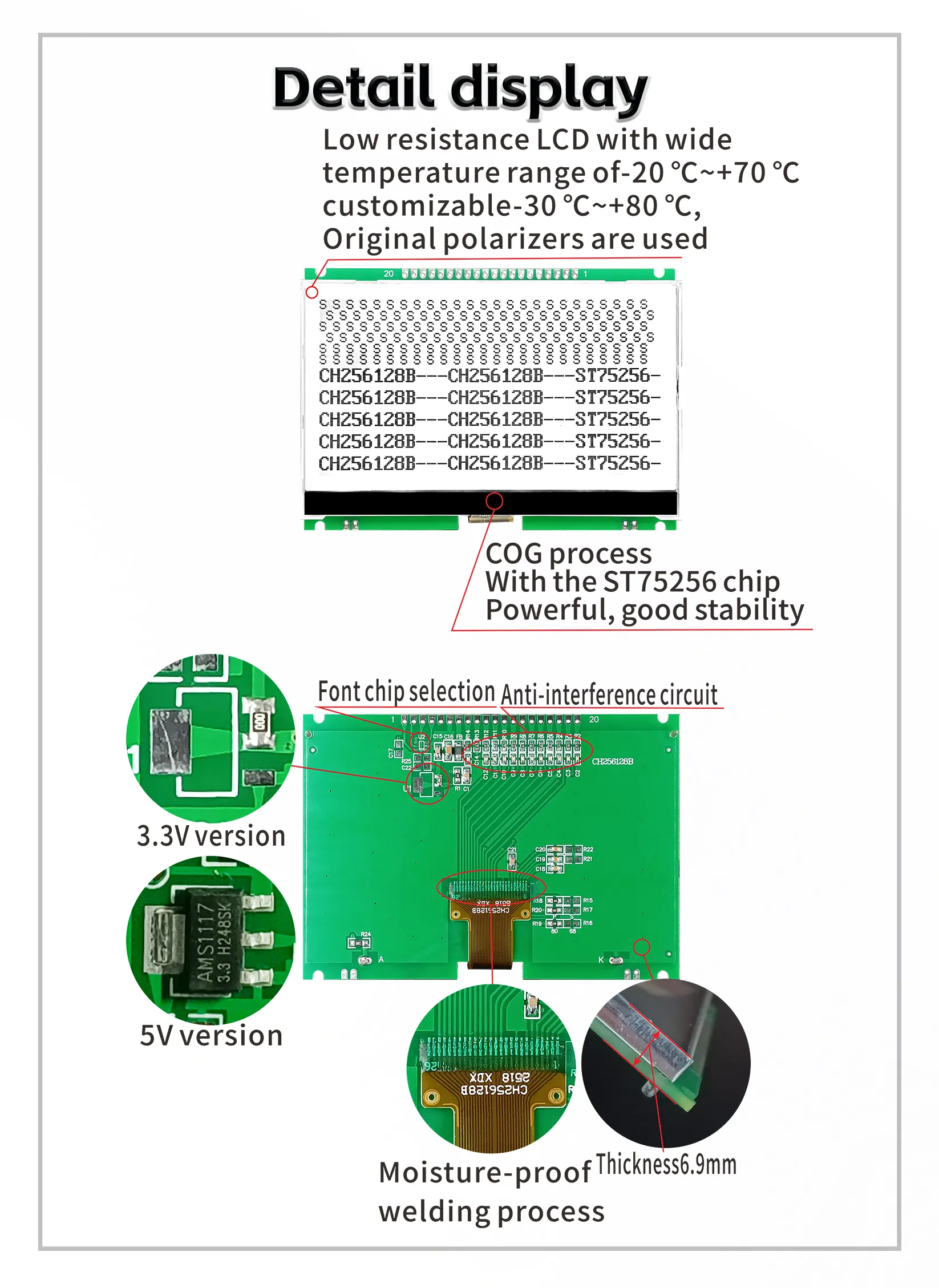

| Display Type | STN | Driver IC | ST75256+GT20L16S1Y |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |

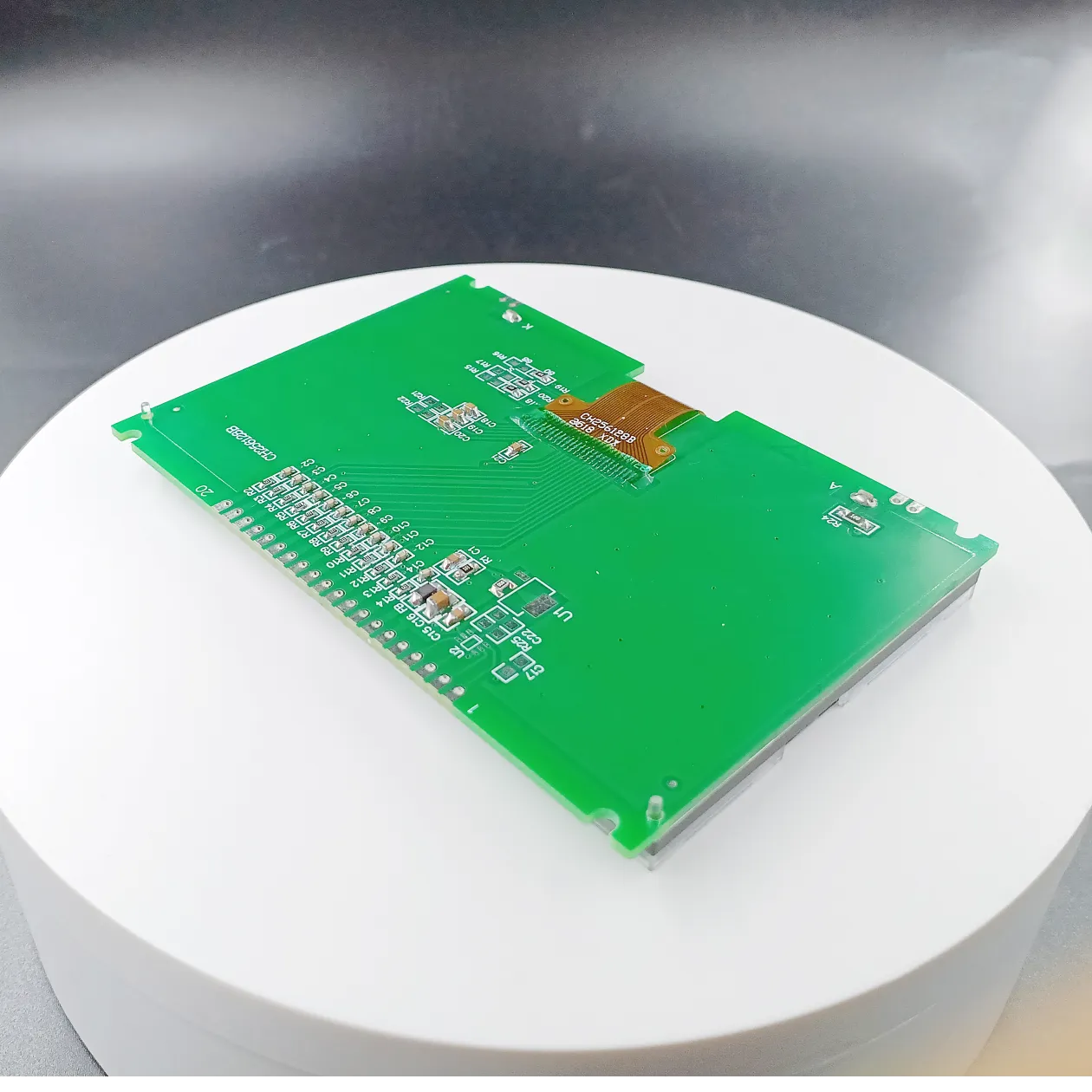

| Character libraries | Whether to bring PCB | YES |
