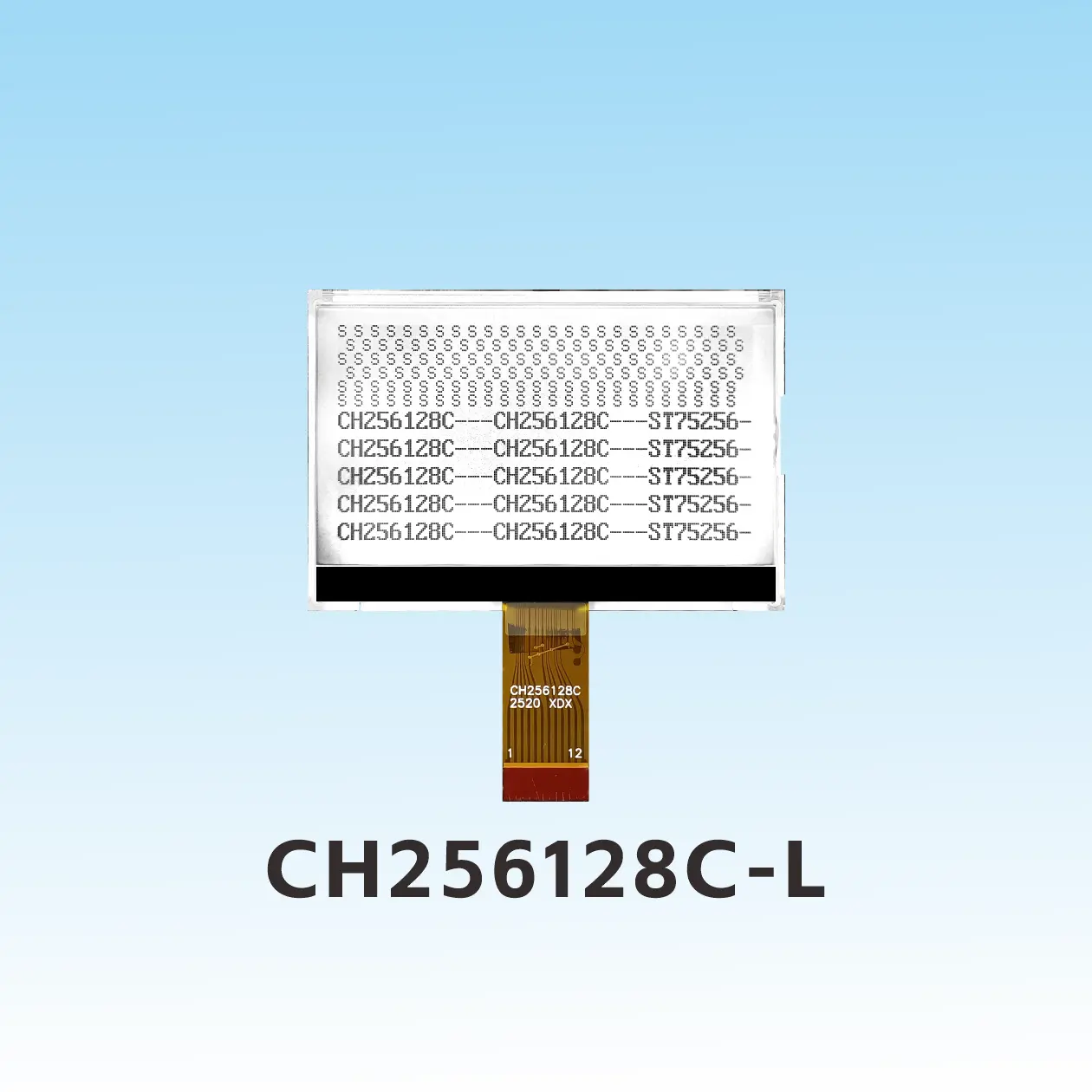

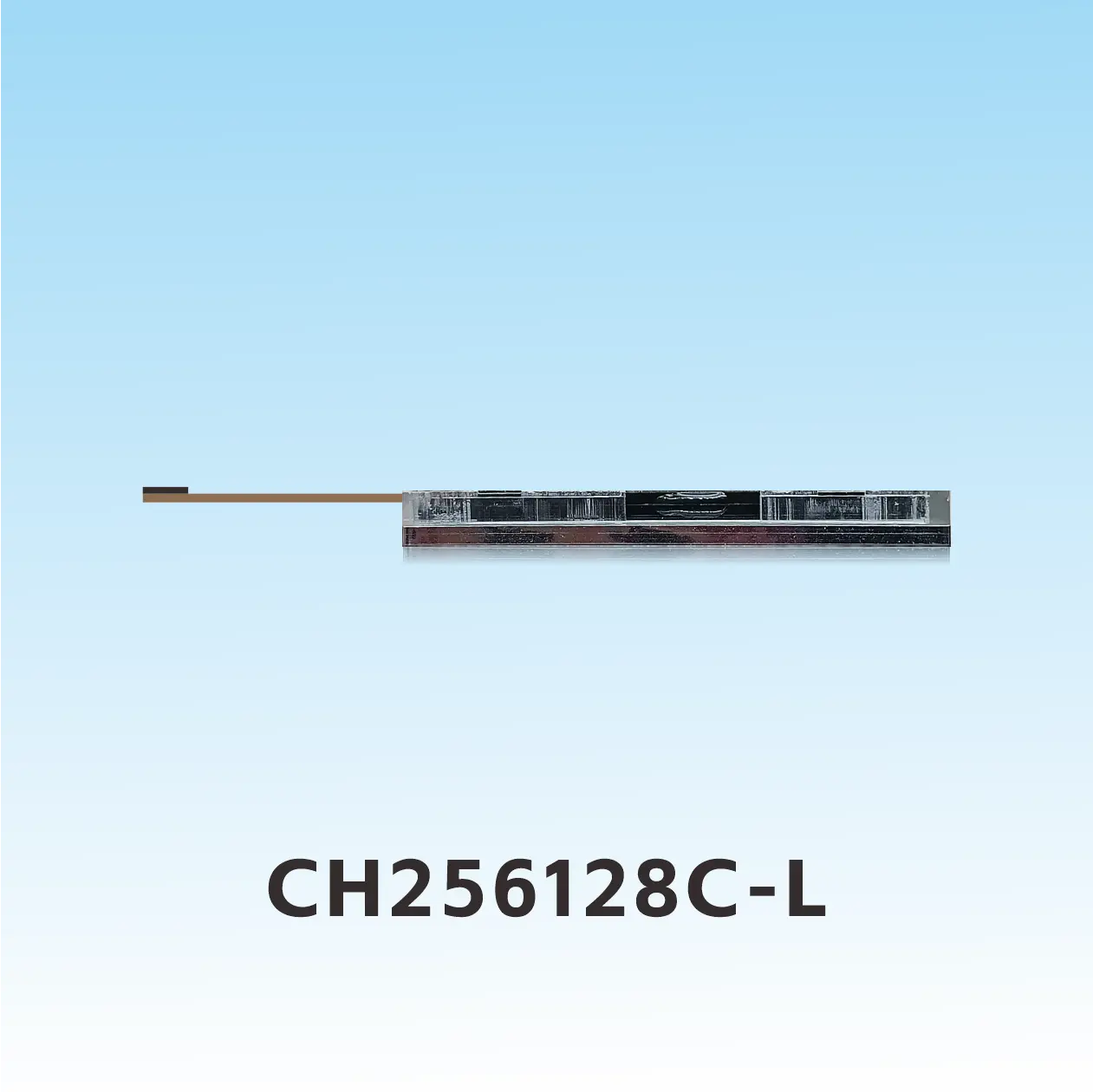

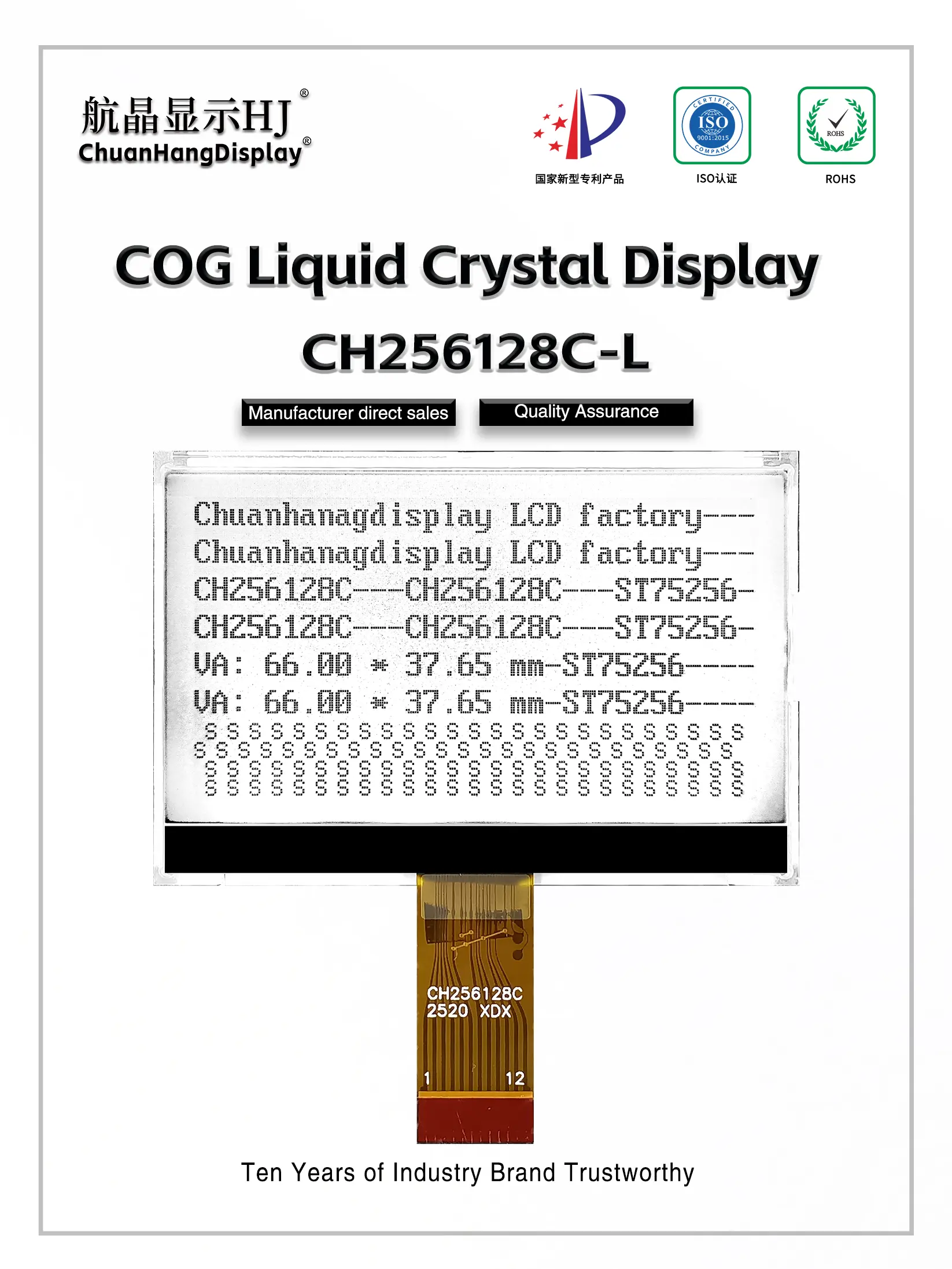

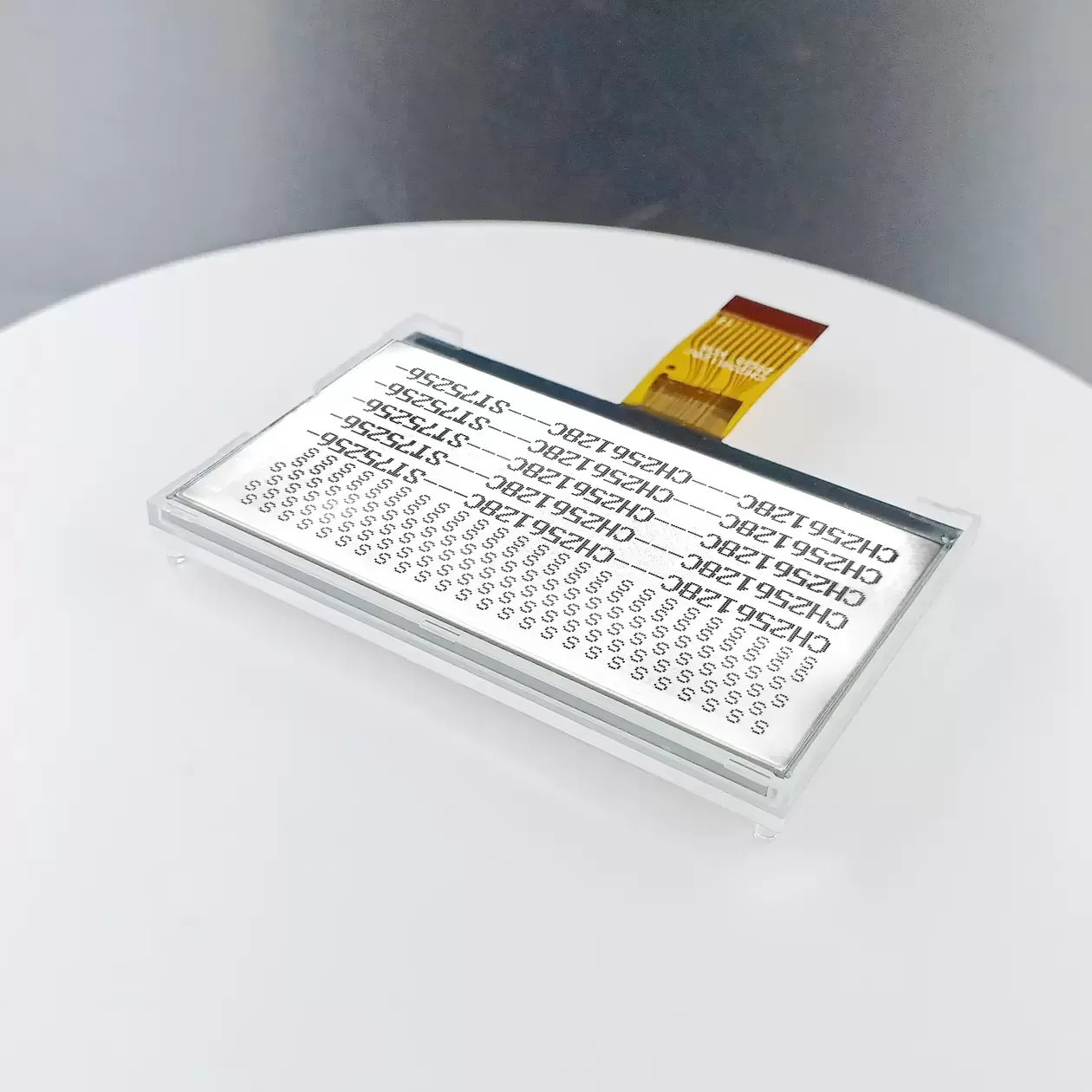

CH256128C-L-Plug-in-type

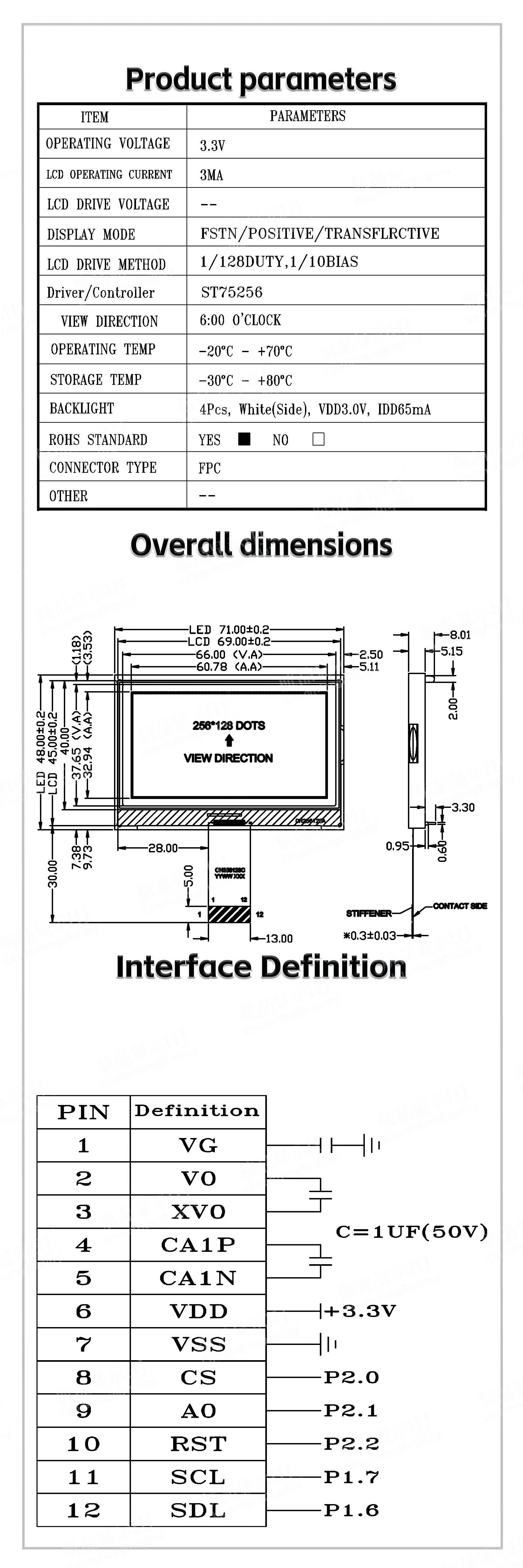

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH256128C-L-插接式 |
| Resolution | 256x128 | screen size | |
| Outline Dimension(L*W*H) | 71.00x48.00x8.01mm | Visible Area(L*W) | 66.00x37.65mm |
| Active Area(L*W) | 60.78x32.94mm | Dot Size (mm) | 0.21(L)x0.23(W) |
| Type | COG | Connection Method | FPC |
| Supply Voltage | 3.3V | Interface Type | SPI |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/128Duty,1/10Bias |
| Display Type | FSTN | Driver IC | ST75256 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 3.3V | production capacity | Self-produced |
| Character libraries | Whether to bring PCB | NO |
