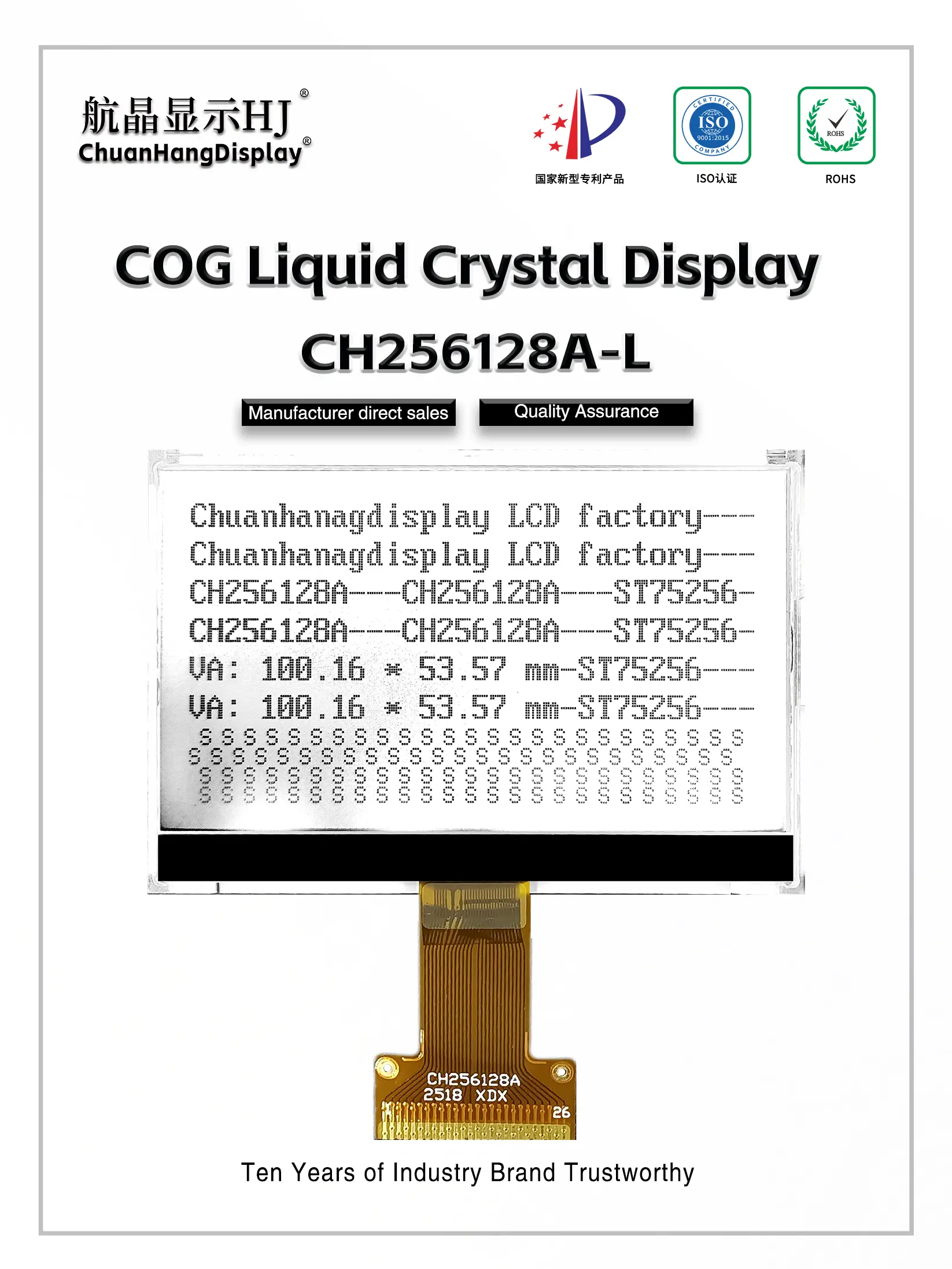

Product Description
Video Presentation

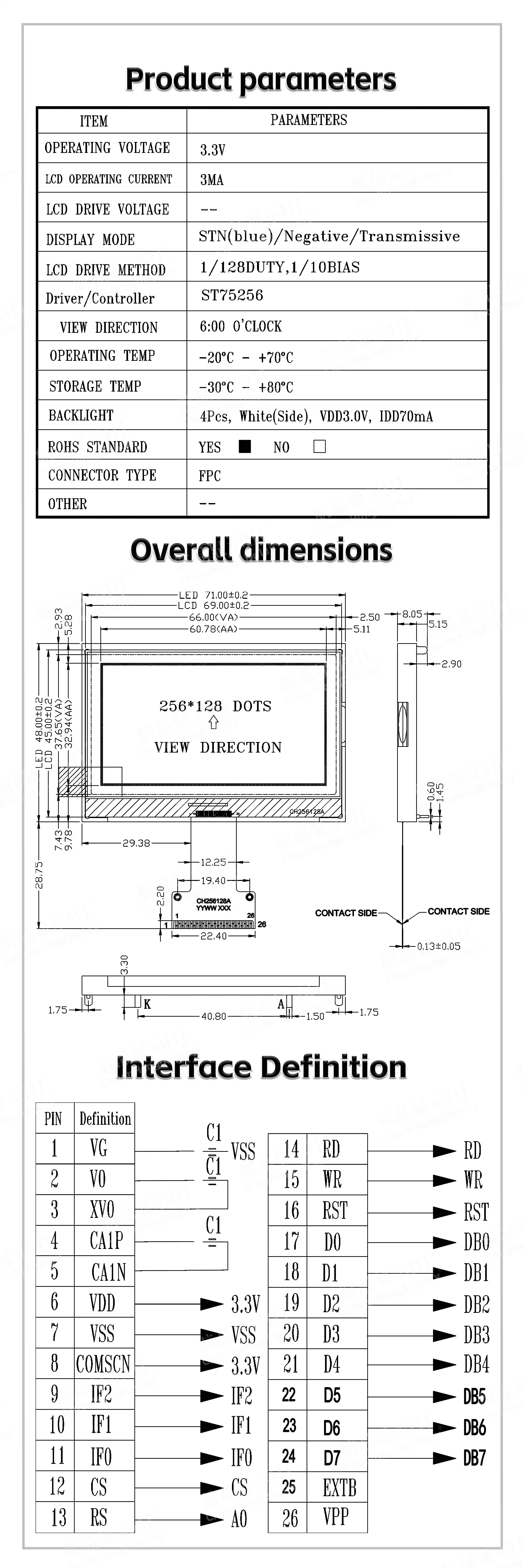

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH256128A-L-焊接式
Resolution256x128screen size
Outline Dimension(L*W*H)71.00x48.00x8.05mmVisible Area(L*W)66.00x37.65mm
Active Area(L*W)60.78x32.94mmDot Size (mm) 0.213(L)x0.233(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/128Duty,1/10Bias
Display TypeSTNDriver ICST75256
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBNO
Product Datasheet

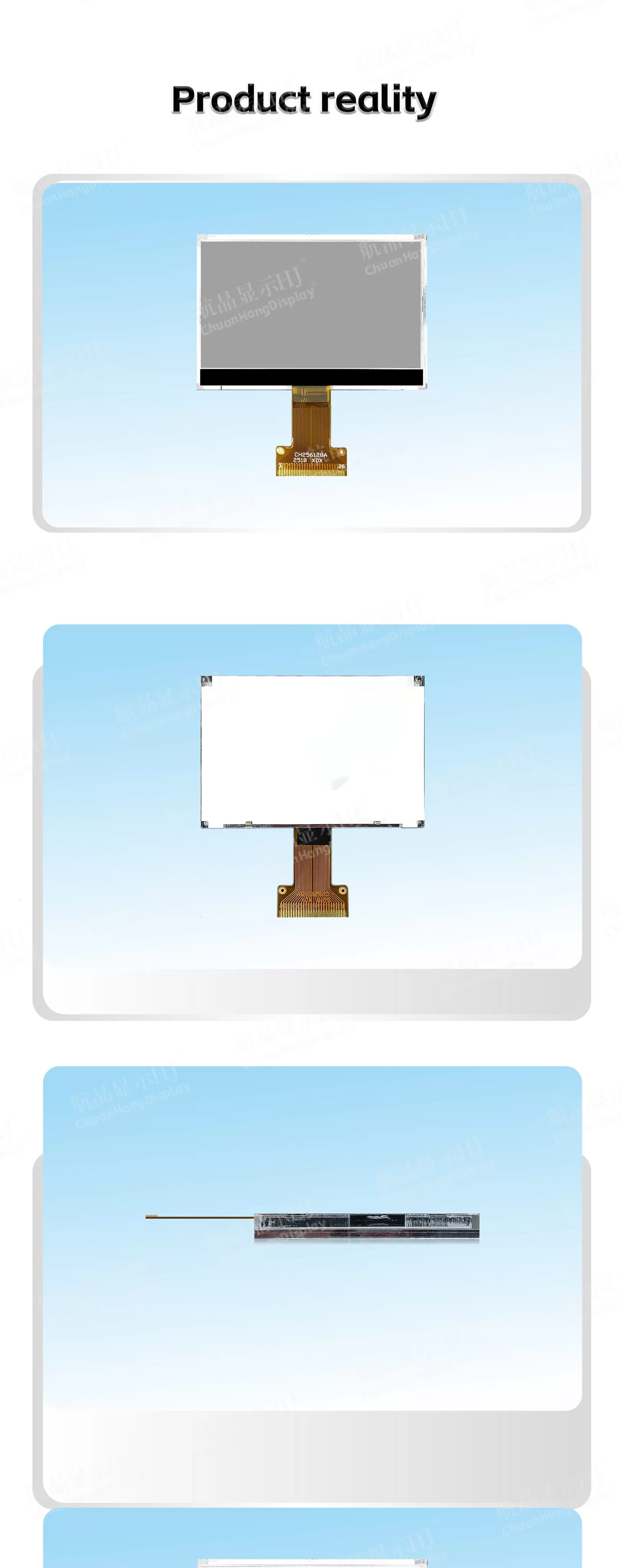

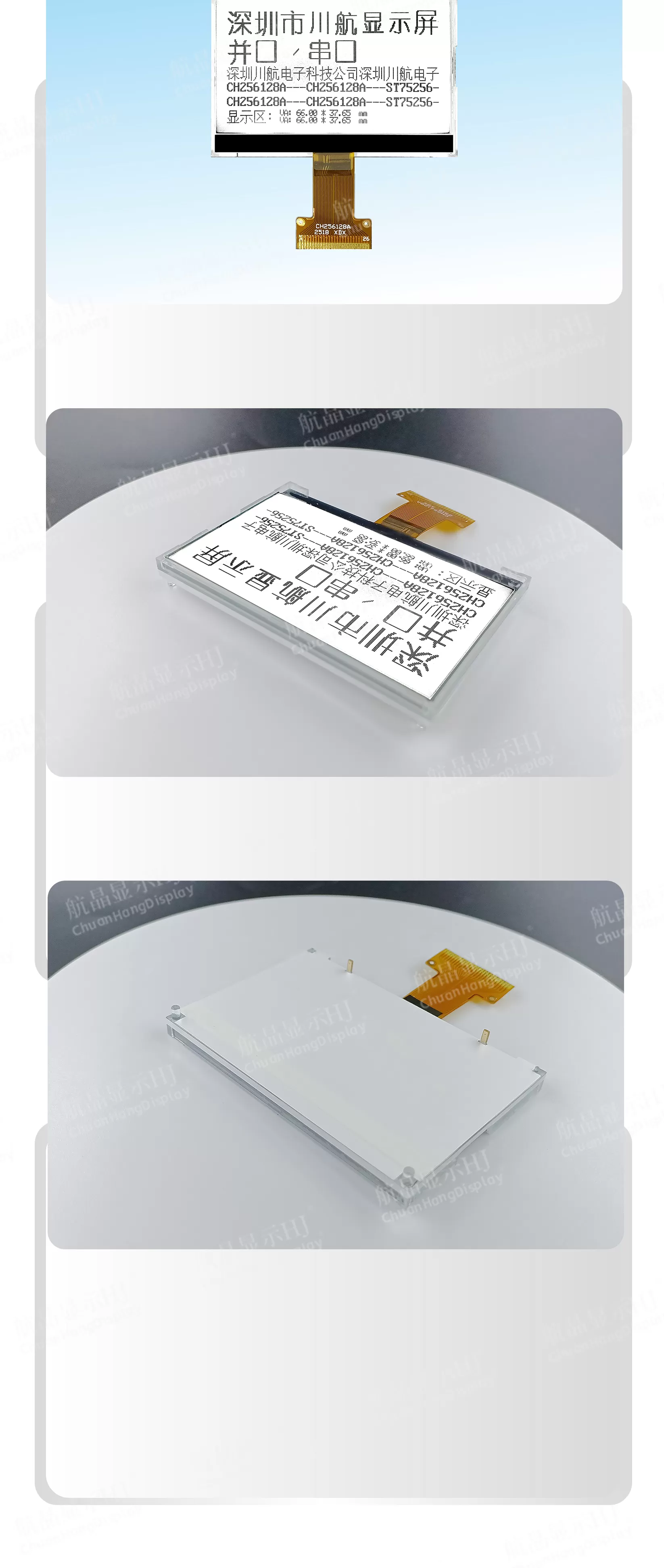

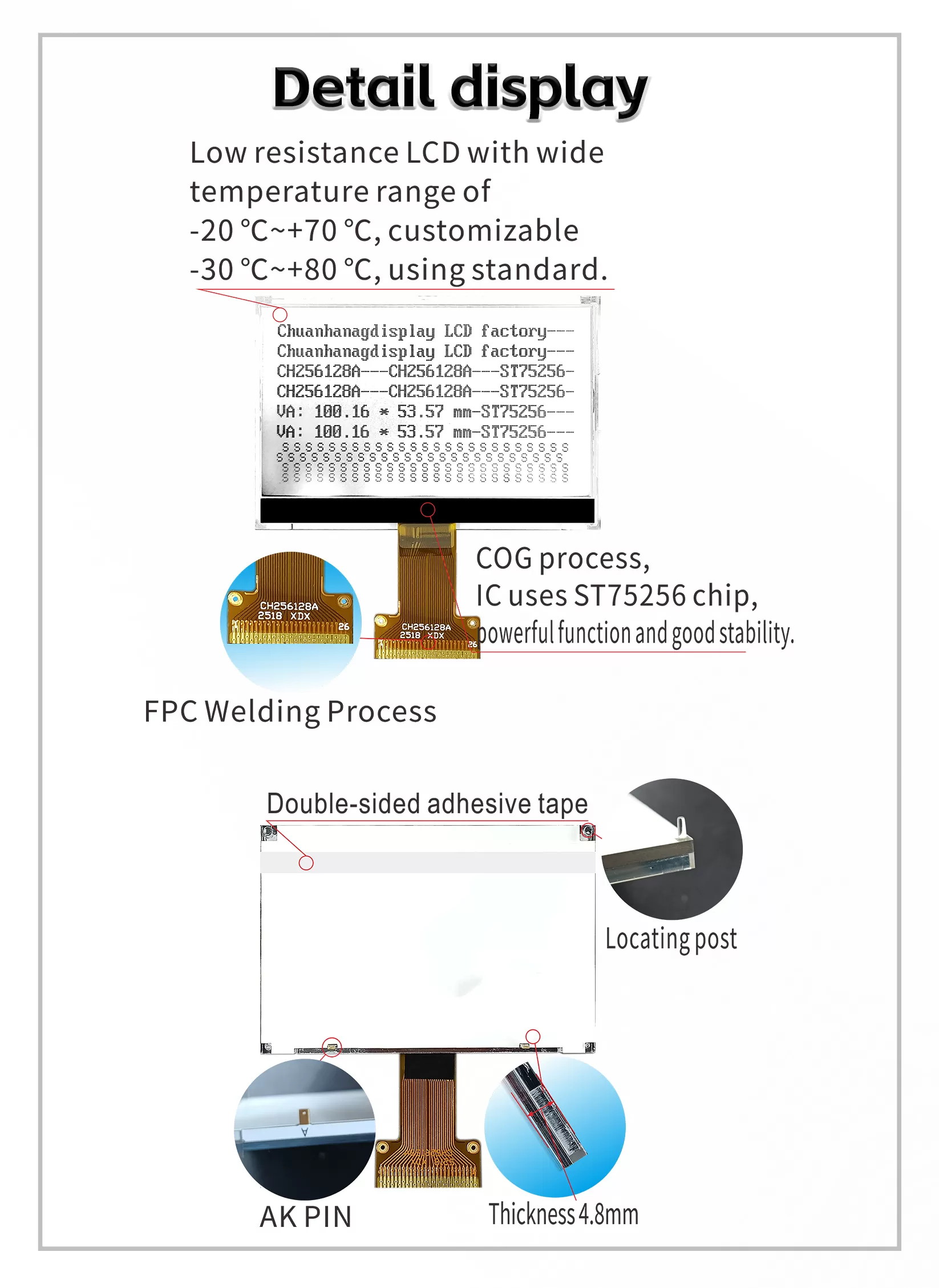

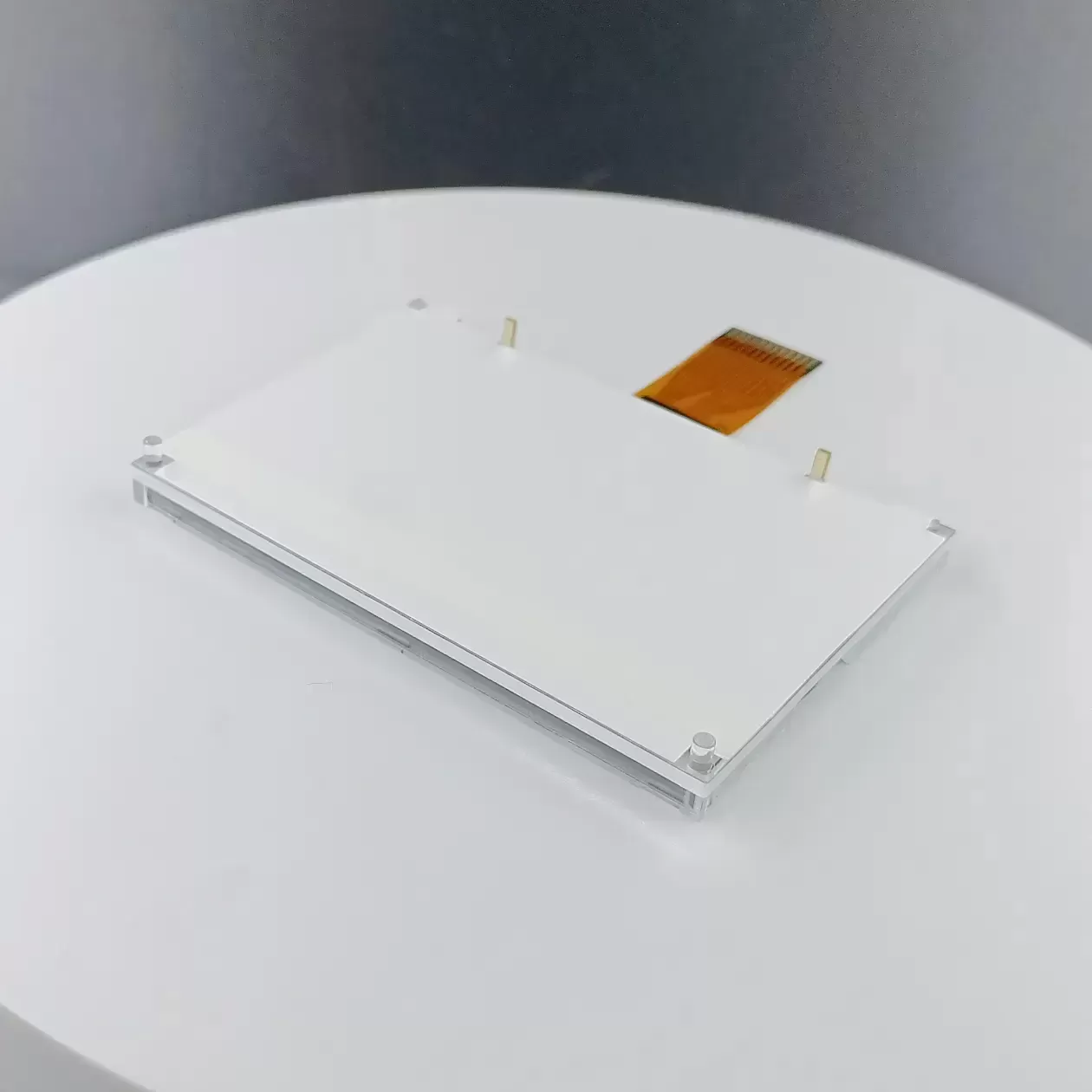

Product Display


CH256128A-L-Plug-in-type

CH256128A-L-Plug-in-type
CH256128A-L-Plug-in-type
CH256128A-L-Plug-in-type
