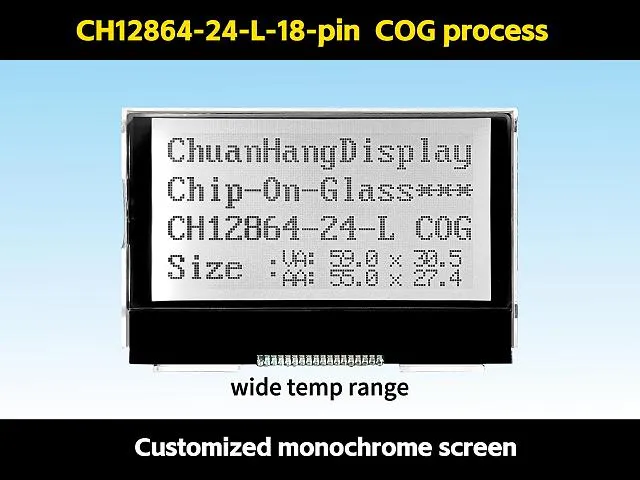

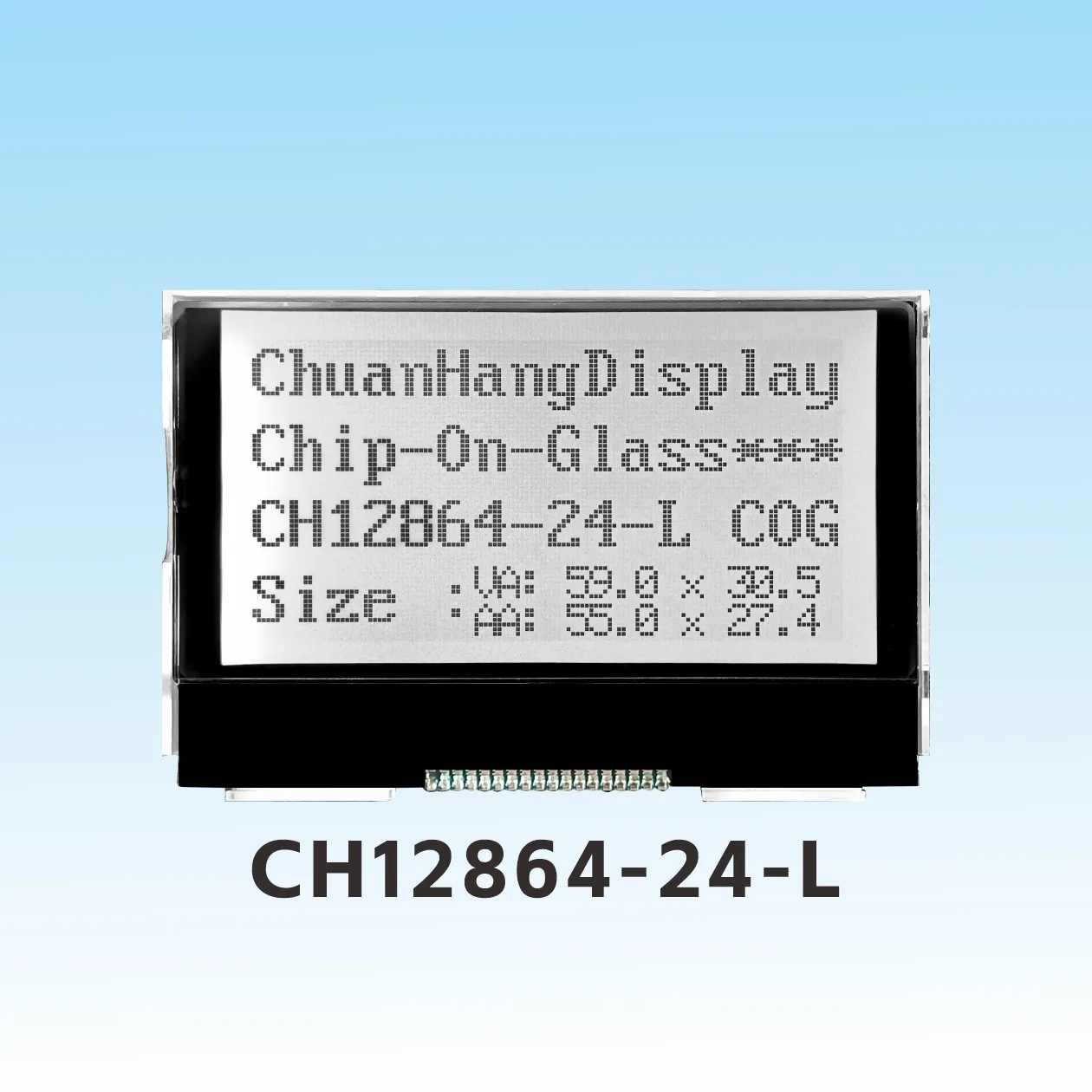

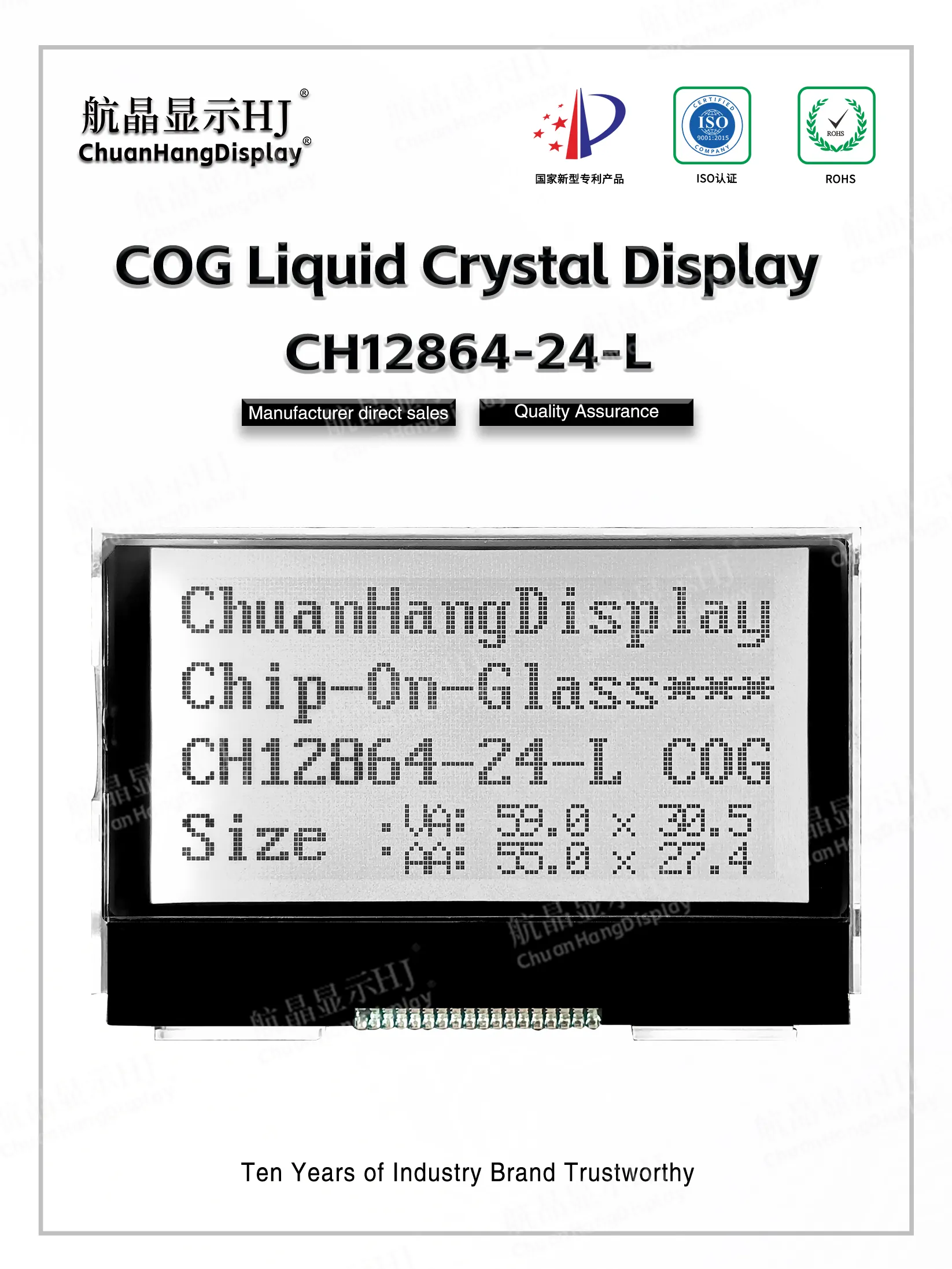

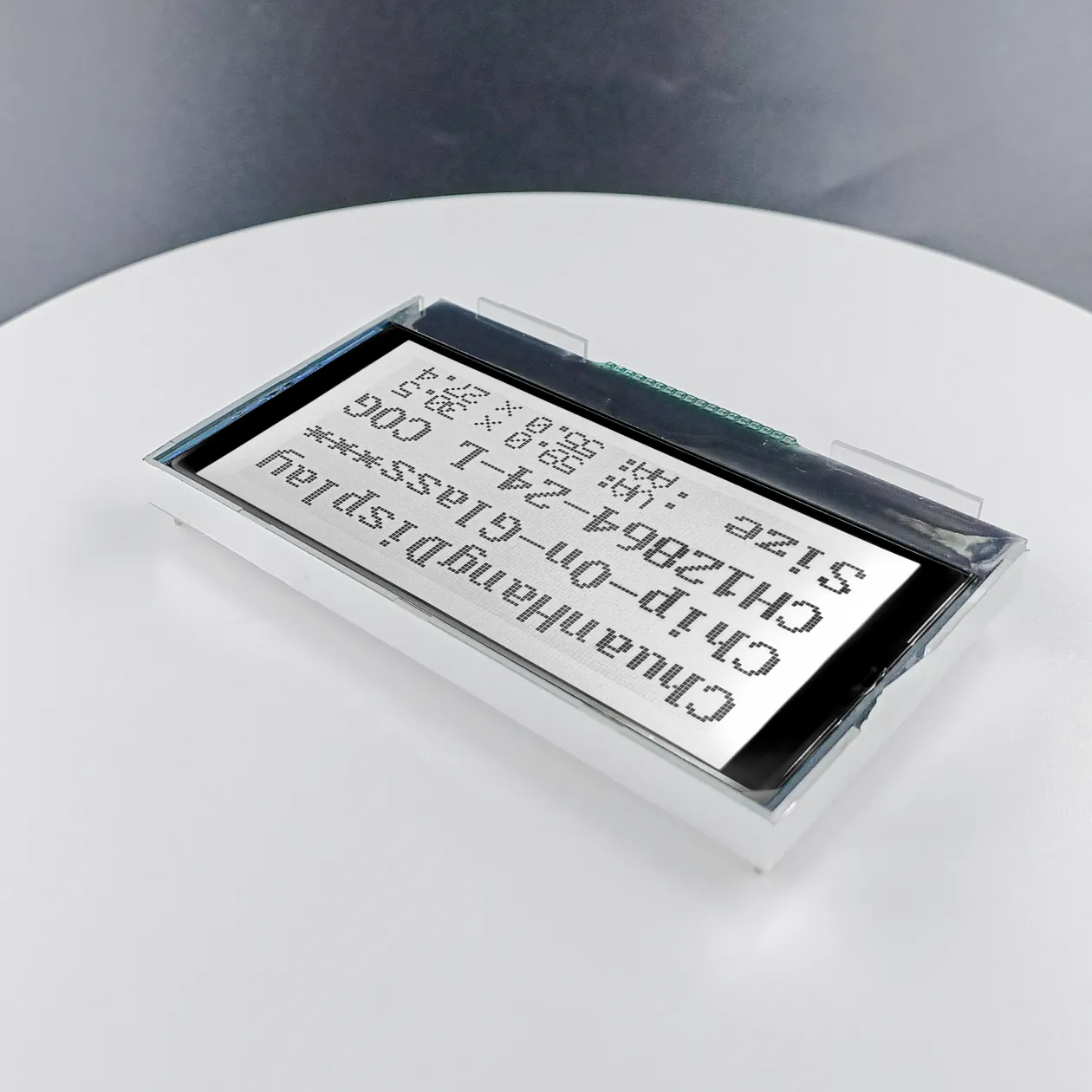

CH12864-24- L
Product Description

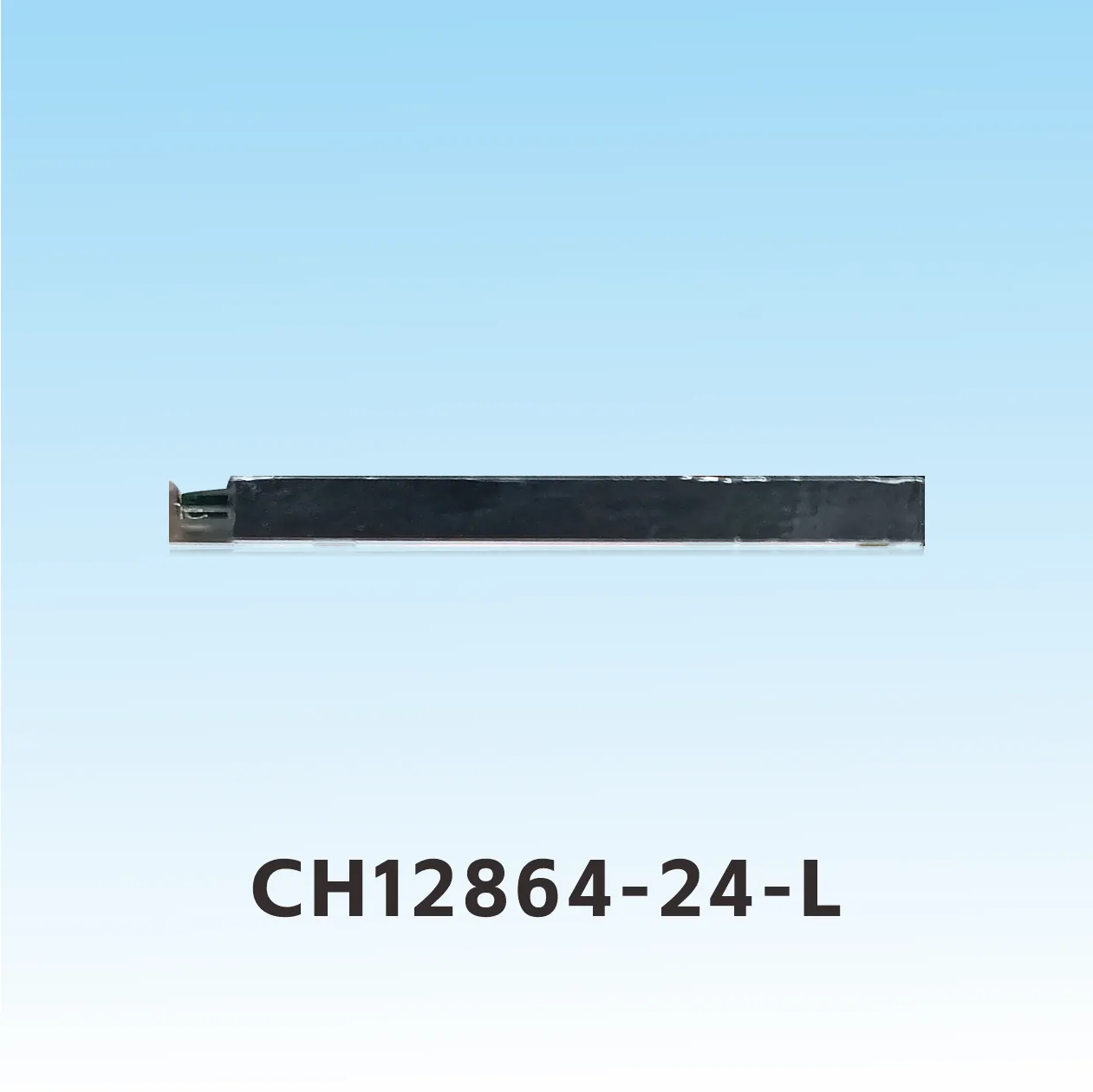

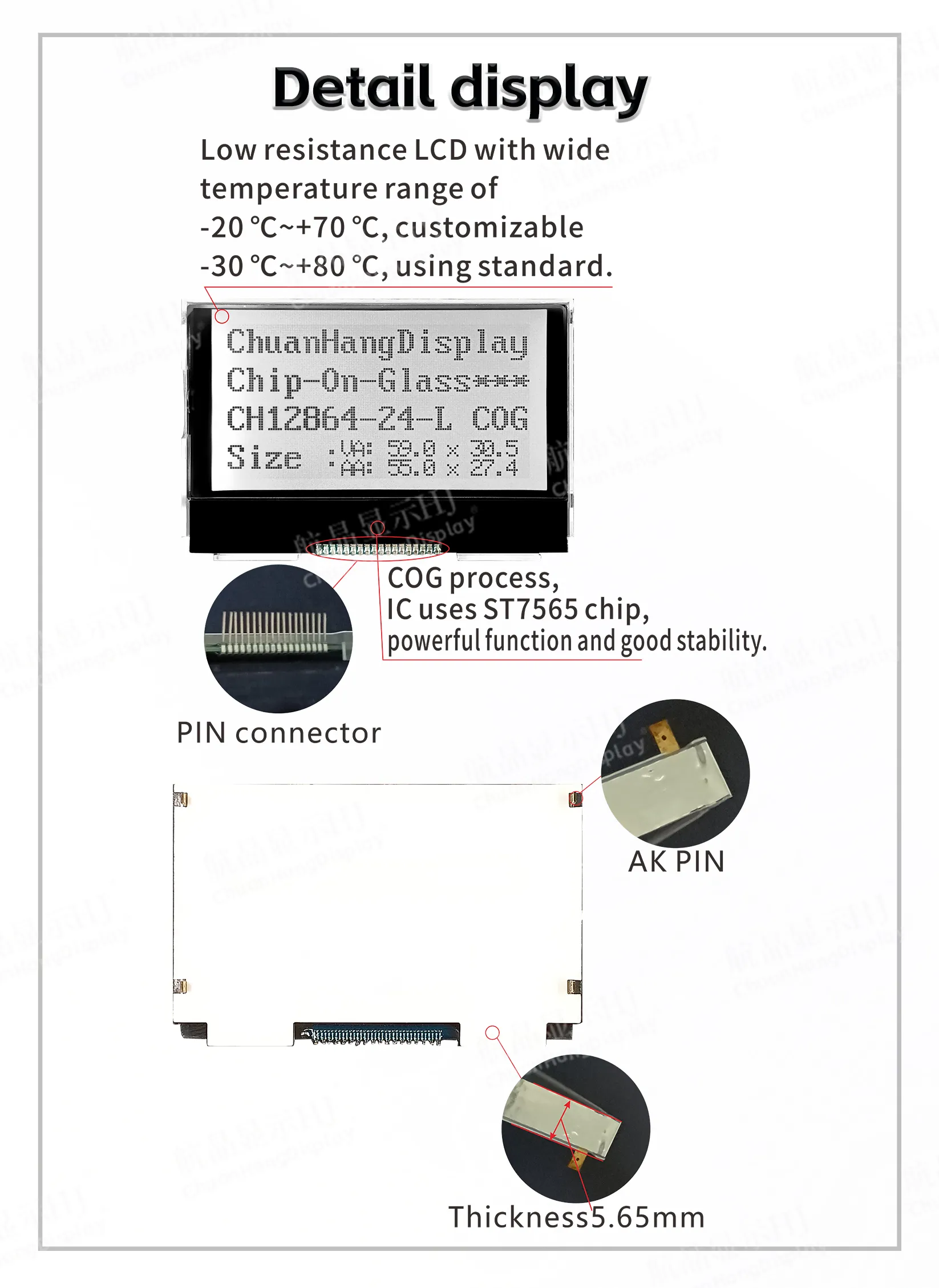

1.1 COG process, metal needle insert interface, product with backlight, thin thickness and stable structure.
1.2 The IC uses ST7565R. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA and backlight current within 80mA.

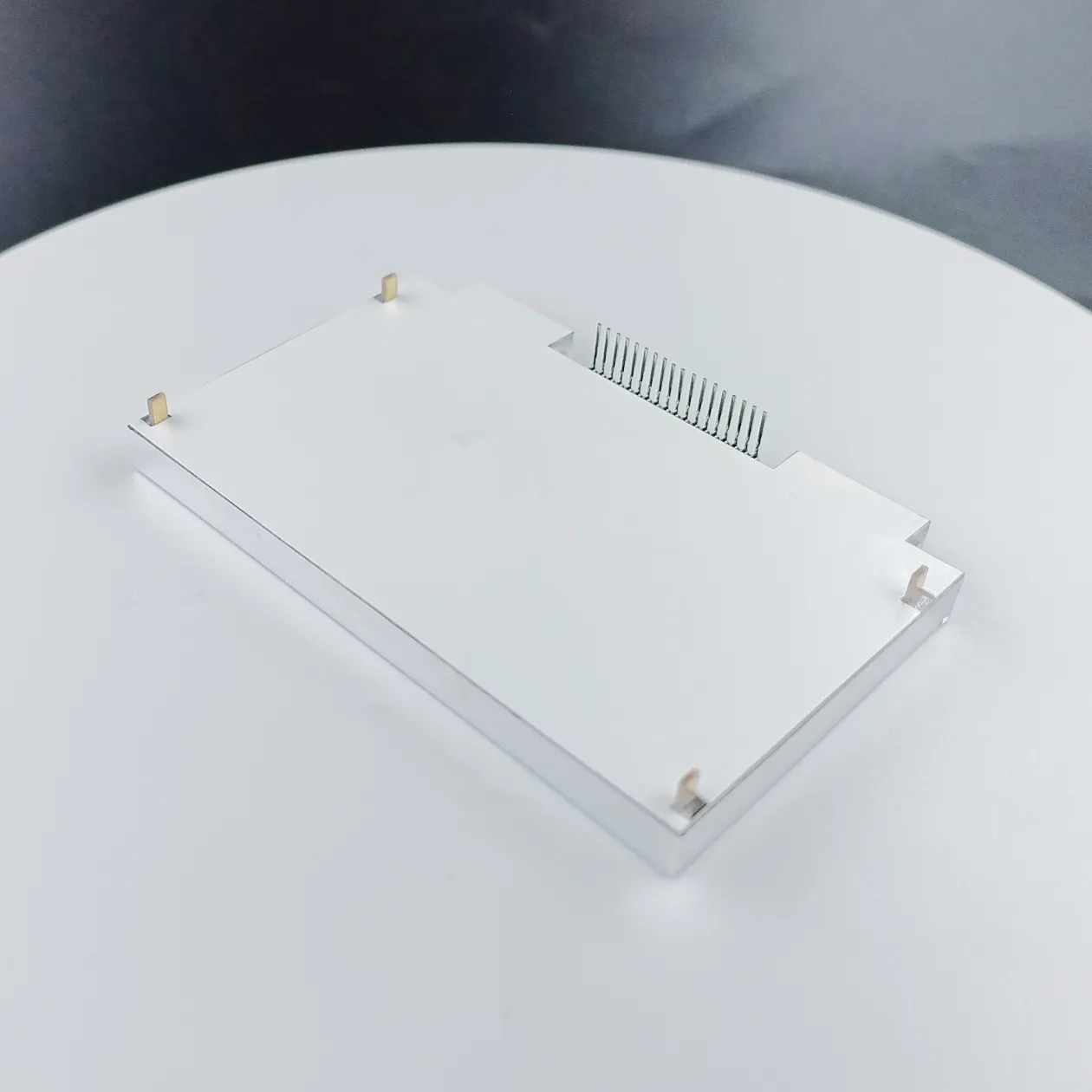

1.4 LED backlights A and K are PCB boards. A and K need to be powered separately from 2.9V to 3.0V.

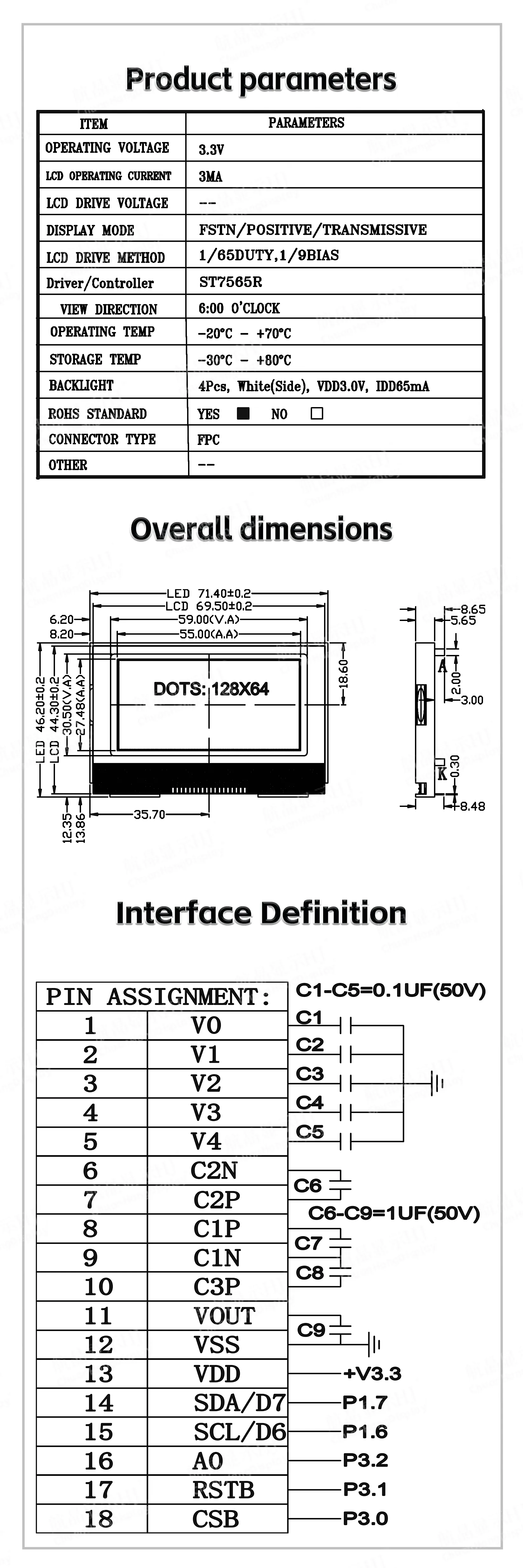

1.5 Product features:
The built-in display data RAM is 64x128 bits.
External capacitors generate boost.
The contrast ratio is deeply to shallow by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤ 128x64 dot matrix. 4-line SP communication.
Rich functions: interface display on/off, positive display/reverse display, read/modify/write.
1.2 The IC uses ST7565R. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA and backlight current within 80mA.
1.4 LED backlights A and K are PCB boards. A and K need to be powered separately from 2.9V to 3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits.
External capacitors generate boost.
The contrast ratio is deeply to shallow by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤ 128x64 dot matrix. 4-line SP communication.
Rich functions: interface display on/off, positive display/reverse display, read/modify/write.
