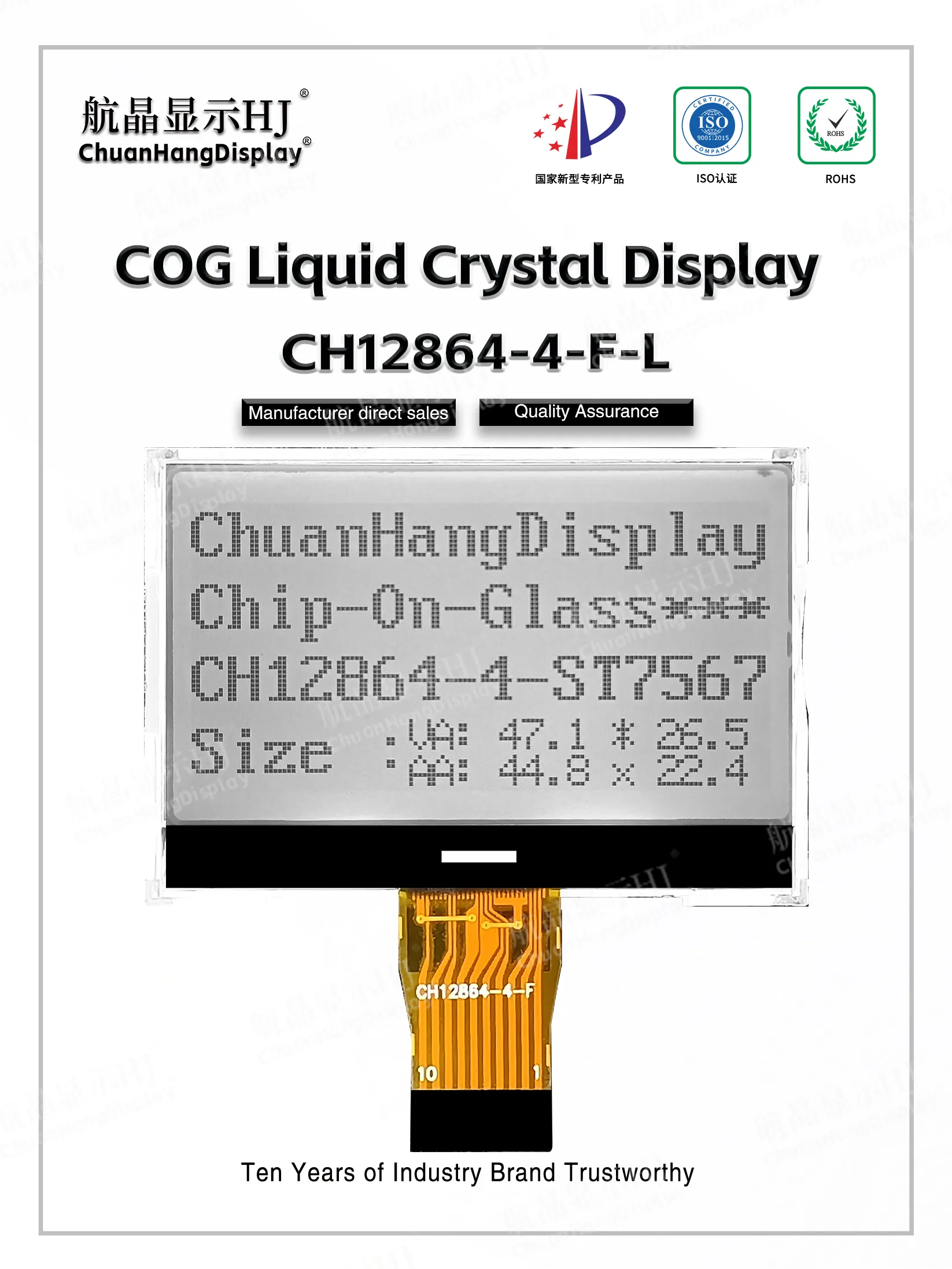

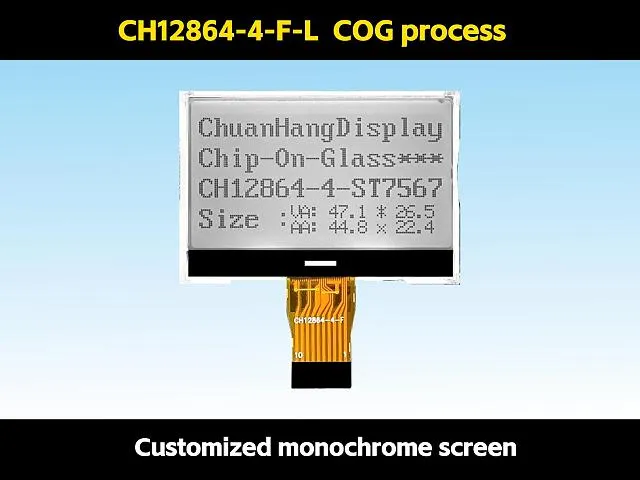

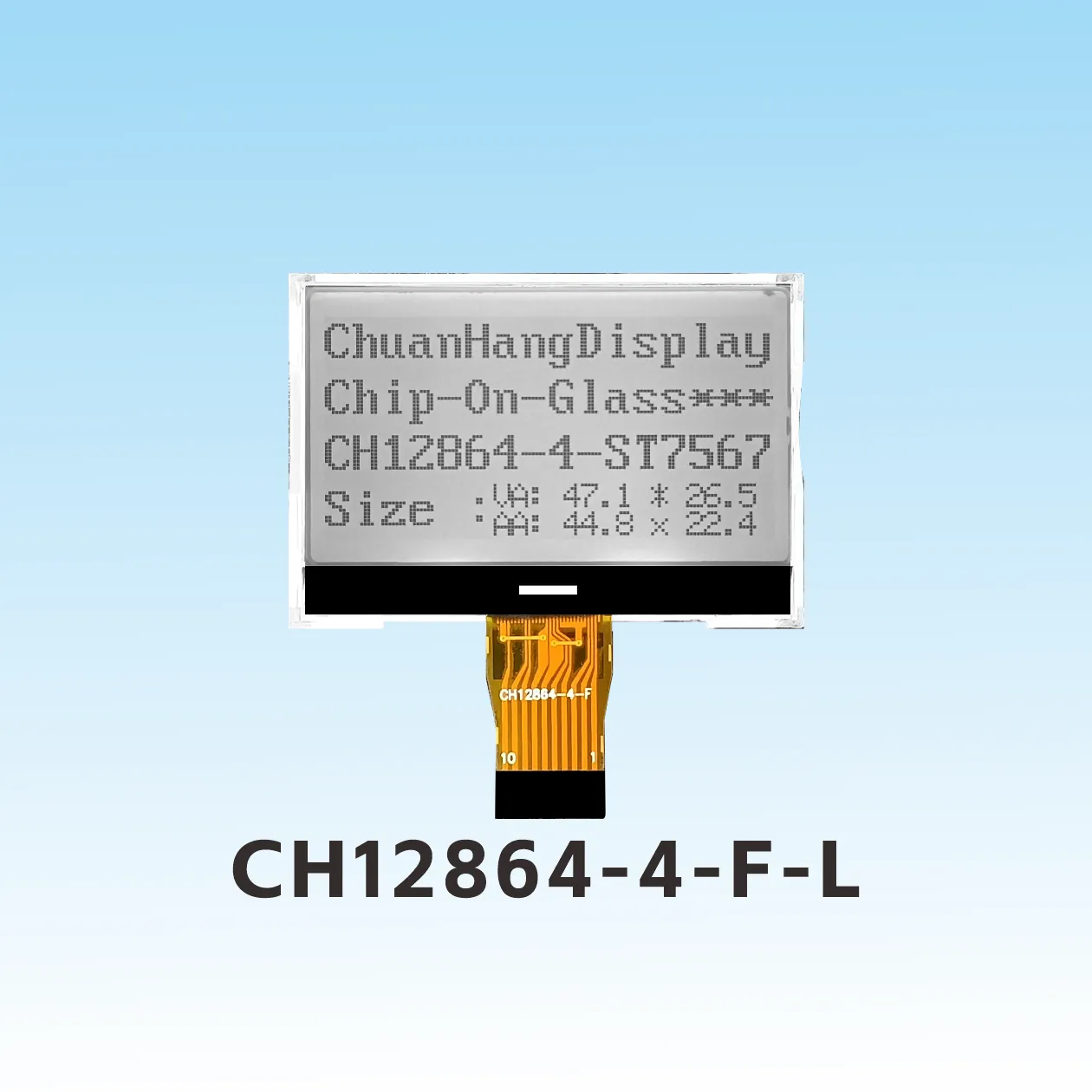

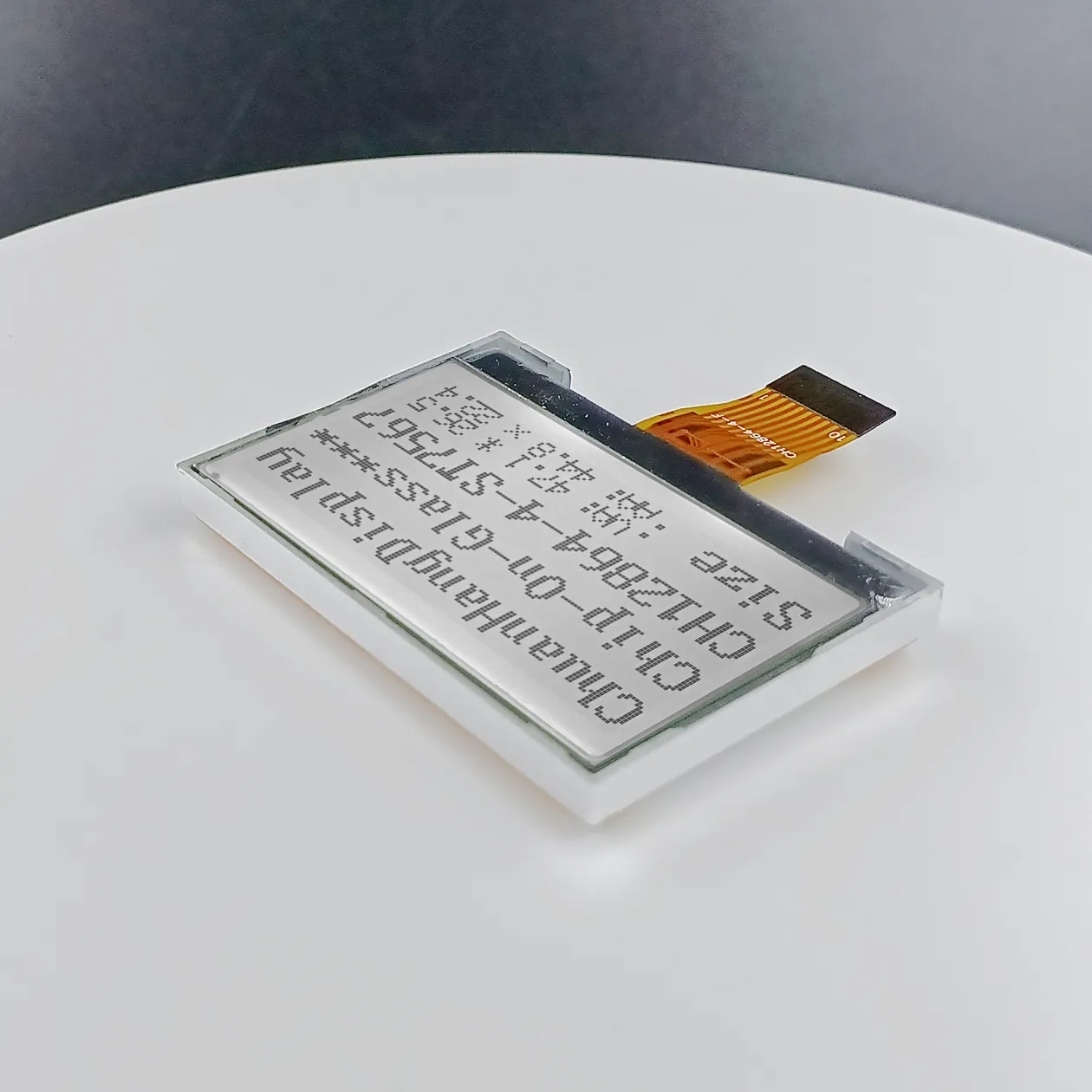

CH12864-4-F-L
Product Description

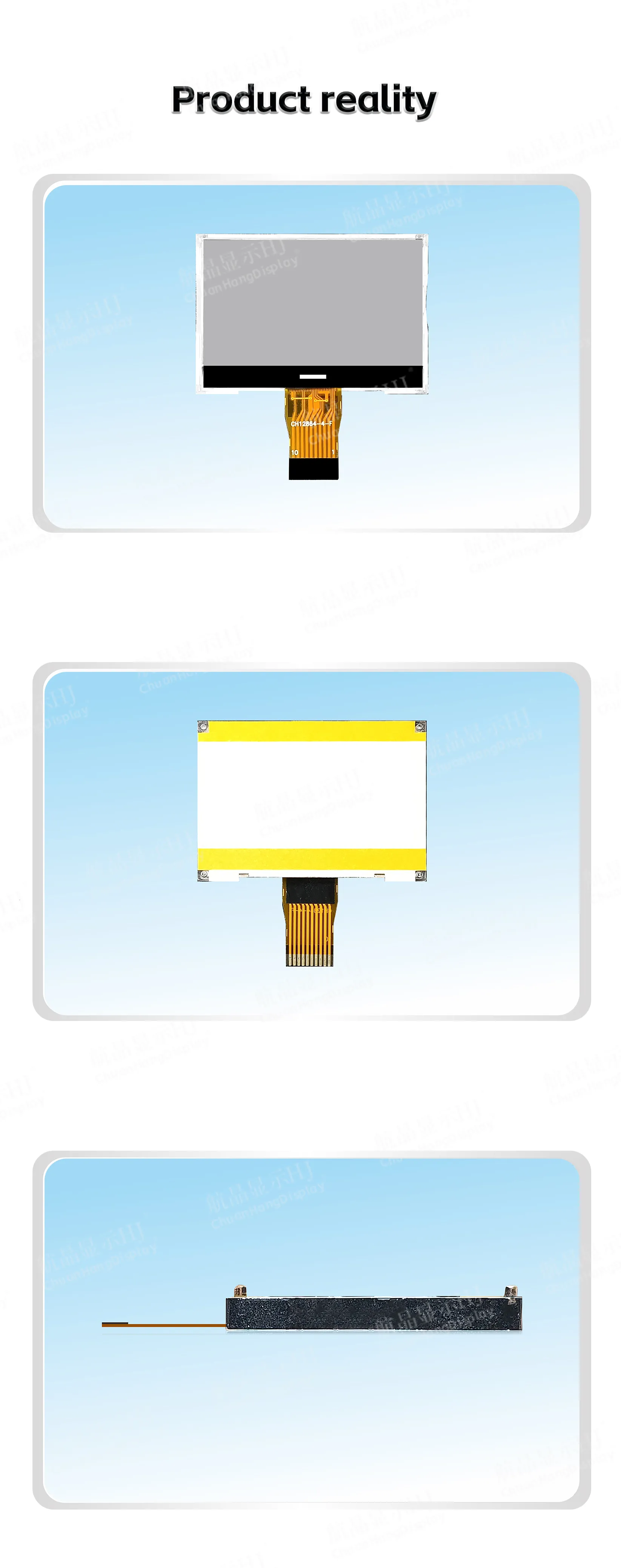

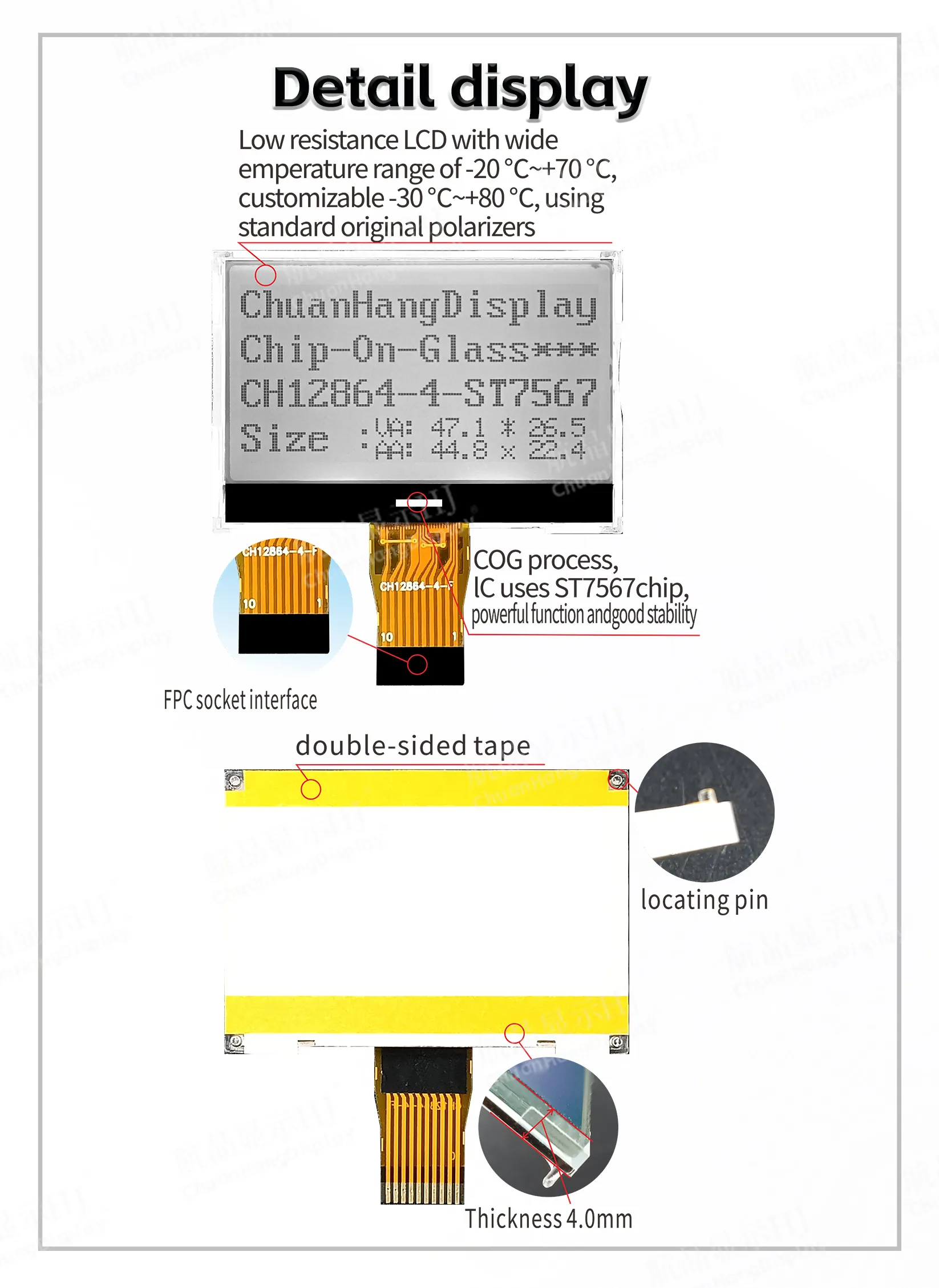

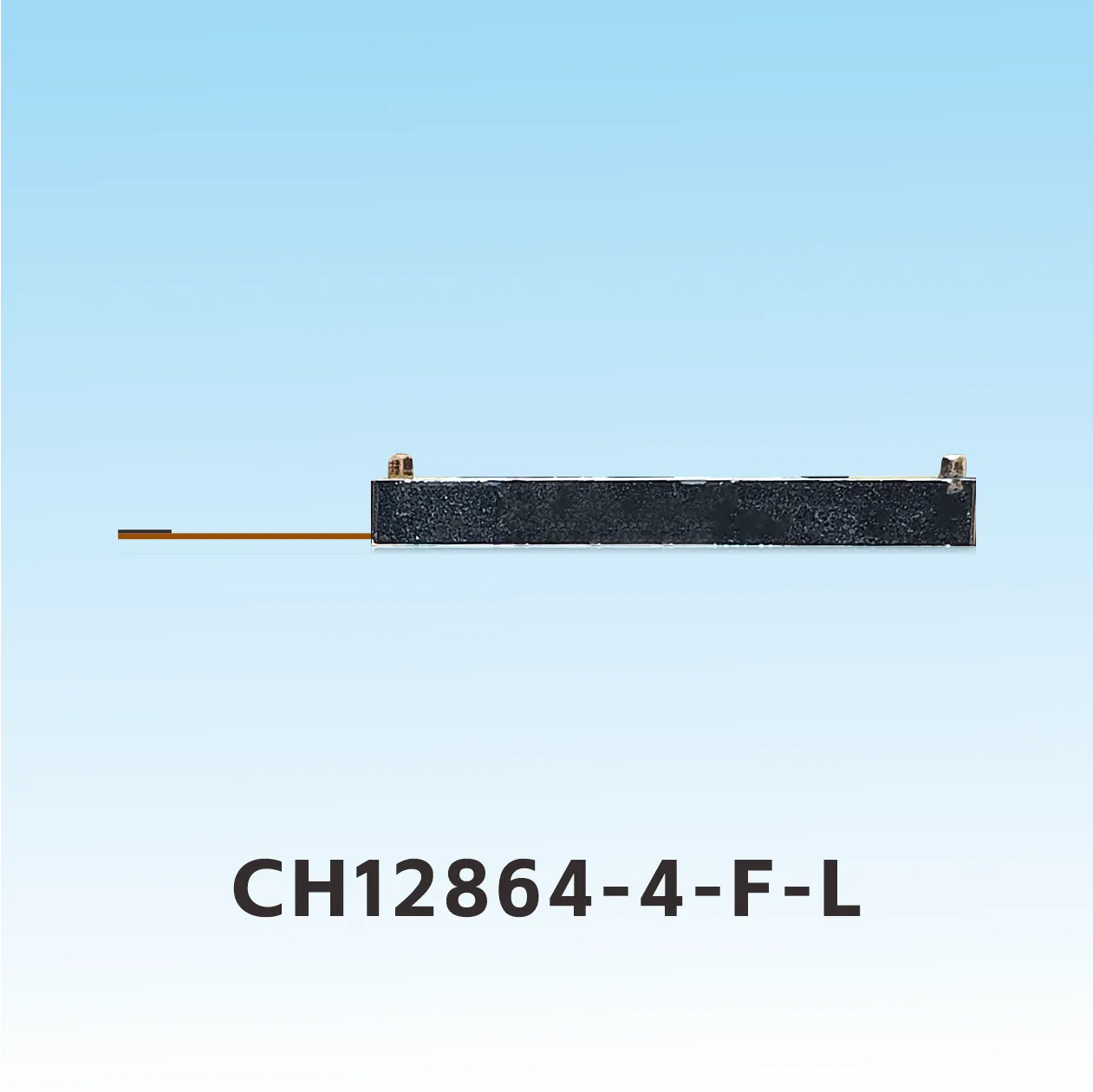

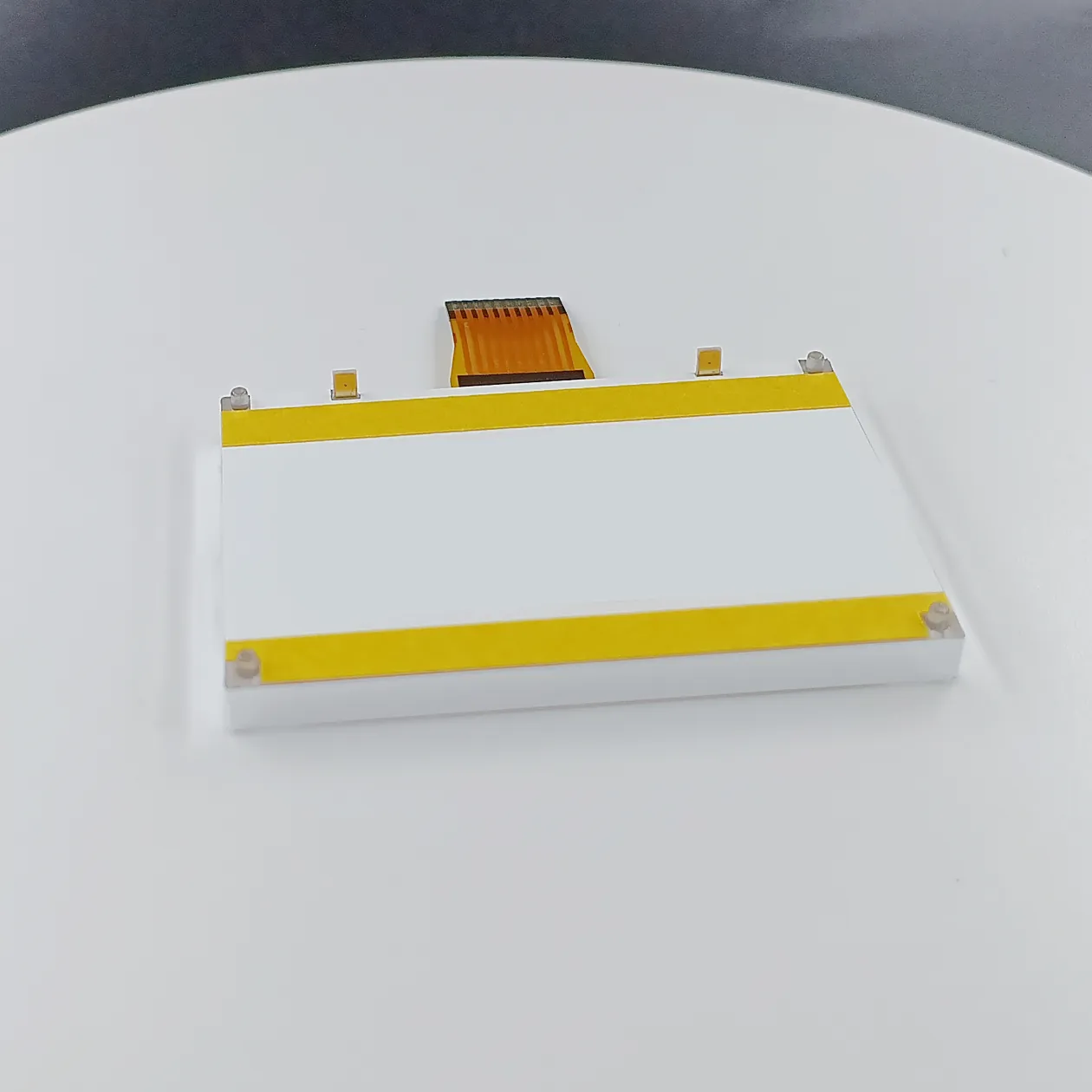

1.1 COG process, FPC soft line is the plug-in interface, the product has backlight, has been assembled, thin thickness, and stable structure.
1.2 IC uses ST7567, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 60mA.

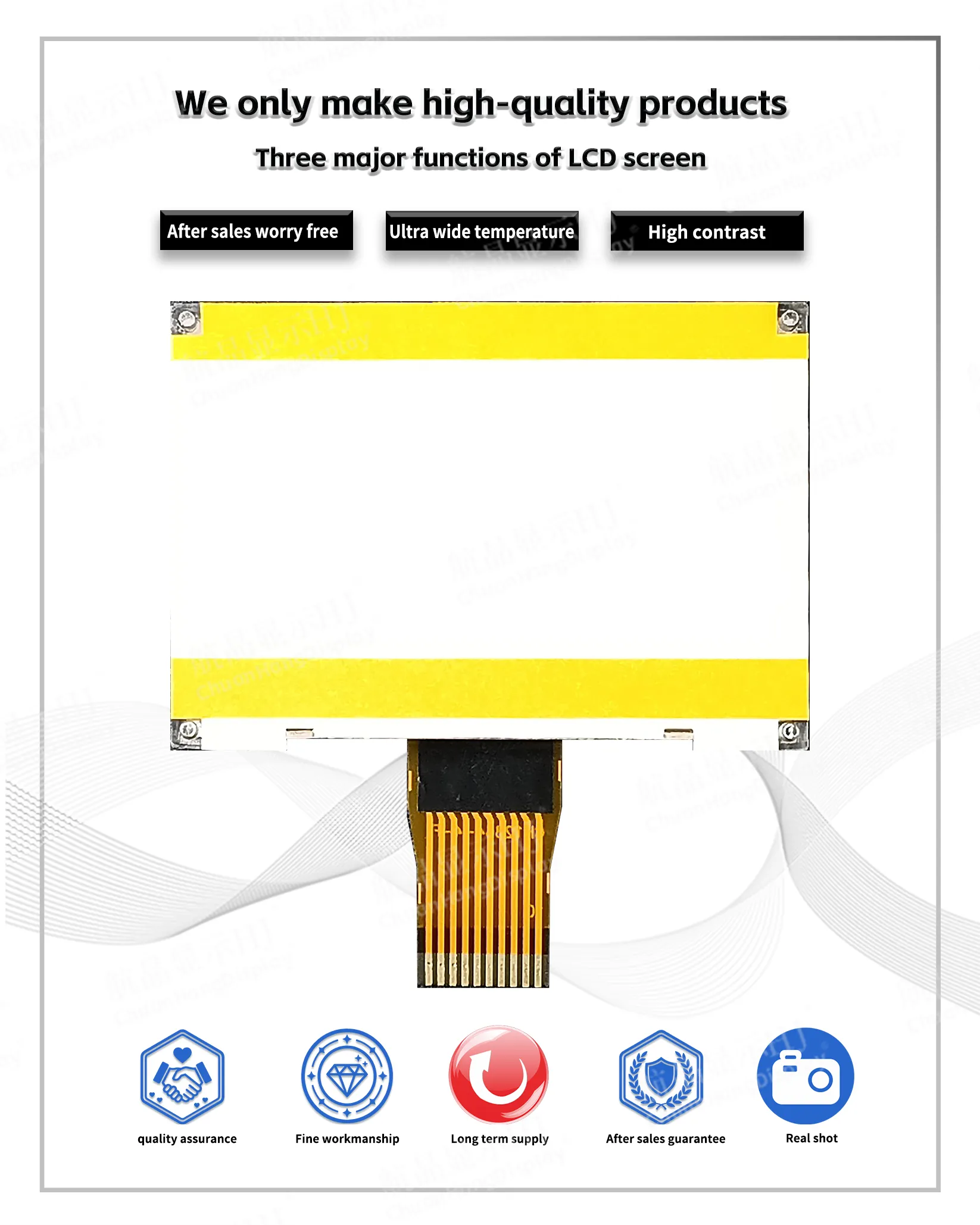

1.4 LED backlights A and K are FPC wiring, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●The external capacitor generates a boost.
●The contrast is adjusted by the software.
●One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≤128x64 dot matrix. 4-wire SPI interface communication.
●Rich functions: The interface display is on/off, positive/reverse display.
