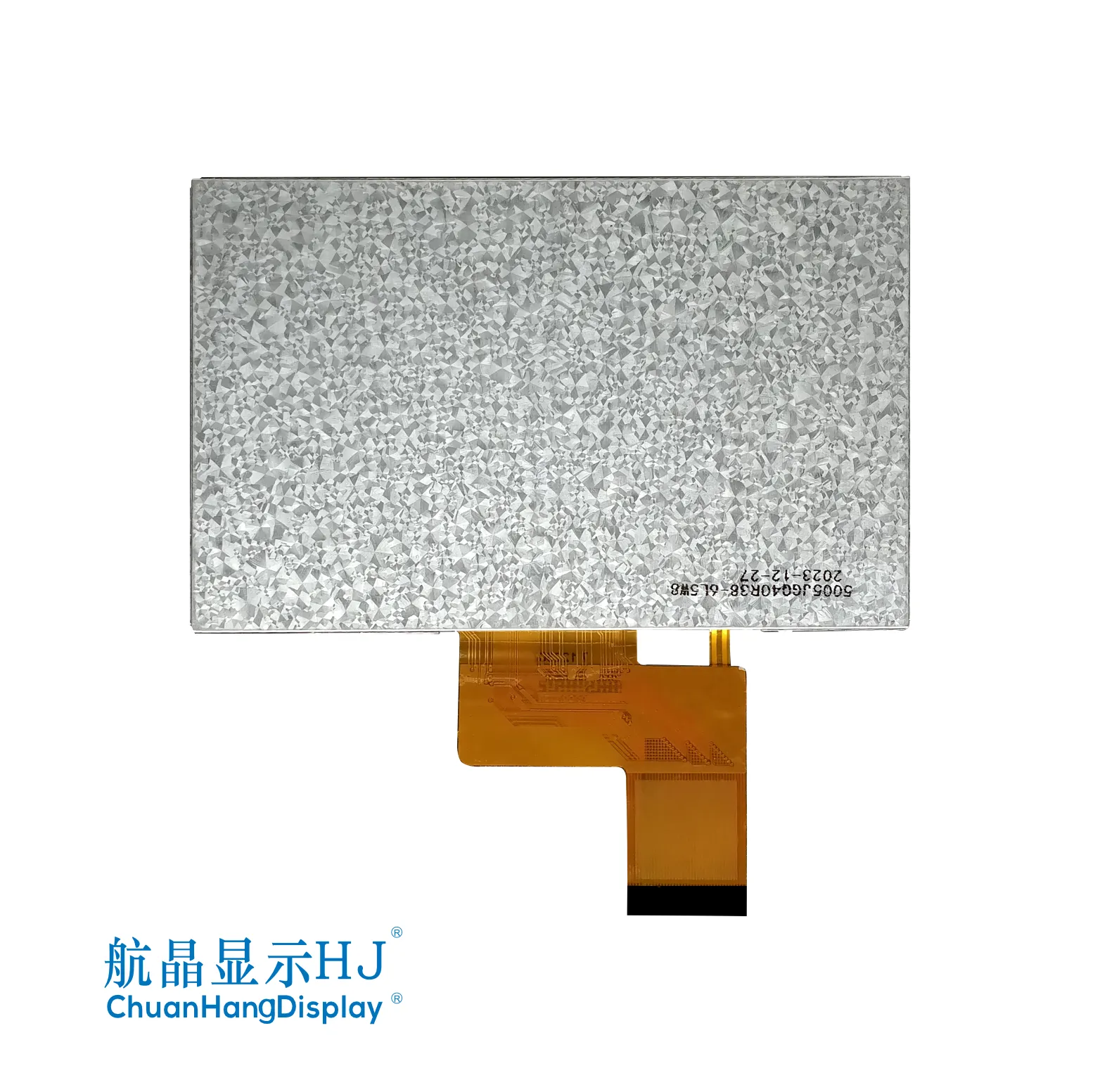

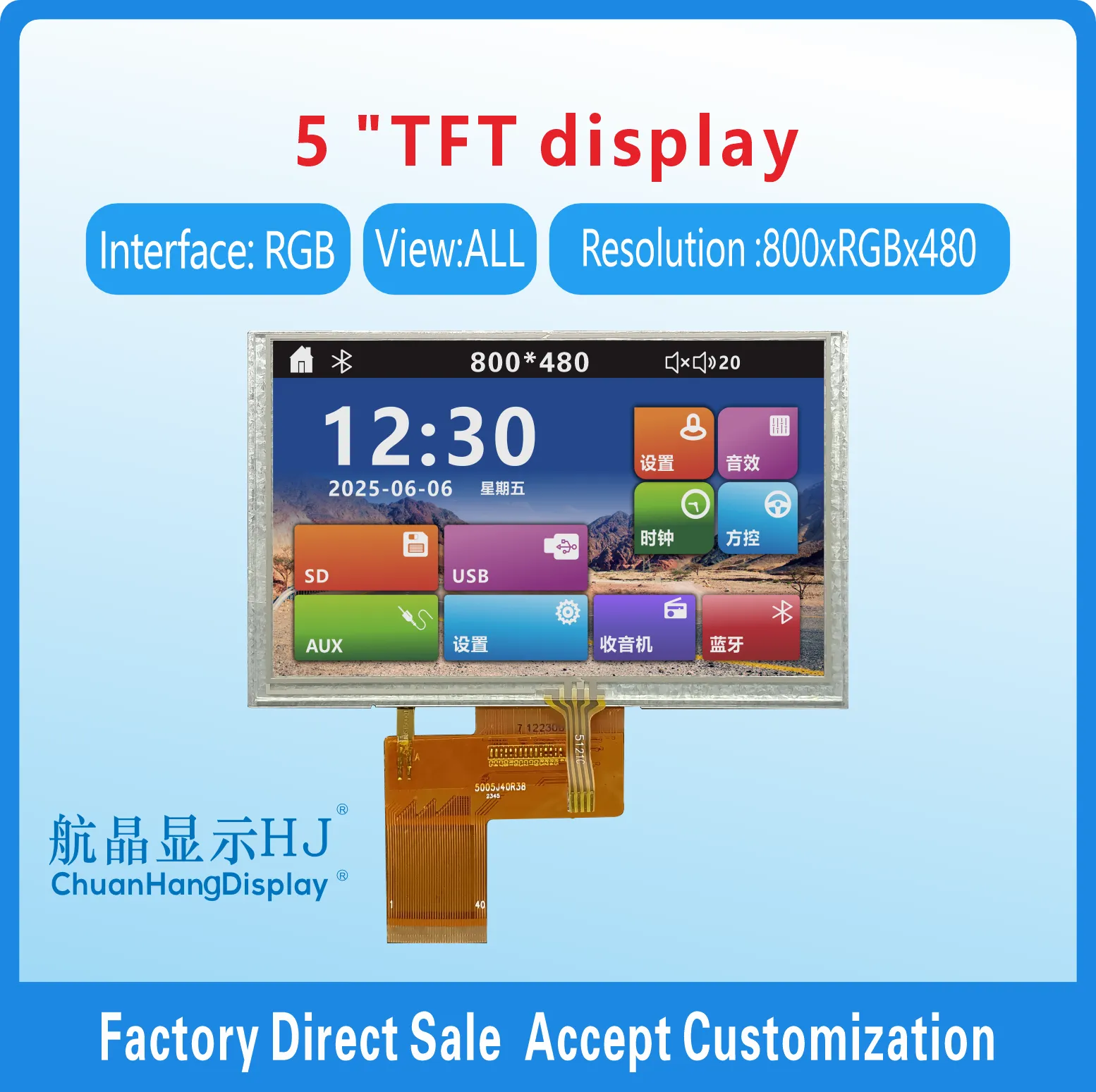

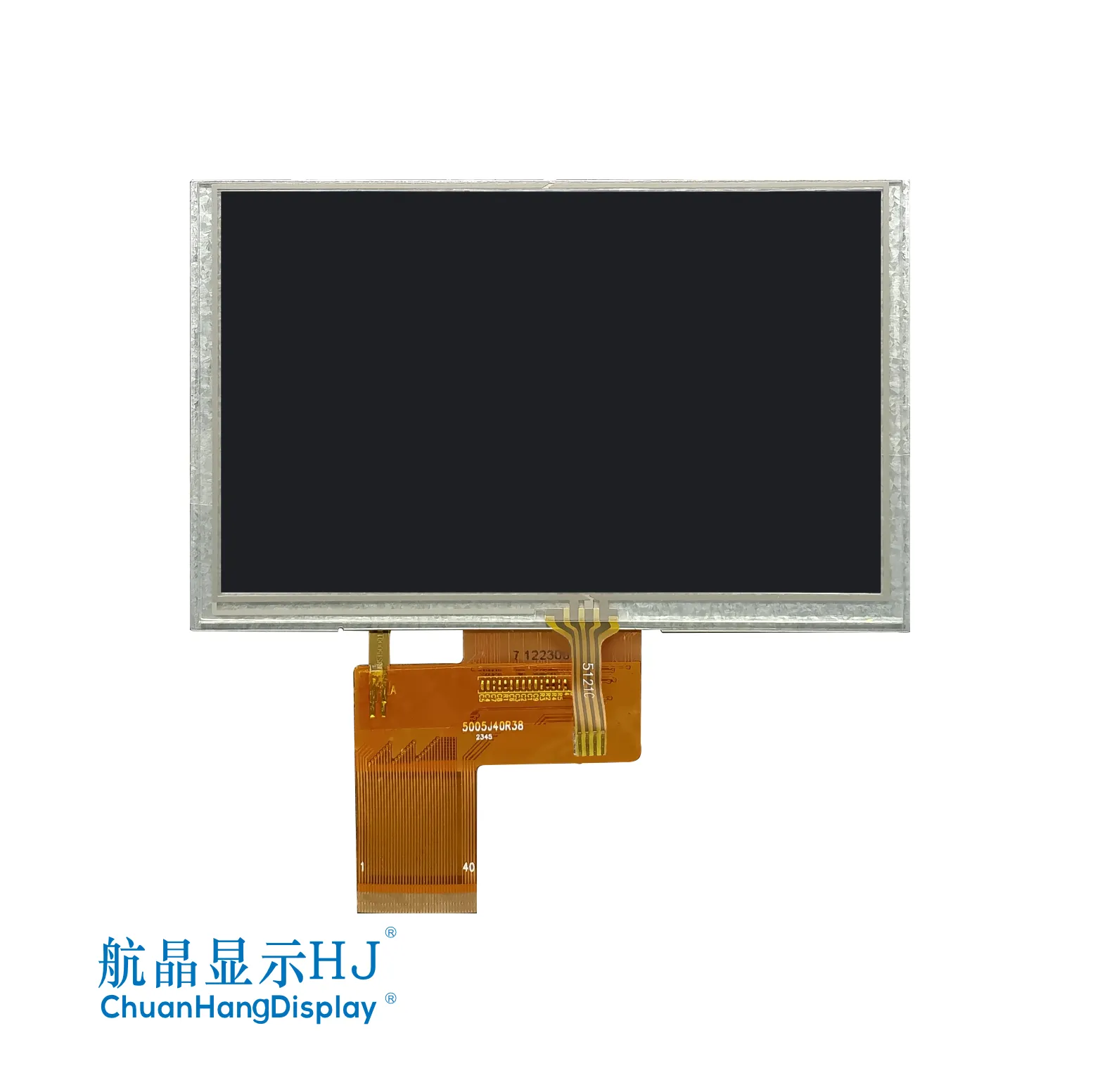

Product Description
Product size: 5'' Resistance Touch
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7265
Interface type: Parallel port 8-bit/16-bit

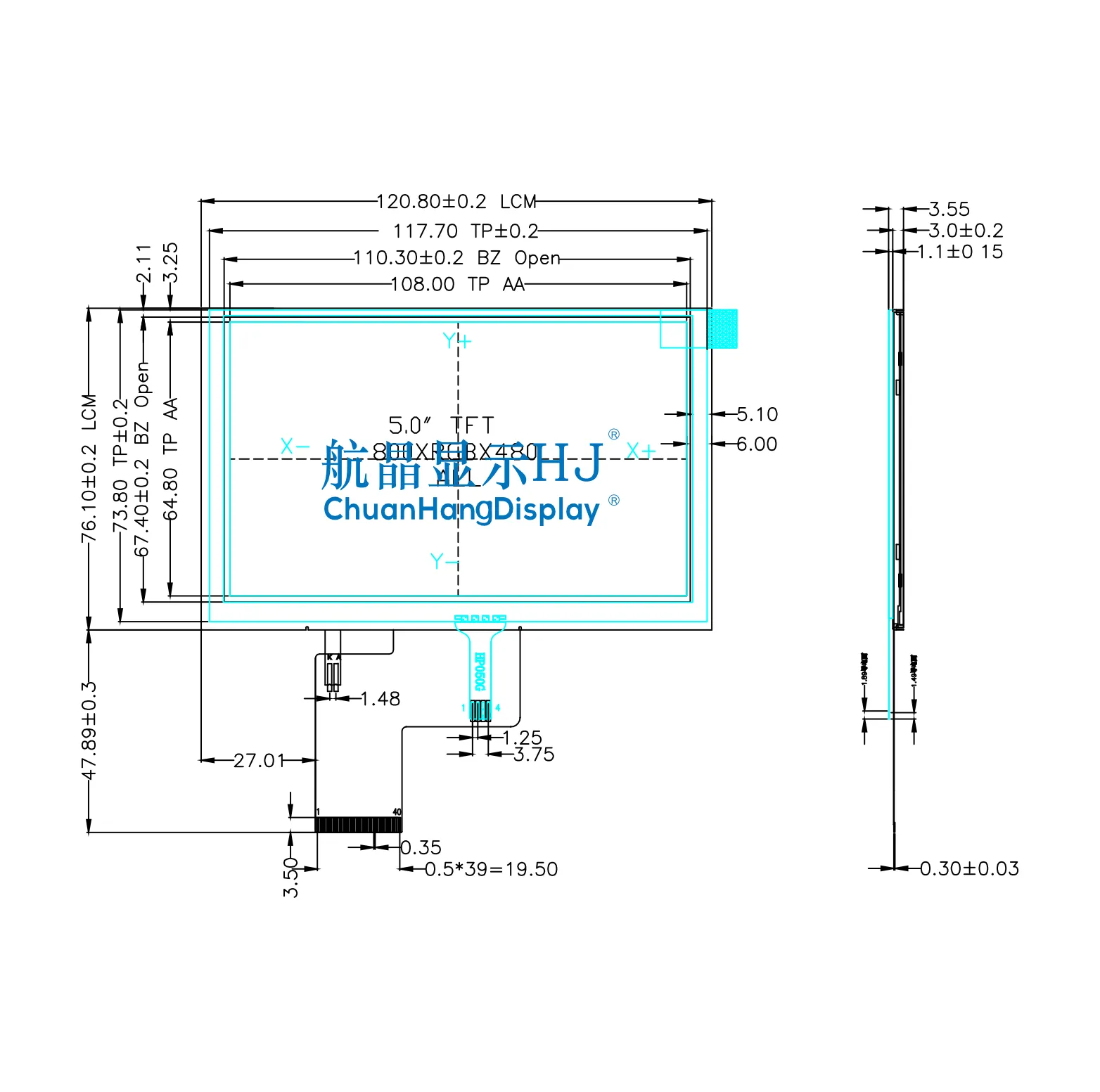

Module size: 120.8X76.10X3.55mm
Active area: 108.00X64.80mm
Resistance touch:4-wire resistive touch 2046 touch chip
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH0500A-P-TP
Resolution 800xRGBx480 Screen size 5.0”
Outline Dimension(L*W*H) 120.8X76.10X3.55mm Active Area(L*W) 108.00X64.80mm
Type COG Communication interface Parallel port 8-bit/16-bit
Operating Voltage 3.3V Interface Type 40PIN
Viewing Direction IPS full viewing angle Display Color TFT
Driver IC ST7265 Operating Temperature -20℃ --70℃
Storage Temperature -30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NO Connection Method FPC

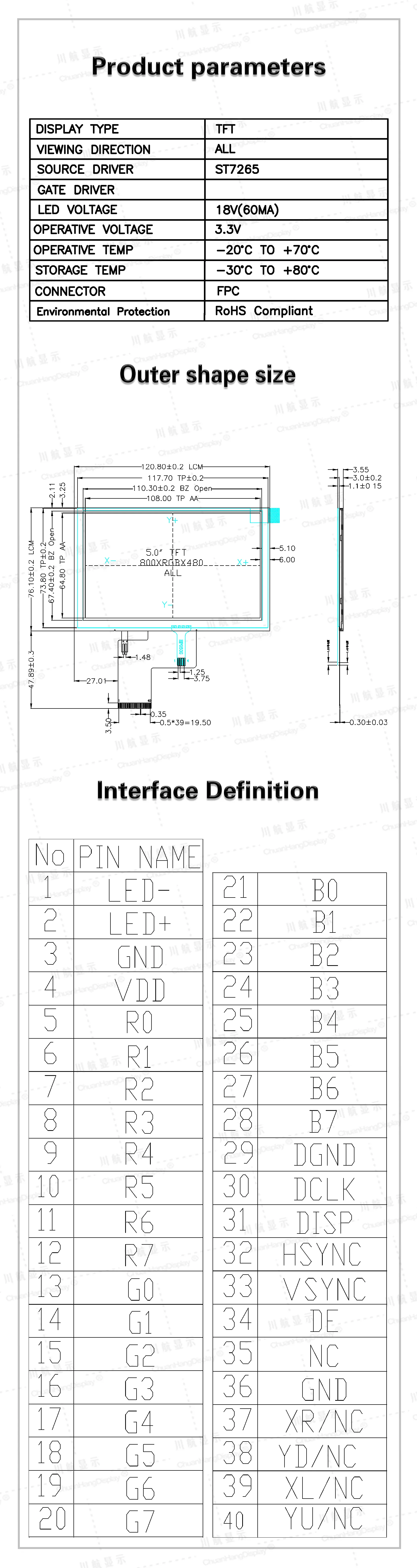

Product Datasheet

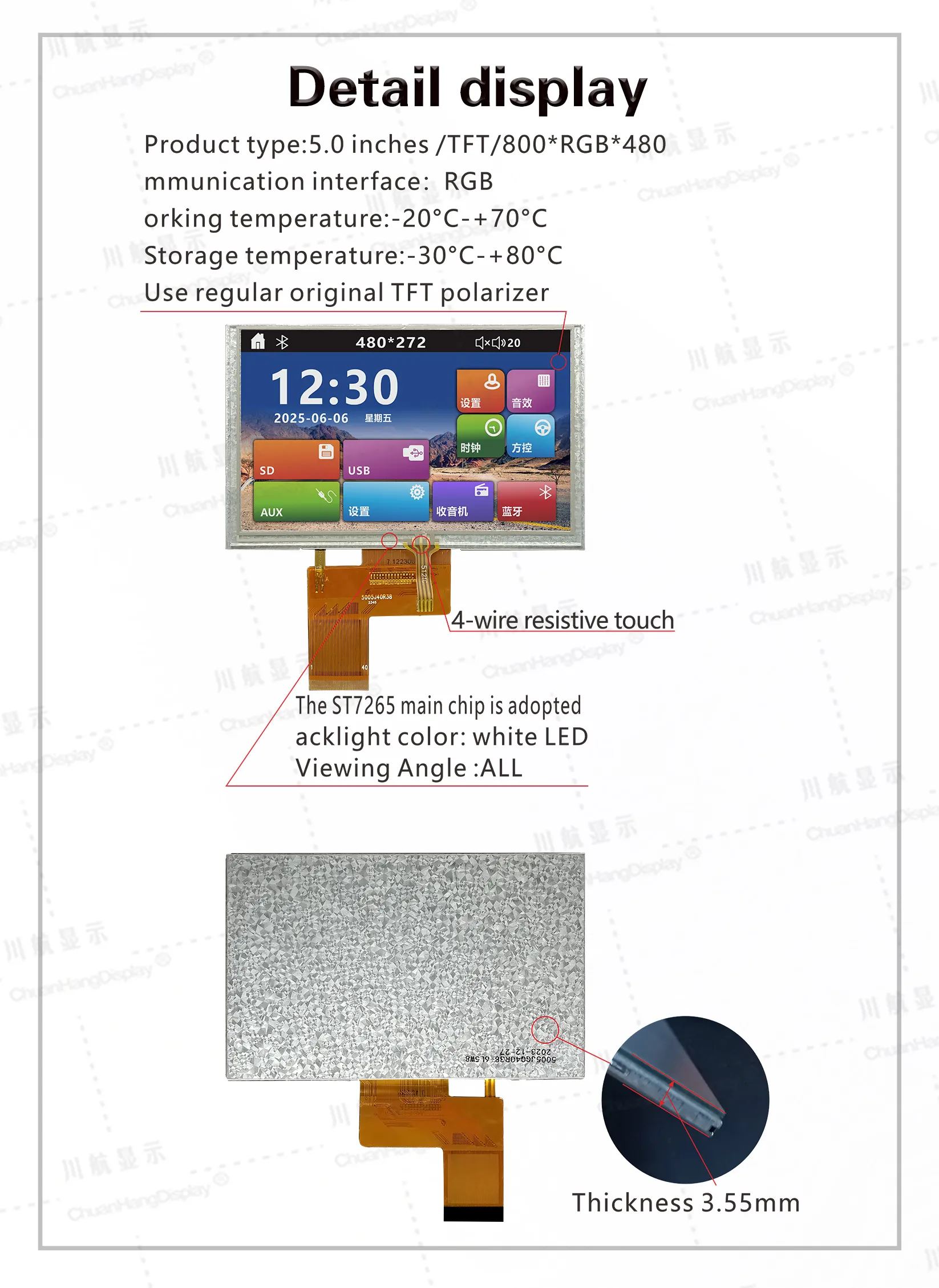

Product Display
