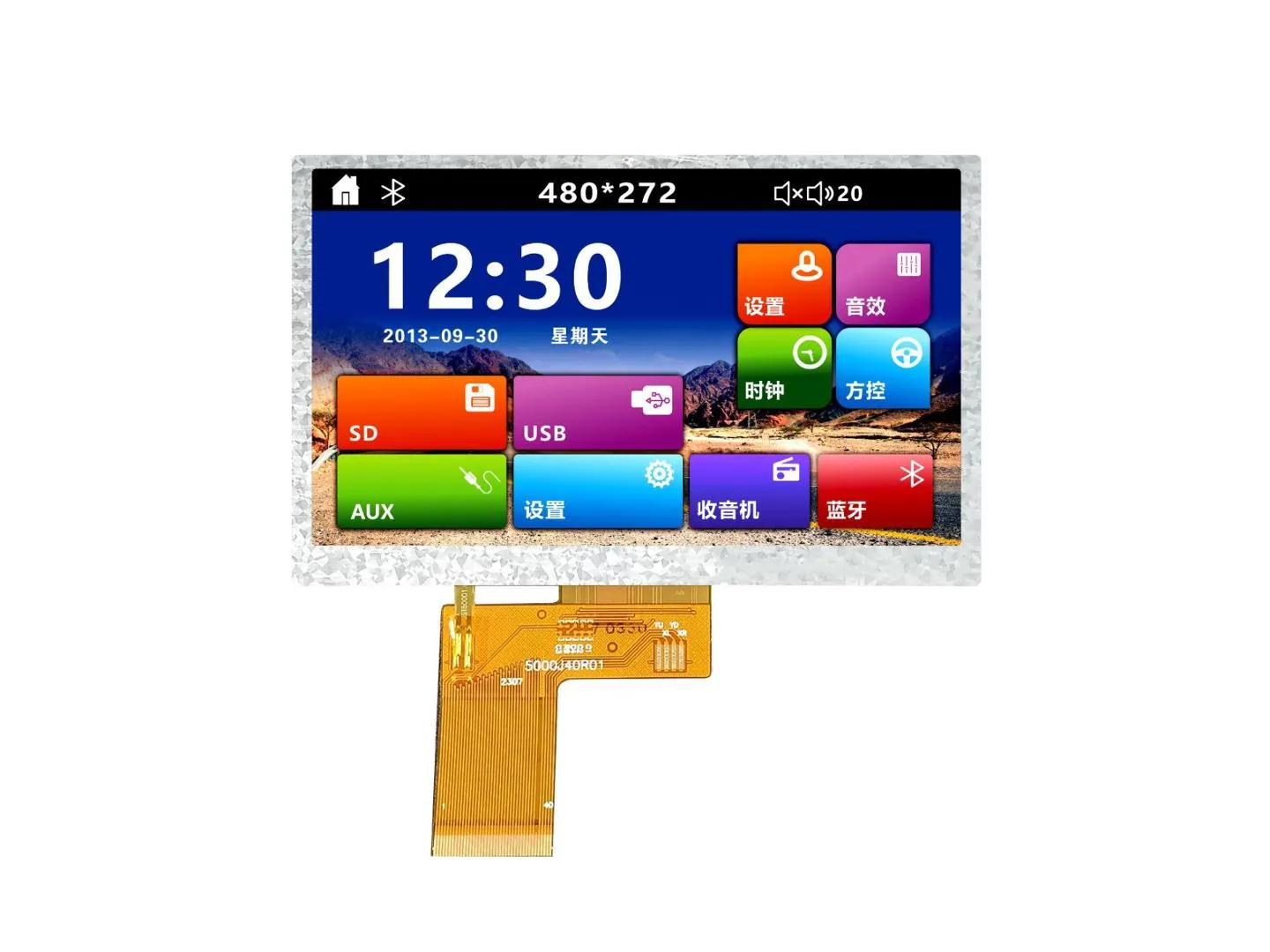

Product Description
Product size: 5.0 inches
Resolution: 480xRGBx272
Viewing angle: IPS full viewing angle
Driver chip: ST7265
Interface type: Parallel port 8-bit/16-bit
Module size: 120.8X76.10X3.0mm
Active area: 108.00X64.80mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH0500B-P
Resolution 480xRGBx272 Screen size 5.0”

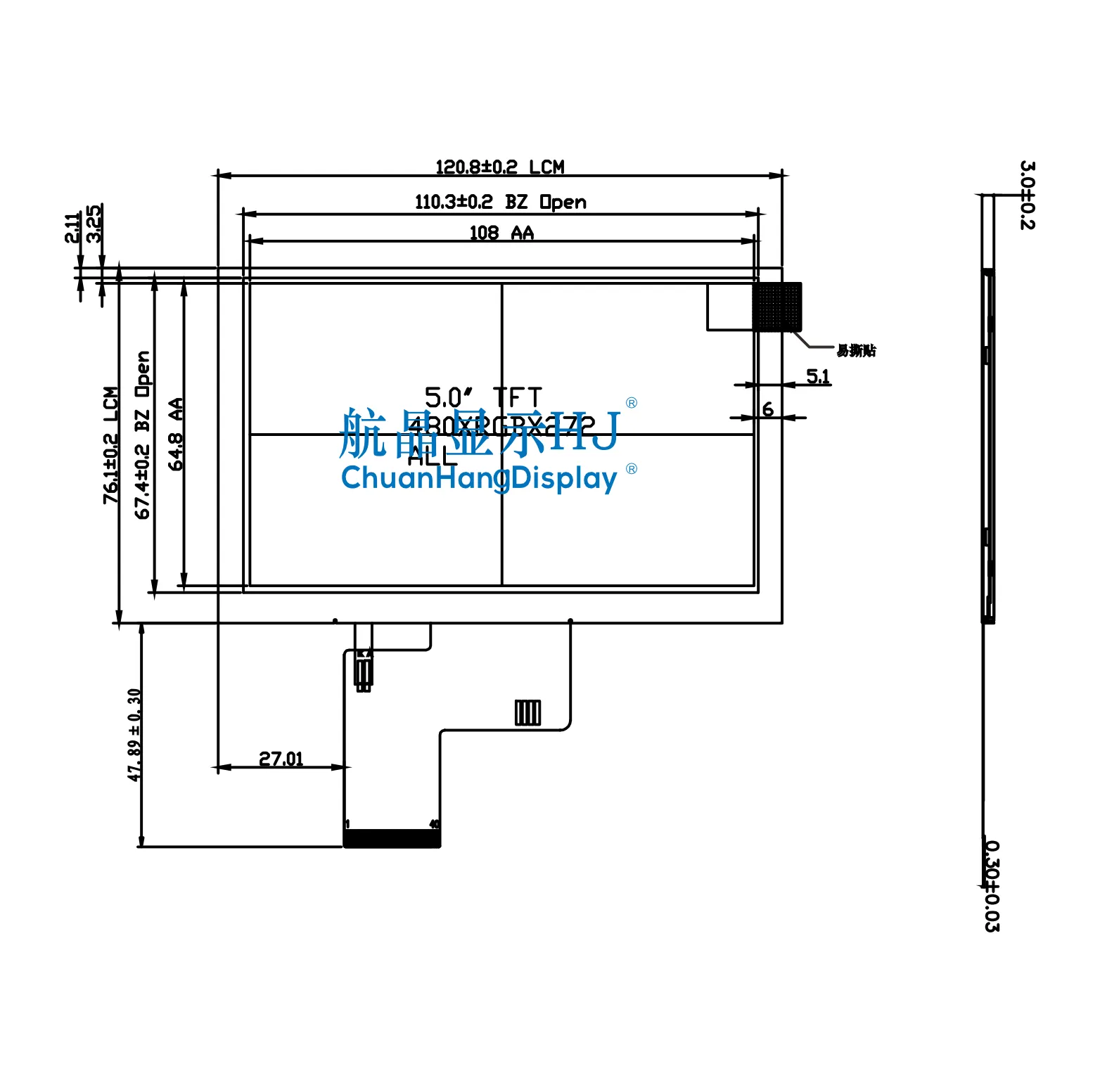

Outline Dimension(L*W*H) 120.8X76.10X3.0mm Active Area(L*W) 108.00X64.80mm
Type COG Communication interface Parallel port 8-bit/16-bit
Operating Voltage 3.3V Interface Type 40PIN
Viewing Direction IPS full viewing angle Display Color TFT
Driver IC ST7265 Operating Temperature -20℃ --70℃
Storage Temperature -30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NO Connection Method FPC

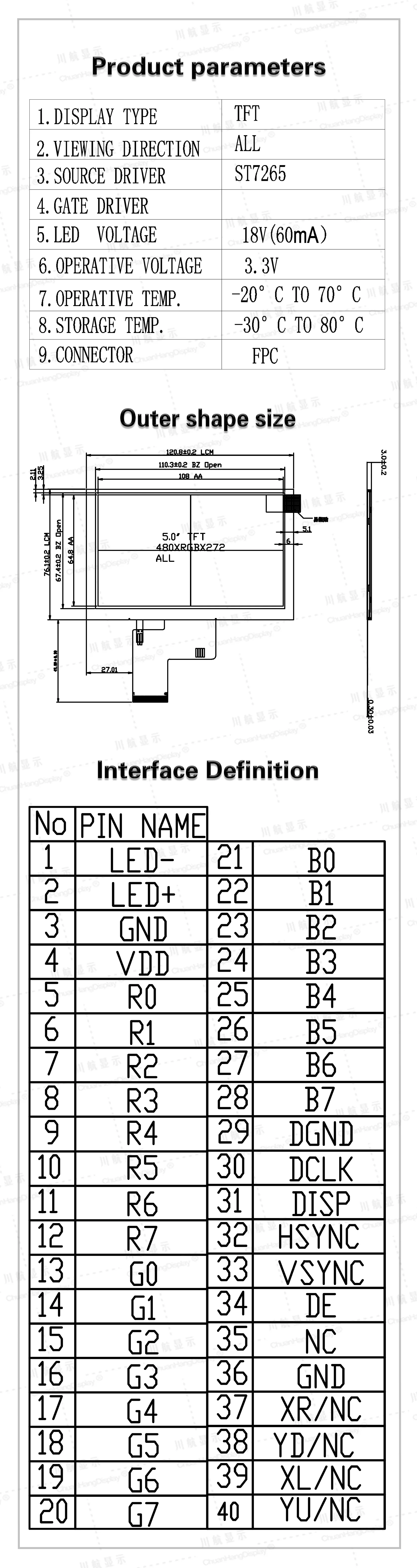

Product Datasheet

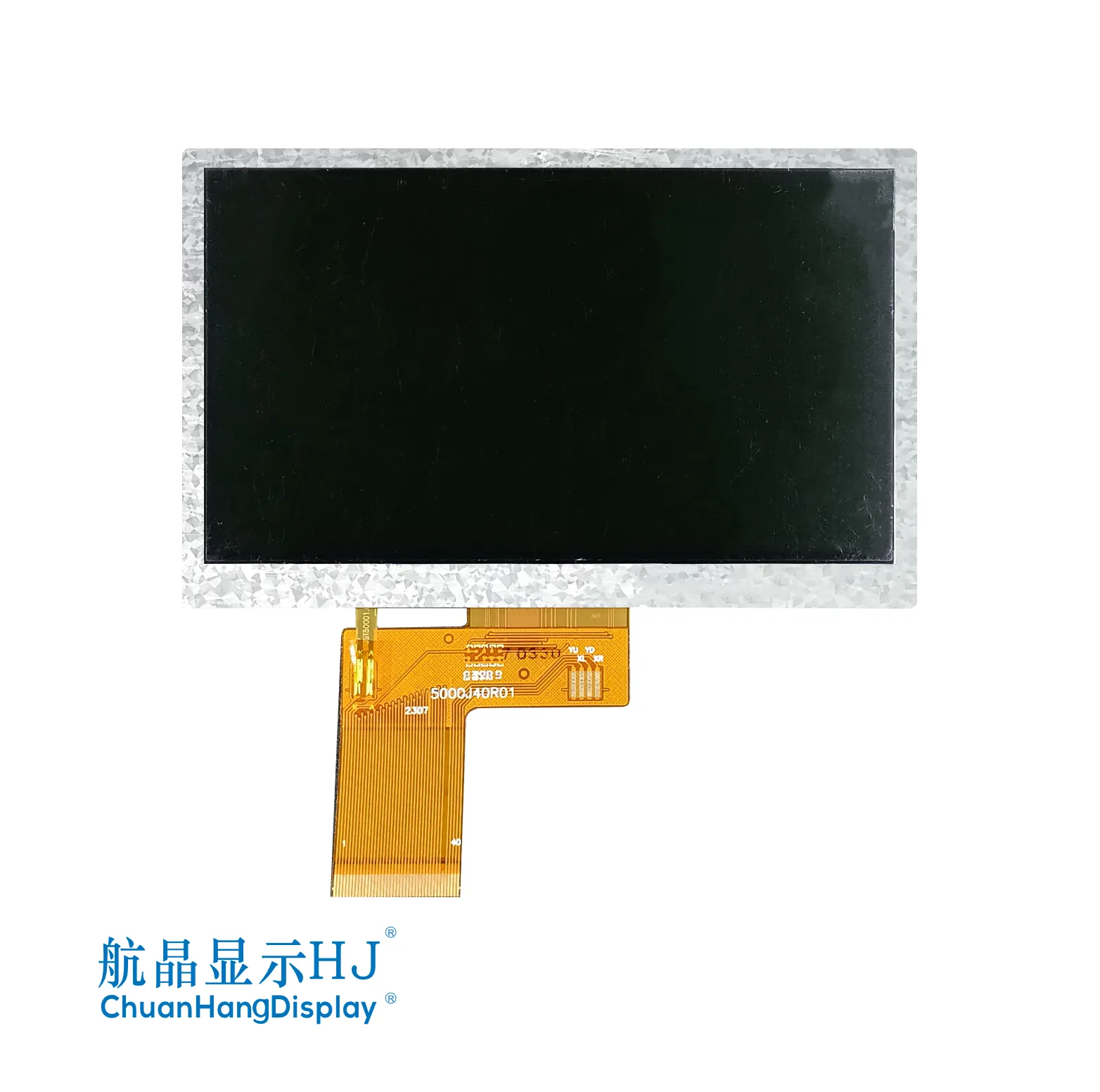

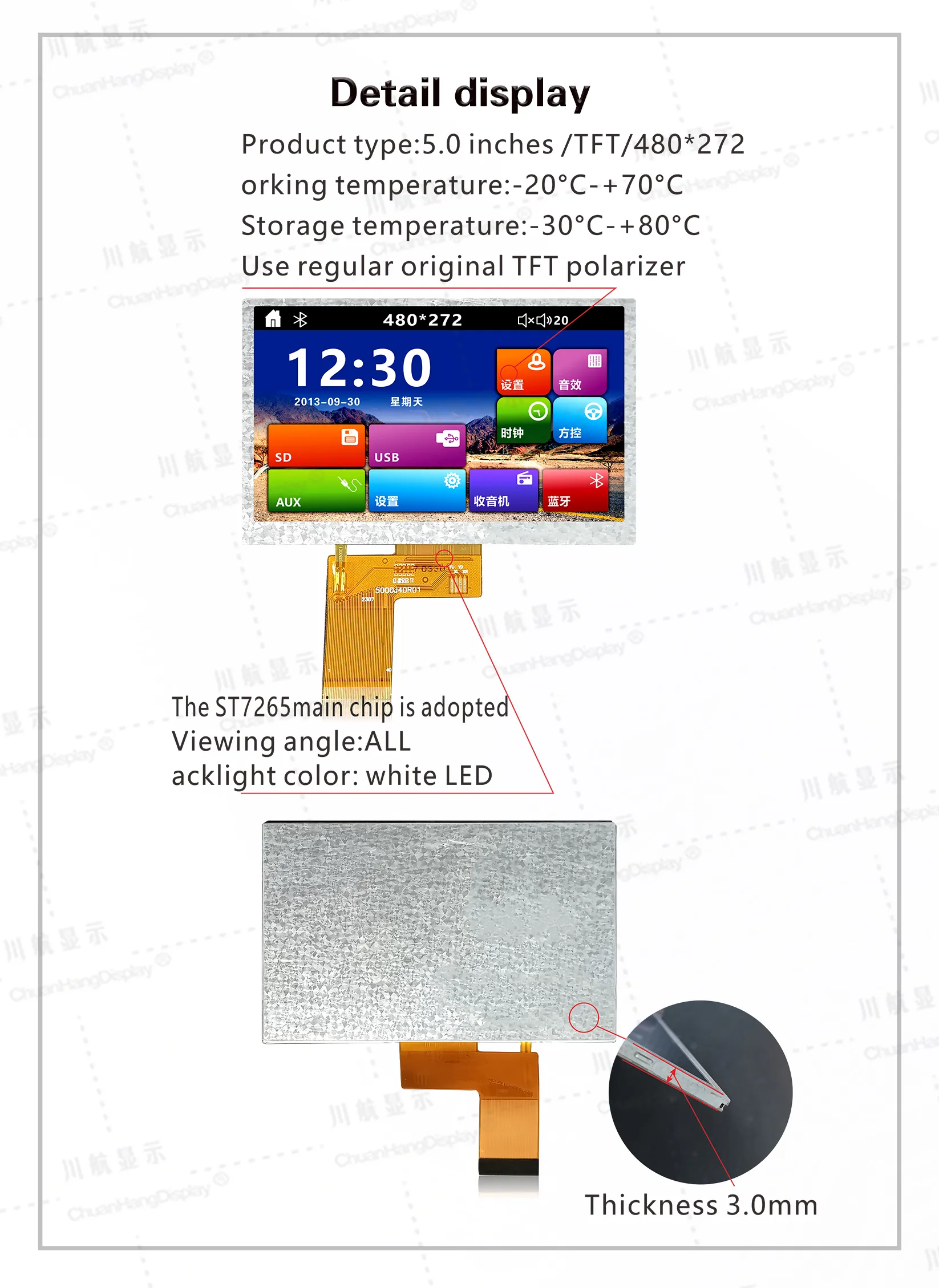

Product Display
