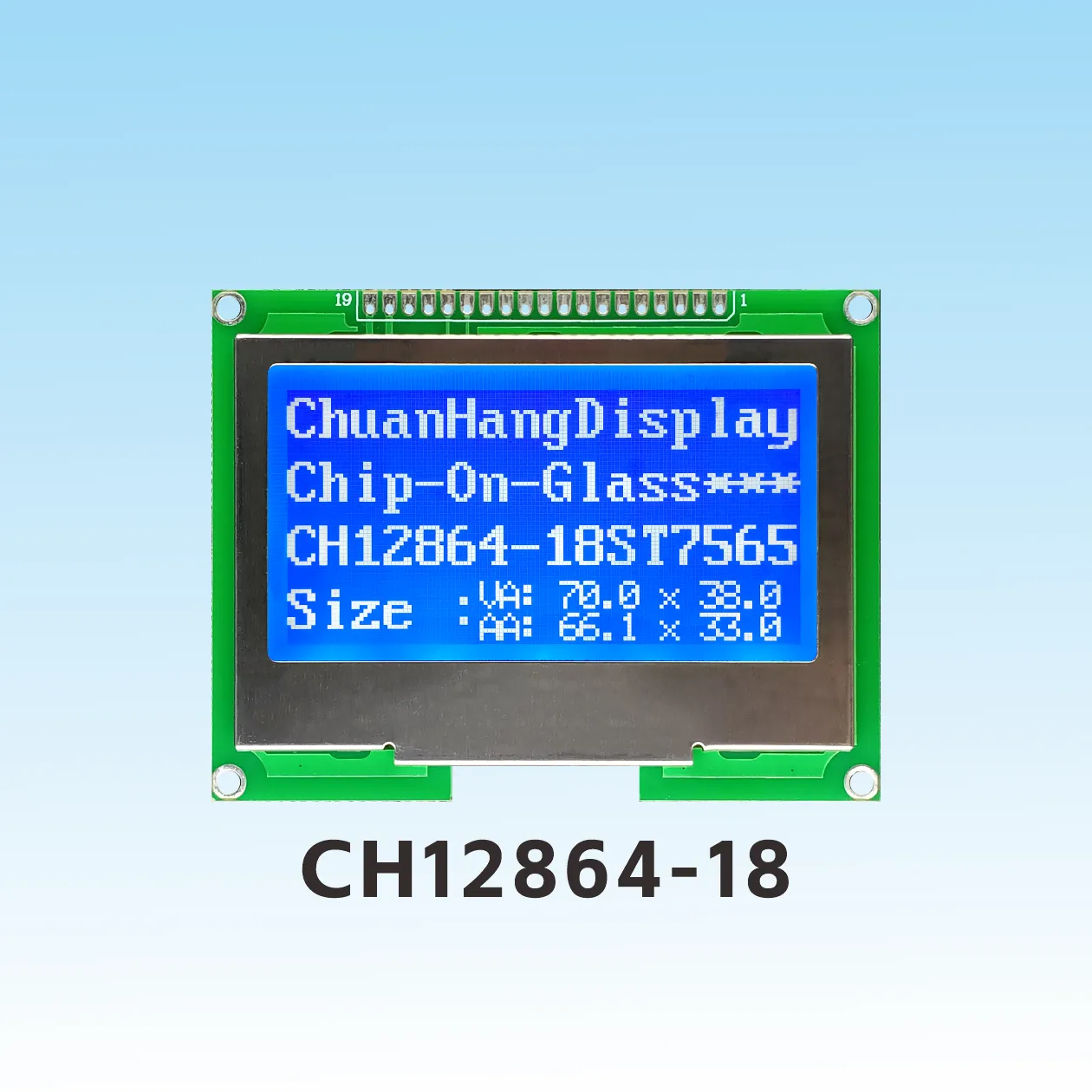

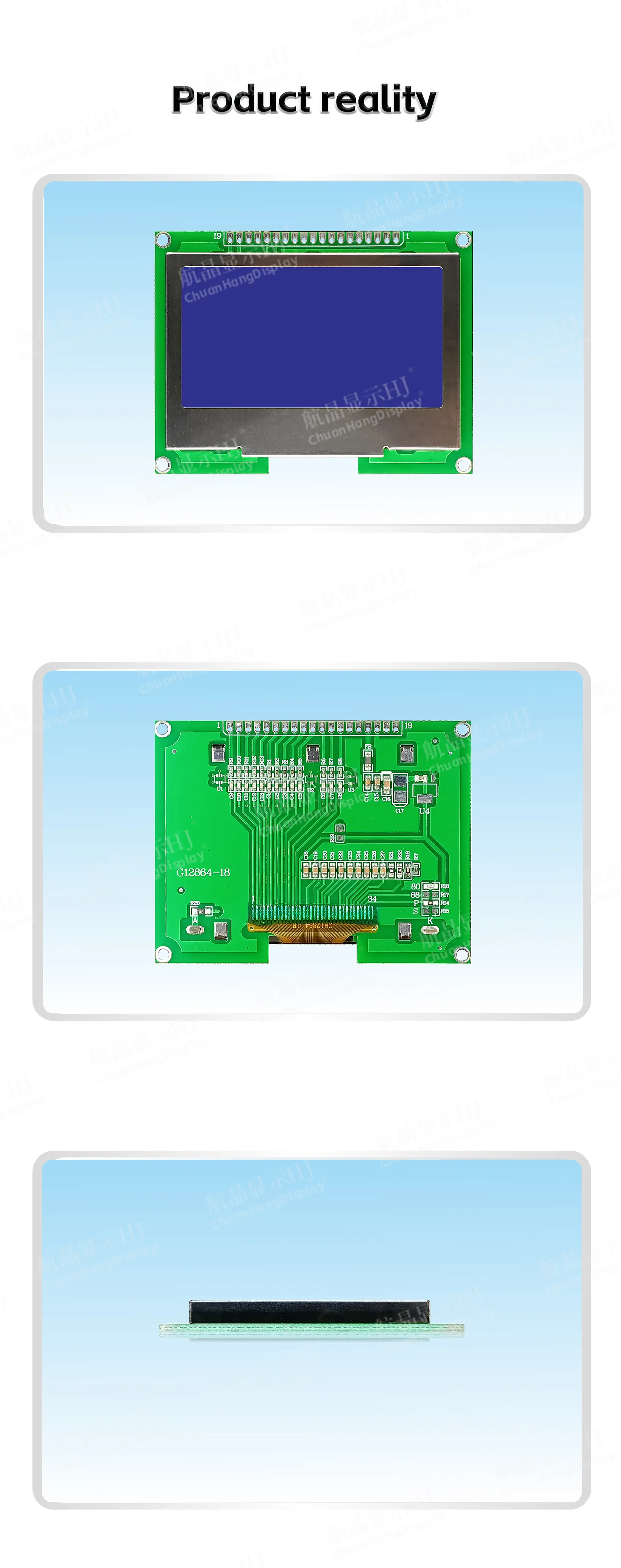

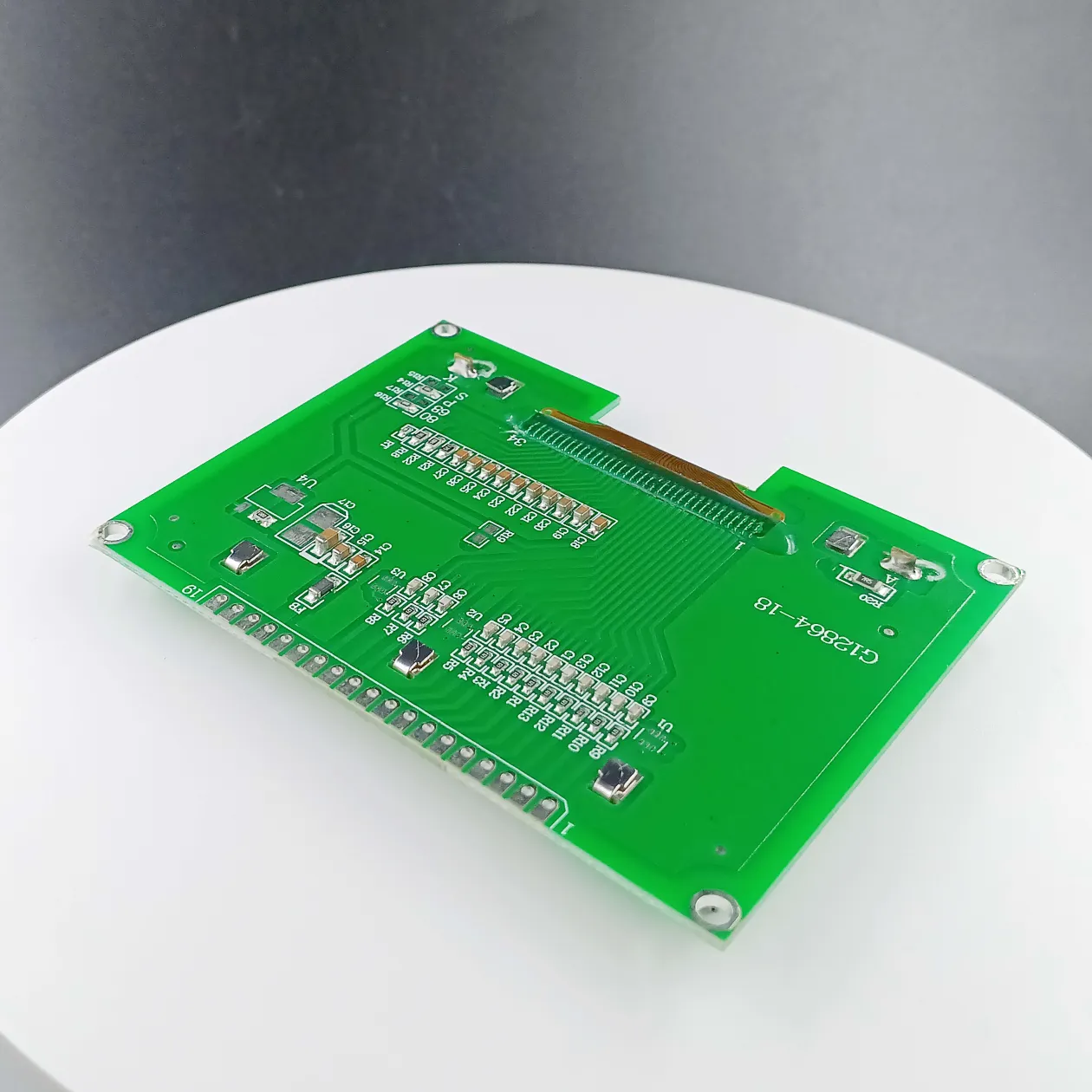

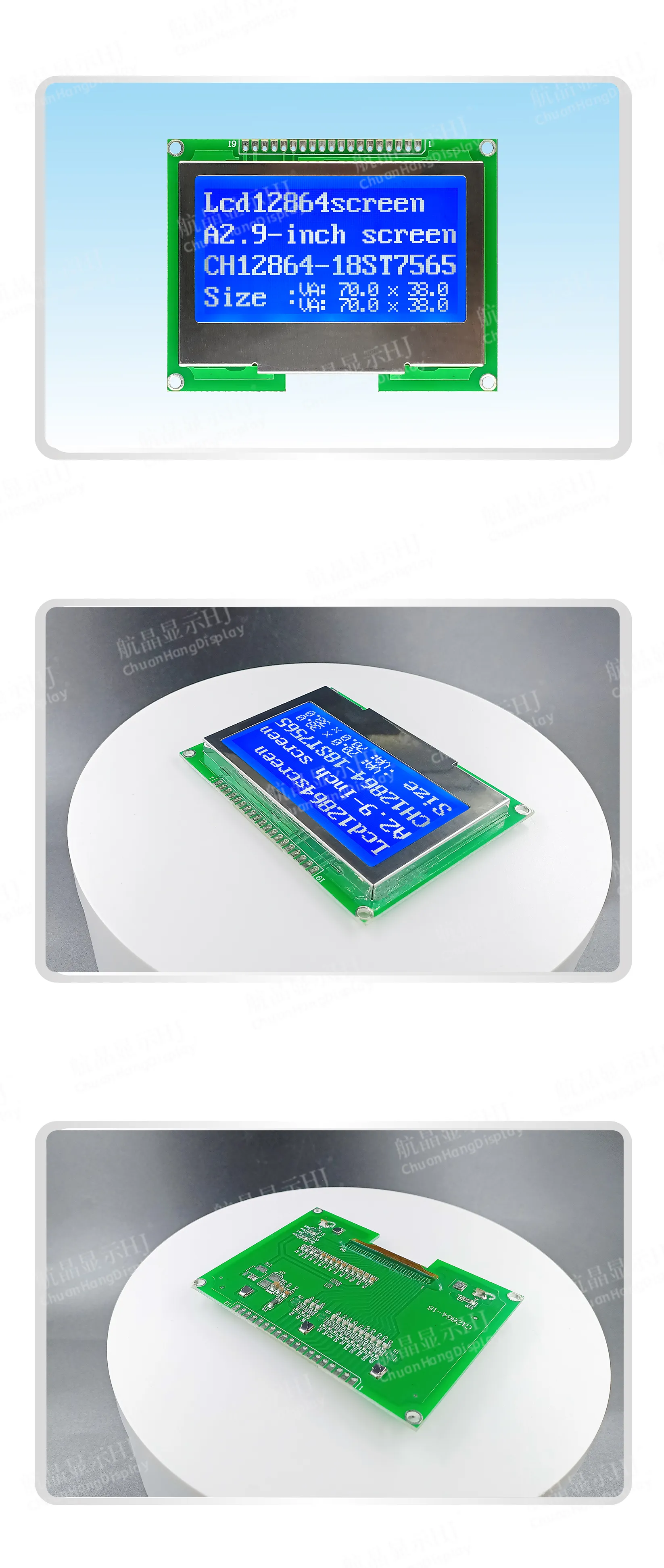

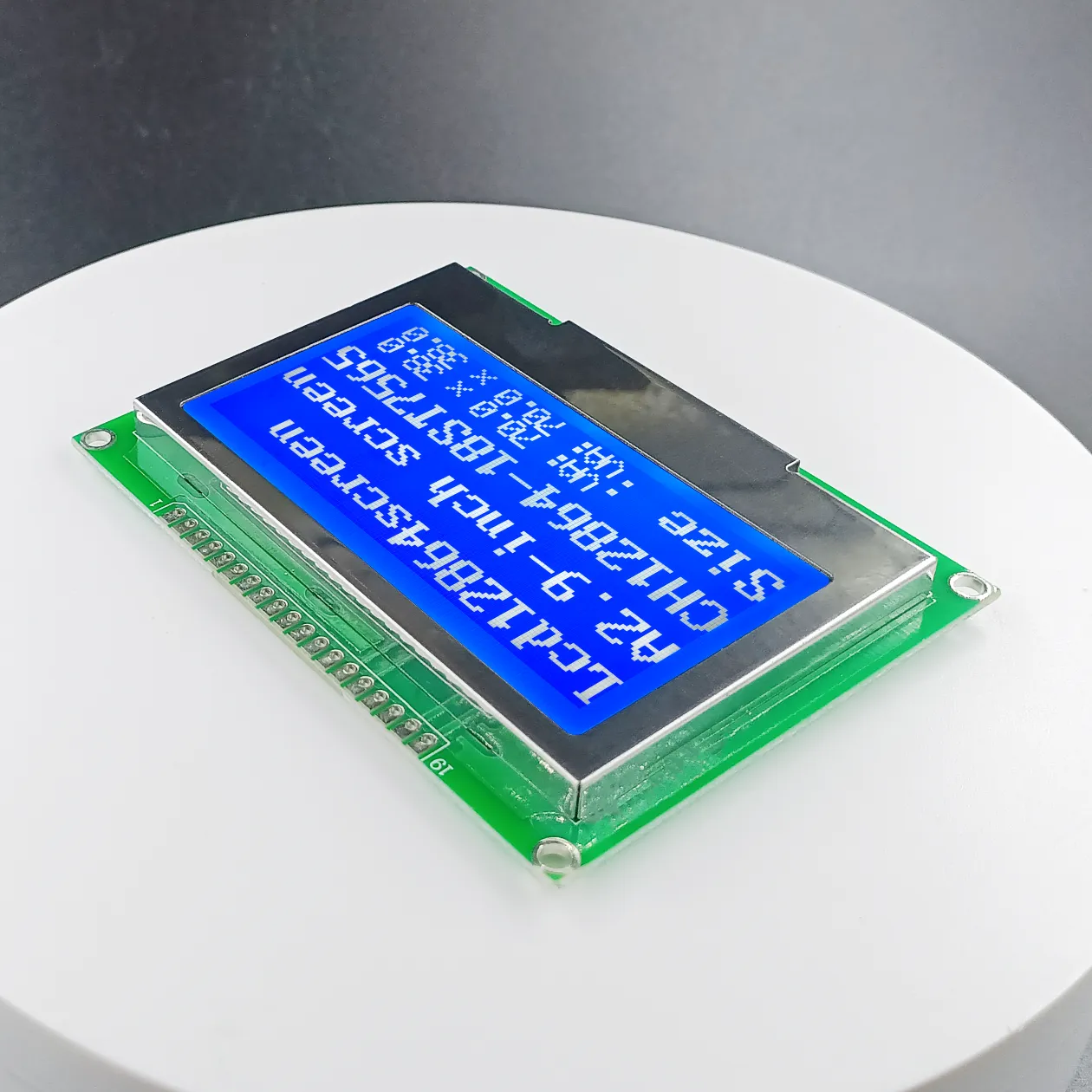

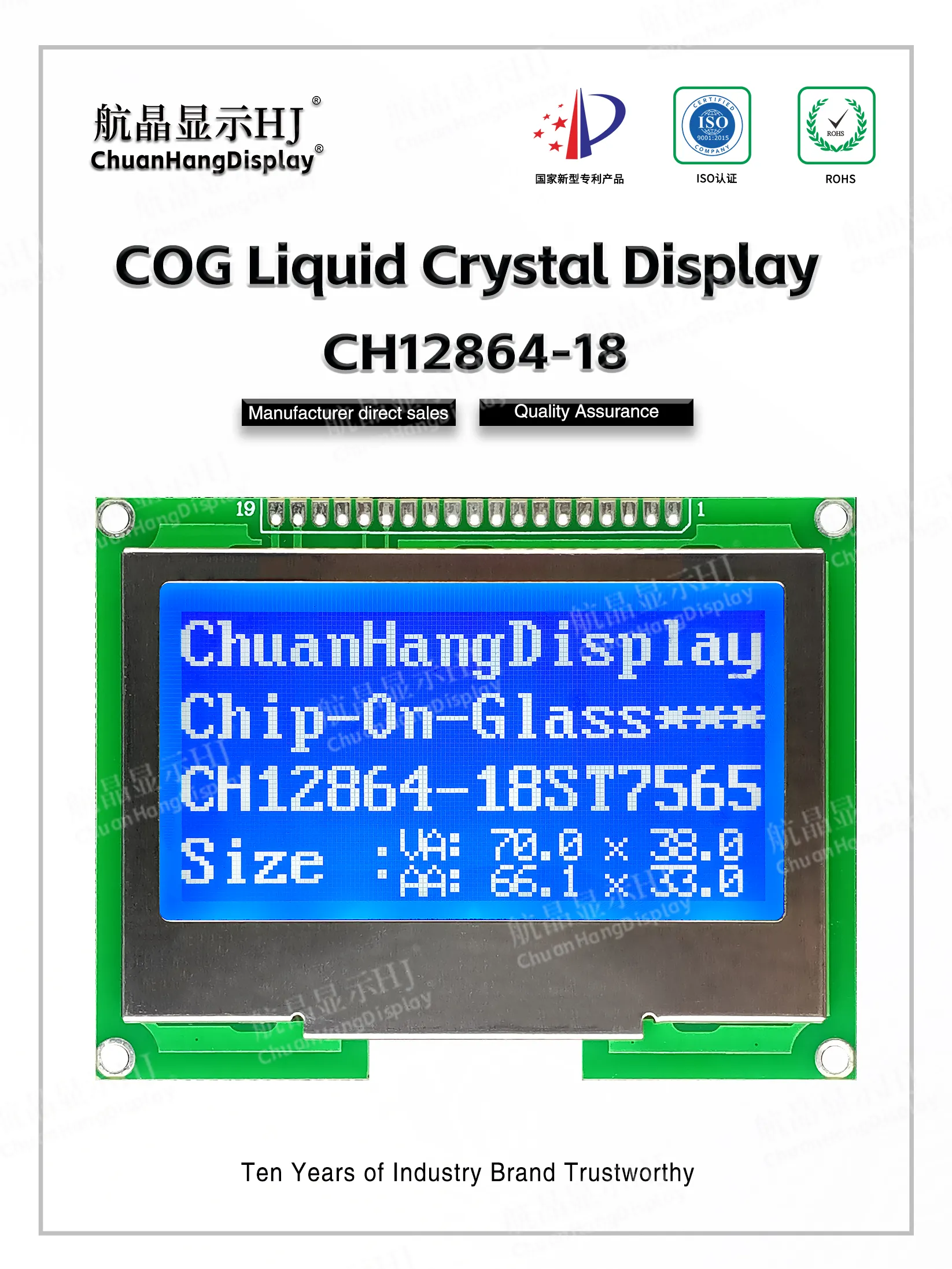

CH12864-18 12864 screen

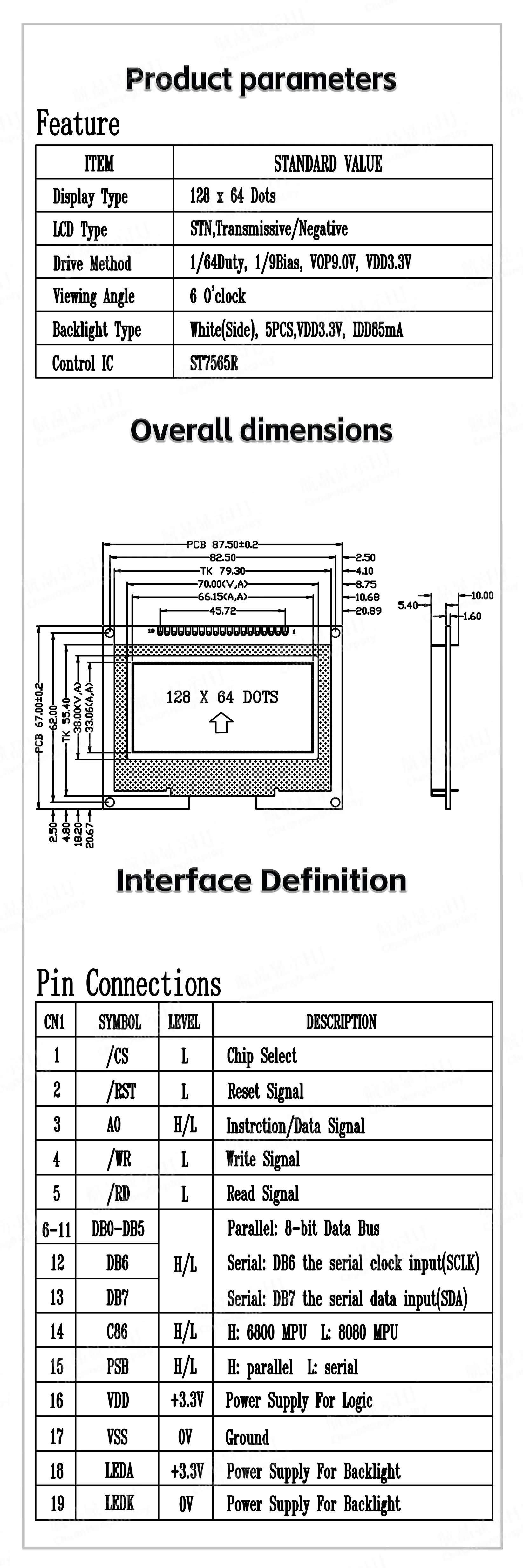

Product Description

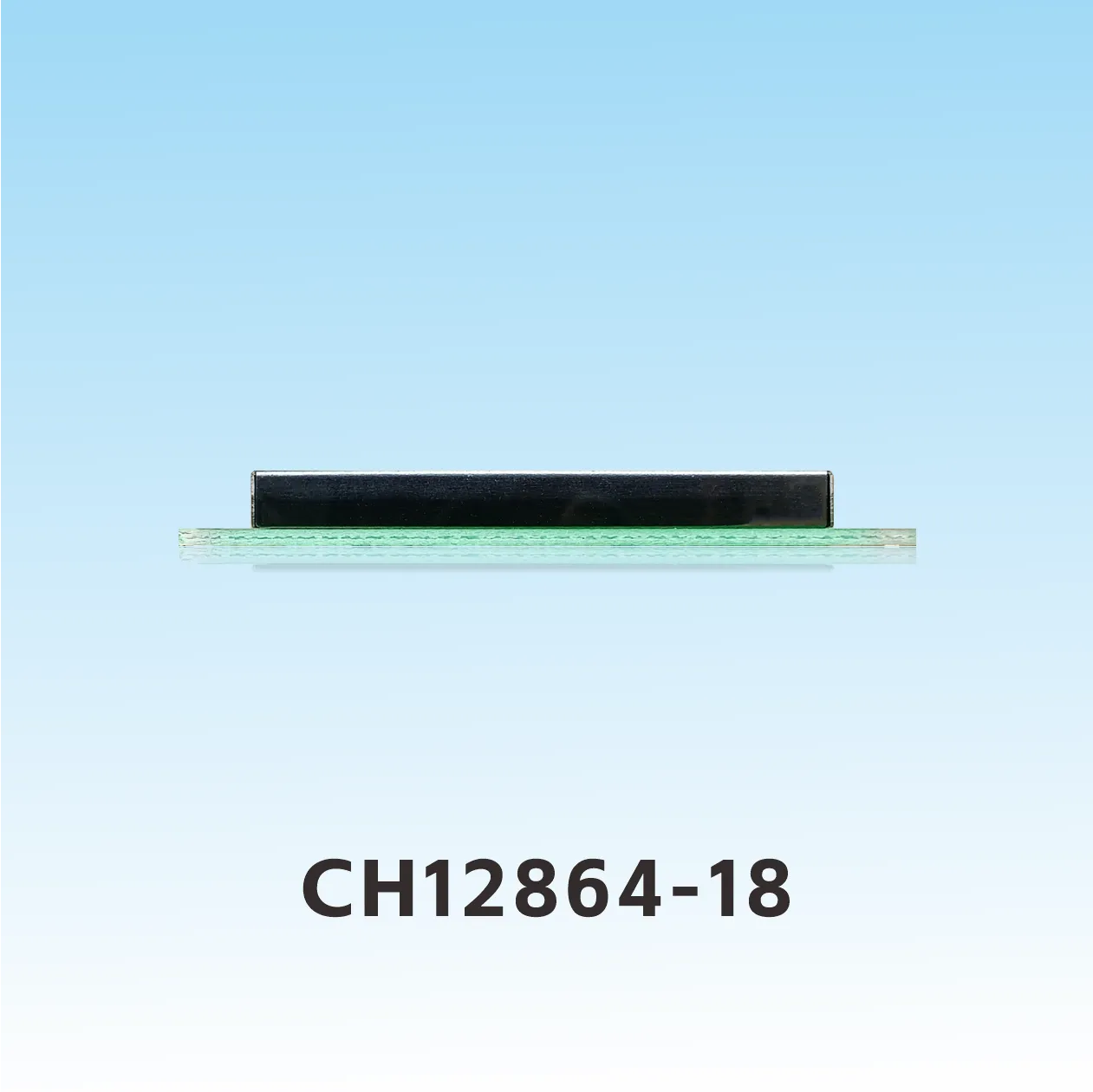

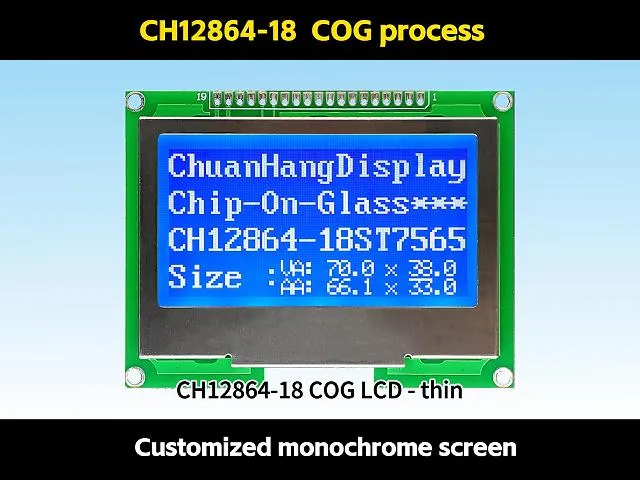

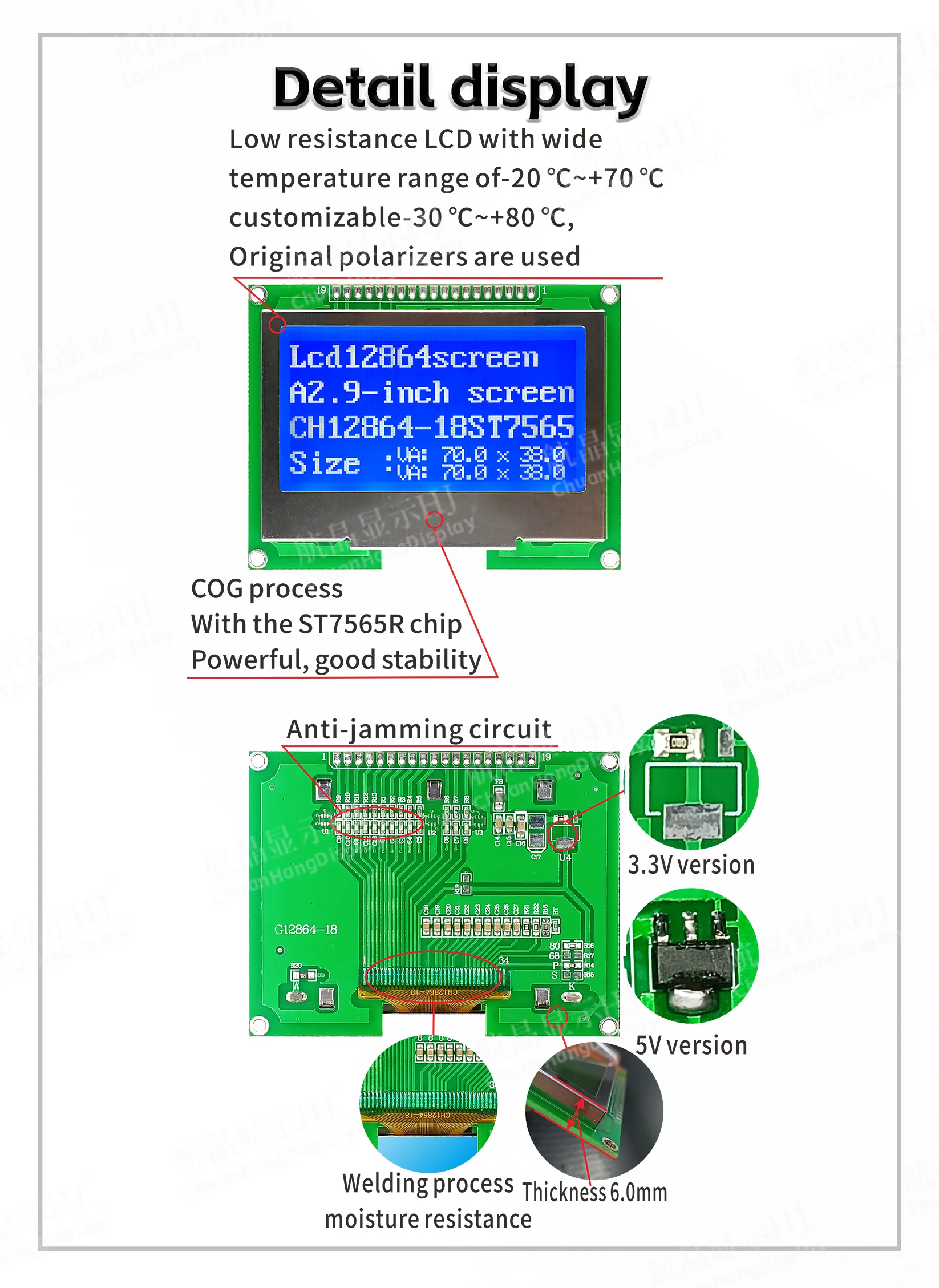

1.1 COG process, FPC welding process, product with pcb board, with backlight, thin thickness and stable structure.
1.2 IC uses ST7565R, there is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, only 3.3V power supply mode, no backlight current within 1mA, backlight current at 80mA Inside.

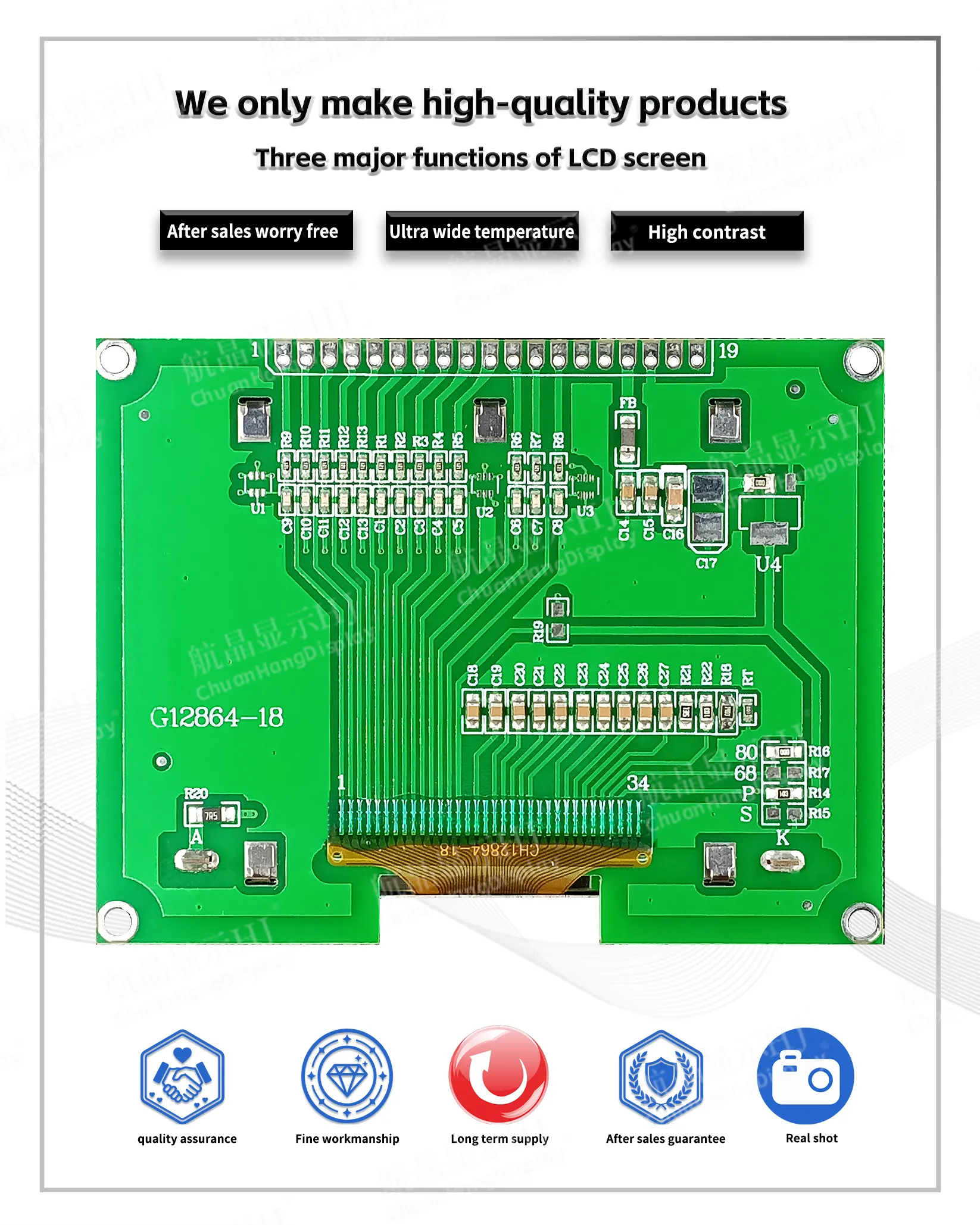

1.4 LED backlight A and K for PCB board have been soldered to PCB board. LED can be made by PIN16, PIN17, PIN18, PIN19 Drive.
1.5 Product features:
● The built-in display data RAM is 64x128 bits.
● Built-in boost circuit.
● The contrast ratio is adjusted by the software.
● One screen shows 8 characters x 4 lines (16x16 dots).
● Single picture ≦128x64 dot matrix.
● You can choose 4-wire SPI interface or 8-bit parallel 6800 timing or 8080 timing.
● Rich functions: interface display on/off, positive/reverse display, read/modify/write.
1.2 IC uses ST7565R, there is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, only 3.3V power supply mode, no backlight current within 1mA, backlight current at 80mA Inside.
1.4 LED backlight A and K for PCB board have been soldered to PCB board. LED can be made by PIN16, PIN17, PIN18, PIN19 Drive.
1.5 Product features:
● The built-in display data RAM is 64x128 bits.
● Built-in boost circuit.
● The contrast ratio is adjusted by the software.
● One screen shows 8 characters x 4 lines (16x16 dots).
● Single picture ≦128x64 dot matrix.
● You can choose 4-wire SPI interface or 8-bit parallel 6800 timing or 8080 timing.
● Rich functions: interface display on/off, positive/reverse display, read/modify/write.
