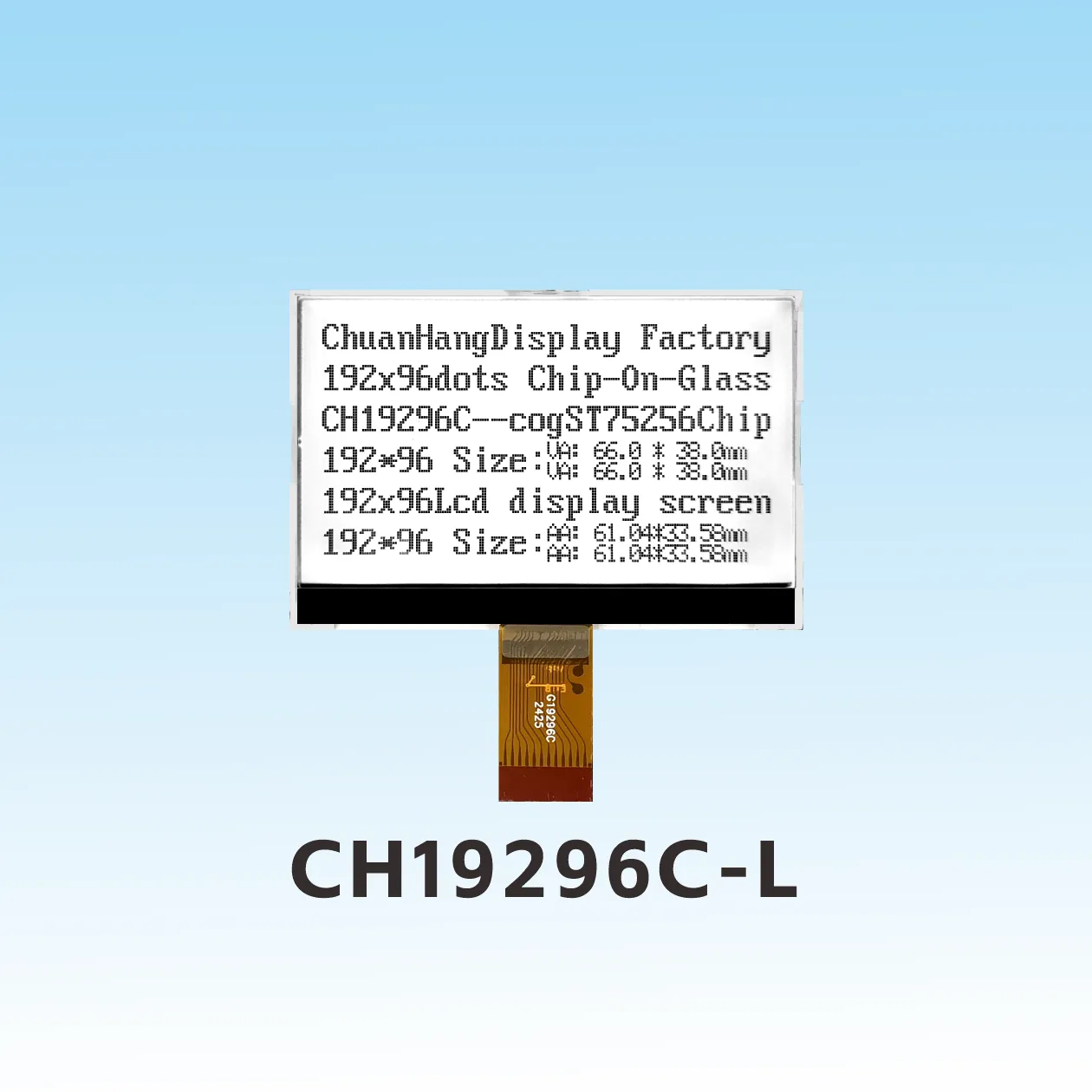

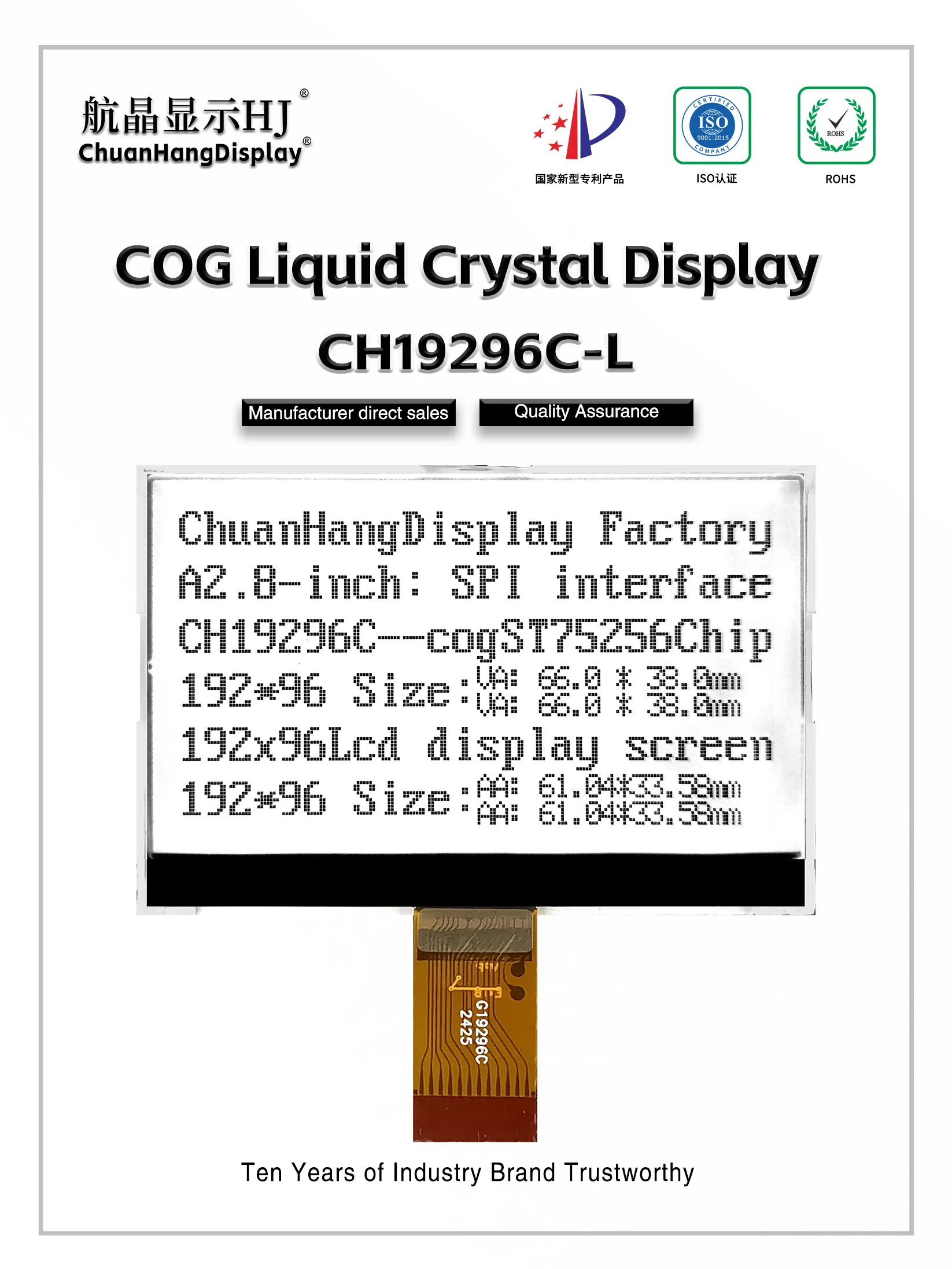

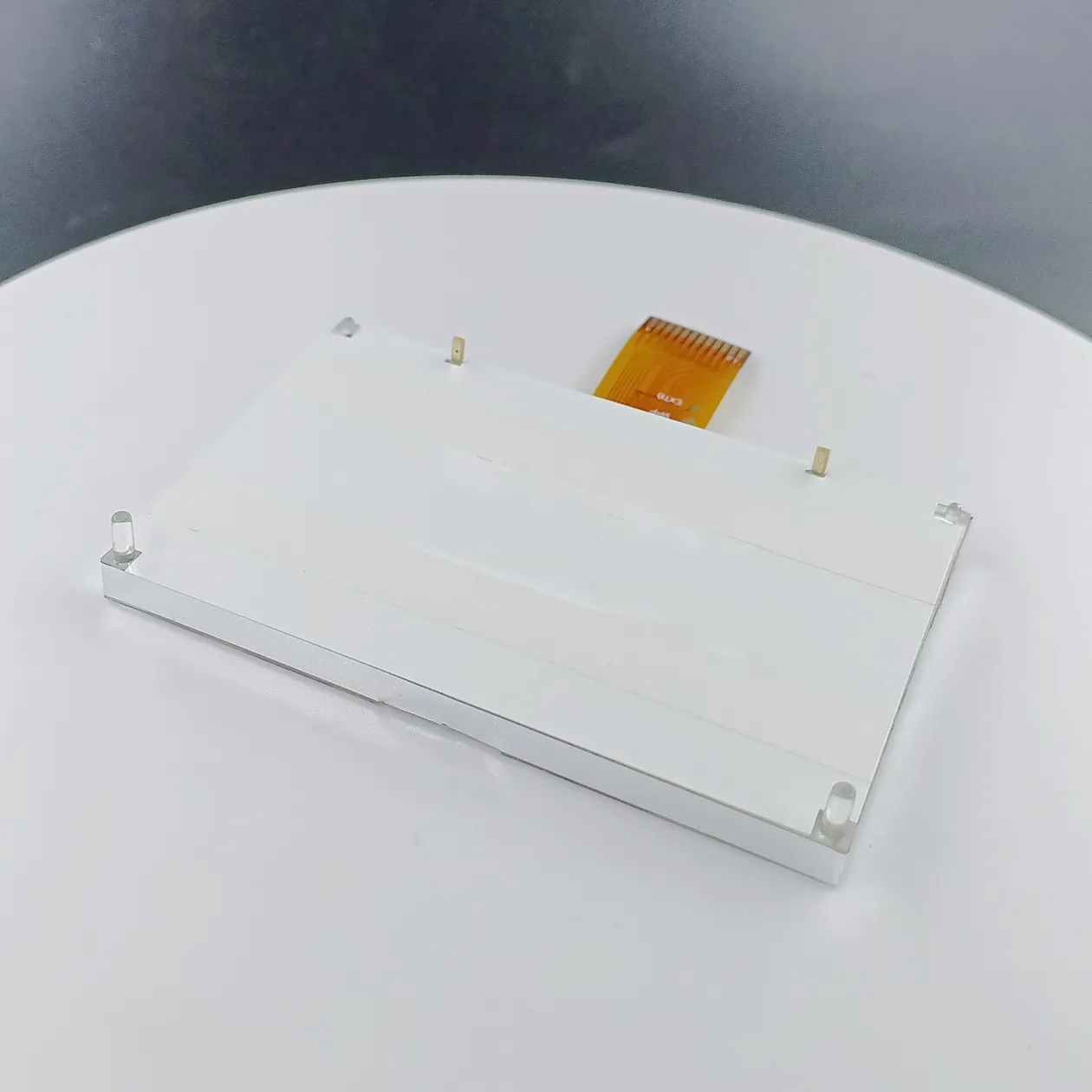

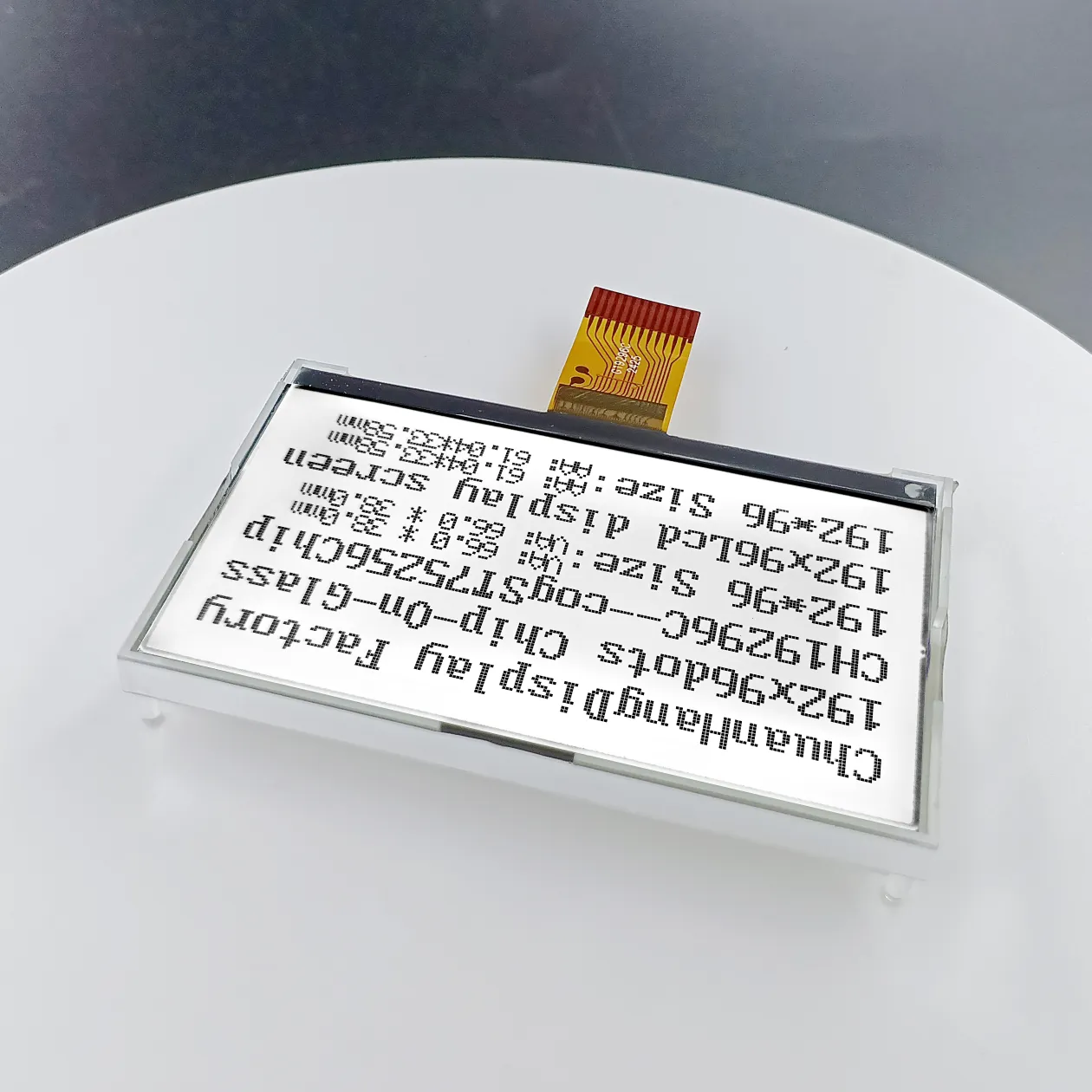

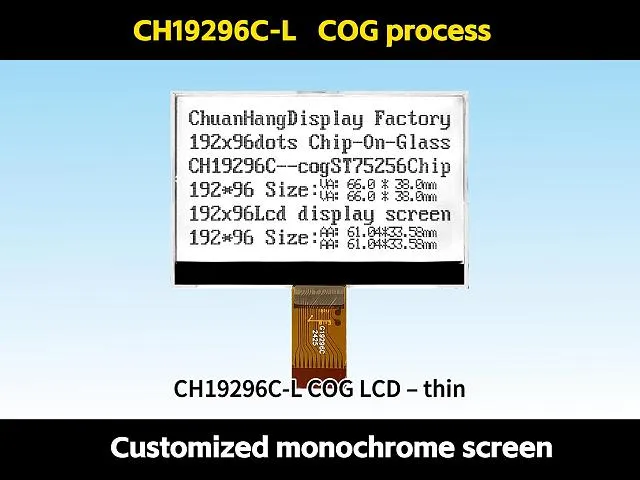

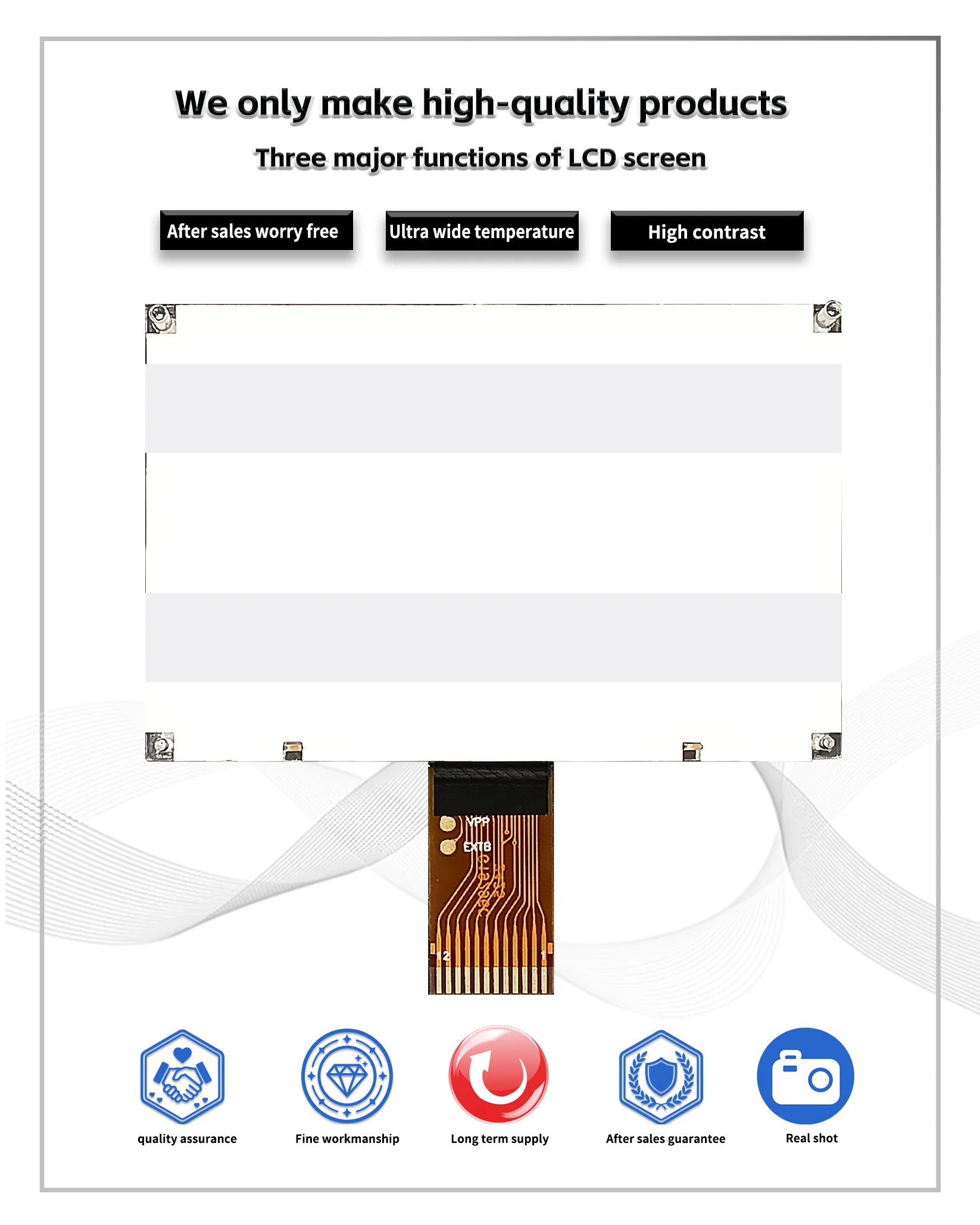

CH19296C-L 192x96 Graphic Liquid Crystal Display

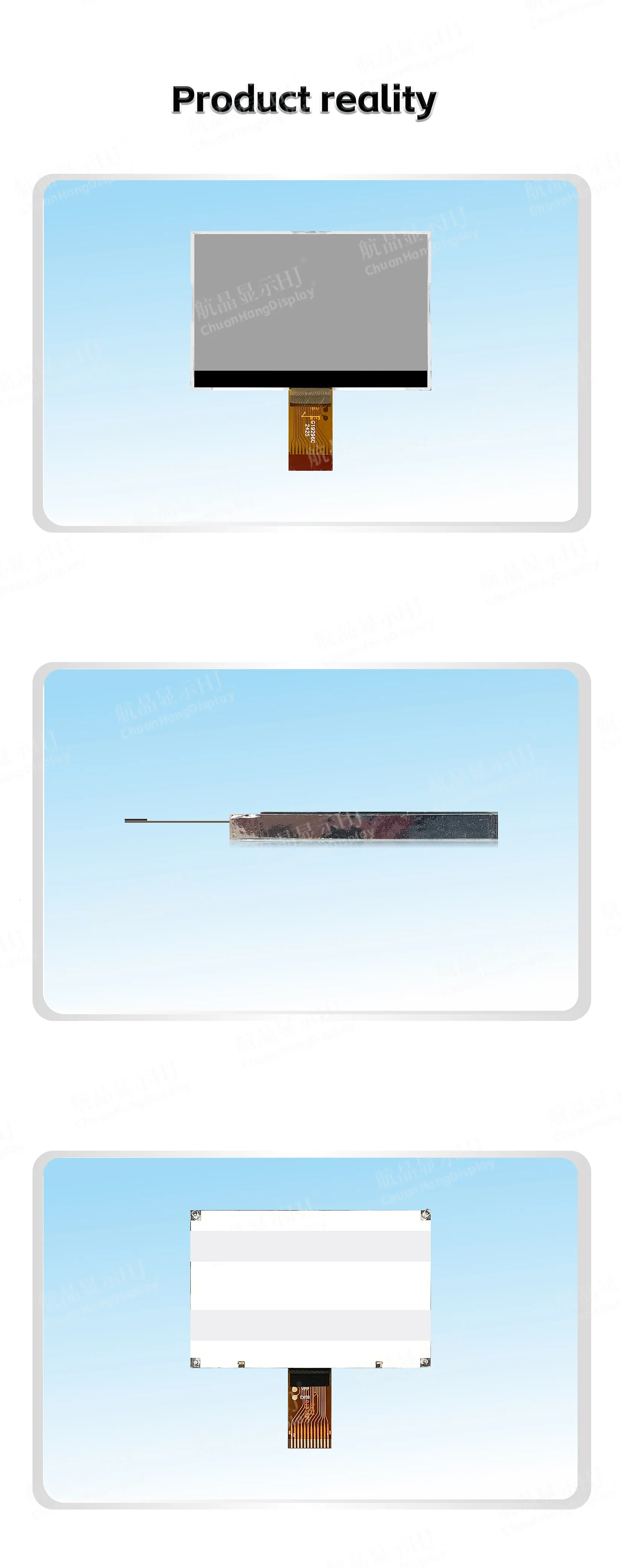

Product Description

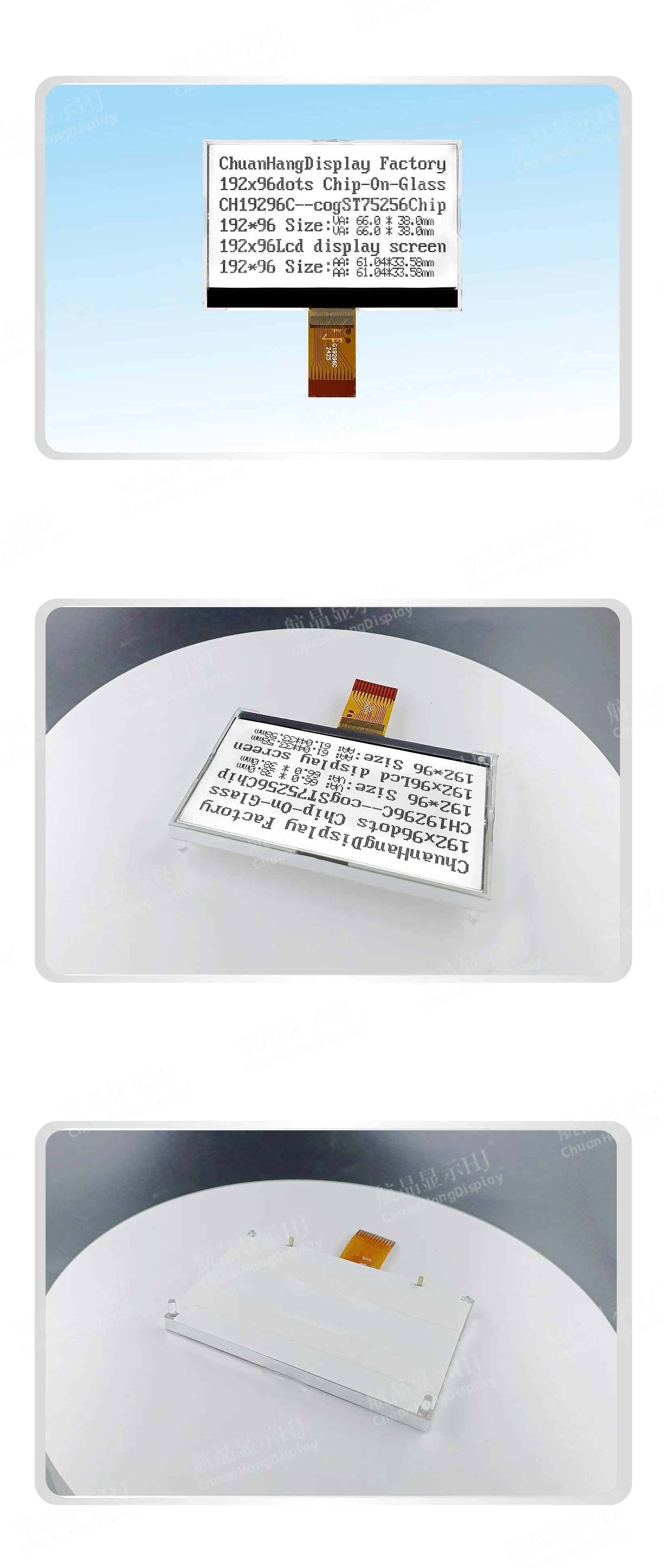

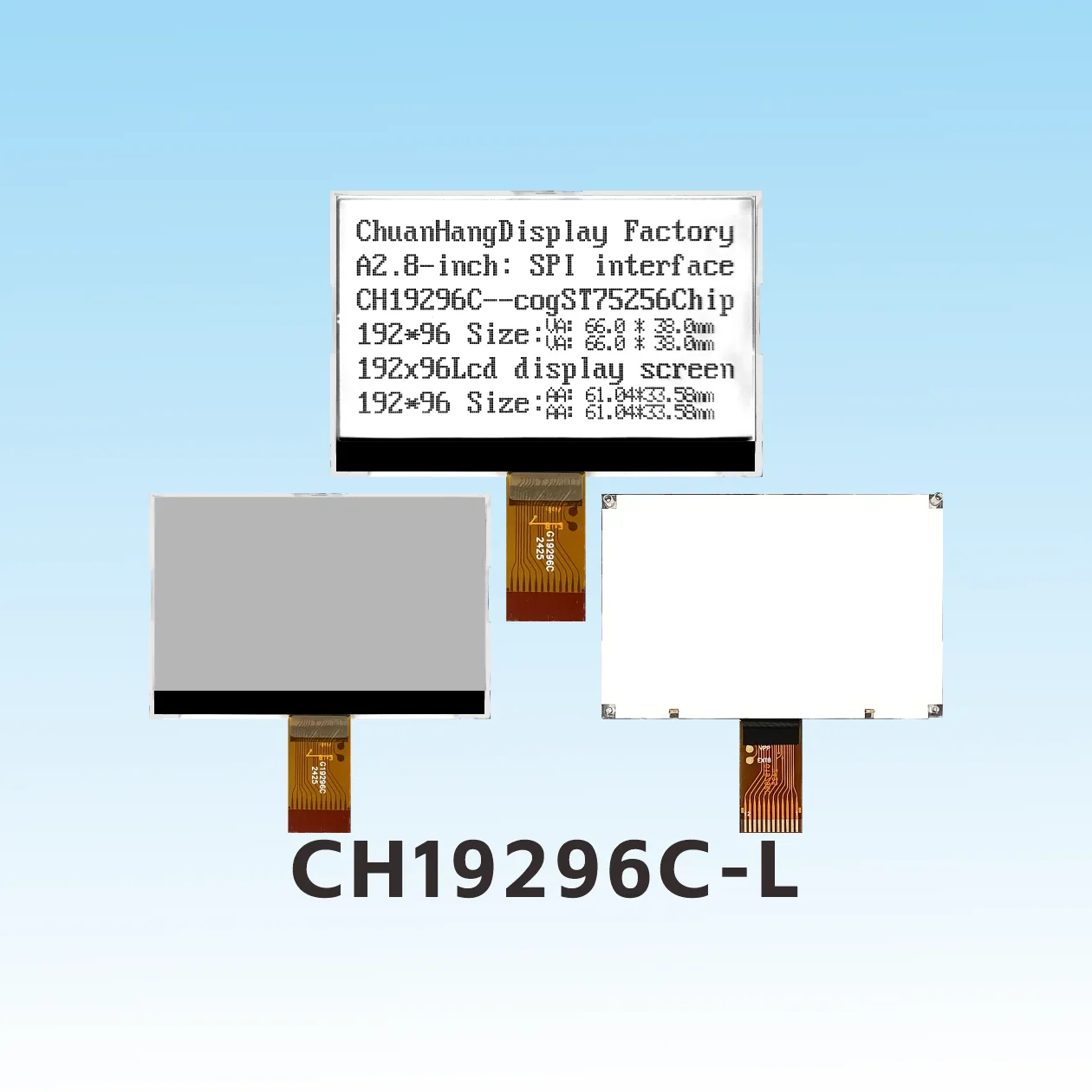

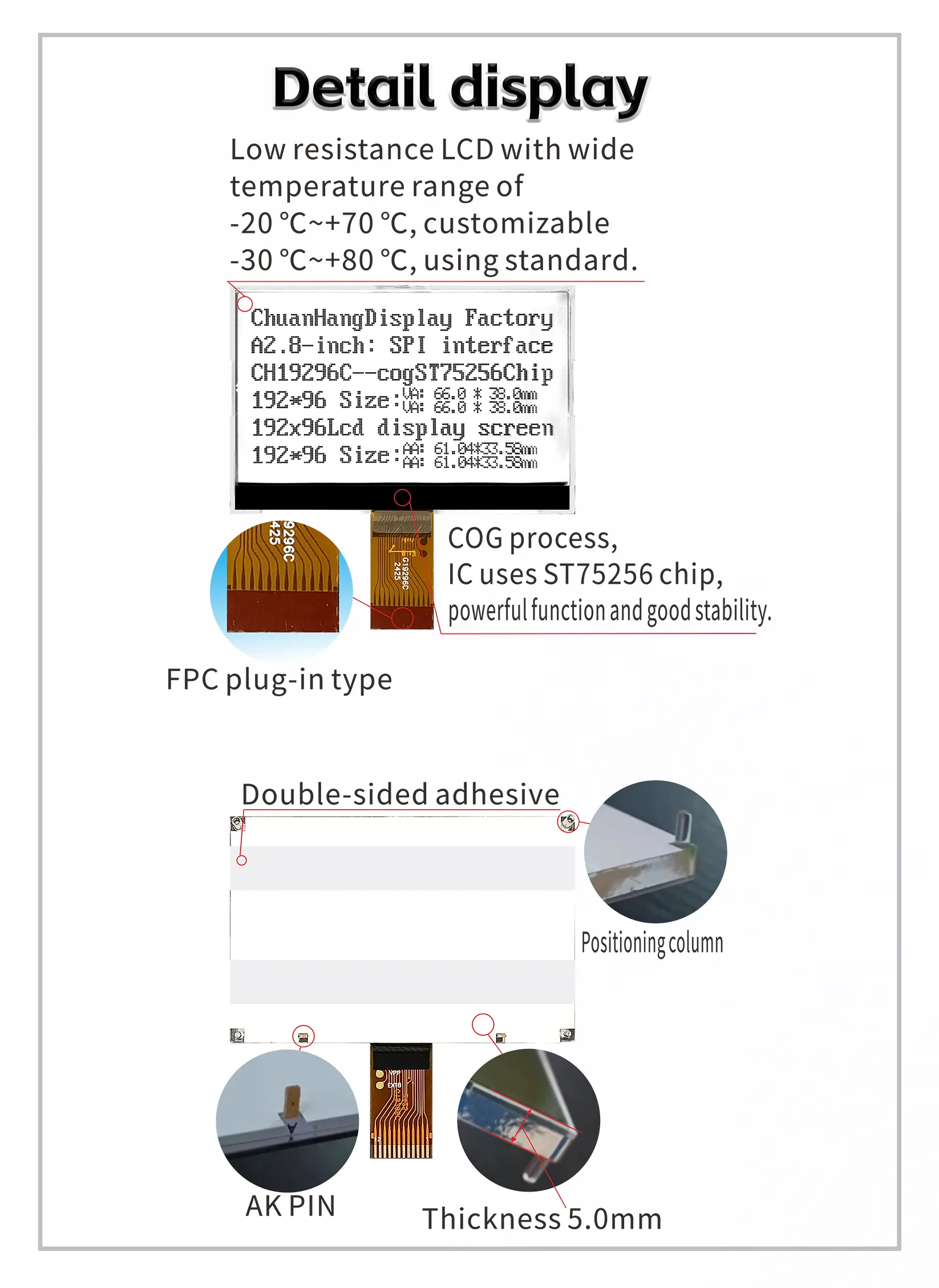

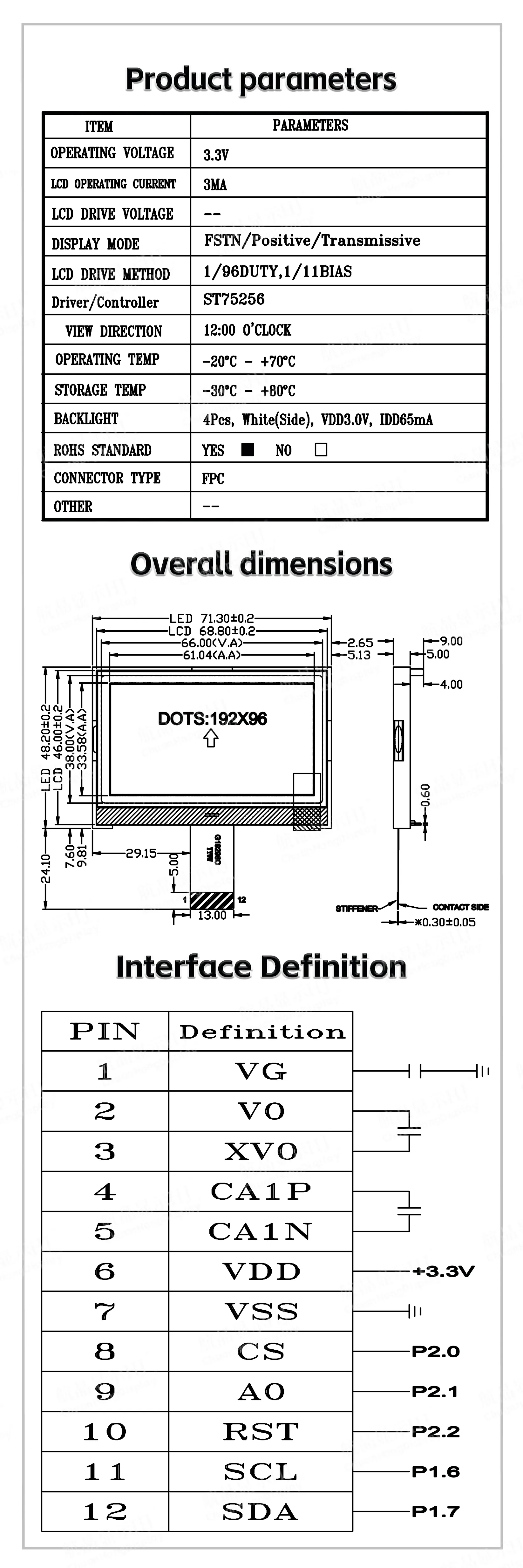

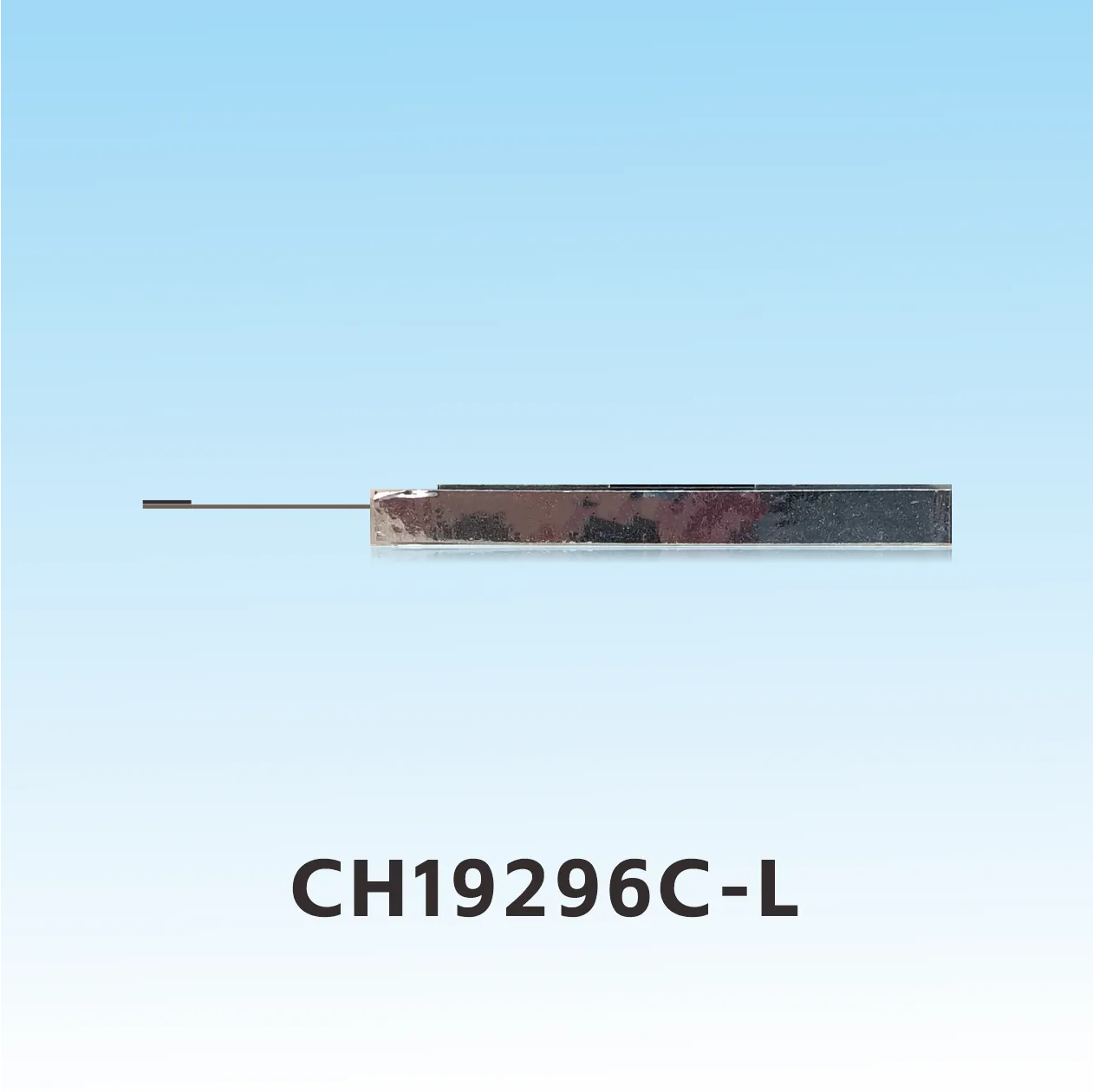

1.1 C0G process, FPC plug-in, product with backlight, thin thickness, stable structure.
1.2 IC uses st75256, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 3mA, backlight current within 100mA.
1.4 LED backlight A and K are powered separately for the PCB board and need to be soldered on the PCB board.
1.5 Product features
●The built-in display data RAM is 96x192 bits.
●The boost circuit only needs 3 1uf capacitors.
●The contrast is adjusted by software.
●One screen displays 12 characters x 6 lines (16x16 dot matrix)
●A single picture ≦ 192x96 dot matrix.4-wire SPI interface.
●Rich functions:4 grayscale display, interface display on/off, positive display/reverse display, read/modify/write.
