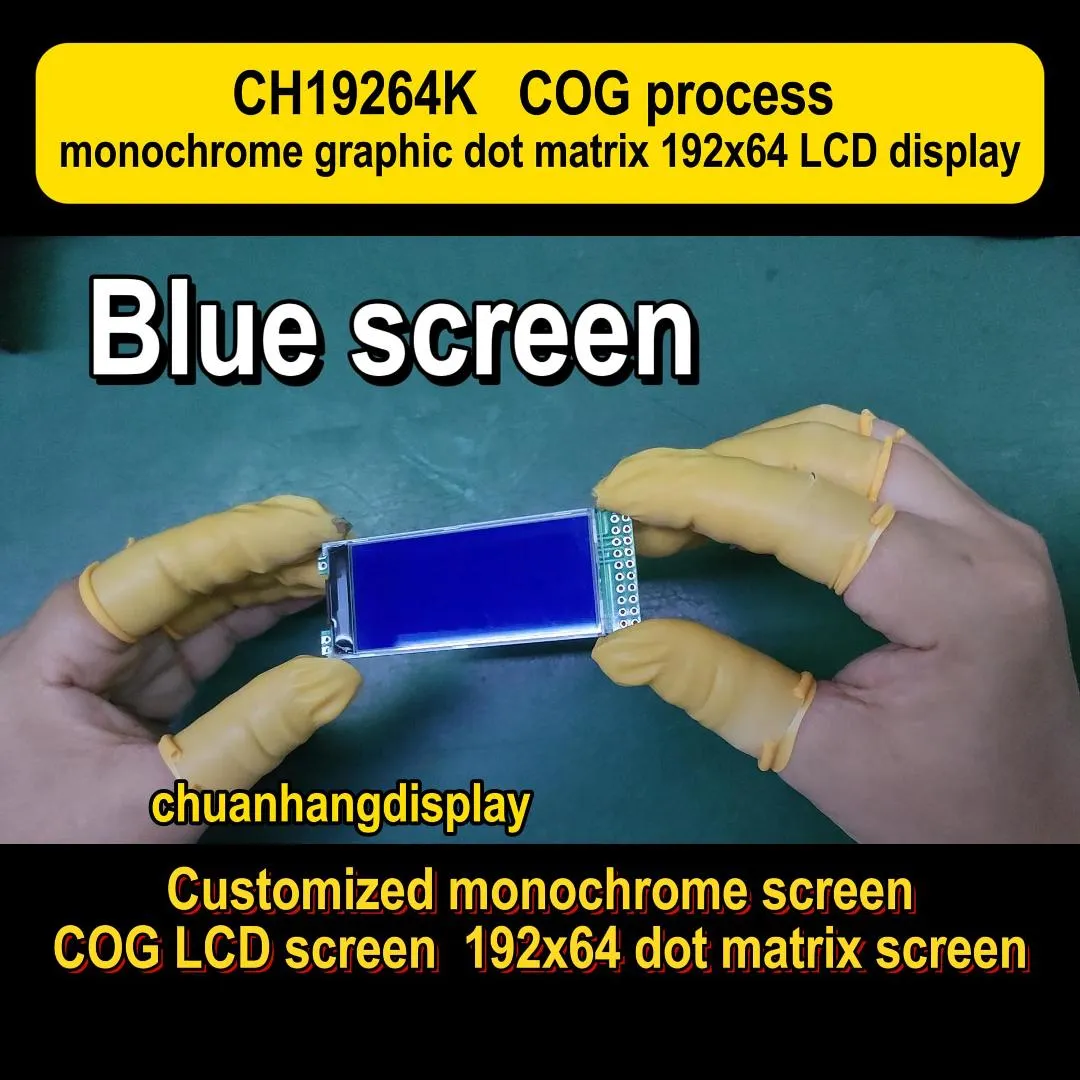

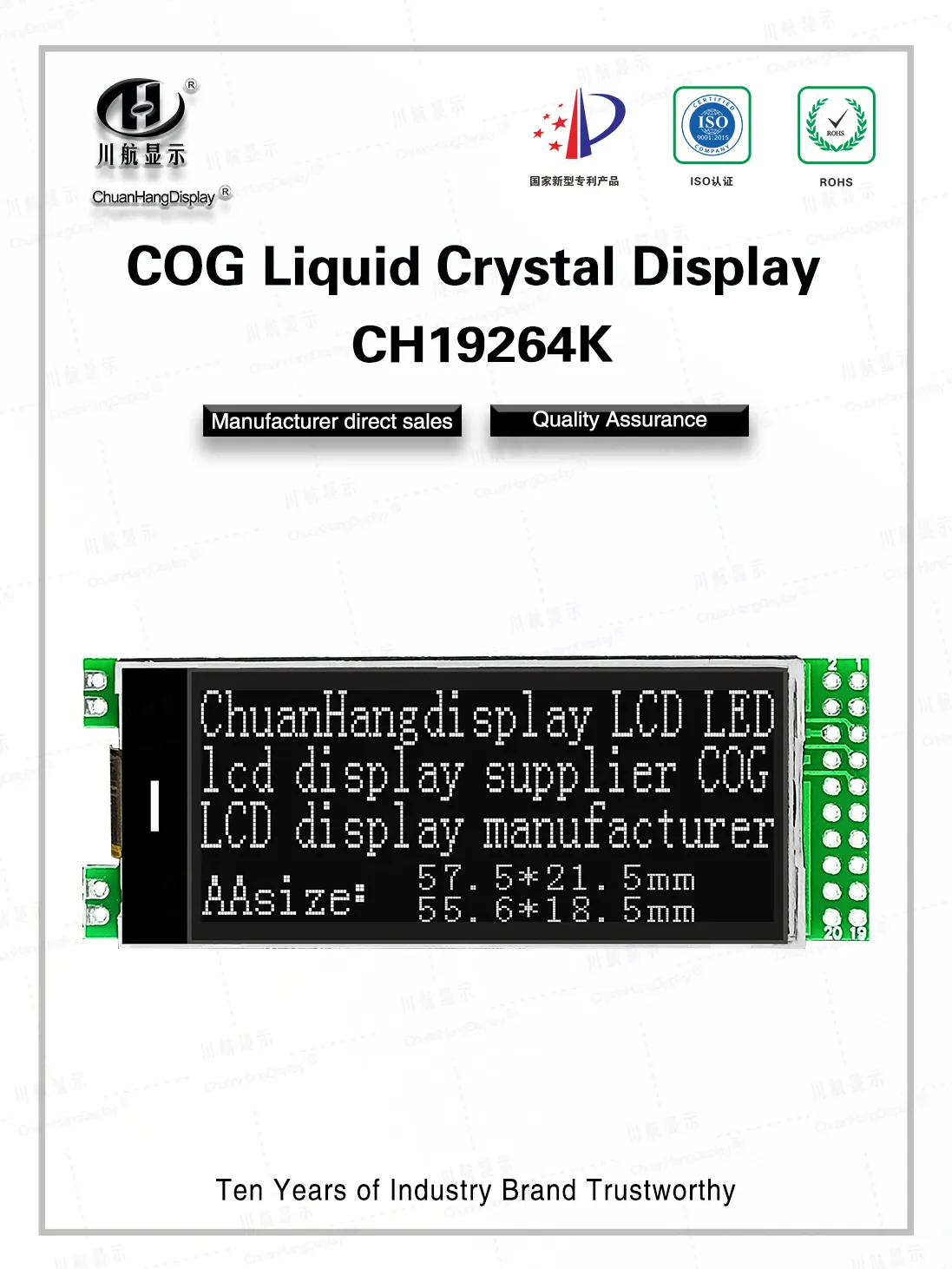

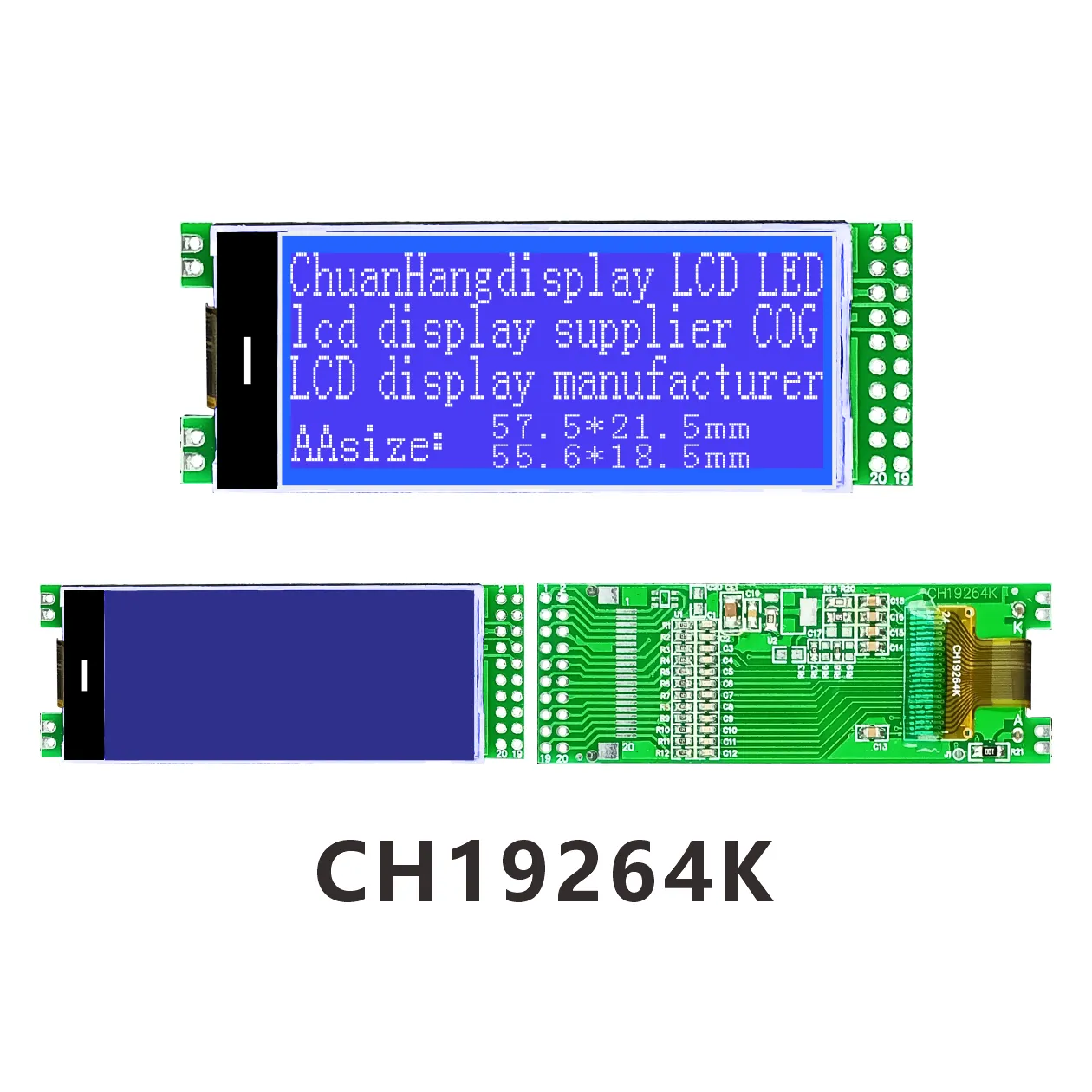

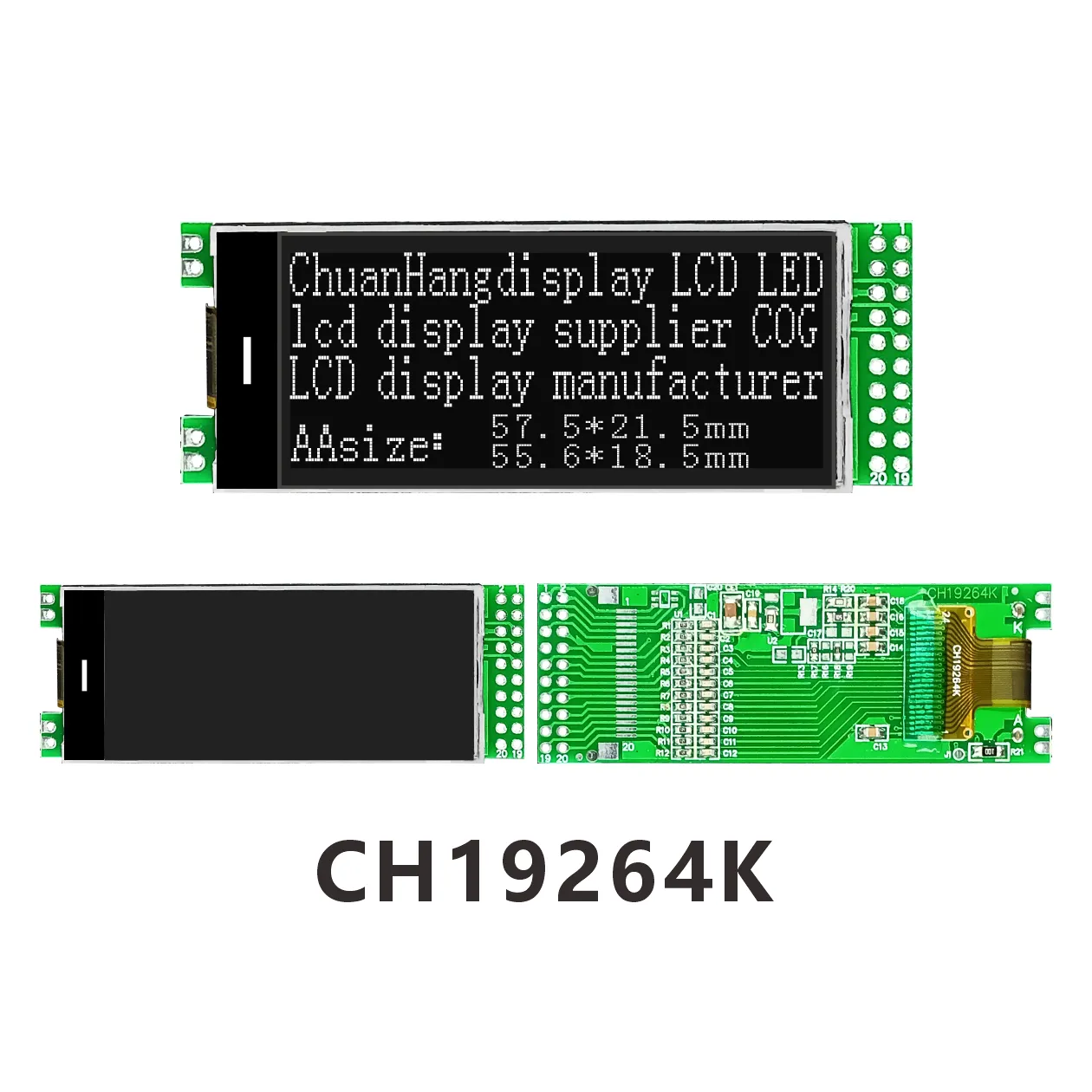

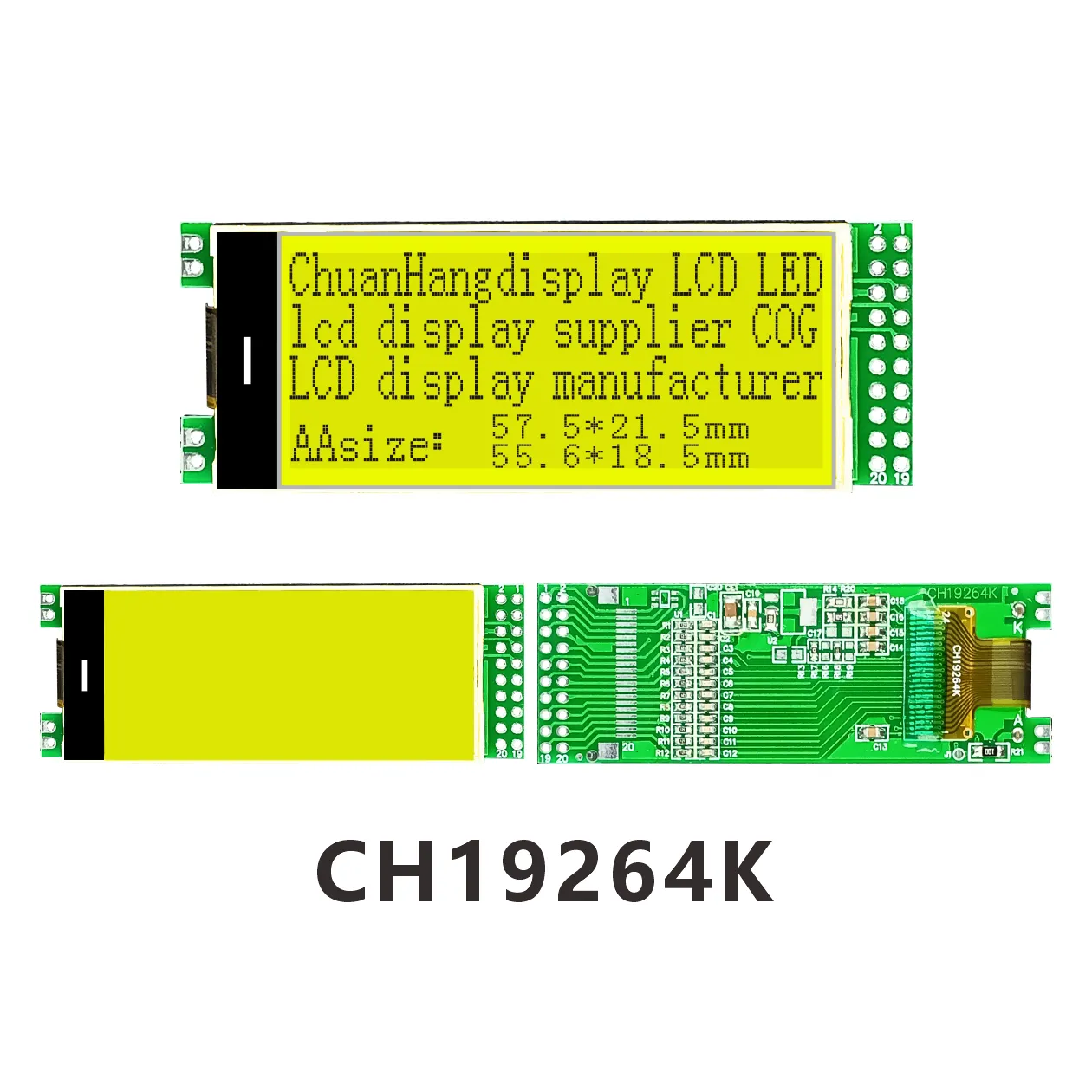

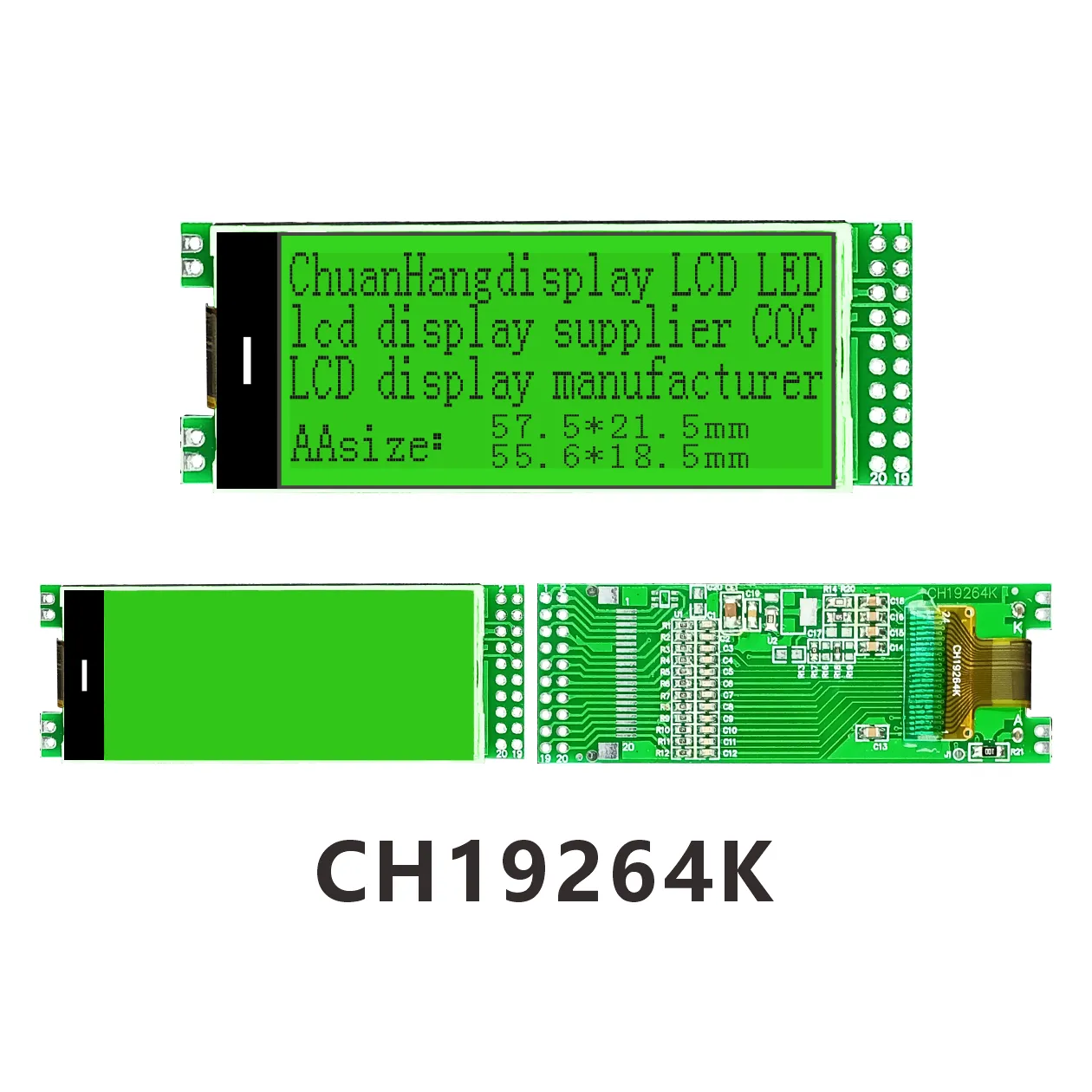

CH19264K 192x32 Graphic LCD

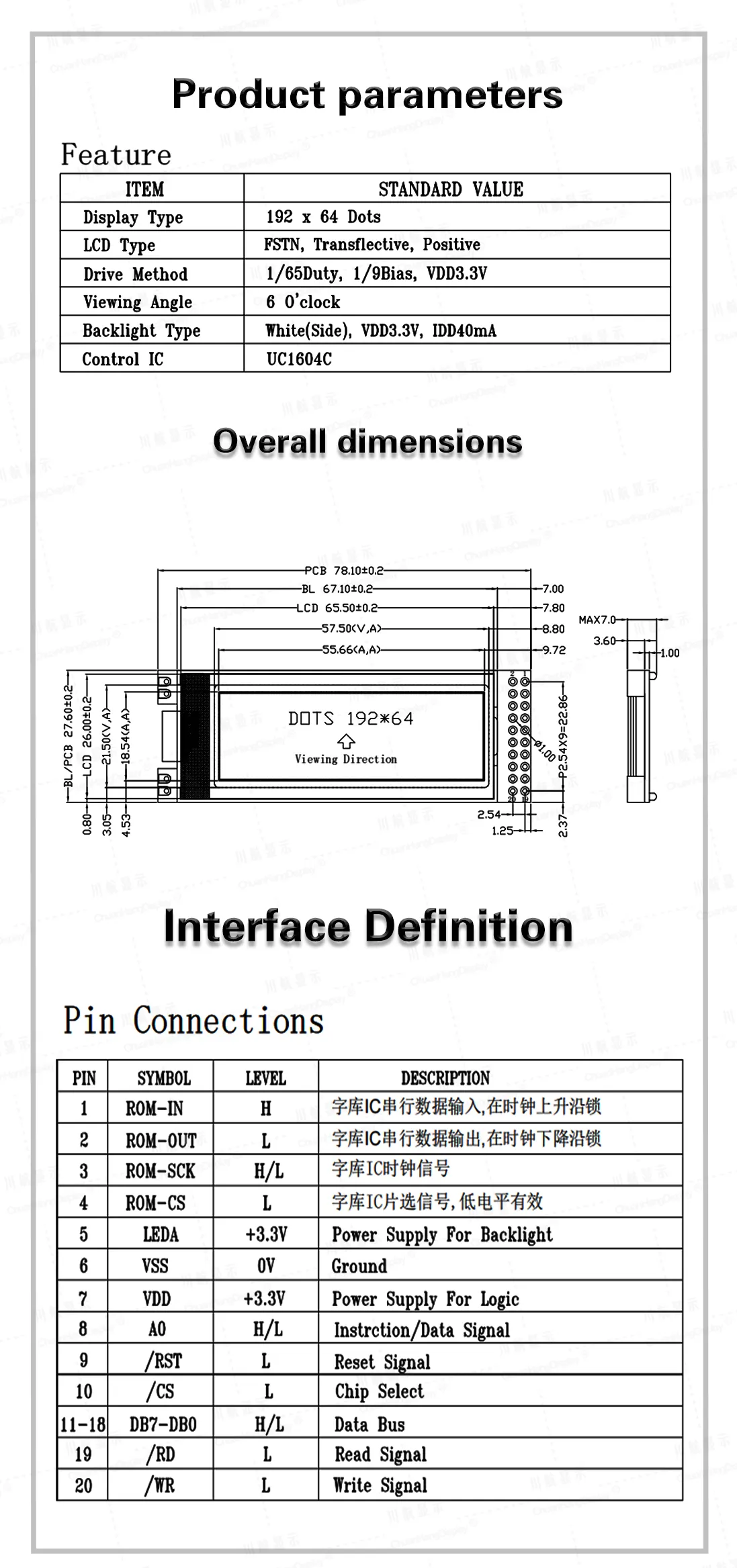

Product Description

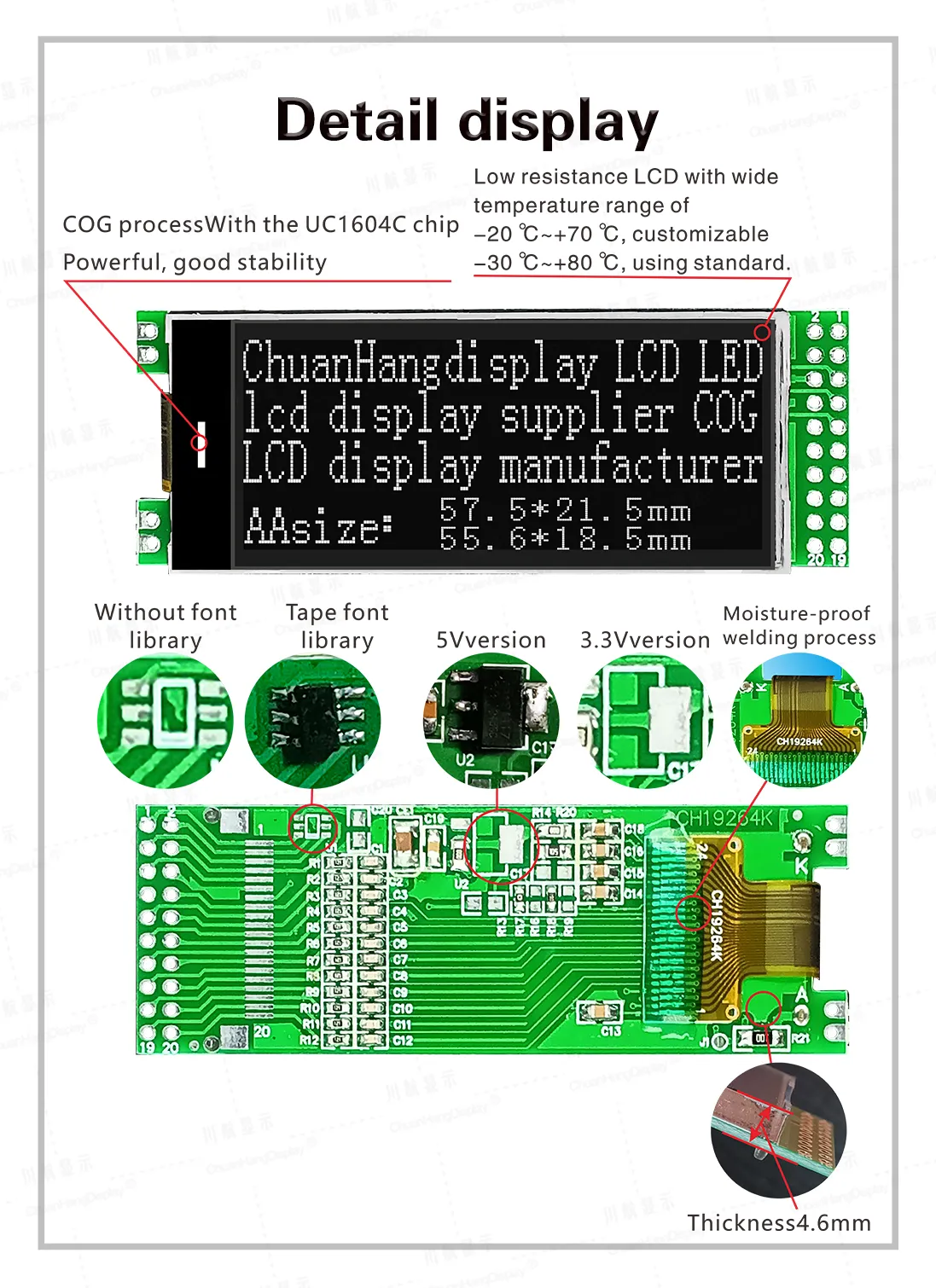

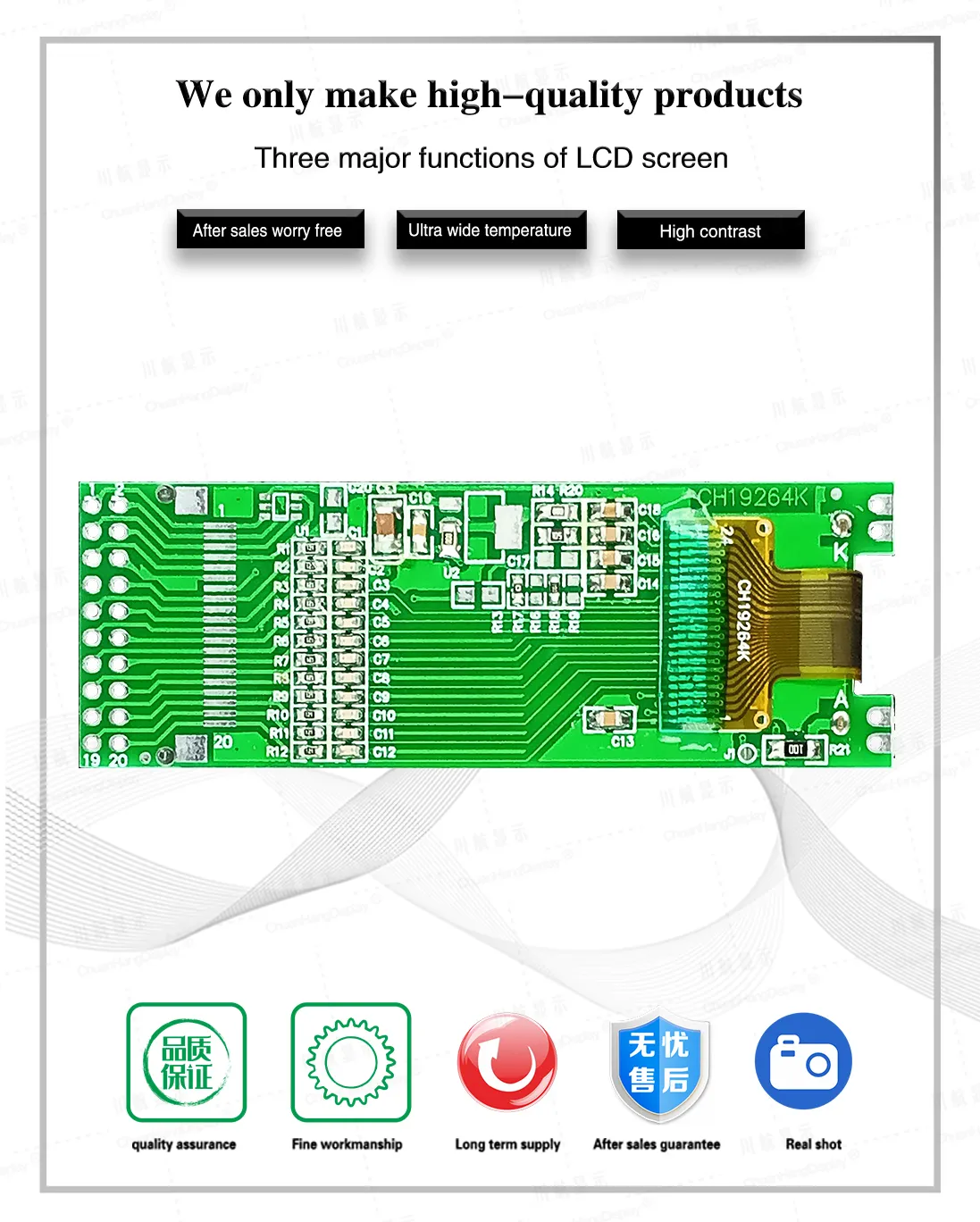

1.1 C0G process, FPC welding, the product comes with PCB board, backlight, thin thickness, stable structure.
1.2 IC uses UC1604, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, the current without backlight is within 1mA, and the current with backlight is within 100mA.
1.4 LED backlight A and K are soldered on the PCB board, and the structure is stable. LED can be driven by PIN5, PIN6, and PIN7.
1.5 Product features:
●Built-in display data RAM is 64x192 bits.
●The module has a built-in boost circuit.
●The contrast is adjusted by software.
●One screen displays 12 characters x 4 lines (16x16 dot matrix)
●Single picture ≦192x64 dot matrix:
●Optional 4-wire SPI interface/8-bit parallel port 6800 timing/8080 timing, customizable 12C interface:
●Rich functions
Interface display on/off, positive display/reverse display, read/modify/write.
