Product Description
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH240128D
Resolution240X128screen size4.8"
Outline Dimension(L*W*H)144.0X104.0X12.7 mmVisible Area(L*W)114.0X64.0 mm
Active Area(L*W)107.95X57.55 mmDot Size (mm) 0.40(L)X0.40(W)
TypeCOBConnection MethodConductive strip
Supply Voltage5V/3.3V Interface TypeMCU
Viewing Direction6 O'CLOCK Driving Method1/128Duty,1/12Bias
Display Type STNDriver ICT6963C/RA6963
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters5V/3.3Vproduction capacitySelf-produced
Character libraries
Whether to bring PCBYes

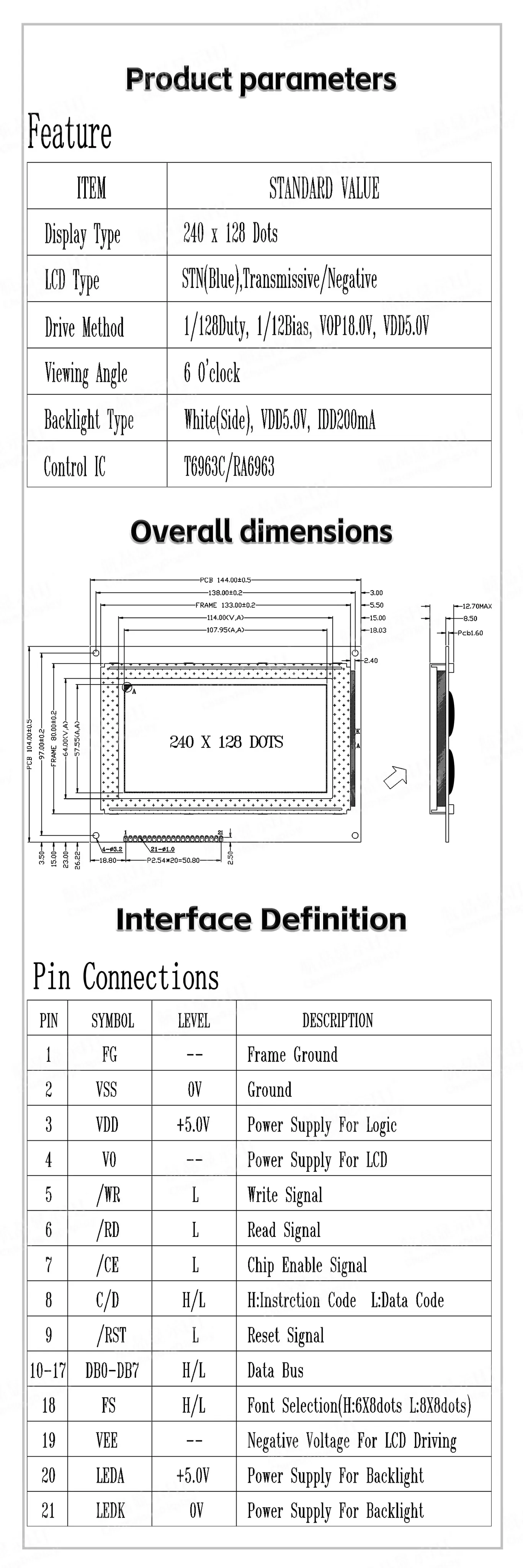

Product Datasheet

CH240128D

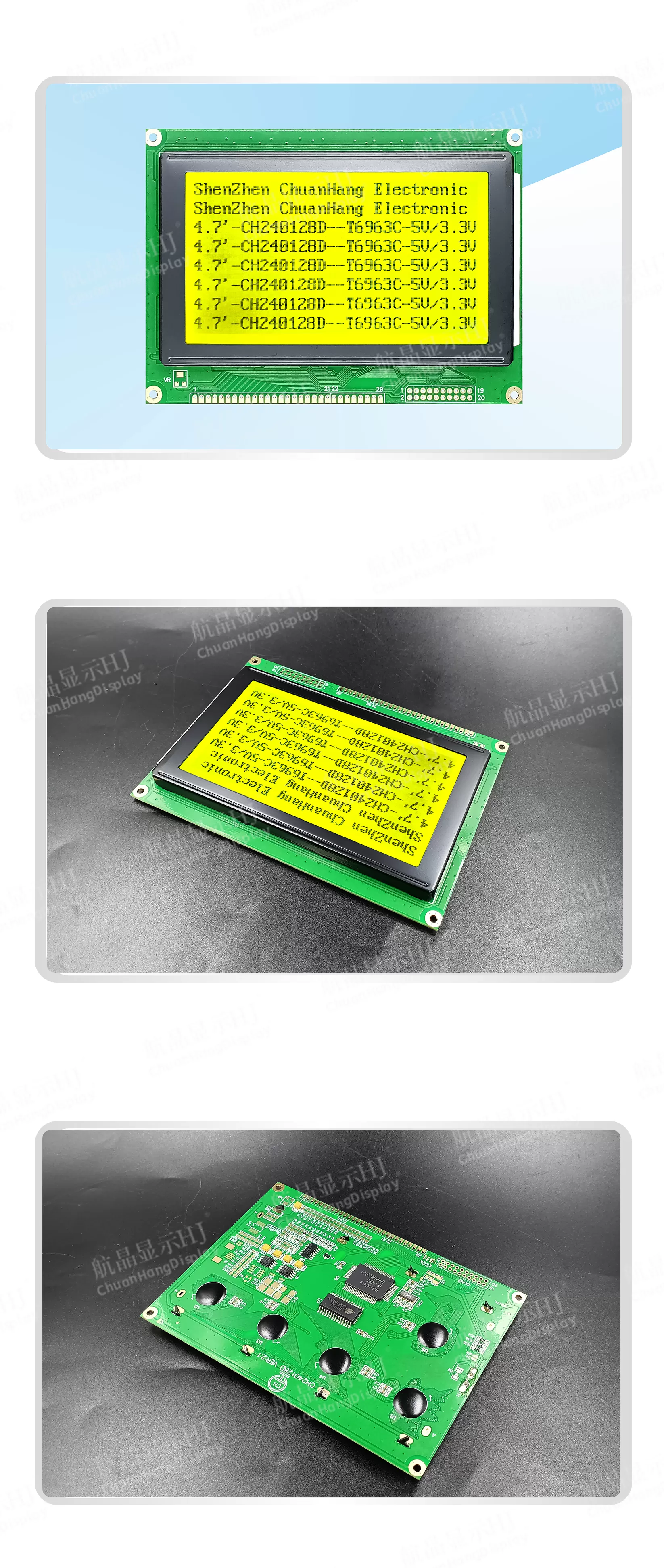

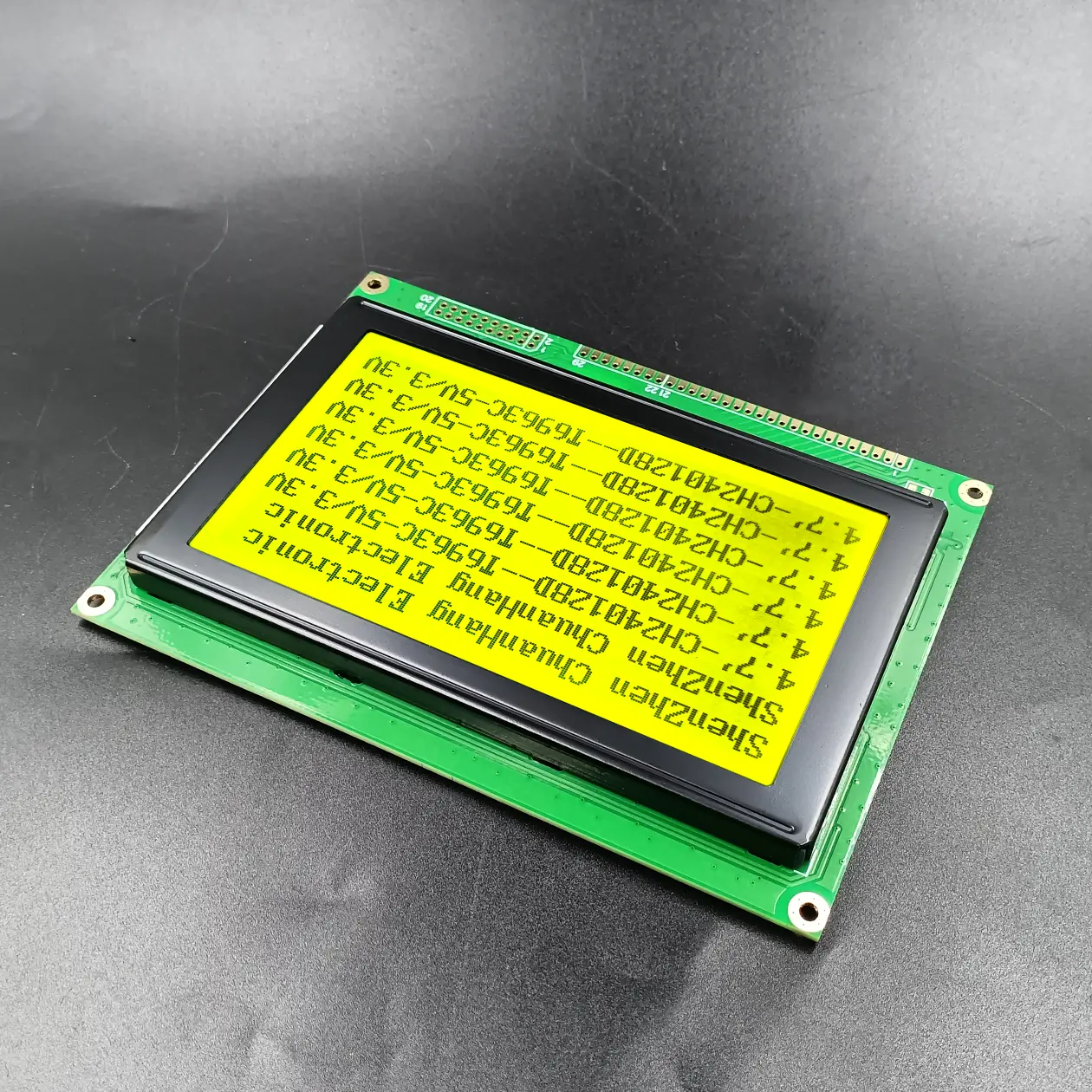

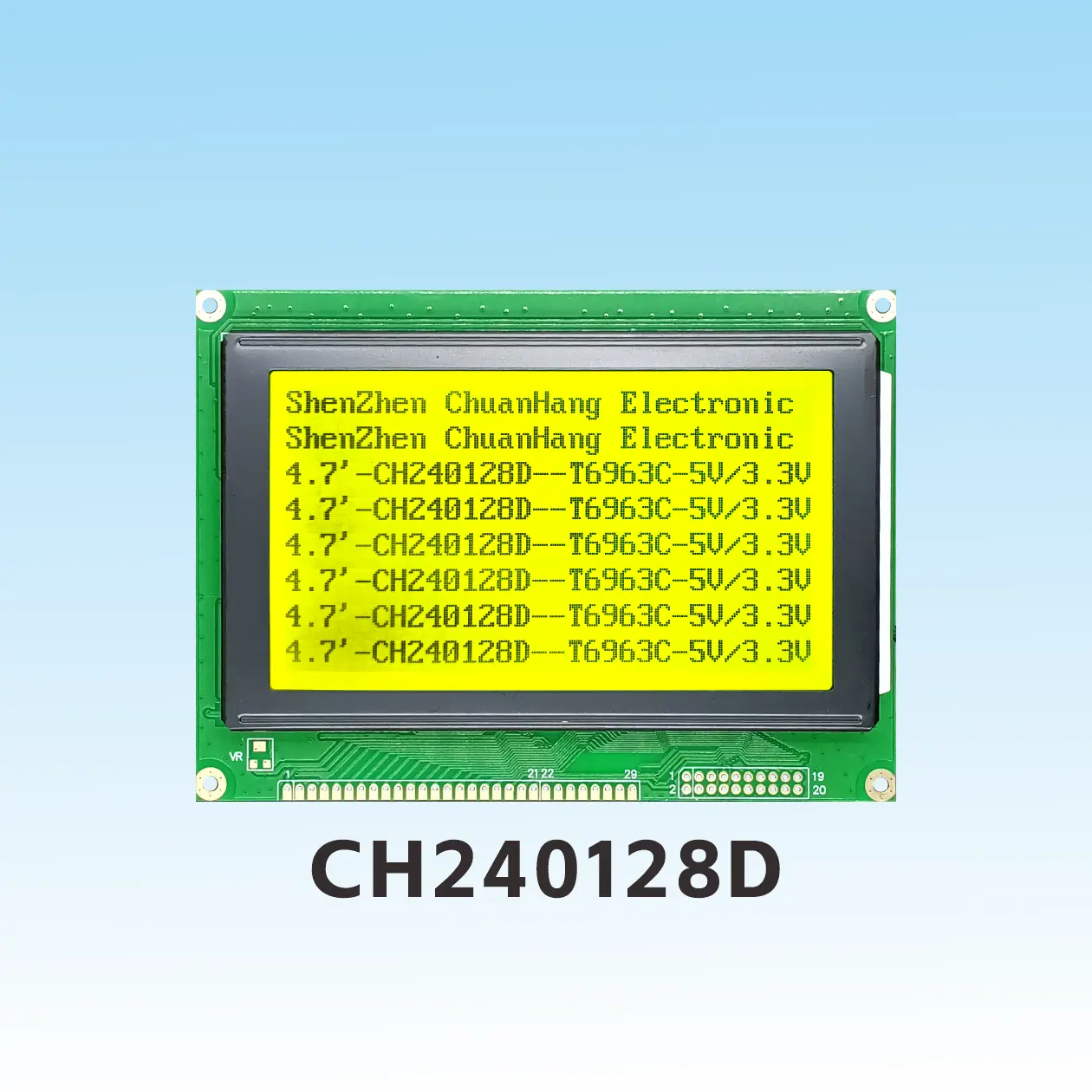

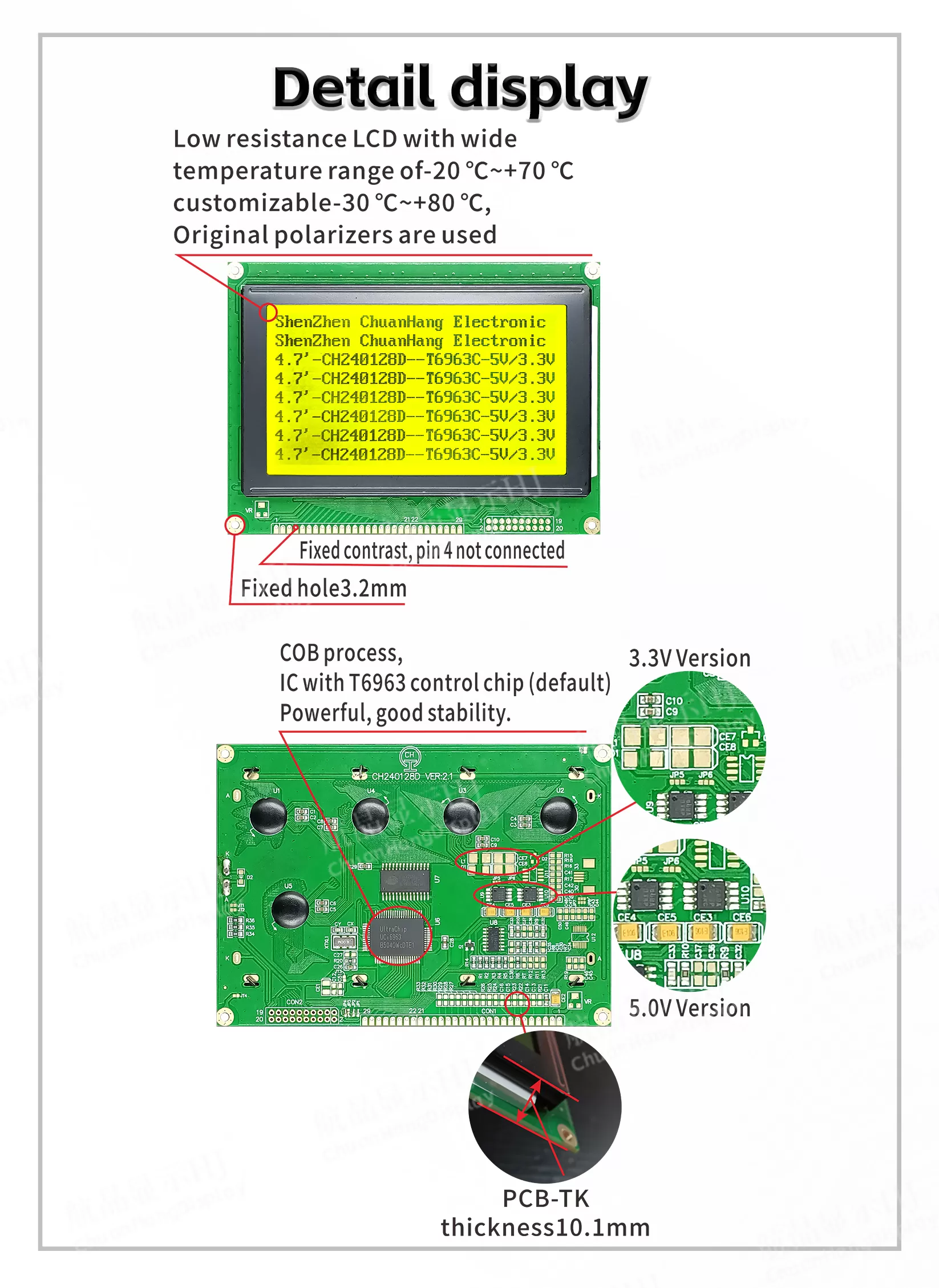

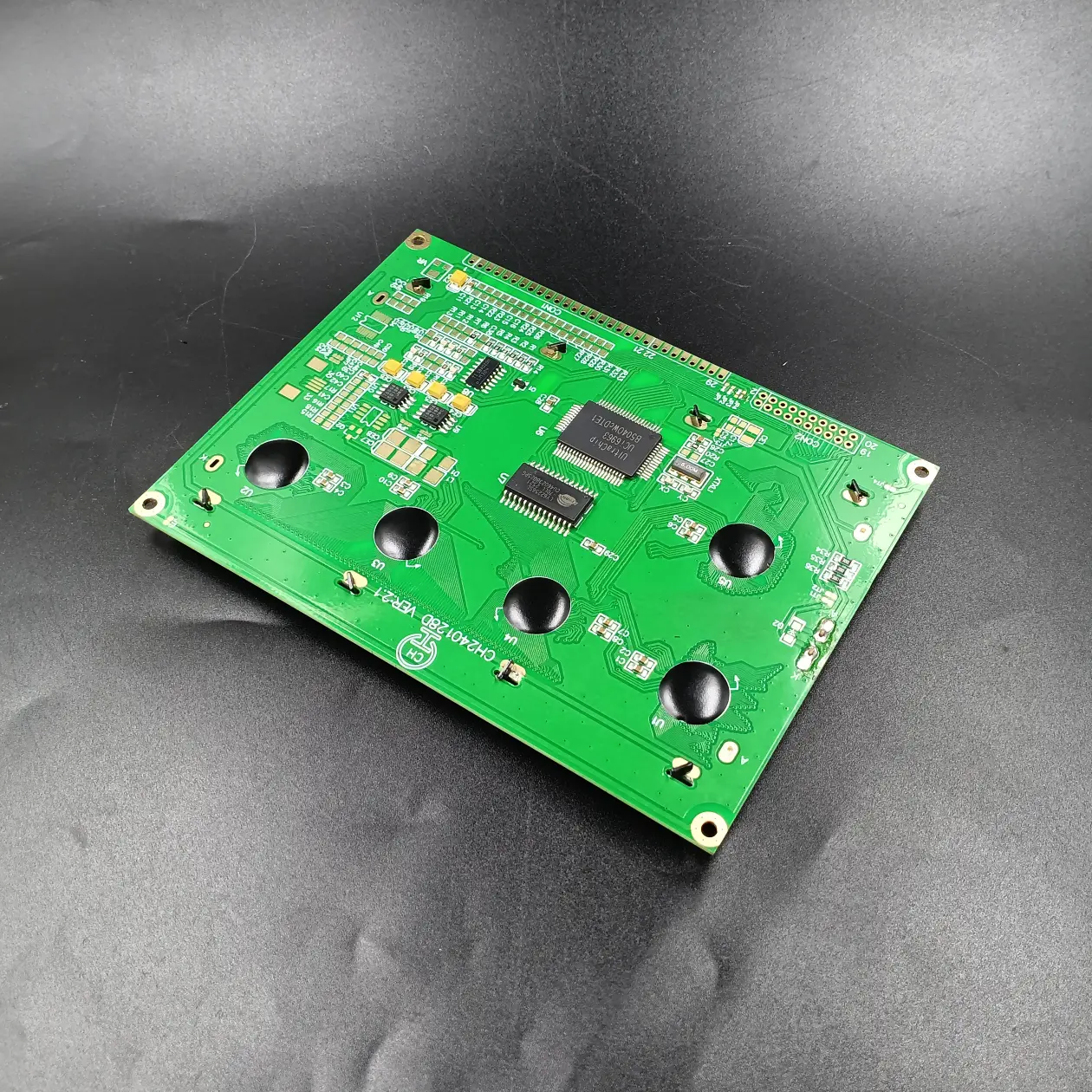

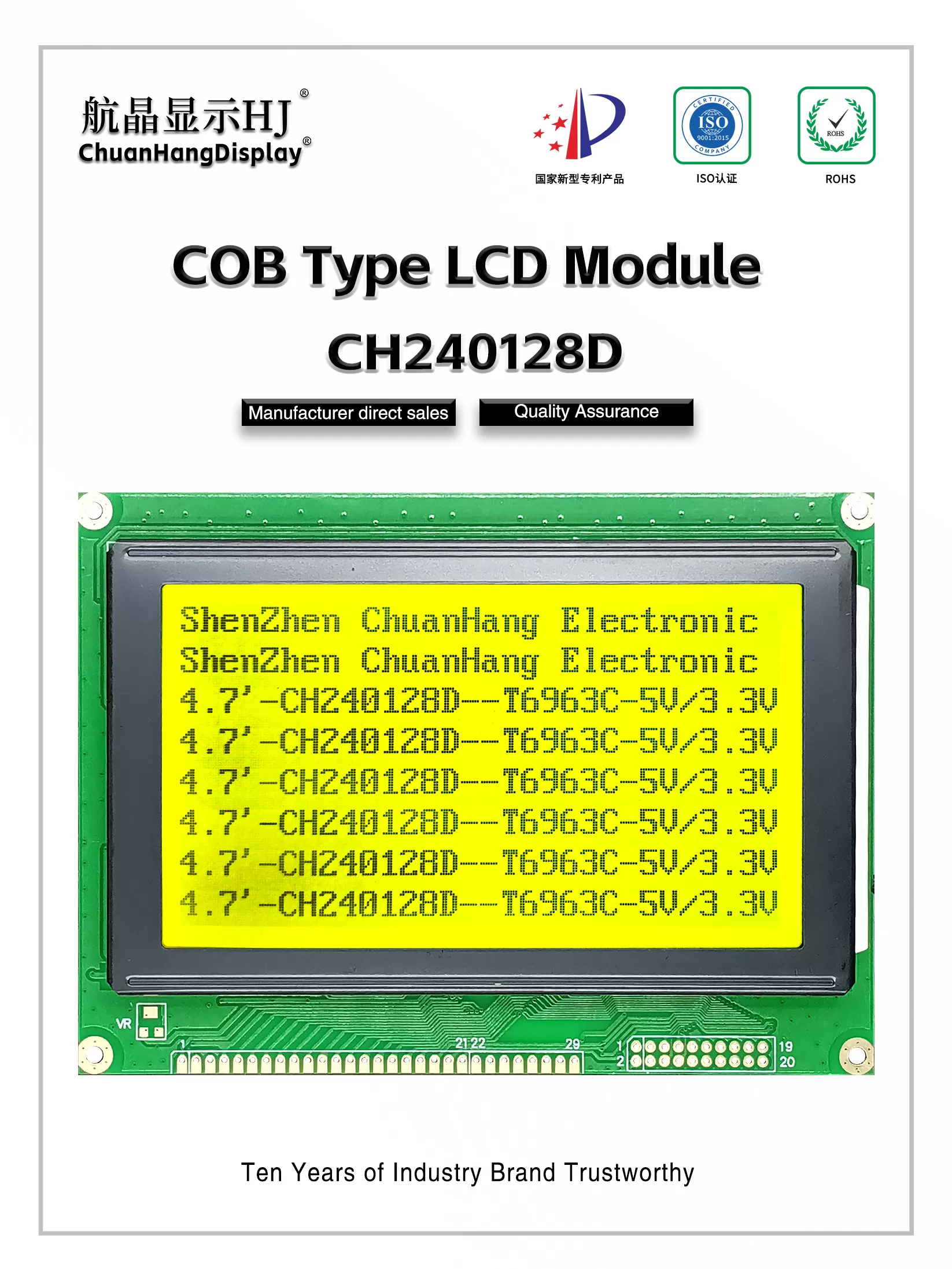

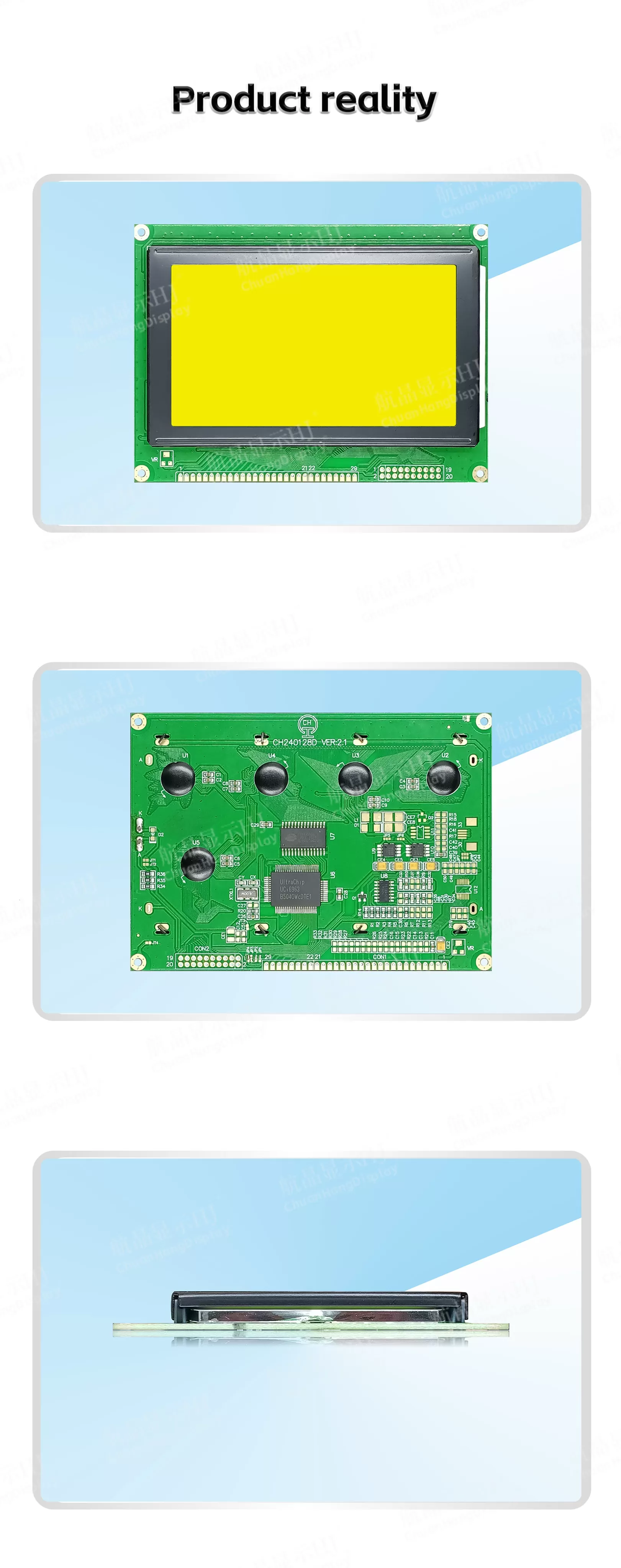

Product Display

CH240128DCH240128DCH240128DCH240128DCH240128D
