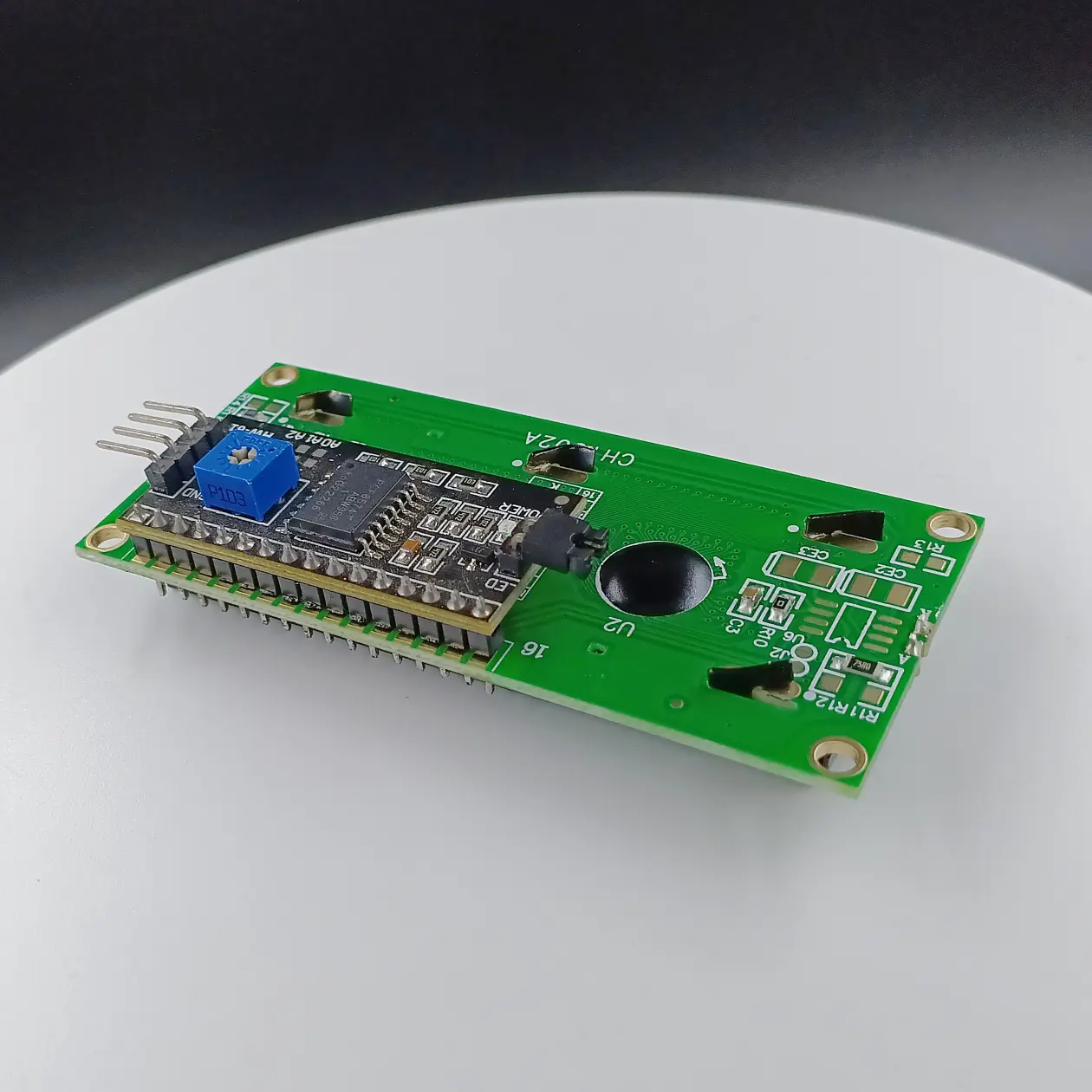

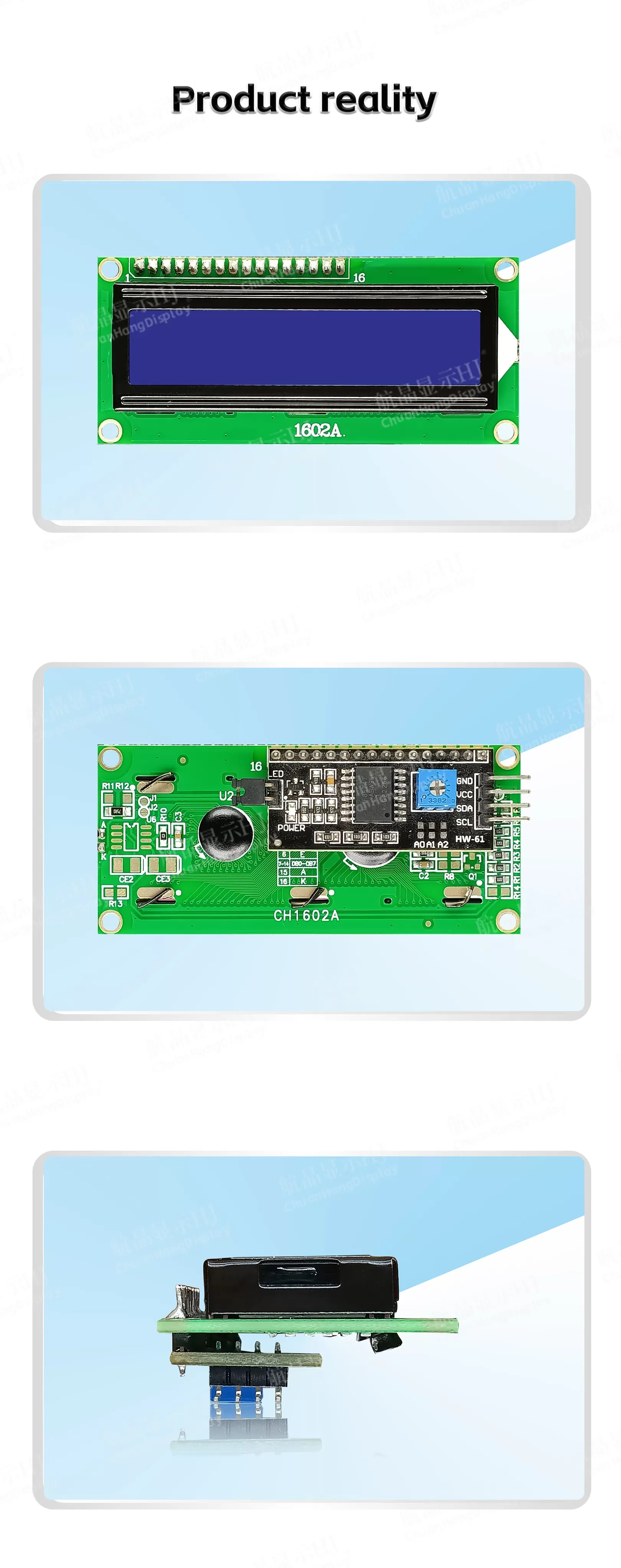

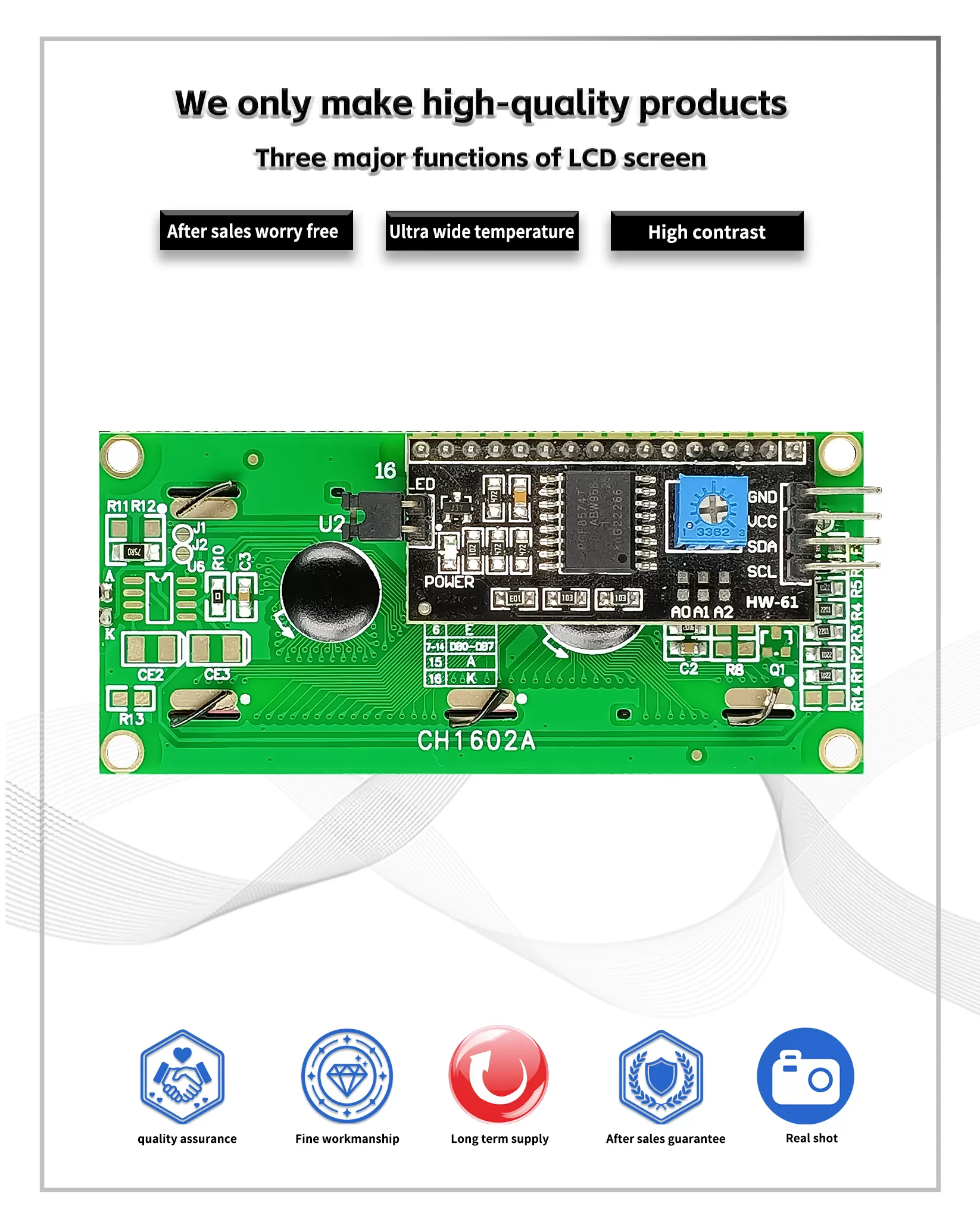

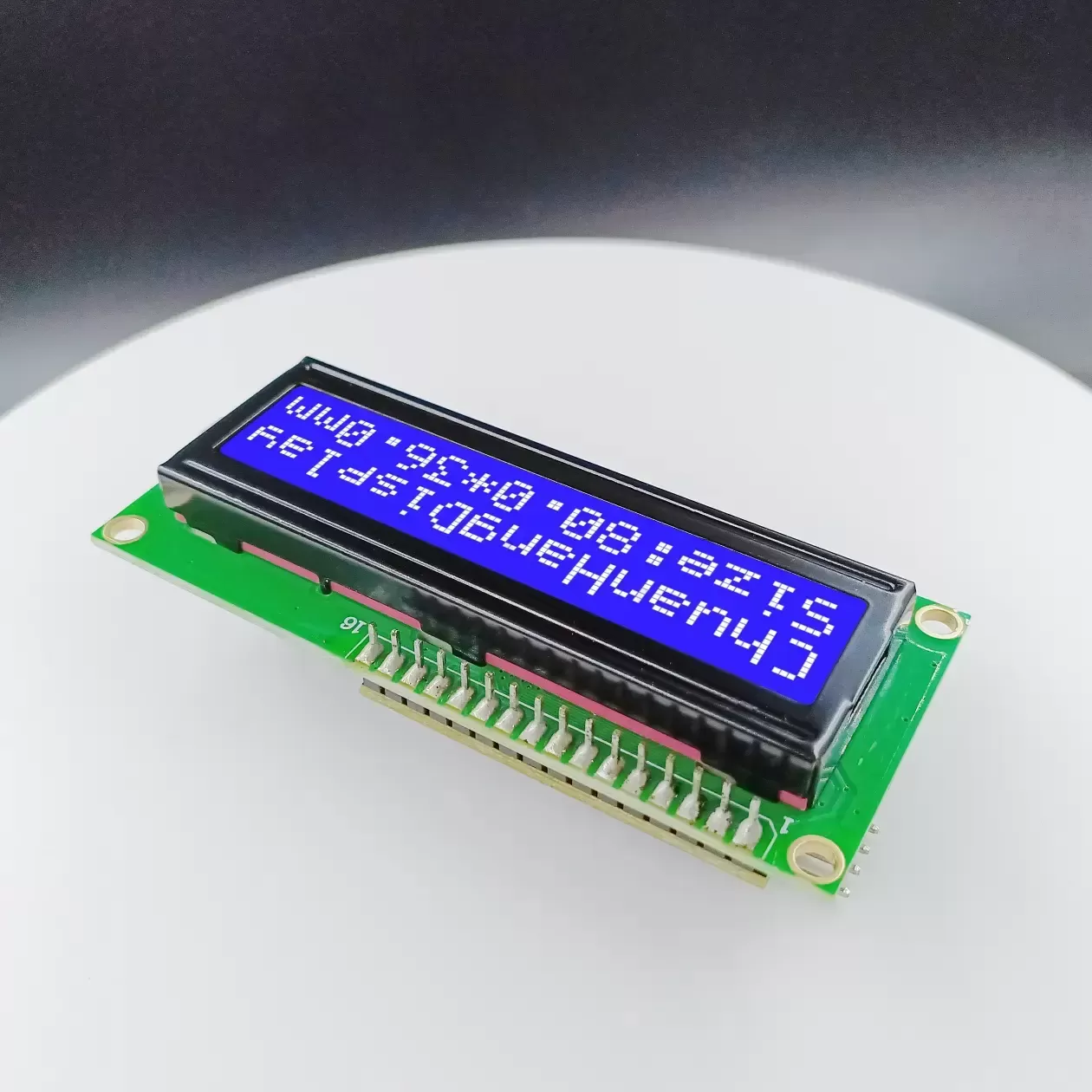

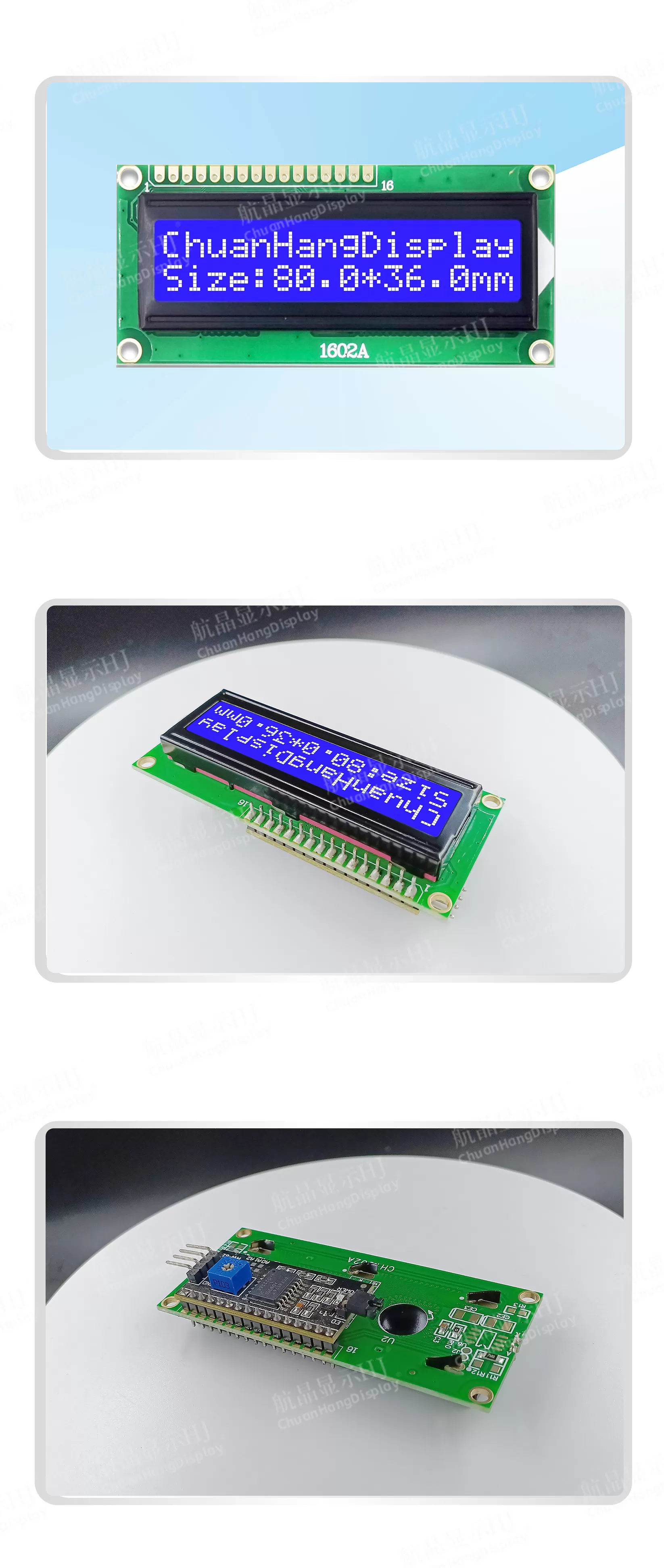

CH1602A-I2C

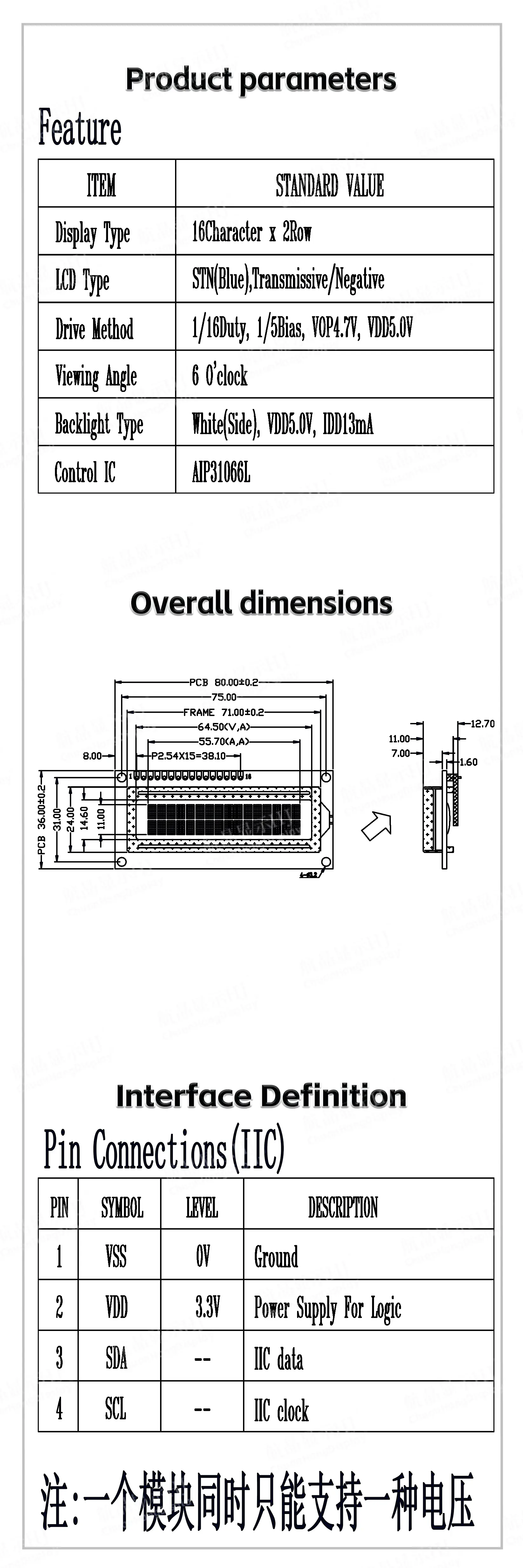

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH1602A-I2C |

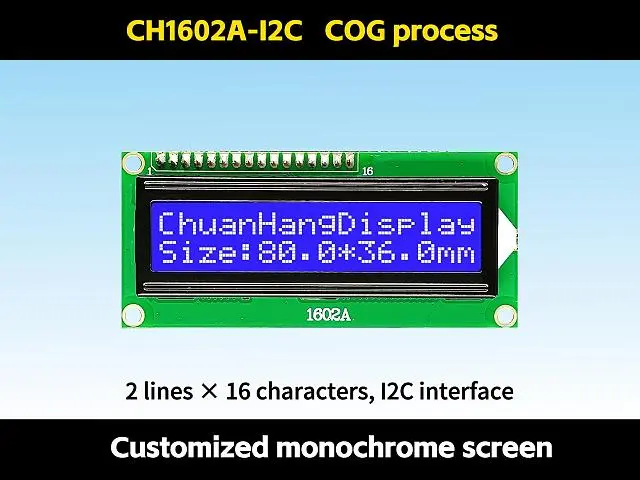

| Resolution | 16*2 | screen size | 2.5 inches |

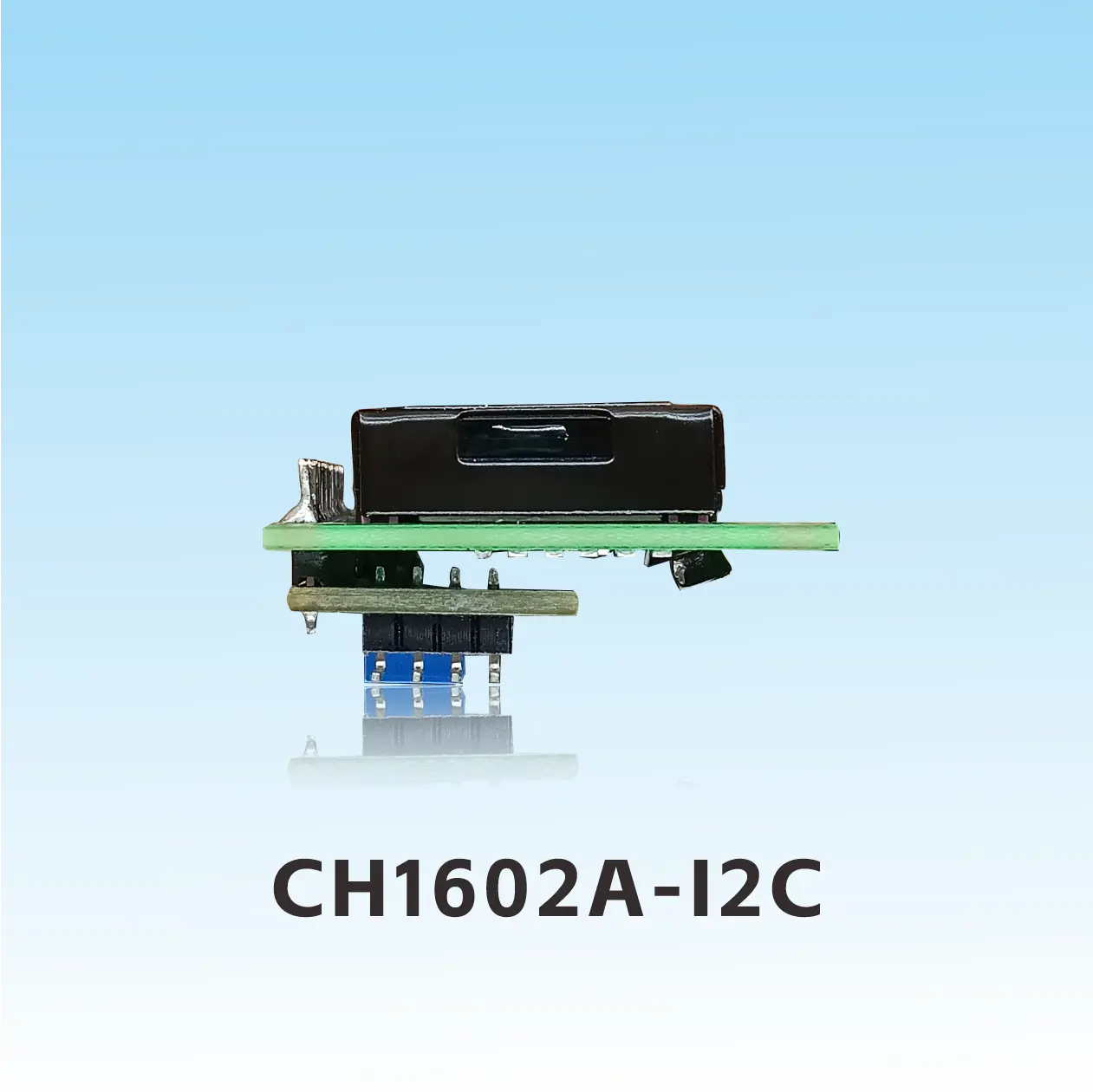

| Outline Dimension(L*W*H) | 80.0x36.0x12.7mm | Visible Area(L*W) | 64.5x14.6 mm |
| Active Area(L*W) | 55.7x11.0 mm | Character Size(L*W) | 2.90x5.15mm |
| Type | COB | Connection Method | Conductive strip |
| Supply Voltage | 5V/3.3V | Interface Type | MCU |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/16Duty,1/5Bias |

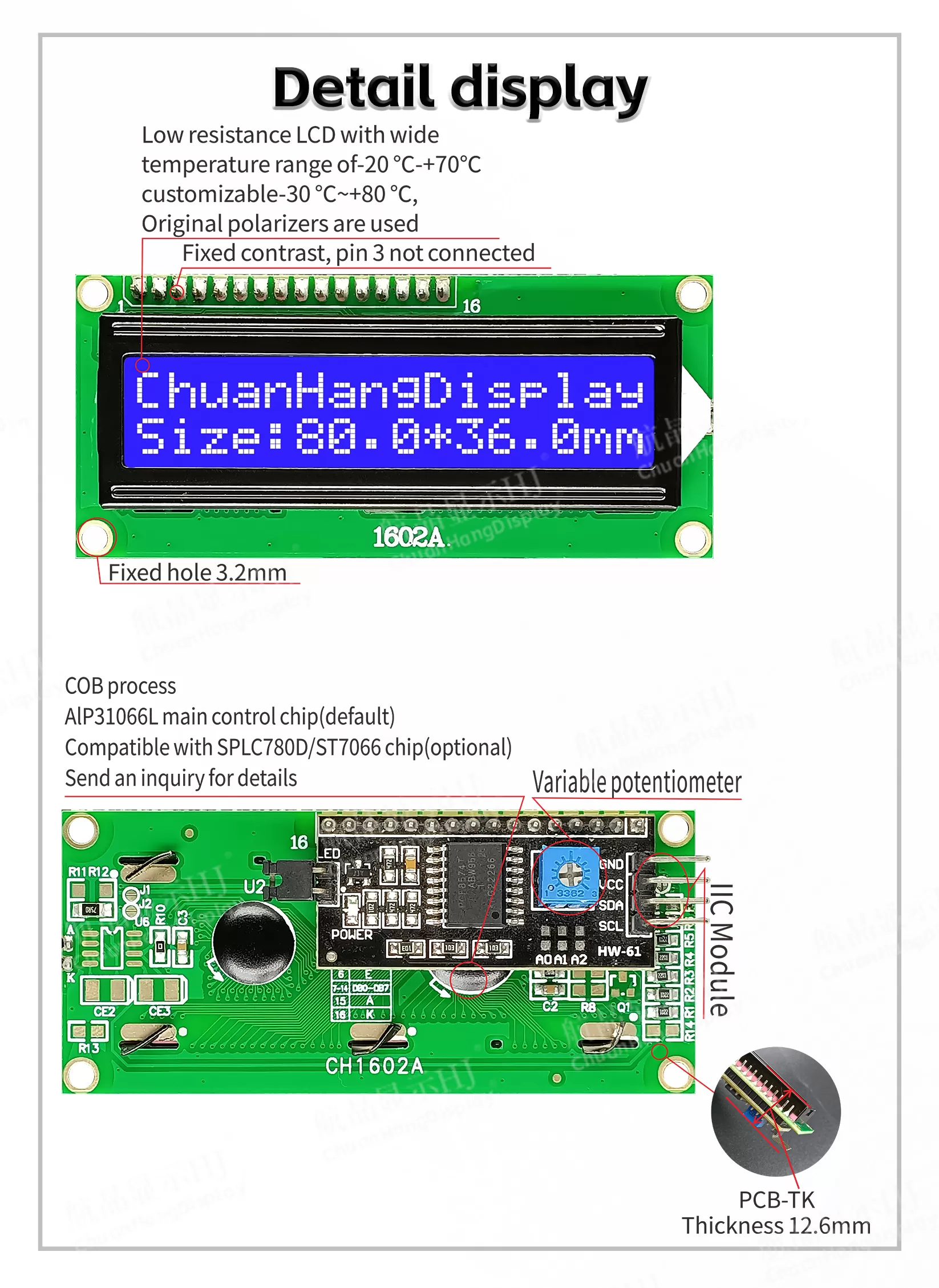

| Display Type | STN | Driver IC | AIP31066 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | 5V/3.3V | production capacity | Self-produced |
| Character libraries | Default English and Japanese font library | Whether to bring PCB | Yes |
