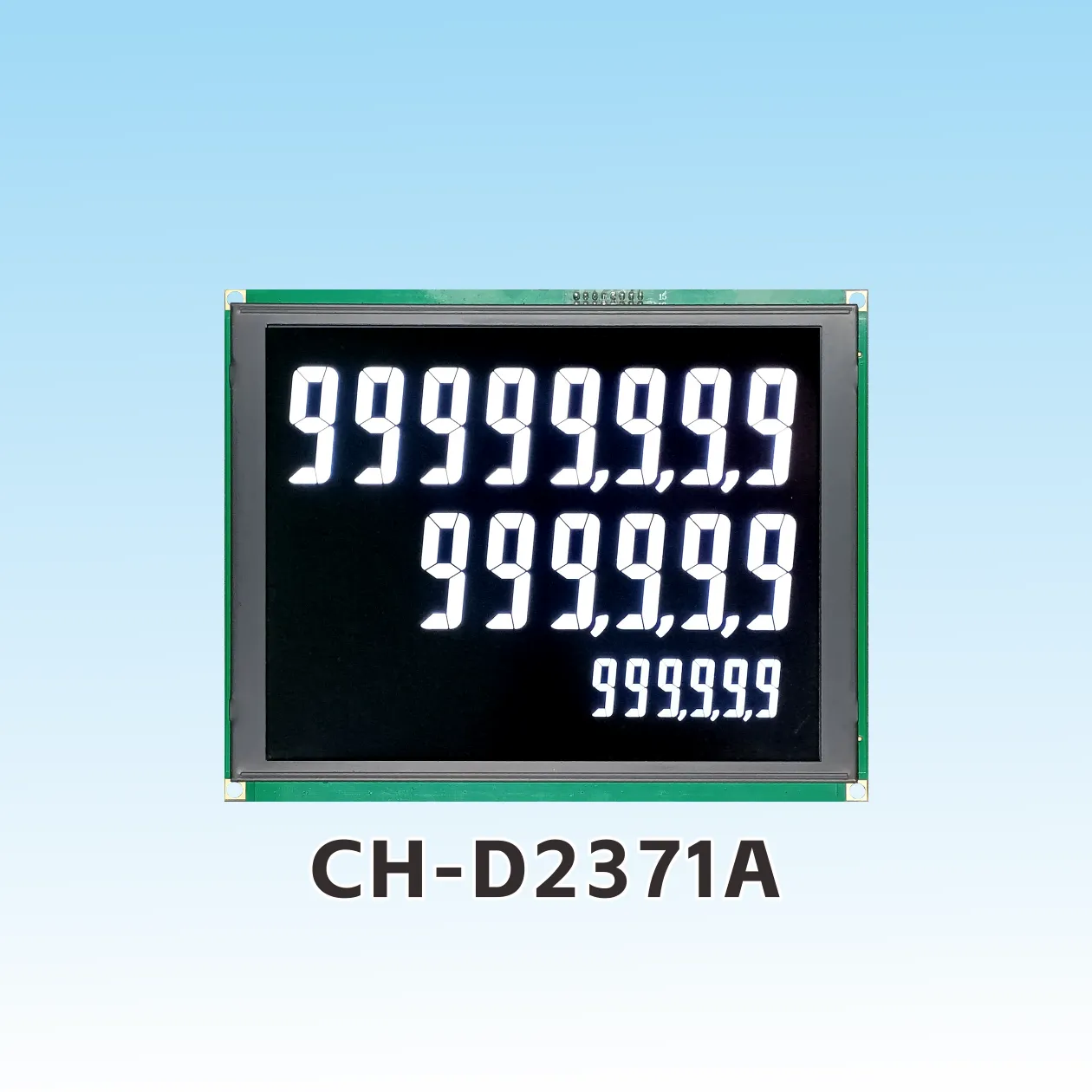

CH-D2371A VA

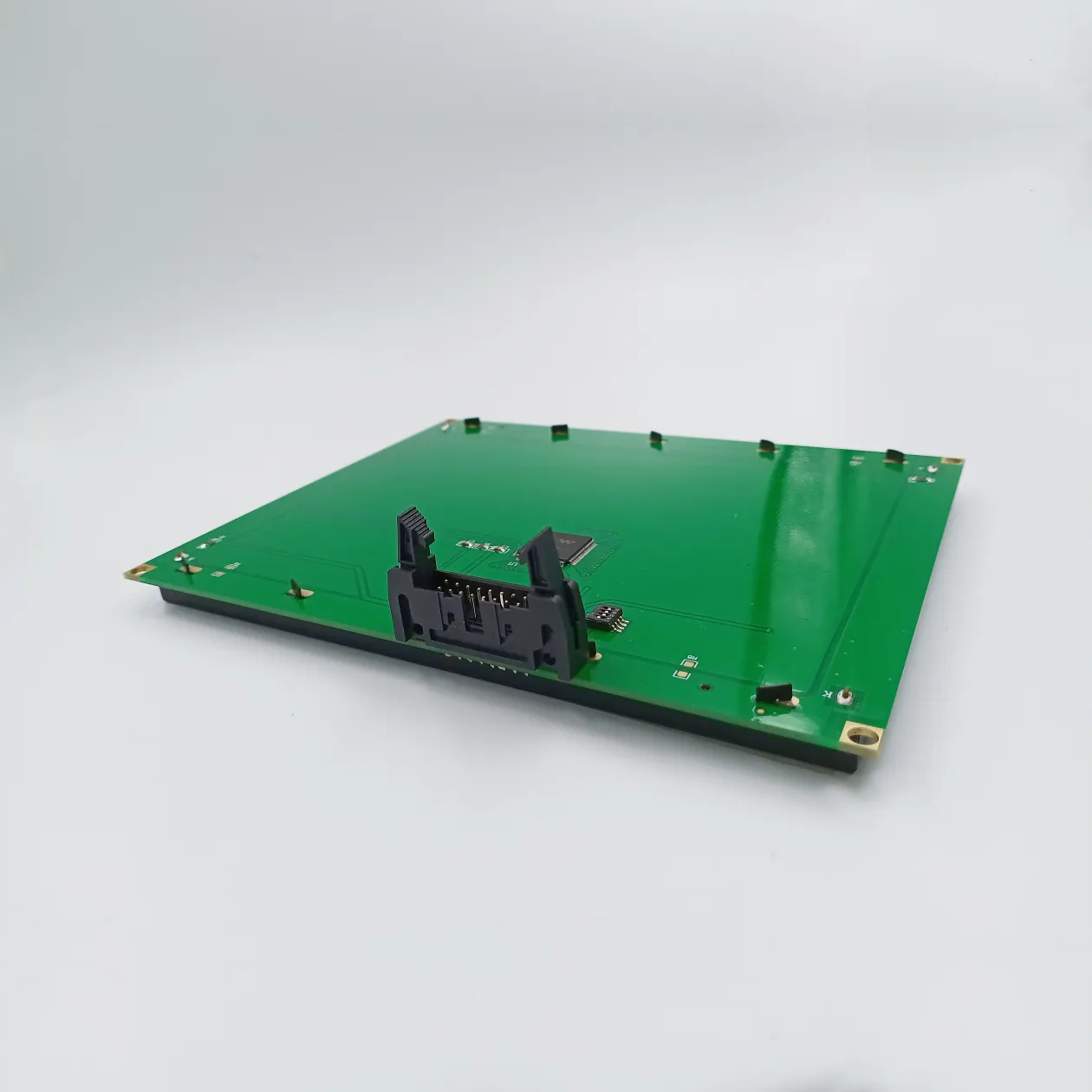

CH-D2371A    VA

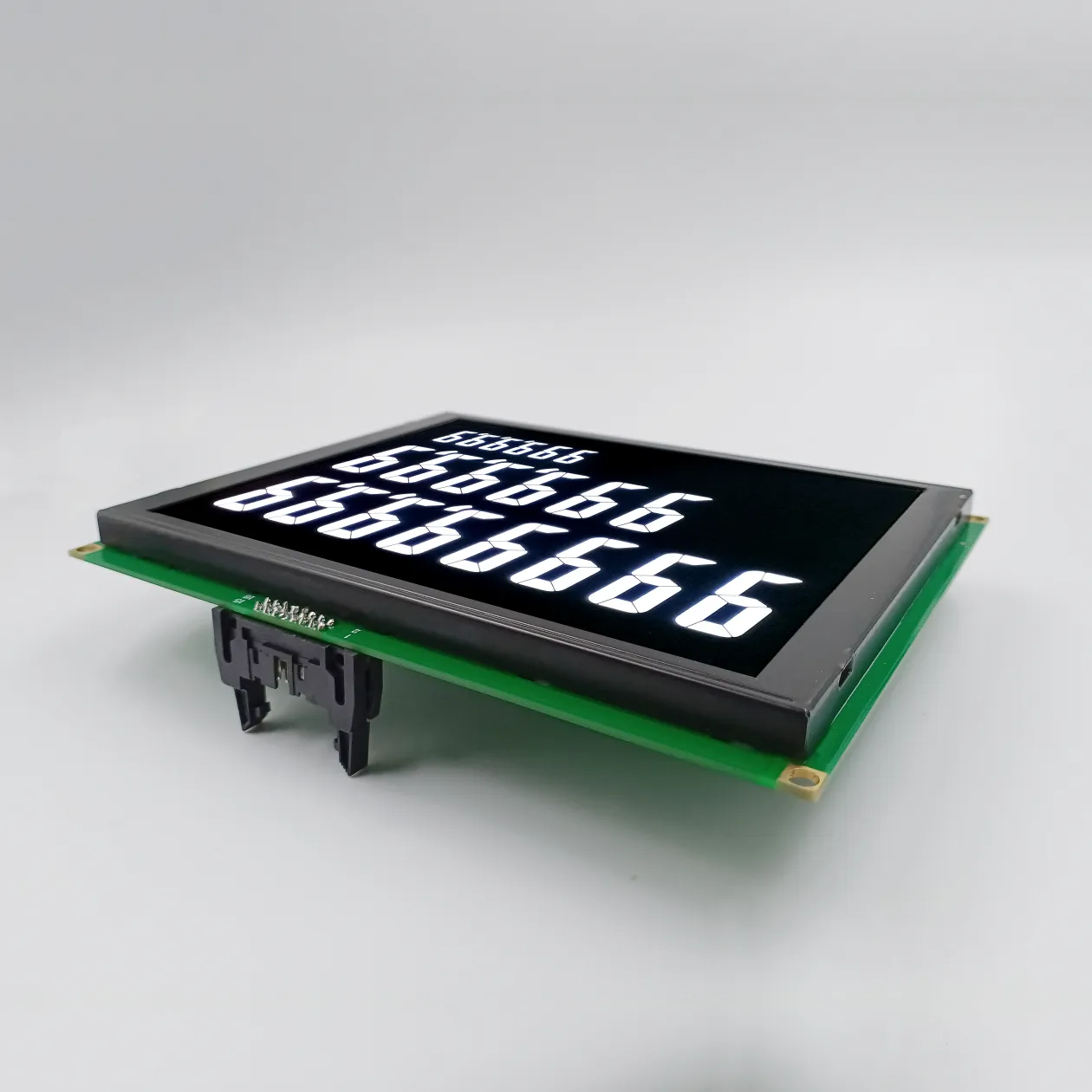

CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA
CH-D2371A    VA

CH-D2371A VA

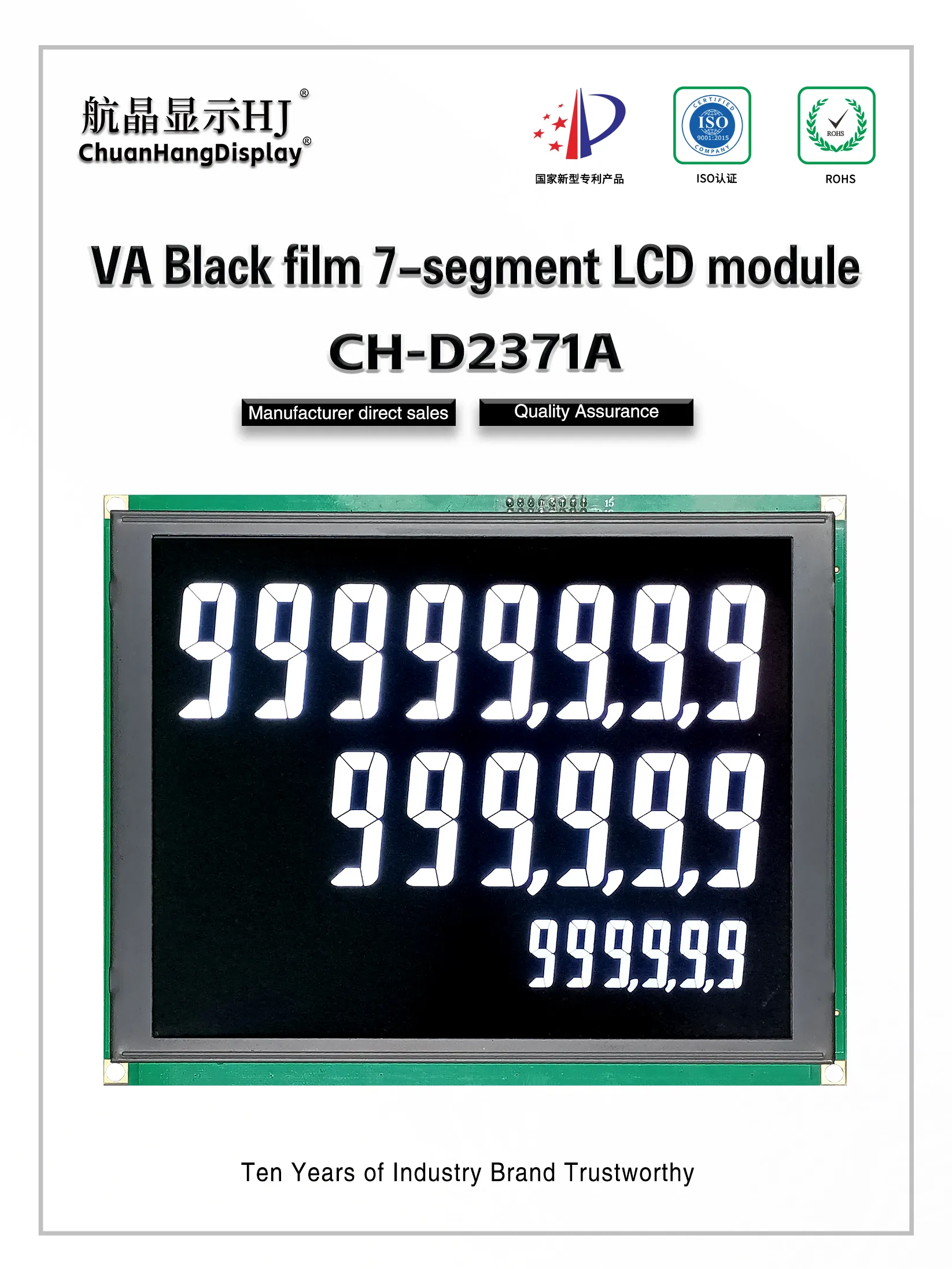

Product Description
LCD Material: VA LCD
Display Mode: VA/Negative display
Polarizer Type: Black film/full transparency

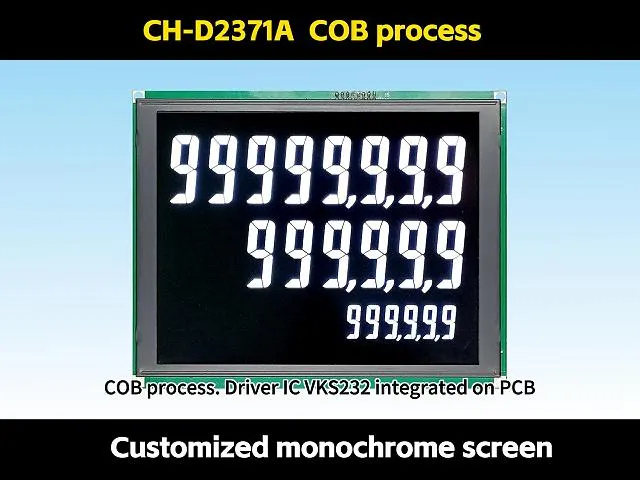

Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5.0V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight :White LED
Application Industry: Power Electronic Fence Alarm System
Video Presentation

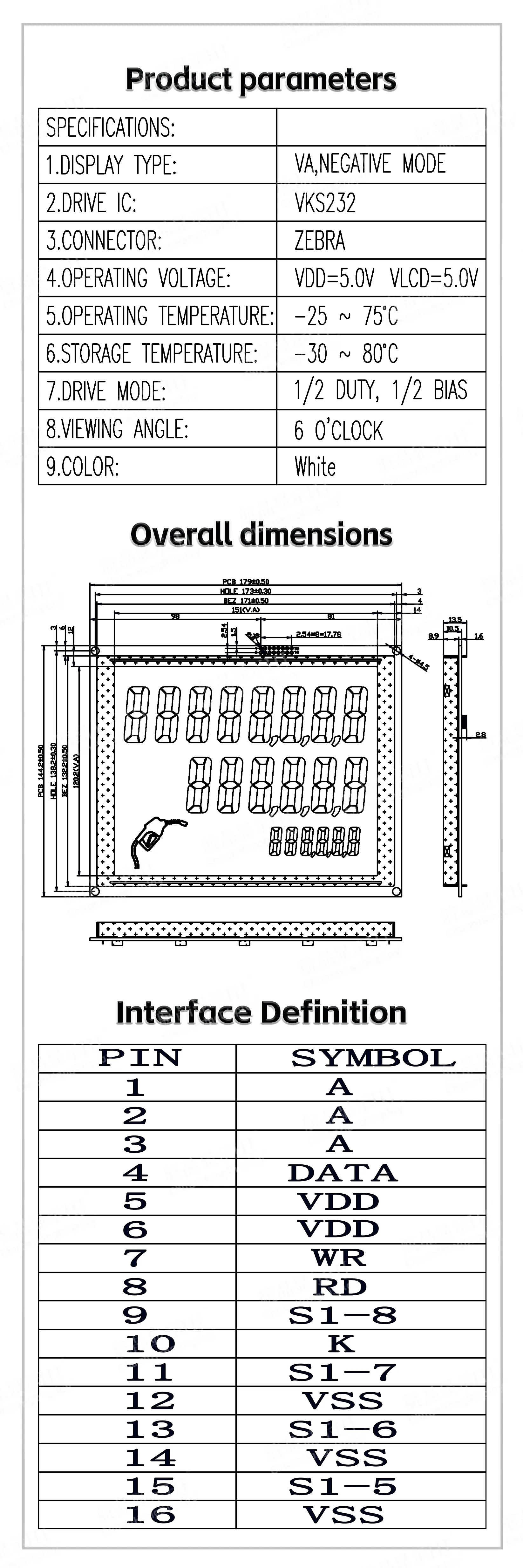

Product Parameters
Product BrandChuanHangDisplayProduct Model CH-D2371A
Display ModeVA/NEGATIVE/TRANSMISSIVEDisplay SizeCustomized
Outline Dimension(L*W*H)179.0x144.2x13.5mmVisible Area(L*W)/
Active Area(L*W)151.0x102.2mmCharacter Size(L*W) /
TypeCOBConnection MethodPIN
Supply Voltage3.2V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeVADriver ICVKS232
Operating Temperature-25℃~+75℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBNO
Product Datasheet

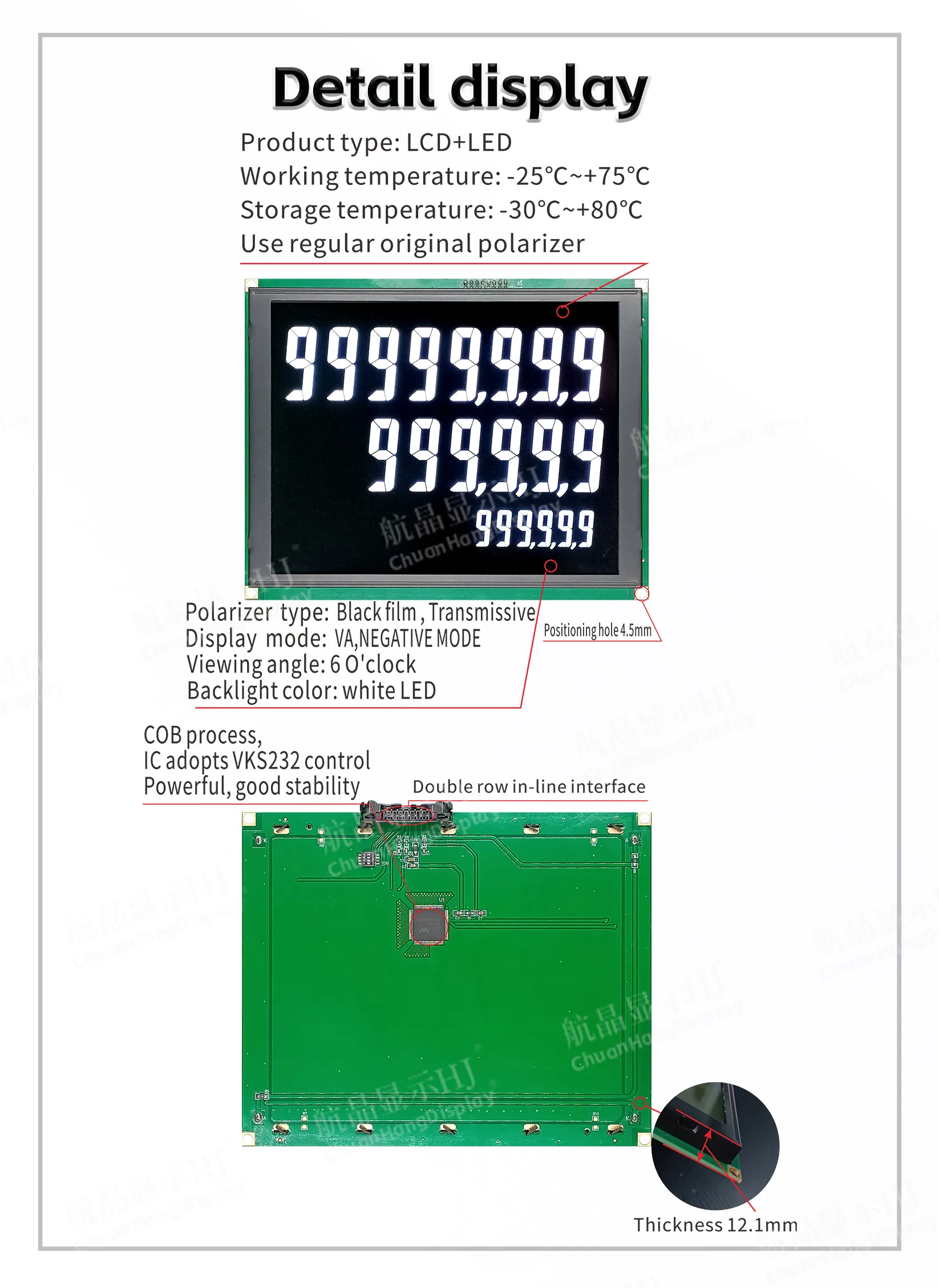

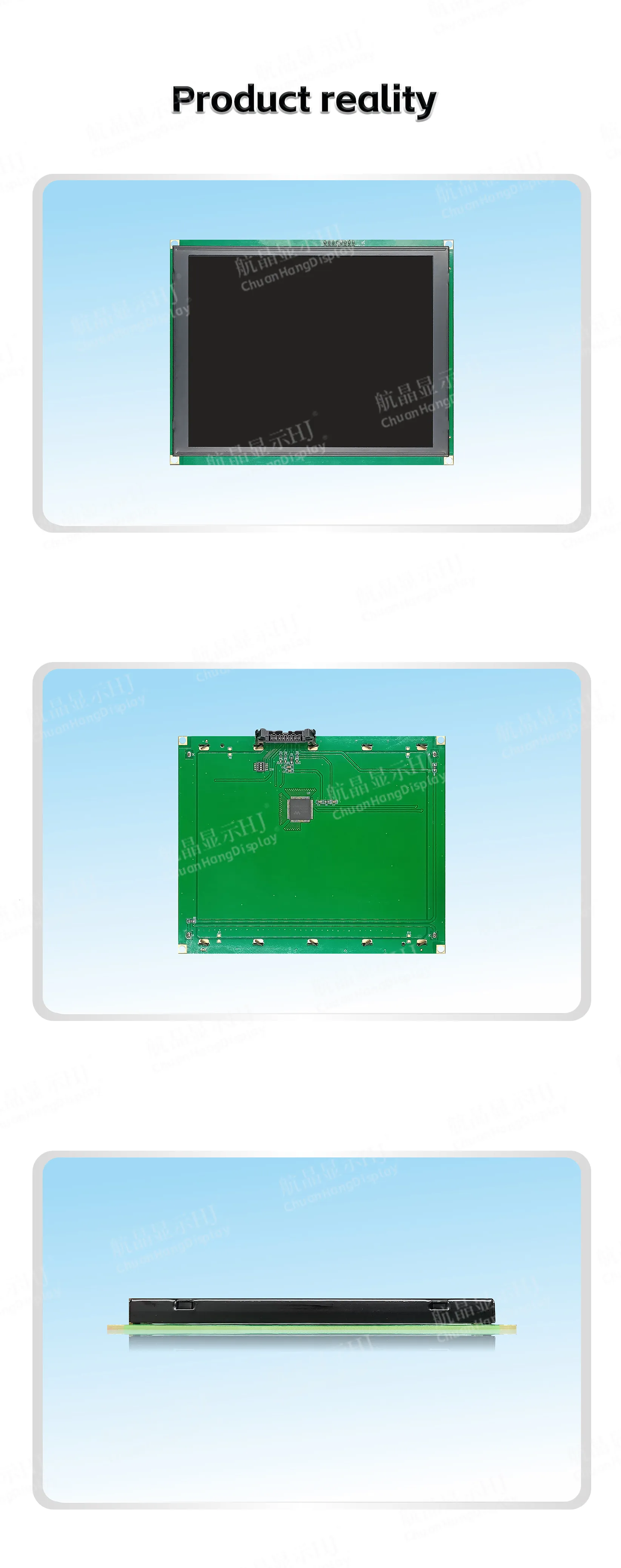

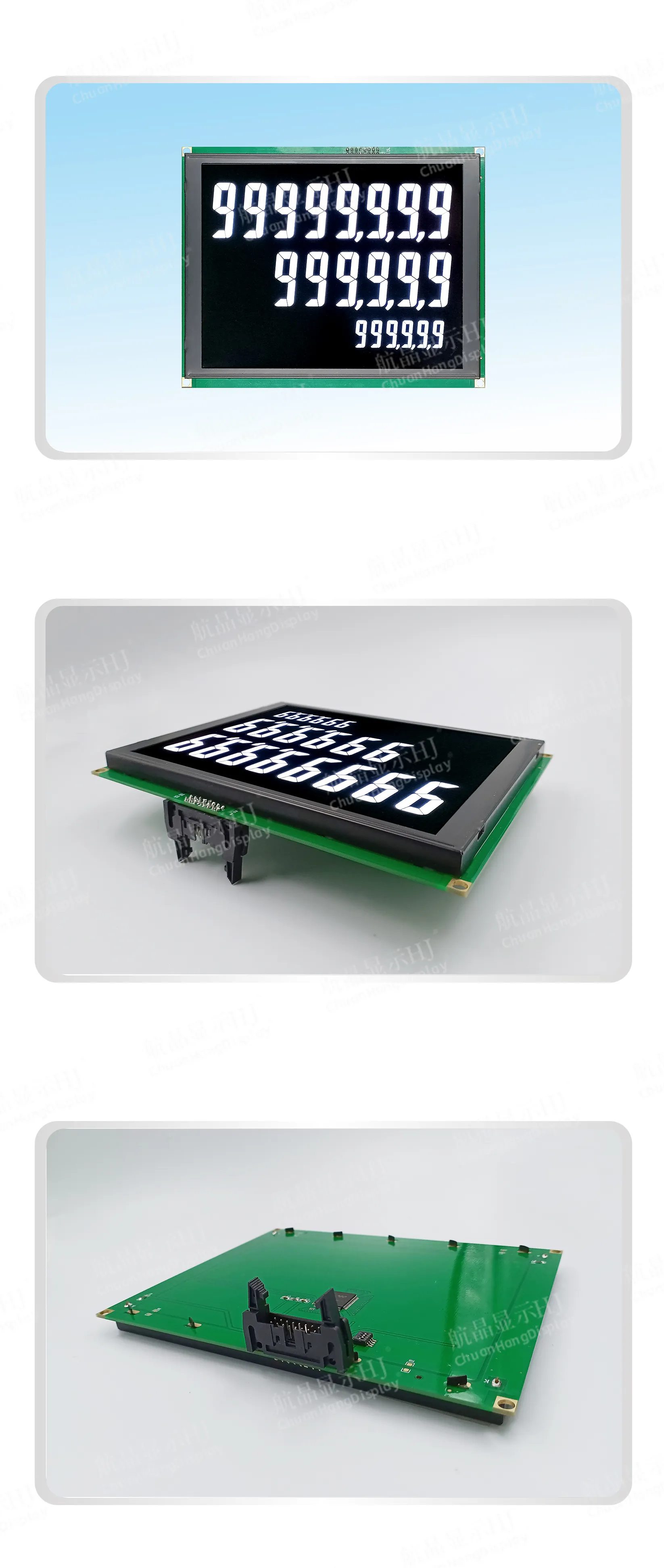

Product Display
