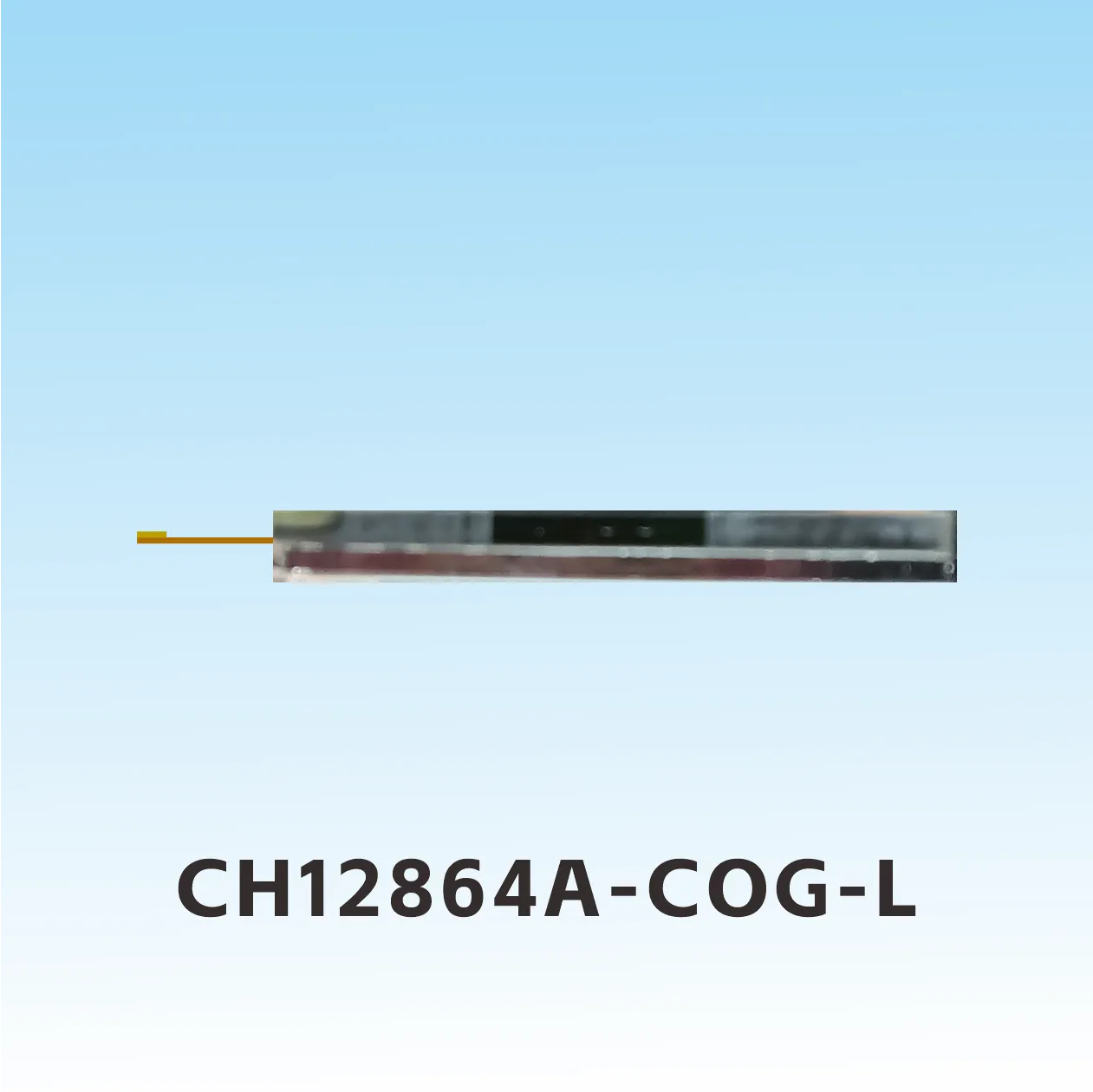

CH12864A-COG-L

CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L
CH12864A-COG-L

CH12864A-COG-L

Product Description
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12864A-COG-L
Resolution128x64screen size2.9”
Outline Dimension(L*W*H)77.60x48.90x7.00mmVisible Area(L*W)73.00x39.00mm
Active Area(L*W)66.52x33.24mmDot Size (mm) 0.48(L)x0.48(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeMCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/64Duty
Display Type FSTN Driver ICST7567
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character librariesWhether to bring PCBNO

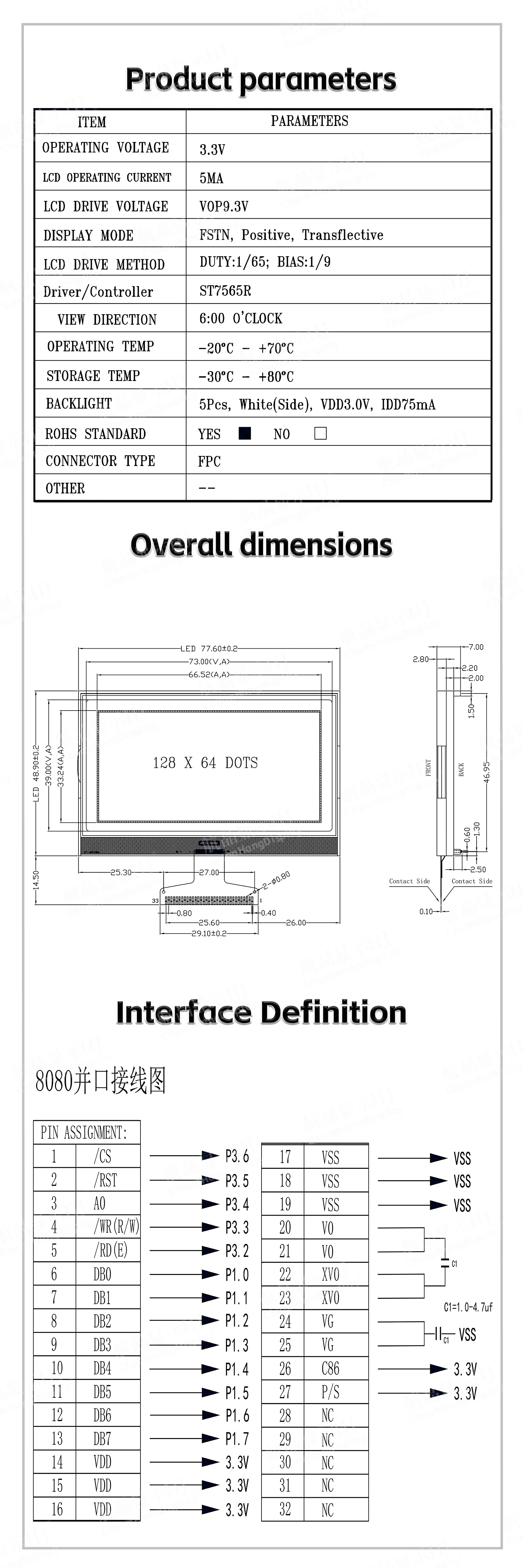

Product Datasheet

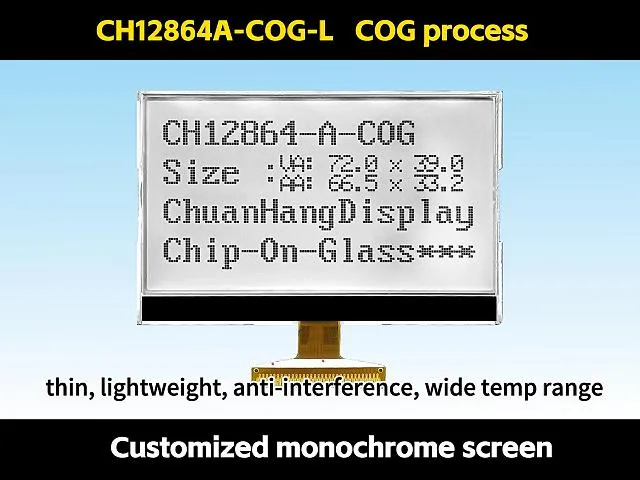

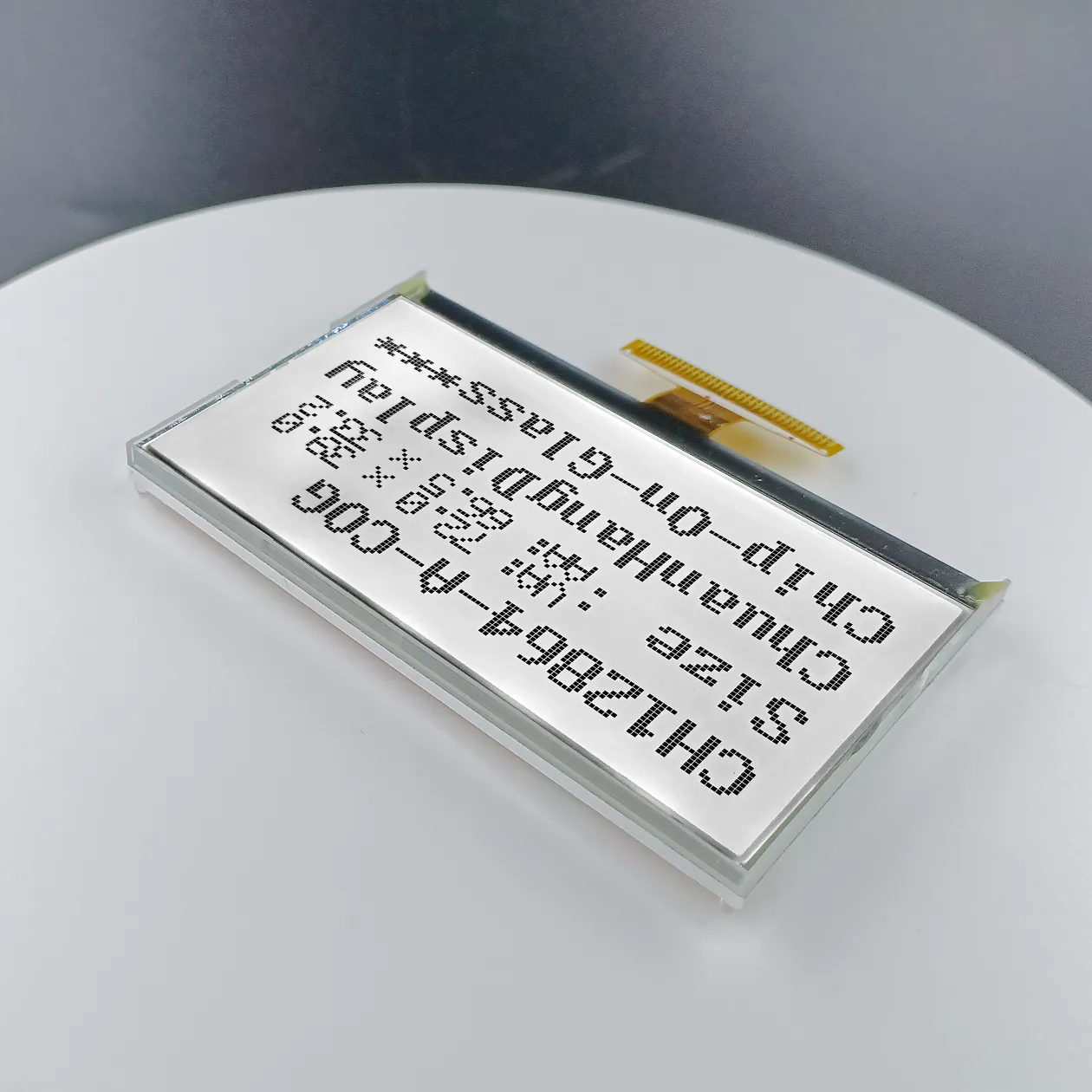

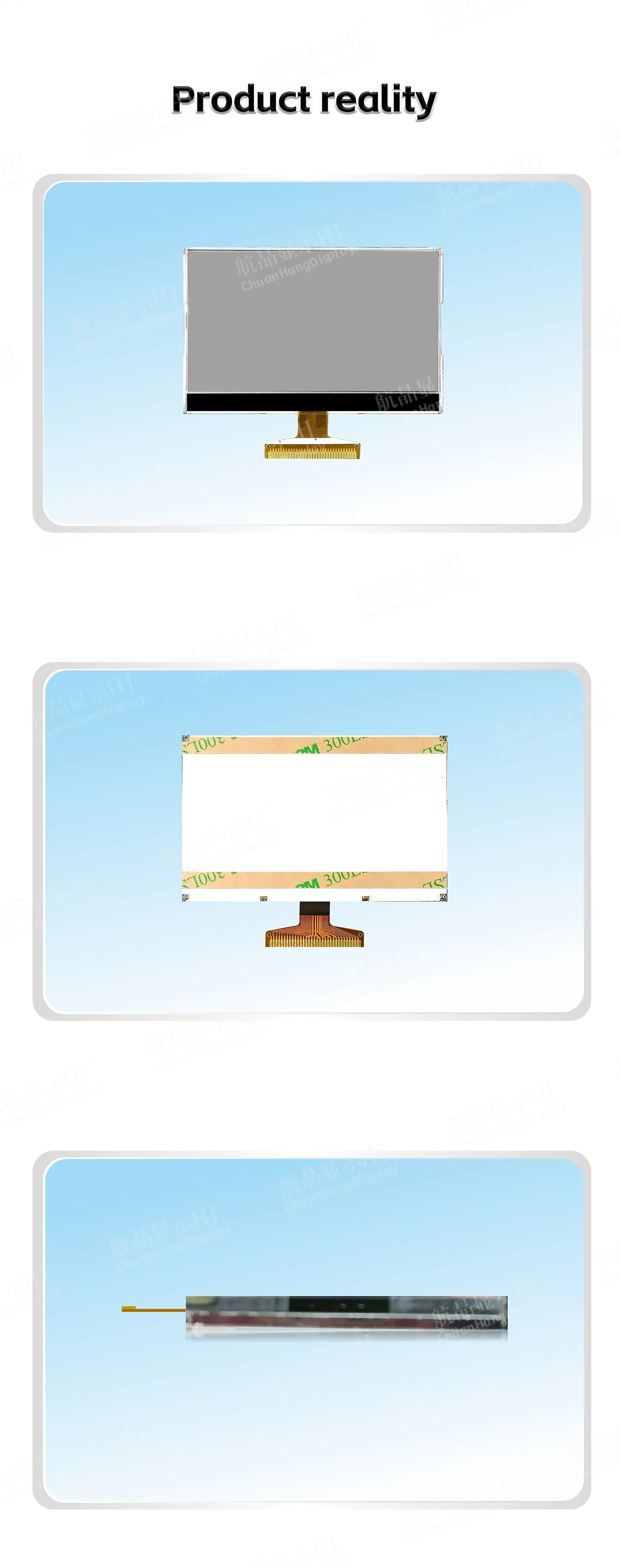

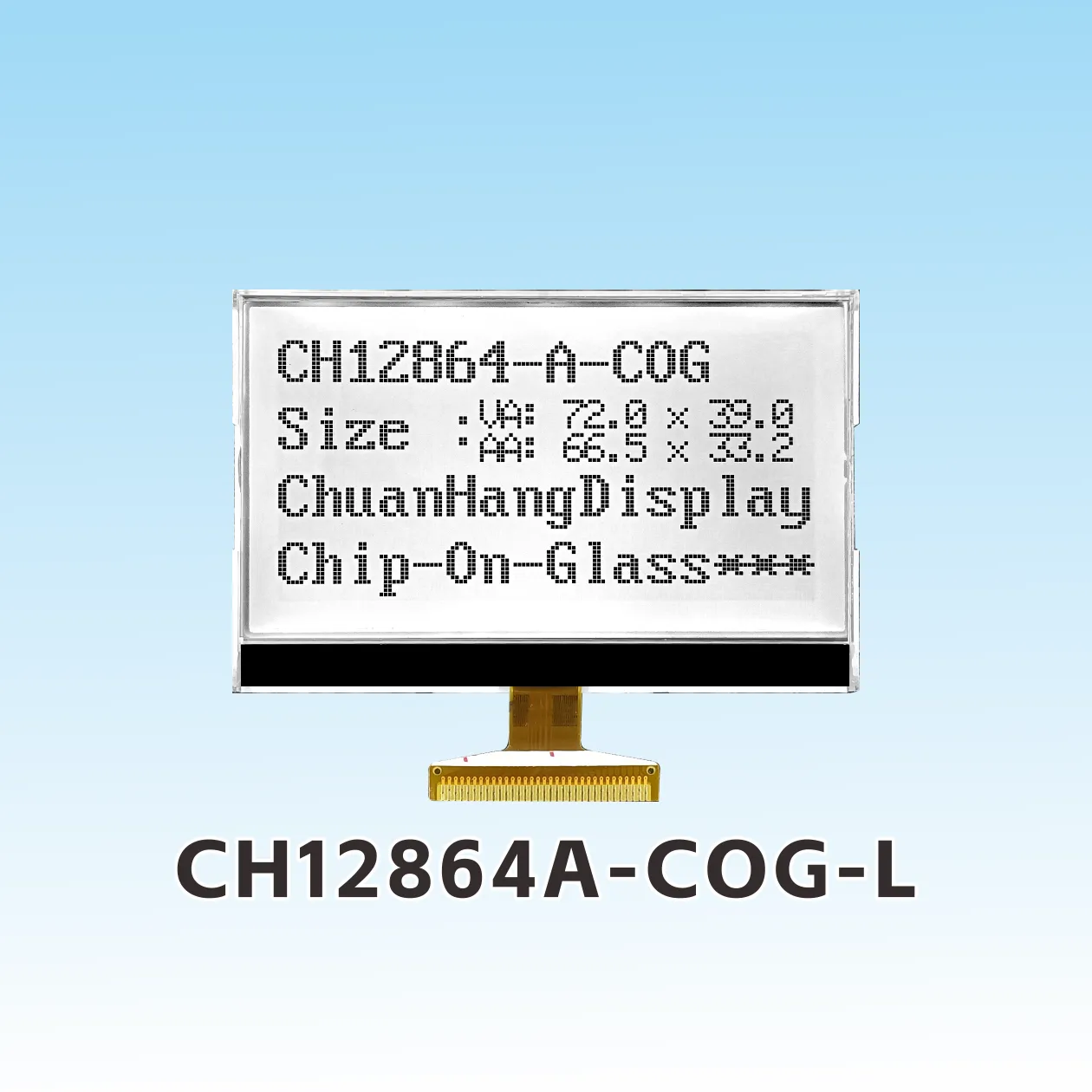

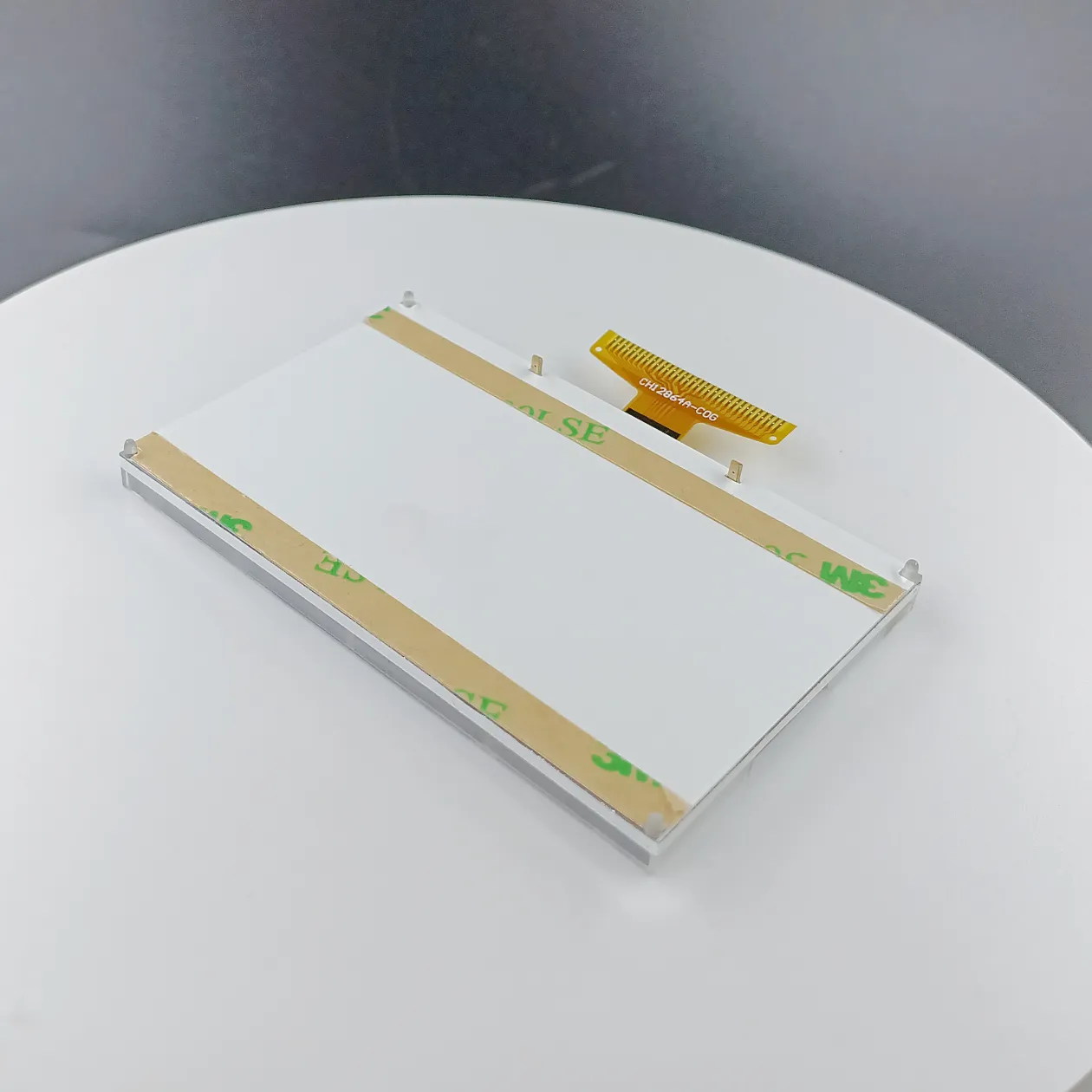

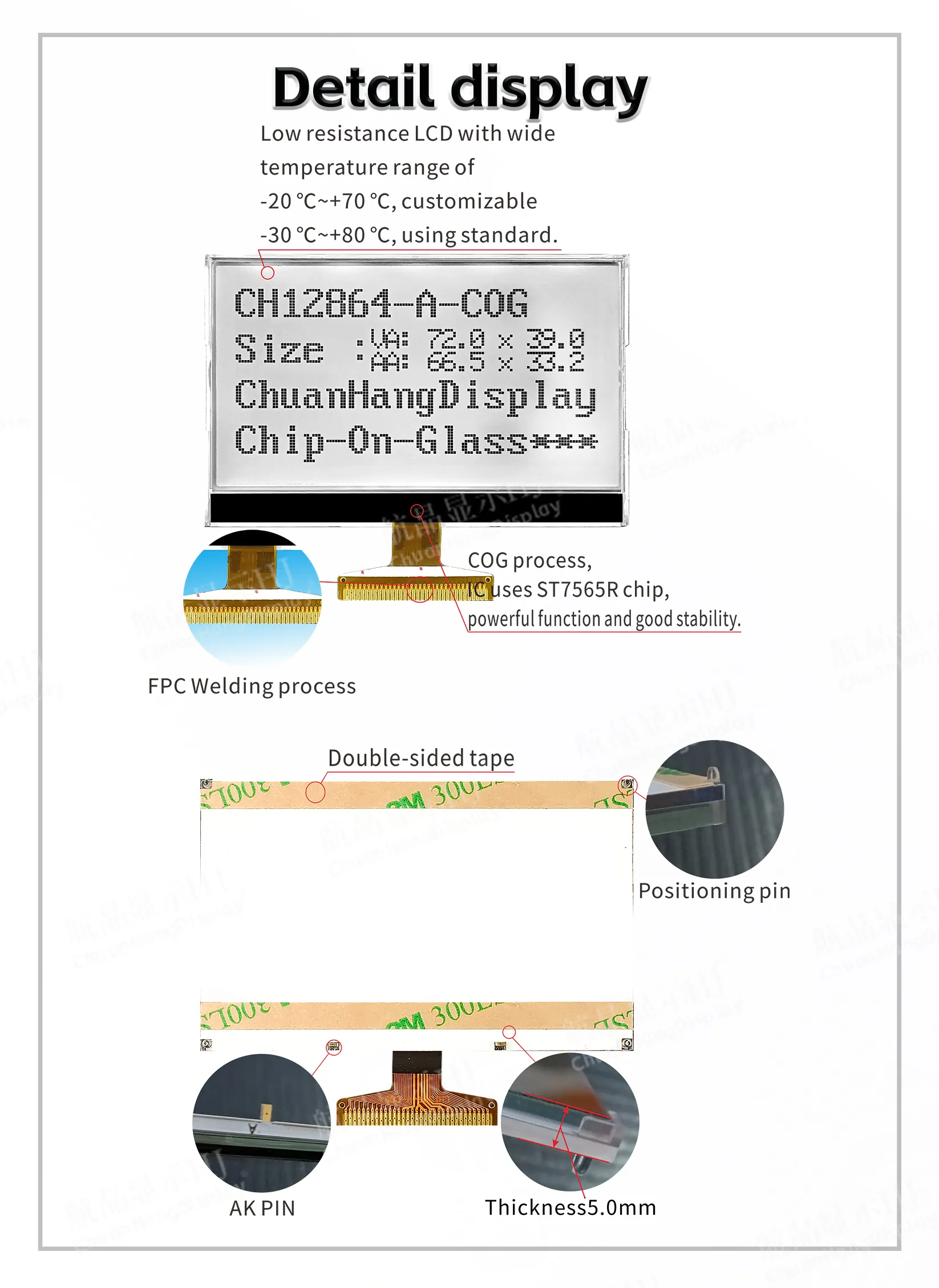

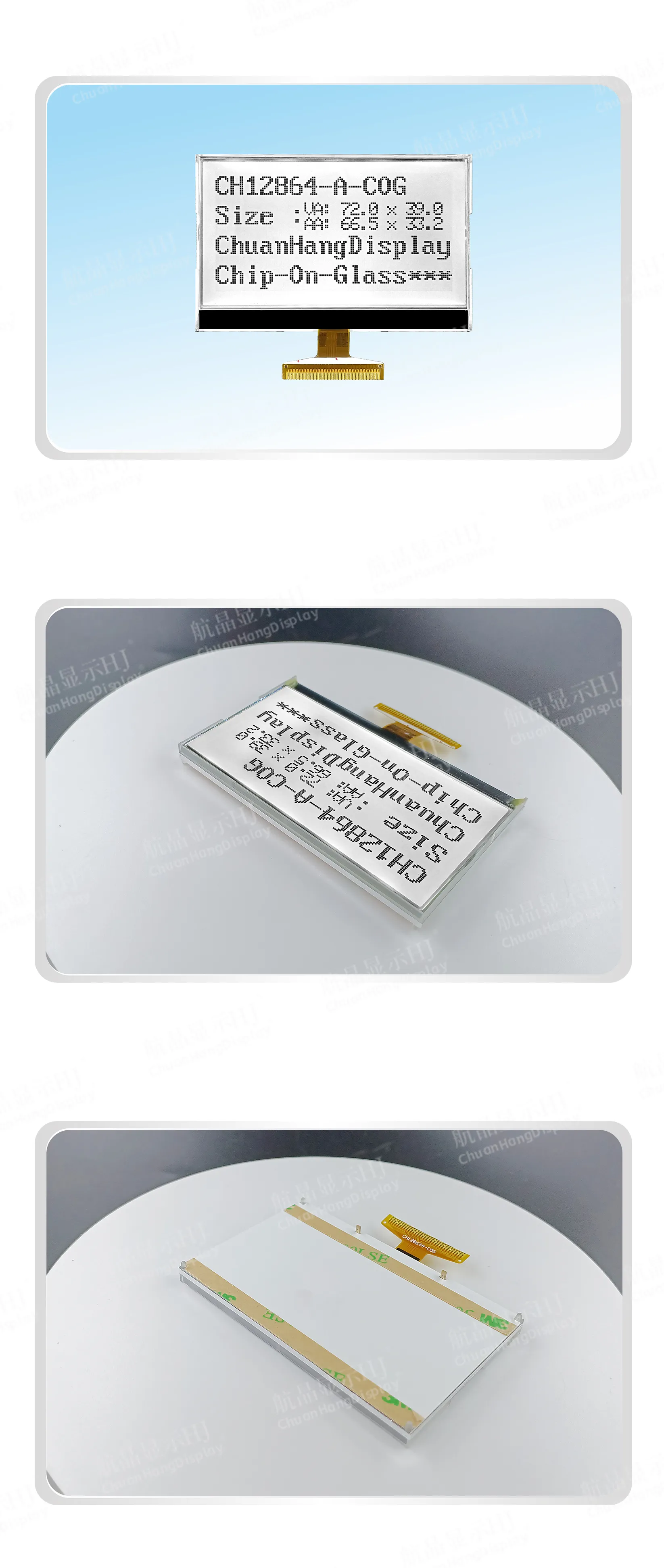

Product Display
