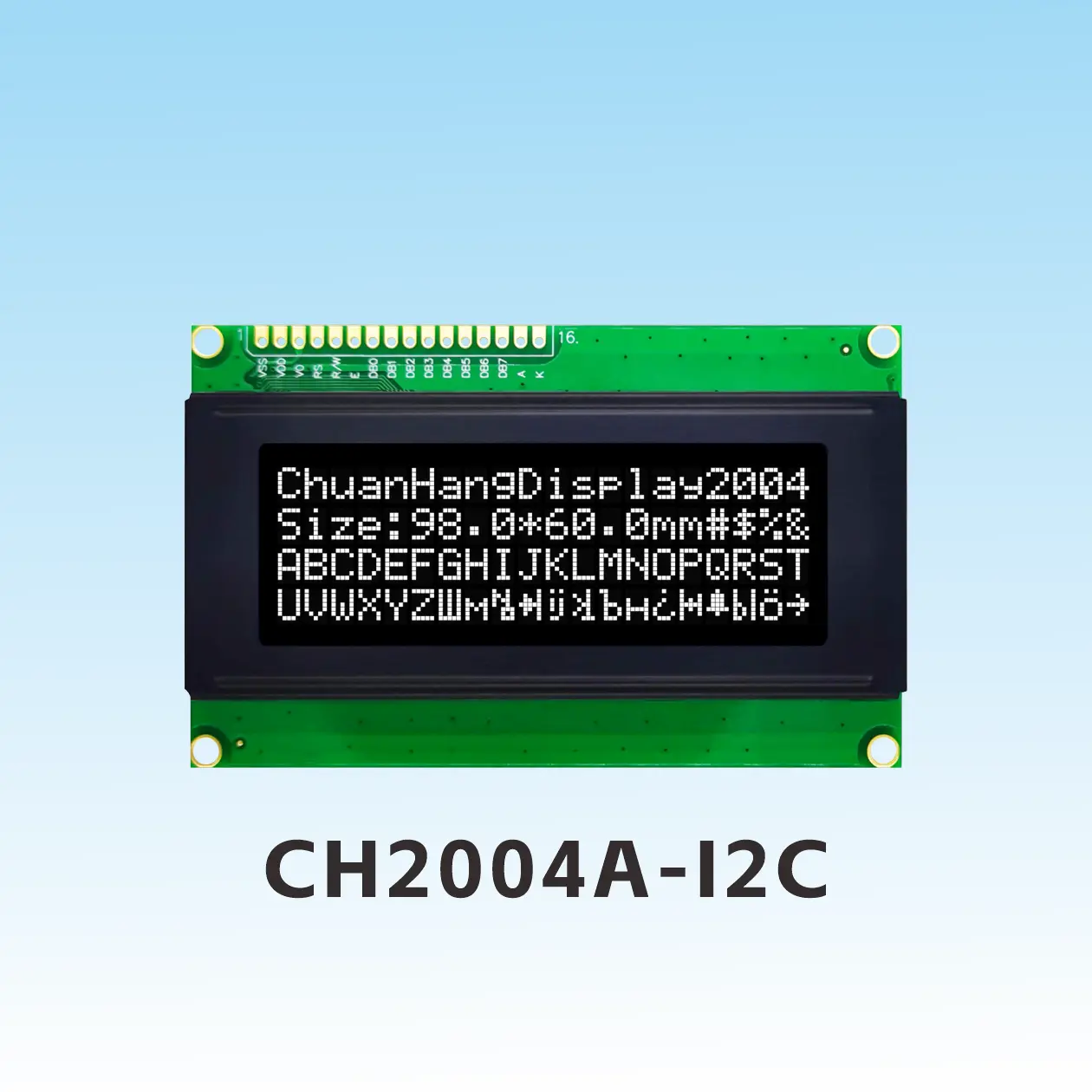

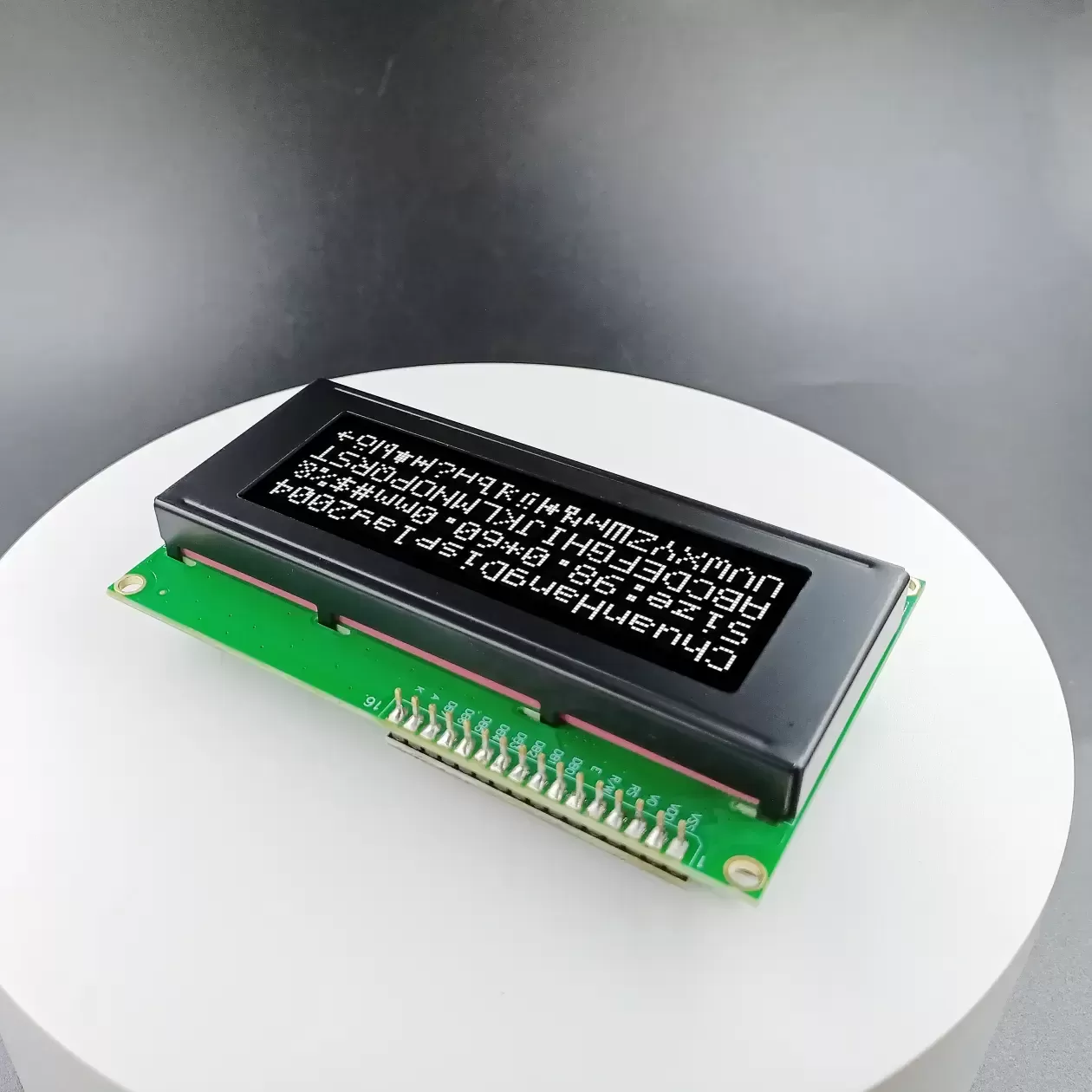

CH2004A-I2C

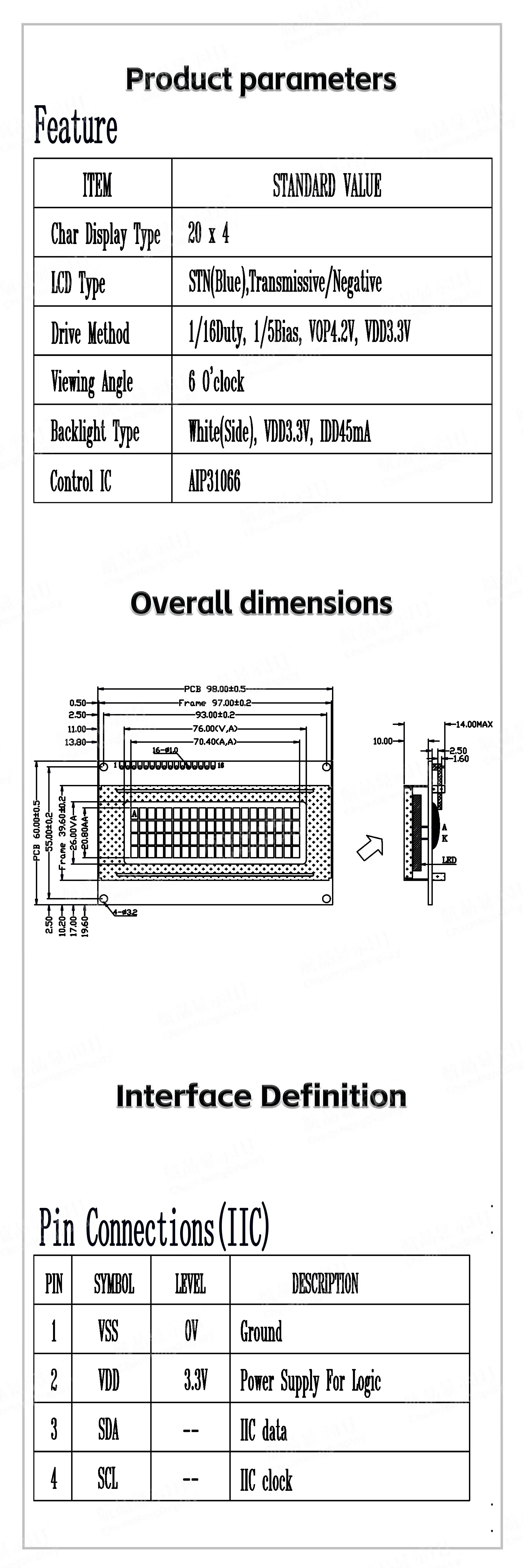

Product Description
| Product Brand | ChuanHangDisplay | Product Model | CH2004A-I2C |
| Resolution | 20X4 | screen size | 3.0 inches |
| Outline Dimension(L*W*H) | 98.0x60.0x14.0mm | Visible Area(L*W) | 76.0x26.0mm |
| Active Area(L*W) | 70.4x20.8mm | Character Size(L*W) | 4.76x0.52mm |
| Type | COB | Connection Method | Conductive strip |
| Supply Voltage | DC 5V/3.3V | Interface Type | MCU |
| Viewing Direction | 6 O'CLOCK | Driving Method | 1/16Duty,1/5Bias |
| Display Type | STN | Driver IC | AIP31066 |
| Operating Temperature | -20℃~+70℃ | Storage Temperature | -30℃~+80℃ |
| Backlight parameters | DC 5V/3.3V | production capacity | Self-produced |

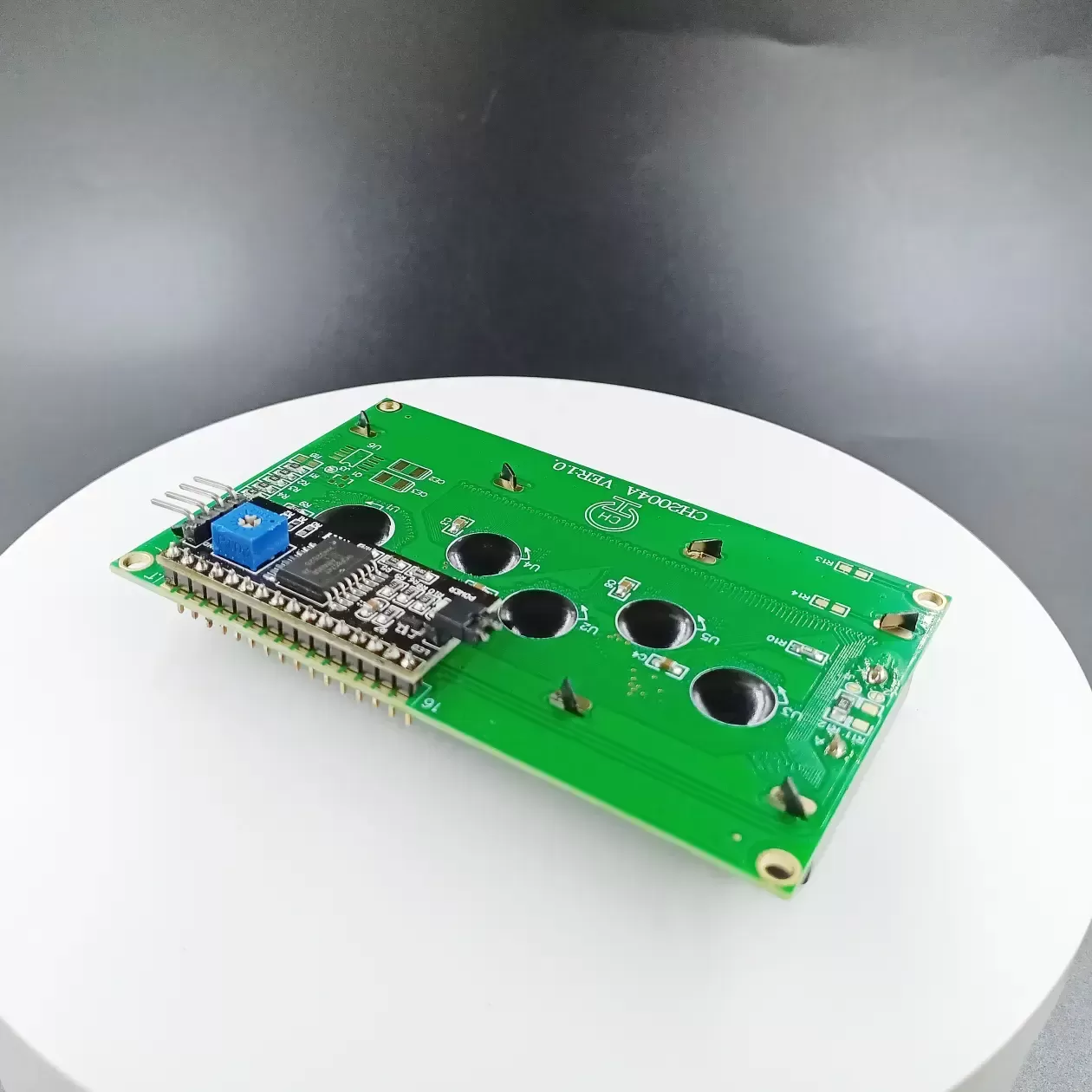

| Character libraries | Default English and Japanese font library | Whether to bring PCB | Yes |
