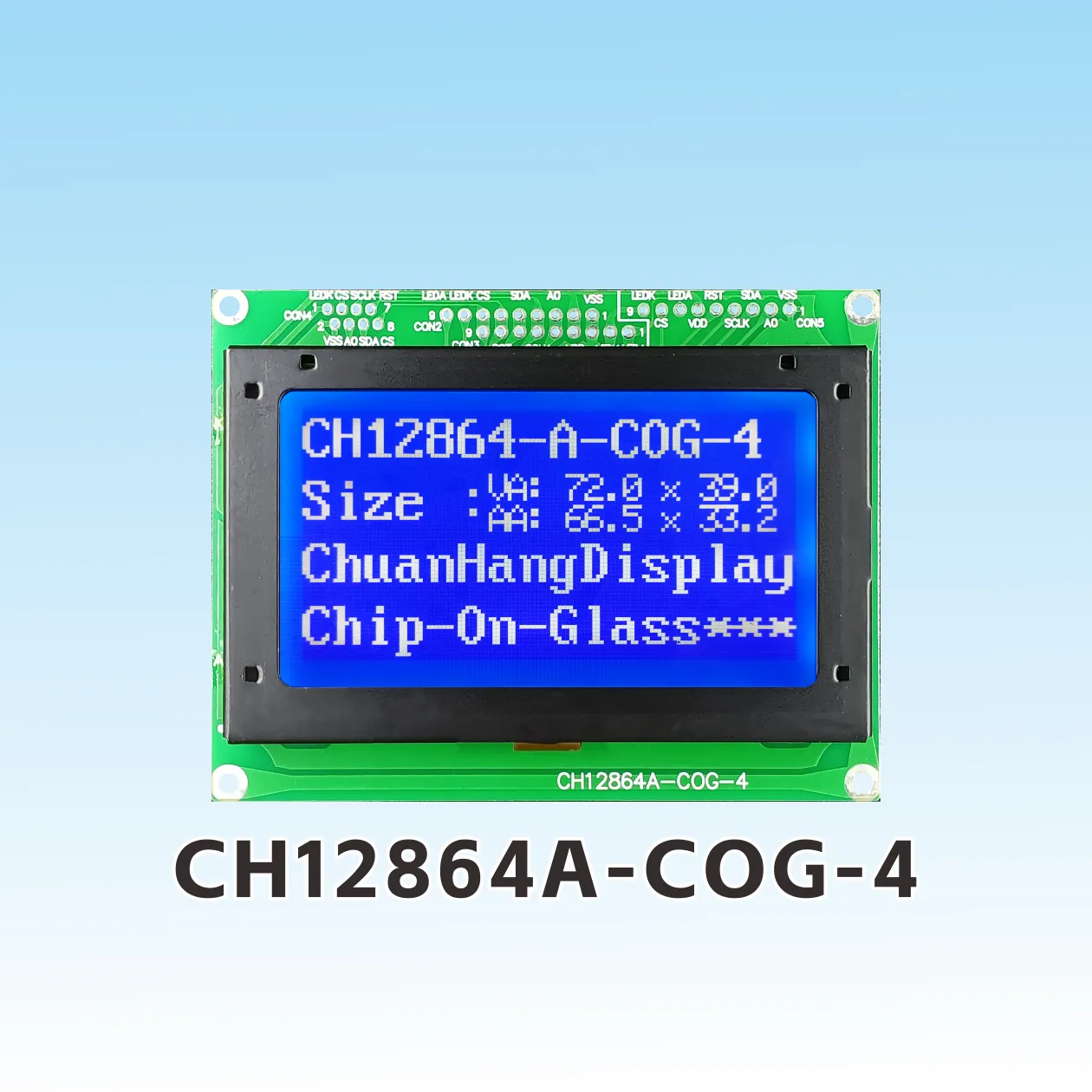

CH12864A-COG-4

CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4
CH12864A-COG-4

CH12864A-COG-4

Product Description
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12864A-COG-4
Resolution128x64screen size
Outline Dimension(L*W*H)93.00x70.00x13.50mmVisible Area(L*W)71.70x38.80mm
Active Area(L*W)66.52x33.24mmDot Size (mm)0.48(L)x0.48(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeSPI
Viewing Direction12 O'CLOCK Driving Method1/64Duty,1/9Bias
Display TypeSTN Driver ICST7567
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters 3.3Vproduction capacitySelf-produced
Character librariesWhether to bring PCBYES

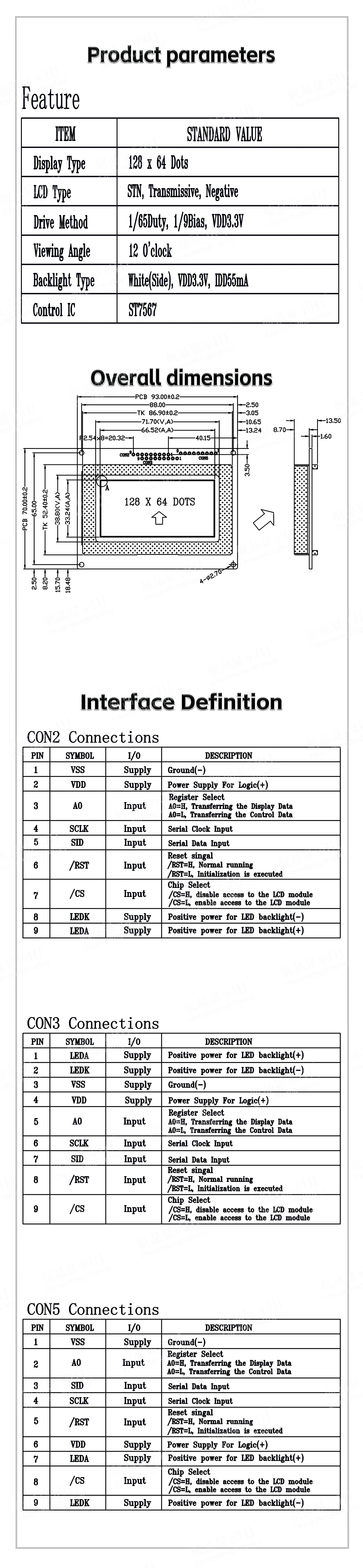

Product Datasheet

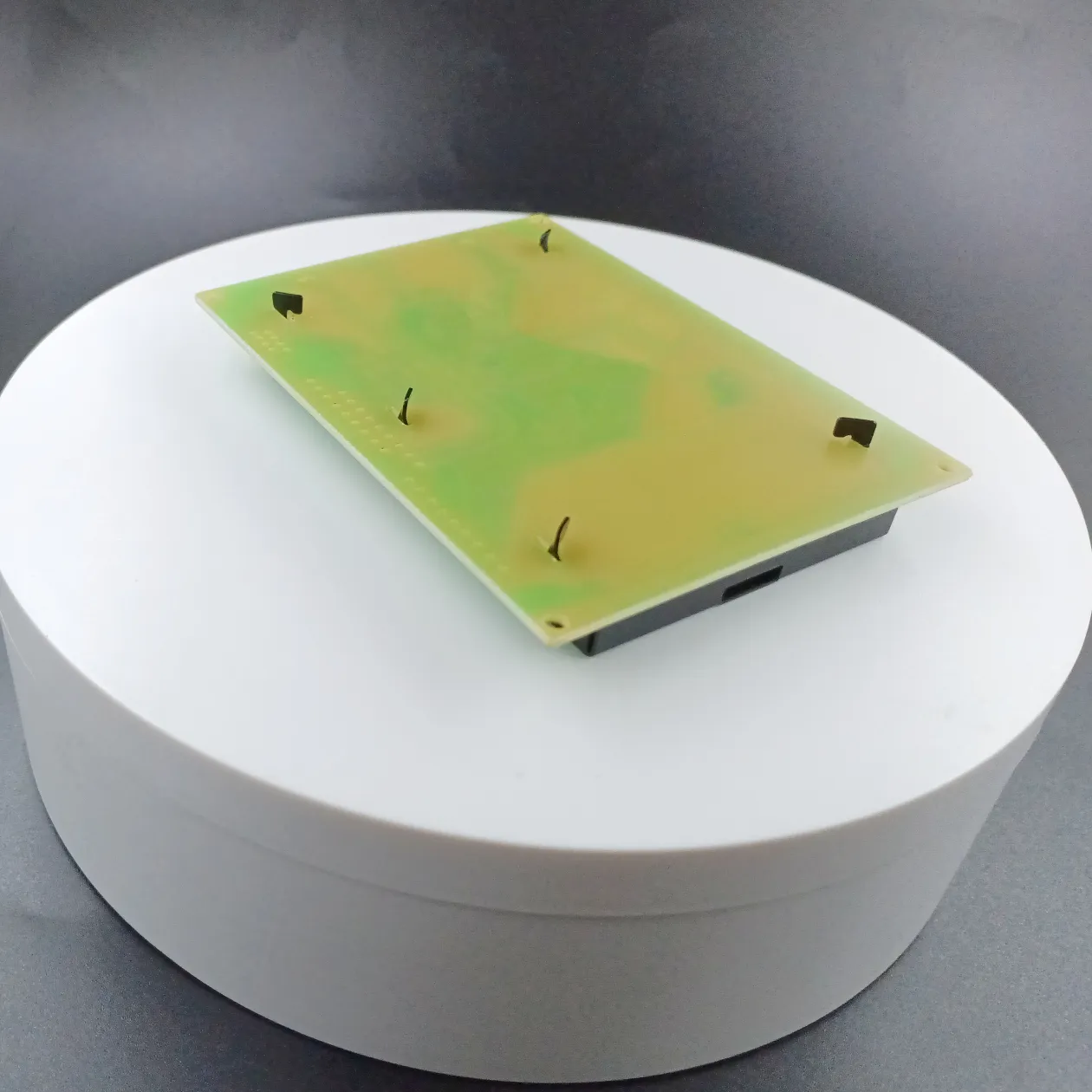

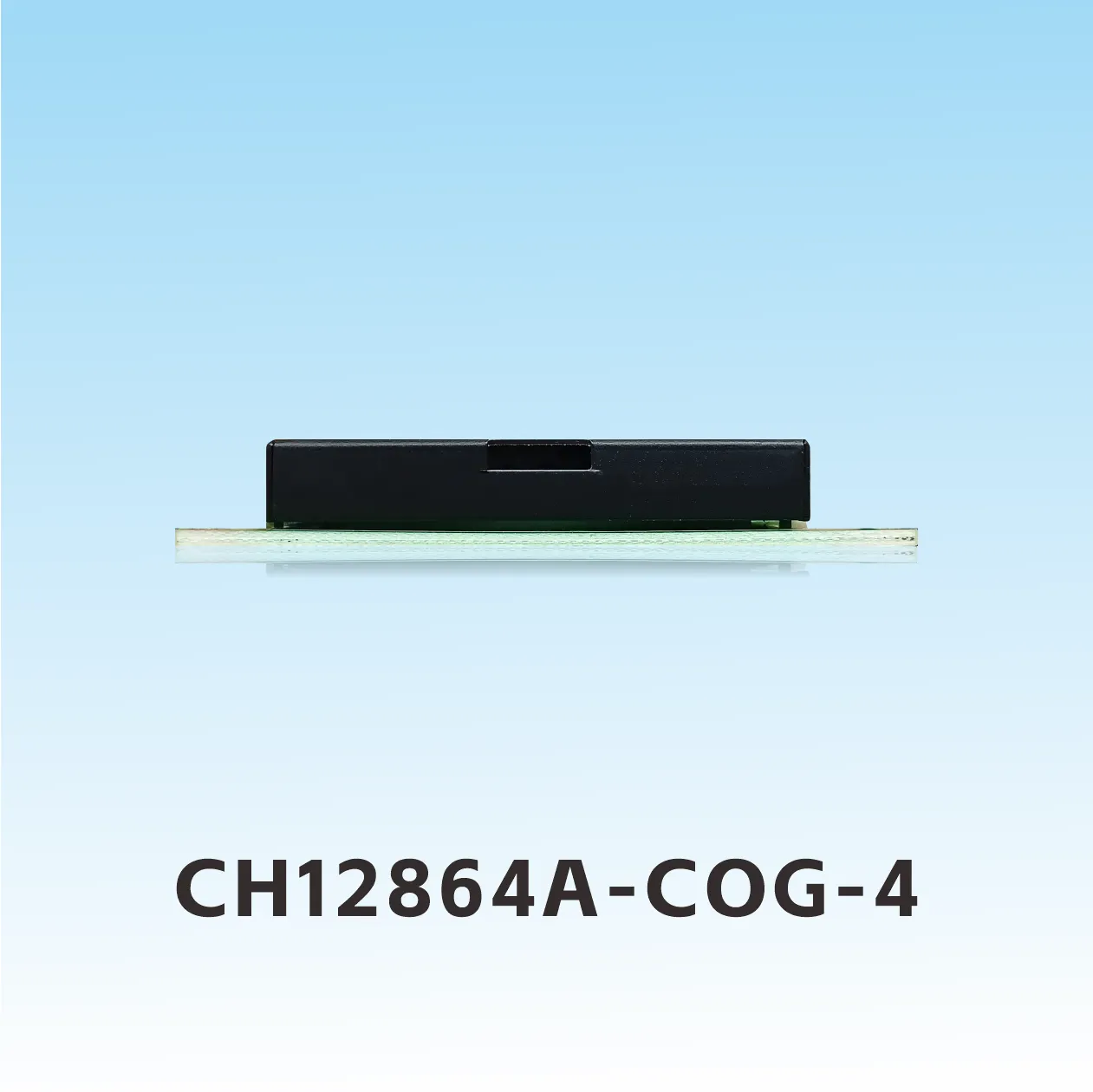

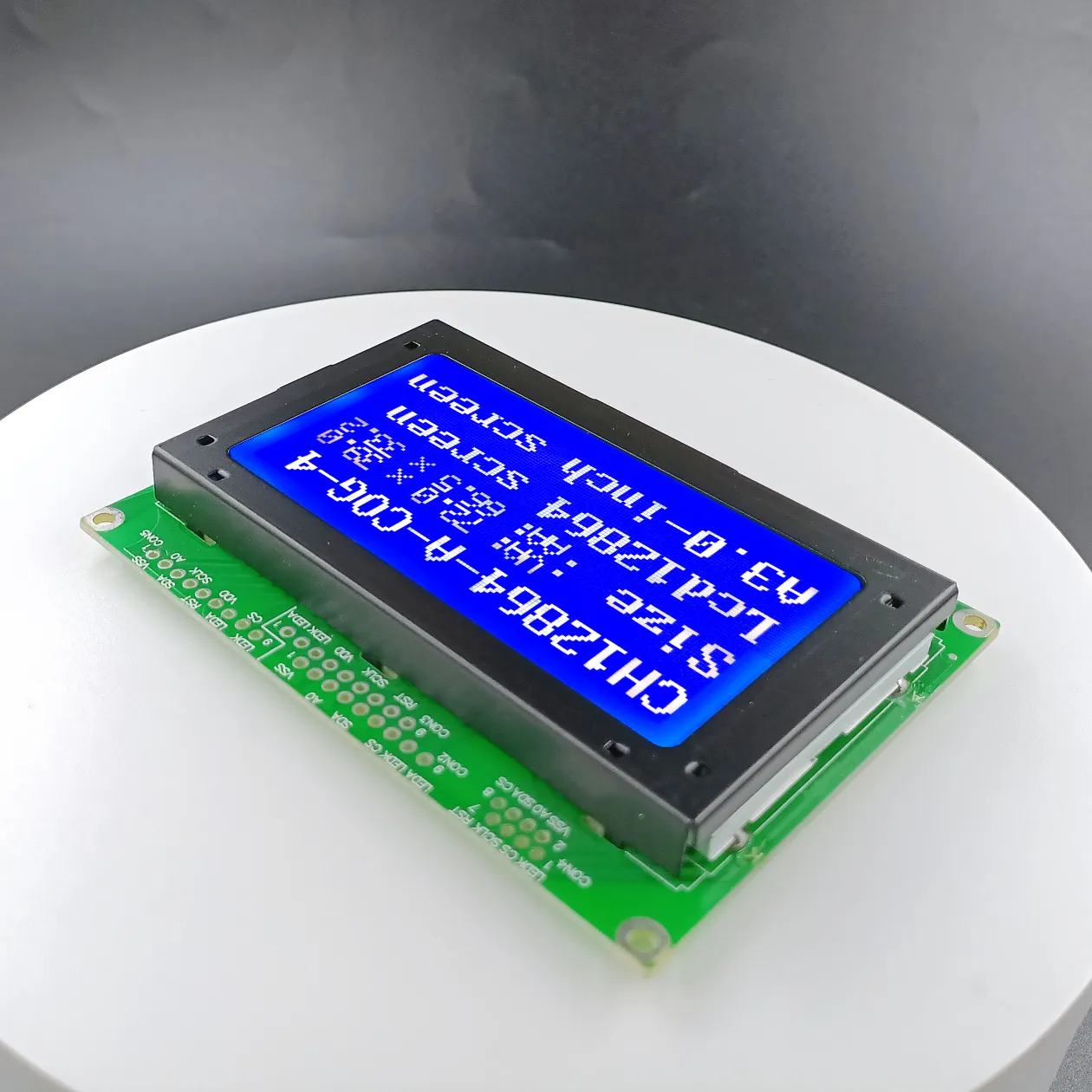

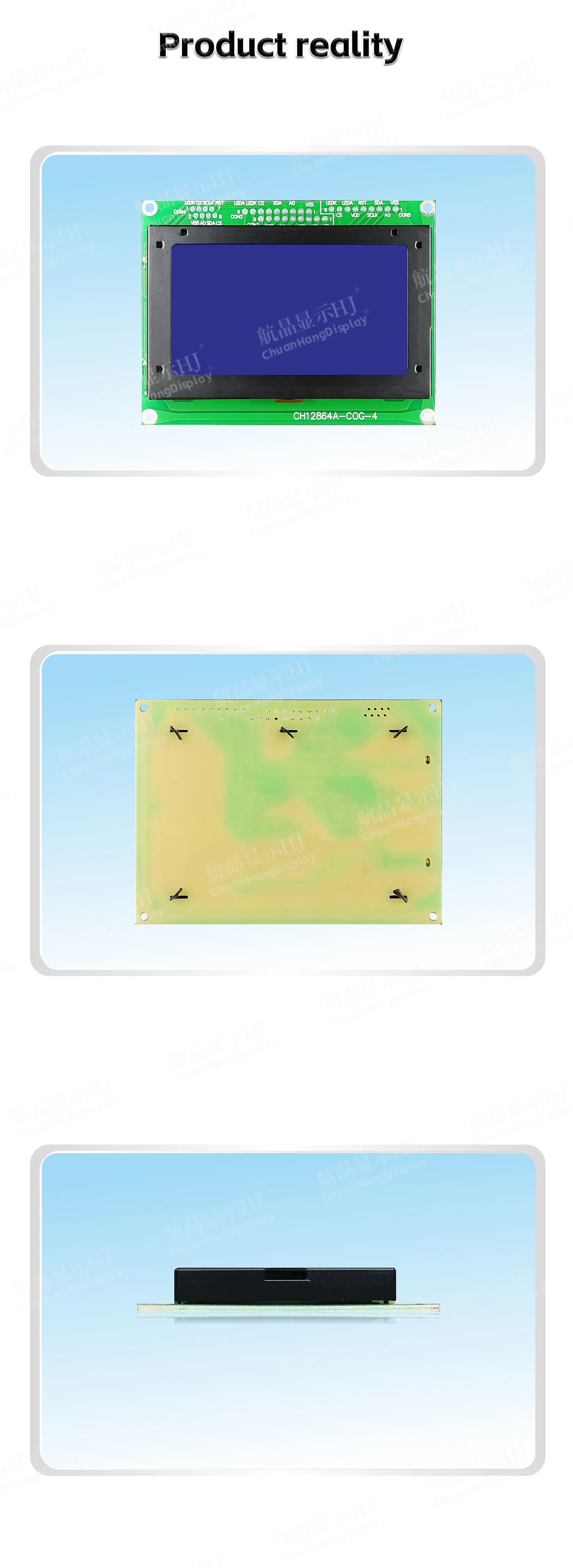

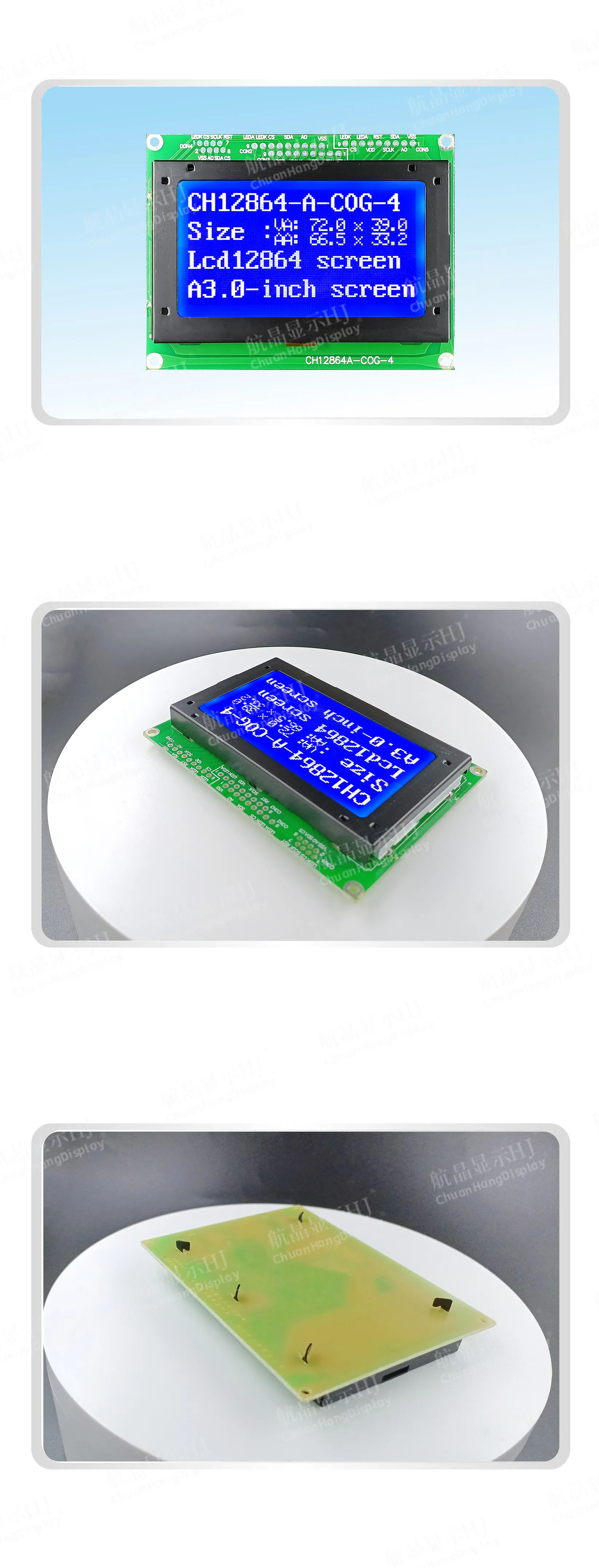

Product Display
