Product Description
Video Presentation

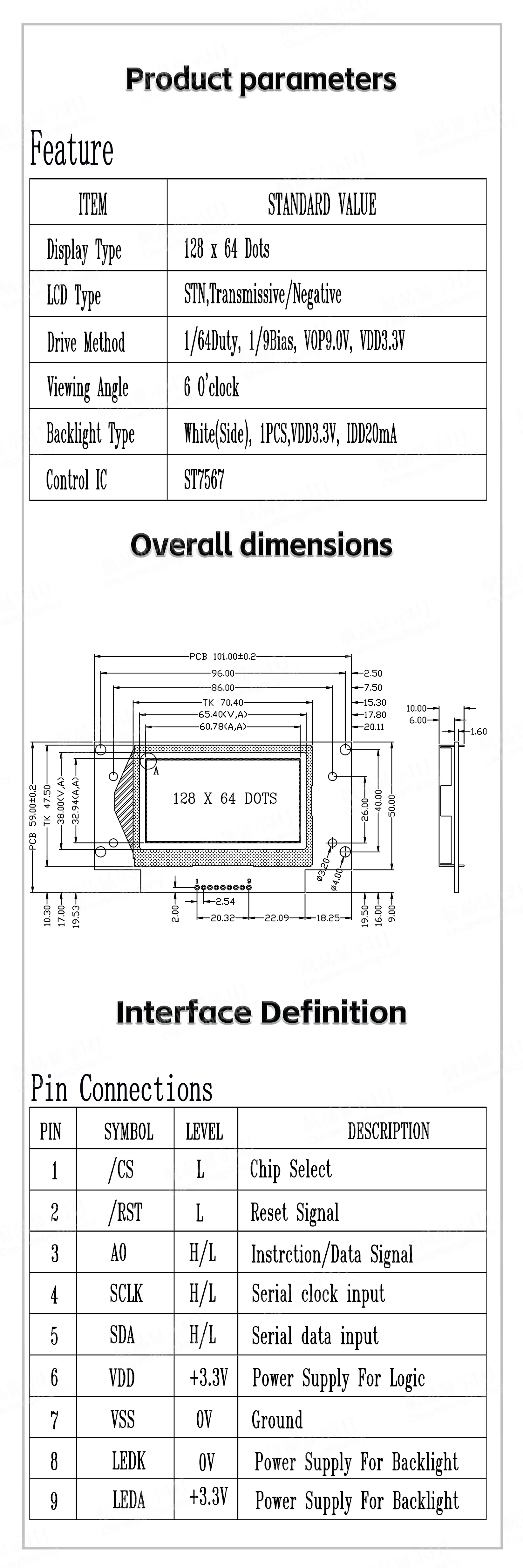

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12864A-56
Resolution128x64screen size2.7"
Outline Dimension(L*W*H)101.00x59.00x10.00mmVisible Area(L*W)65.40x38.00mm
Active Area(L*W)60.78x32.94mmDot Size (mm) 0.45(L)x0.49(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method1/64Duty,1/9Bias
Display Type STN Driver ICST7567
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character librariesWhether to bring PCBYES
Product Datasheet

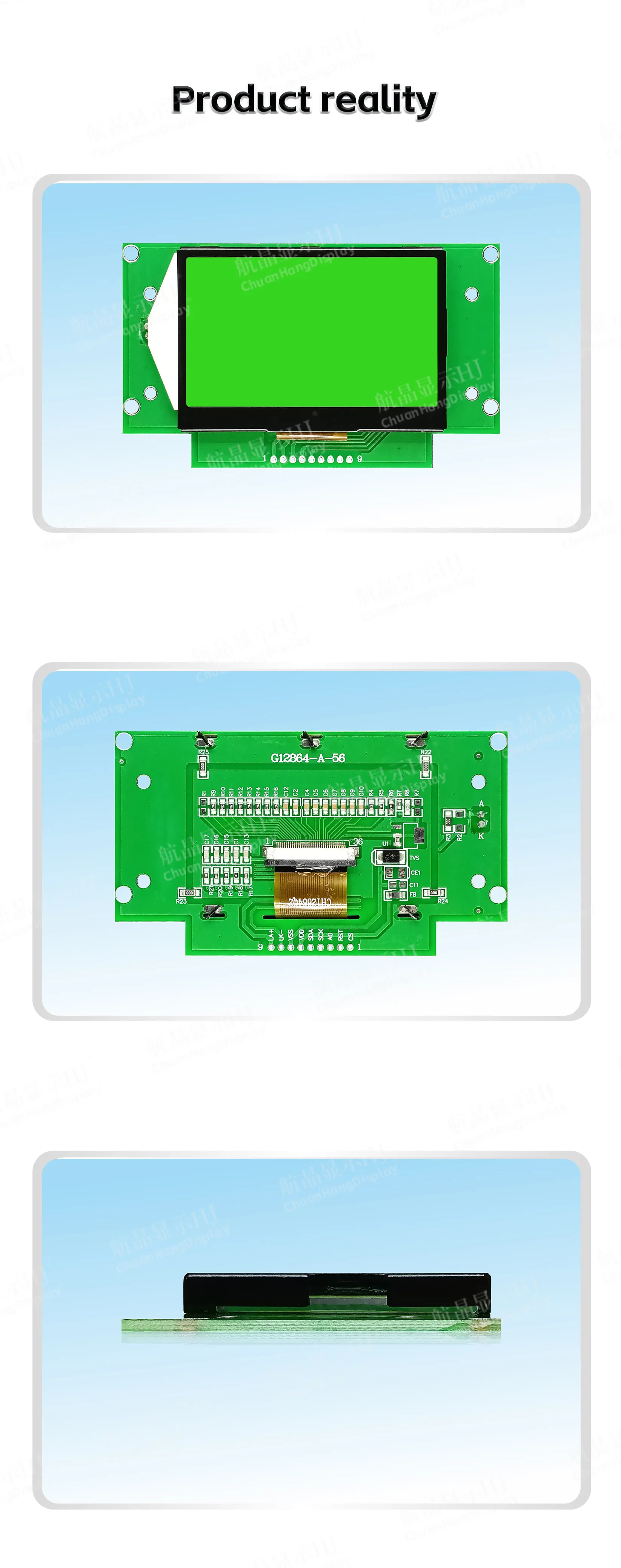

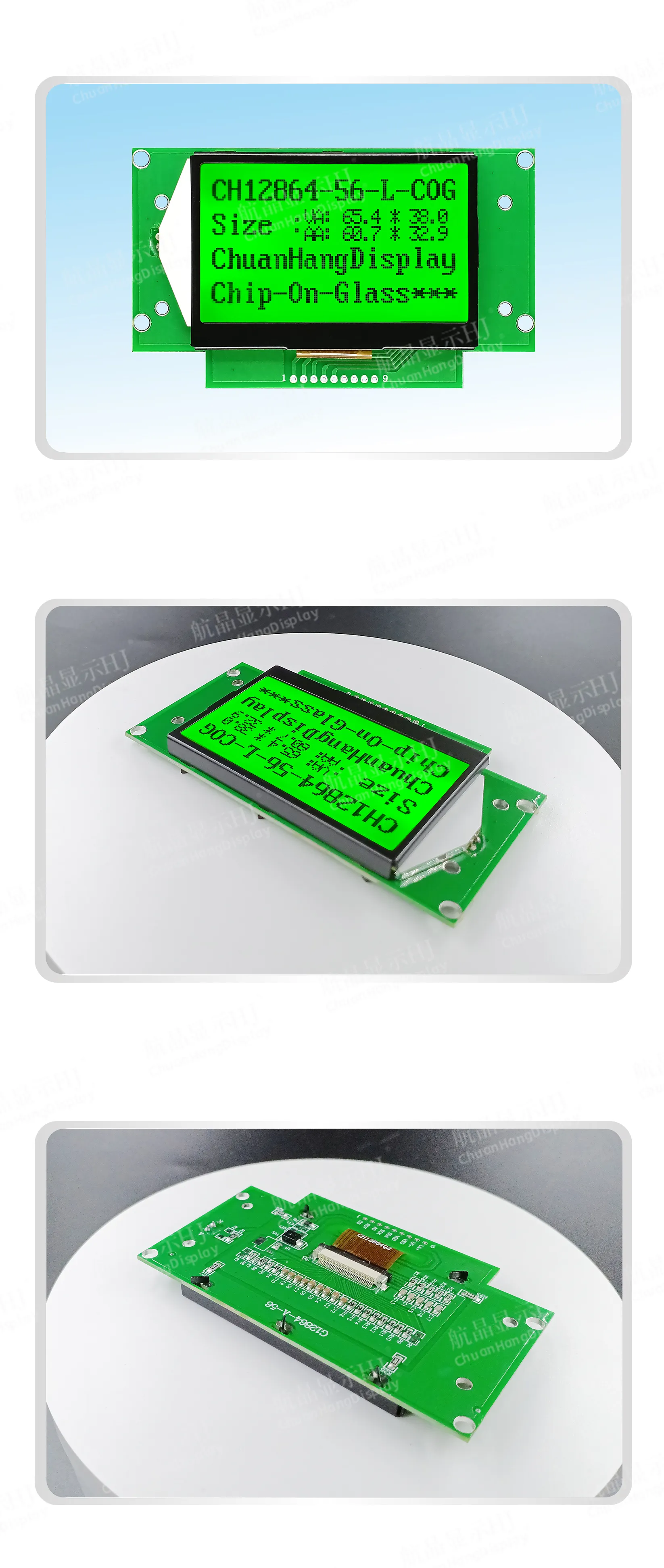

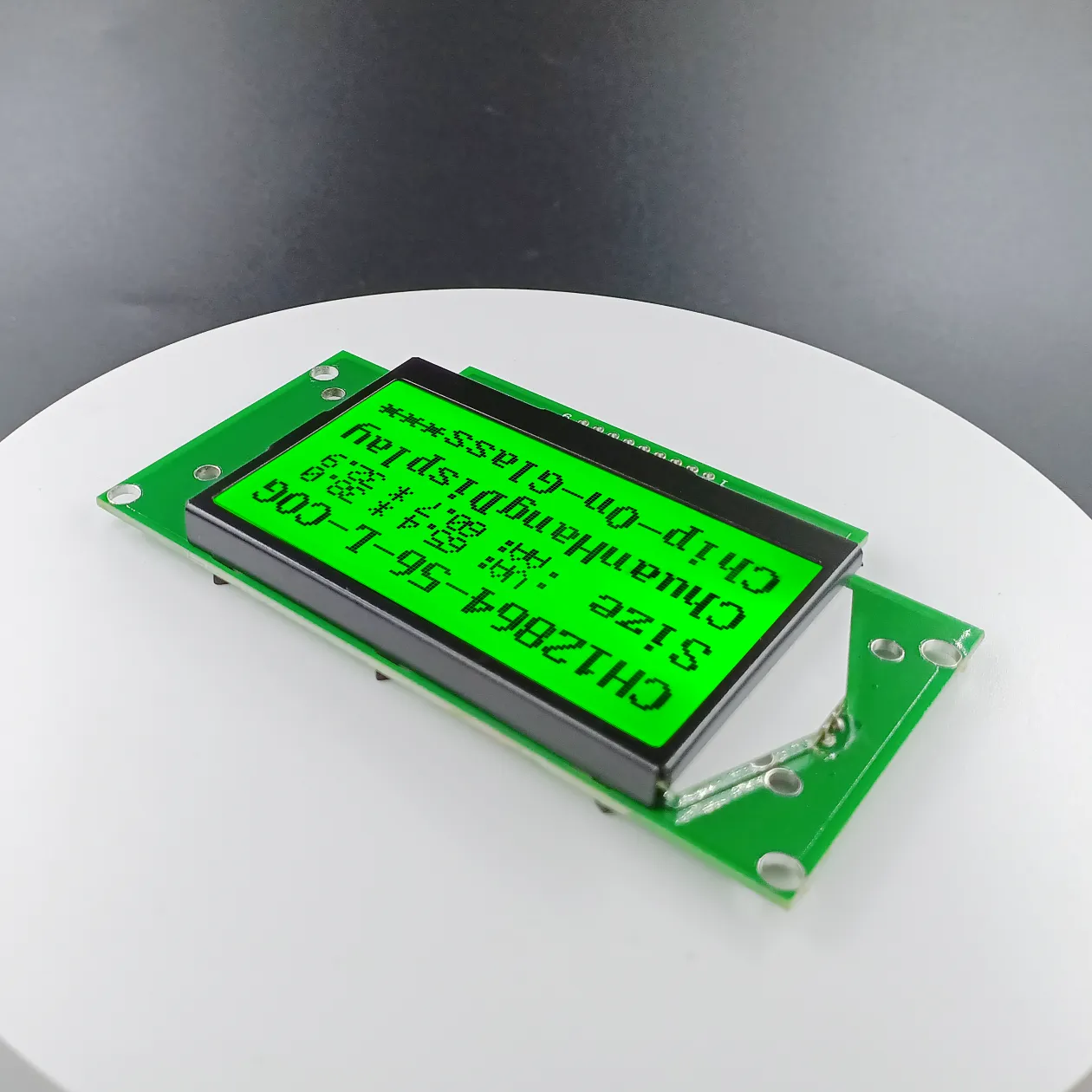

Product Display
