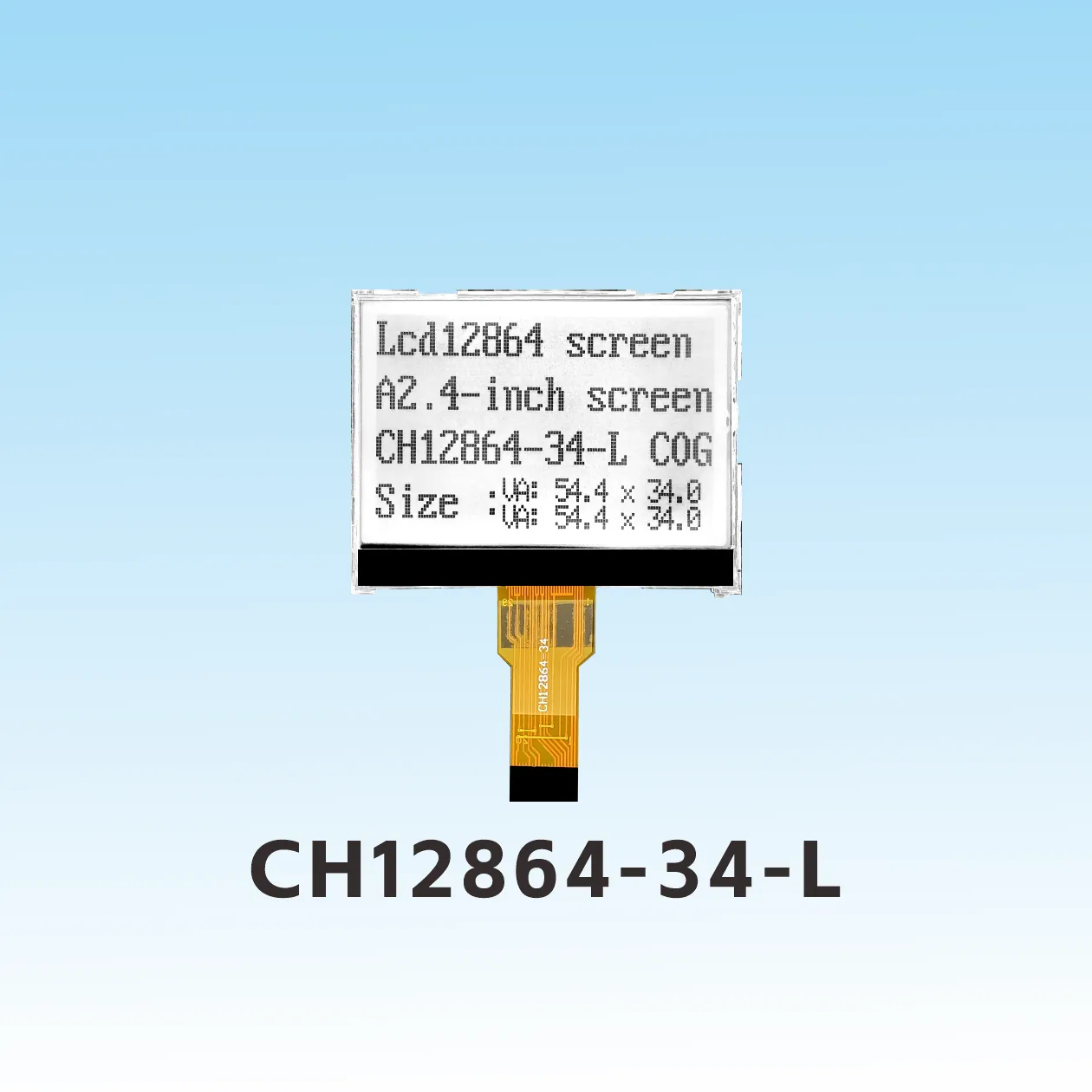

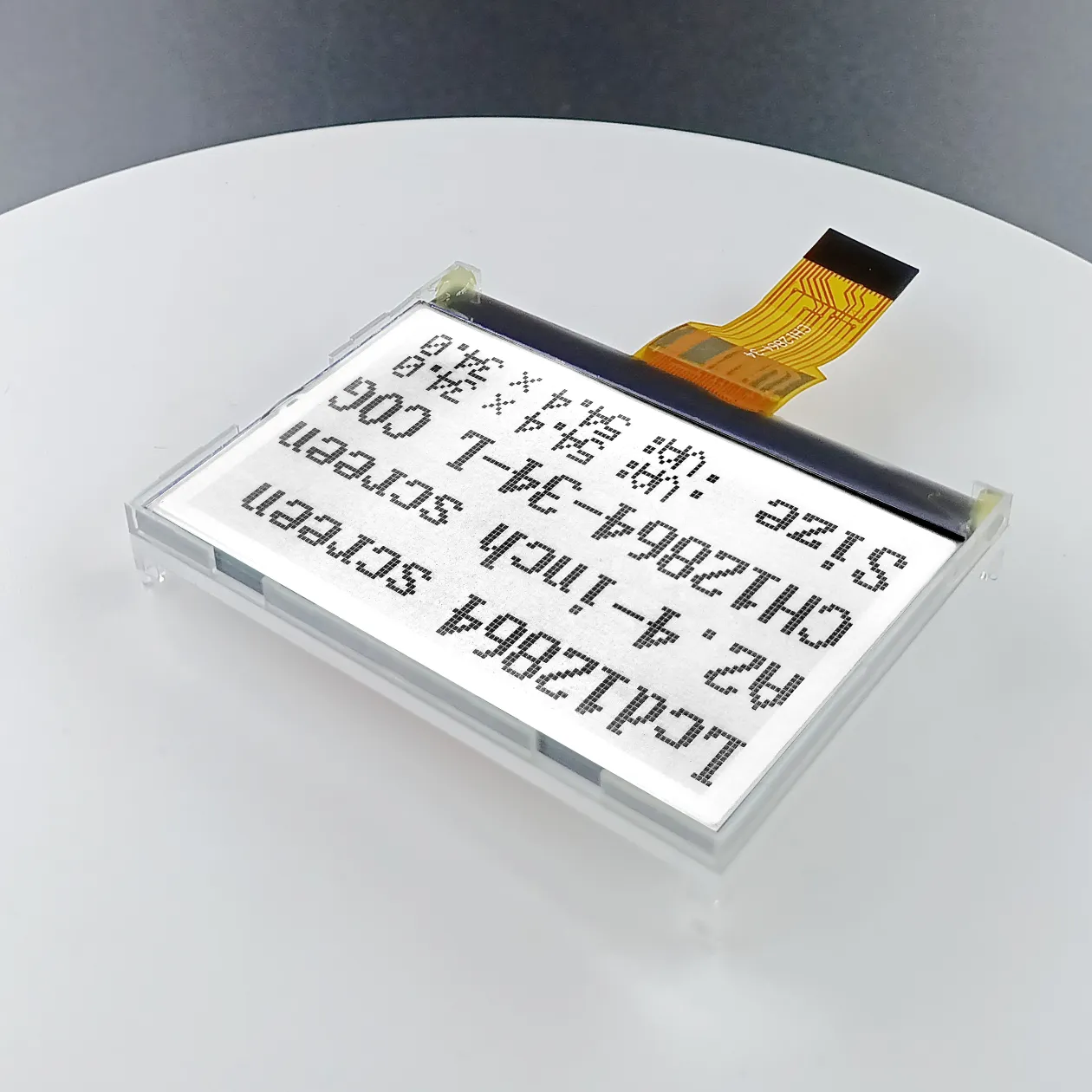

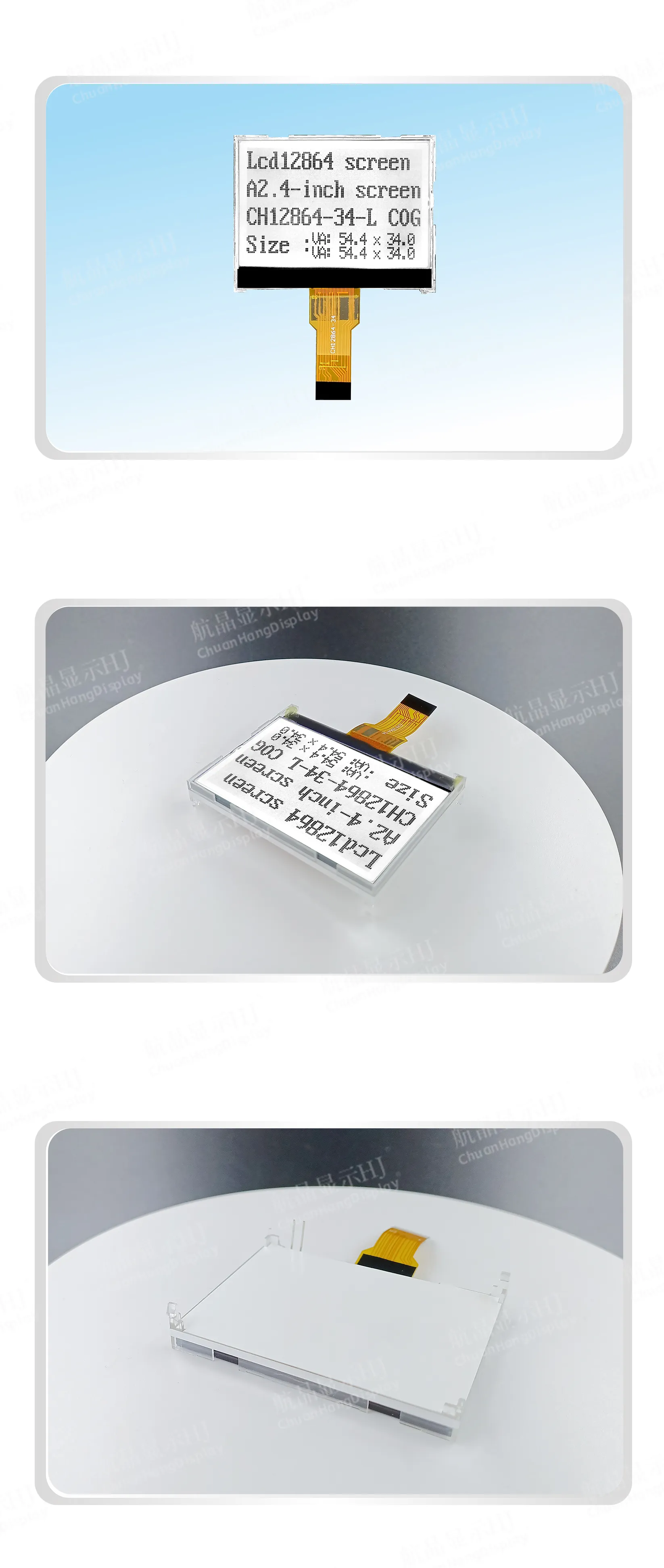

CH12864-34- L
Product Description

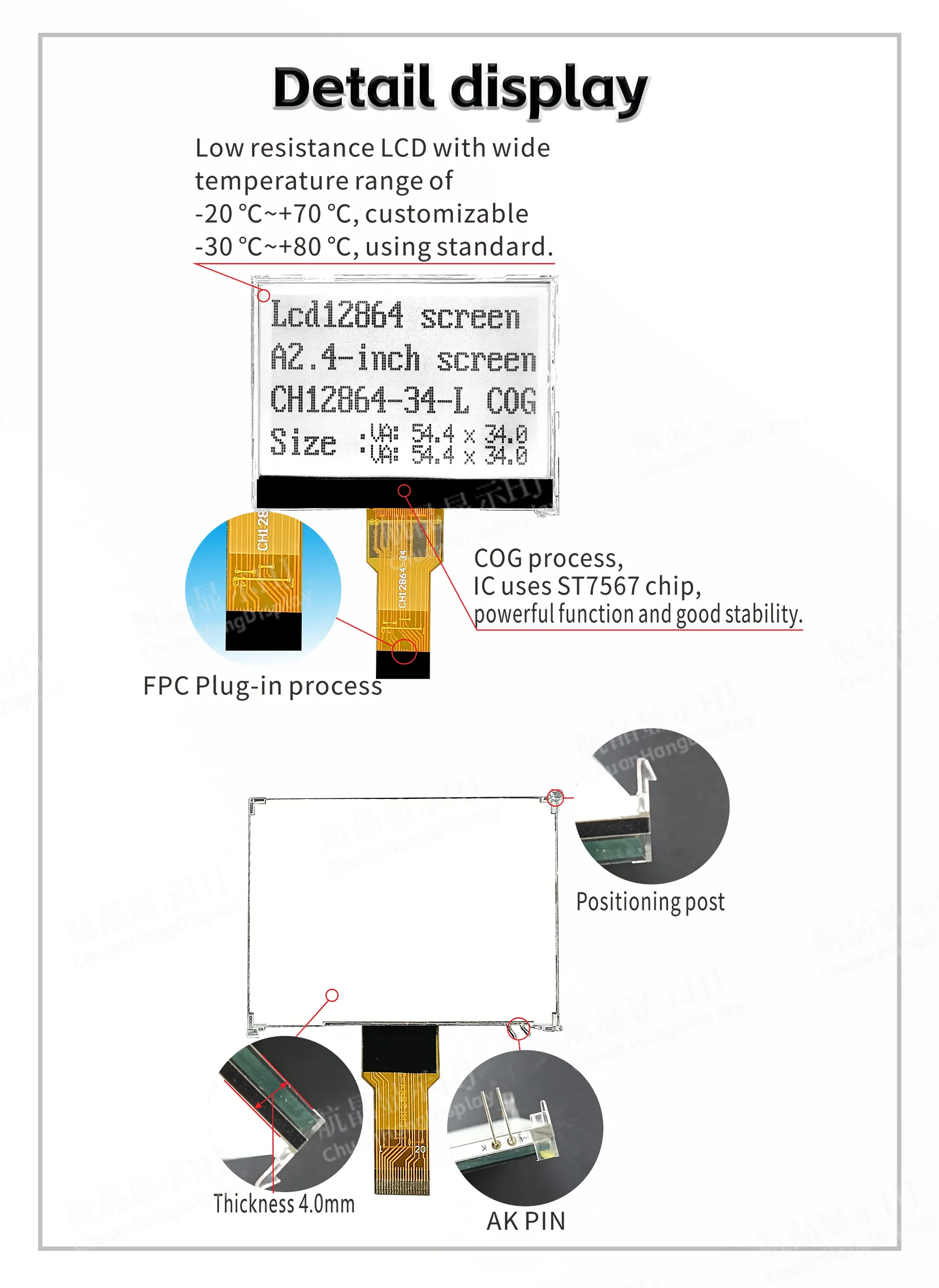

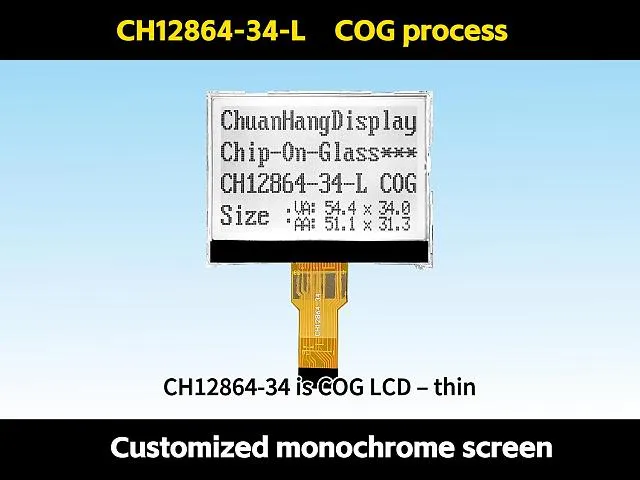

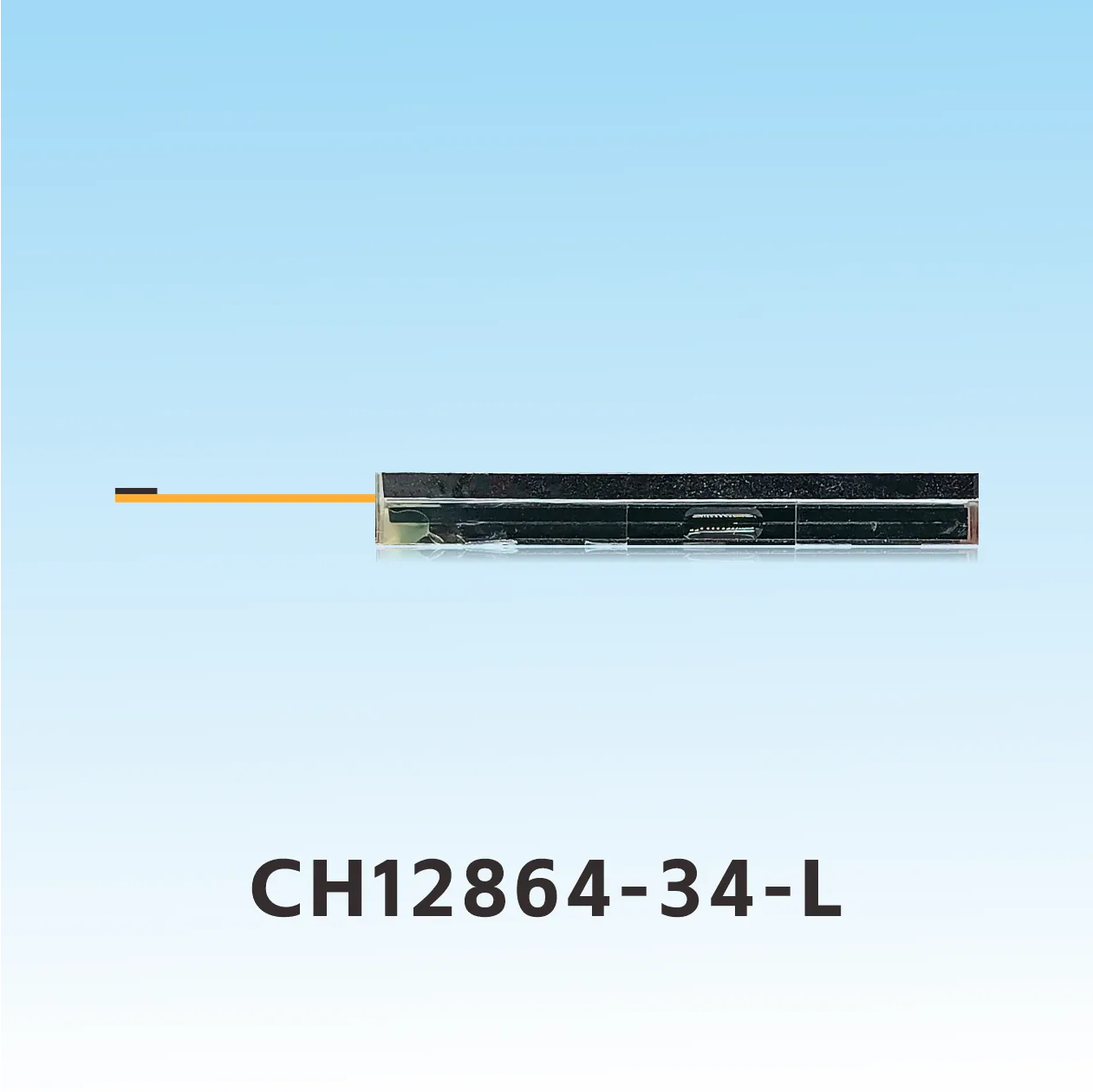

1.1 COG technology, FPC flexible cable is plug-in type, product with backlight, already assembled, thin thickness, stable structure.
1.2 The IC uses the ST7567, which lacks an internal character library, requiring programmers to create their own.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.

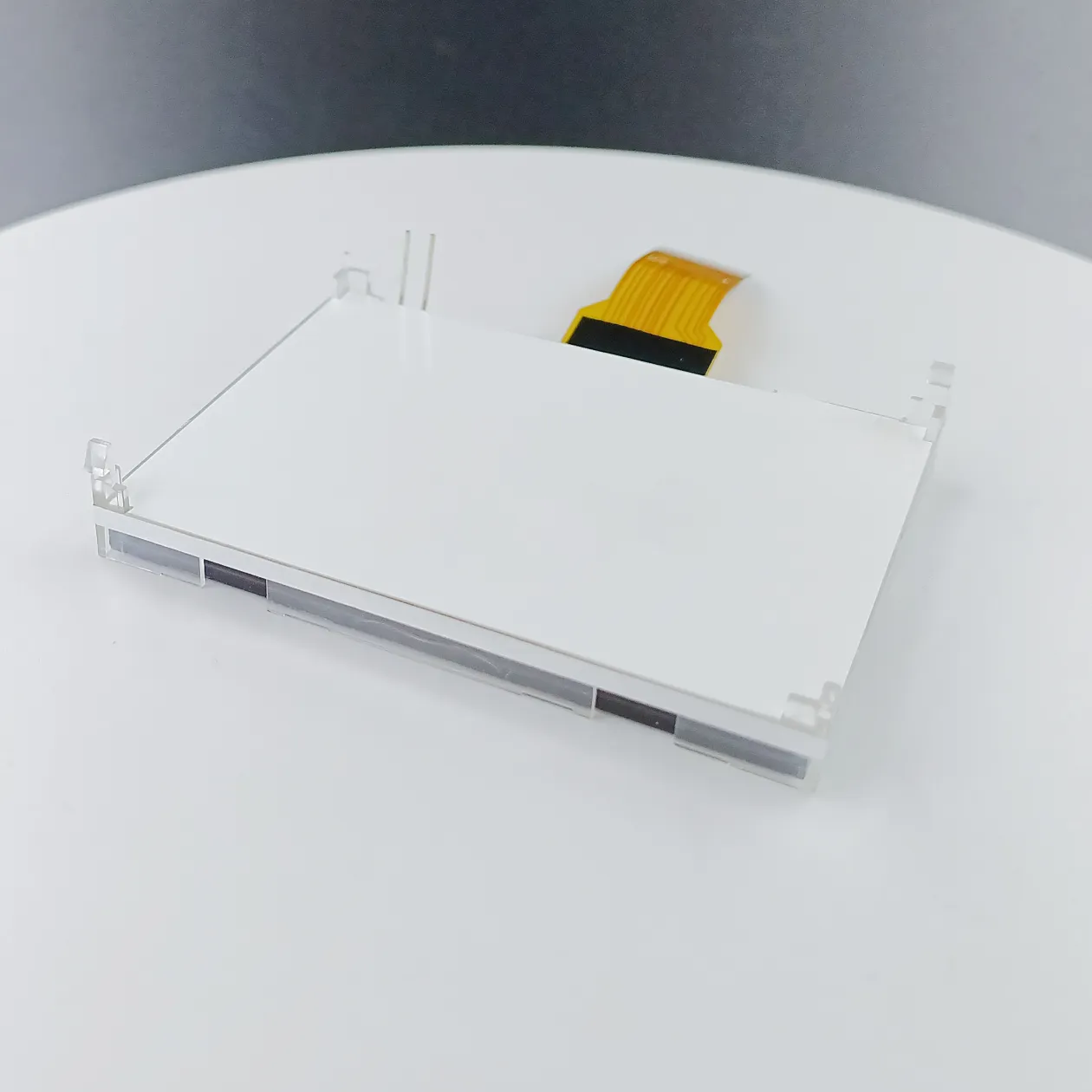

1.4 LED backlight A and K are bent pins, requiring separate power supply of 2.9V~3.0V for A and K.
1.5 Product Features:
The built-in display data RAM is 64x128 bits.
The external capacitor generates voltage boosting.
The contrast is adjusted by the software to be deepened or lightened.
One screen displays 8 characters by 4 lines (16x16 dot matrix).
Single image ≤ 128x64 dot matrix.
4-wire SPI interface communication.
Rich features:
The interface displays On/Off, Normal/Inverted.
