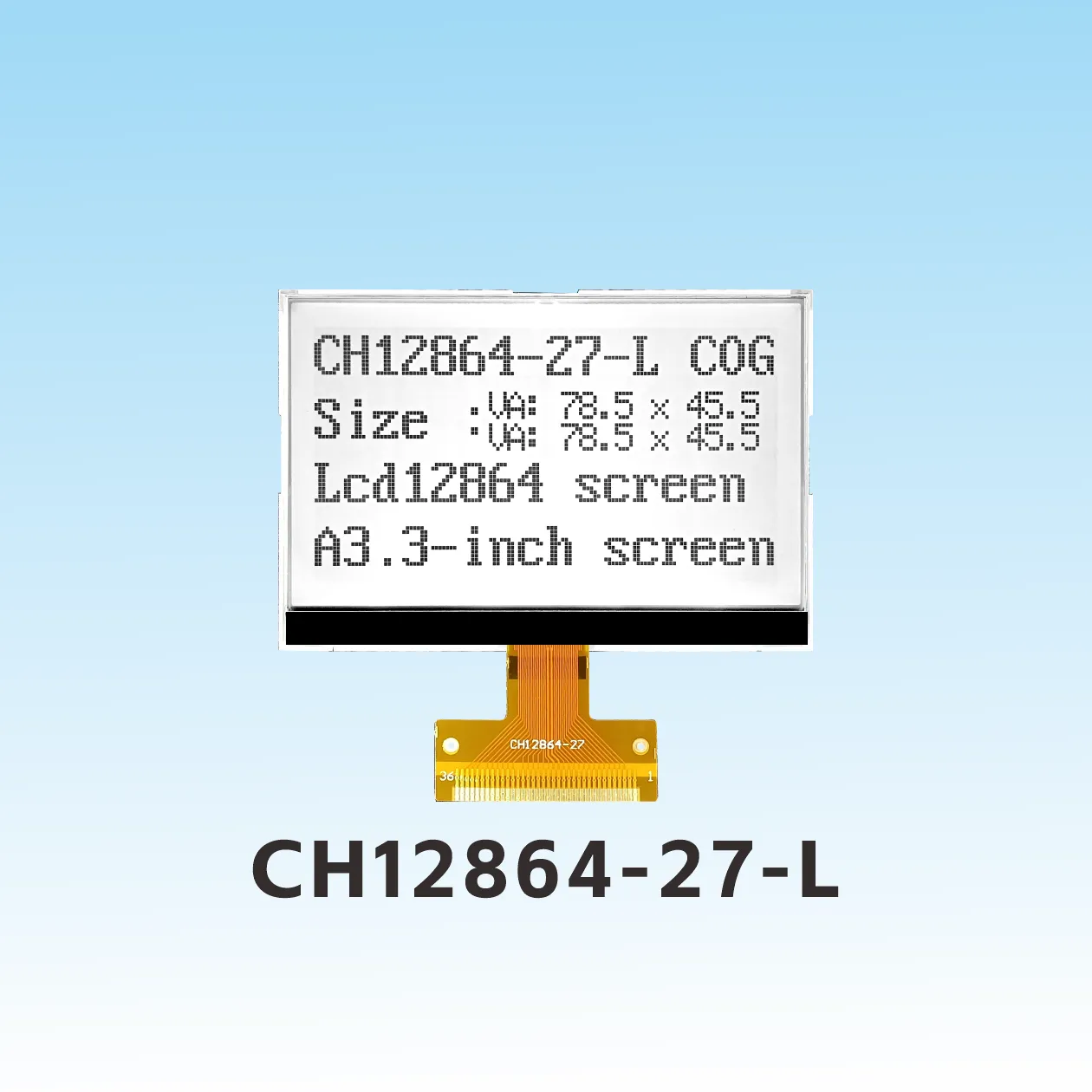

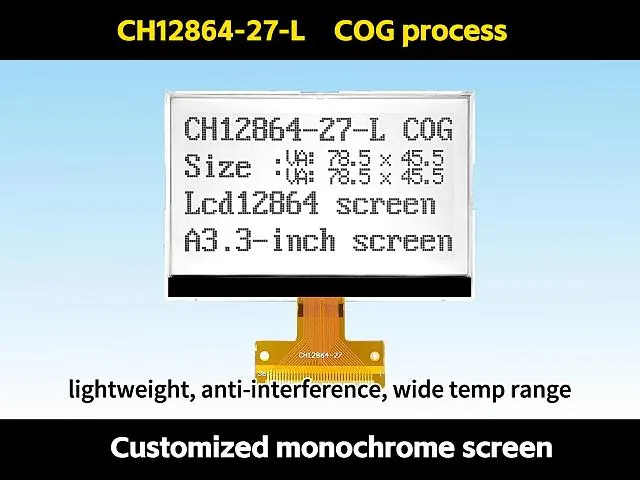

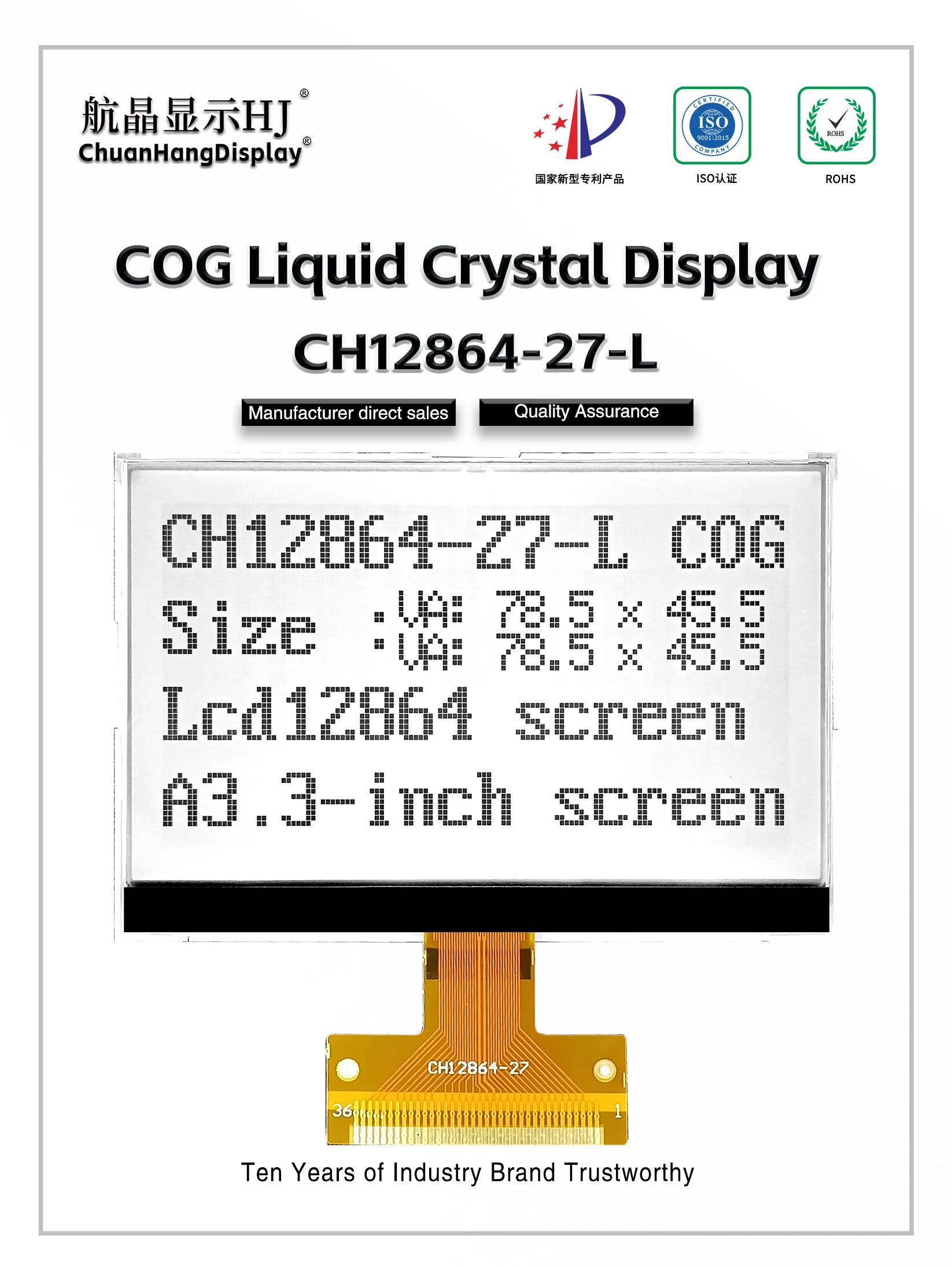

CH12864-27- L 12864 display price
Product Description

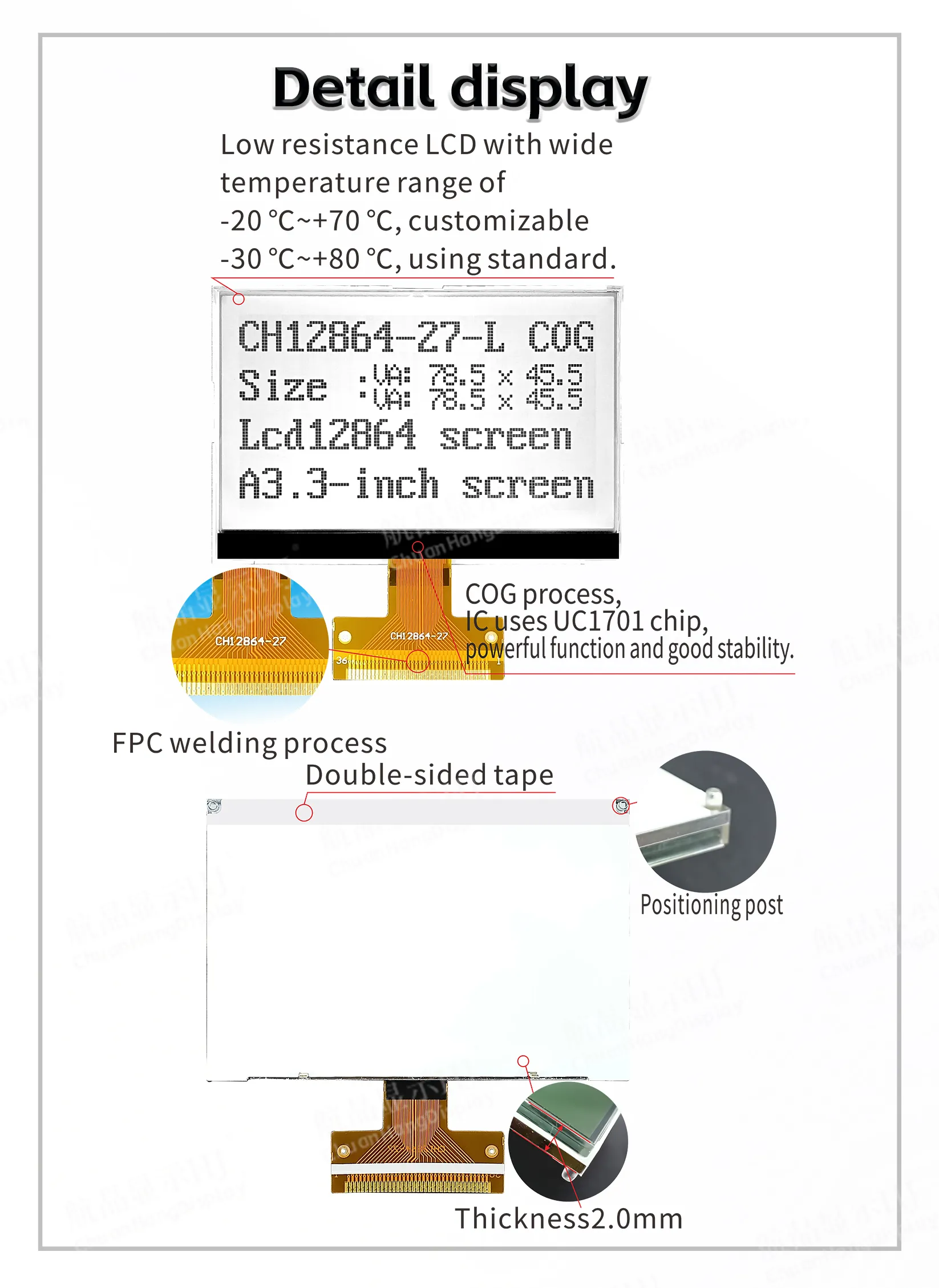

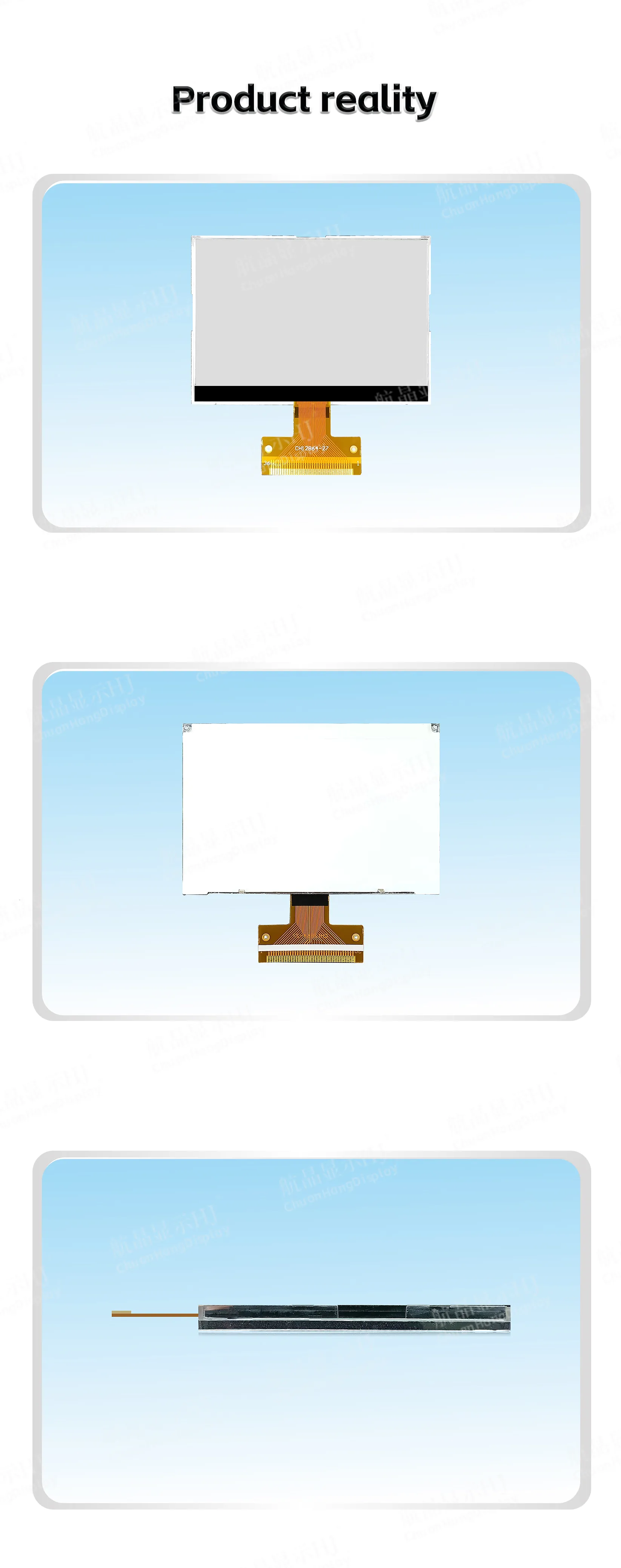

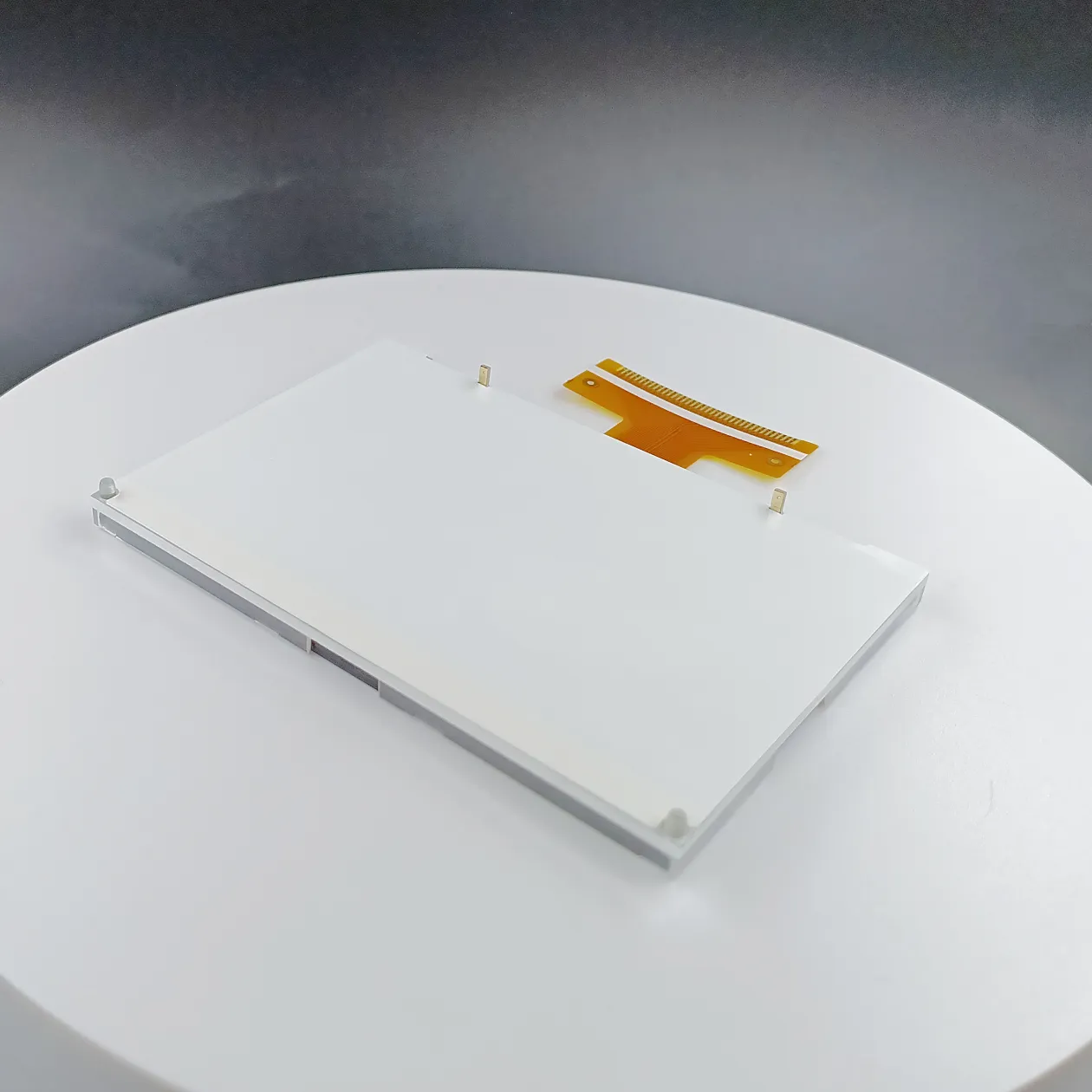

1.1 COG process, FPC flexible wire is welded port, the product is backlit, has been assembled, thin thickness, stable structure.
1.2IC uses ST7565, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.
1.4 LED backlights A and K are red and white wires, and A and K need to be powered separately by 2.9V ~3.0V.
1.5 Product Features:
● Built-in display data RAM is 64x128 bits.
●An external capacitor generates a boost.
●Contrast is adjusted deeper and lighter by software.
● One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≤128x64 dot matrix. .
●8-bit parallel port or 4-wire SPI interface communication.
●Rich features: The interface displays on/off, positive display/reverse display.
1.2IC uses ST7565, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.
1.4 LED backlights A and K are red and white wires, and A and K need to be powered separately by 2.9V ~3.0V.
1.5 Product Features:
● Built-in display data RAM is 64x128 bits.
●An external capacitor generates a boost.
●Contrast is adjusted deeper and lighter by software.
● One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≤128x64 dot matrix. .
●8-bit parallel port or 4-wire SPI interface communication.
●Rich features: The interface displays on/off, positive display/reverse display.
