Product Description

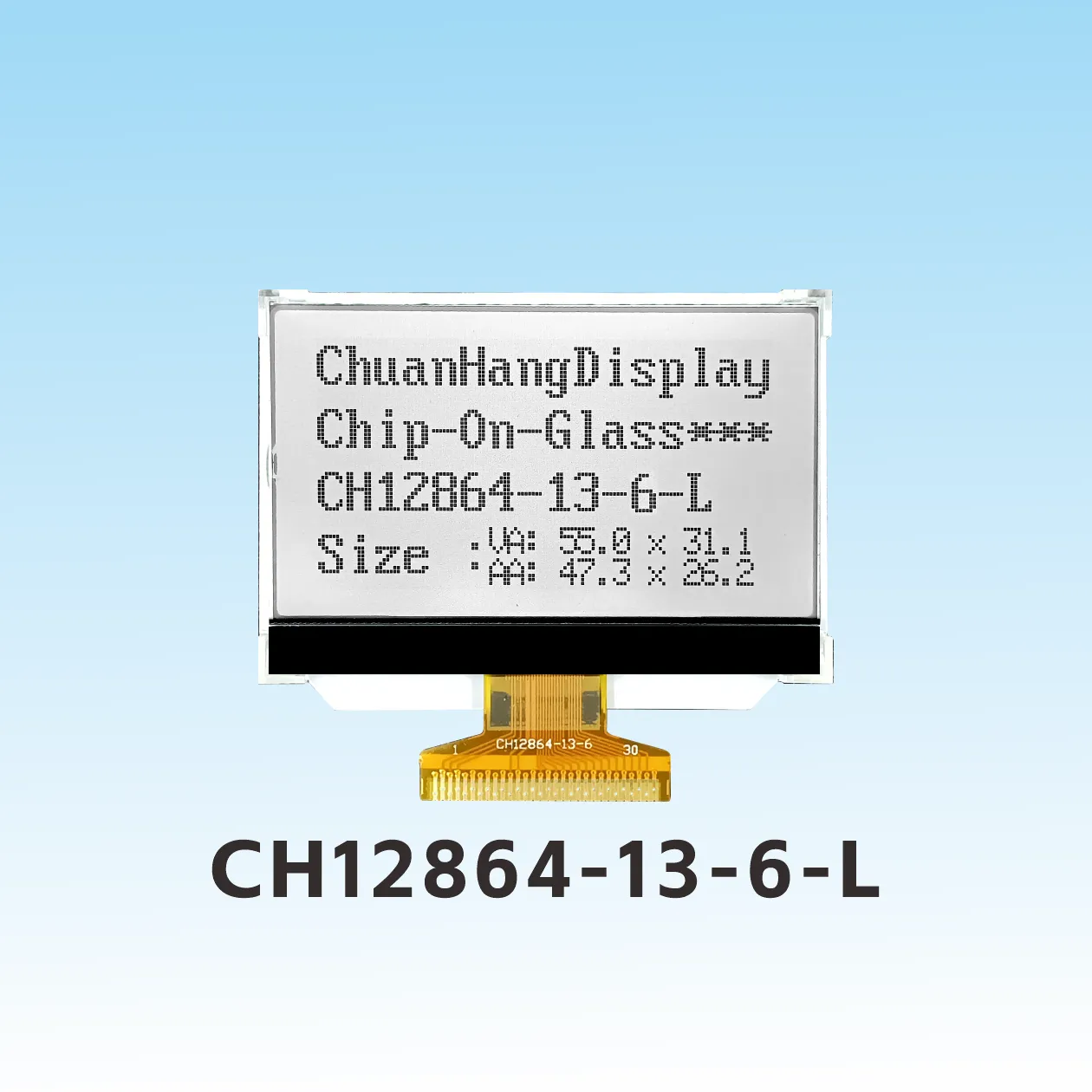

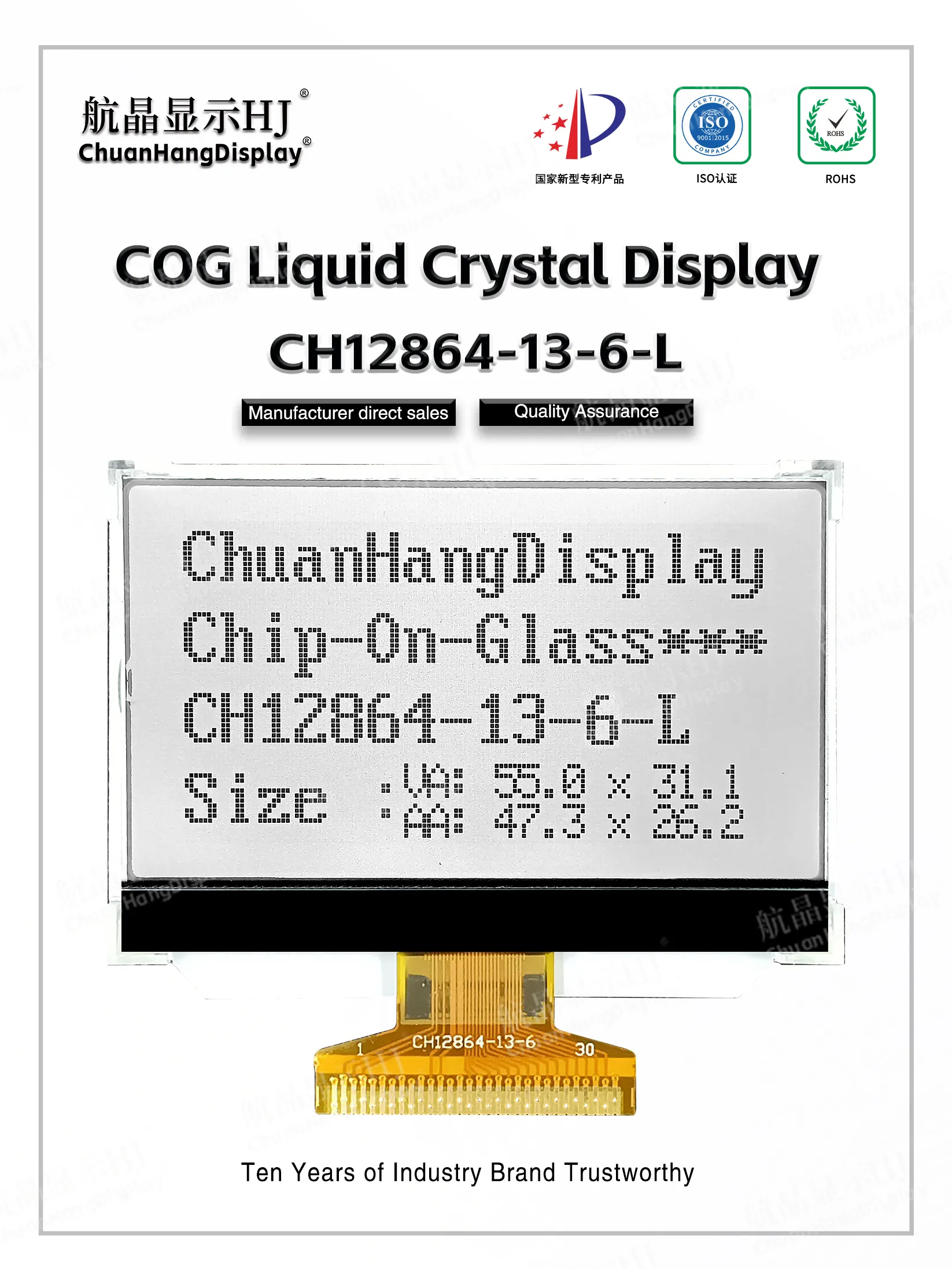

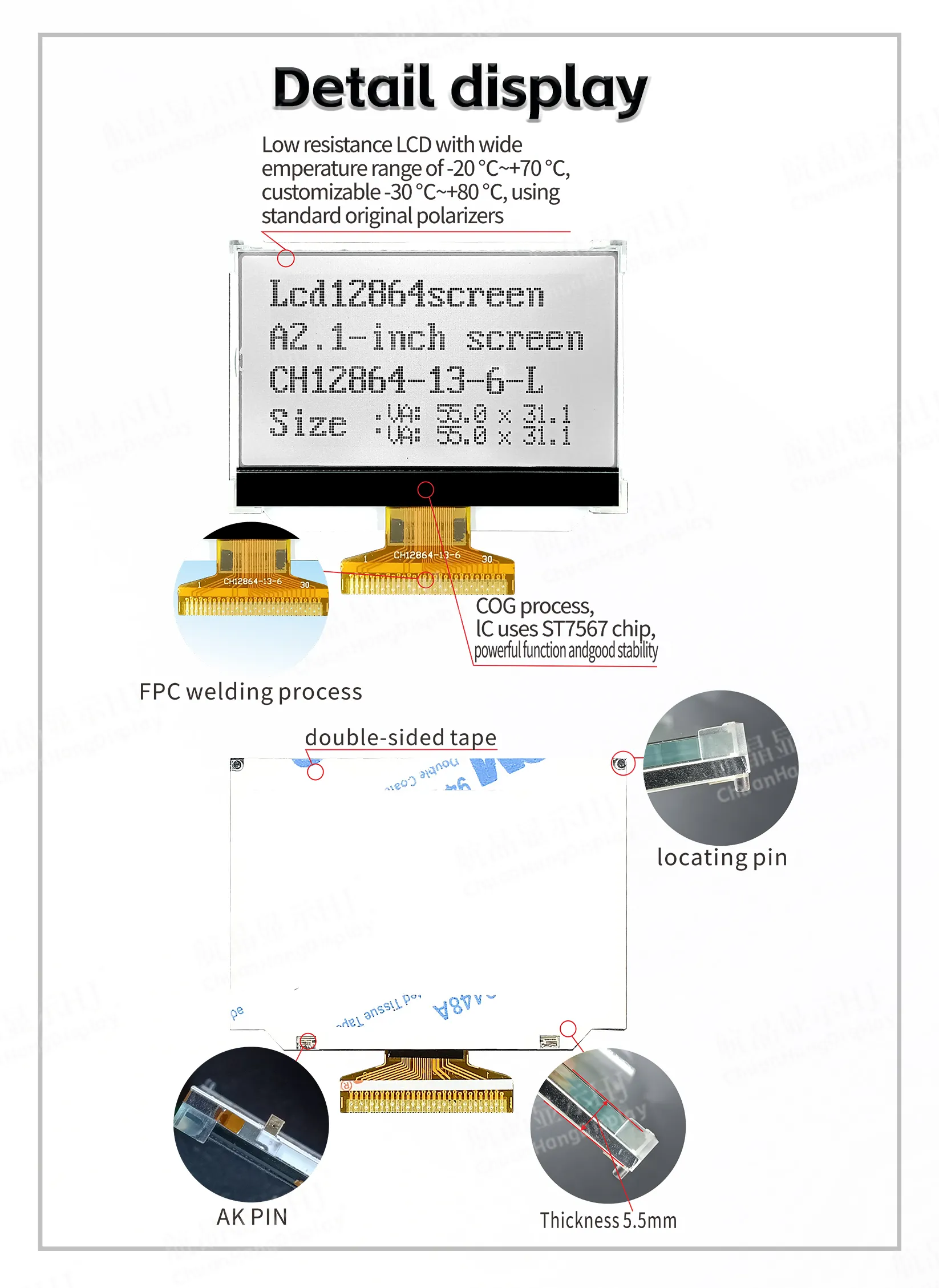

1.1 COG process, FPC flexible wire is welded port, the product is backlit, has been assembled, thin thickness, stable structure.
1.2IC uses ST7567 chip without font library, programmer self-compiled font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA, with backlight current within 60mA.
1.4 LED backlights A and K are PCBs, and A and K need to be powered separately by 2.9V ~3.0V.
1.5 Product Features:
• Built-in display data RAM is 64x128 bits.
•An external capacitor generates a boost.
•Contrast is adjusted deeper and lighter by software.
•One screen displays 8 characters x 4 lines (16x16 dot matrix).
•Single picture ≤128x64 dot matrix.
• Parallel port or 4-wire SPI interface communication.
Rich features: The interface displays on/off, positive display/reverse display.

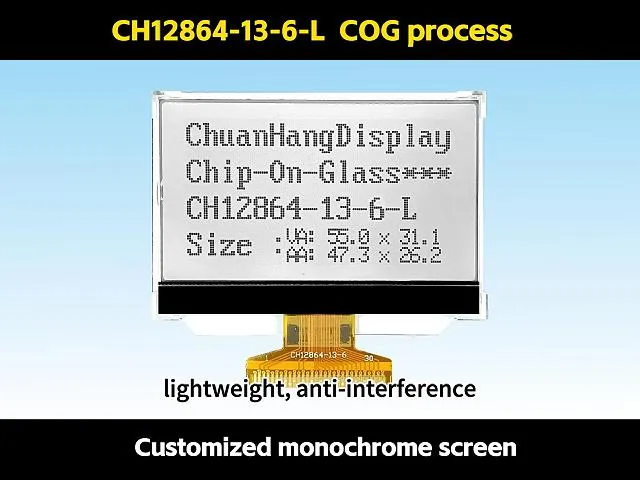

Video Presentation

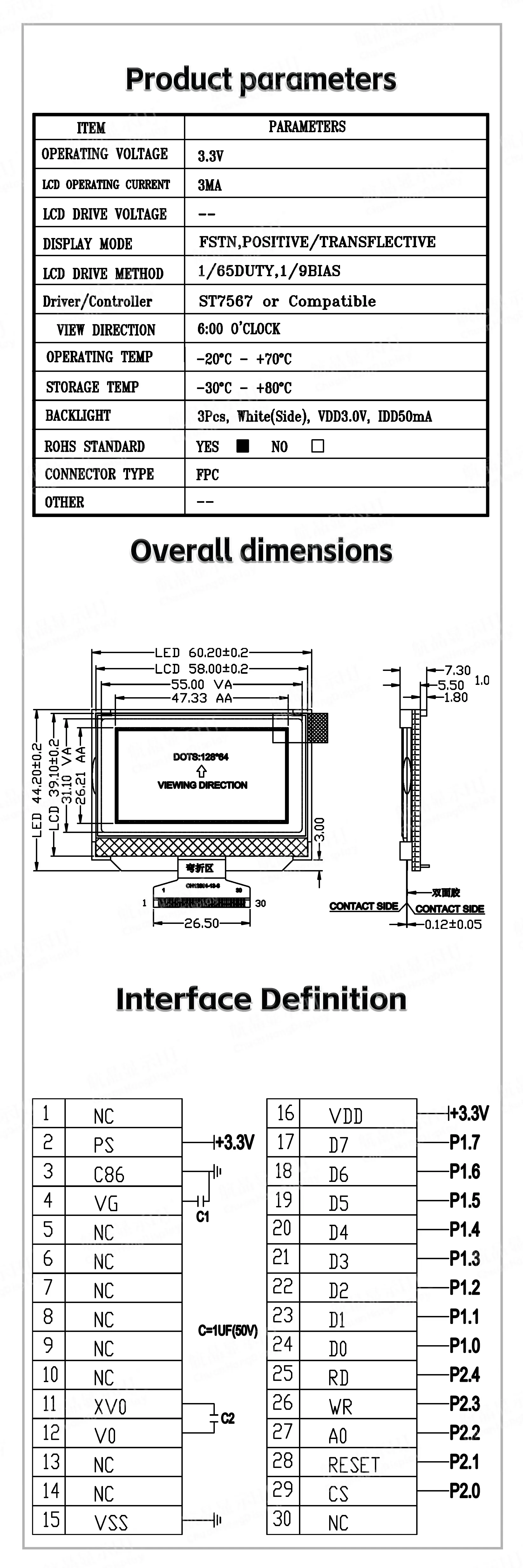

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH12864-13-3-L
Resolution128x64screen size
Outline Dimension(L*W*H)60.2x44.2x7.3mmVisible Area(L*W)55.00x31.10mm
Active Area(L*W)47.33x26.21mmDot Size (mm)0.34(L)x0.38(W)
TypeCOGConnection MethodFPC
Supply Voltage3.3V Interface Type MCU/SPI
Viewing Direction6 O'CLOCK Driving Method1/64Duty
Display Type FSTN Driver ICST7567
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight parameters3.3Vproduction capacitySelf-produced
Character librariesWhether to bring PCBNO
Product Datasheet

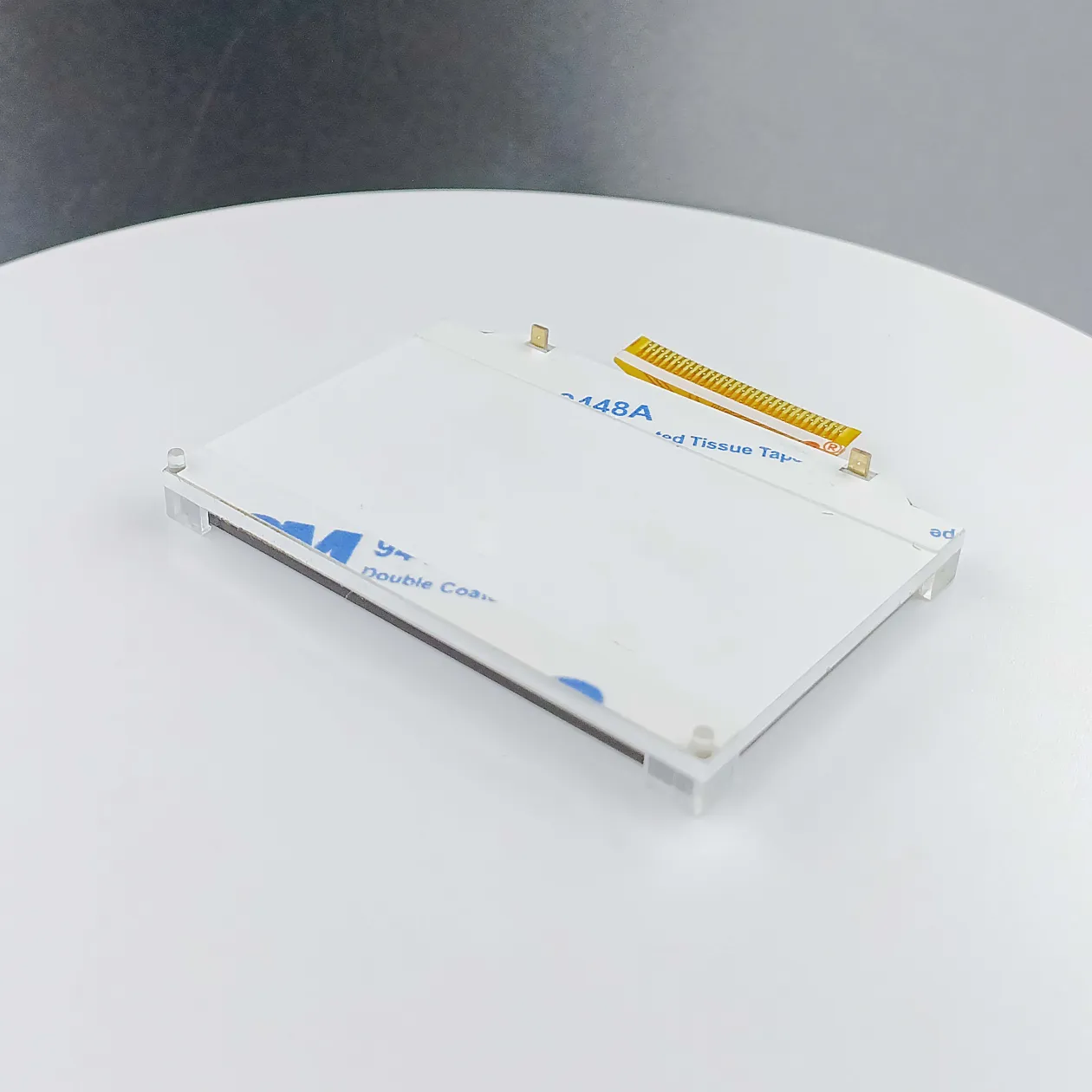

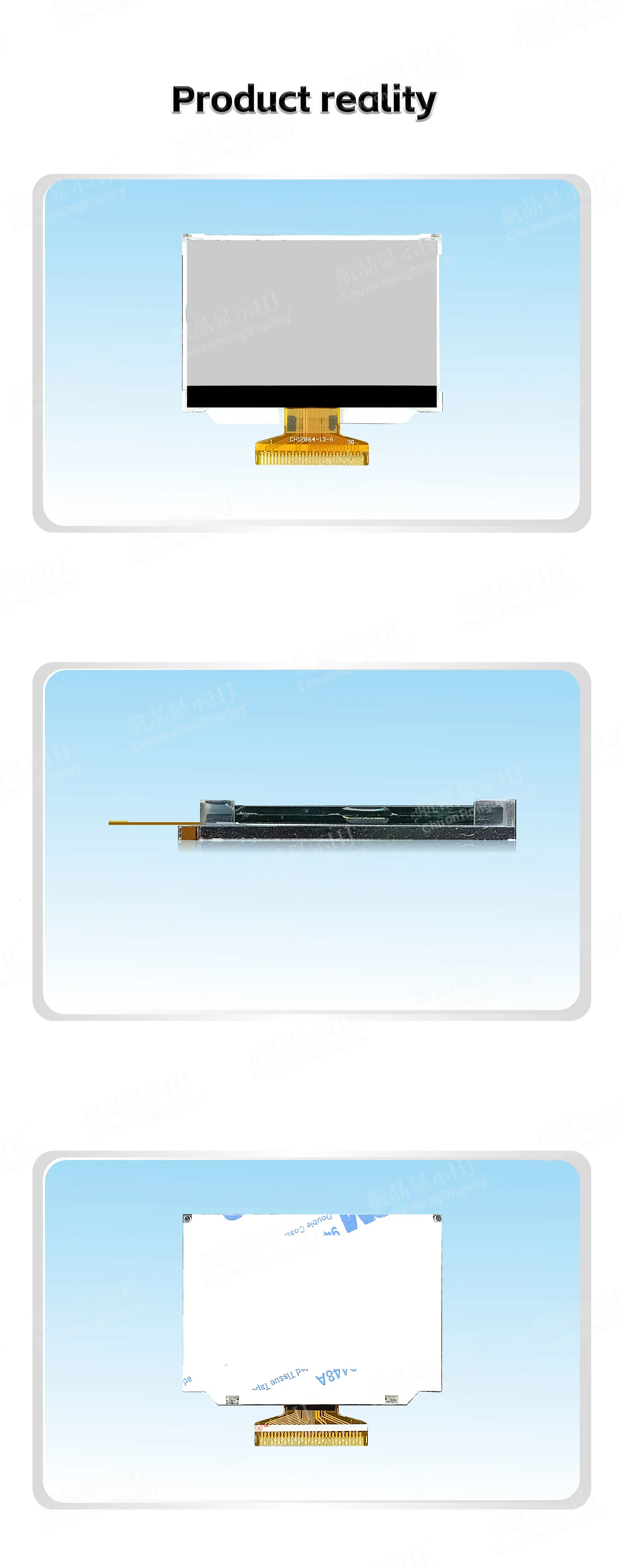

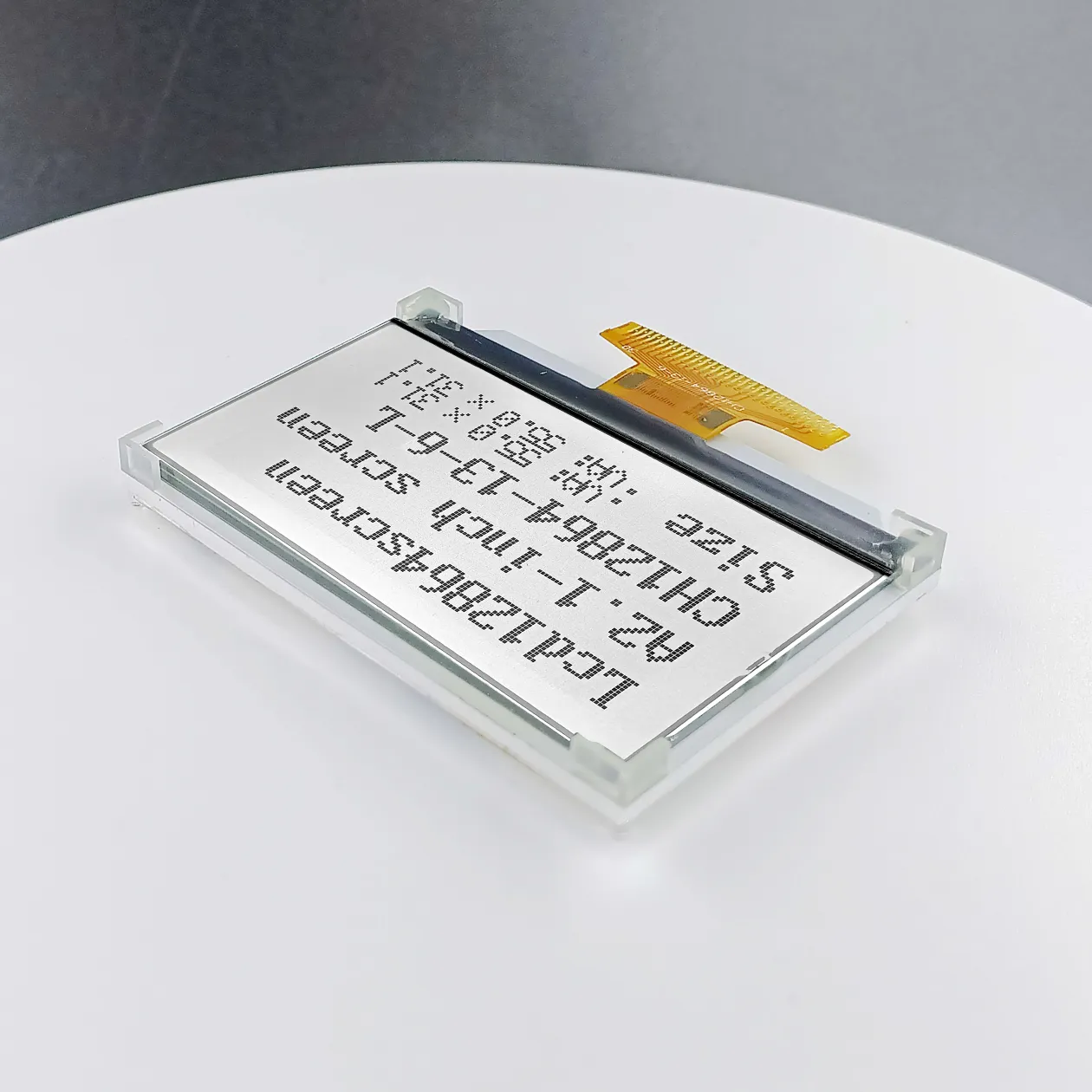

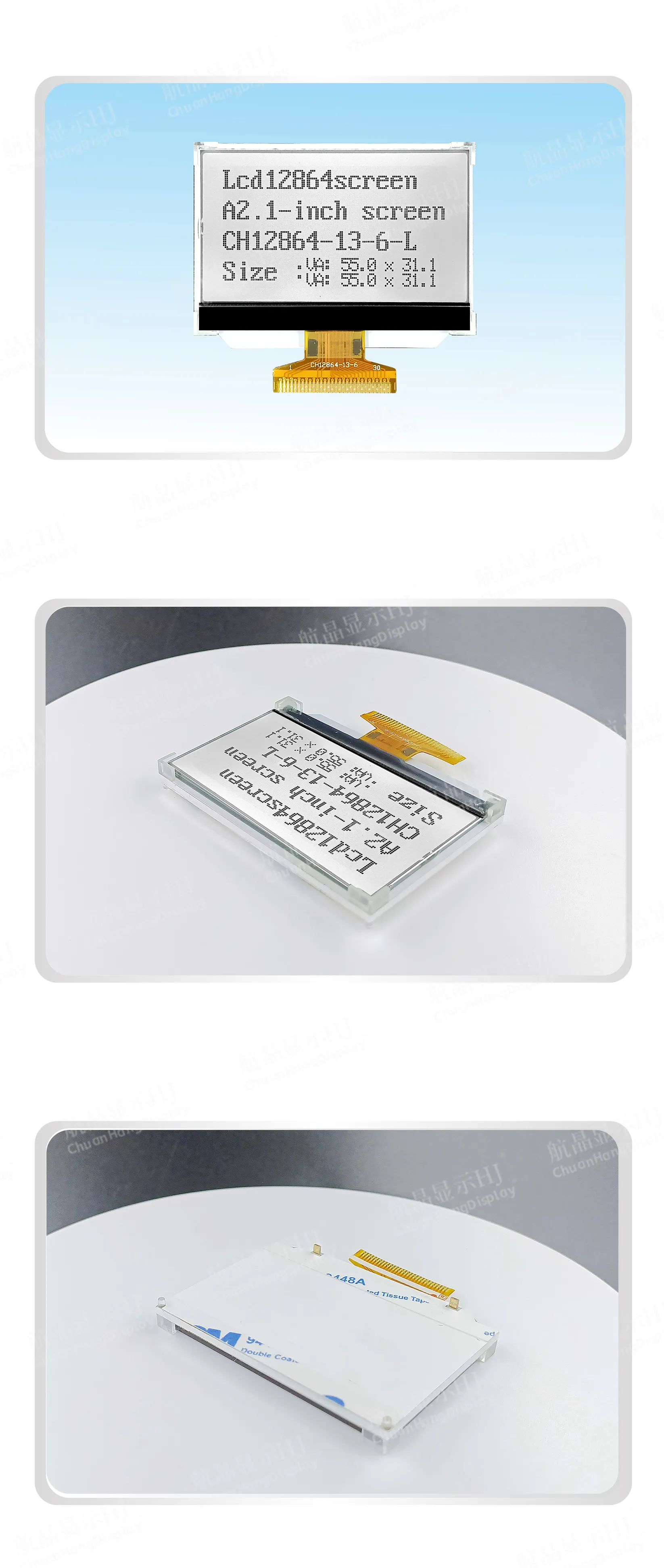

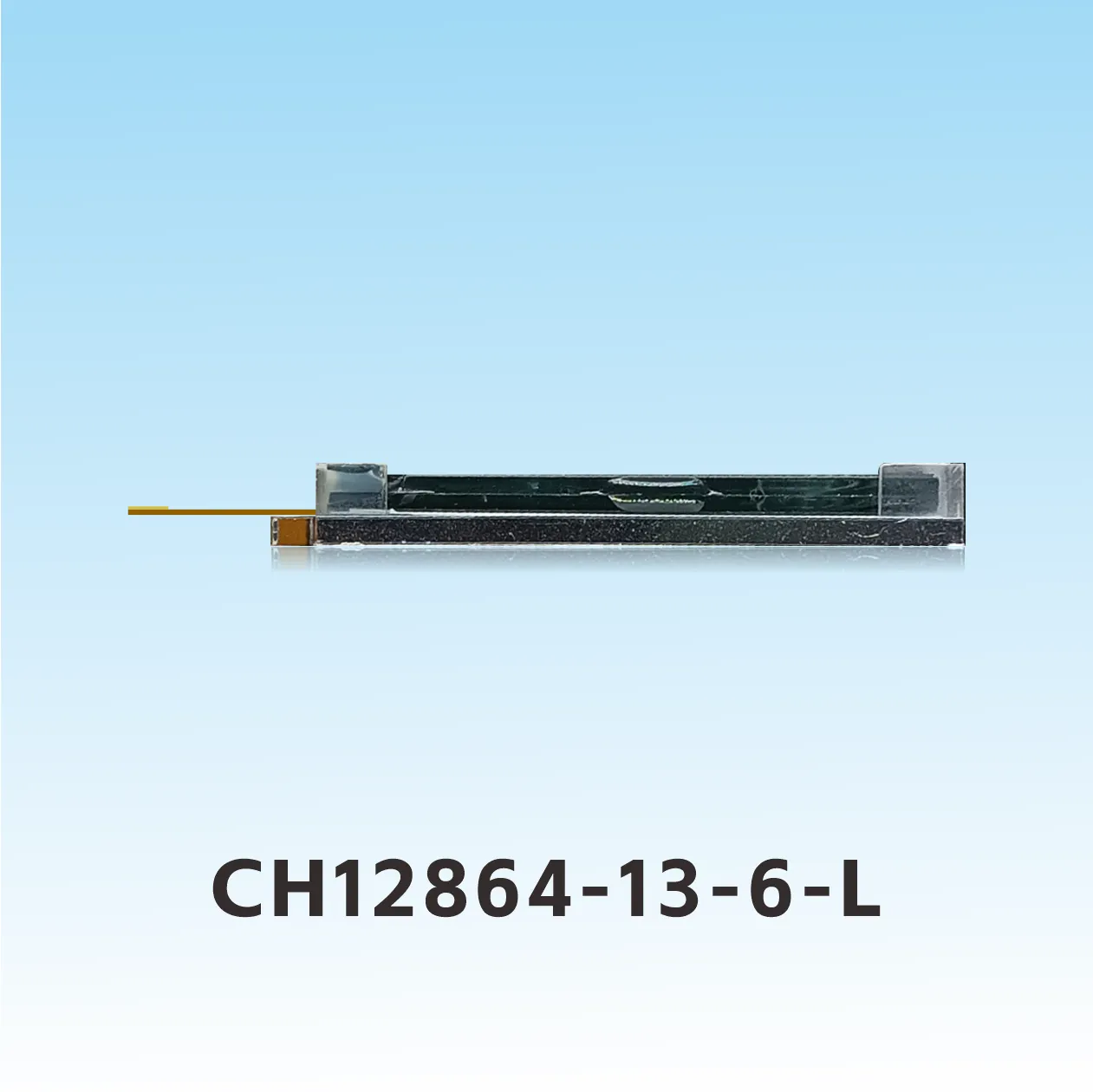

Product Display
