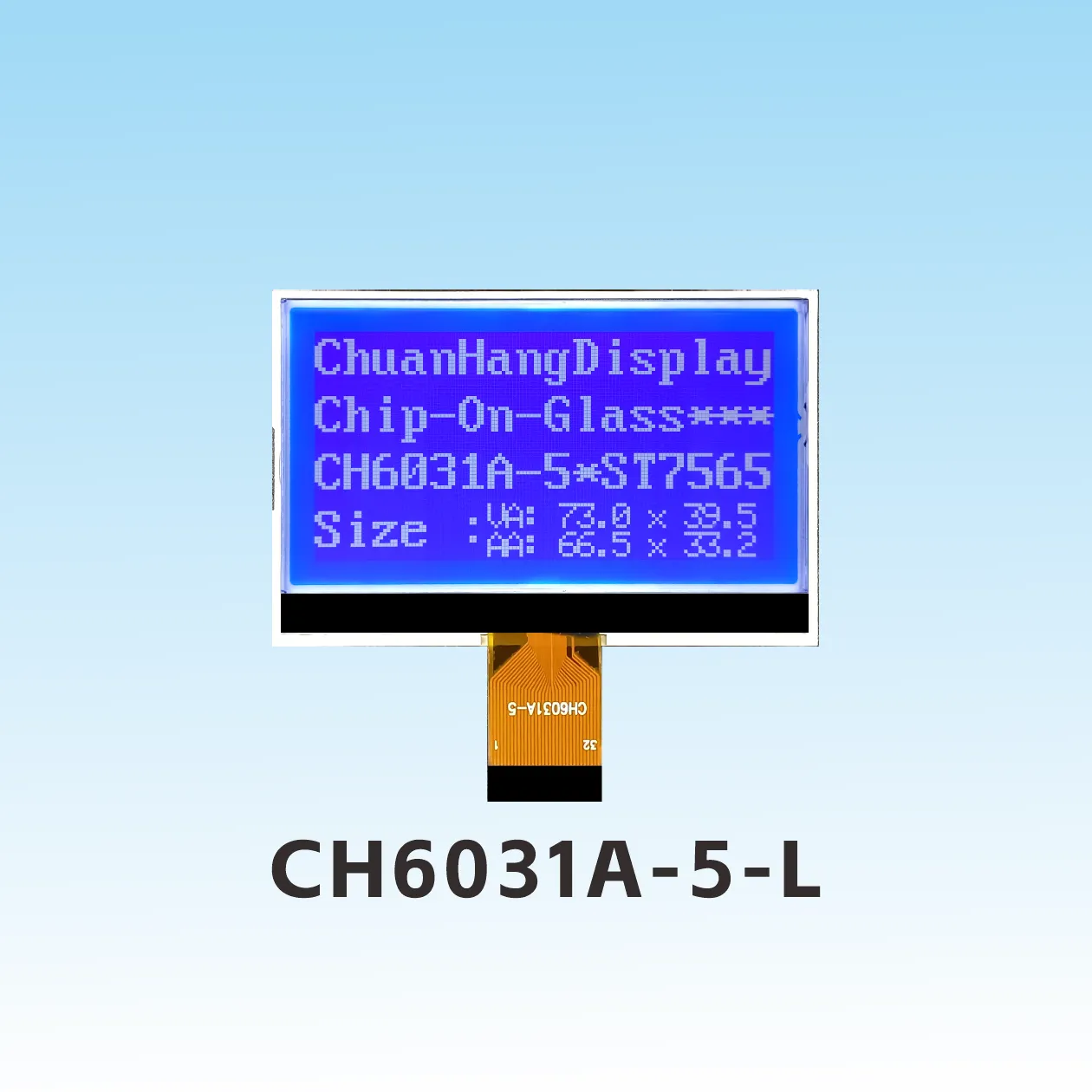

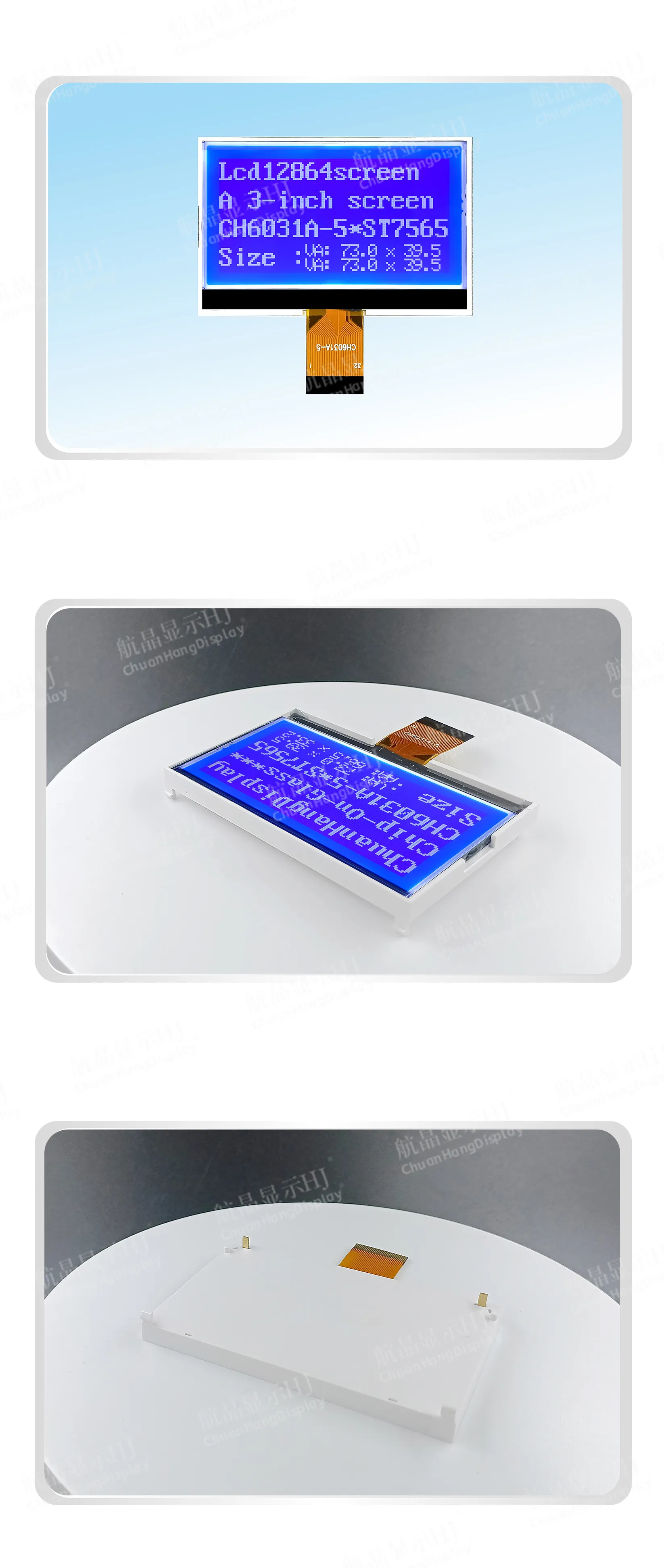

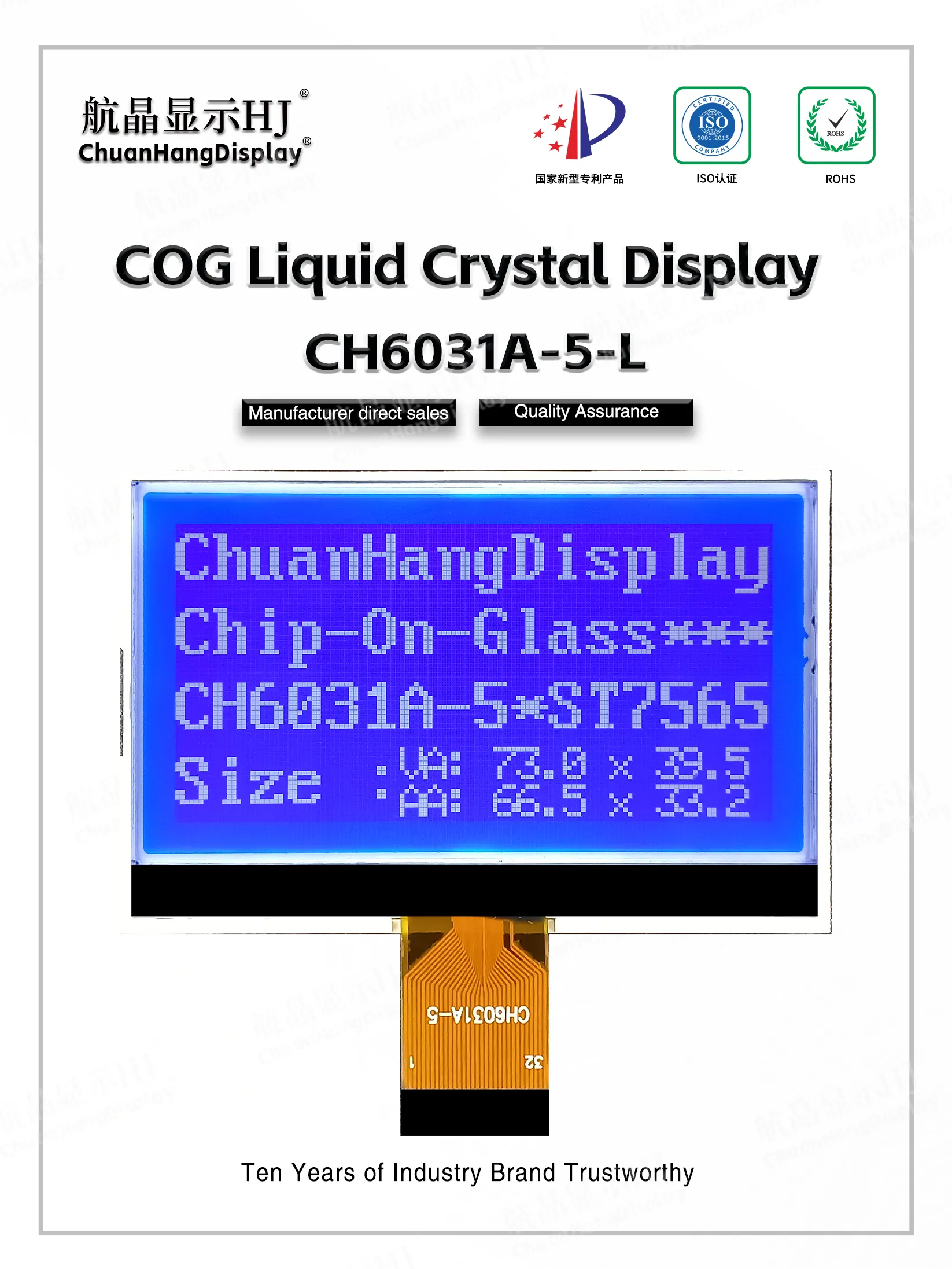

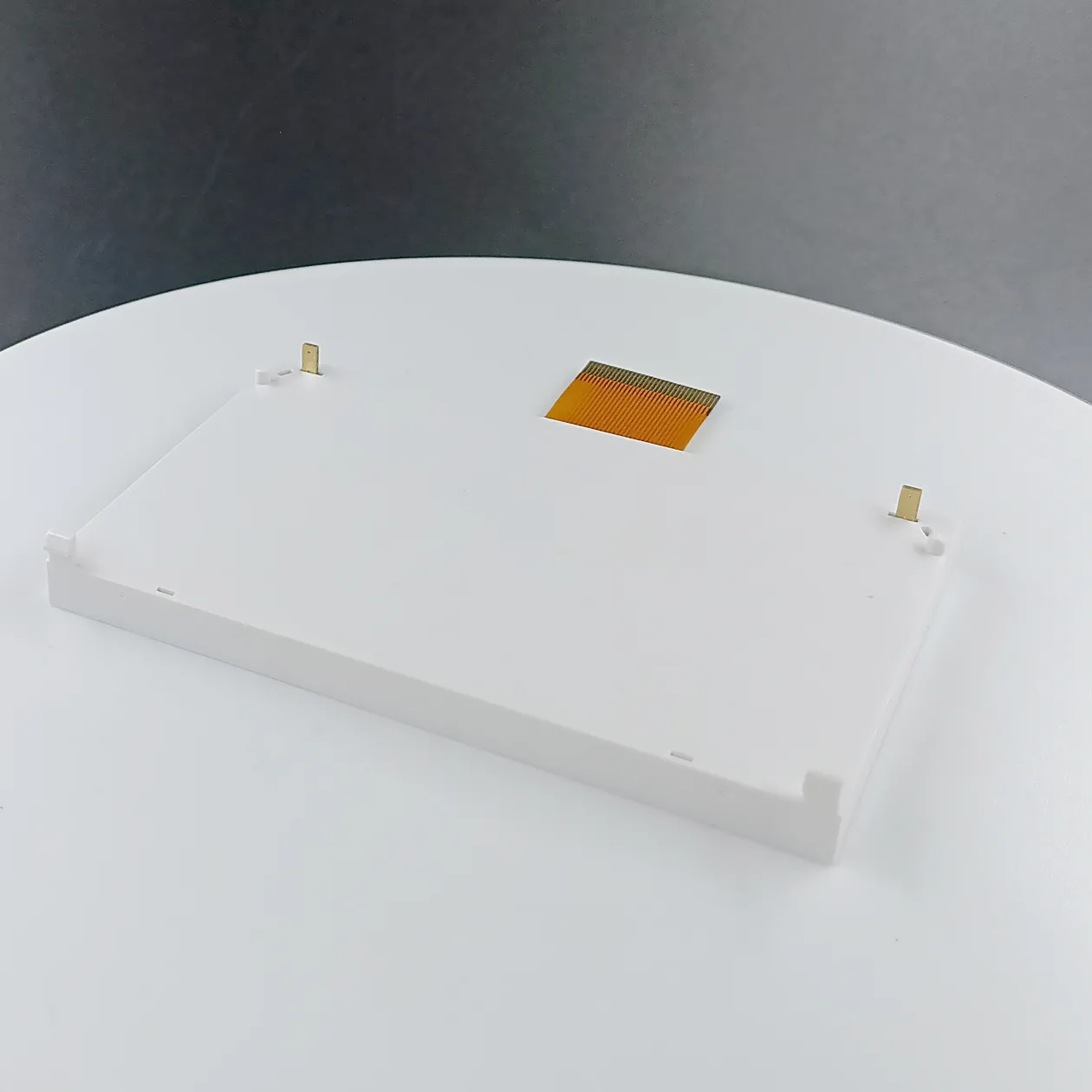

CH6031A-5-L插接
Product Description

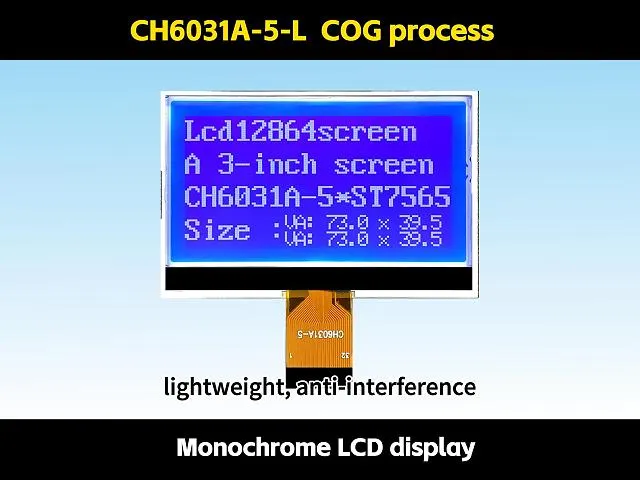

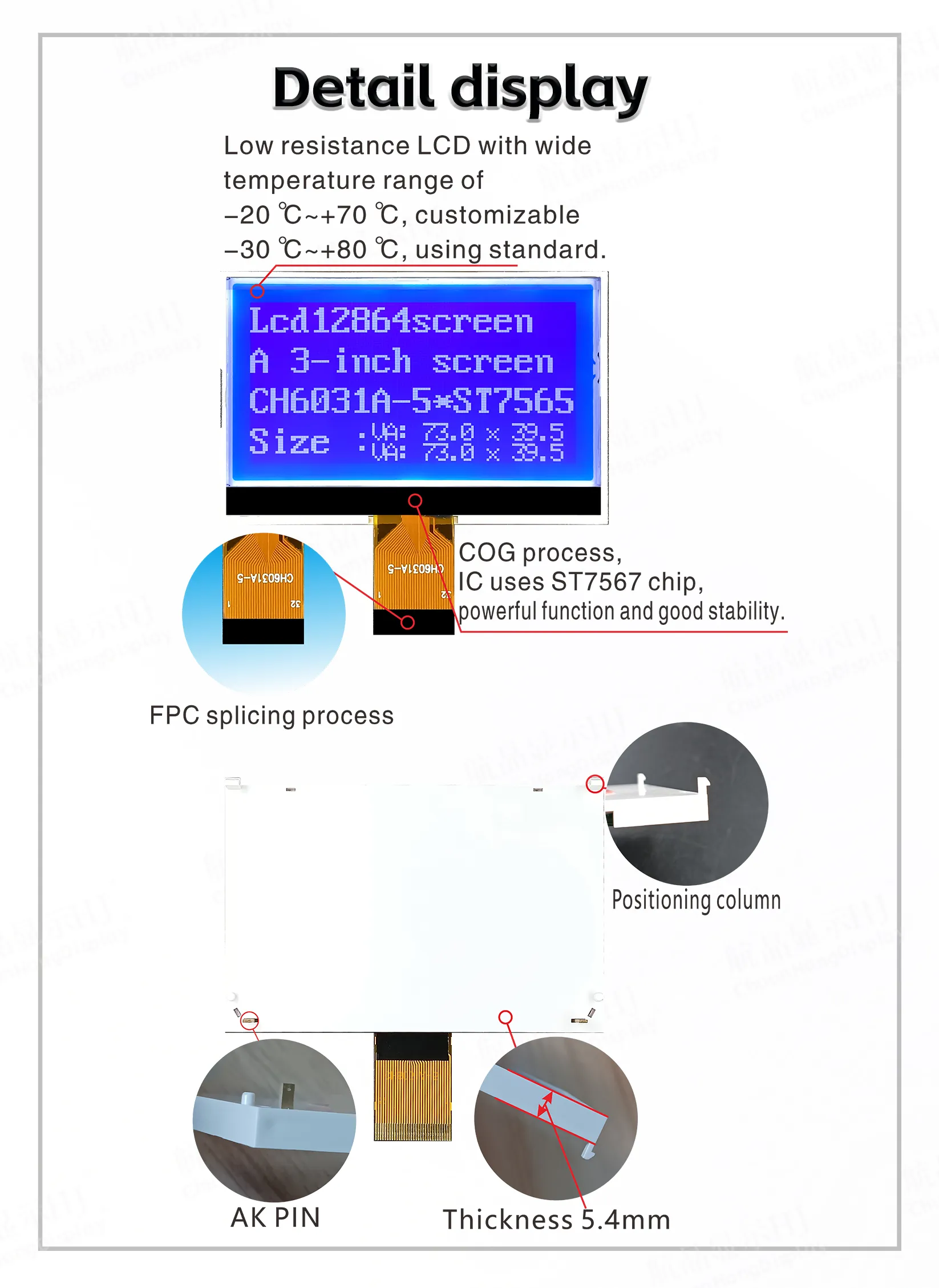

1.1 COG process, FPC soft wiring is a plug-in interface, the product has a backlight, has been assembled, the thickness is thin, and the structure is stable.
1.2 IC uses ST7565R, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, and backlight current within 60mA.
1.4 LED backlight A and K are red and white lines, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits
The external capacitor generates a boost
The contrast ratio is adjusted by the software.
A screen shows 8 characters x 4 lines (16x16 dots).
A single picture ≤128x64 dot matrix.
Parallel or 4-wire SPI interface communication.
Rich functions: The interface display is on/off, positive/reverse.
