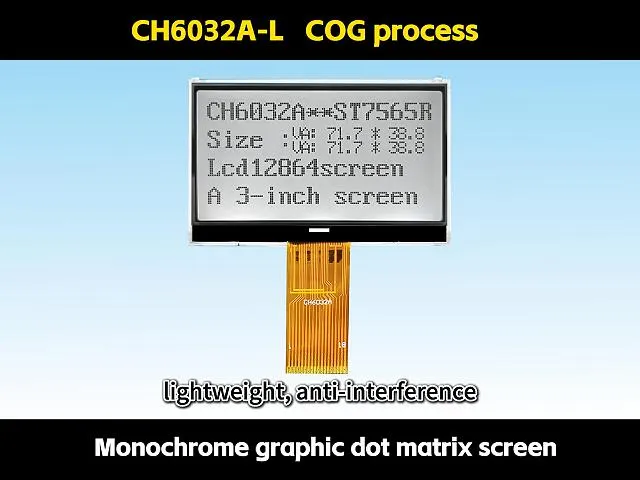

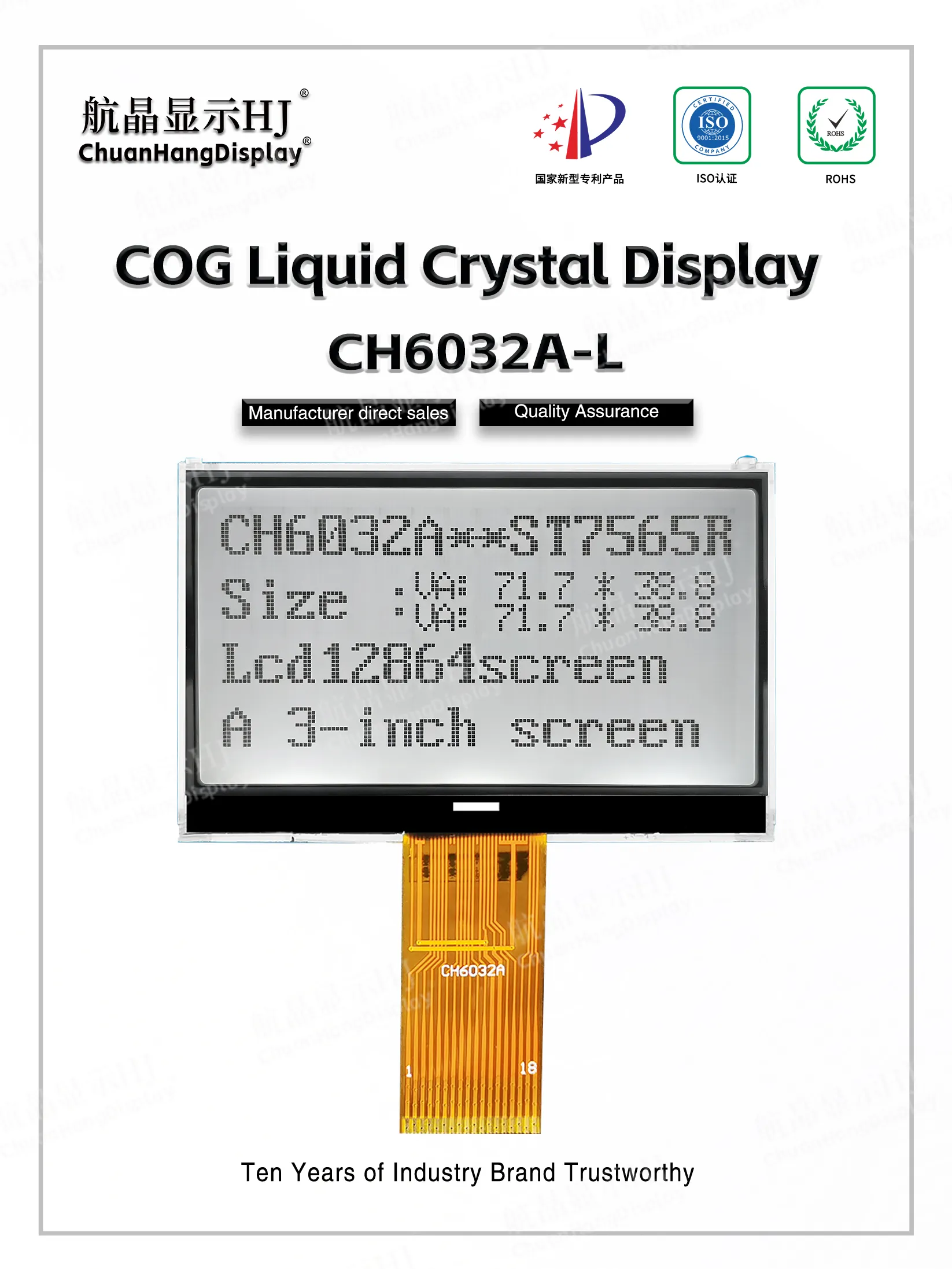

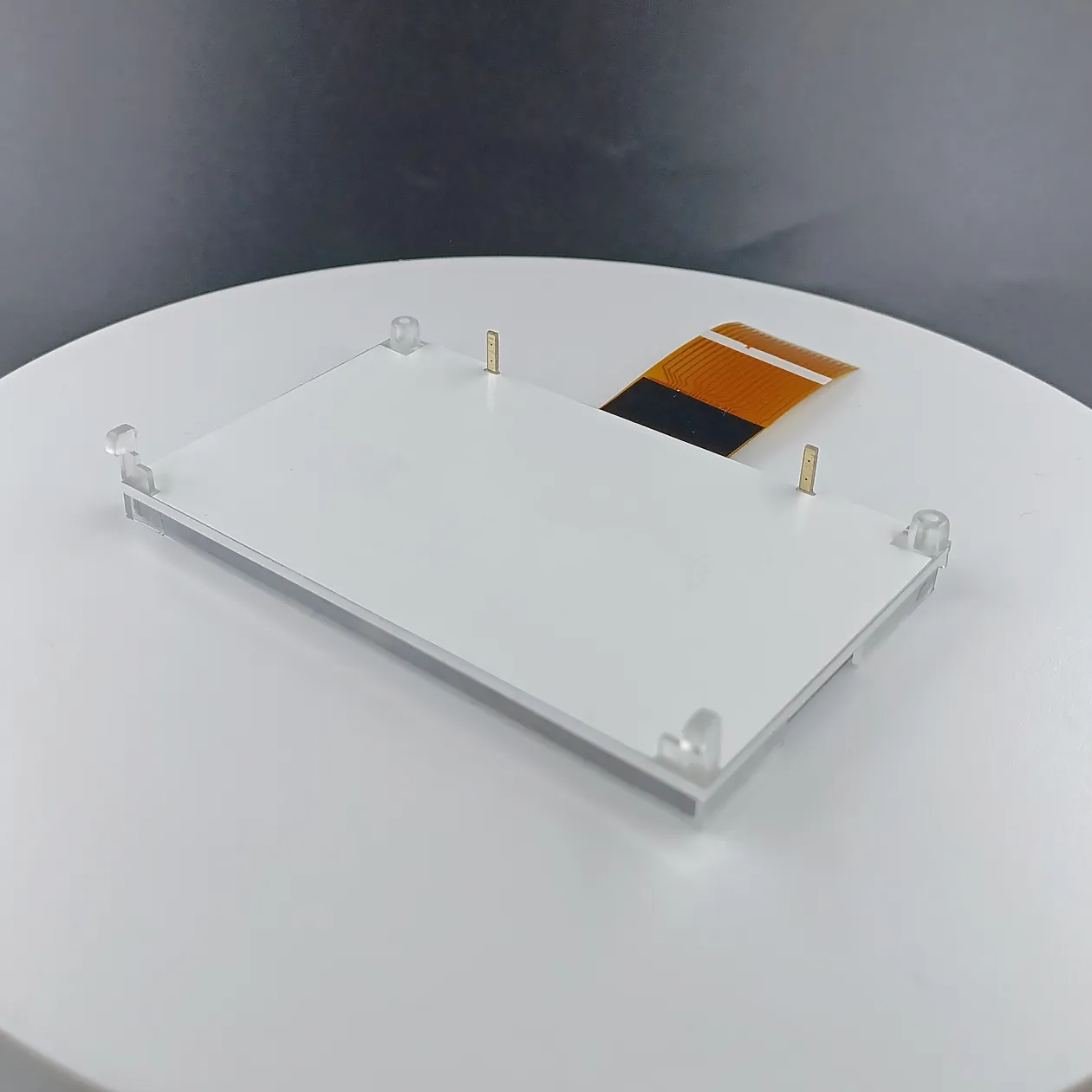

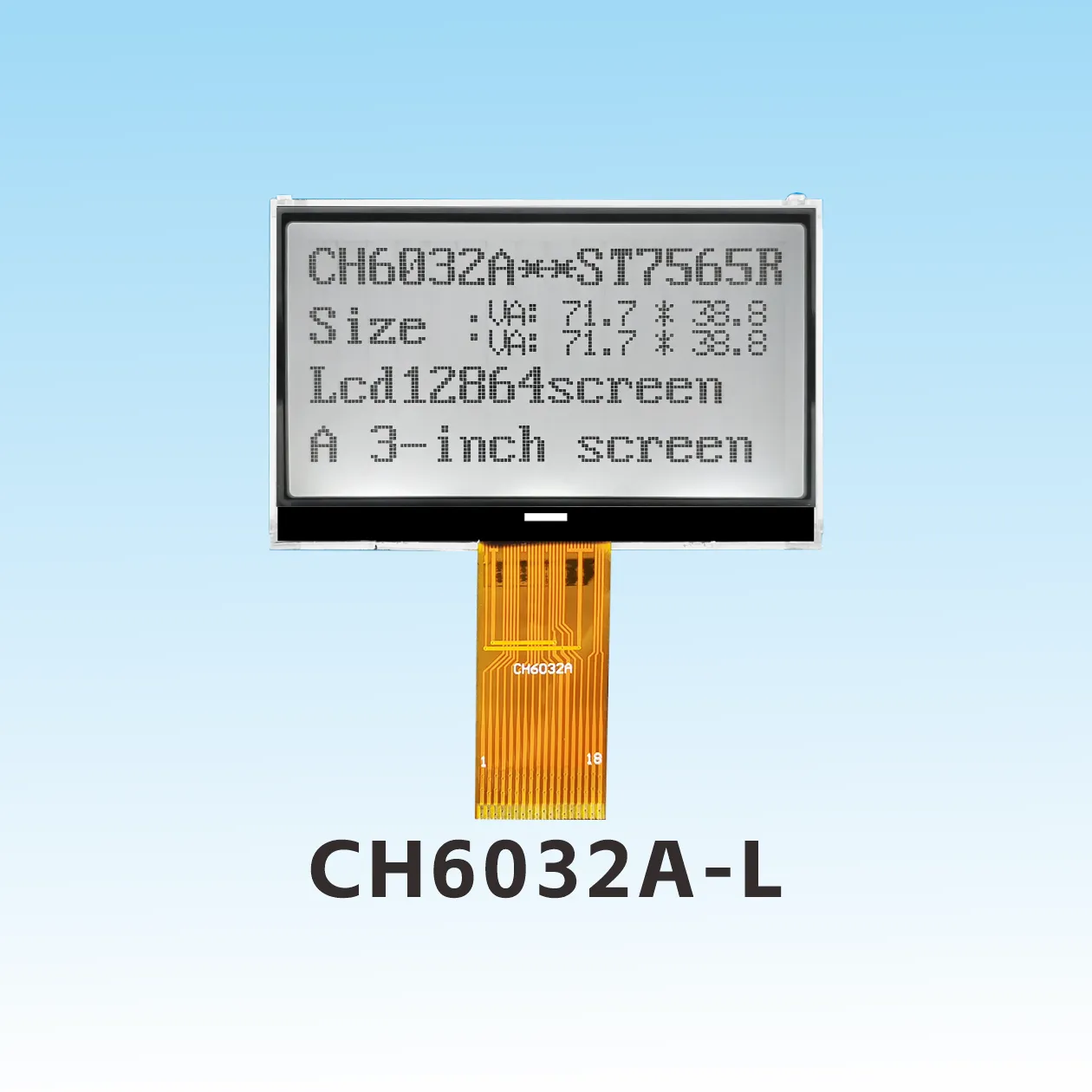

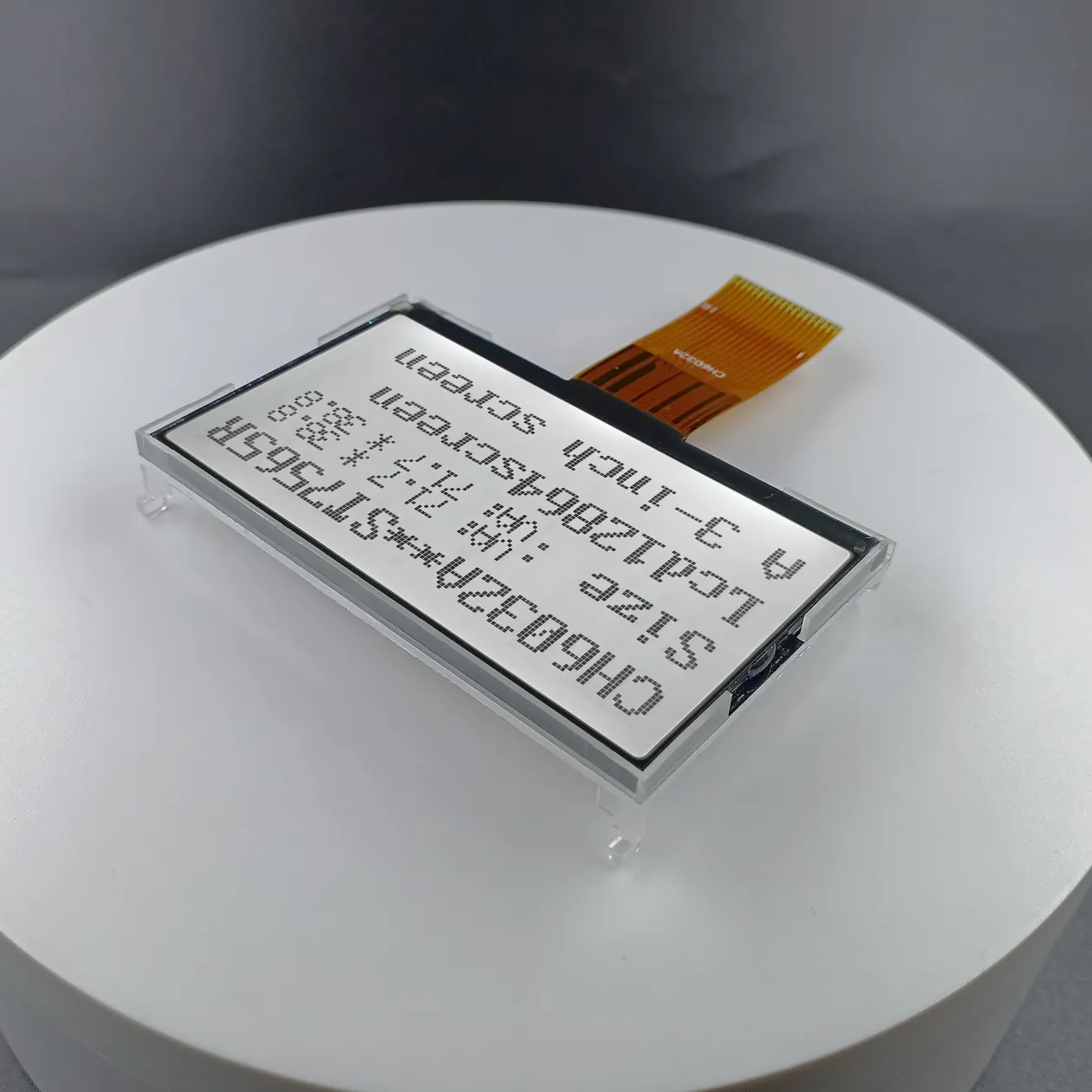

CH6032A-L cog lcd 12864
Product Description

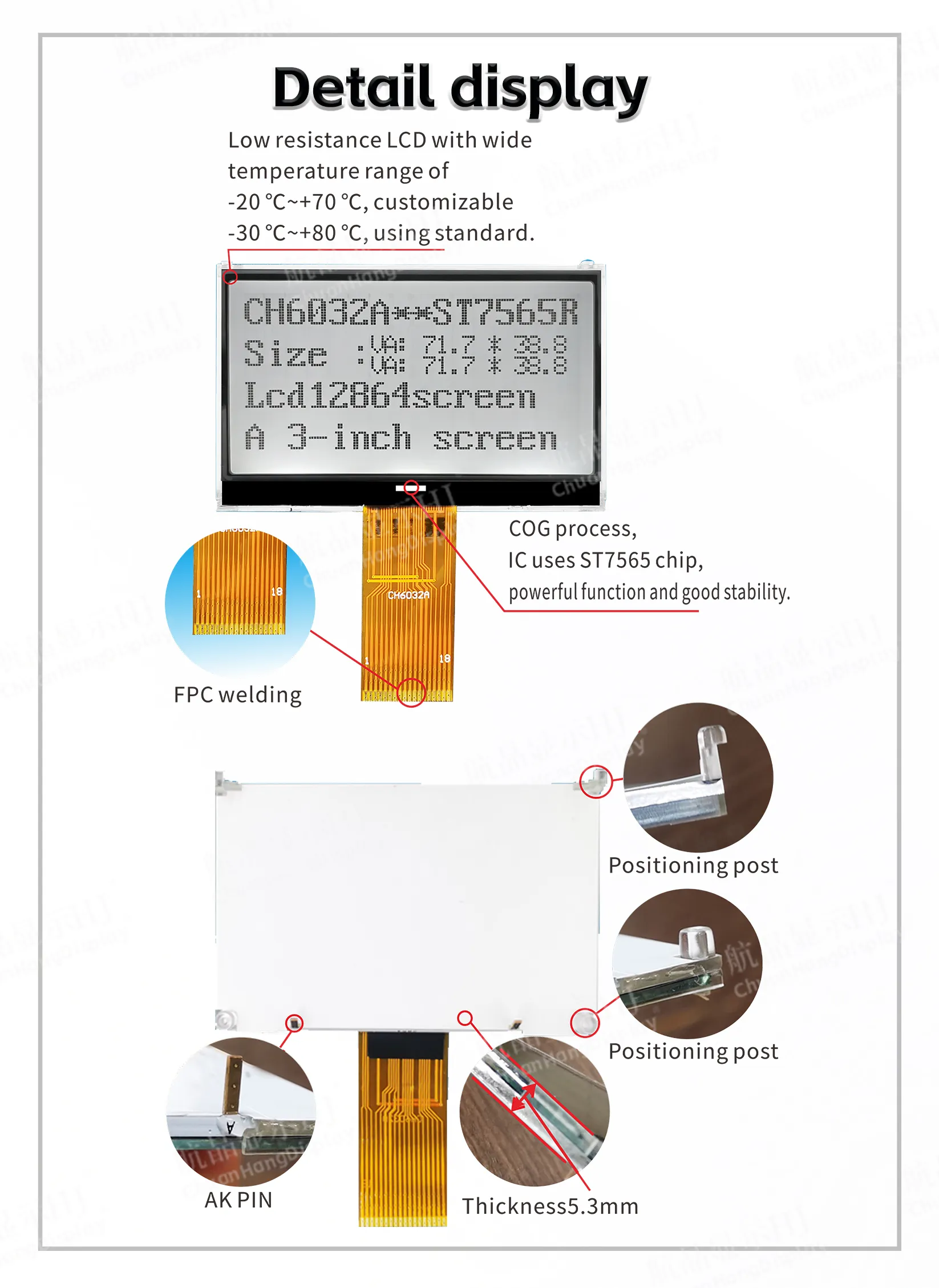

1.1cOG process, FPC soft line is a welding port, the product has a backlight, thin thickness and stable structure.
1.2IC uses ST7565R, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 low power consumption, 3.3V power supply mode, no backlight current within 1mA, with backlight current in 80mA
1.4 LED backlight A and K for PCB board. A and K need to be supplied separately by 2.9V~3.0V.
1.5 Product features:
The built-in display data RAM is 64x128 bits. Multiple external capacitors generate boosts.
The contrast is deepened and lightened by the software.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≤128x64 dot matrix.

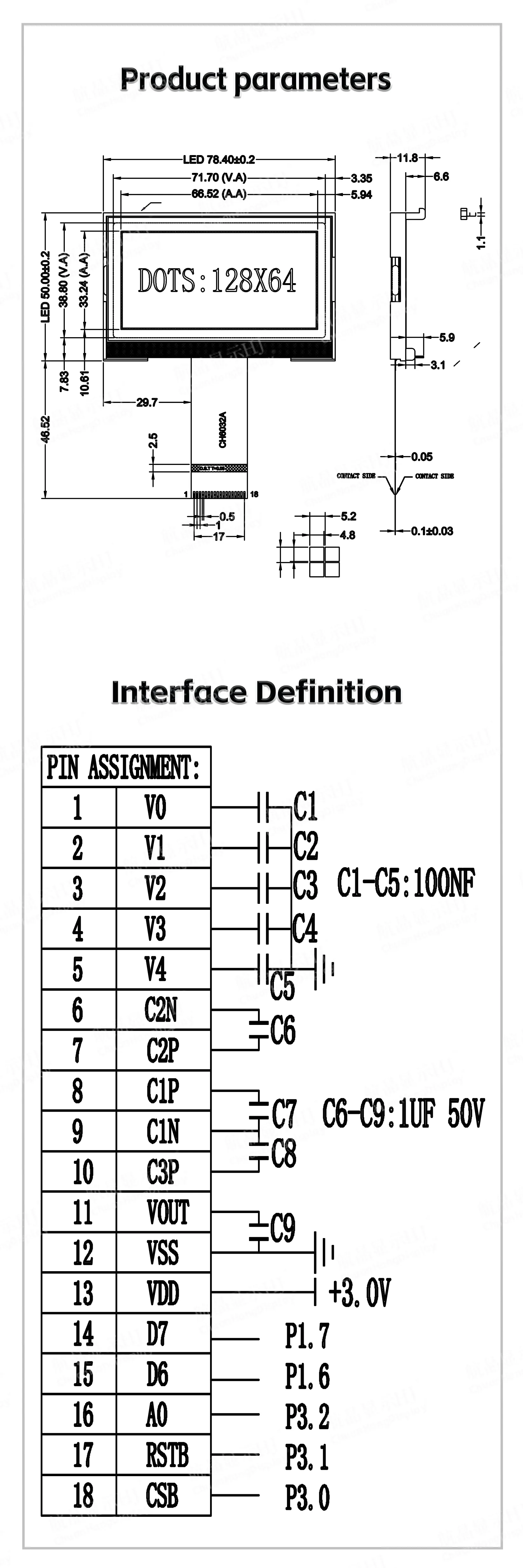

The 4-wire SPI interface is fast.
Rich functions: interface display on/off, positive display/reverse display.
