CH-H62819H Flue-cured tobacco machine industry LCD

CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD
CH-H62819H Flue-cured tobacco machine industry  LCD

CH-H62819H Flue-cured tobacco machine industry LCD

Product Description
LCD Material: HTN LCD
Display Mode: HTN
Polarizer Type:Grey film/fully permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight :White LED / RED LED
Application industry: Tobacco flue machine
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH-H62819H
Display ModeHTNDisplay SizeCustomized
Outline Dimension(L*W*H)190.0x123.0x12.0mmVisible Area(L*W)/
Active Area(L*W)168.4x91.3mmCharacter Size(L*W) /
TypeCOBConnection MethodPIN
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1621
Operating Temperature-20℃~+70℃Storage Temperature-20℃~+70℃
Backlight White LED / RED LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES

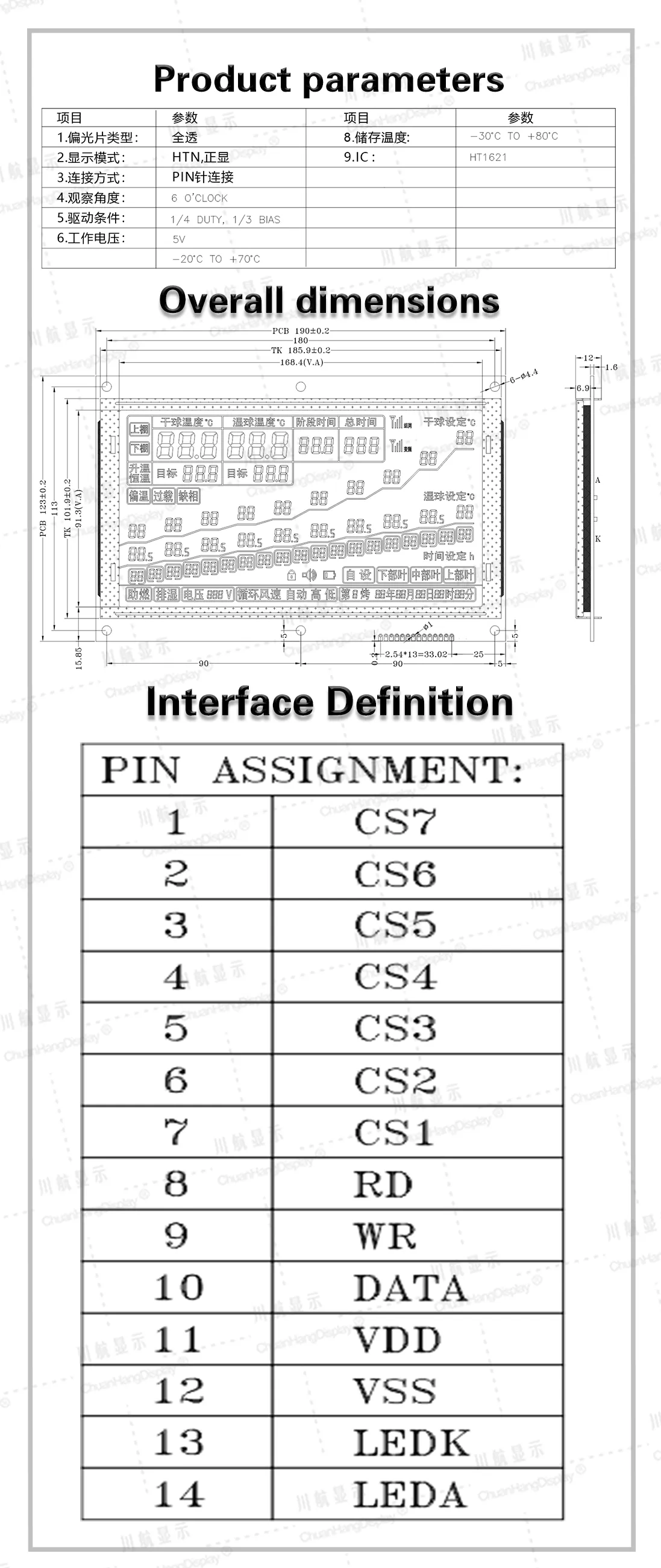

Product Datasheet

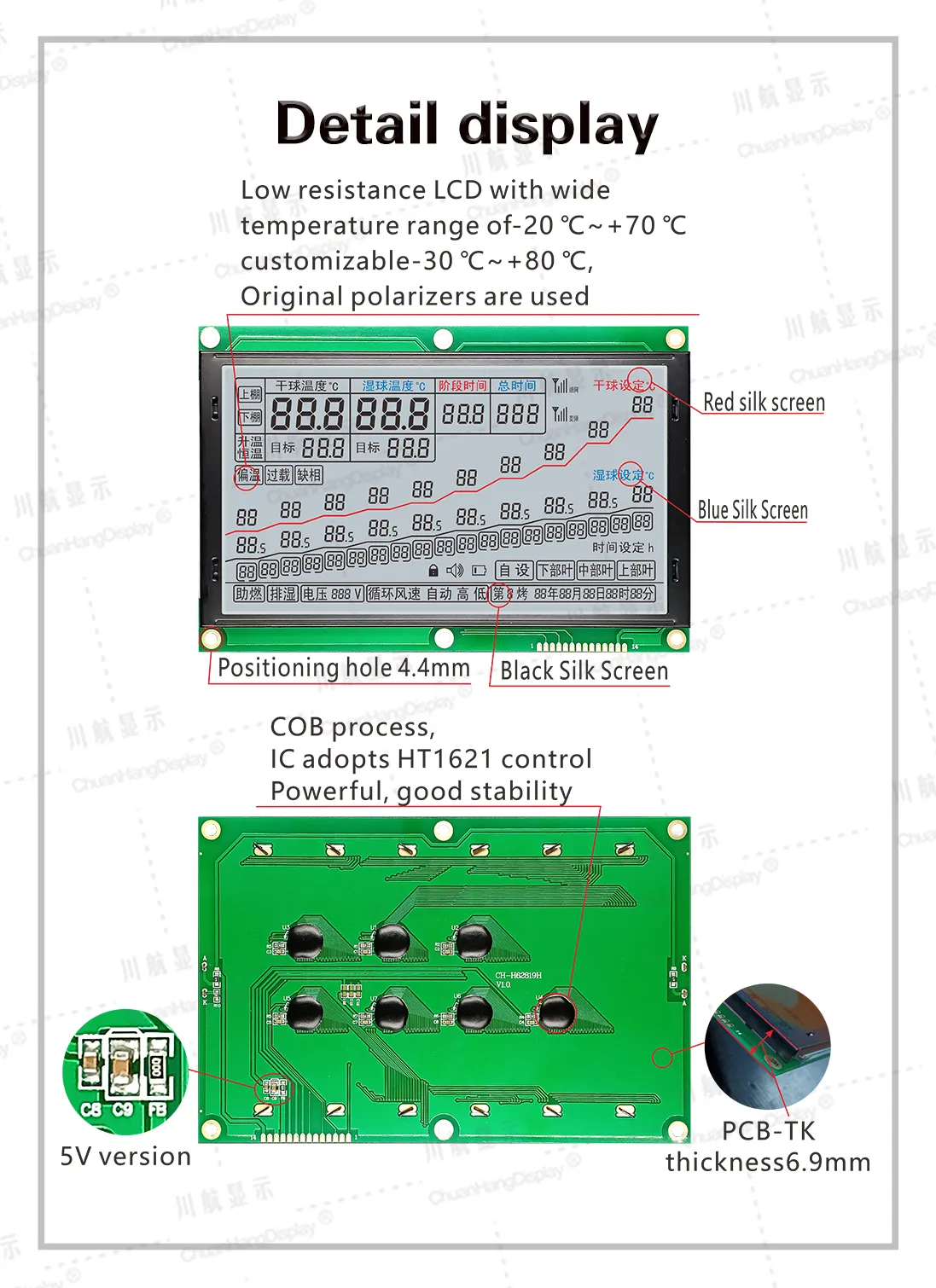

Product Display
