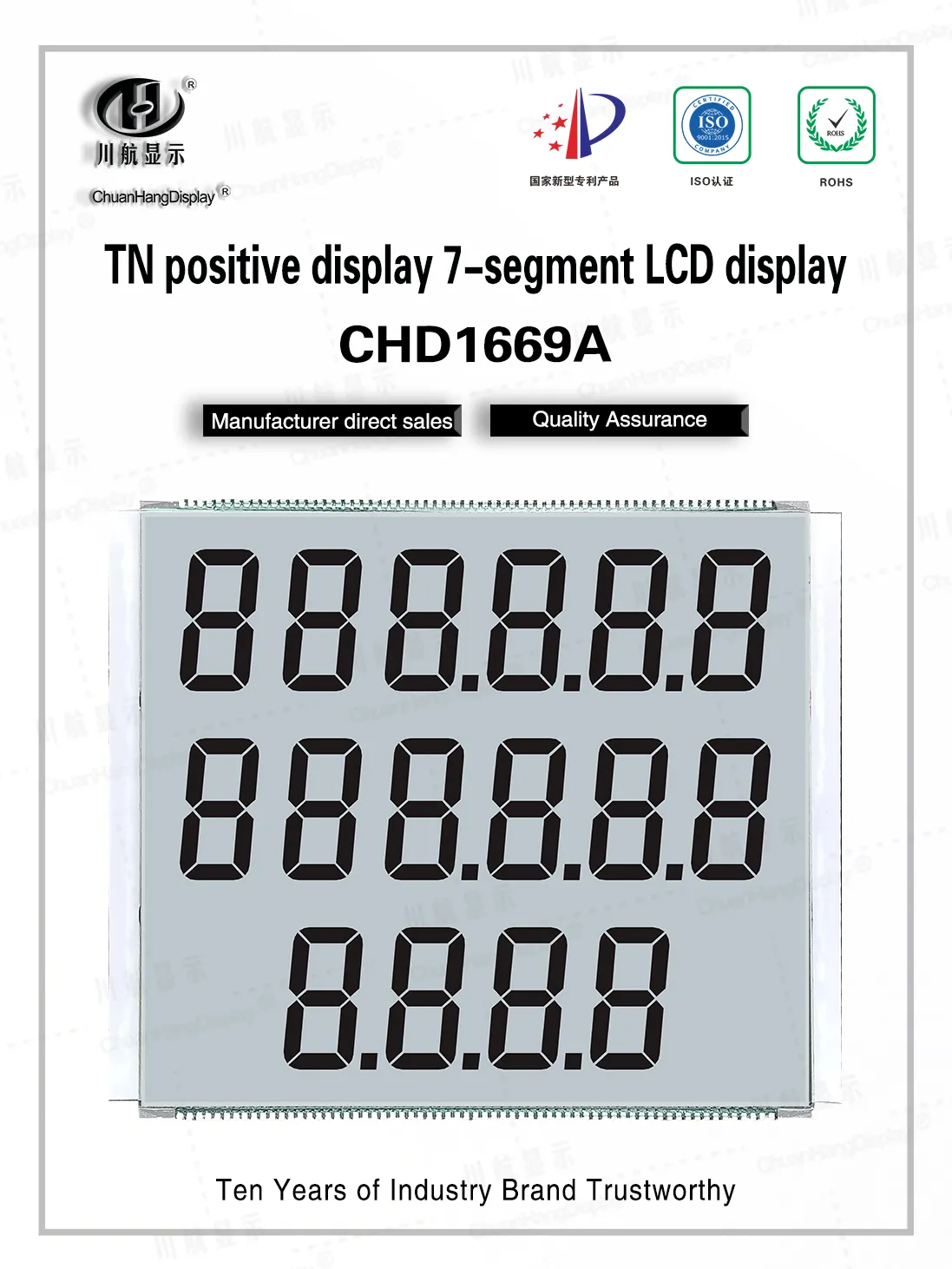

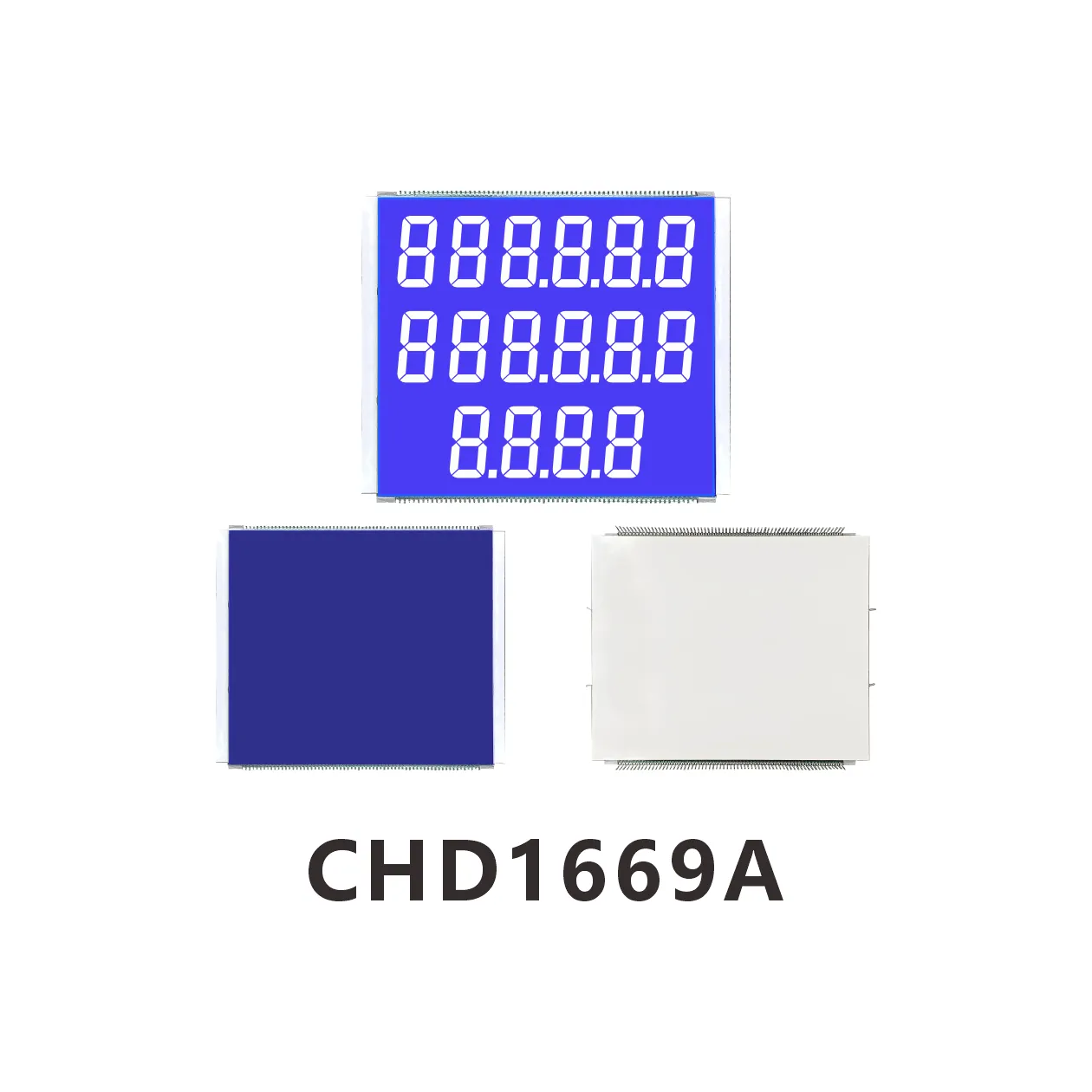

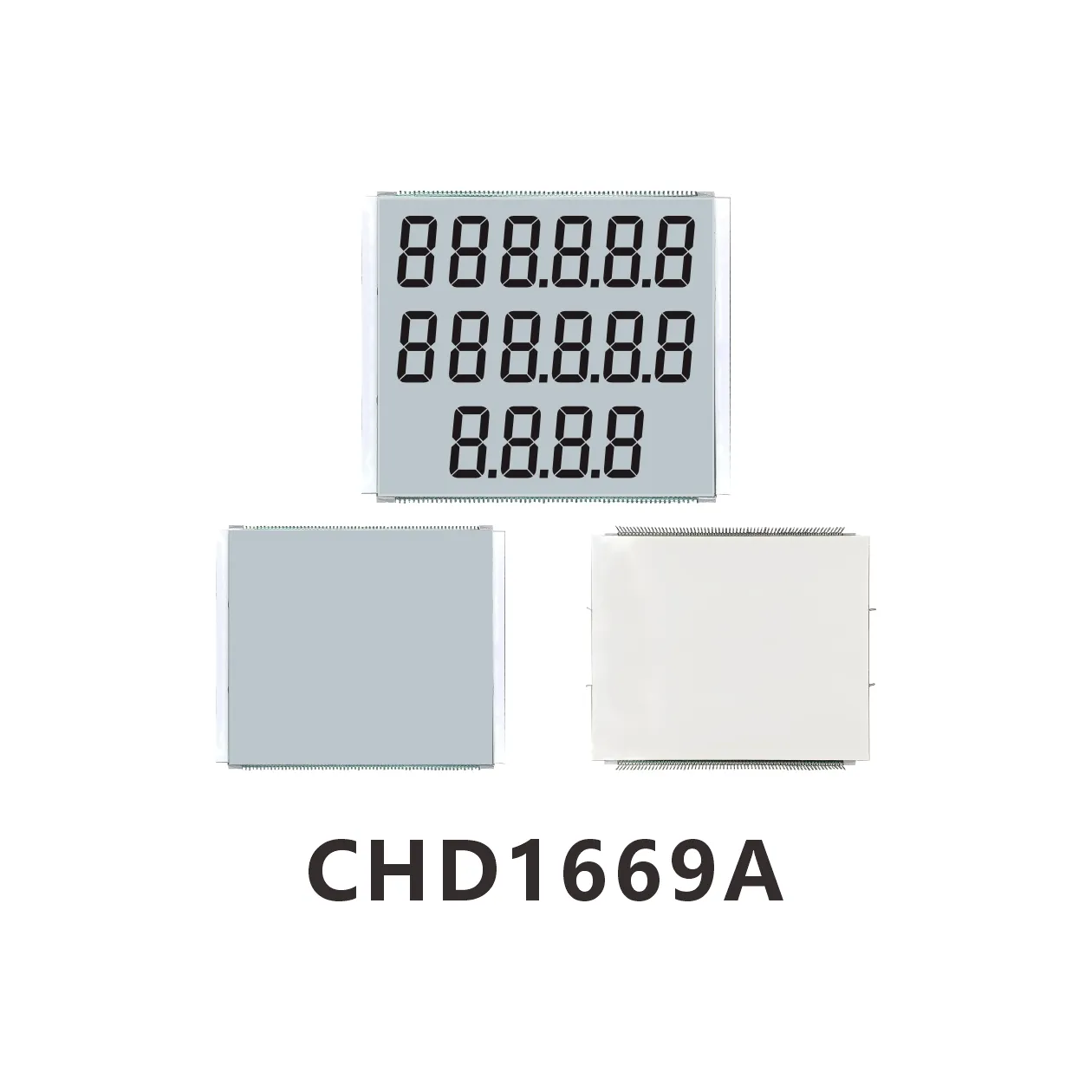

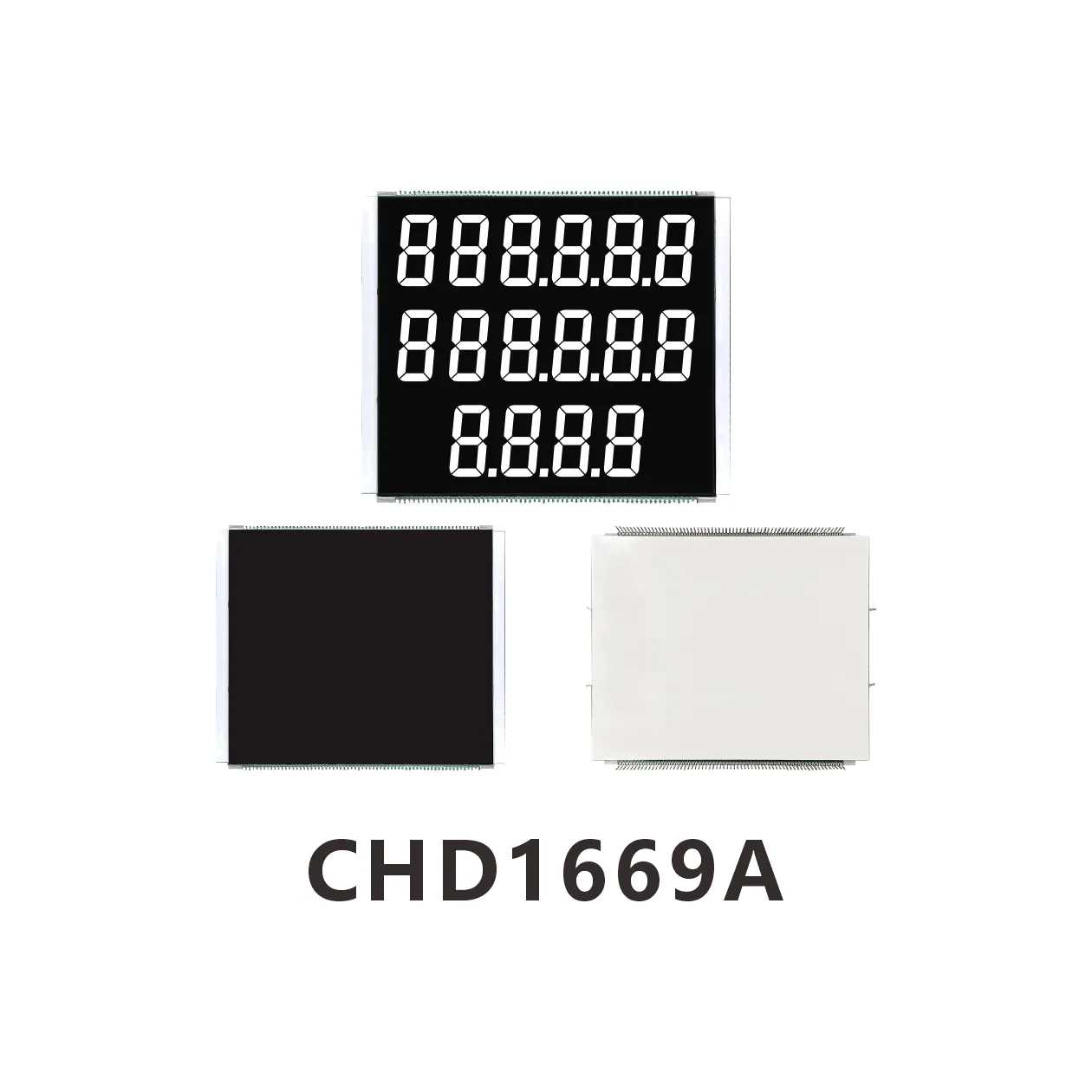

CH-D1669A Refueling machine LCD

CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD
CH-D1669A Refueling machine  LCD

CH-D1669A Refueling machine LCD

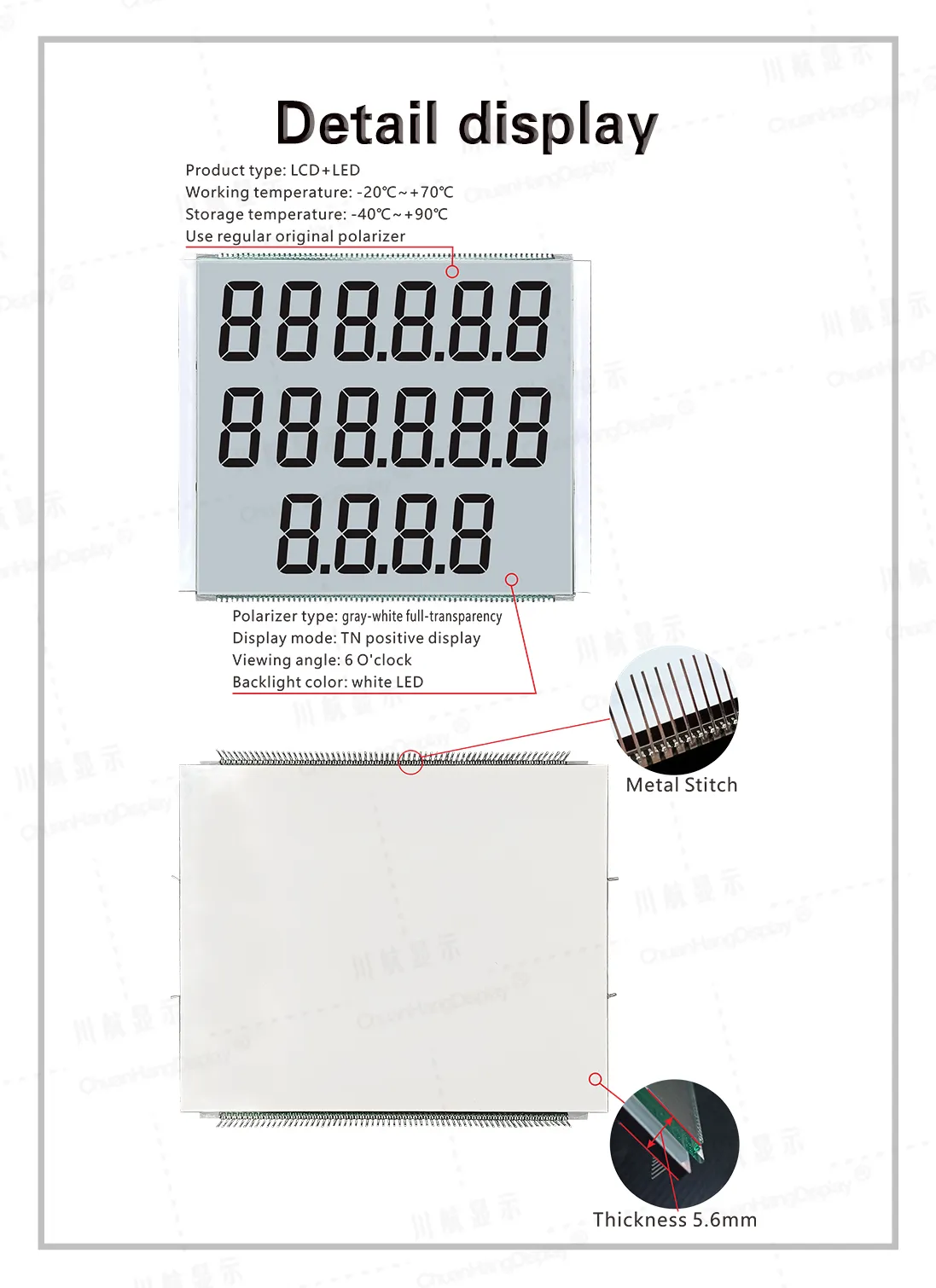

Product Description
LCD Material: TN LCD
Display Mode: TN
Polarizer Type:Grey film/fully permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -30℃~+80℃
Connection Method: PIN
Backlight :White LED
Application industry:Refueling machine
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH-D1669A
Display ModeTNDisplay SizeCustomized

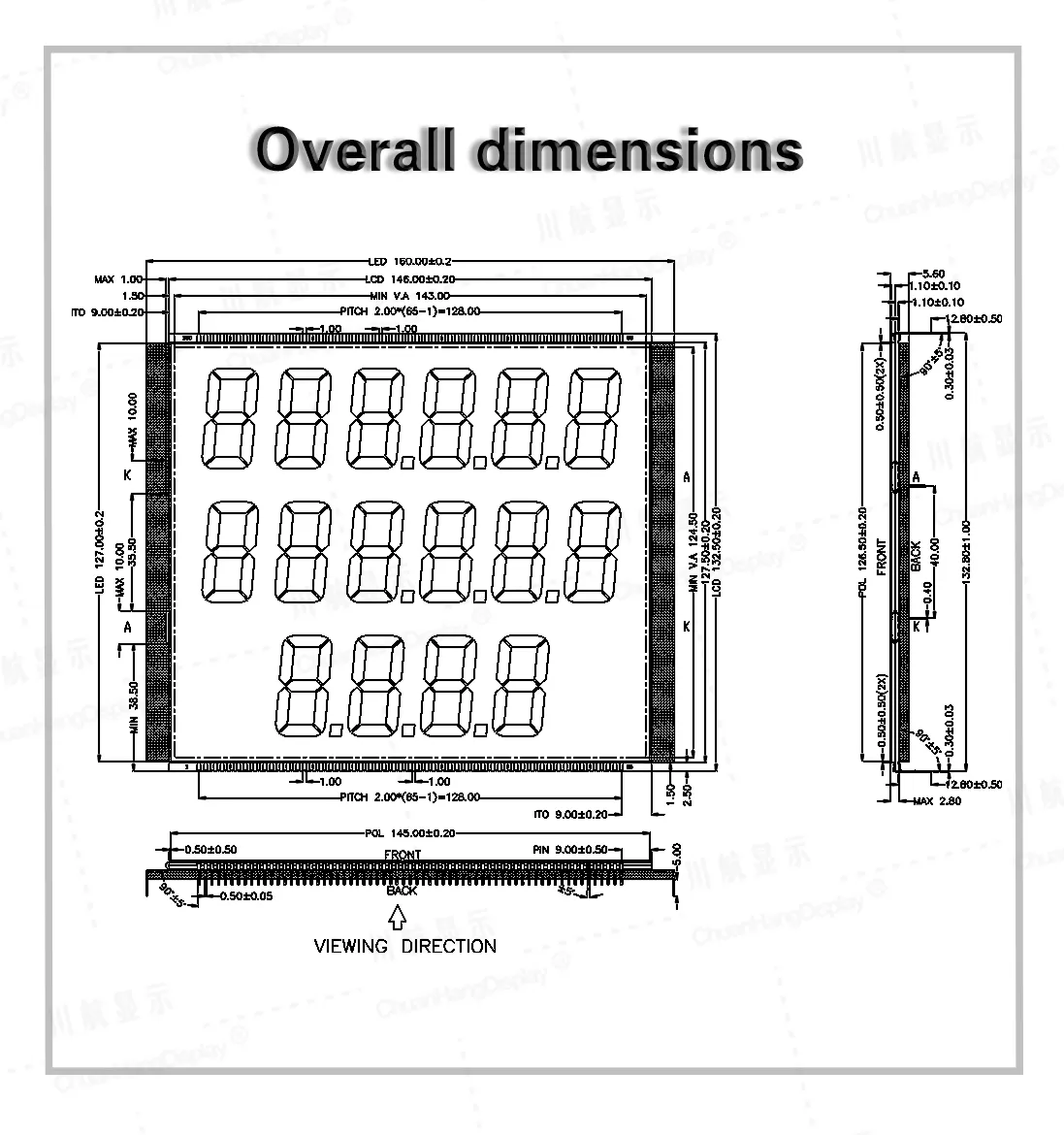

Outline Dimension(L*W*H)146.0x123.5x2.8mmVisible Area(L*W)/
Active Area(L*W)143.0x123.5mmCharacter Size(L*W) /
TypeCOBConnection MethodPIN
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeTNDriver IC/
Operating Temperature-30℃~+80℃Storage Temperature-40℃~+90℃
Backlight White LED Production CapacitySelf-produced
Character libraries/Whether to bring PCBNO
Product Datasheet

Product Display
