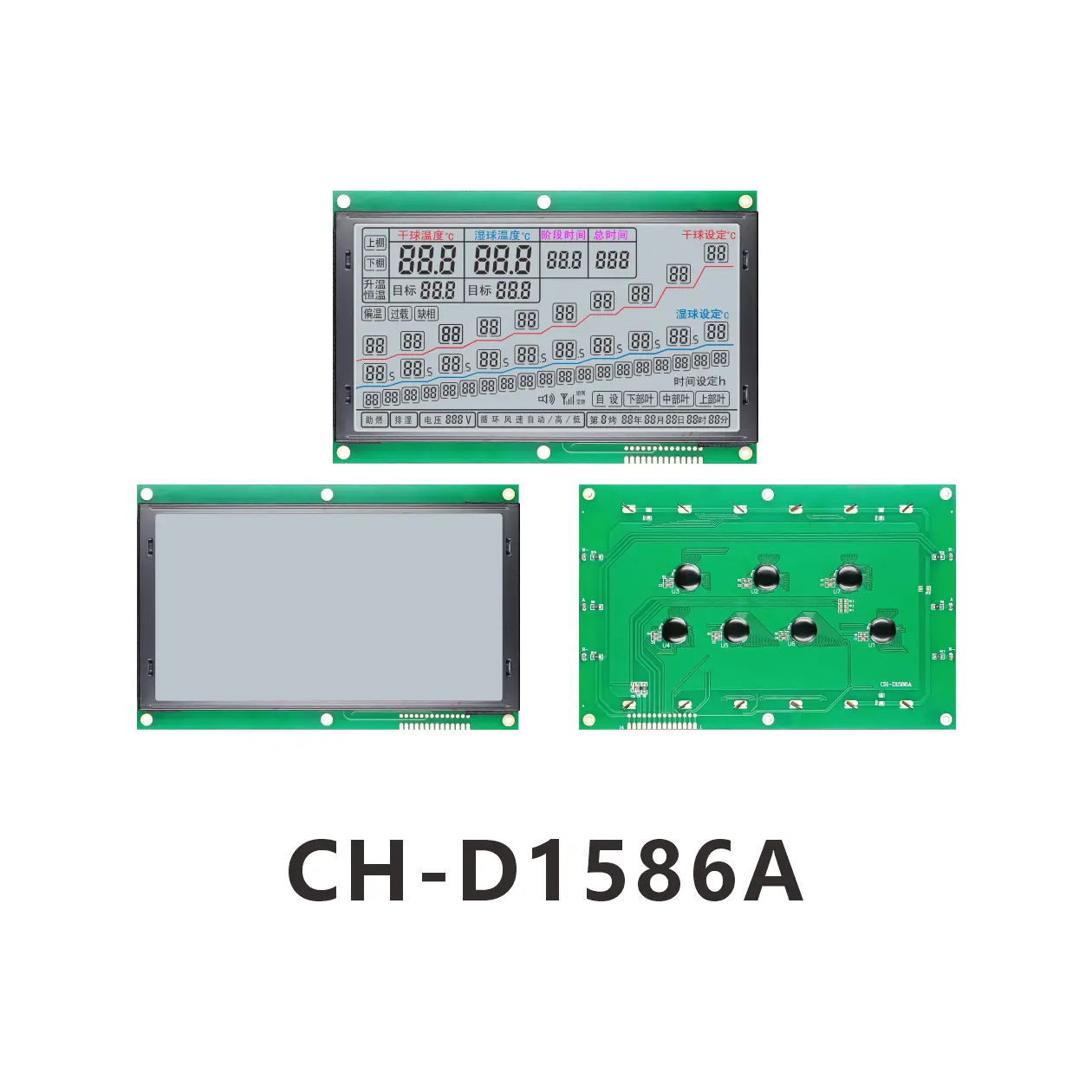

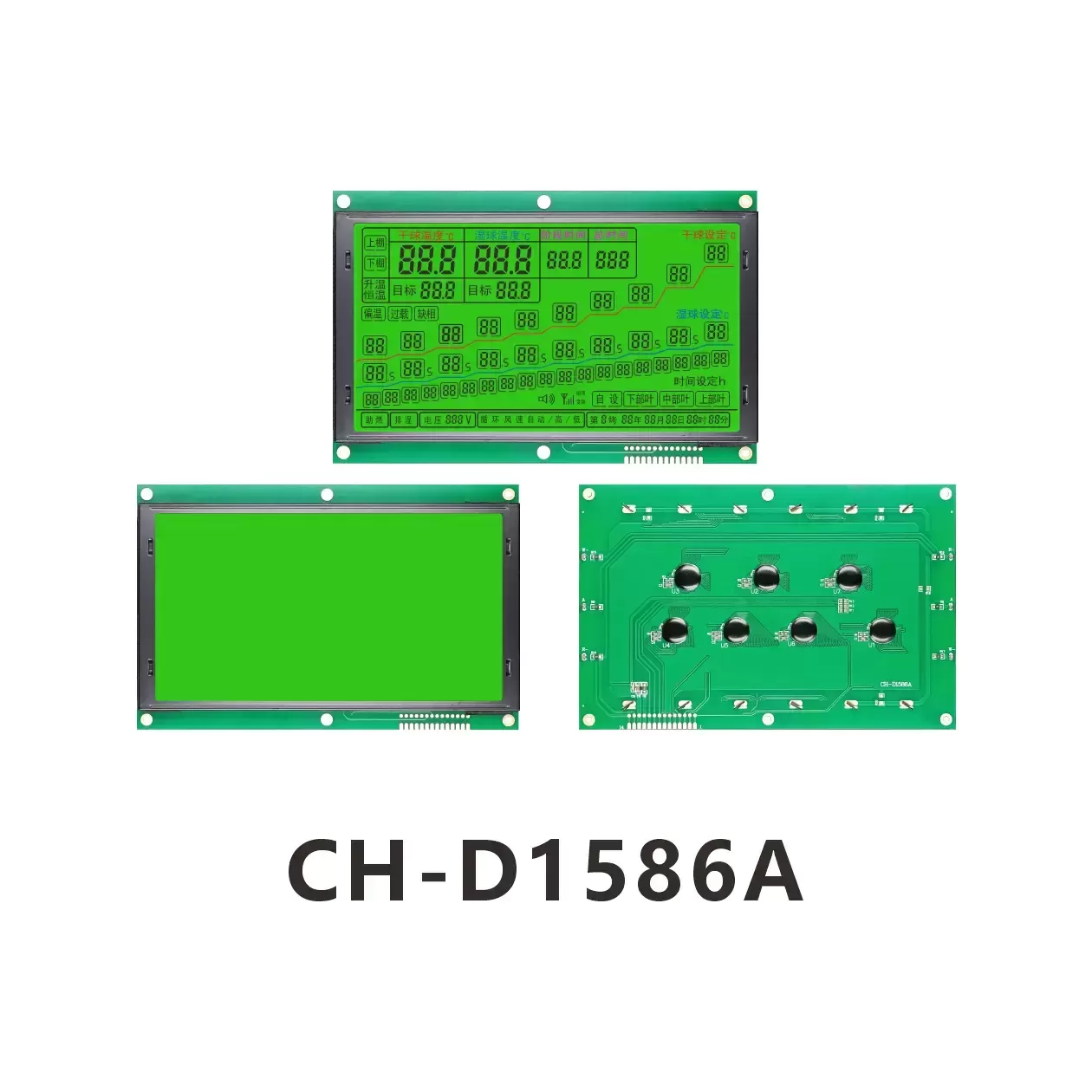

CH-D1586A Temperature and humidity controller LCD

Product Description
LCD Material: HTN LCD
Display Mode: HTN
Polarizer Type:Grey film/fully permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 3V
Operating Temperature: -20℃~+70℃
Connection Method: PIN
Backlight :White LED / RED LED
Application industry: Temperature and humidity controller
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH-D1586A
Display ModeHTNDisplay SizeCustomized
Outline Dimension(L*W*H)190.0x123.0x12.0mmVisible Area(L*W)/
Active Area(L*W)168.4x91.3mmCharacter Size(L*W) /
TypeCOBConnection MethodPIN
Supply Voltage3V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1621
Operating Temperature-20℃~+70℃Storage Temperature-20℃~+70℃
BacklightWhite LED  / RED LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES
