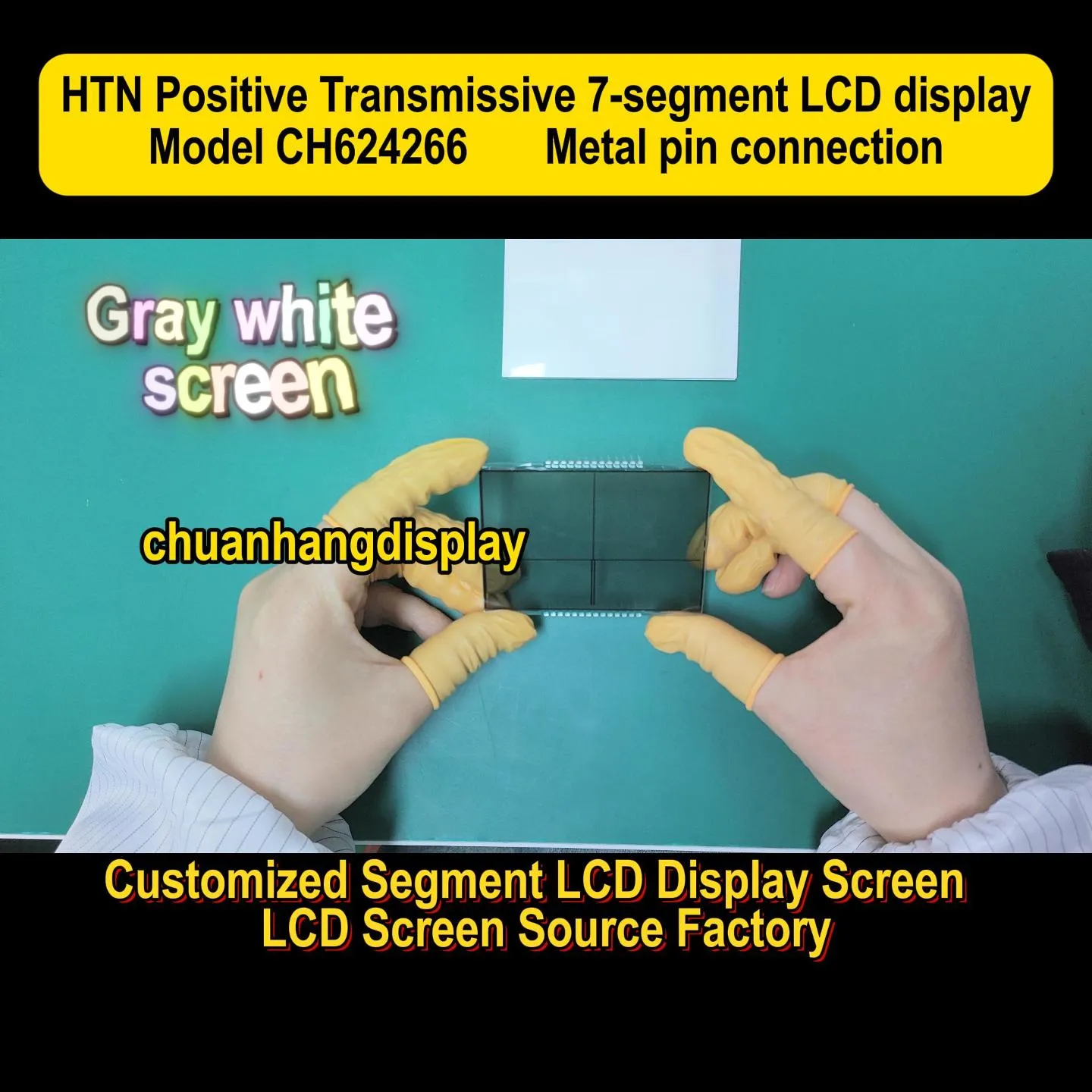

Product Description

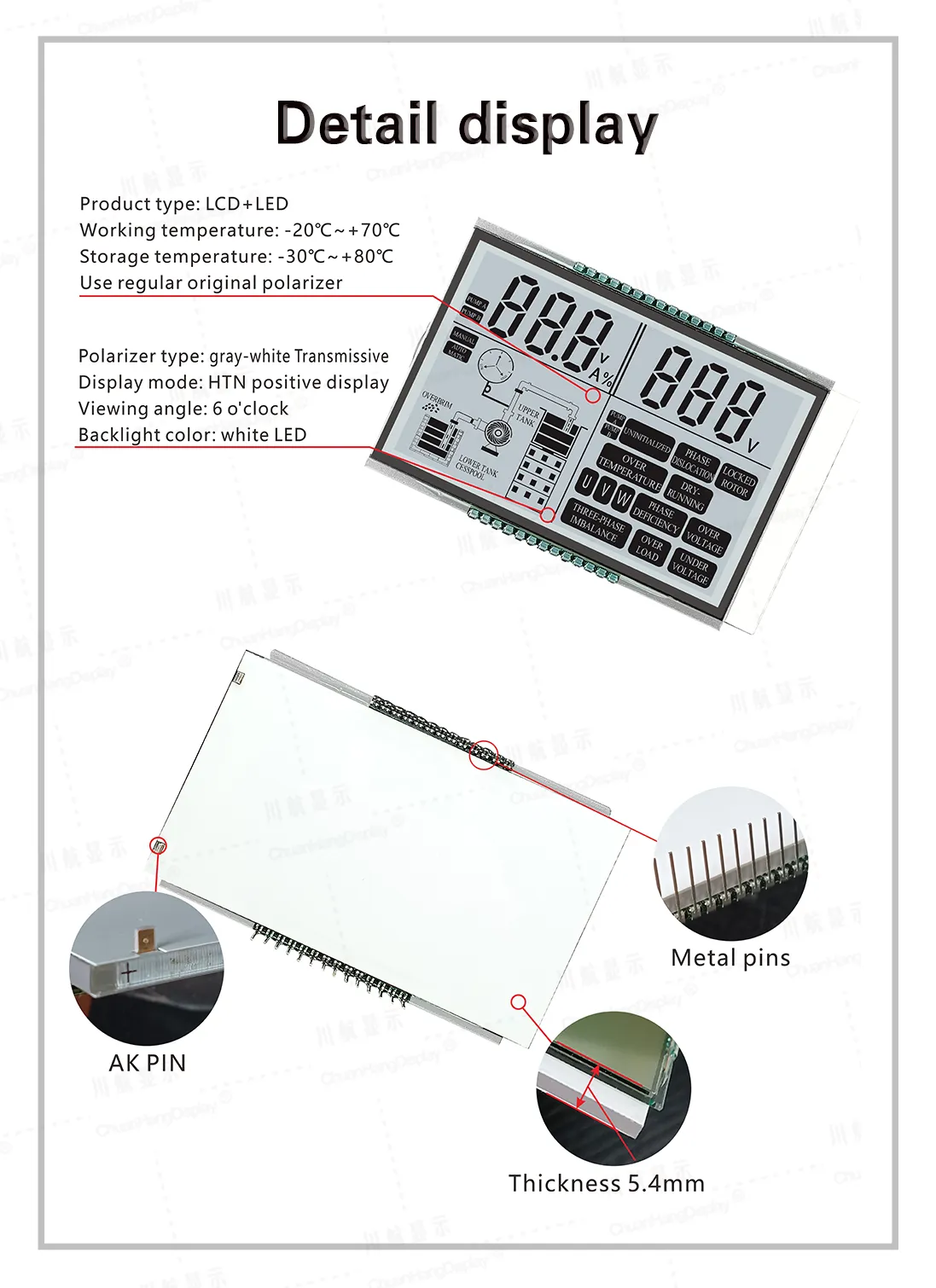

LCD Material: HTN LCD
Display Mode: HTN/POSITIVE
Polarizer Type: Grey film/semi-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+60℃
Connection Method: PIN
Backlight ：White LED
Application industry: Ecological environment monitoring and testing instruments
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH624266
Display ModeHTN/POSITIVEDisplay SizeCustomized

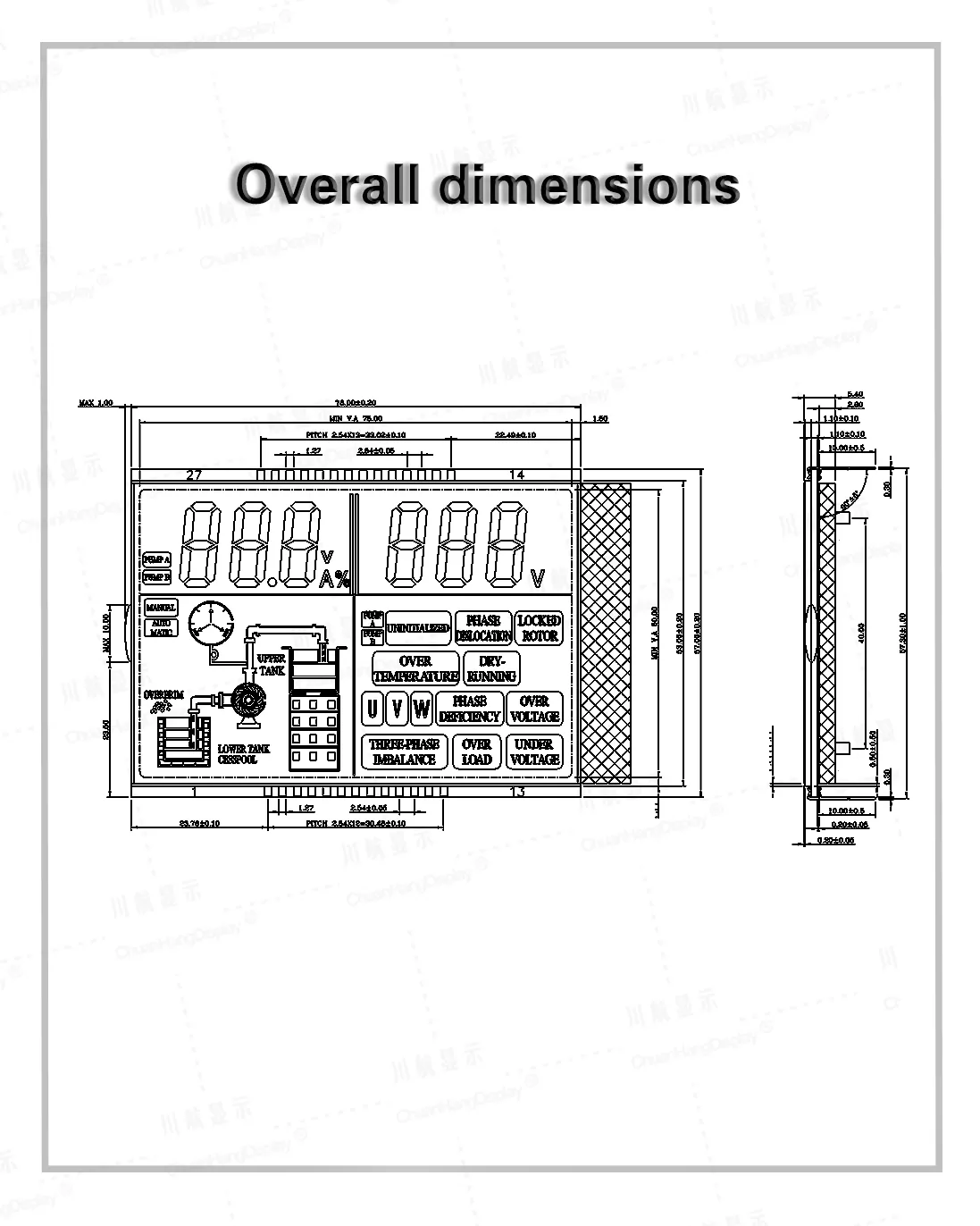

Outline Dimension(L*W*H)78.00x57.00x 2.8mmVisible Area(L*W)/
Active Area(L*W)75.00x50.00mmCharacter Size(L*W) /
TypeCOBConnection MethodPIN
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver IC/
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBNO
Product Datasheet

Product Display

CH624019 Water quality pollutant monitoring and detection instrument screen Previous：

CH624019 Water quality pollutant monitoring and detection instrument screen

CH625042 Communication equipment LCD Next：

CH625042 Communication equipment LCD

Product Label: High Quality HTN 7 Segment LCD Display Module Industrial Grade Custom Factory High Visibility Positive Segment for Environmental Monitoring
