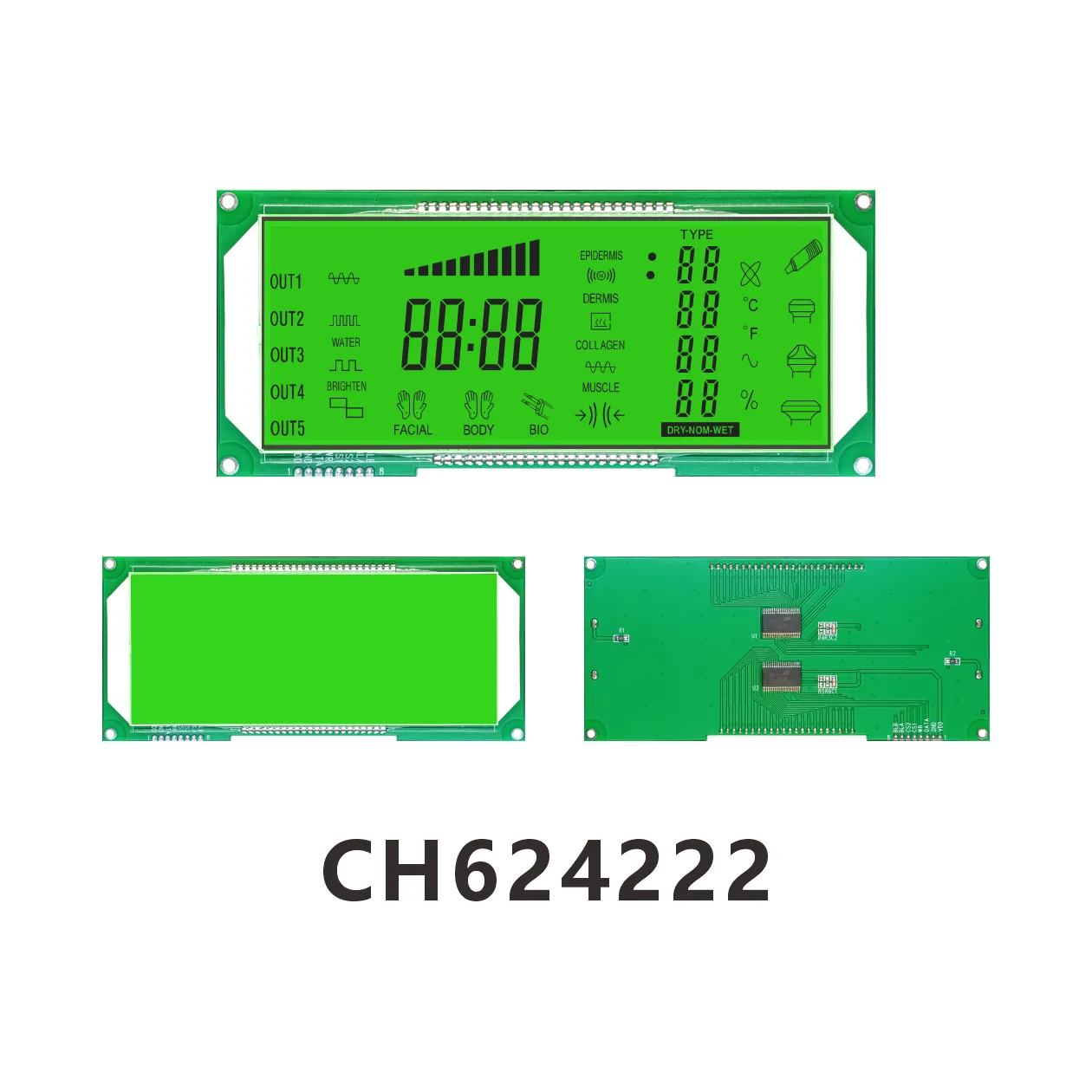

CH624222 Electronic Cashier System Screen

CH624222 Electronic Cashier System Screen

PRODUCTS CENTER

CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen
CH624222 Electronic Cashier System Screen

CH624222 Electronic Cashier System Screen

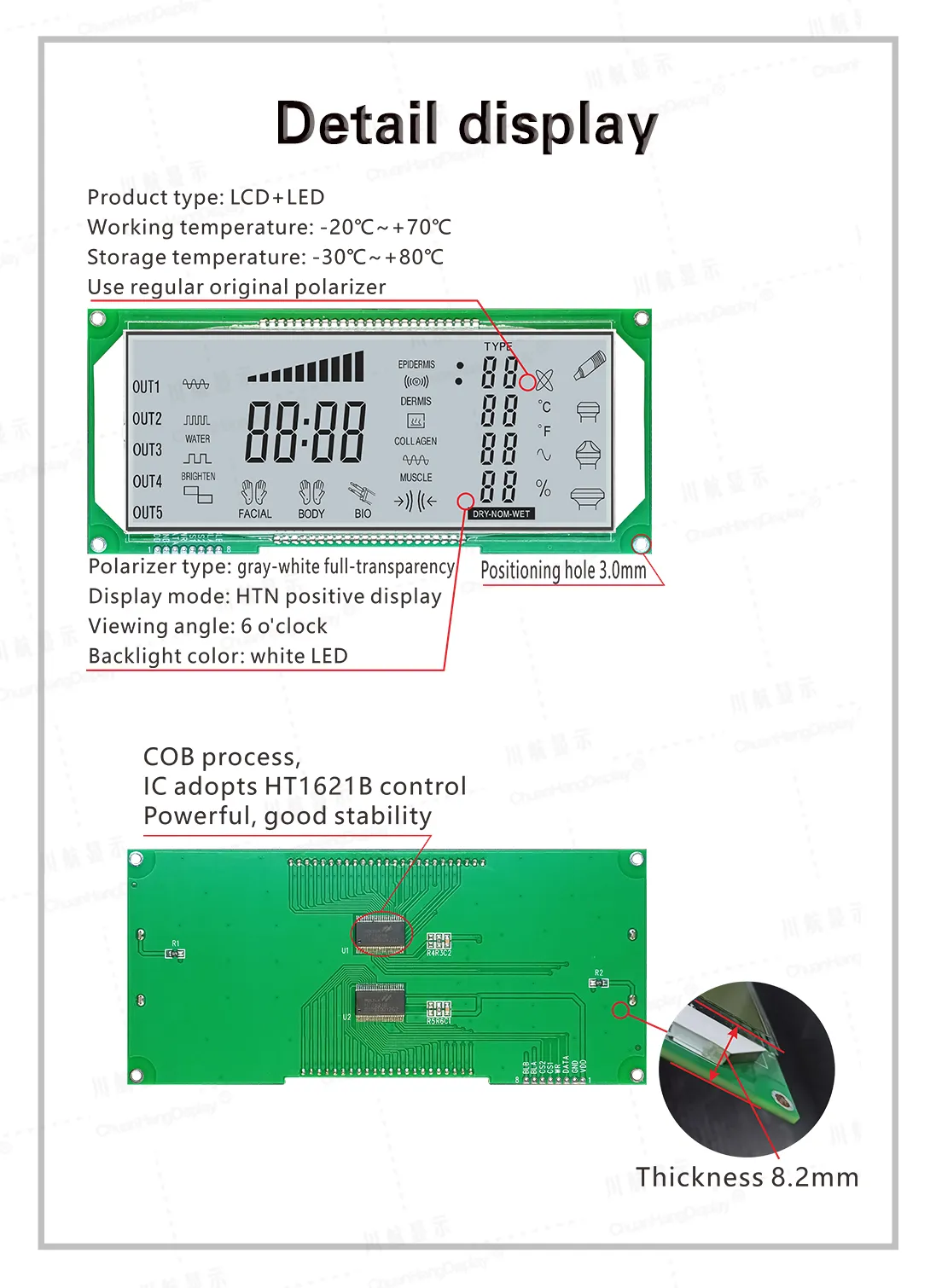

Product Description
LCD Material: HTN LCD
Display Mode: HTN/POSITIVE/TRANSMISSIVE
Polarizer Type: Grey film/full-permeable
Process Type: COB
View Direction: 6 O'CLOCK
Working Voltage: 5V
Operating Temperature: -20℃~+70℃
Connection Method: Conductive strip
Backlight ：White LED
Application industry: Electronic cash register system
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH624222
Display ModeHTN/POSITIVE/TRANSMISSIVEDisplay SizeCustomized

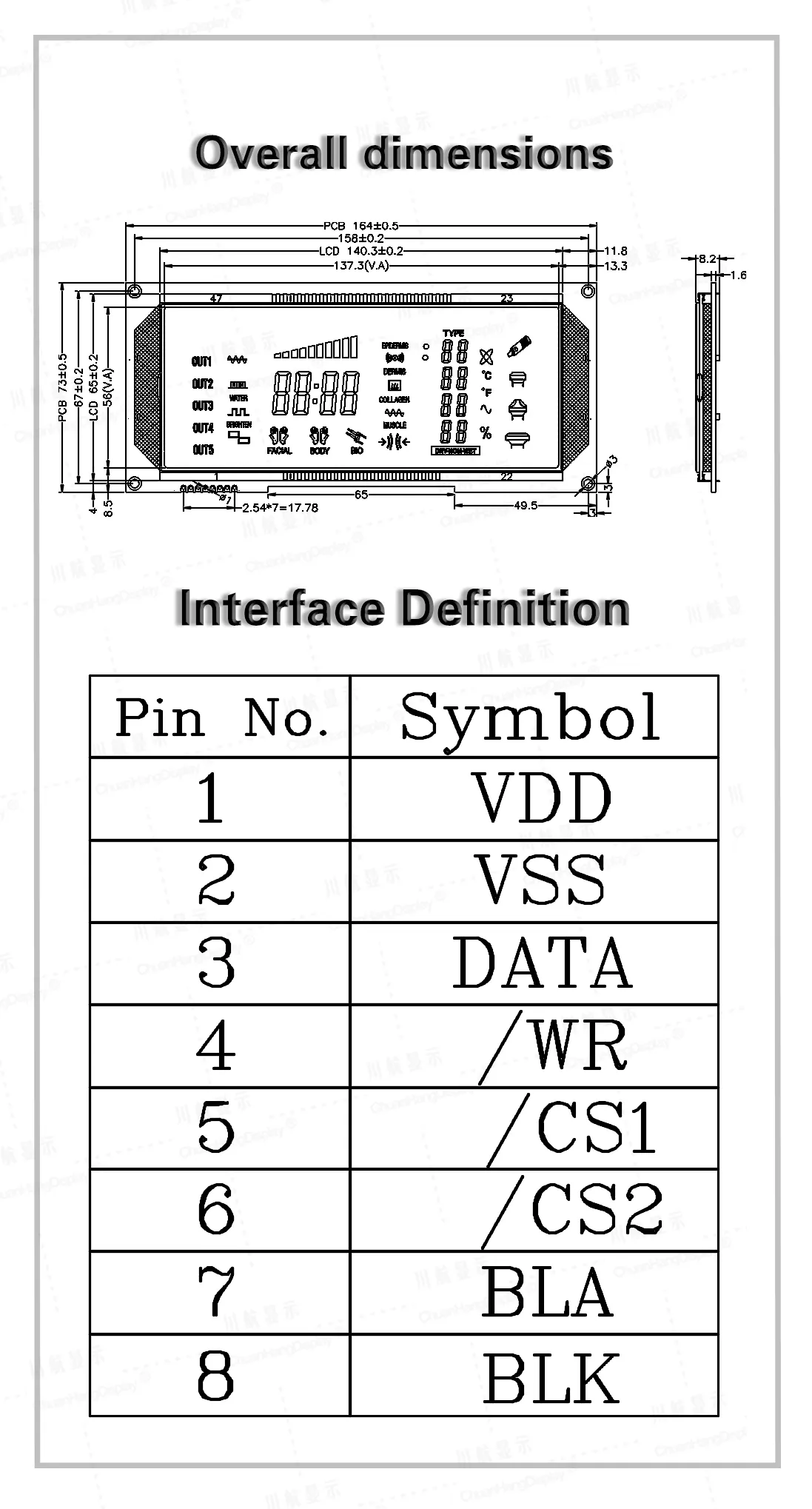

Outline Dimension(L*W*H)164.00x73.00x 8.2mmVisible Area(L*W)/
Active Area(L*W)137.3.00x56.00mmCharacter Size(L*W) /
TypeCOBConnection MethodConductive strip
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeHTNDriver ICHT1621B
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES
Product Datasheet

Product Display
