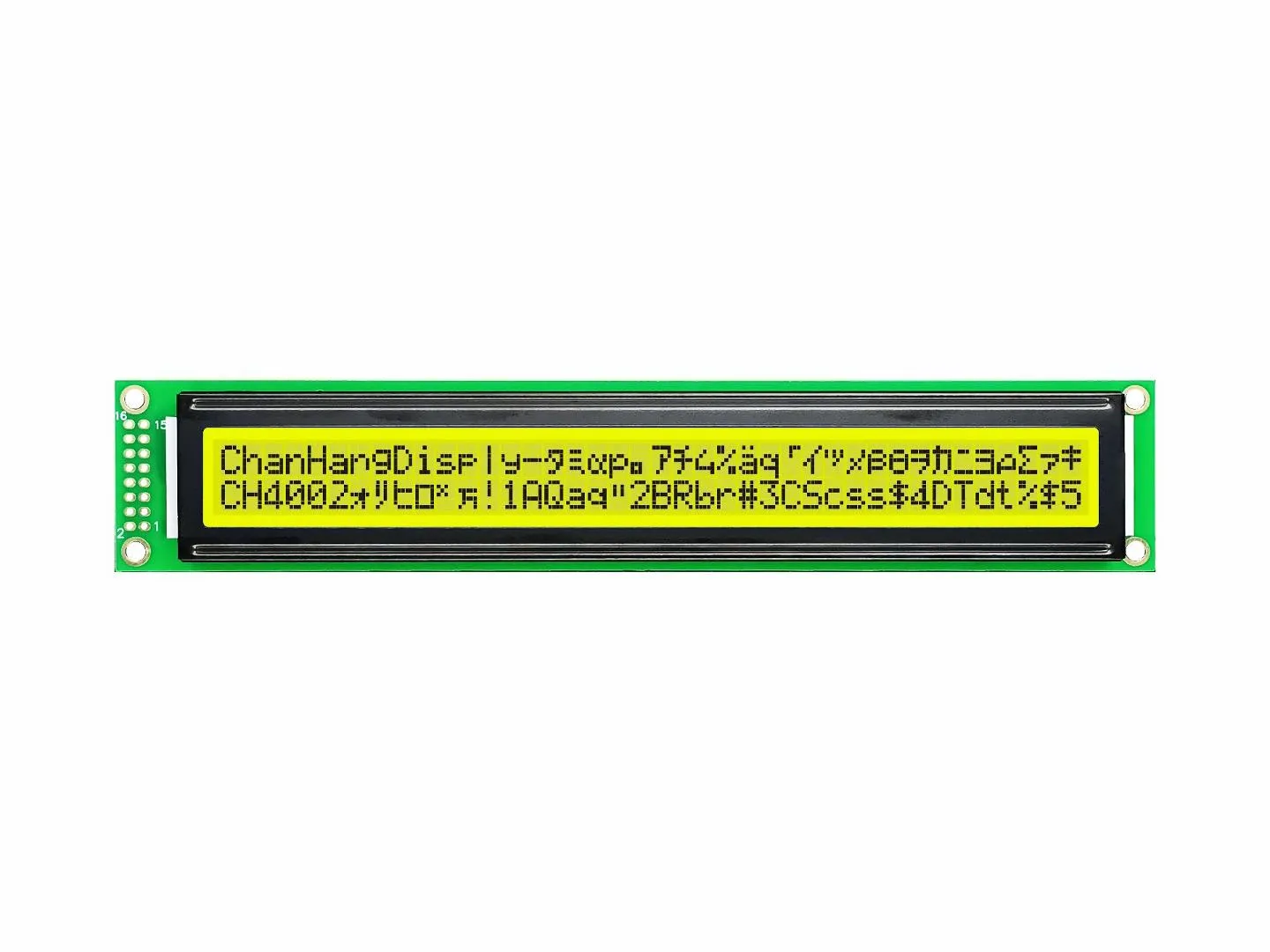

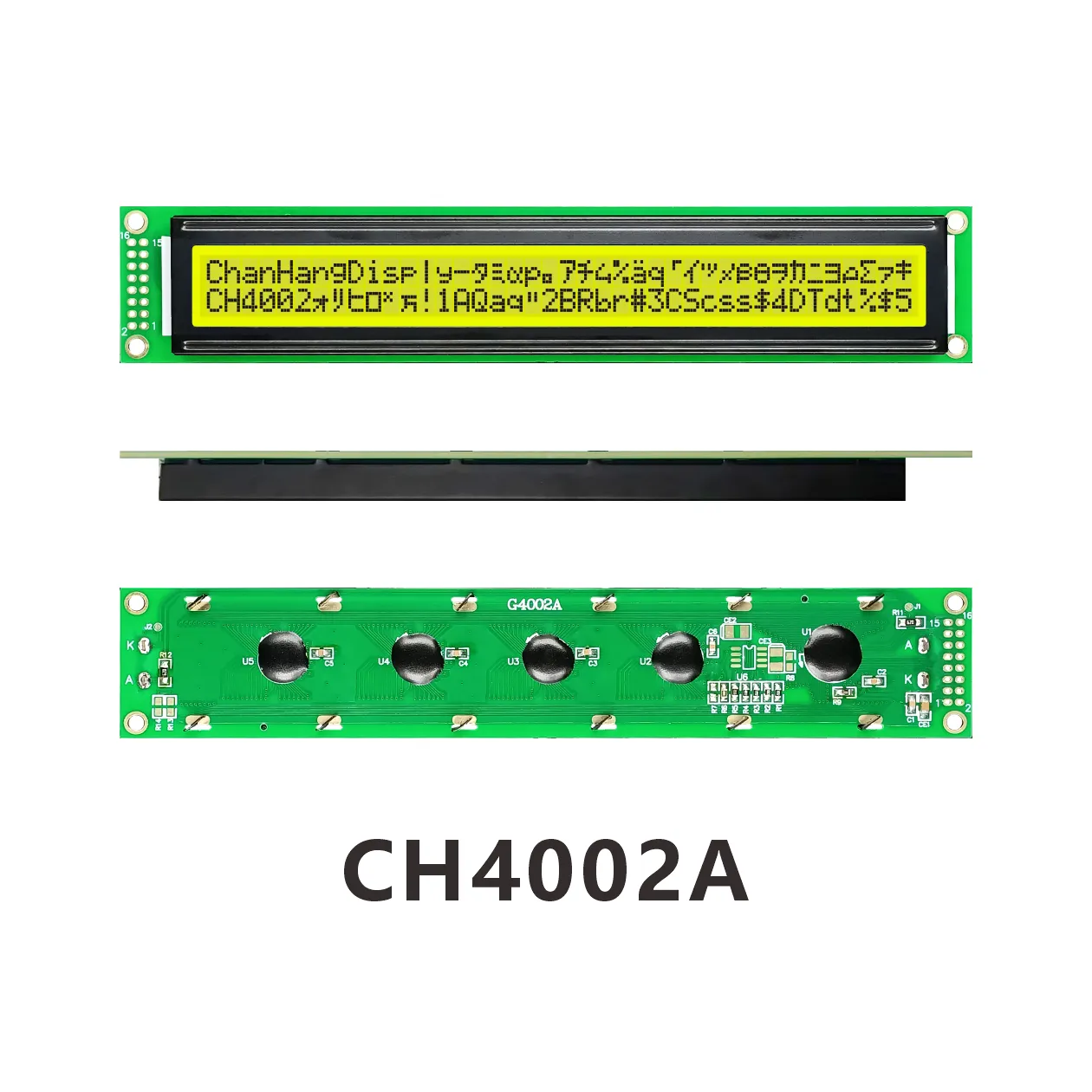

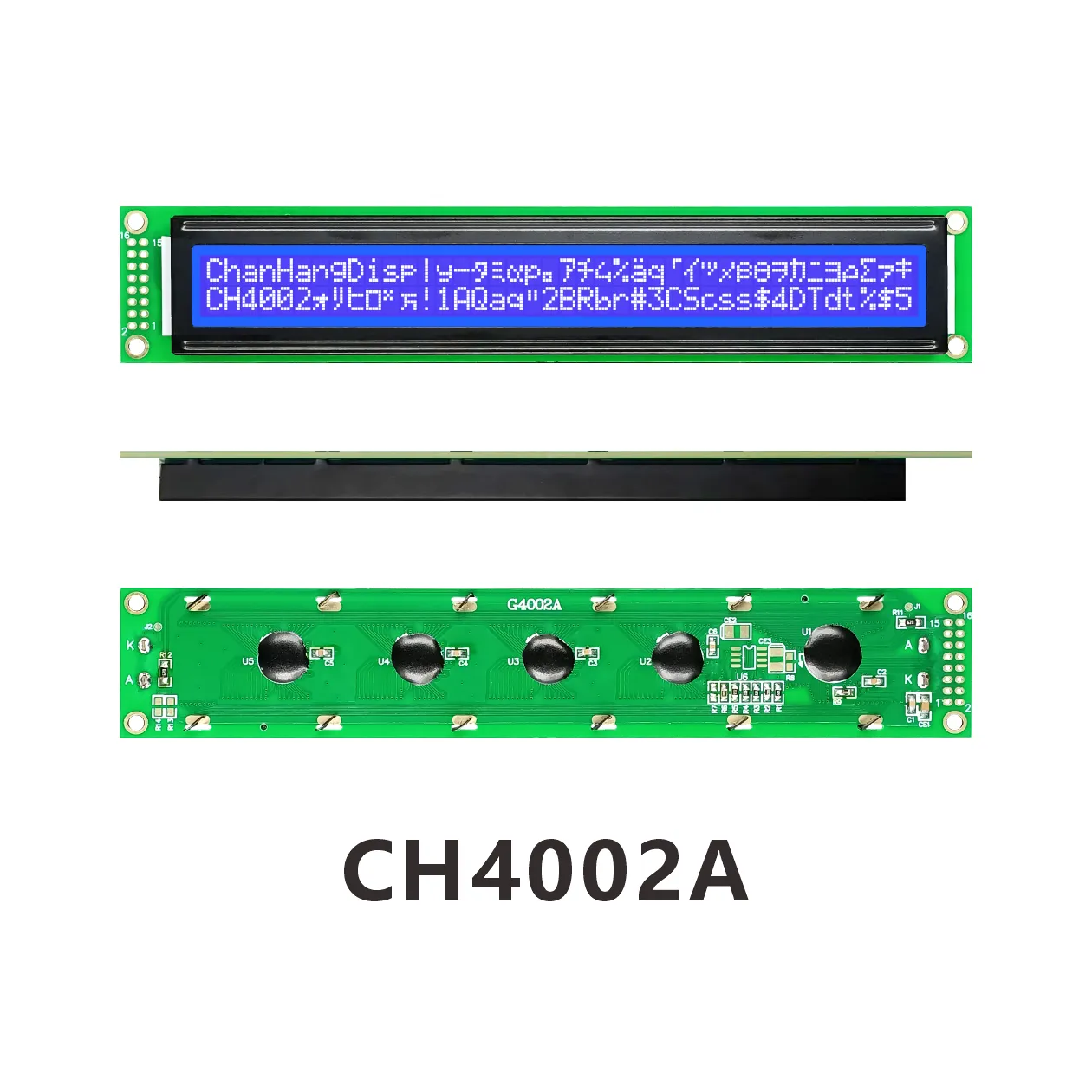

CH4002A 40x2 lcd display
Product Description

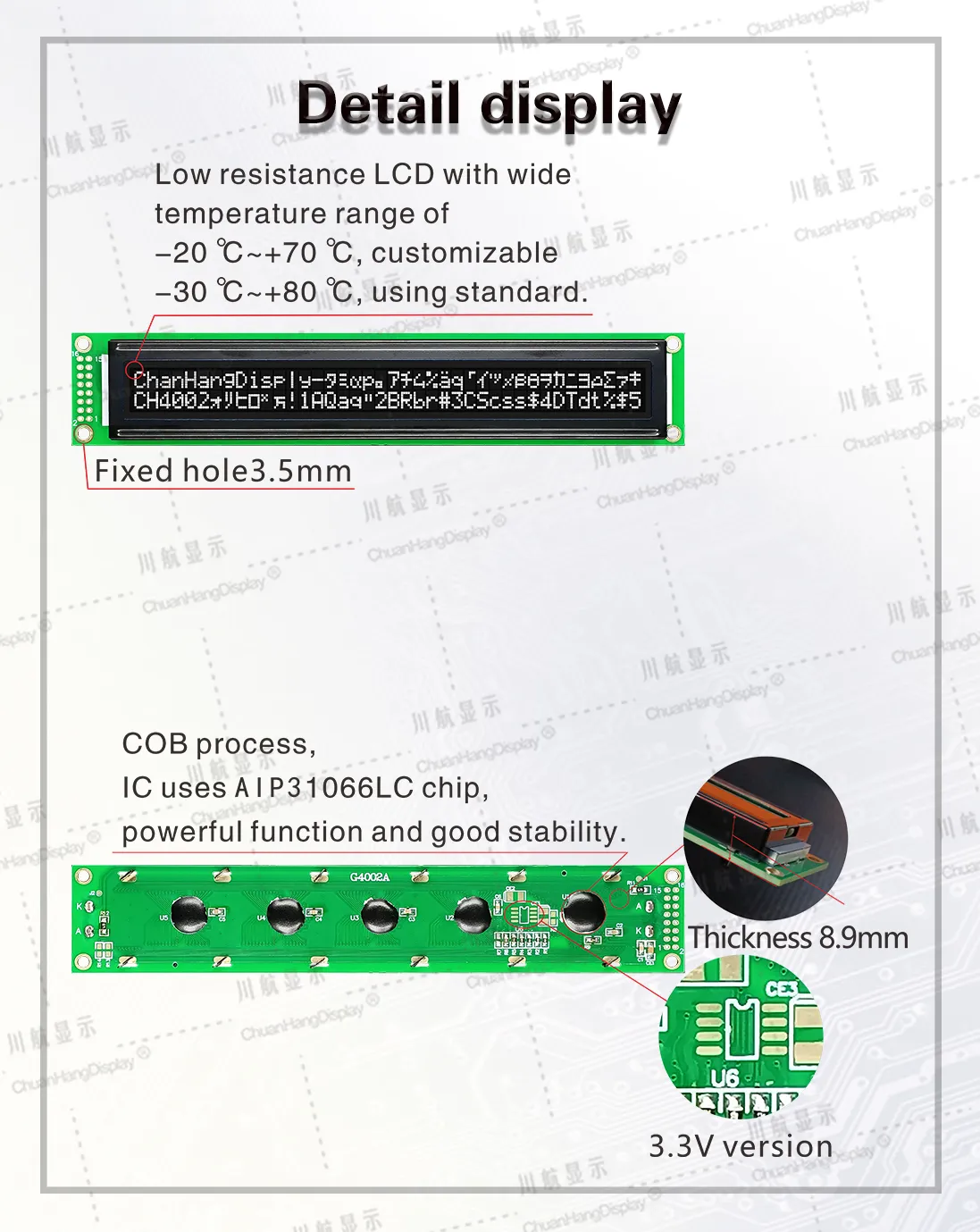

1.1 COB process, product with backlight, conductive tape connection, stable structure.
1.2 Font includes English-Japanese, English-European, English-Russian, default is English-Japanese, IC using AIP31066L. When using RW1063, optional SPI and I2C interface.
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 3mA, with backlight current within 20mA.
1.4 LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
1.5 Features.
● 40 characters x 2 lines.
● Display data RAM of 80 x 8 bits (up to 80 characters).
● Parallel interface, 4-bit or 8-bit MCU communication.
● Abundant functions: Interface display on/off, cursor Interface display on/off, Cursor on/off, Cursor blinking on/off, Display and Cursor moving direction, Cursor moving direction,Cursor moving direction.display and cursor moving direction.
● Automatic power-on reset function
1.2 Font includes English-Japanese, English-European, English-Russian, default is English-Japanese, IC using AIP31066L. When using RW1063, optional SPI and I2C interface.
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 3mA, with backlight current within 20mA.
1.4 LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
1.5 Features.
● 40 characters x 2 lines.
● Display data RAM of 80 x 8 bits (up to 80 characters).
● Parallel interface, 4-bit or 8-bit MCU communication.
● Abundant functions: Interface display on/off, cursor Interface display on/off, Cursor on/off, Cursor blinking on/off, Display and Cursor moving direction, Cursor moving direction,Cursor moving direction.display and cursor moving direction.
● Automatic power-on reset function
