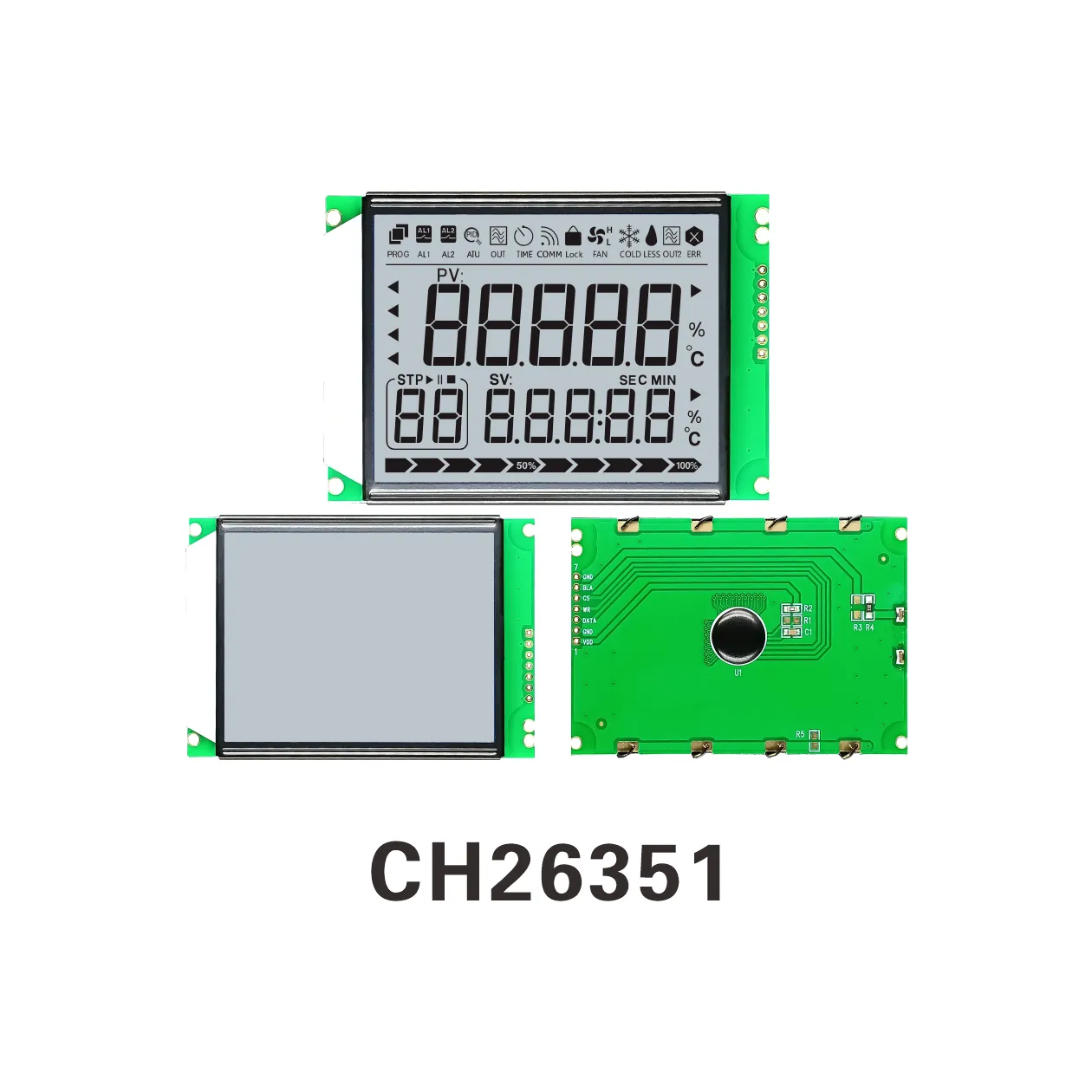

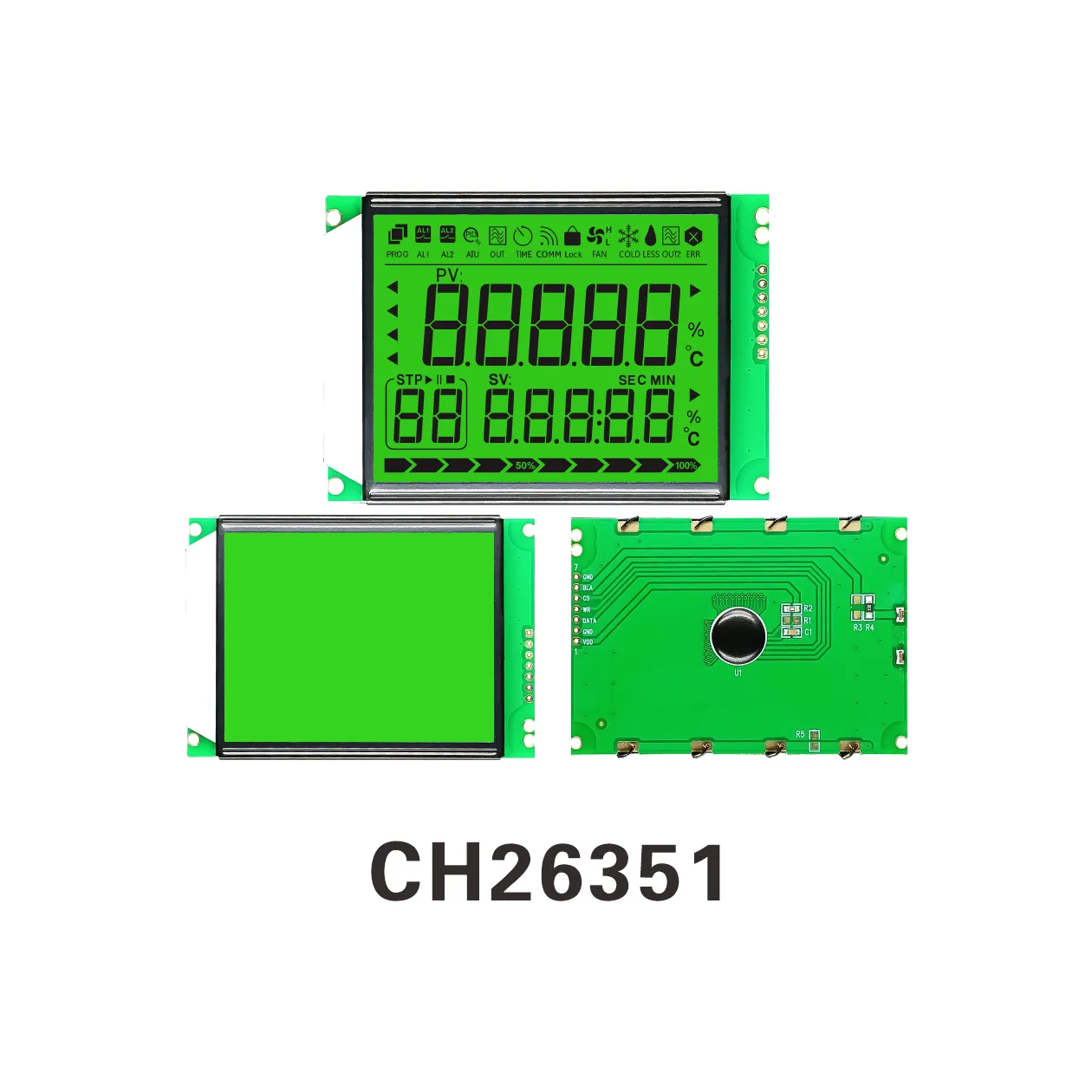

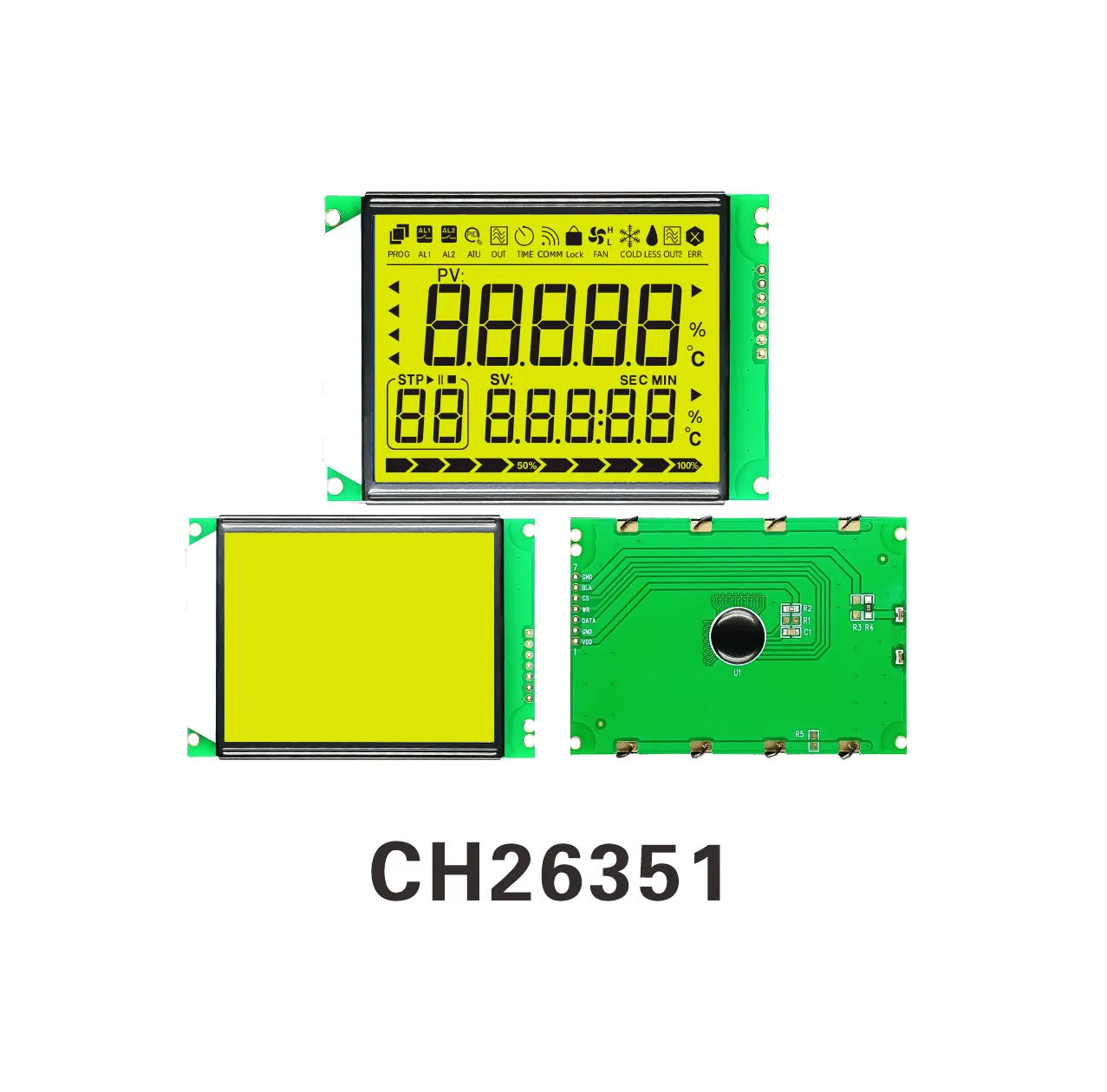

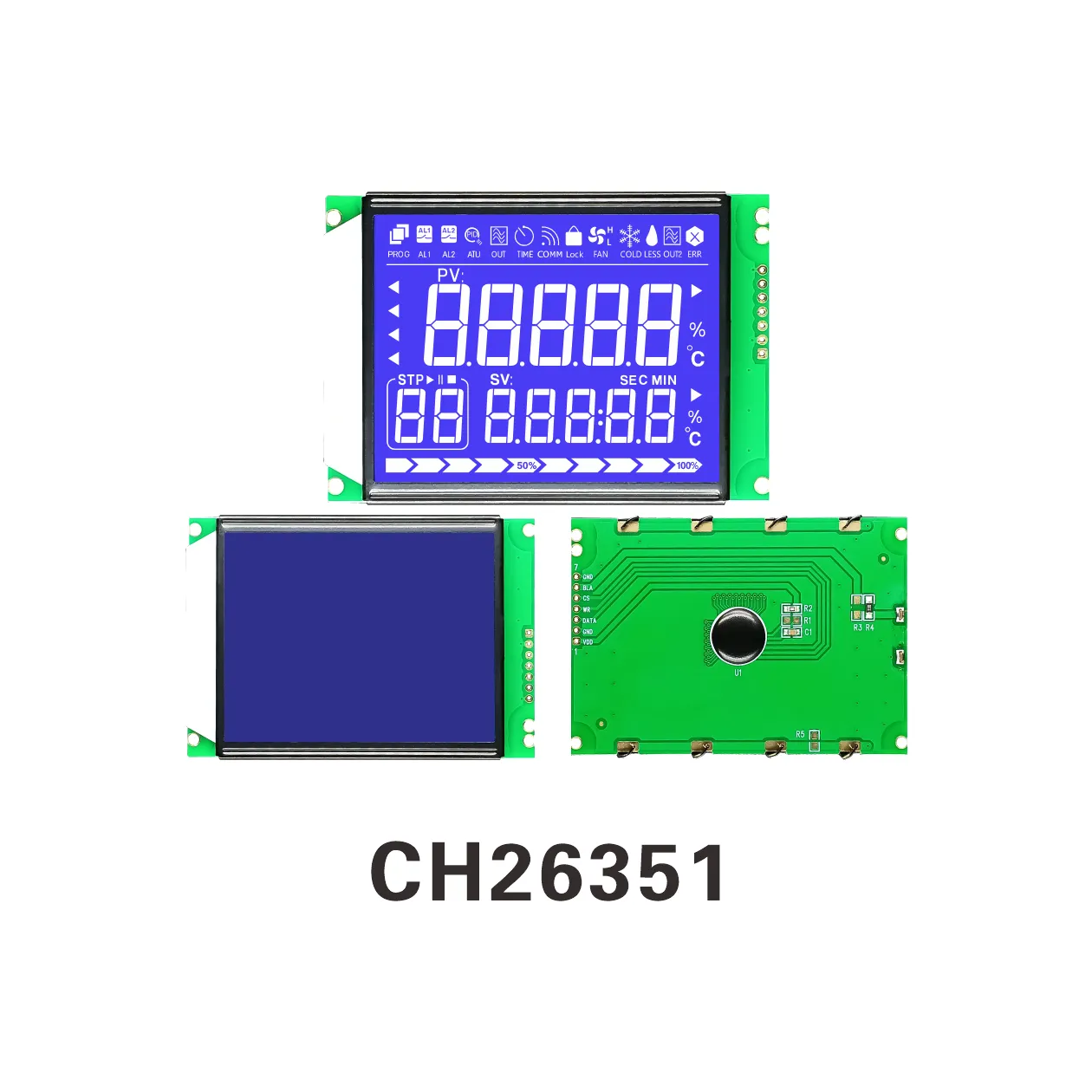

CH26351 Water quality detector LCD

CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD
CH26351 Water quality detector  LCD

CH26351 Water quality detector LCD

Product Description
LCD Material: STN LCD
Display Mode: negative display
Polarizer Type: blue film fully transparent
Process Type: COB
View Direction: 6 O'CLOCK
IC:HT1622
Working Voltage: 5.0V
Operating Temperature: -20~70℃
Connection Method: Conductive strip
Backlight :White LED
Application industry: Water quality detector

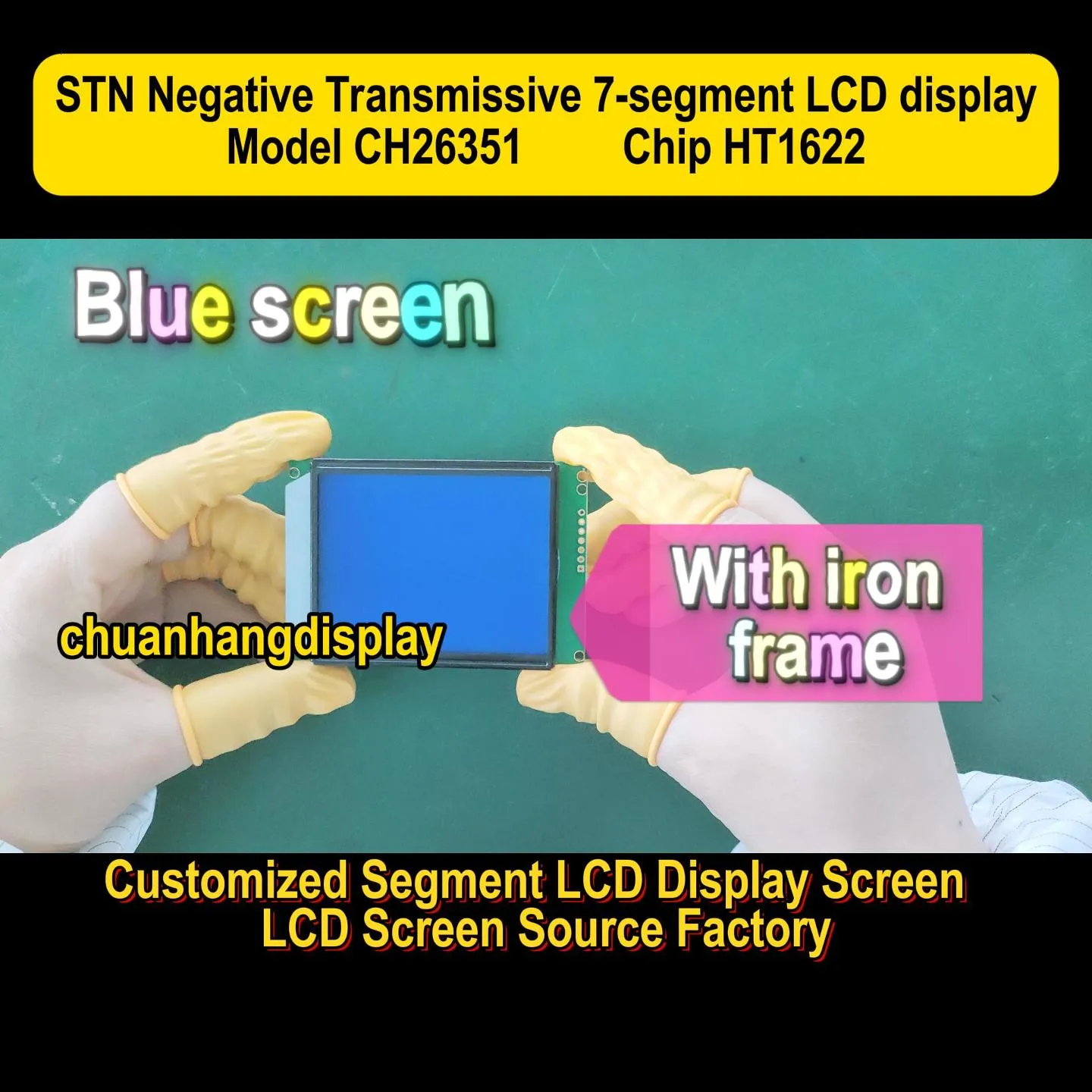

Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH26351
Display ModeNegative display Display SizeCustomized

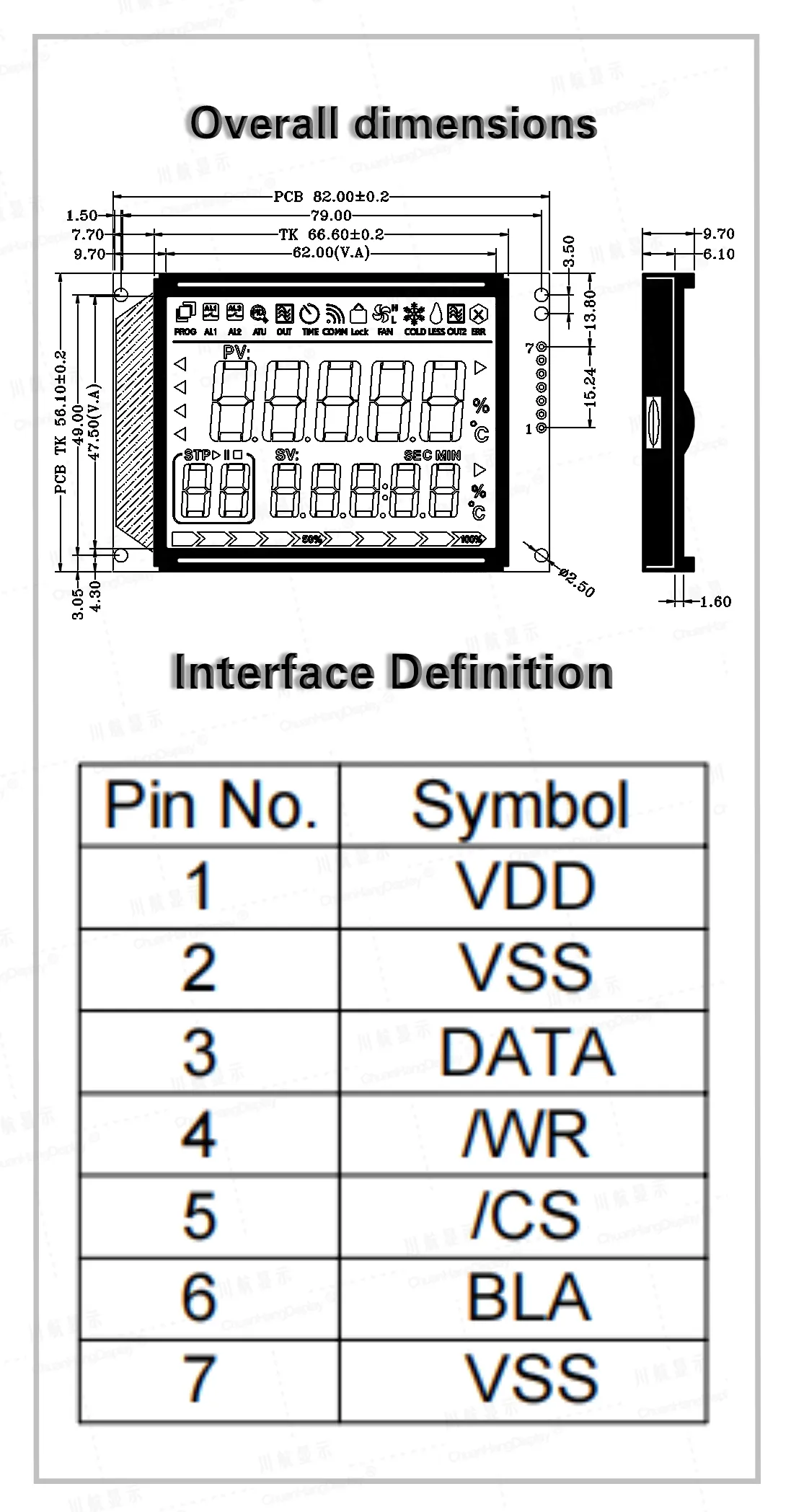

Outline Dimension(L*W*H)82.0x56.100x9.7mmVisible Area(L*W)/
Active Area(L*W)62.00x47.50 mmCharacter Size(L*W) /
TypeCOBConnection MethodConductive strip
Supply Voltage5V Interface TypeSPI
Viewing Direction6 O'CLOCK Driving Method/
Display TypeSTN Driver ICHT1622
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
Backlight White LEDProduction CapacitySelf-produced
Character libraries/Whether to bring PCBYES
Product Datasheet

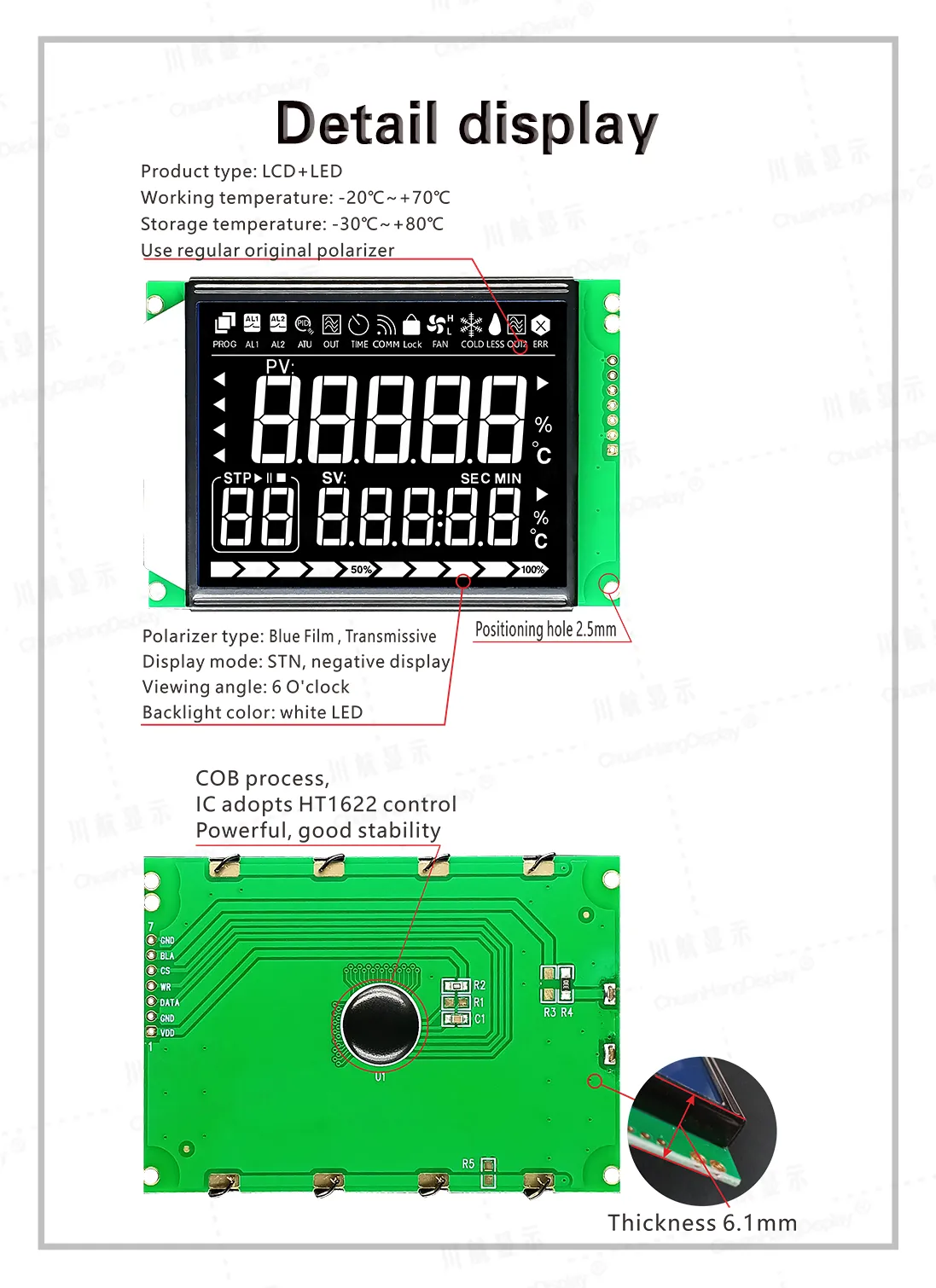

Product Display
