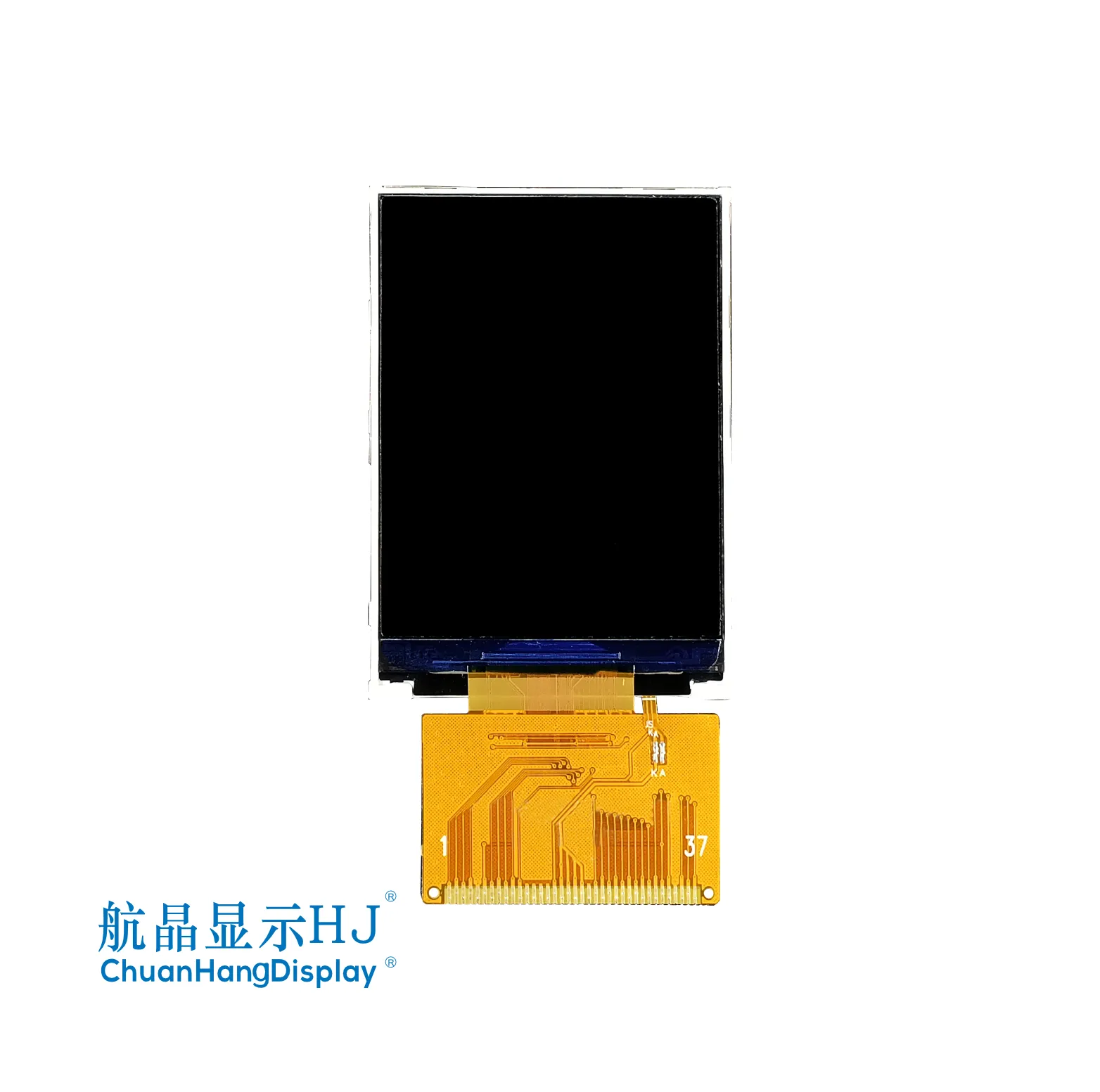

Product Description
Product size: 2.4 inches
Resolution: 240xRGBx320
Viewing angle:12 o'clock
Interface type:RGB

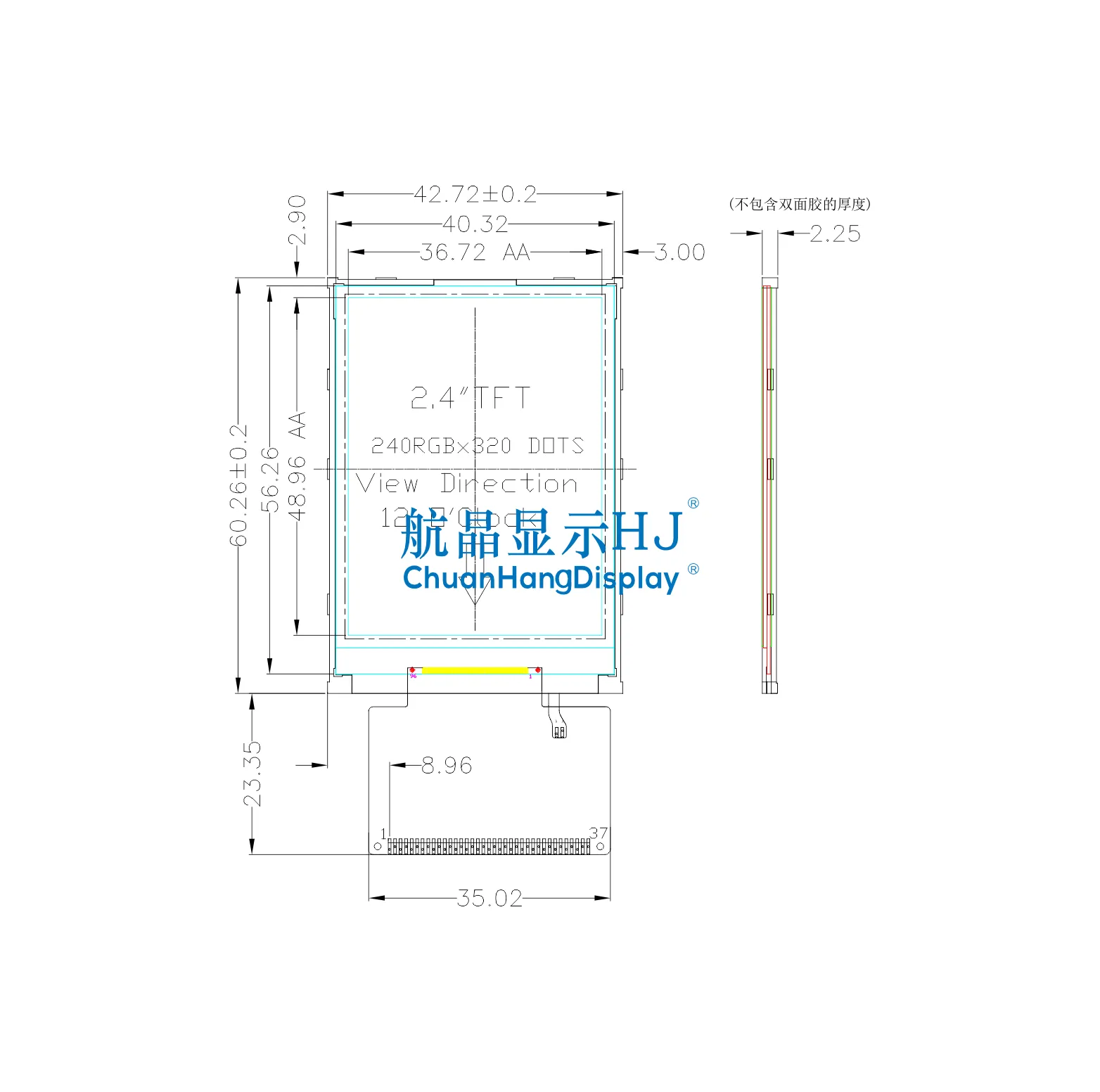

Module size: 42.72X60.26X2.25mm
Active area: 36.72X48.96mm
Cable interface: 37 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation

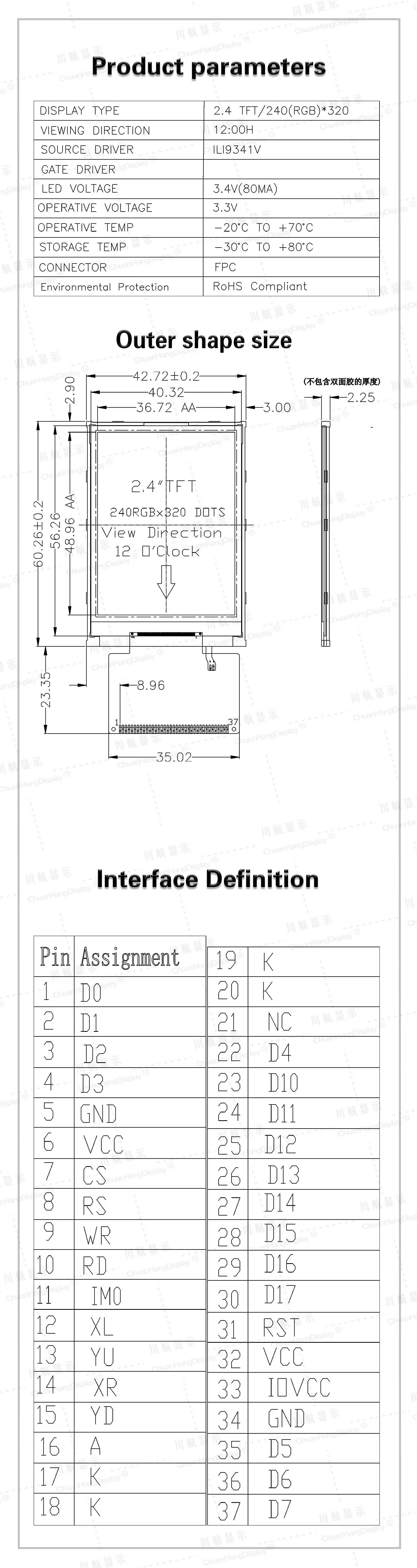

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH24QI344
Resolution240xRGBx320screen size2.4"
Outline Dimension(L*W*H)42.72X60.26X2.25mmVisible Area(L*W)
Active Area(L*W)36.72X48.96mmTypeCOG
Connection MethodFPCOperating Voltage3.3V
Interface Type37PINViewing Direction12 o'clock
Communication interfaceRGBDisplay Color TFT
Driver ICILI9341VOperating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃Backlight parameters
production capacitySelf-producedWhether to bring PCBNO
Product Datasheet

Product Display
