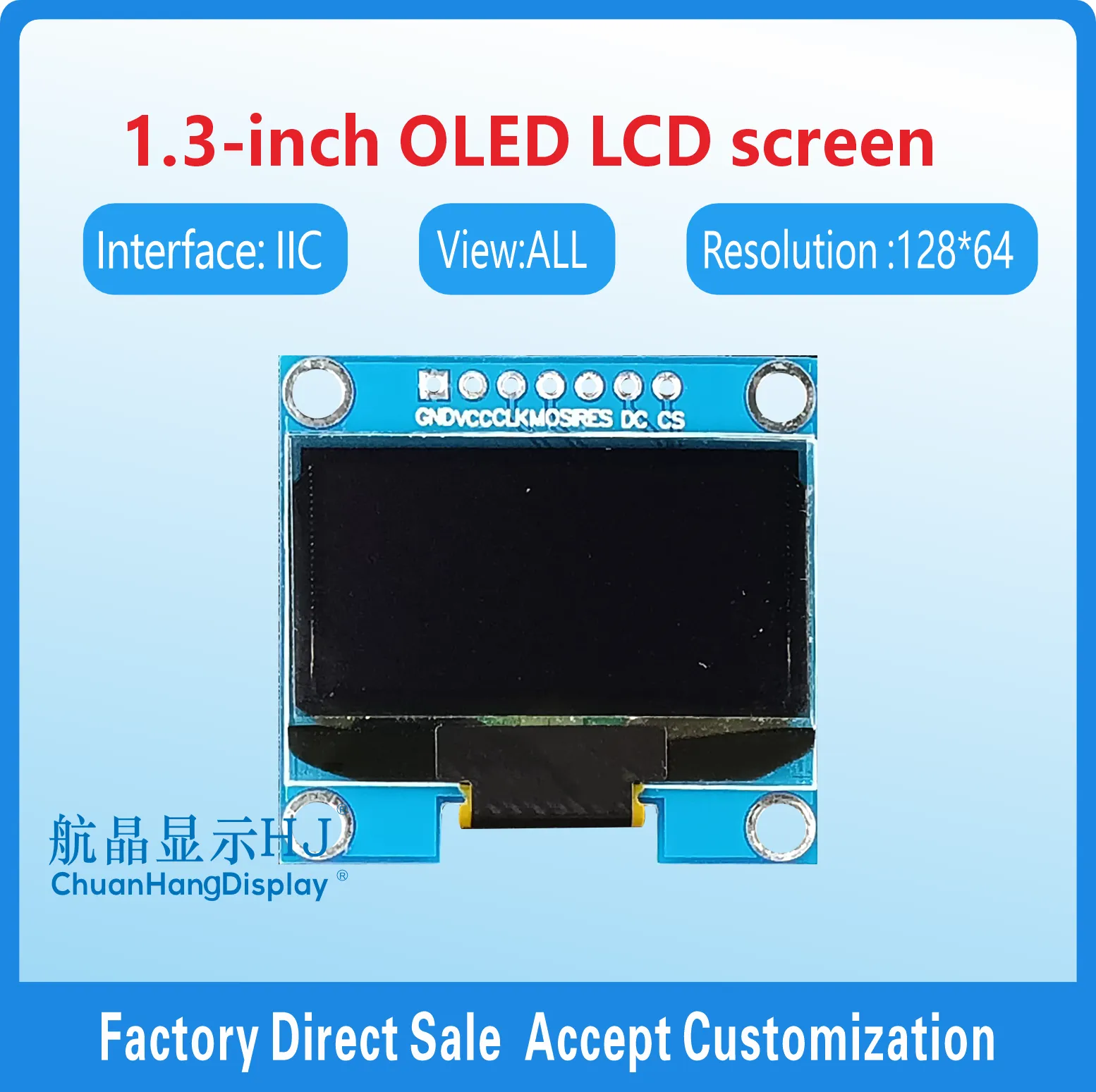

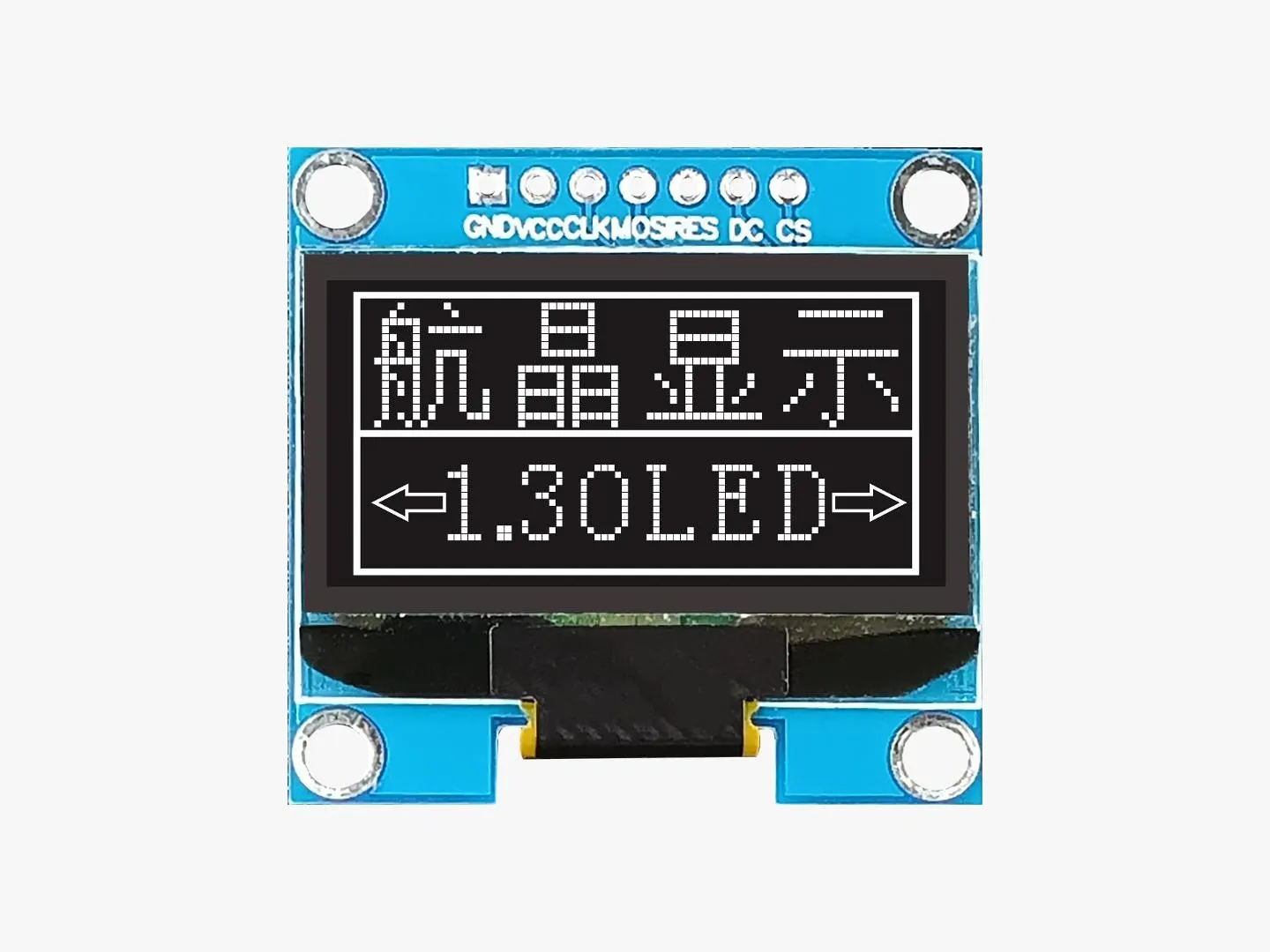

1.3 Inch OLED Display

1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display
1.3 Inch OLED Display

1.3 Inch OLED Display

Product Description
Product size: 1.3 inches OLED
Resolution: 128xRGBx64
Viewing direction:IPS full perspective
Driver chip: SH1106
Interface type:SPI/IIC
Module size:35.40x33.50x2.60mm
Display area: 29.42x14.70mm
Cable interface: 7 PIN
Operating voltage: 3.3V
Operating temperature: -40℃-70℃
Display color: OLED
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct ModelCH013A01
Resolution128xRGBx64Screen size1.3"

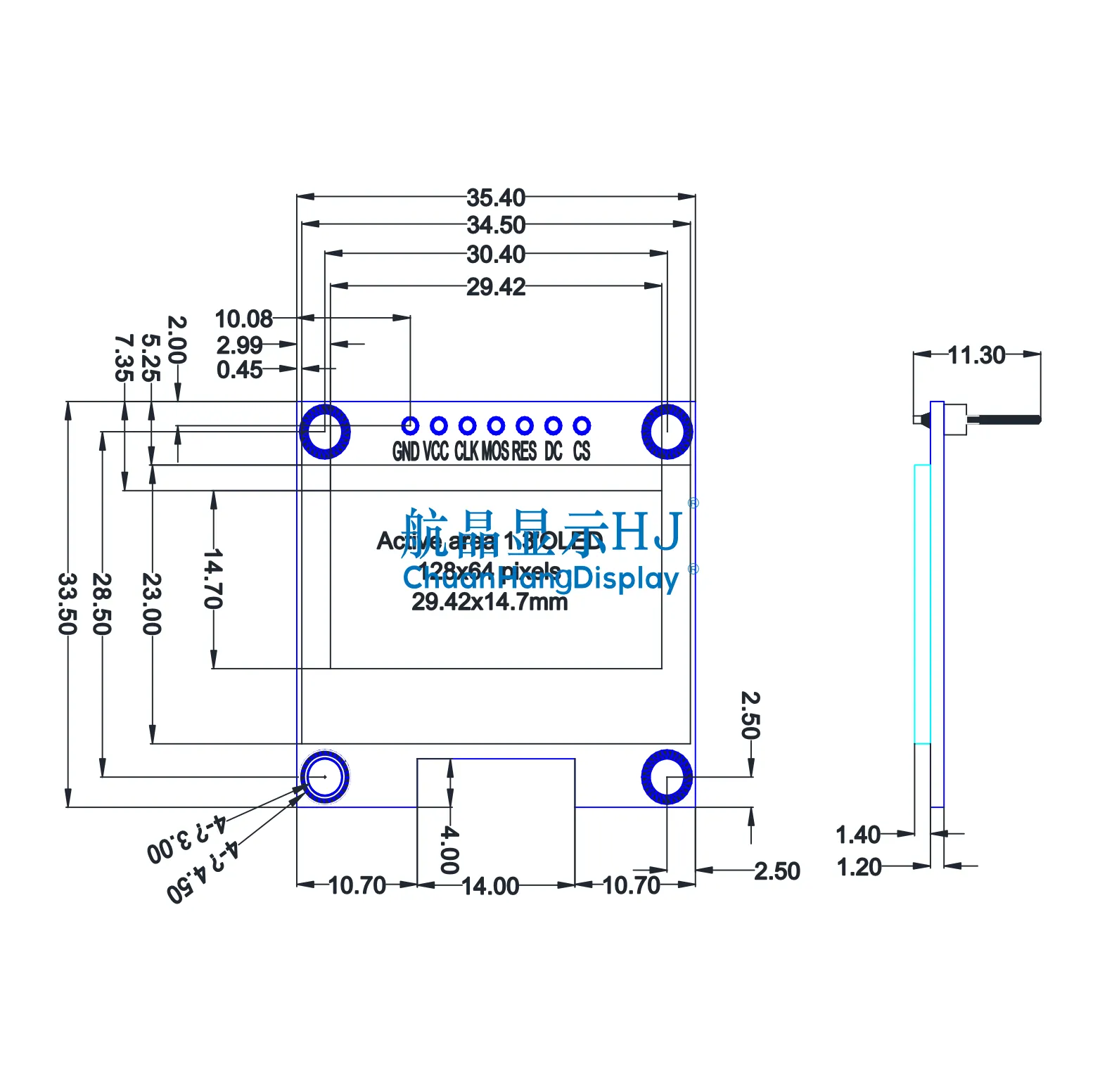

Outline Dimension(L*W*H)35.40x33.50x2.60mmVisible Area(L*W)30.40X23.00
Active Area(L*W)29.42x14.70mmTypeCOG
Connection MethodFPCOperating voltage3.3V
Communication interfaceSPI/IICViewing DirectionIPS full perspective
Interface Type7PINDisplay color OLED
Driver IC SH1106Operating temperature-40℃~70℃
Production capacitySelf-producedWhether to bring PCBYES

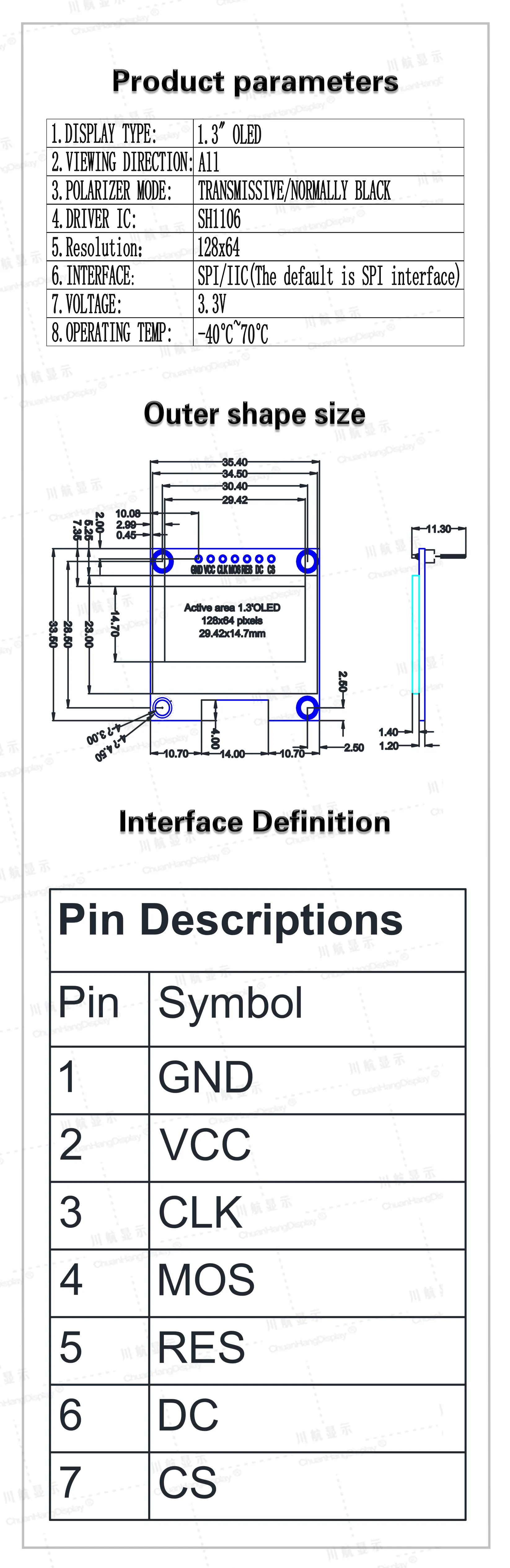

Product Datasheet

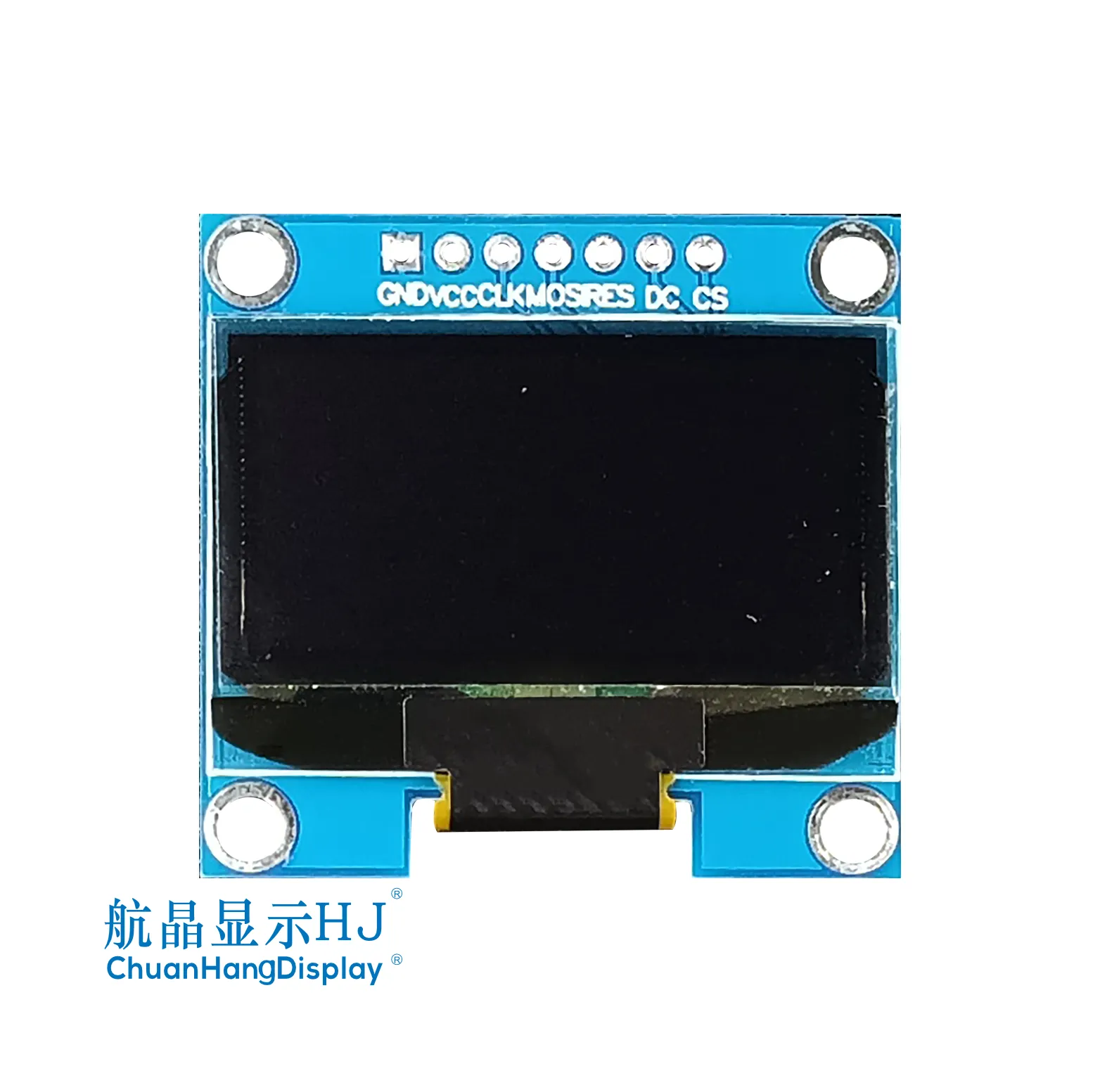

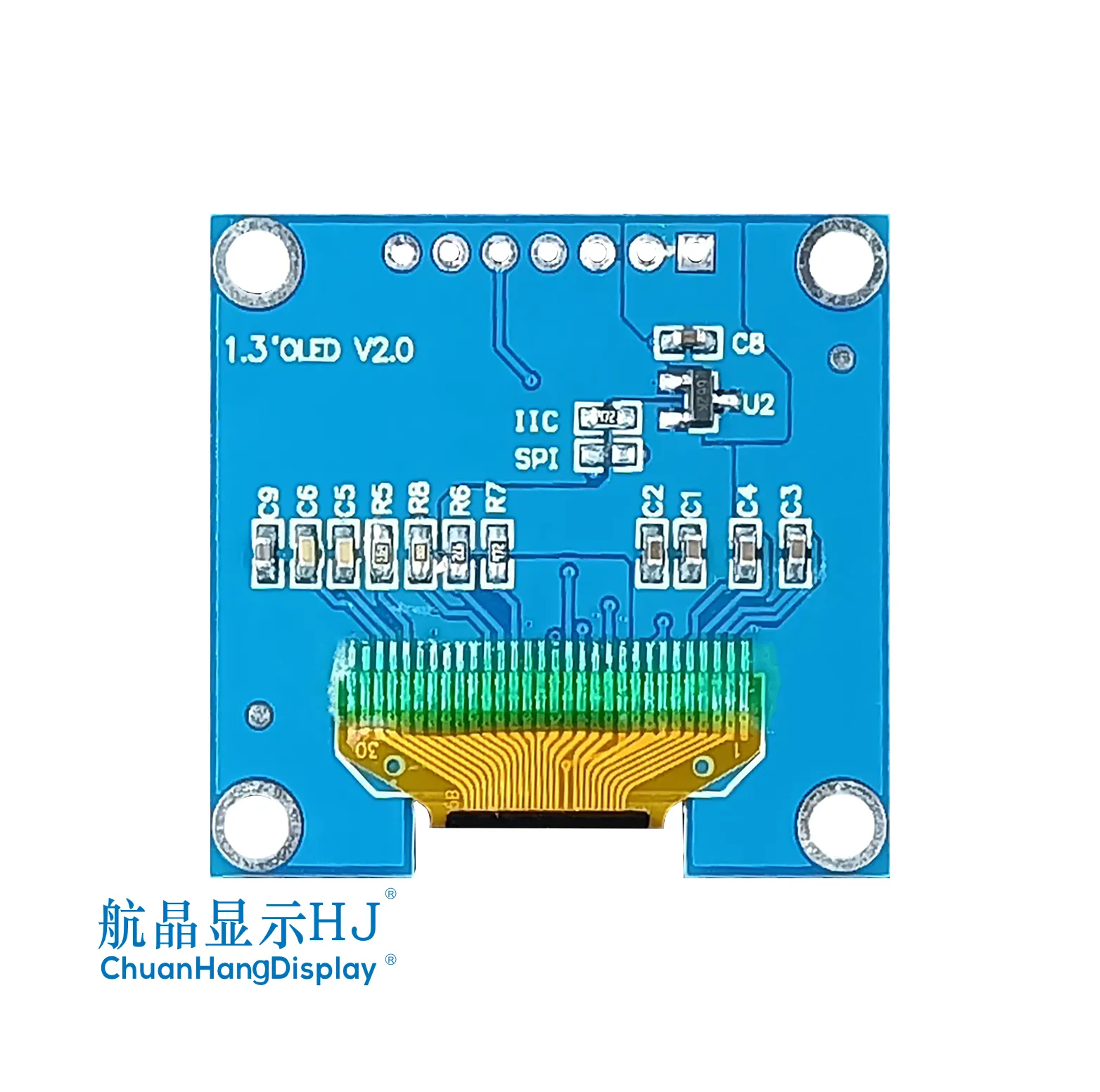

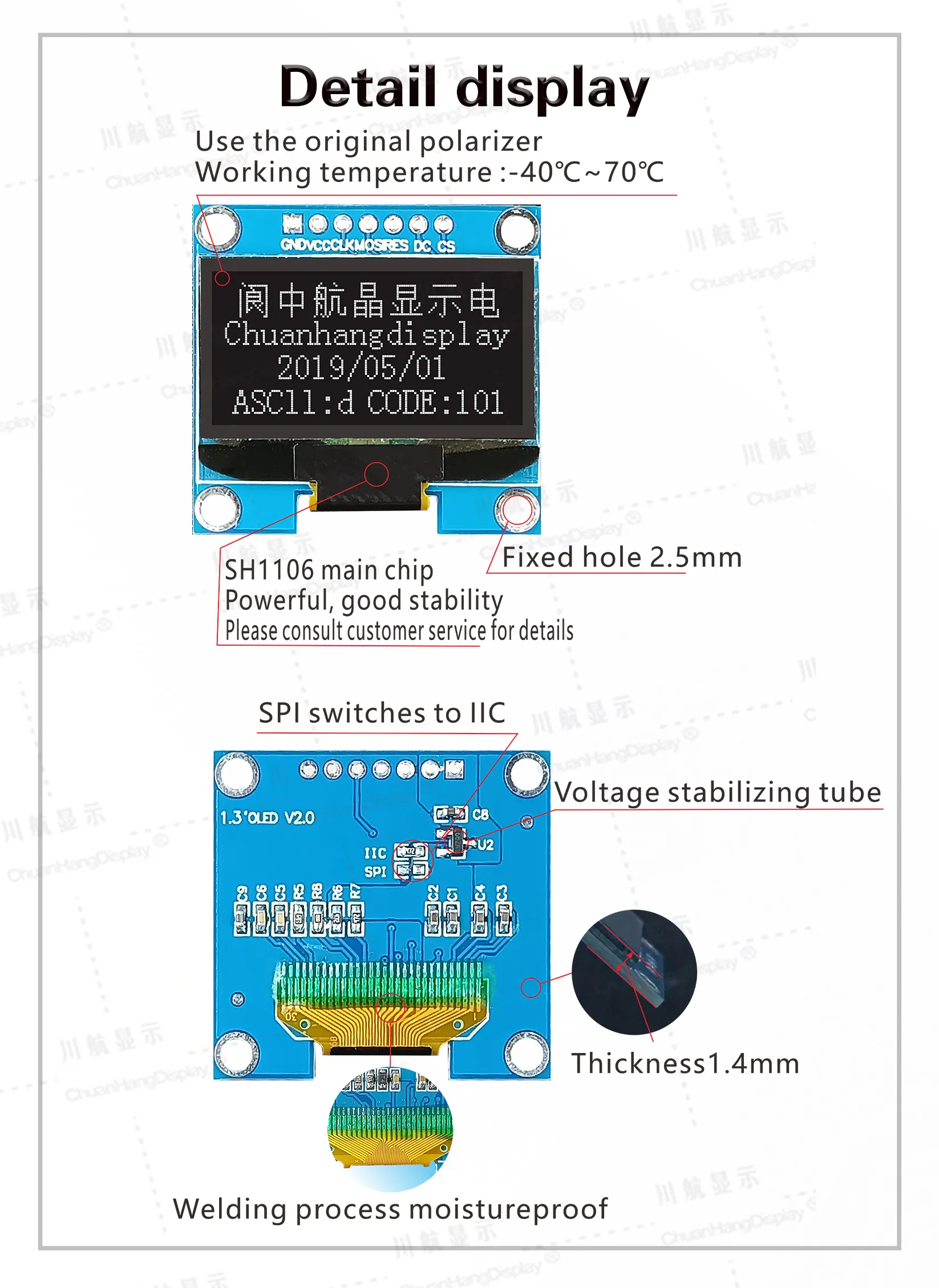

Product Display
