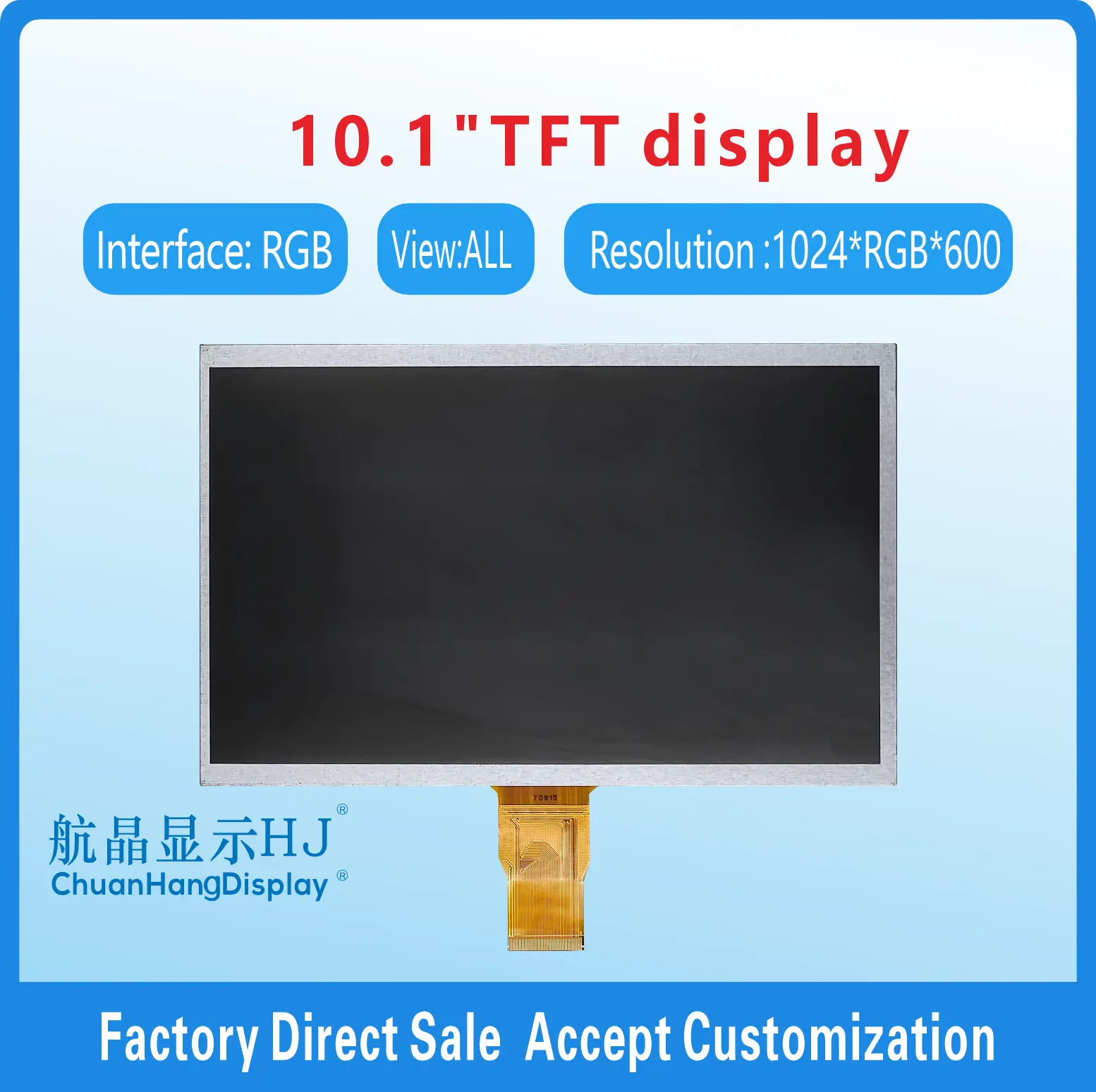

Product Description
Product size: 10.1 inches
Resolution: 1024xRGBx600
Viewing angle:6 o'clock
Interface type:RGB
Module size: 235.00X143.00X3.50mm
Active area: 222.72X125.28mm
Cable interface: 50 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct Model10.1” CH101A-P-B01
Resolution1024xRGBx60screen size10.1"

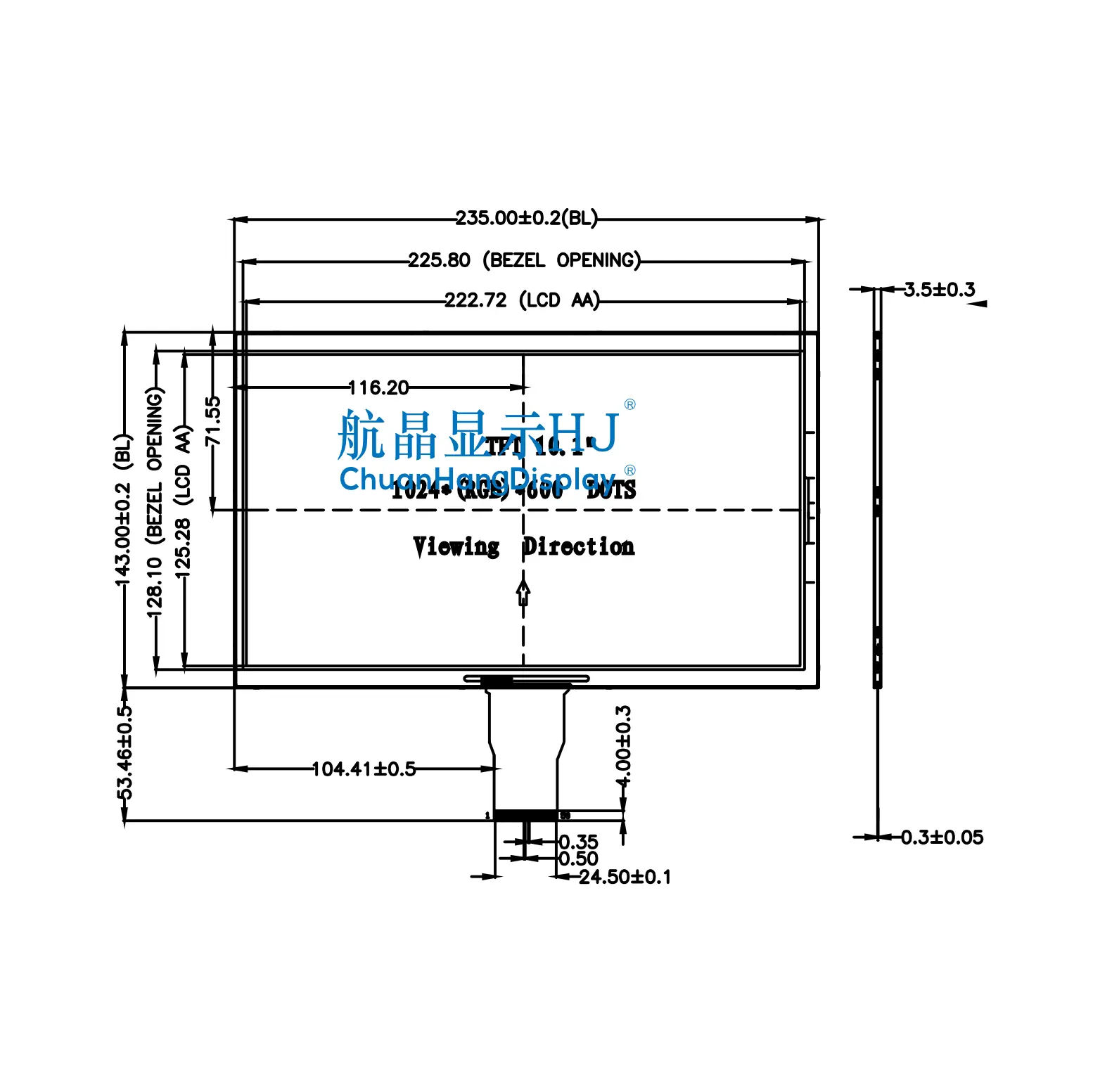

Outline Dimension(L*W*H)235.00X143.00X3.50mmVisible Area(L*W)
Active Area(L*W)222.72X125.28mmTypeCOG
Connection MethodFPCOperating Voltage3.3V
Interface Type50PINViewing Direction6 o'clock
Communication interfaceRGBDisplay Color TFT
Driver IC
Operating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃Backlight parameters
production capacitySelf-producedWhether to bring PCBNO
Product Datasheet

Product Display
