Product Description
Product size: 3.2 inches
Resolution: 240xRGBx320
Viewing angle:IPS full viewing angle
Interface type:RGB

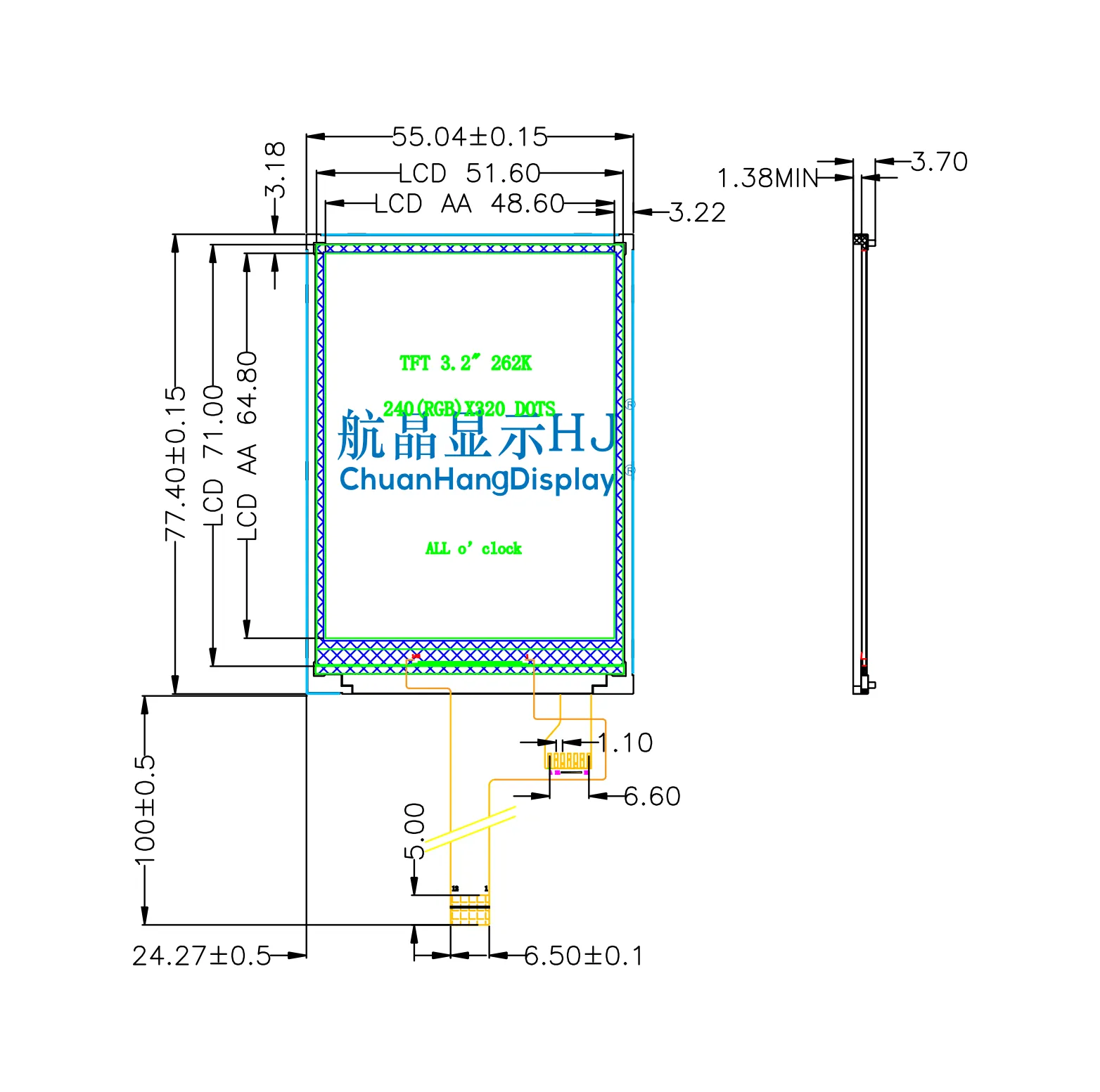

Module size: 55.04X77.40X3.70mm
Active area: 48.60X64.80mm
Cable interface: 12 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation
Product Parameters
Product BrandChuanHangDisplayProduct Model3.2” CH032A01
Resolution240xRGBx320screen size3.2"
Outline Dimension(L*W*H)55.04X77.40X3.70mmVisible Area(L*W)
Active Area(L*W)48.60X64.80mmTypeCOG
Connection MethodFPCOperating Voltage3.3V
Interface Type12PINViewing DirectionIPS full viewing angle
Communication interfaceRGBDisplay Color TFT
Driver ICST7701S-G5Operating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃Backlight parameters
production capacitySelf-producedWhether to bring PCBNO

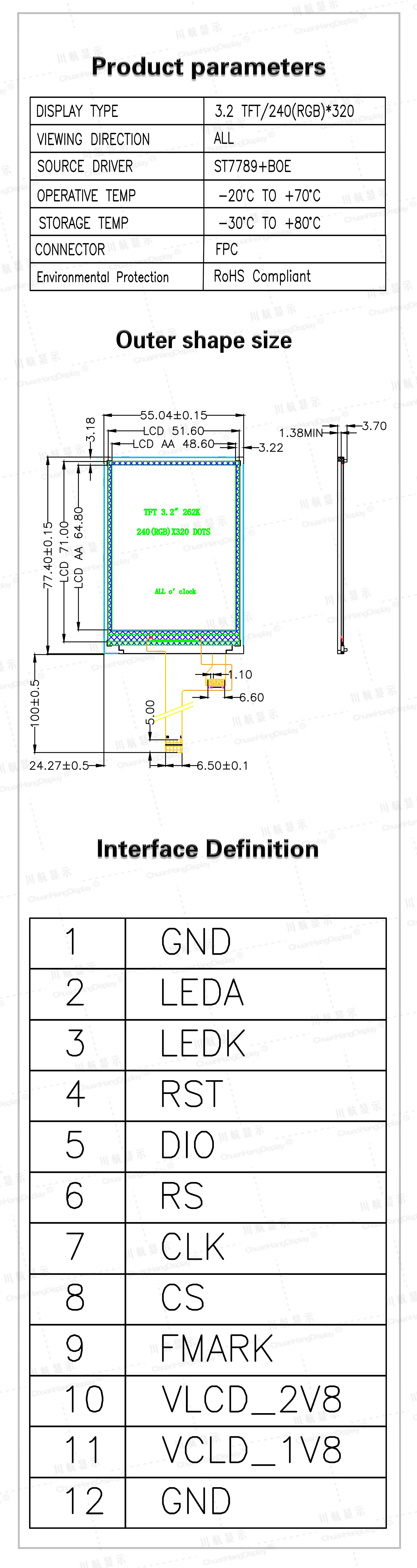

Product Datasheet

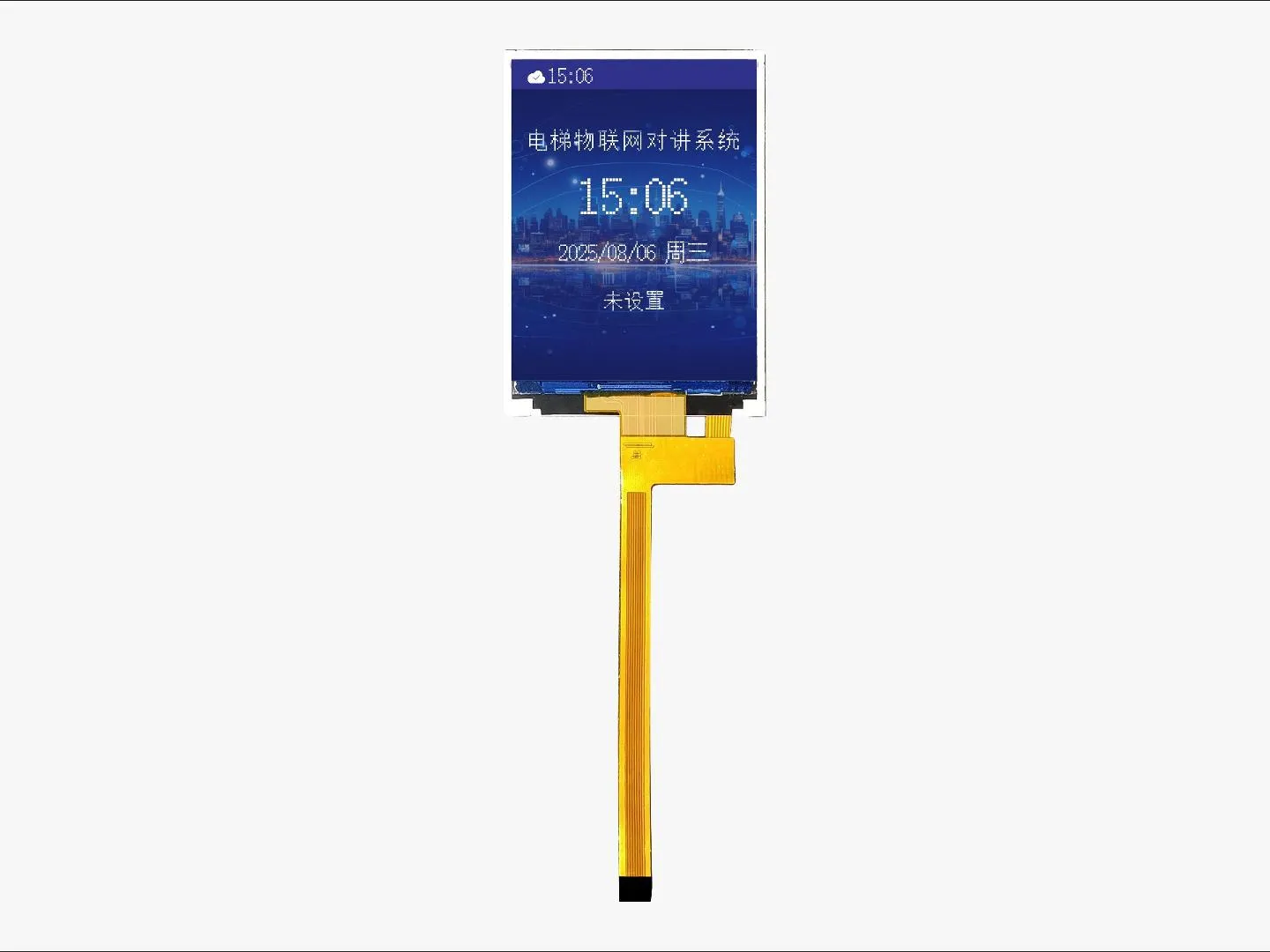

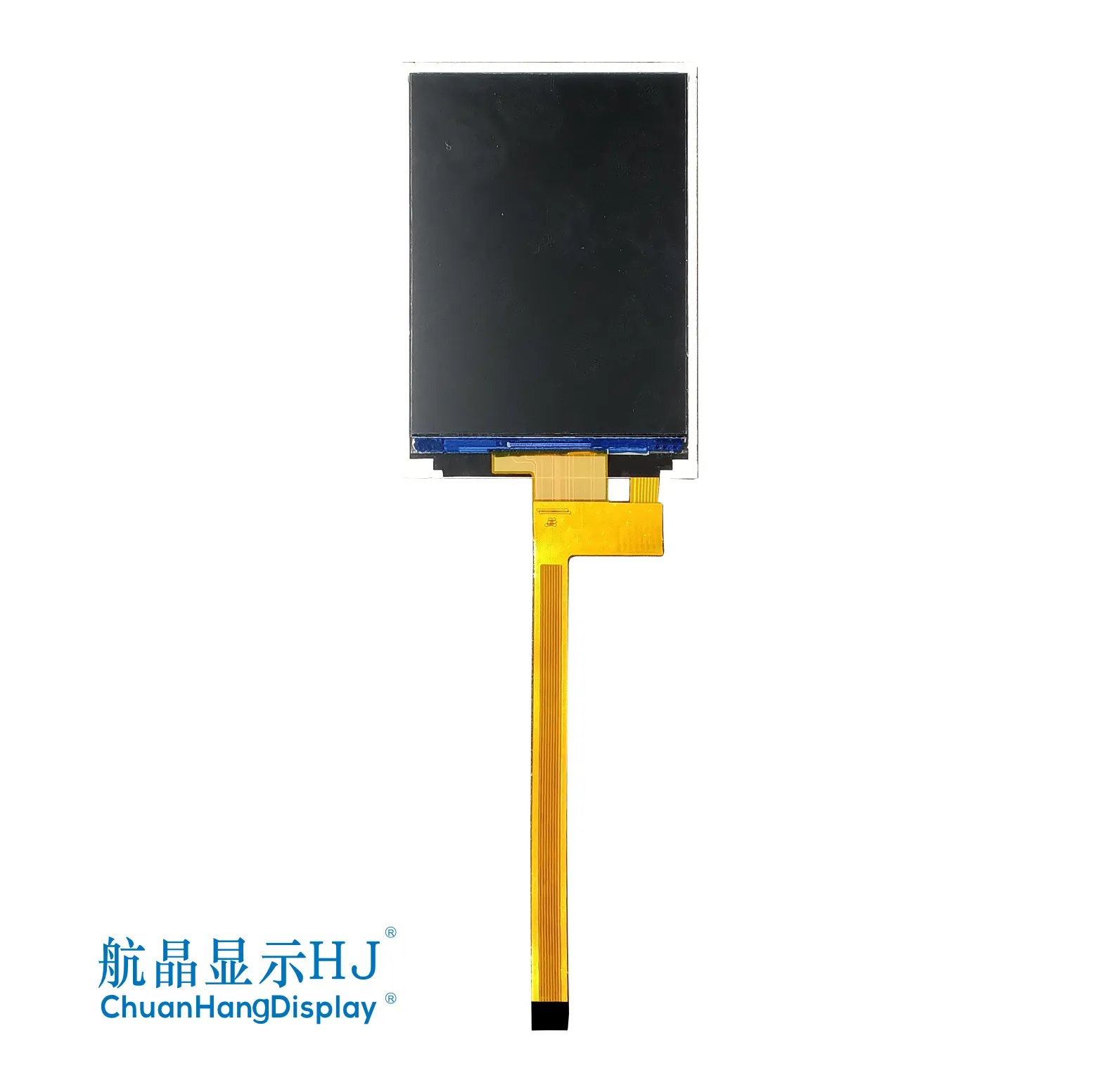

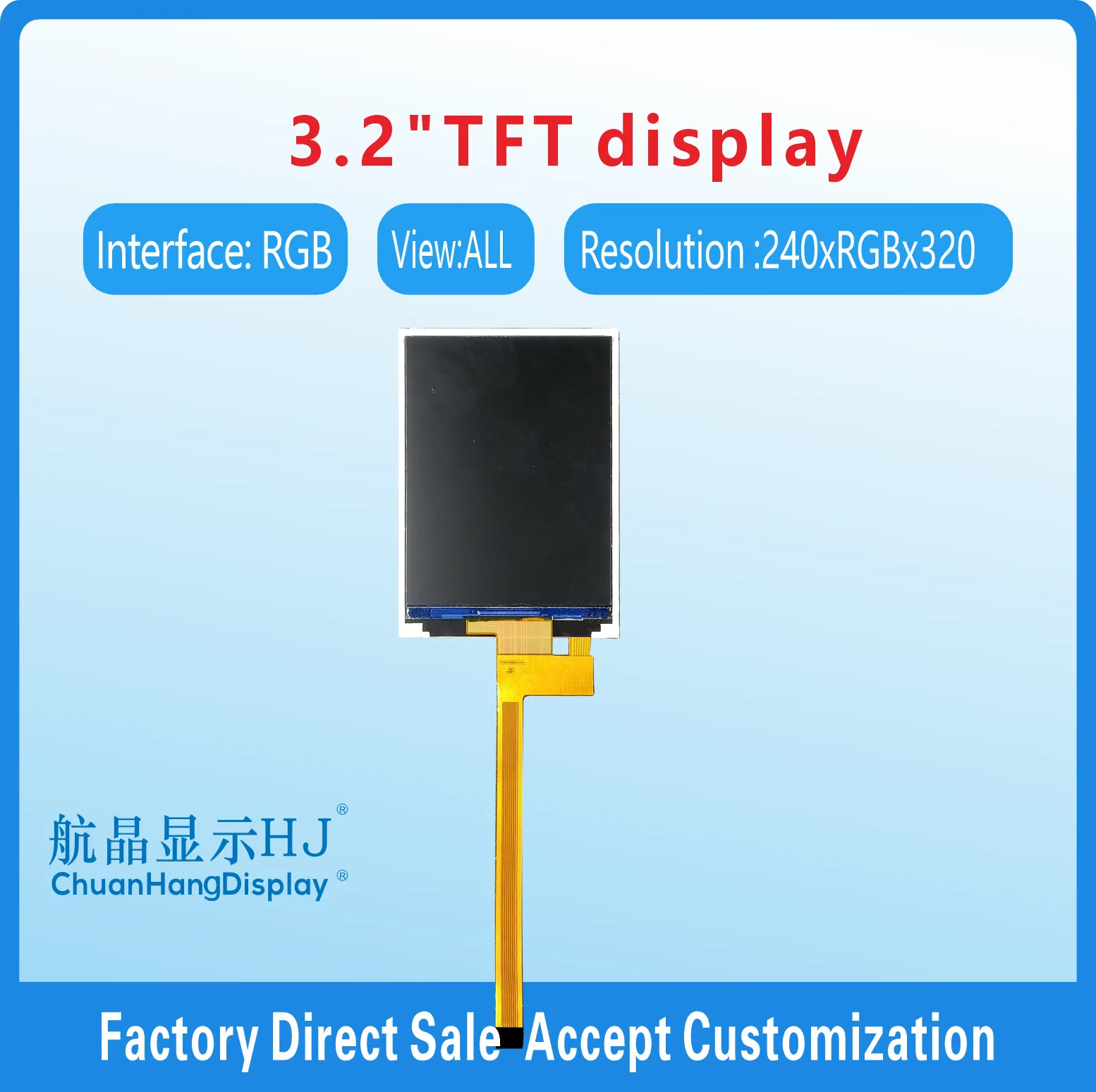

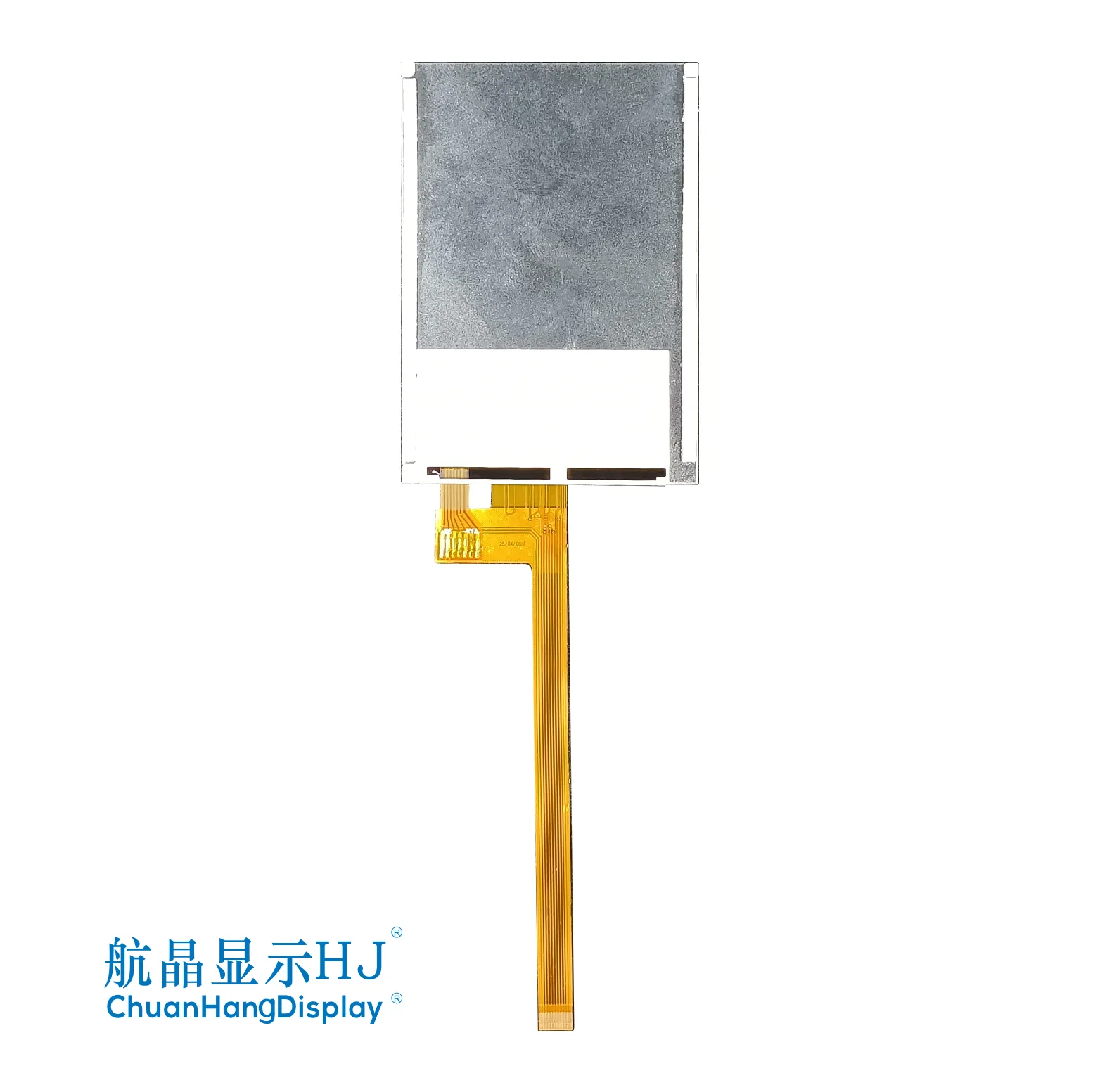

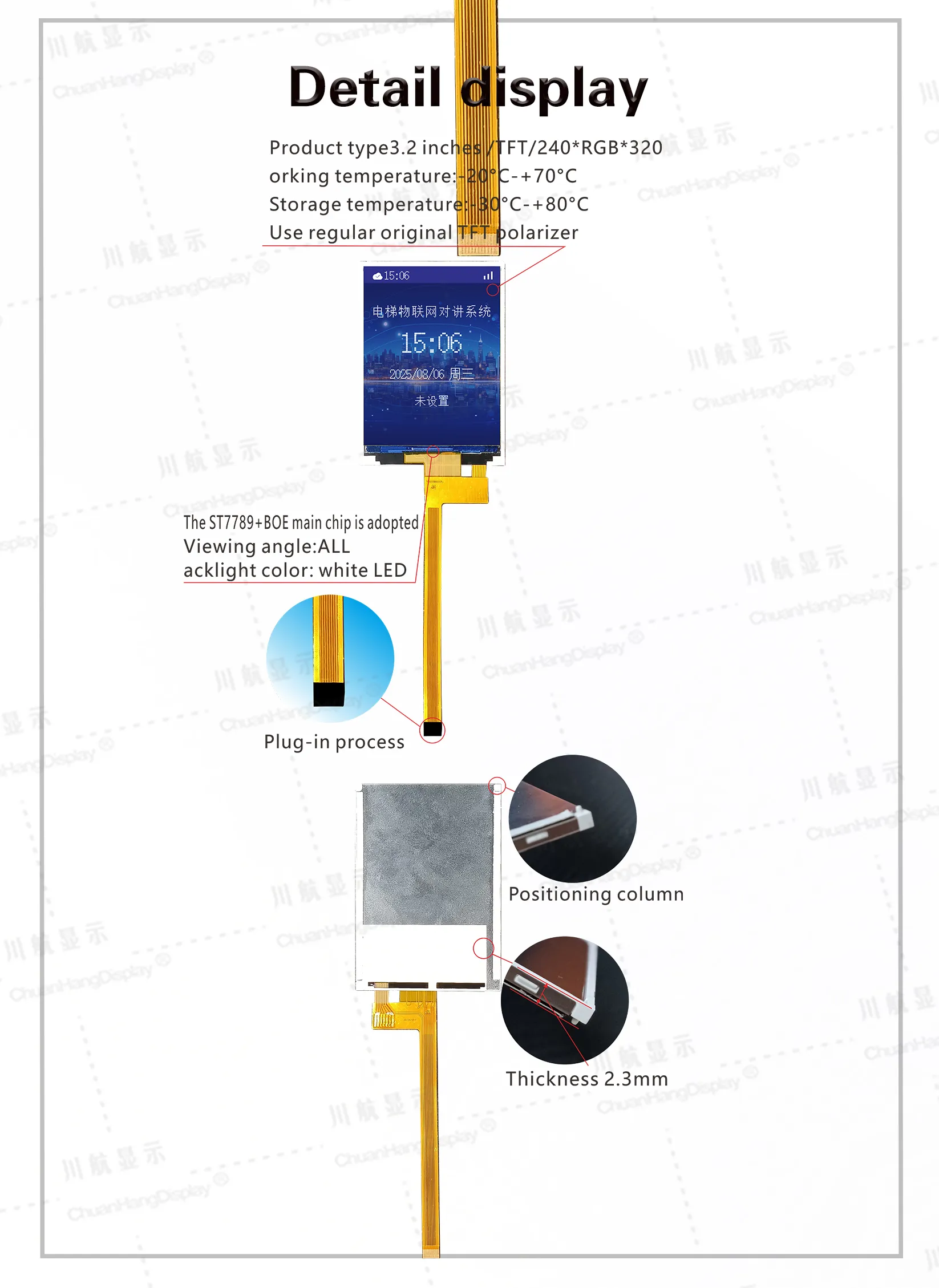

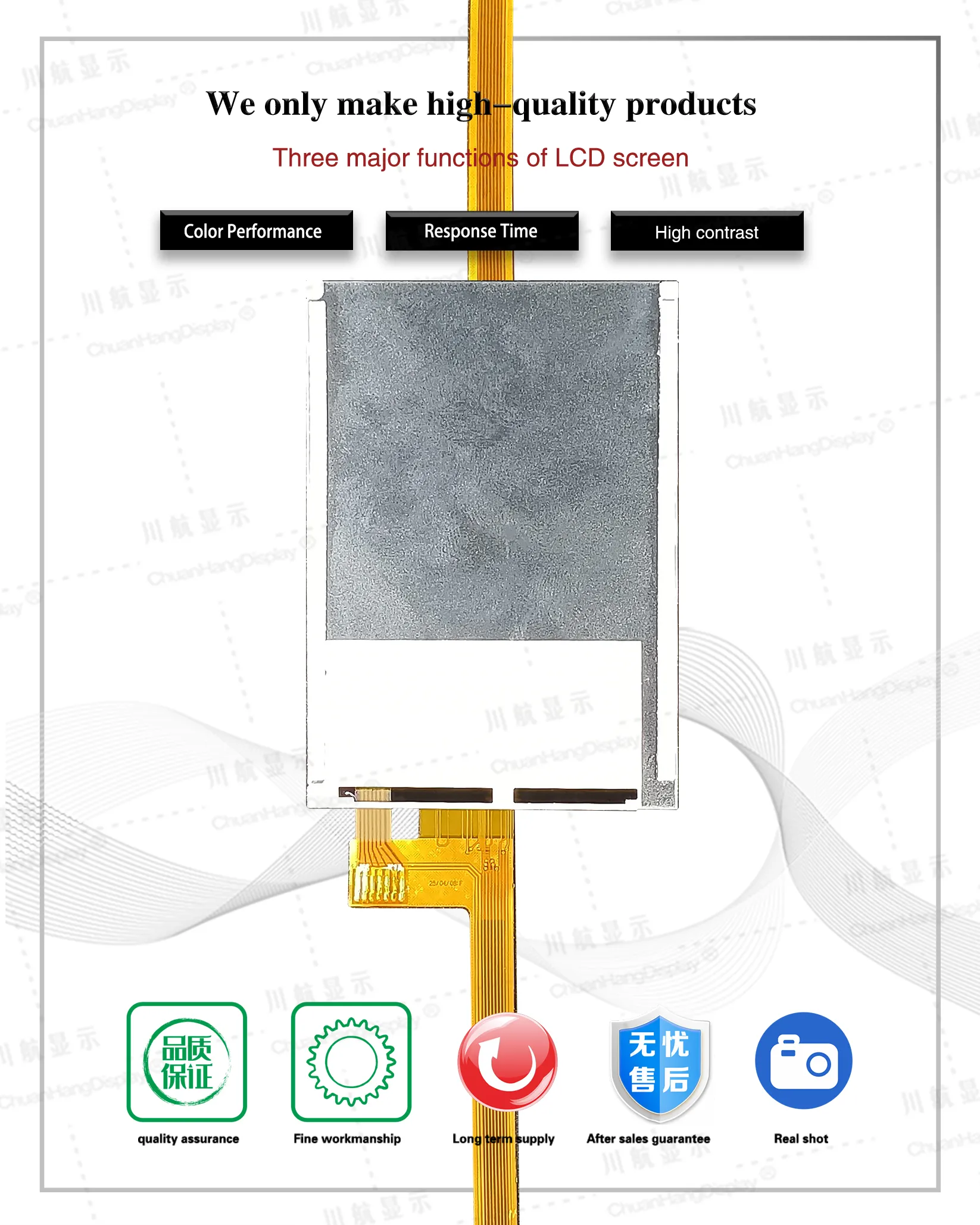

Product Display

3.2“Single glass CH032A-S Previous：

3.2“Single glass CH032A-S

Next：

There is nothing left.

Product Label: 3.2 Inch 240*320 SPI Interface Tft Panel Custom Driver IC ST7701S-G5 TFT Display 12 Pin TFT 240x320 RGB IPS Panel
