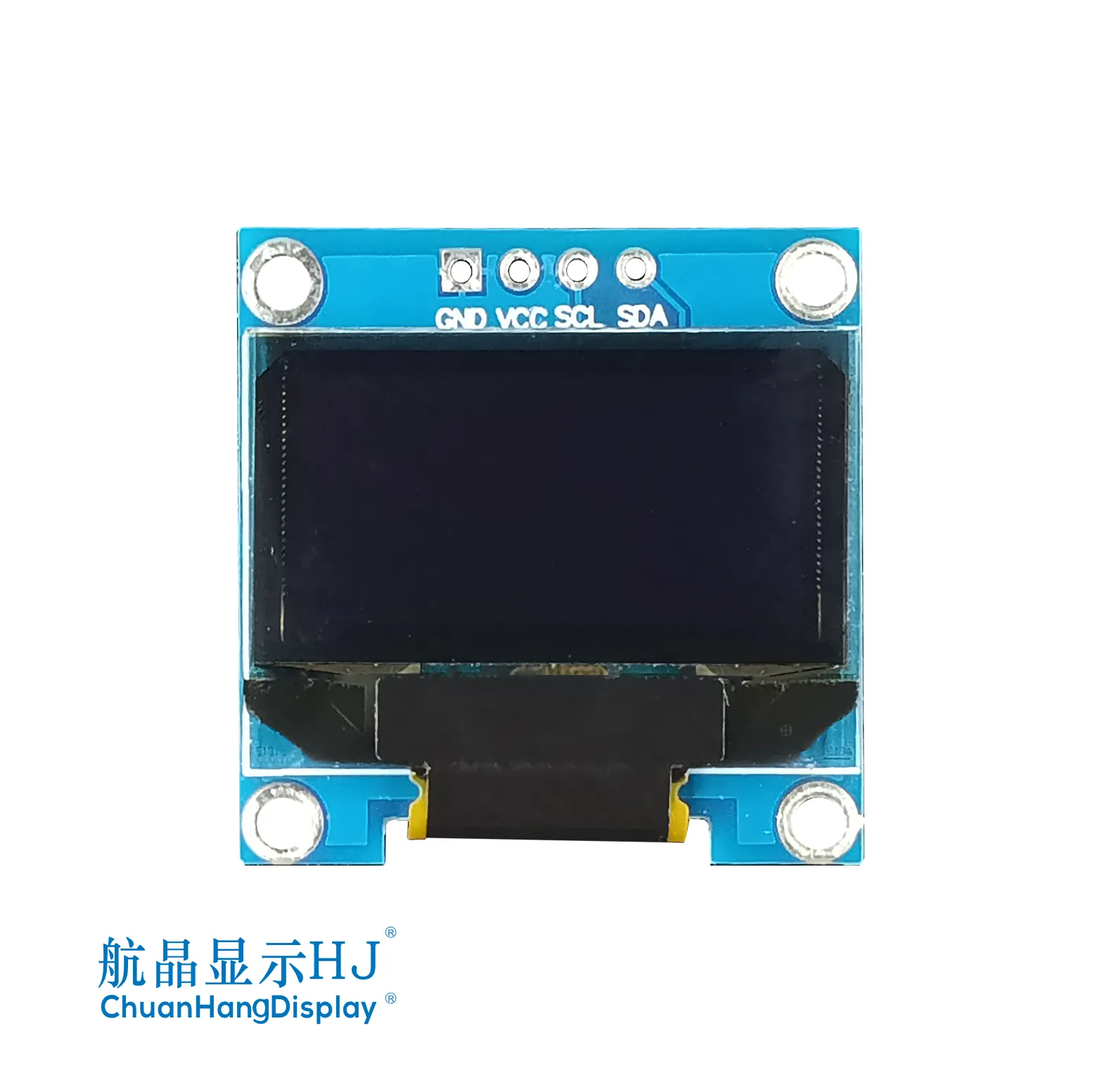

0.96 Inch OLED Display

0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display
0.96 Inch OLED Display

0.96 Inch OLED Display

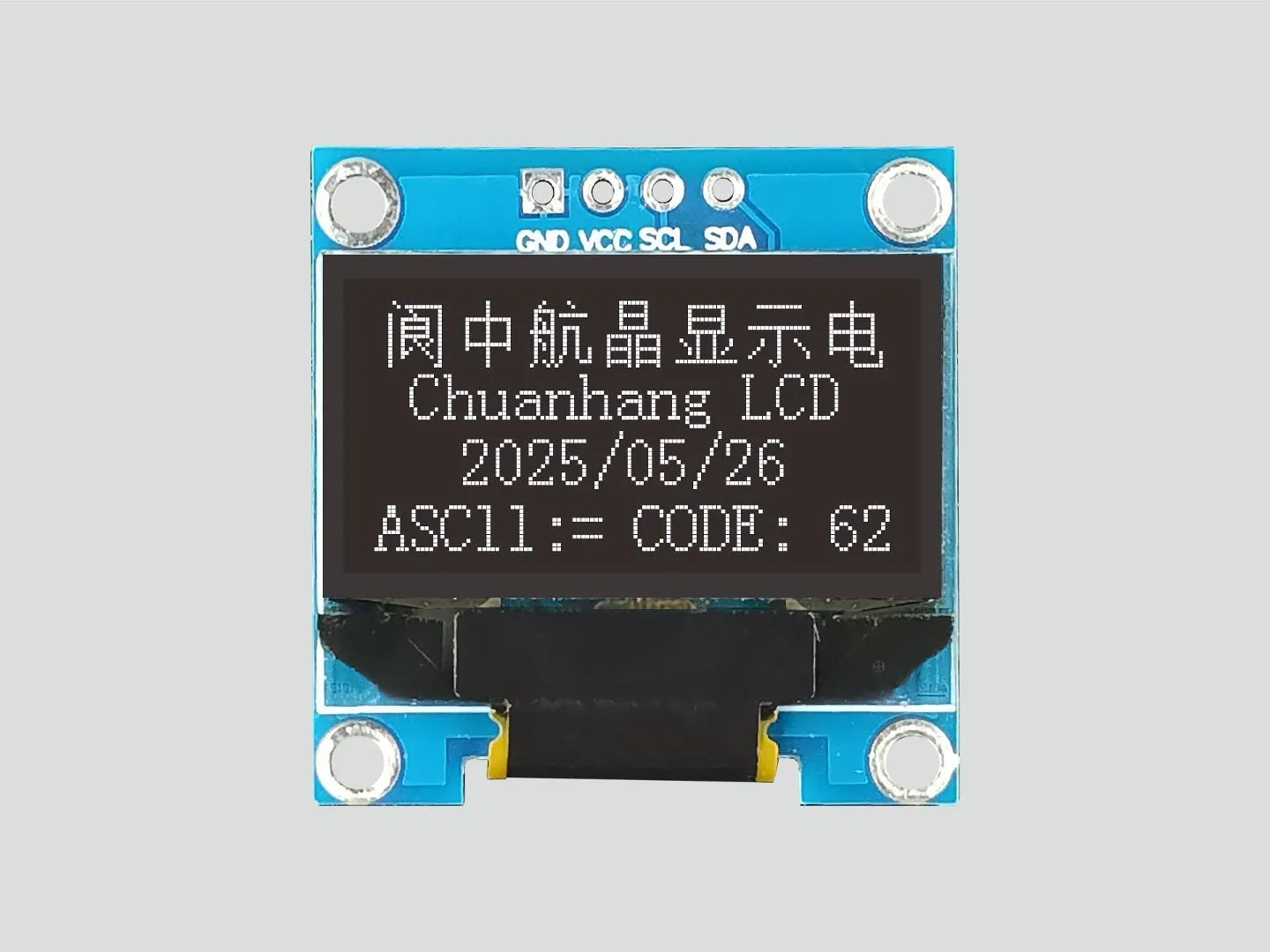

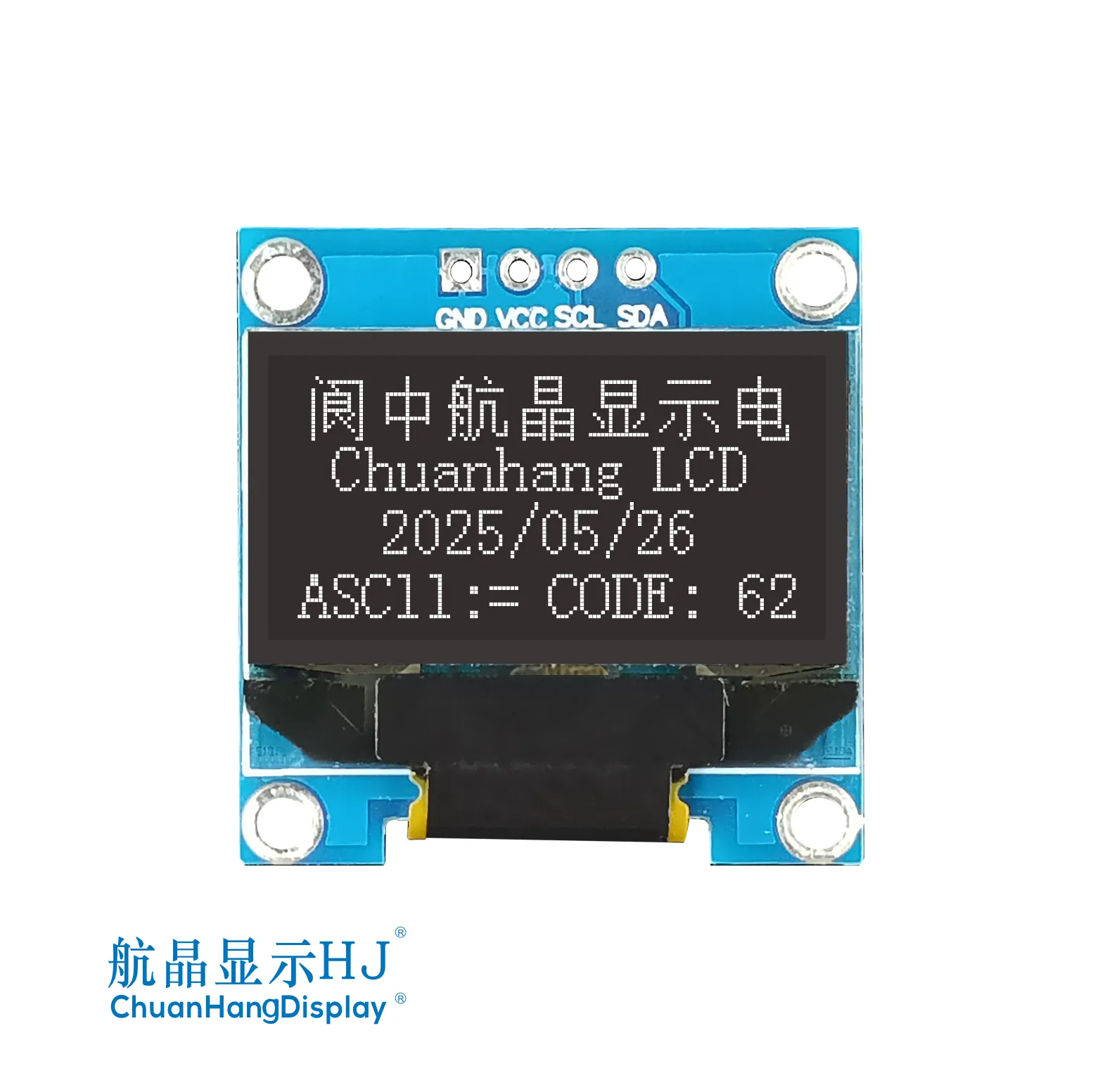

Product Description
Product size: 0.96 inches OLED
Resolution: 128xRGBx64
Viewing direction:IPS full perspective
Driver chip: SSD1306
Interface type:IIC
Module size:27.30x27.80x2.65mm
Display area: 21.74x10.86mm
Cable interface: 4 PIN
Operating voltage: 3.3V
Operating temperature: -40℃-70℃
Display color: OLED
Video Presentation

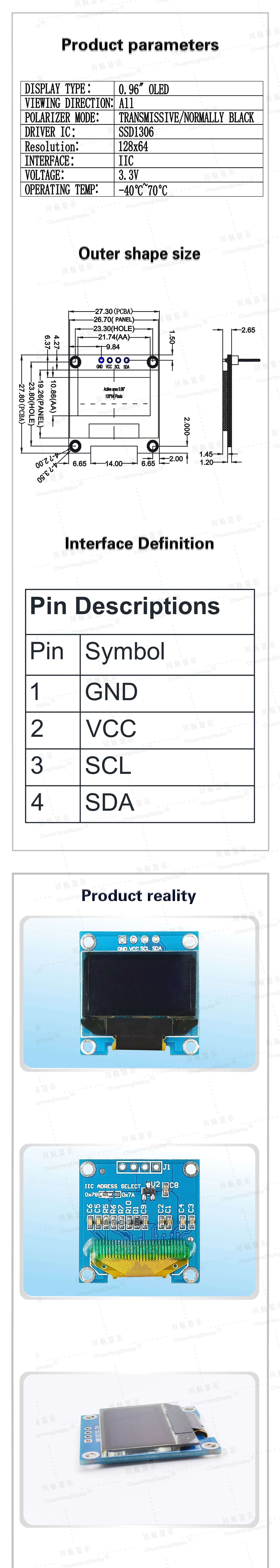

Product Parameters
Product BrandChuanHangDisplayProduct Model CH0096A01
Resolution128xRGBx64Screen size0.96”

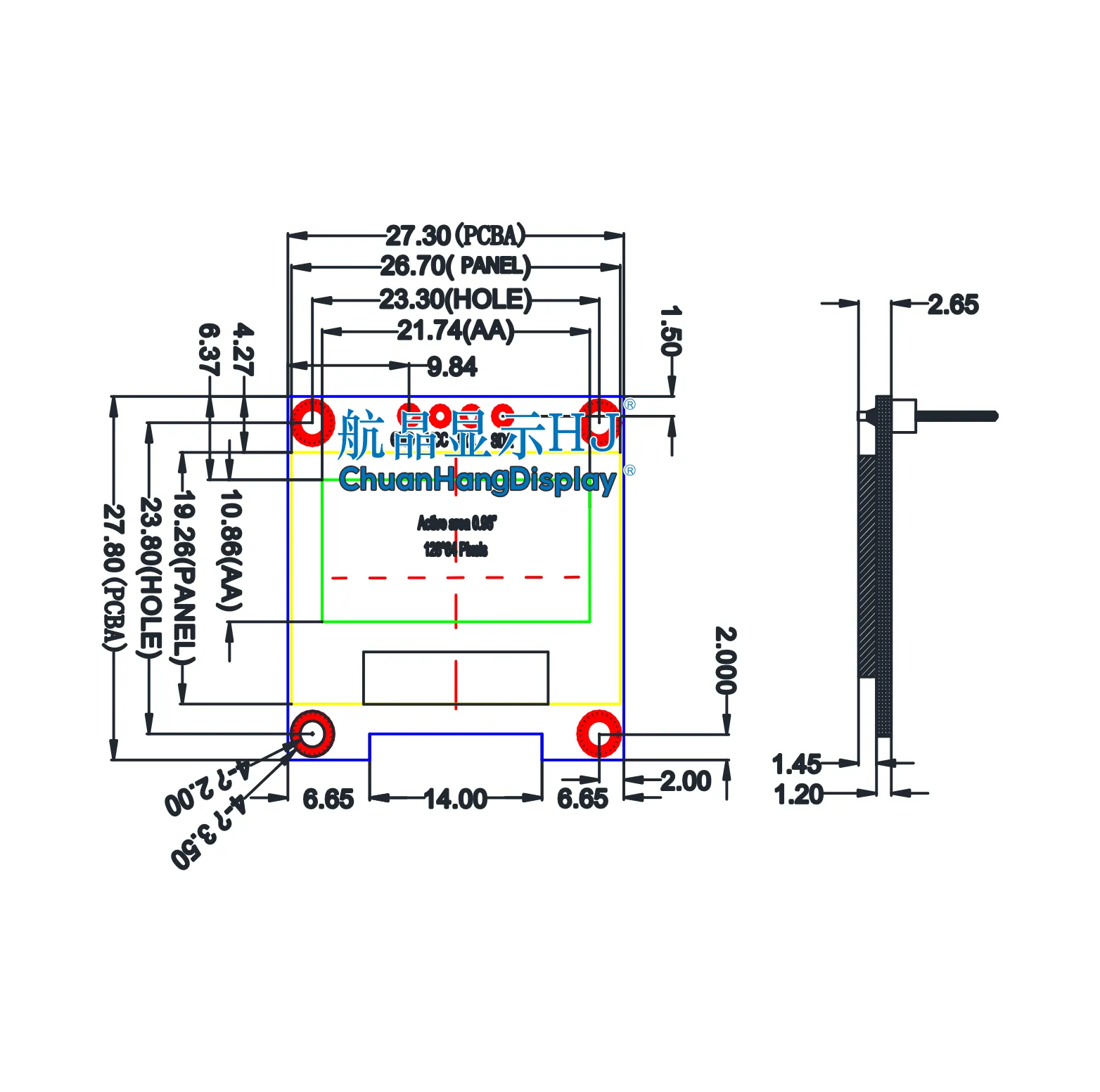

Outline Dimension(L*W*H)27.30x27.80x2.65mmVisible Area(L*W)
Active Area(L*W)21.74x10.86mmTypeCOG
Connection MethodFPCOperating voltage3.3V
Communication interfaceIICViewing DirectionIPS full perspective
Interface Type4PINDisplay color OLED
Driver ICSSD1306Operating temperature-40℃~70℃
Production capacitySelf-producedWhether to bring PCBYES
Product Datasheet

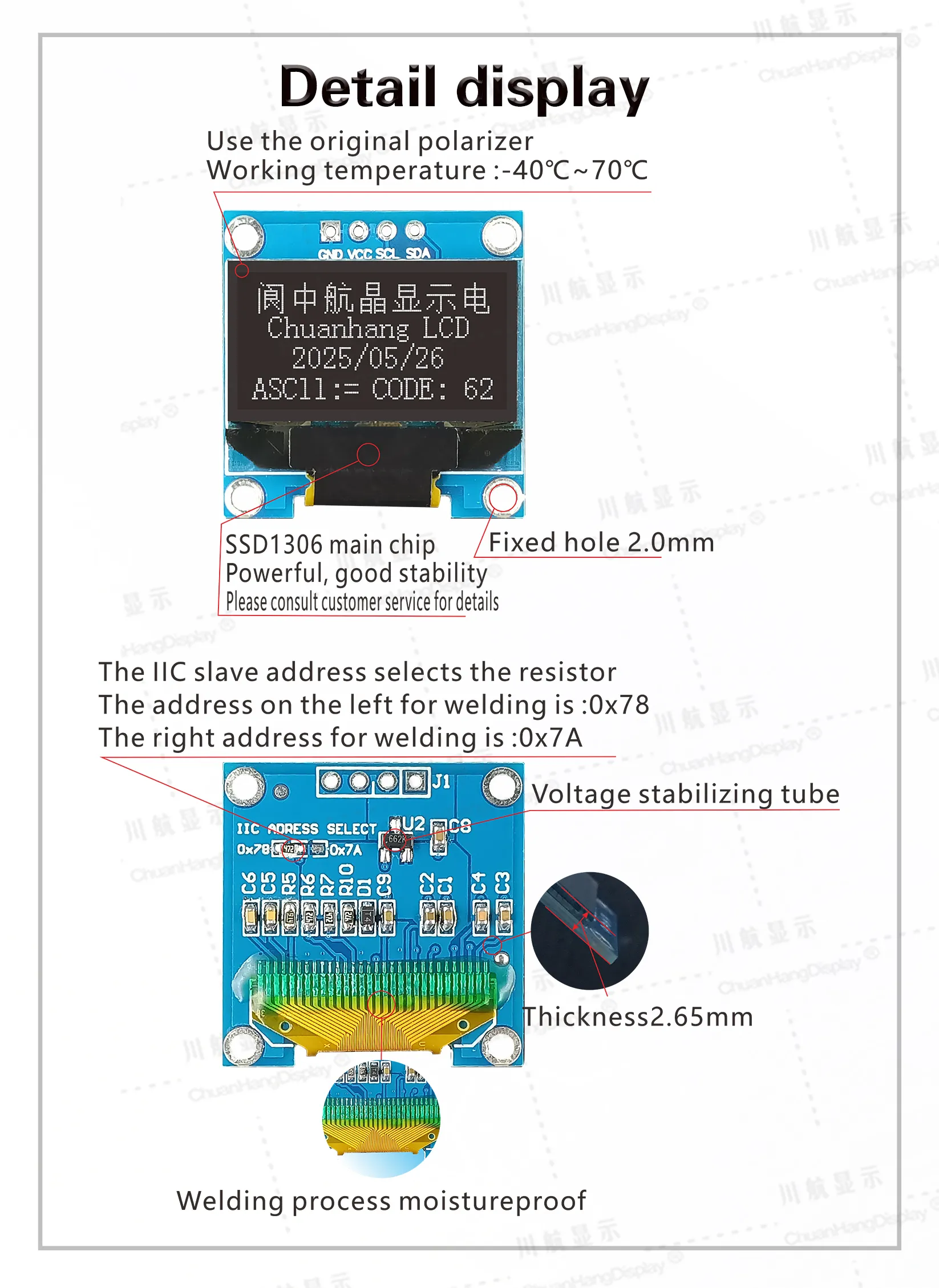

Product Display
