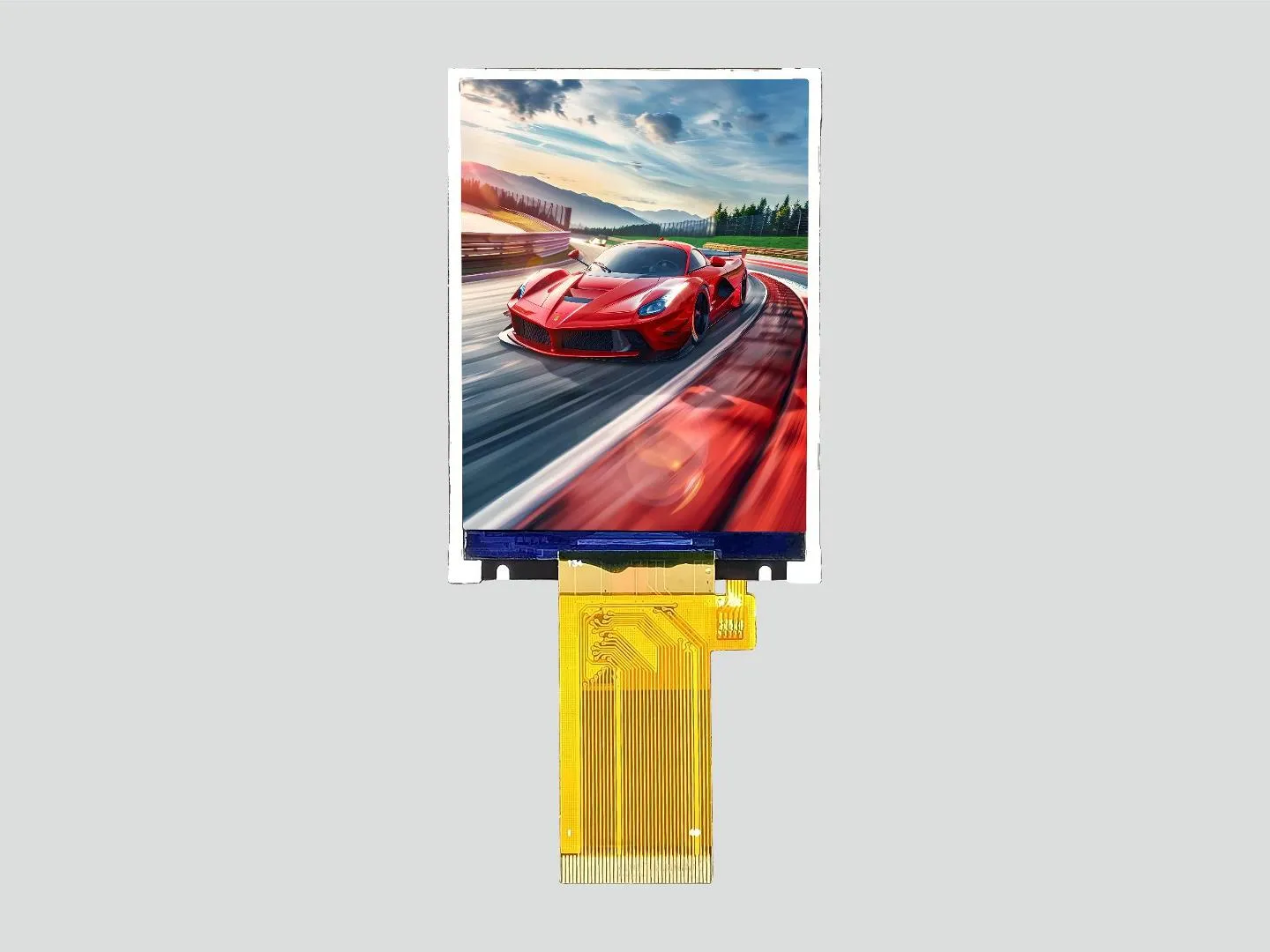

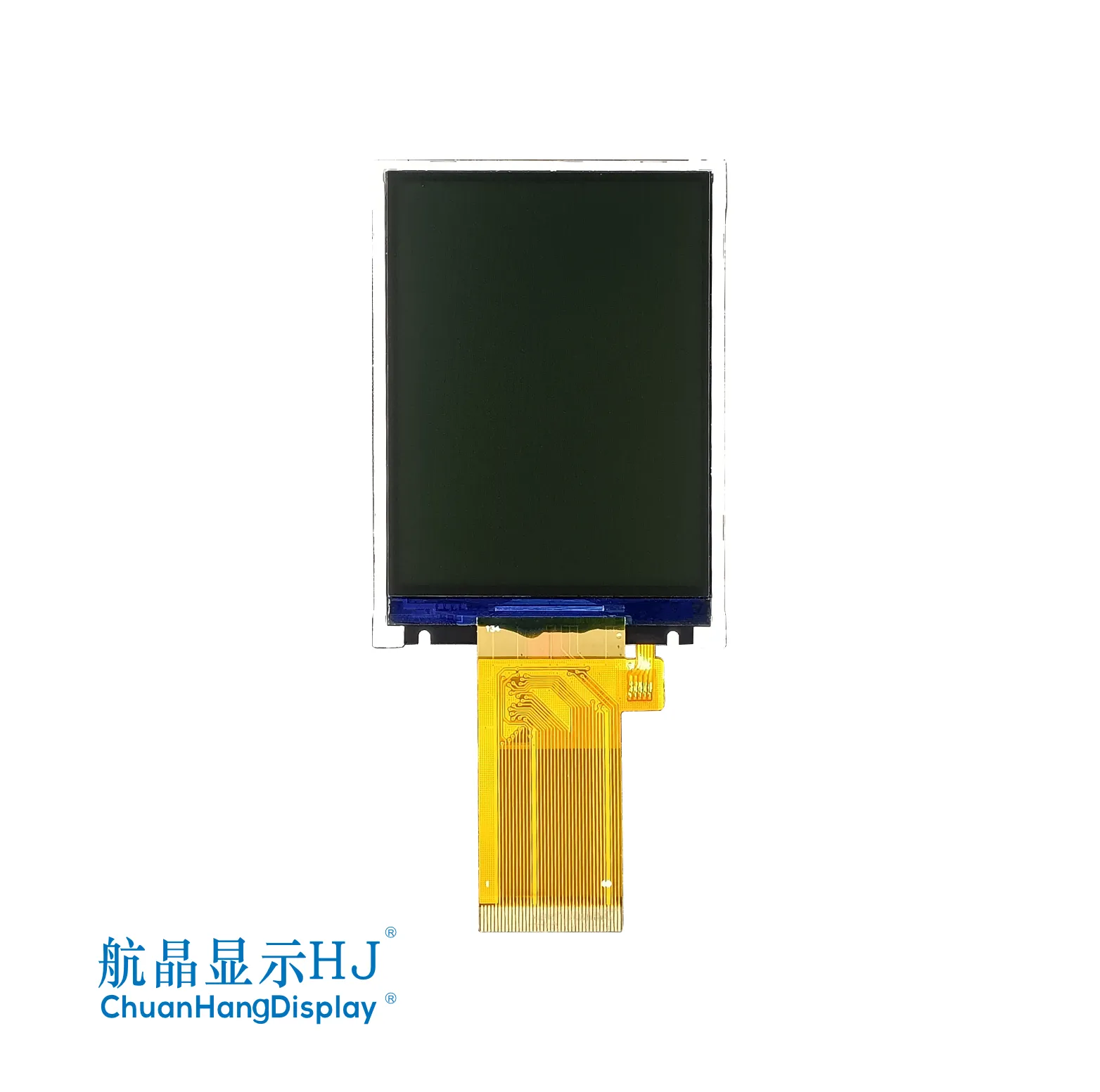

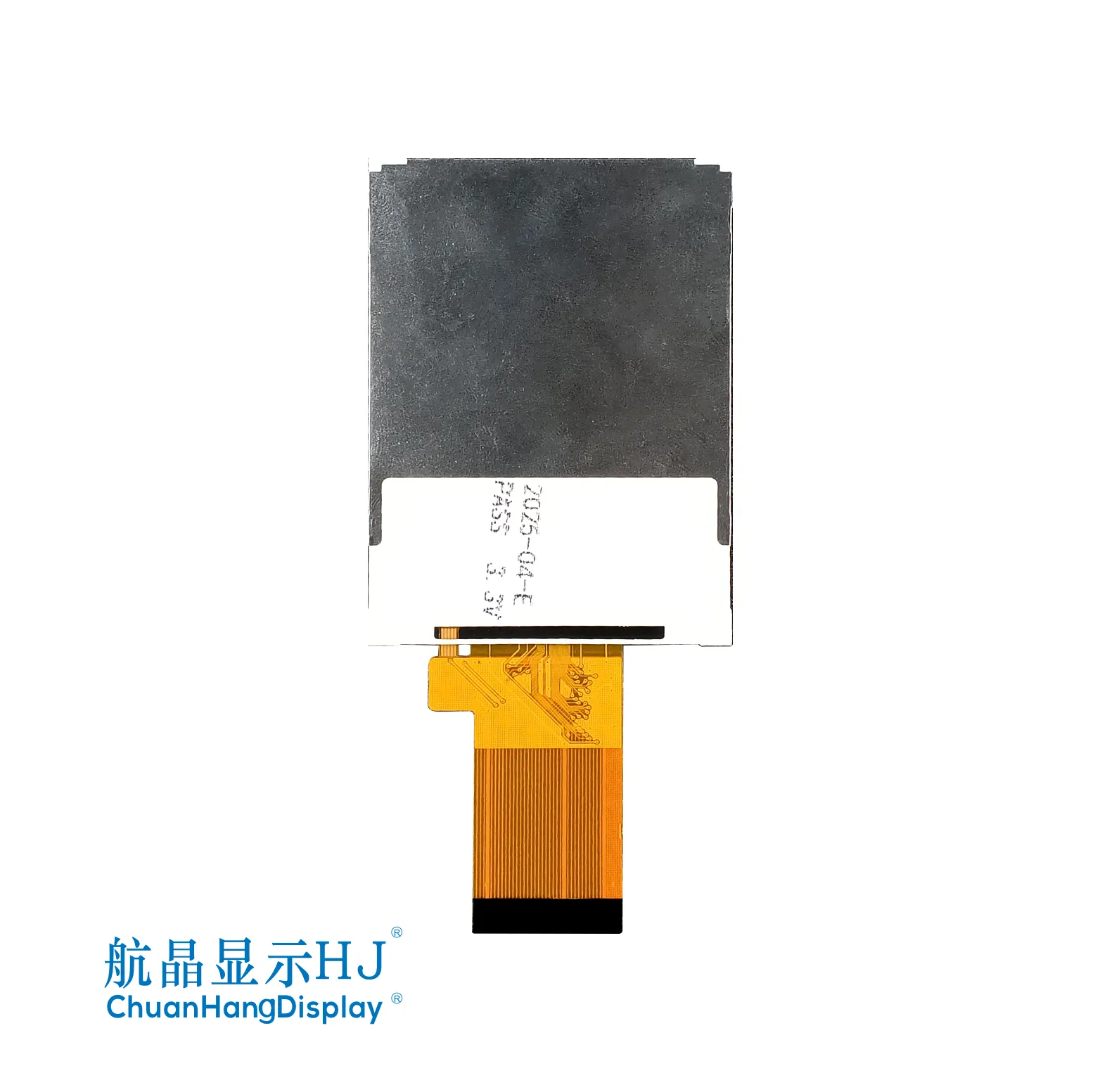

Product Description
Product size: 2.8 inches
Resolution: 320xRGBx240
Viewing direction: 12 o'clock
Driver chip: ST7789V
Interface type: Parallel port 8-bit/16-bit
Module size: 50x69.2x2.30 mm
Display area: 43.2x57.6mm
Cable interface: 40 PIN
Operating voltage: 2.8V-3.3V
Operating temperature: -20℃-70℃
Display color: TFT
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model 2.8”CH028A01
Resolution 240xRGBx320 Screen size 2.8”

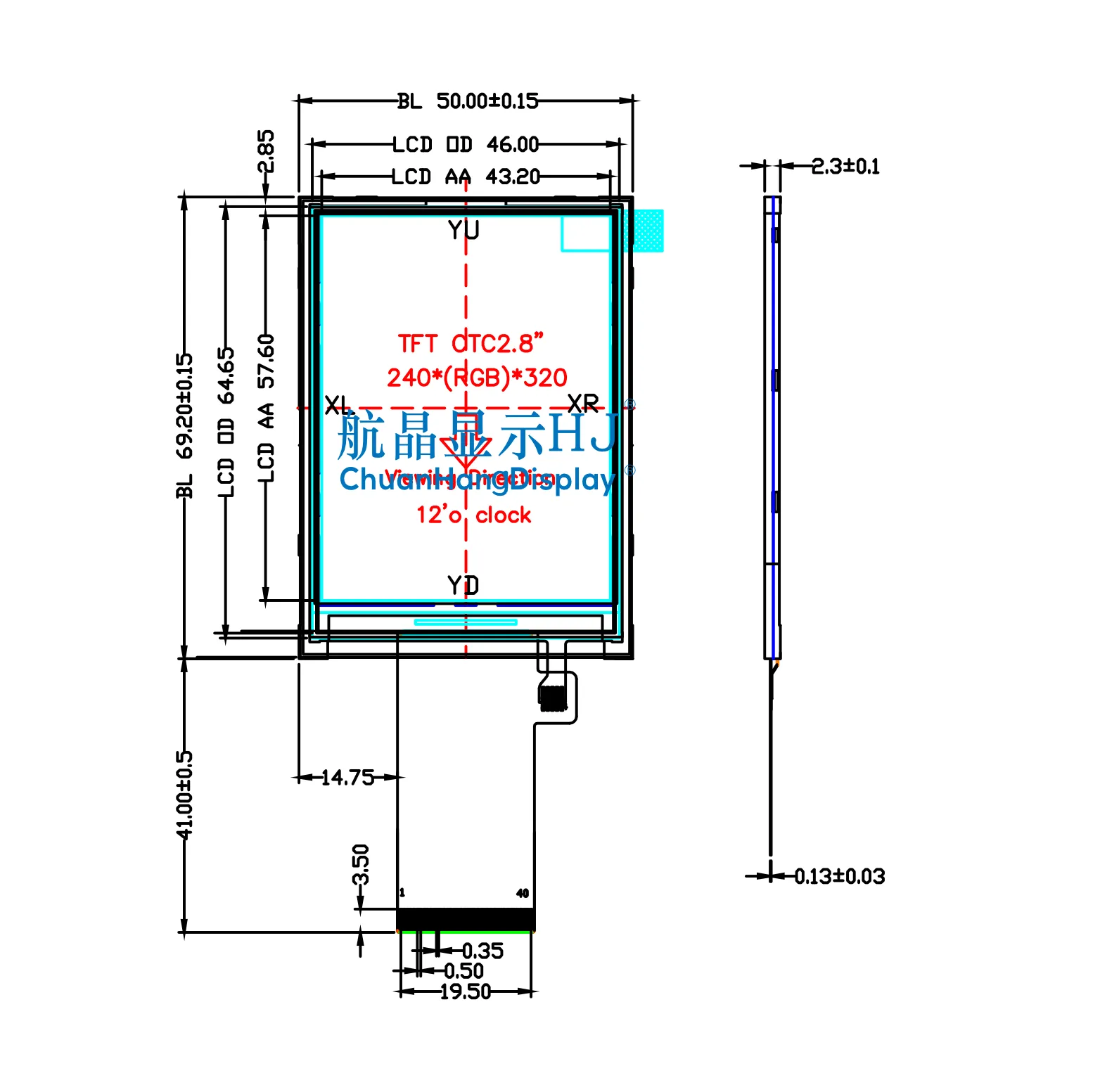

Outline Dimension(L*W*H) 50.00x69.20x2.30mm Visible Area(L*W)
Active Area(L*W) 43.20x57.60mm Type COG
Connection Method FPC Operating voltage 3.3V
Communication interface Parallel port 8-bit/16-bit Viewing Direction 12 o'clock
Interface Type 40PIN Display color TFT
Driver IC ST7789V Operating temperature -20℃~70℃
Production capacity Self-produced Whether to bring PCB NO

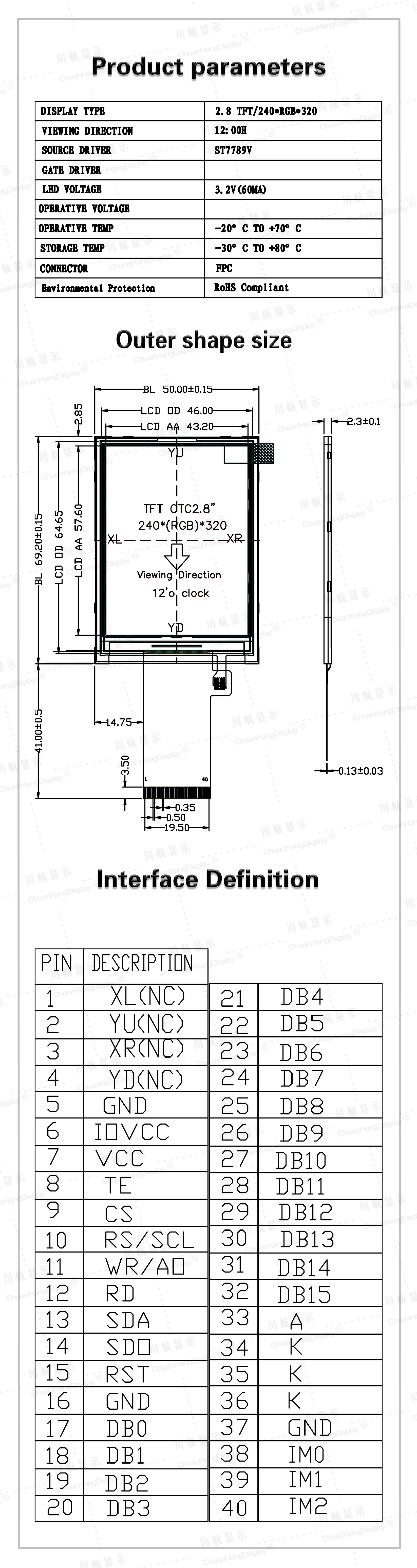

Product Datasheet

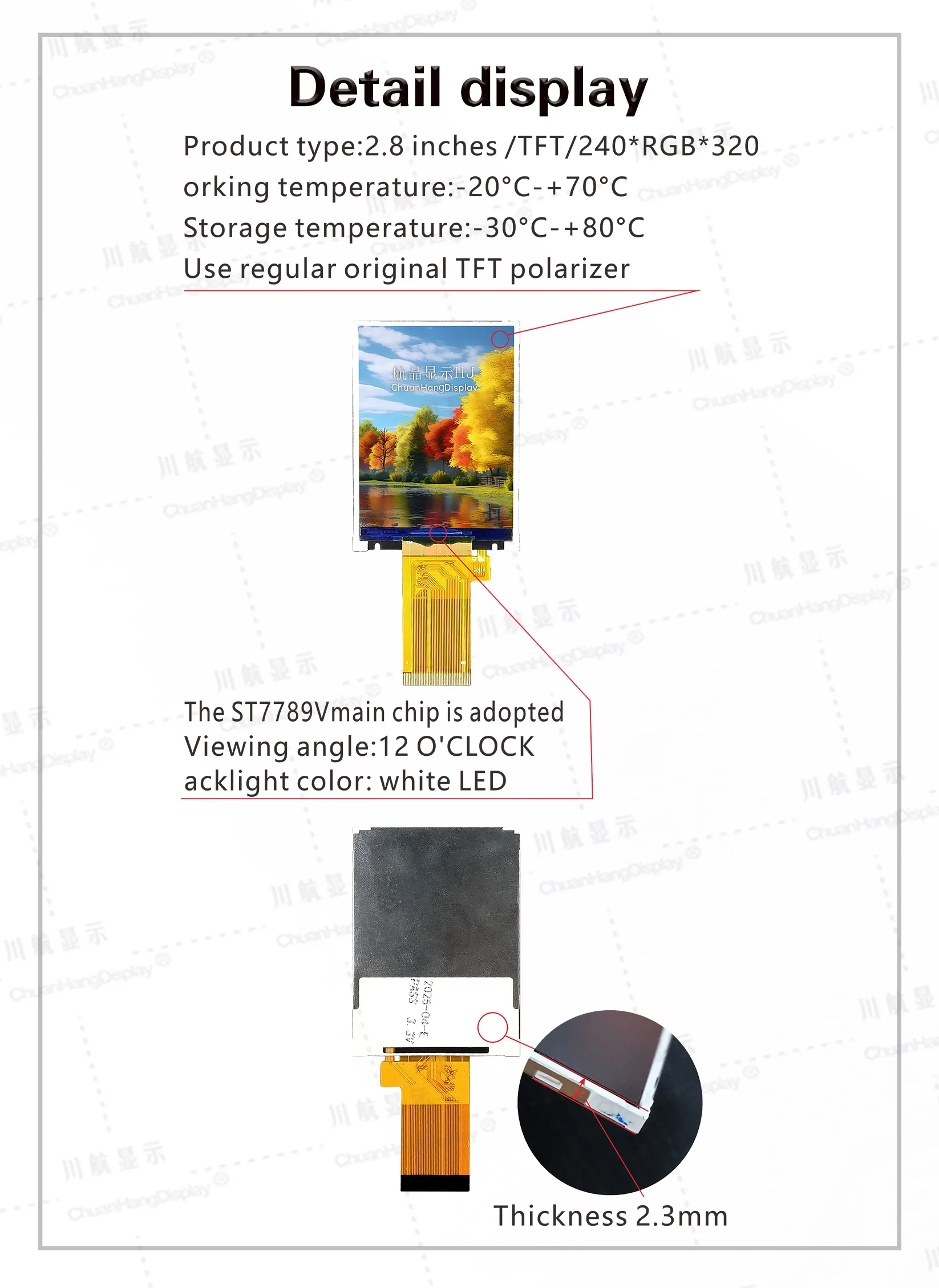

Product Display

Previous：

There is nothing left.

Next：

There is nothing left.

Product Label: 2.8 inch TFT LCD 2.8 inch 320*240 IPS TFT TFT LCD Screen with RGB interface 12 O'clock with 40Pin
