Product Description
Product size: 3.5-inch
Resolution: 320xRGBx240
Viewing angle:6 O'CLOCK
Interface type:RGB

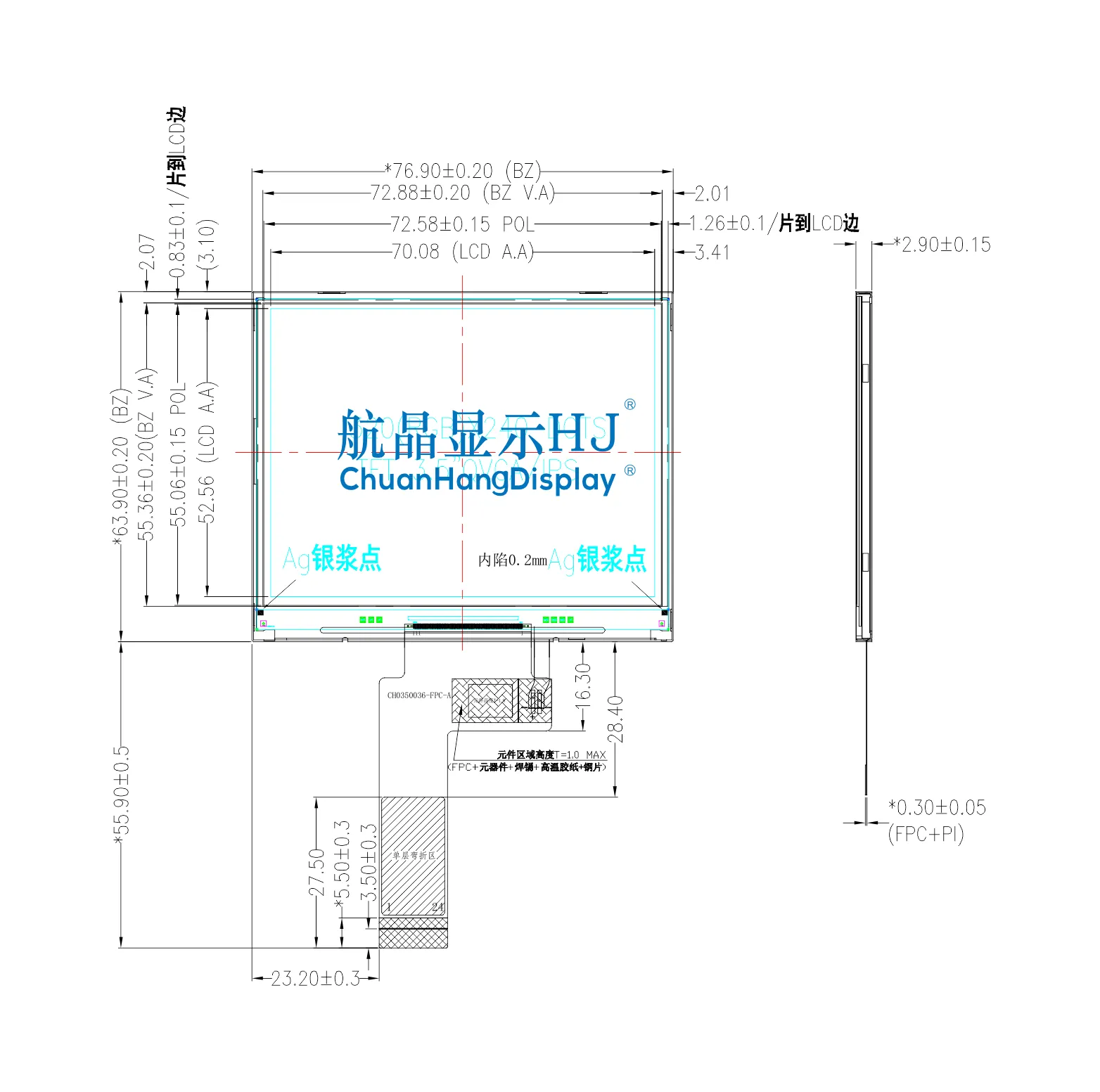

Module size: 76.90X63.90X2.90mm
Active area: 70.08X52.56mm
Cable interface: 24 PIN
Type of iron frame: SUS201 stainless steel
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation

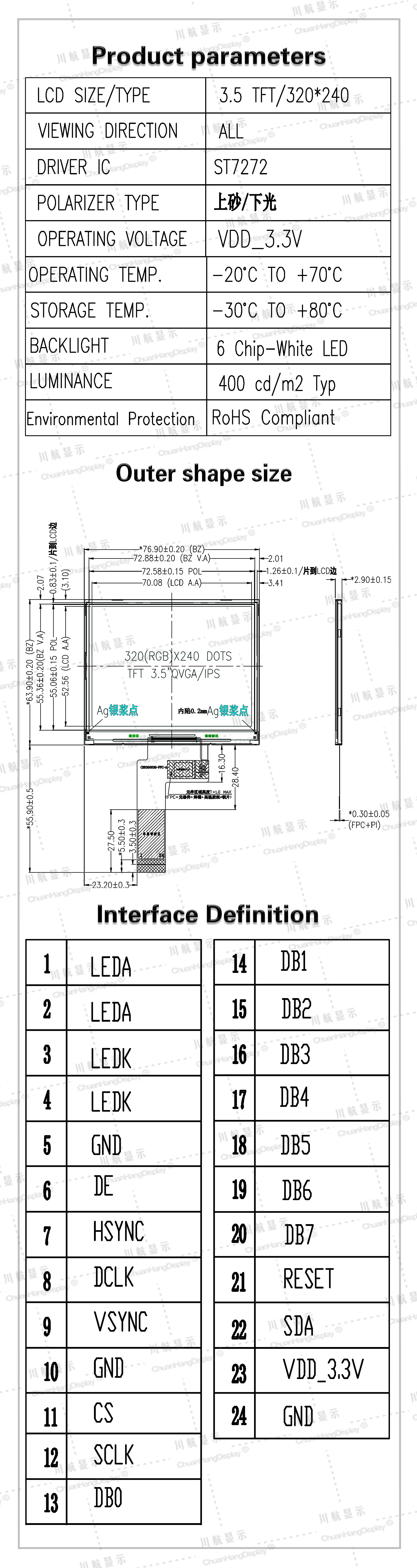

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH035QV0036B-A
Resolution320xRGBx240Screen size3.5”
Outline Dimension(L*W*H)76.90X63.90X2.90mmActive Area(L*W)70.08X52.56mm
TypeCOGCommunication interfaceRGB
Operating Voltage3.3V Interface Type24PIN
Viewing Direction6 O'CLOCKDisplay ColorTFT
Driver ICST7272Operating Temperature-20℃ --70℃
Storage Temperature-30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NOConnection MethodFPC
Product Datasheet

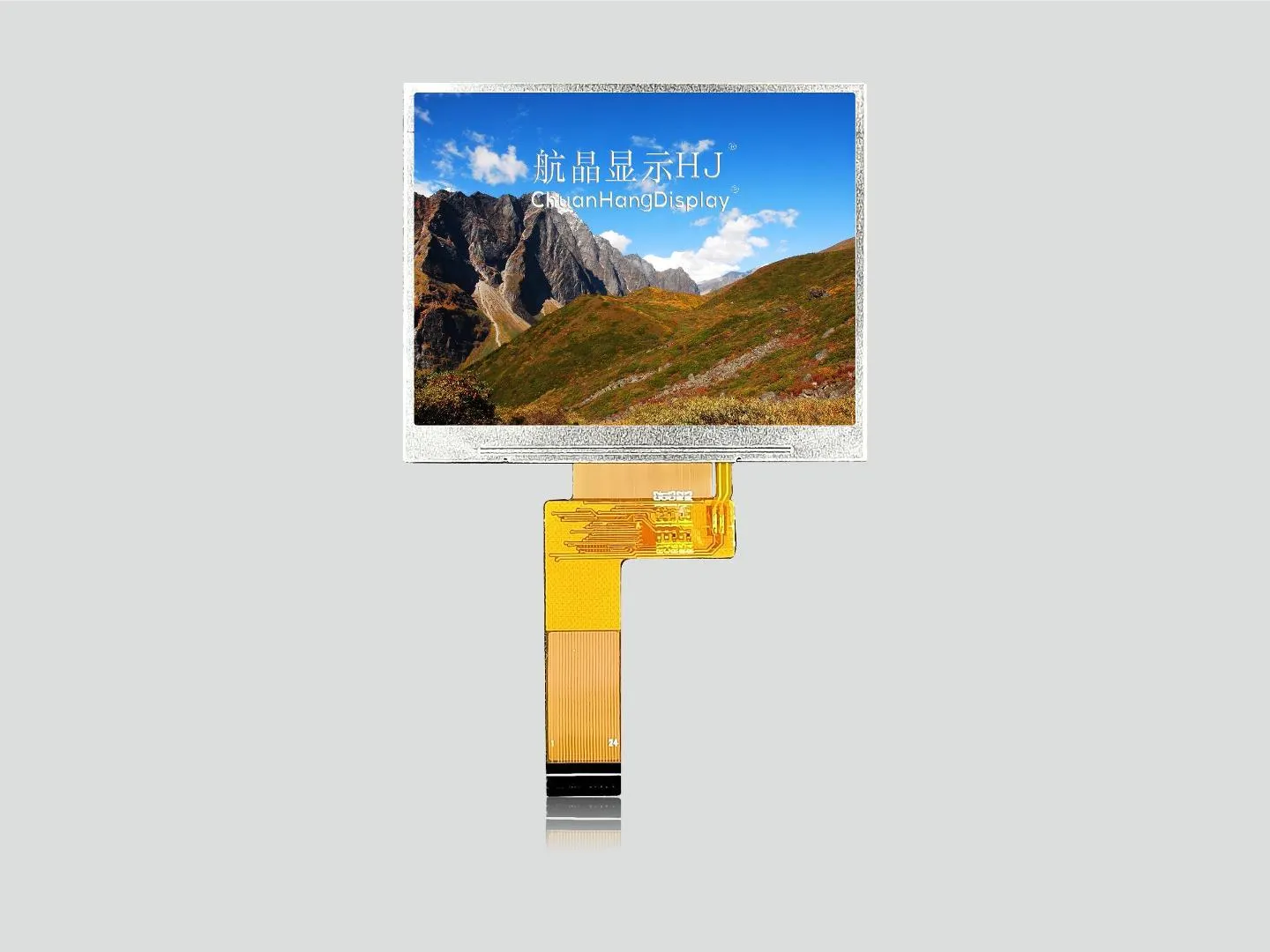

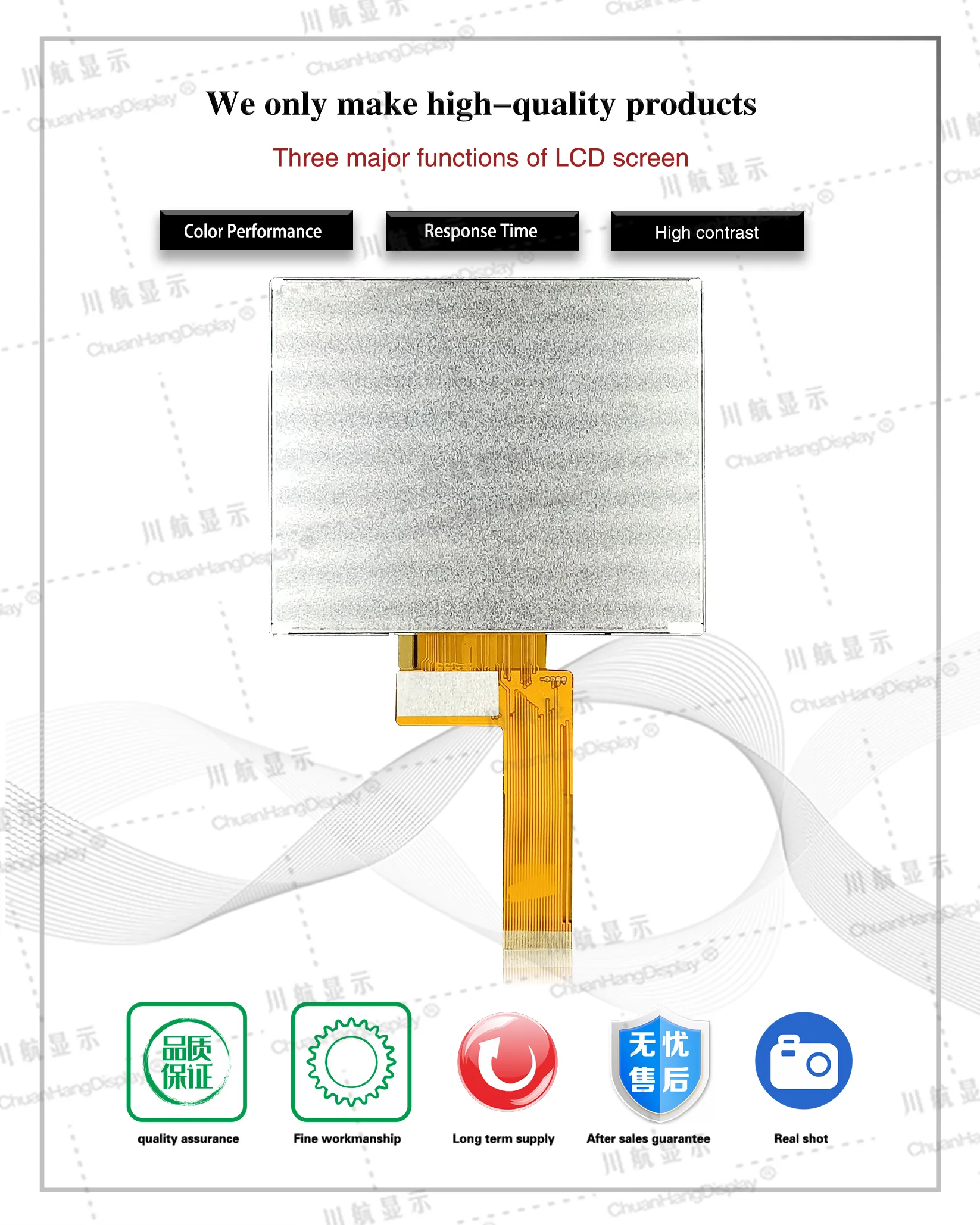

Product Display
