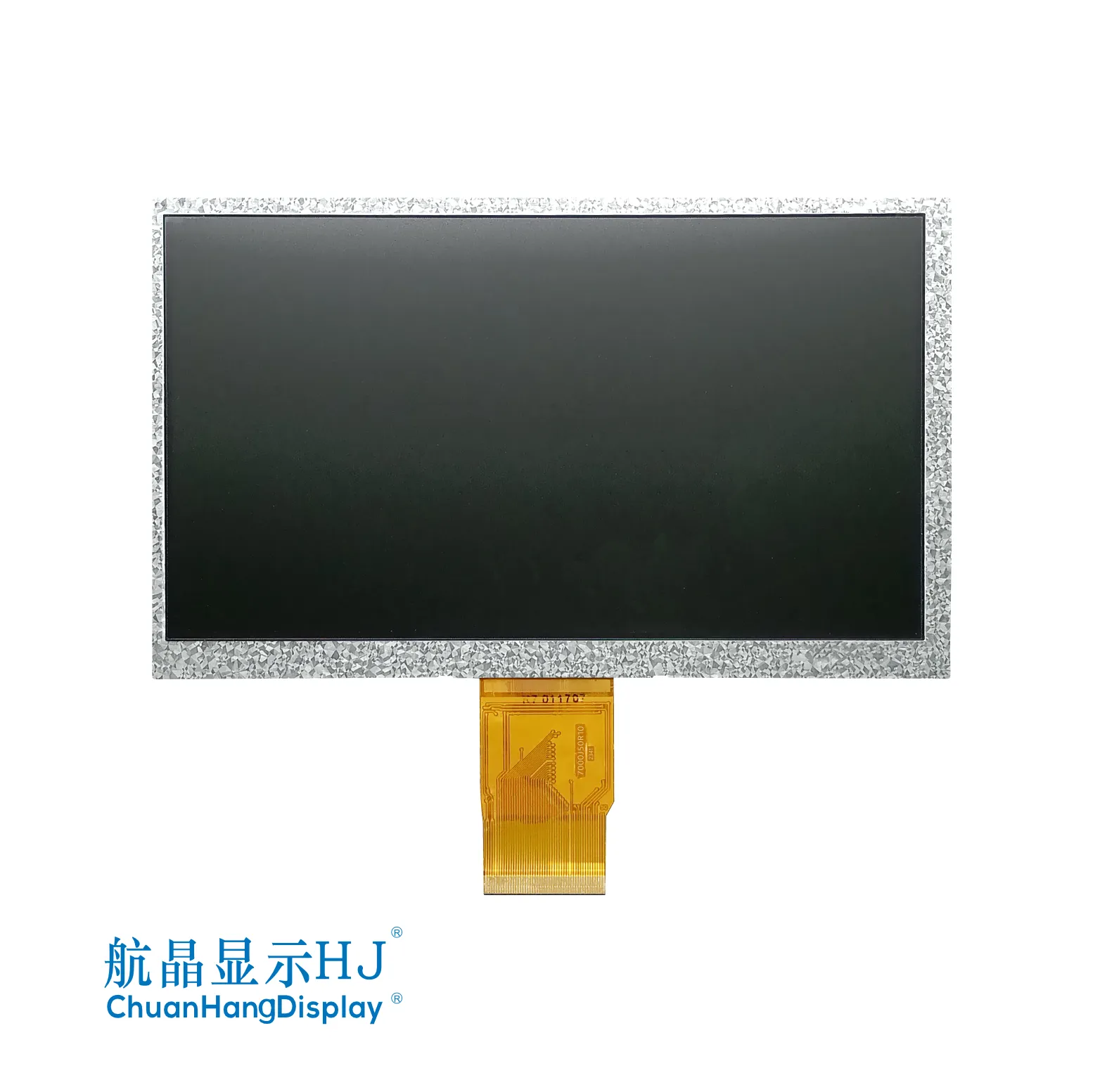

7 inch TFT LCD 1024x600

7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600
7 inch TFT LCD 1024x600

7 inch TFT LCD 1024x600

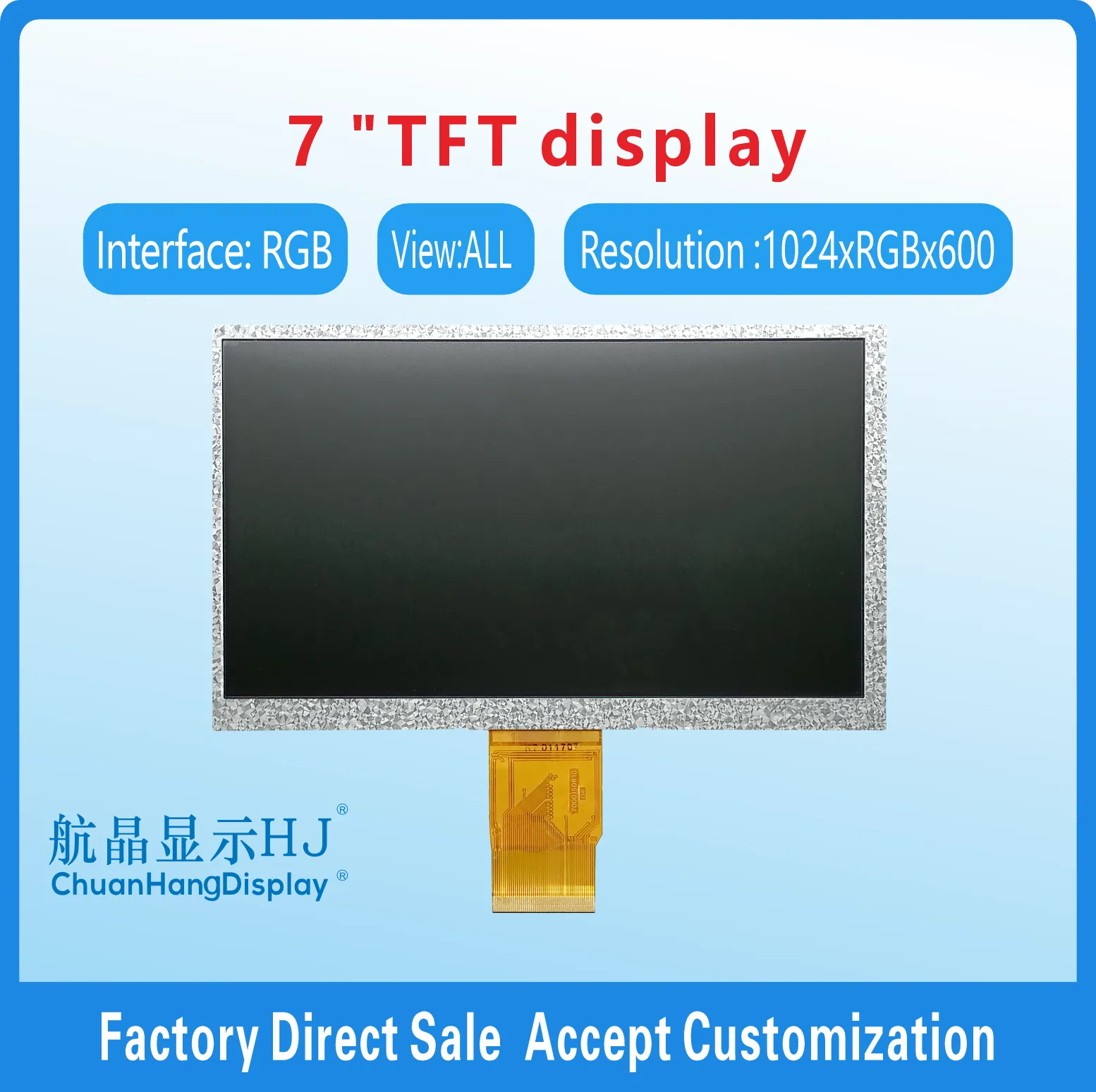

Product Description
Product size: 7.0 inches
Resolution: 1024xRGBx600
Viewing angle:IPS full viewing angle
Interface type:RGB

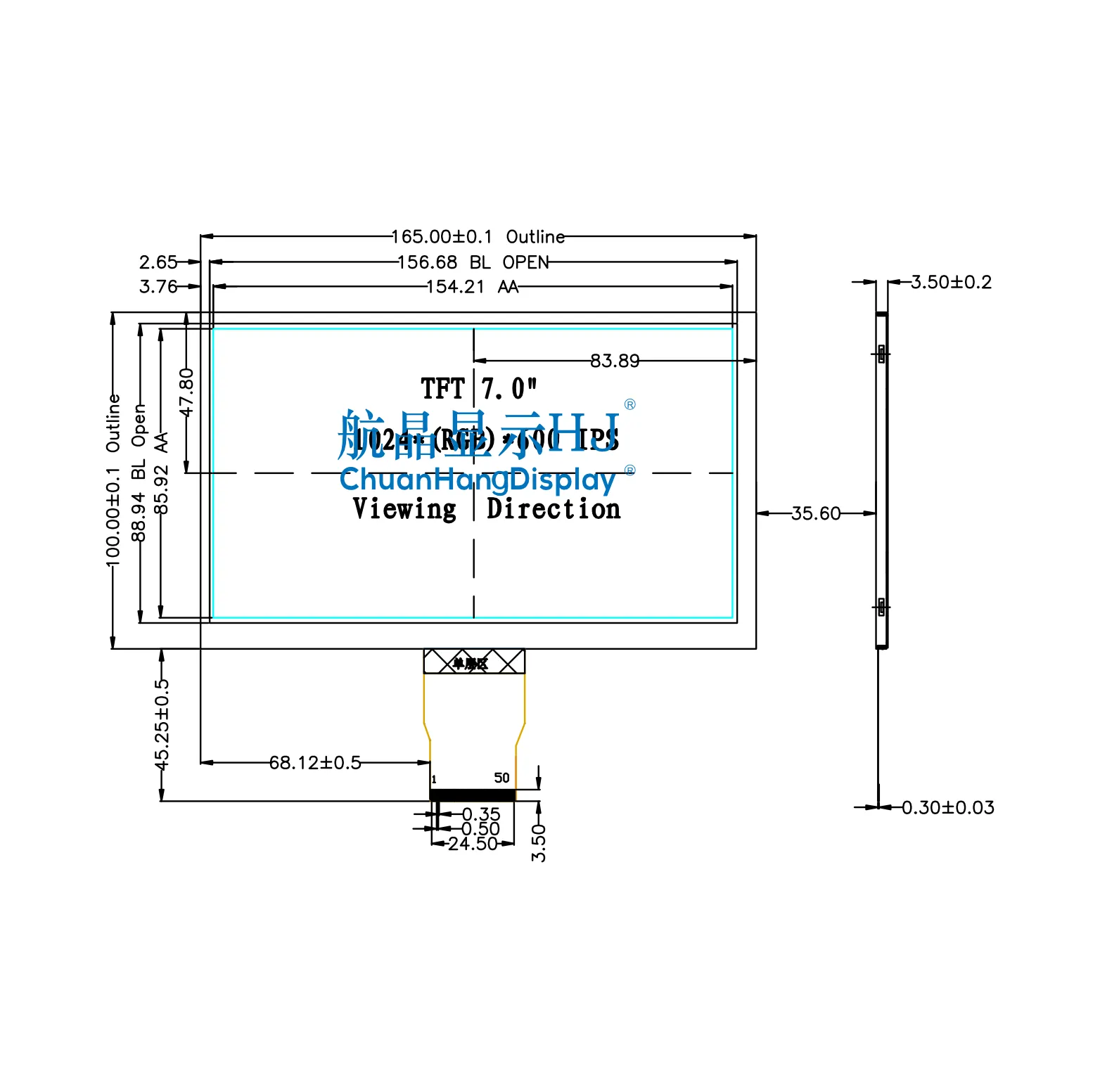

Module size: 165.00X100.00X3.5mm
Active area: 154.21.00X85.92mm
Cable interface: 50 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation

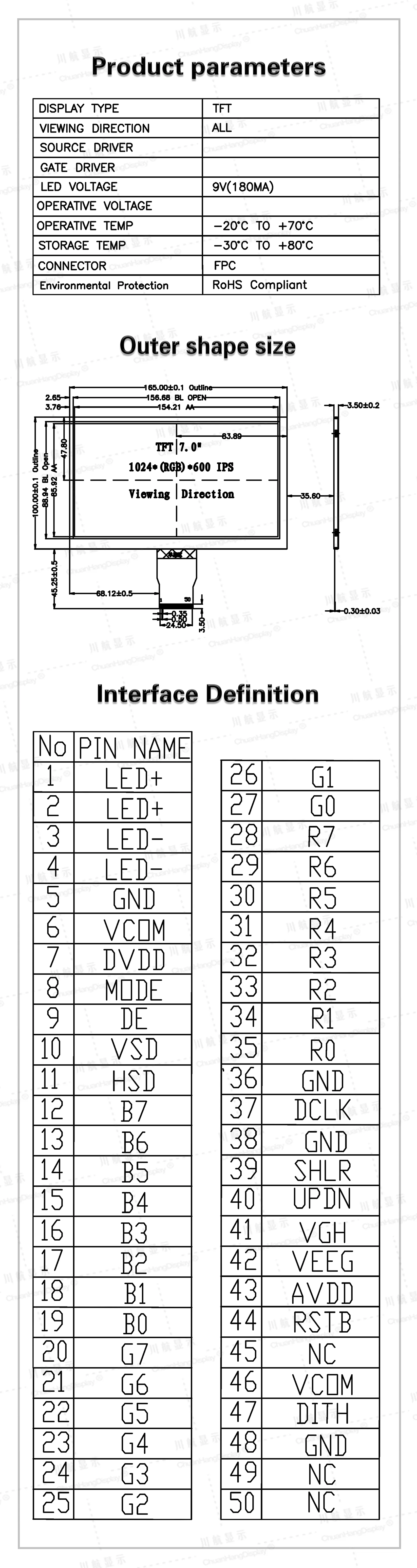

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH070A-P-B
Resolution1024xRGBx600Screen size7.0”
Outline Dimension(L*W*H)165.00X100.00X3.5mmActive Area(L*W)154.21.00X85.92mm
TypeCOGCommunication interfaceRGB
Operating Voltage3.3V Interface Type50PIN
Viewing DirectionIPS full viewing angleDisplay ColorTFT
Driver ICOperating Temperature-20℃ --70℃
Storage Temperature-30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NOConnection MethodFPC
Product Datasheet

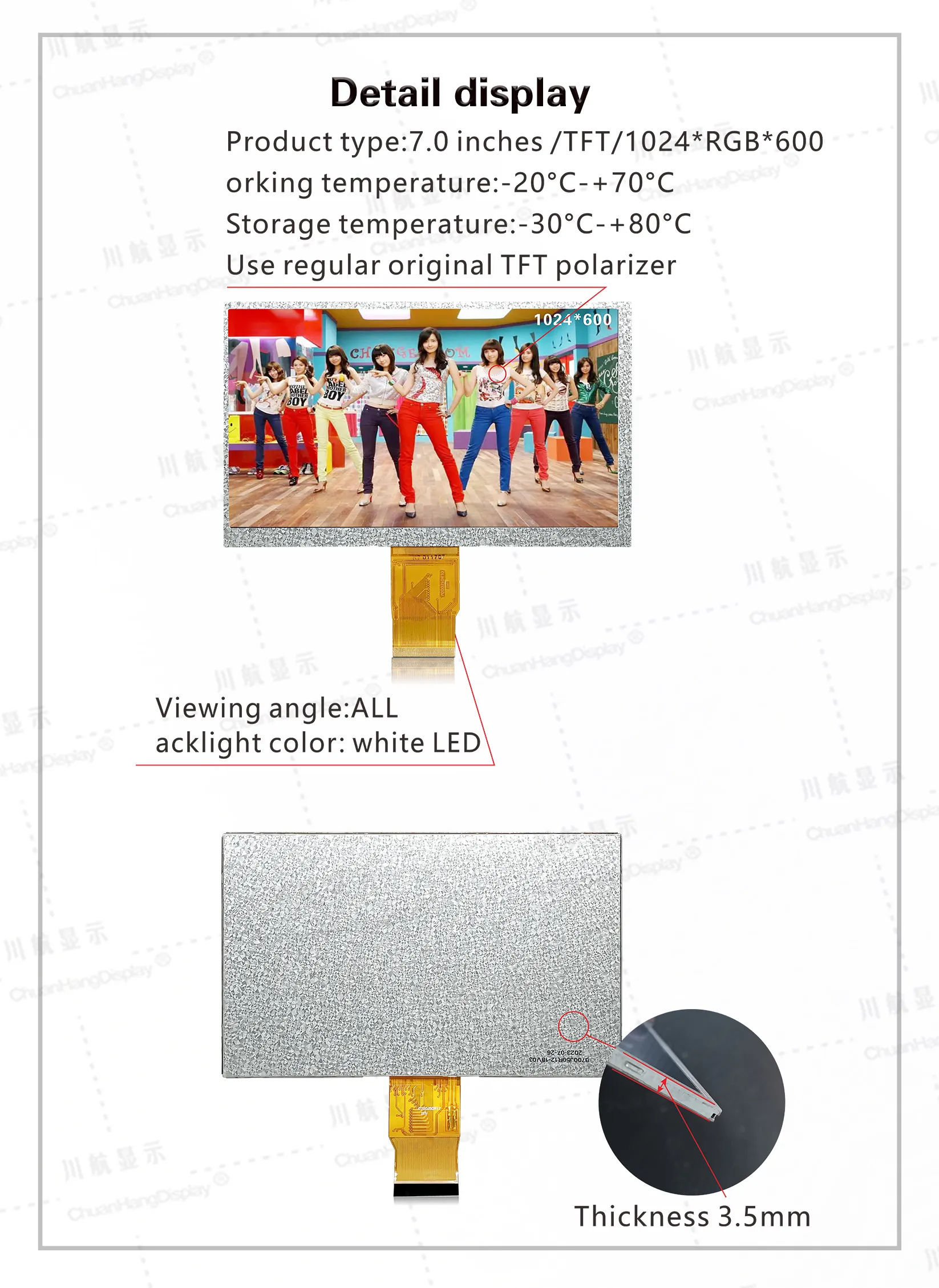

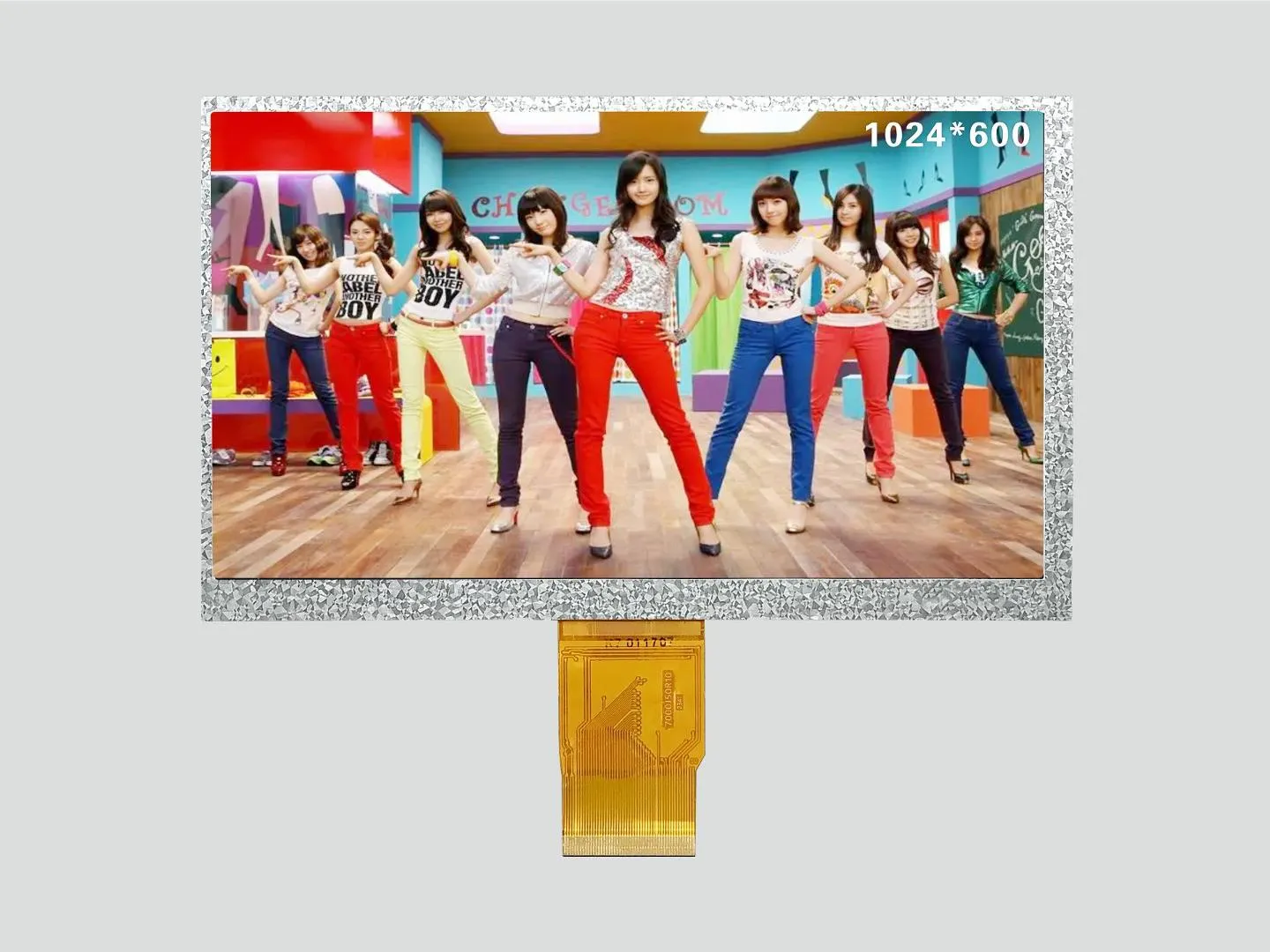

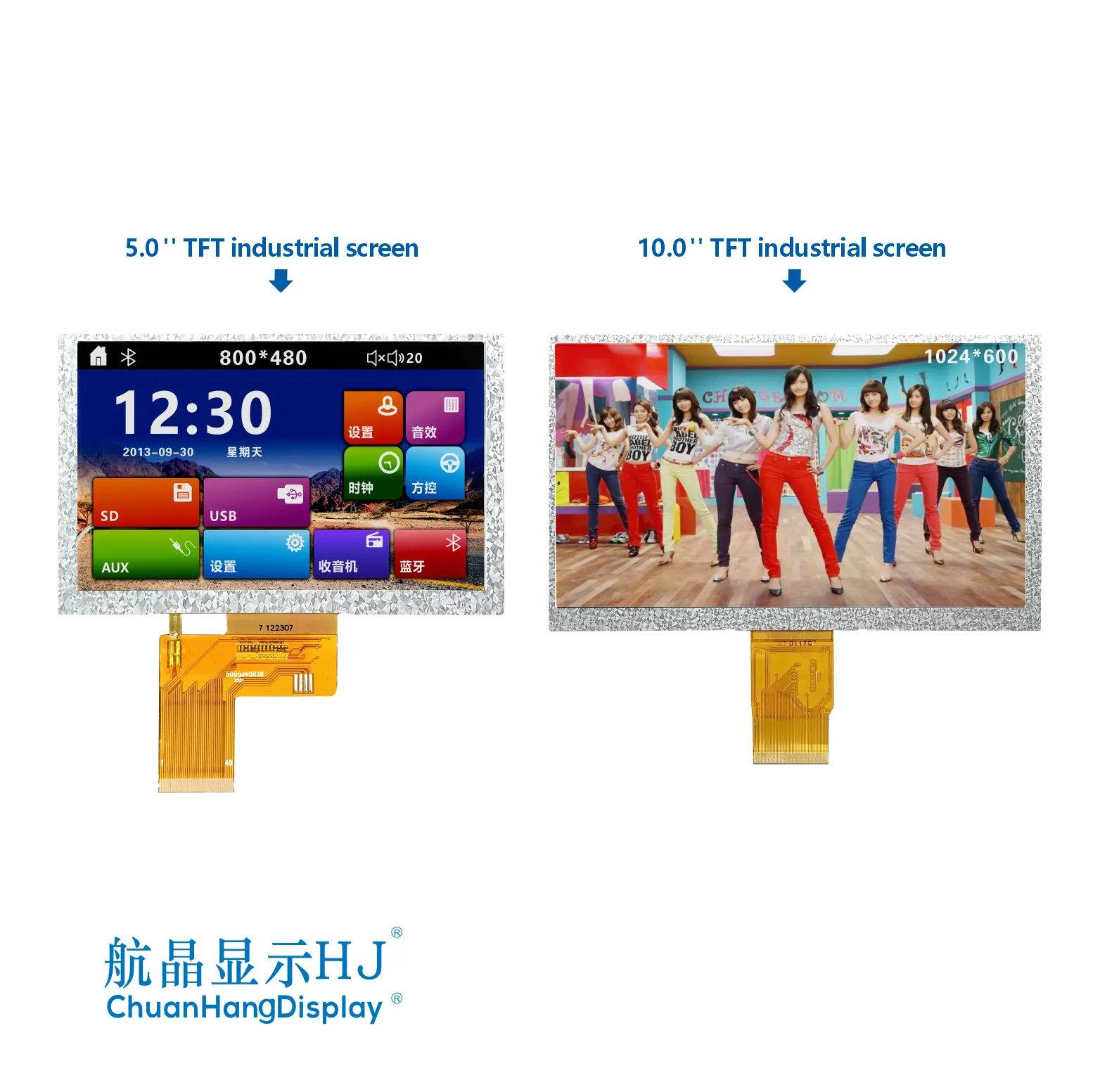

Product Display
