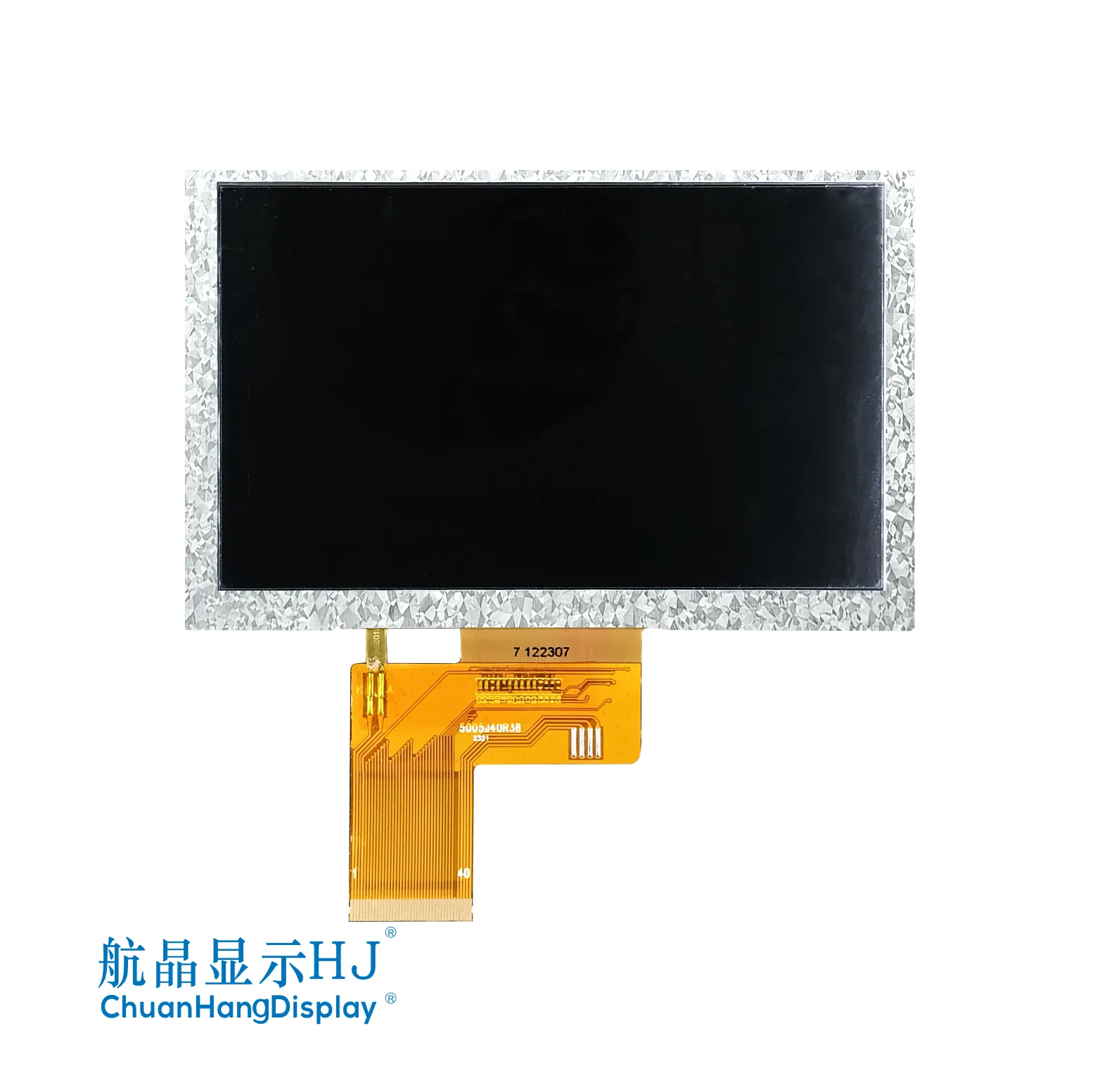

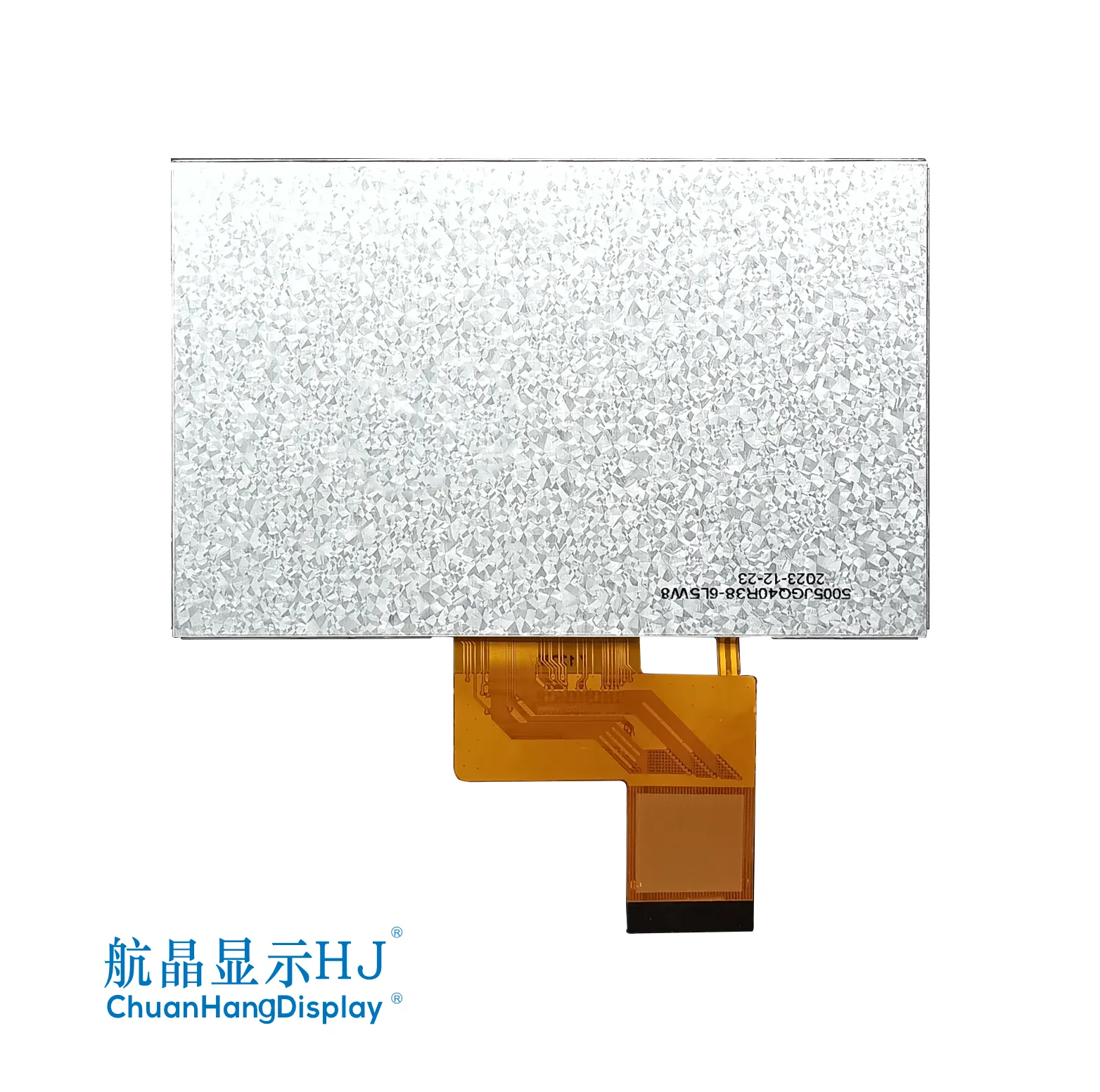

Product Description
Product size: 5.0 inches
Resolution: 800xRGBx480
Viewing angle: IPS full viewing angle
Driver chip: ST7265
Interface type: Parallel port 8-bit/16-bit

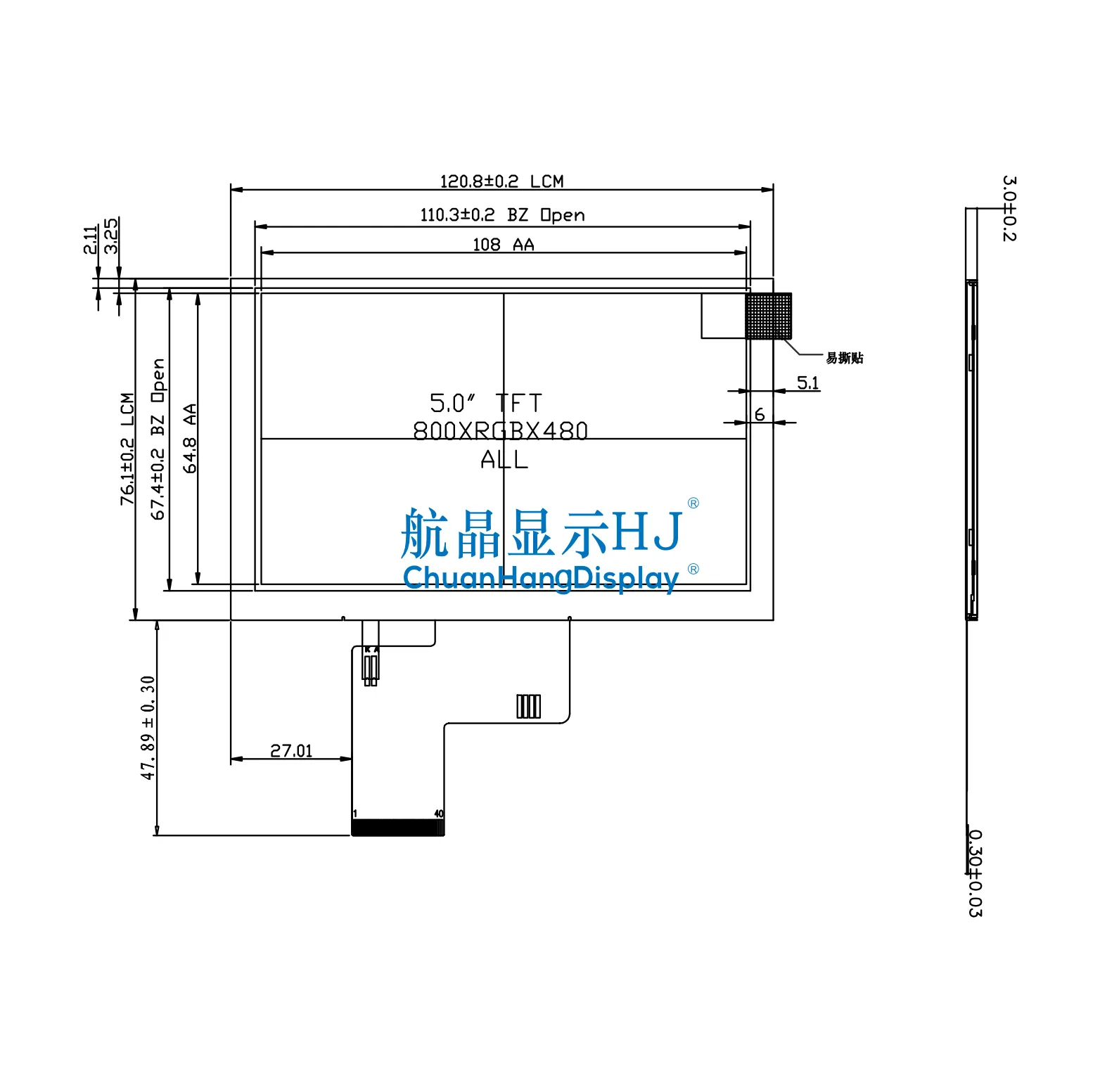

Module size: 120.8X76.10X3.0mm
Active area: 108.00X64.80mm
Cable interface: 40 PIN
Operating voltage: 3.3V
Operating temperature: -20℃ -70℃
Display color: TFT
Video Presentation

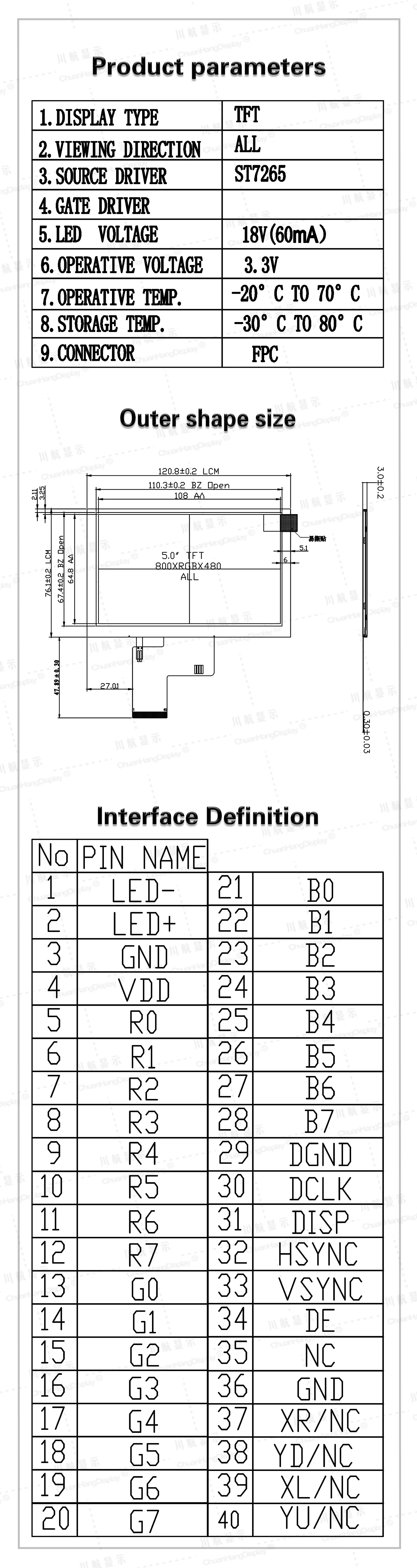

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH0500B-P
Resolution800xRGBx480Screen size5.0”
Outline Dimension(L*W*H)120.8X76.10X3.0mmActive Area(L*W)108.00X64.80mm
TypeCOGCommunication interfaceParallel port 8-bit/16-bit
Operating Voltage3.3V Interface Type40PIN
Viewing Direction IPS full viewing angle Display ColorTFT
Driver ICST7265Operating Temperature-20℃ --70℃
Storage Temperature-30℃ --80℃ Production capacity Self-produced
Whether to bring PCB NOConnection MethodFPC
Product Datasheet

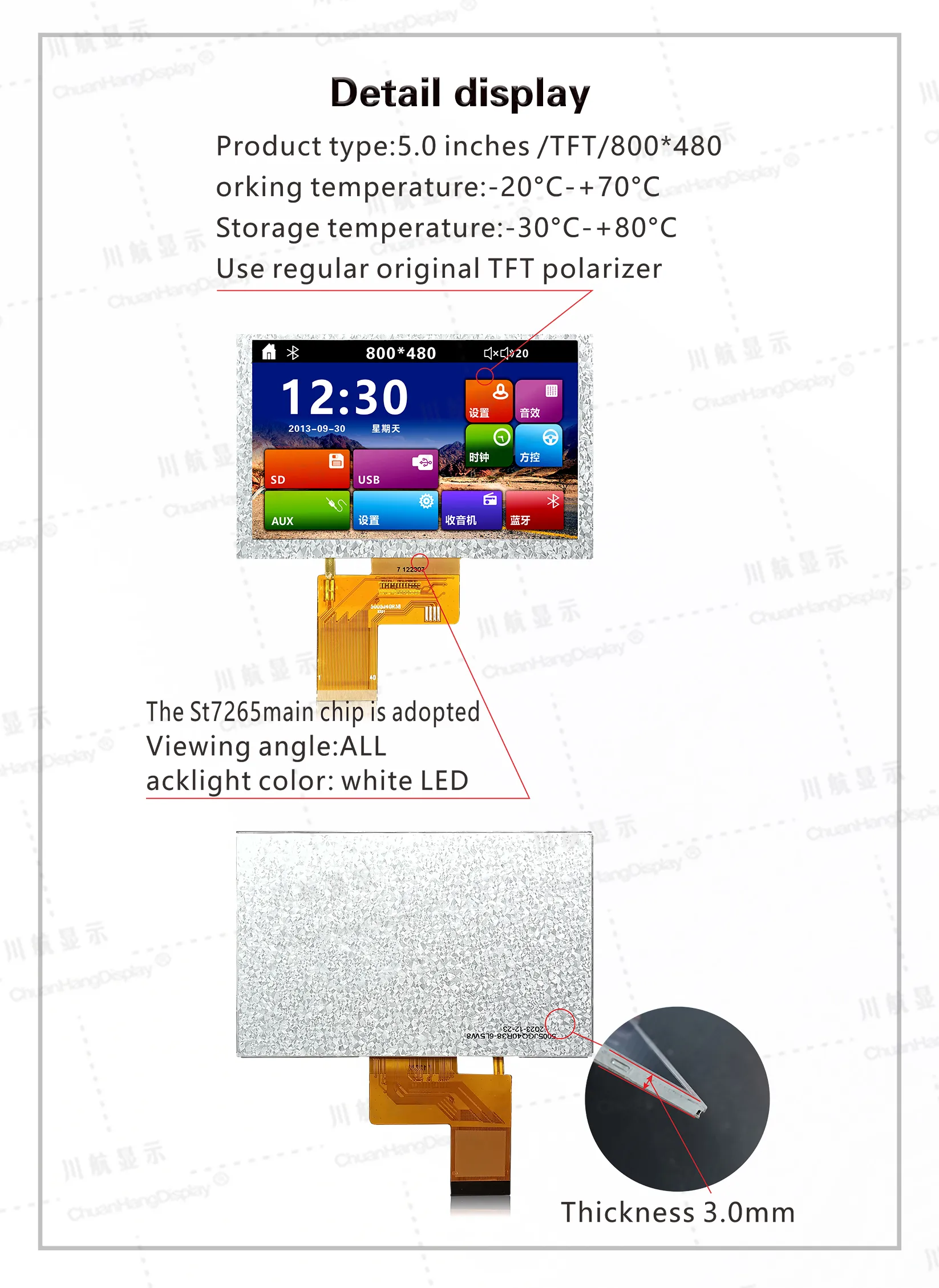

Product Display
