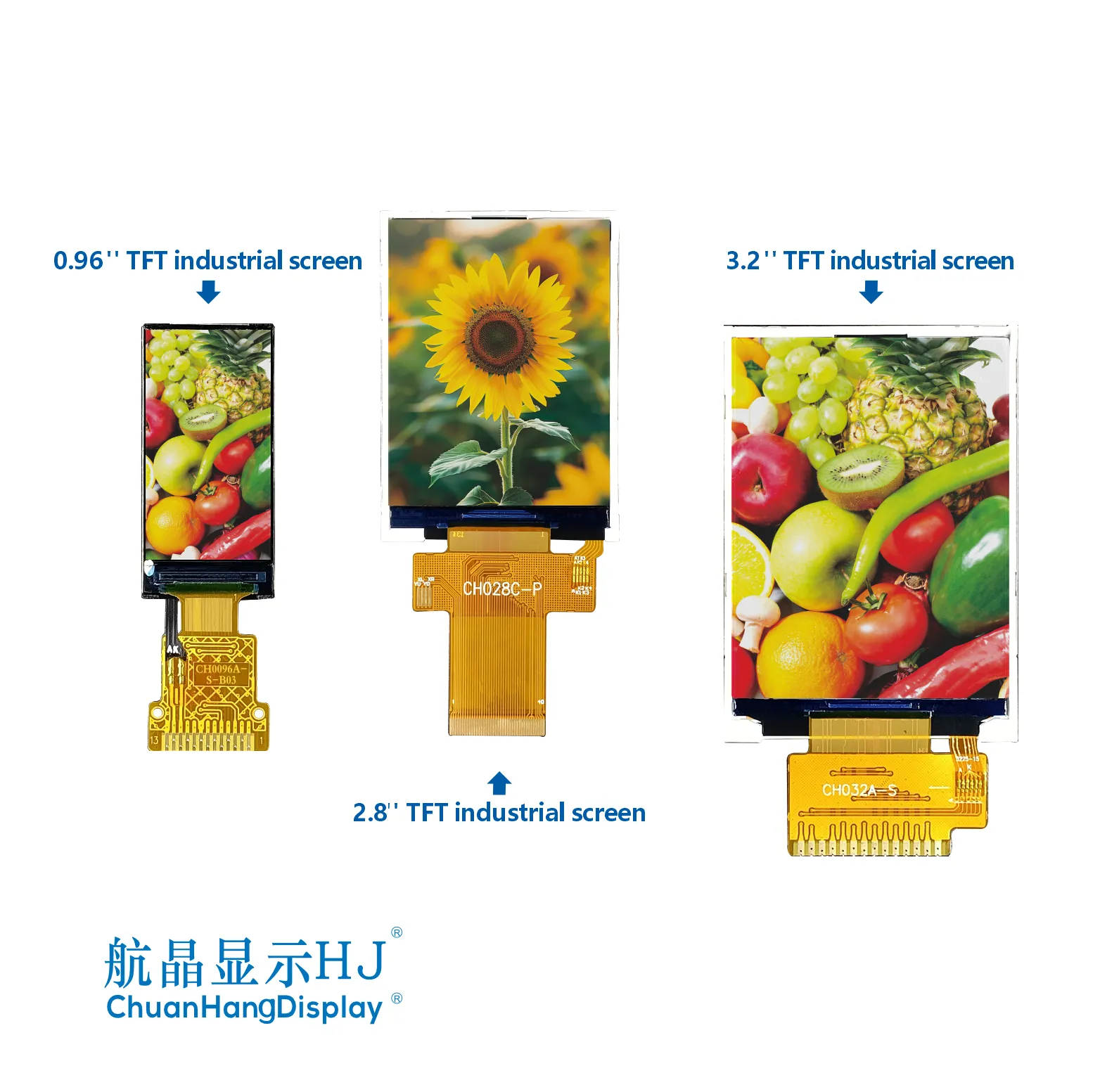

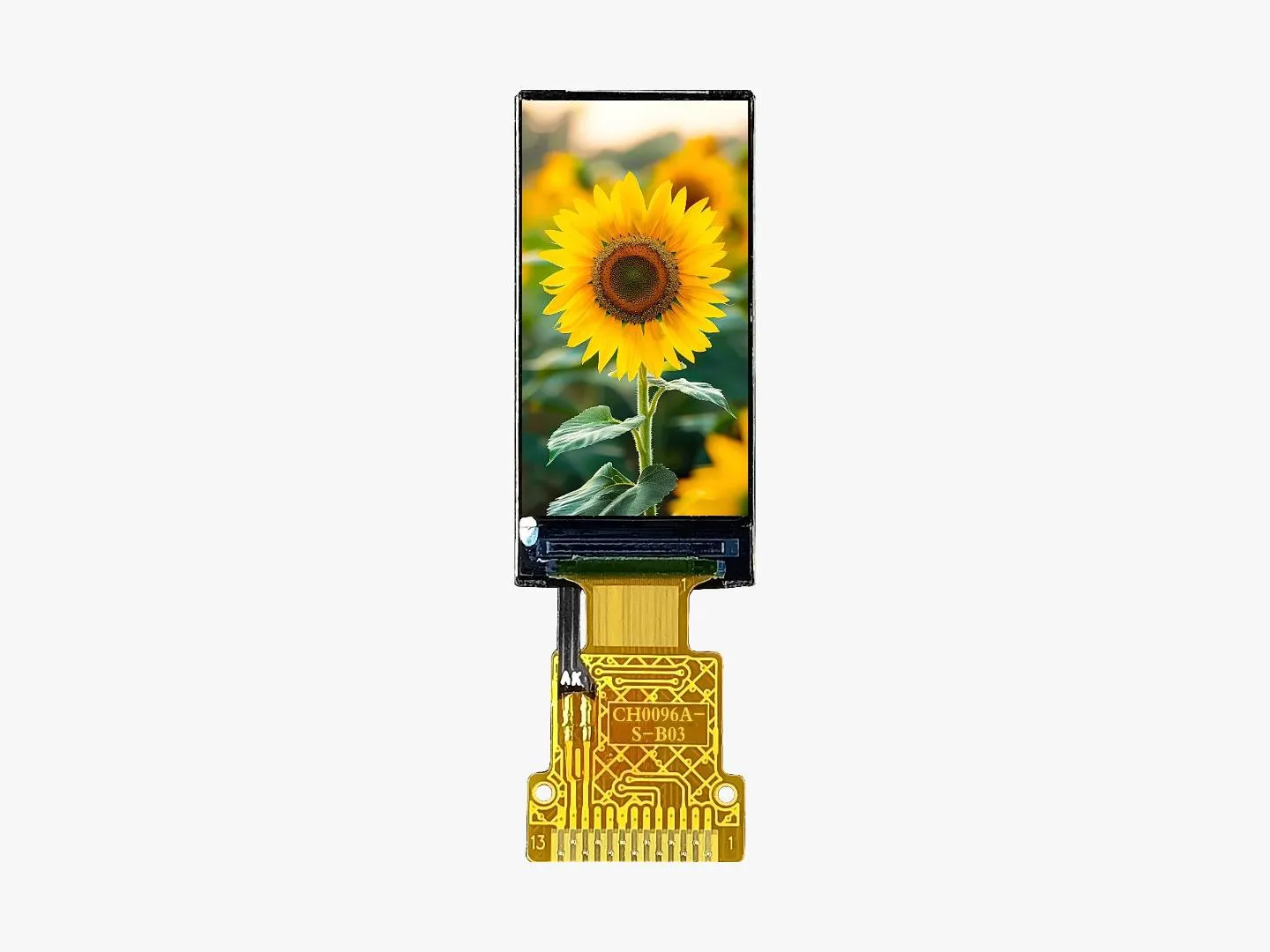

0.96"TFT display

0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display
0.96"TFT display

0.96"TFT display

Product Description
Product size: 0.96 inches
Resolution: 80xRGBx160
Viewing angle: IPS full viewing angle
Driver chip: ST7735S
Interface type:RGB
Module size: 13.5*27.95*1.5 mm
Active area: 10.8*21.7mm
Cable interface: 13 PIN
Operating voltage: 2.8V-3.3V
Operating temperature: -10℃ -60℃
Display color: TFT
Video Presentation
Product Parameters
Product Brand ChuanHangDisplay Product Model CH0096A-S-B03
Resolution 80xRGBx160 Screen size 0.96”

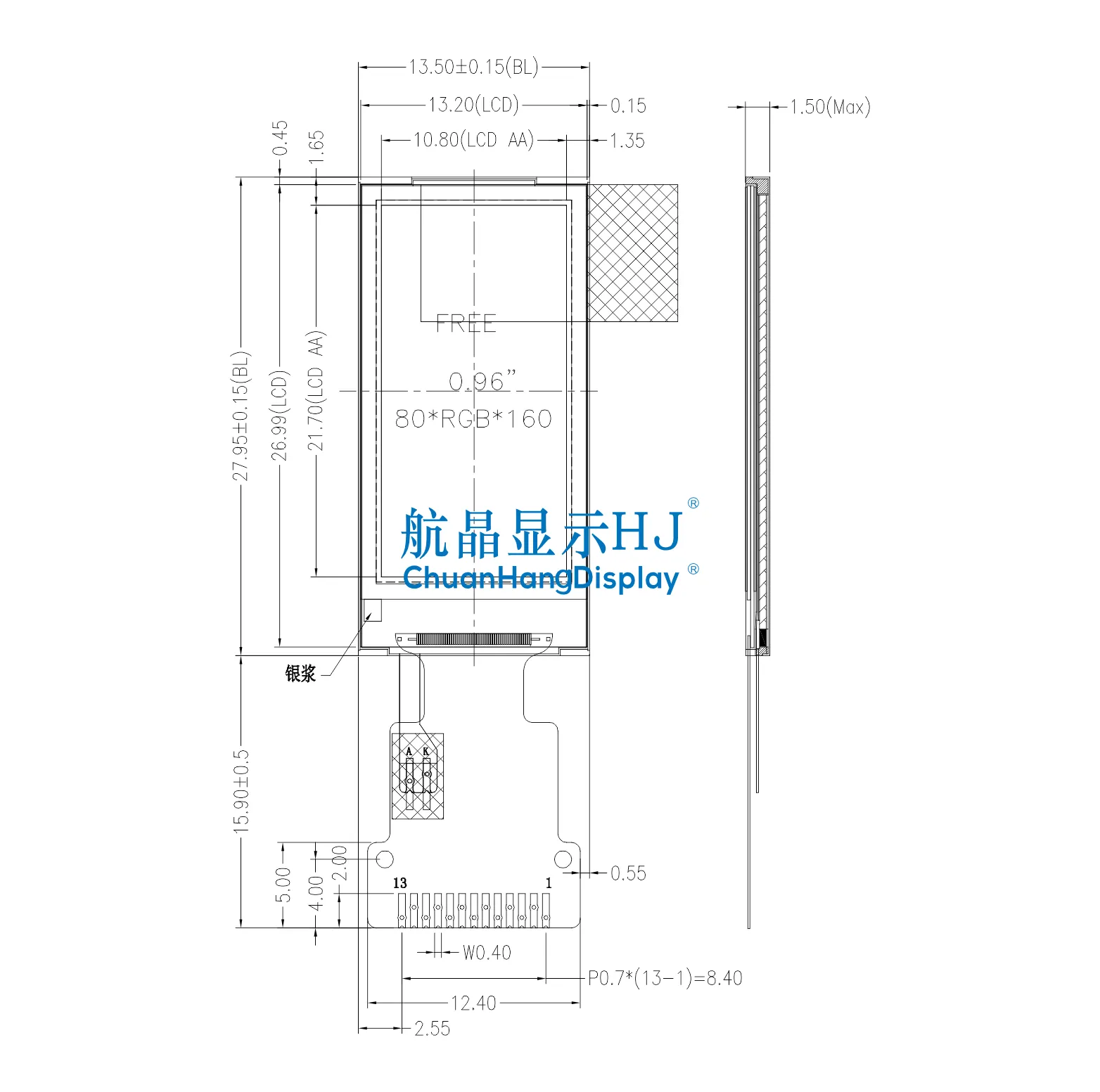

Outline Dimension(L*W*H) 13.50X27.95X1.5mm Active Area(L*W) 10.80X21.70mm
Type COG Communication interface RGB
Operating Voltage 2.8V-3.3V Interface Type 13PIN
Viewing Direction IPS full viewing angle Display Color TFT
Driver IC ST7735S Operating Temperature -10℃ --60℃
Storage Temperature -20℃ --70℃ Production capacity Self-produced
Whether to bring PCB NO Connection Method FPC

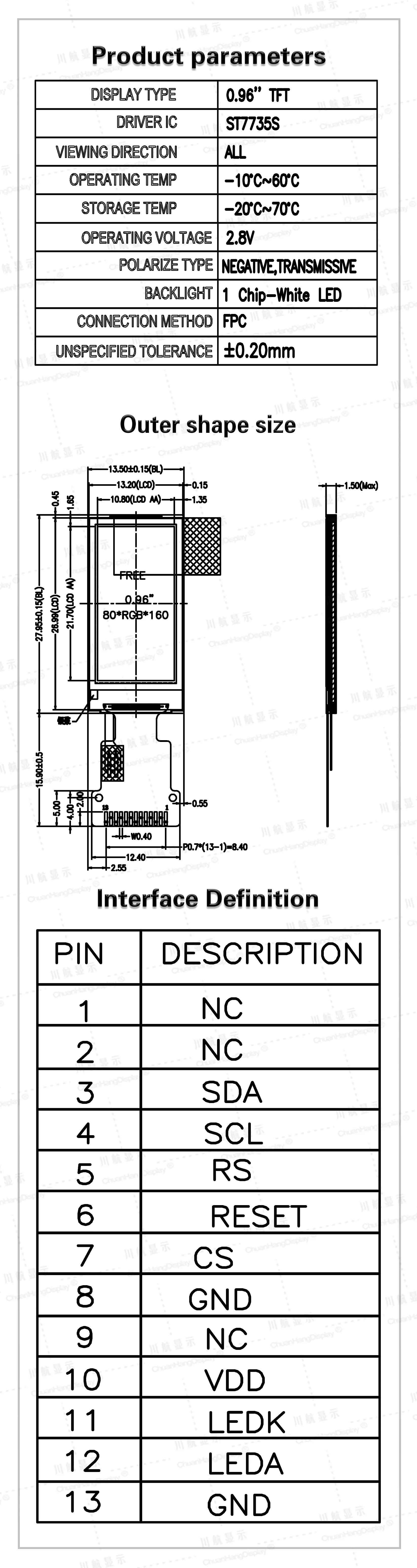

Product Datasheet

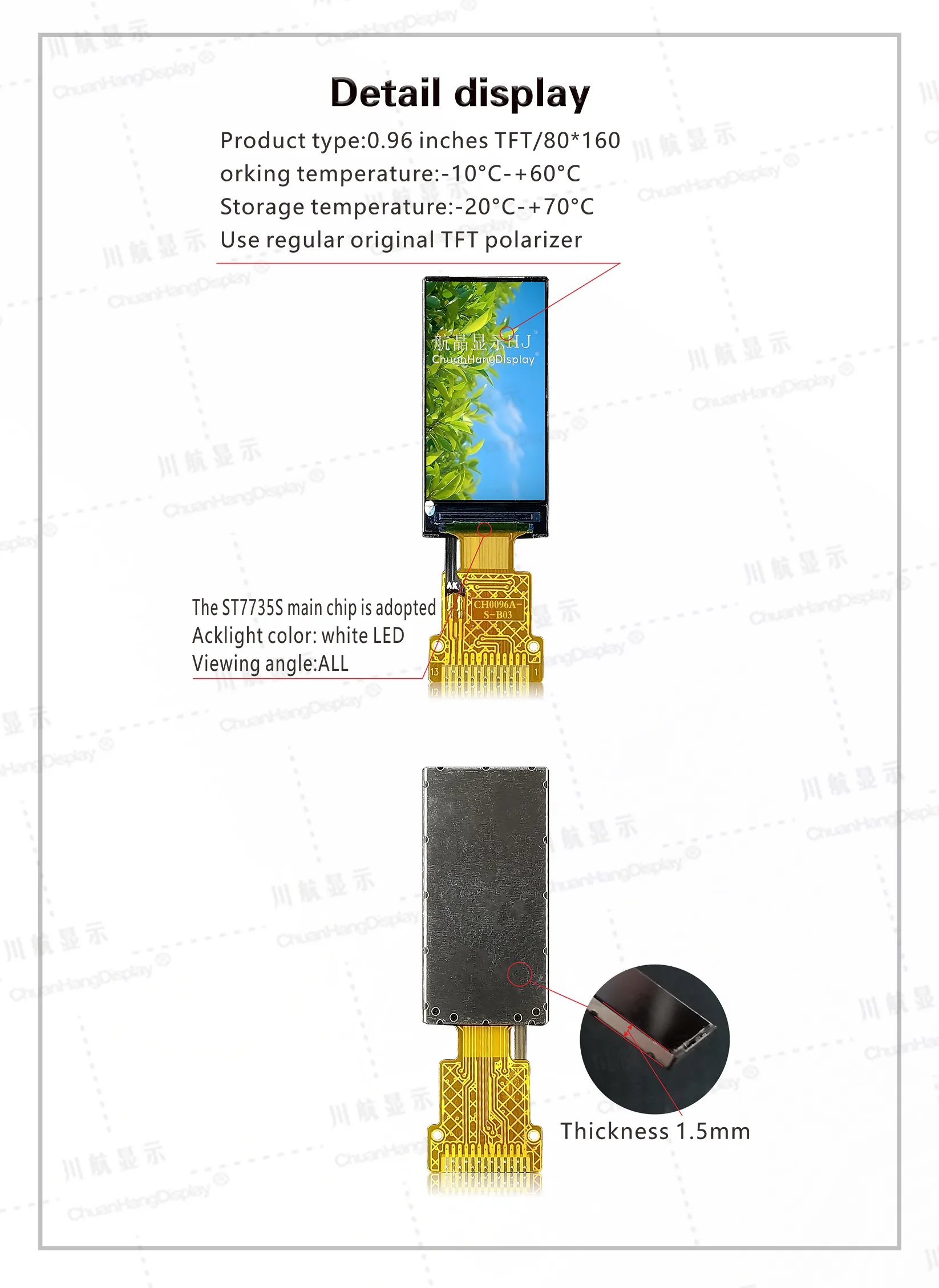

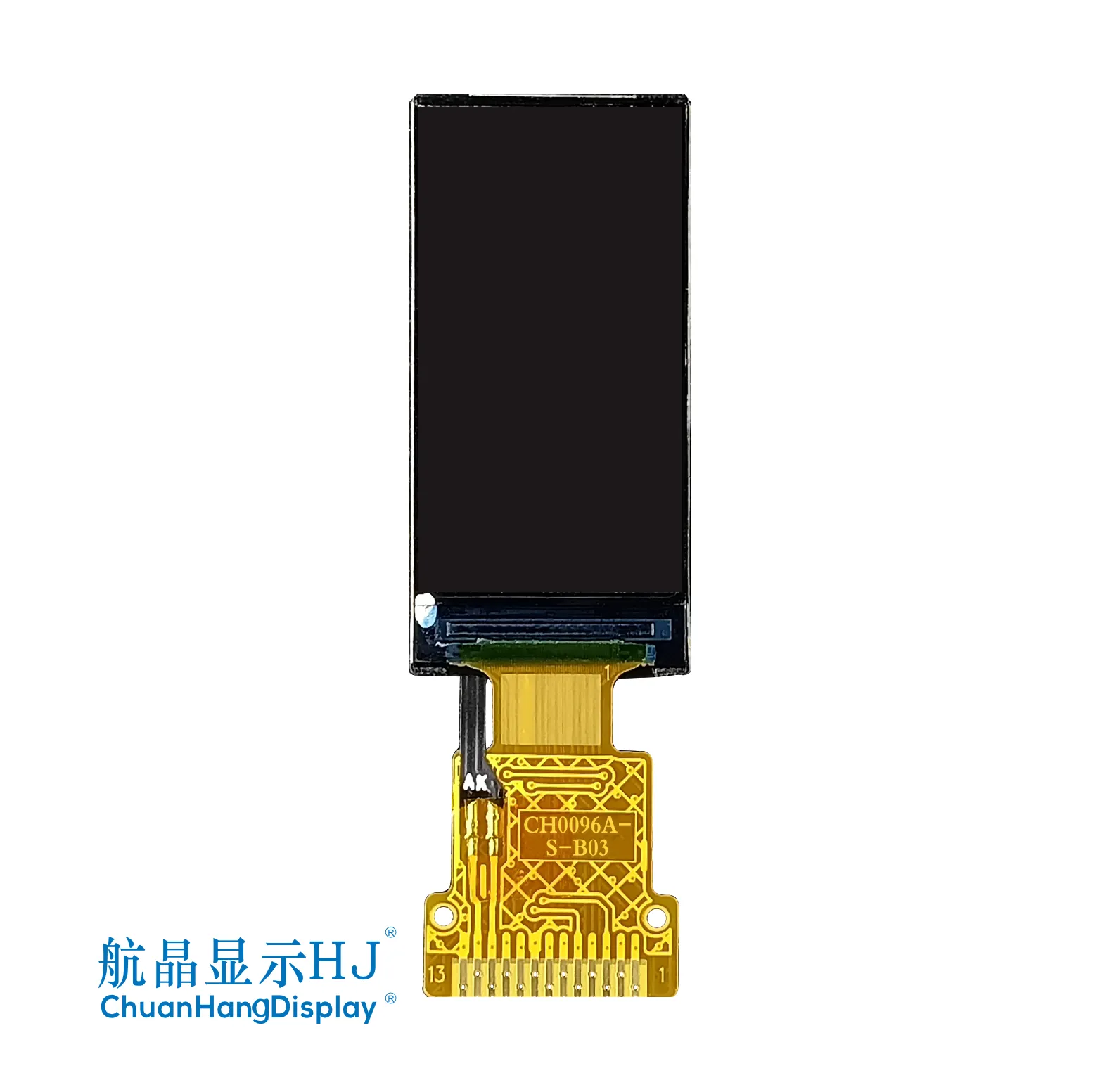

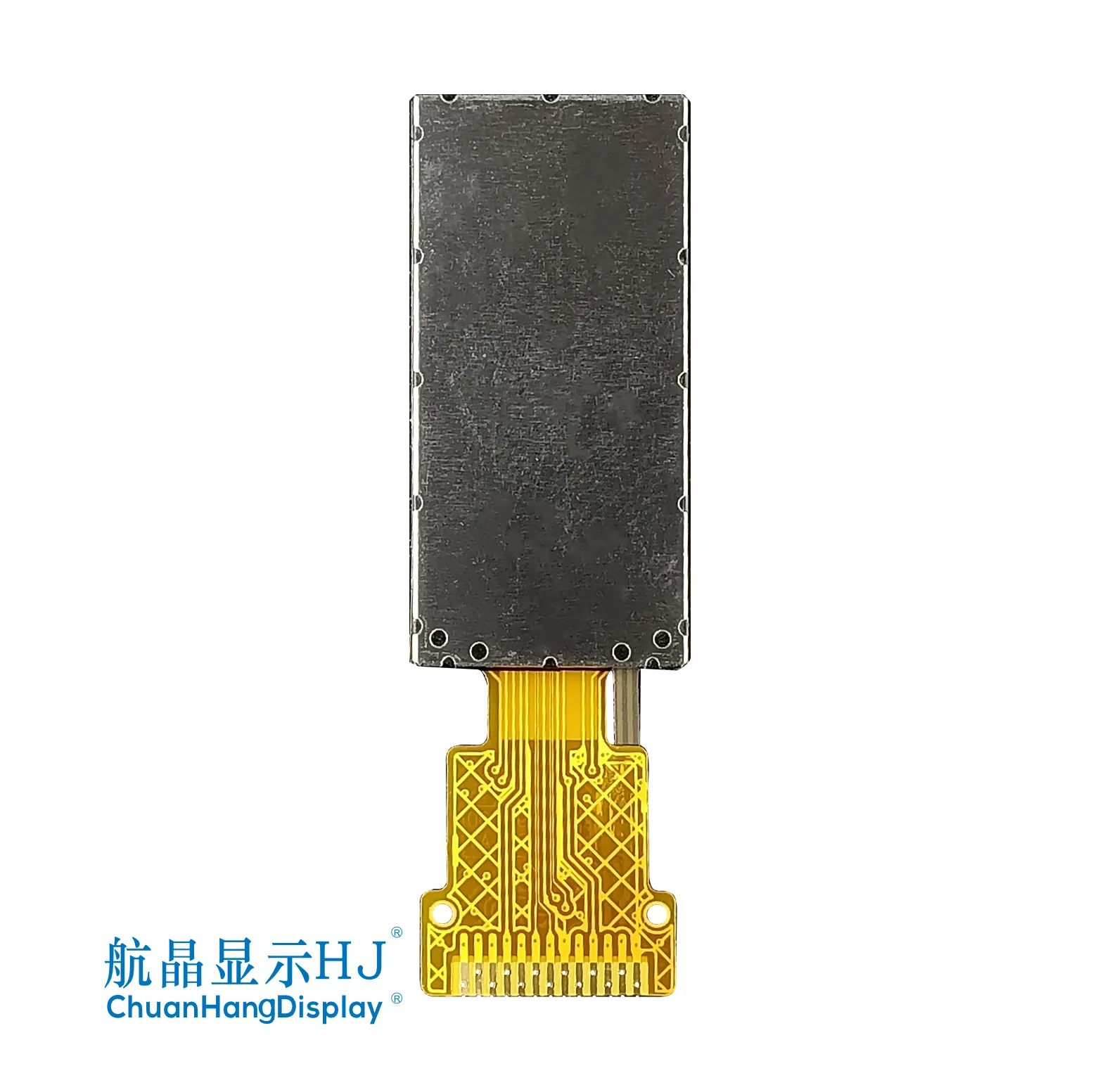

Product Display
