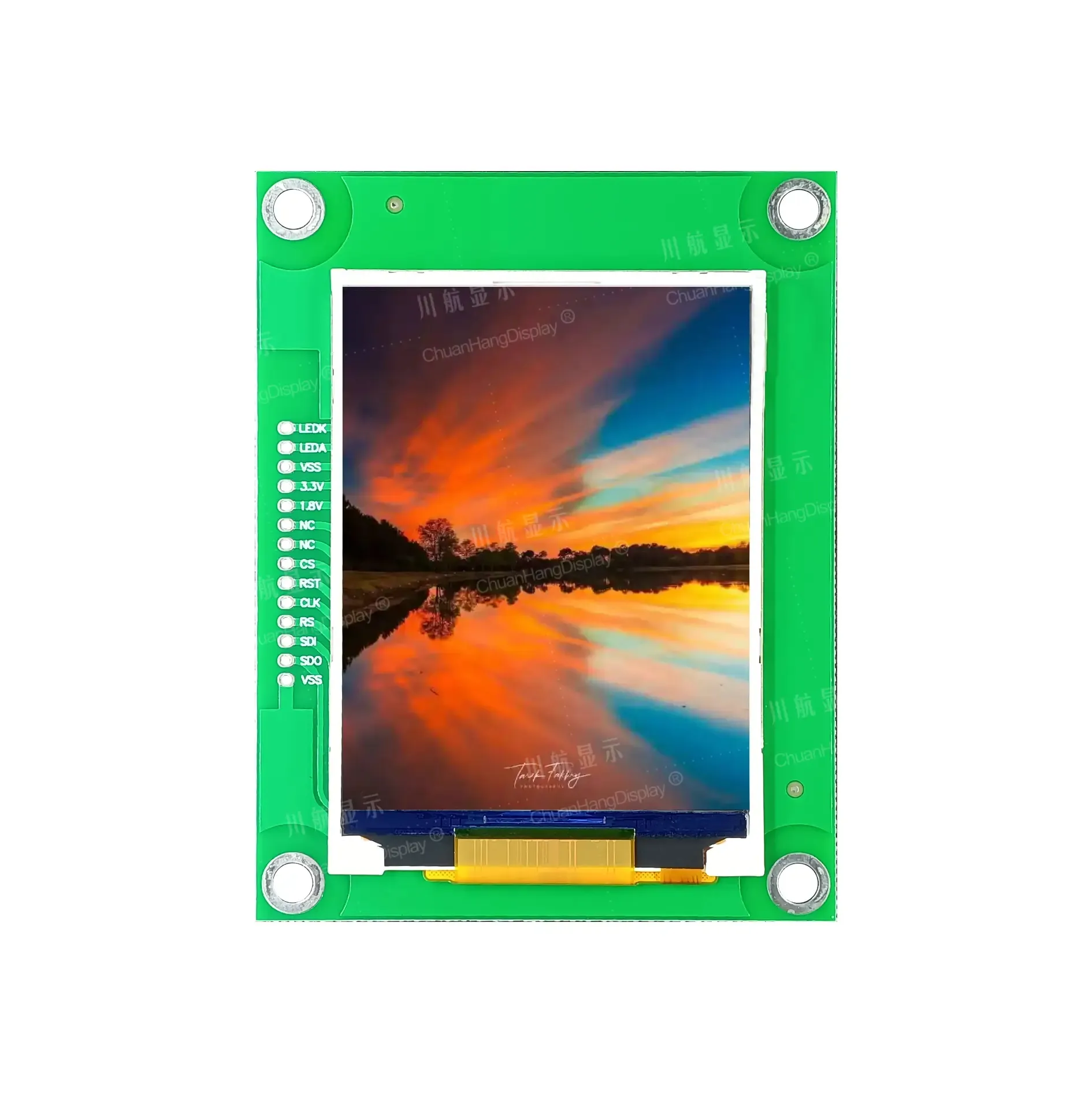

3.2"CH032A-S with PCB board

3.2"CH032A-S with PCB board

PRODUCTS CENTER

3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board
3.2"CH032A-S with PCB board

3.2"CH032A-S with PCB board

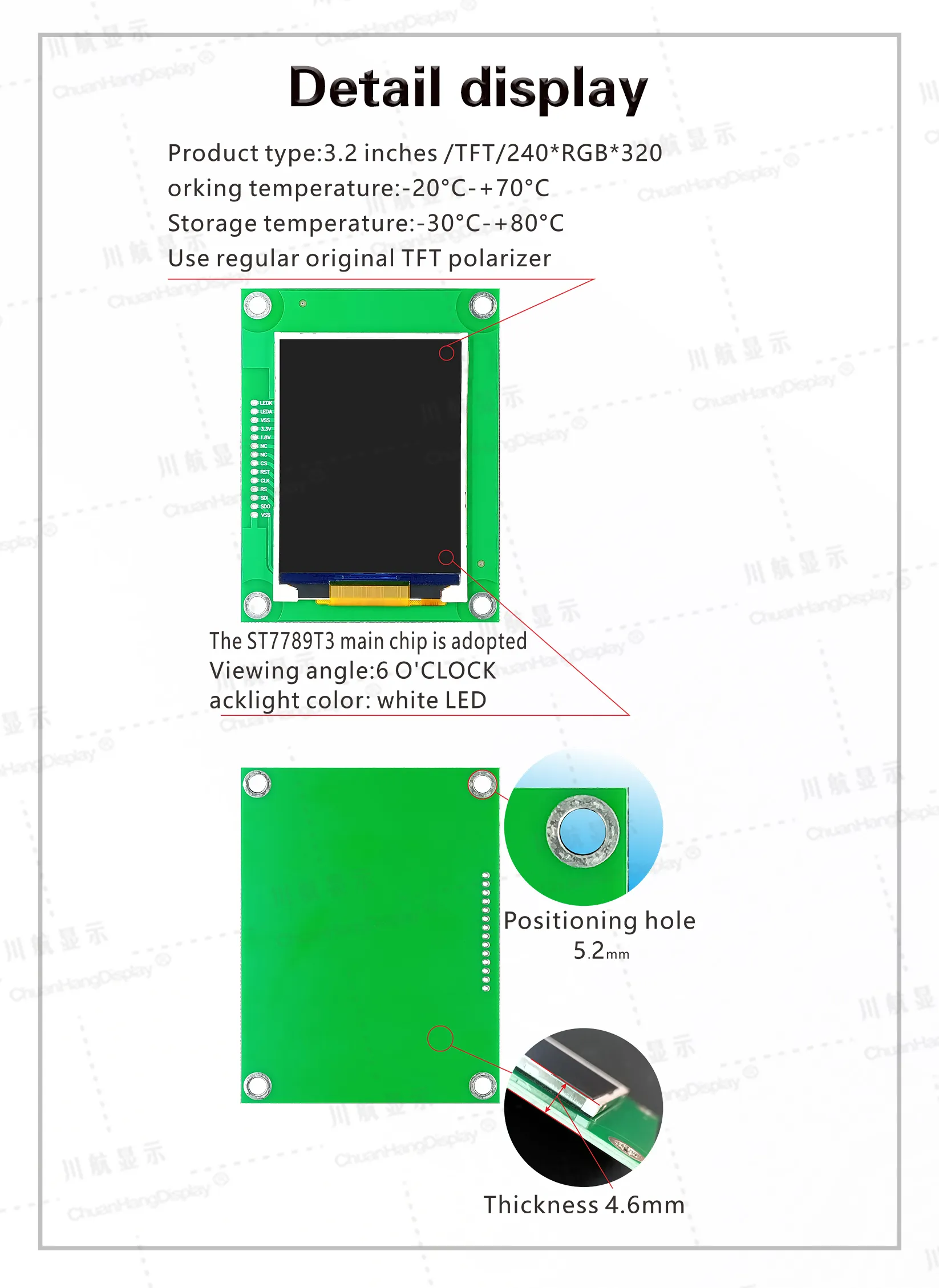

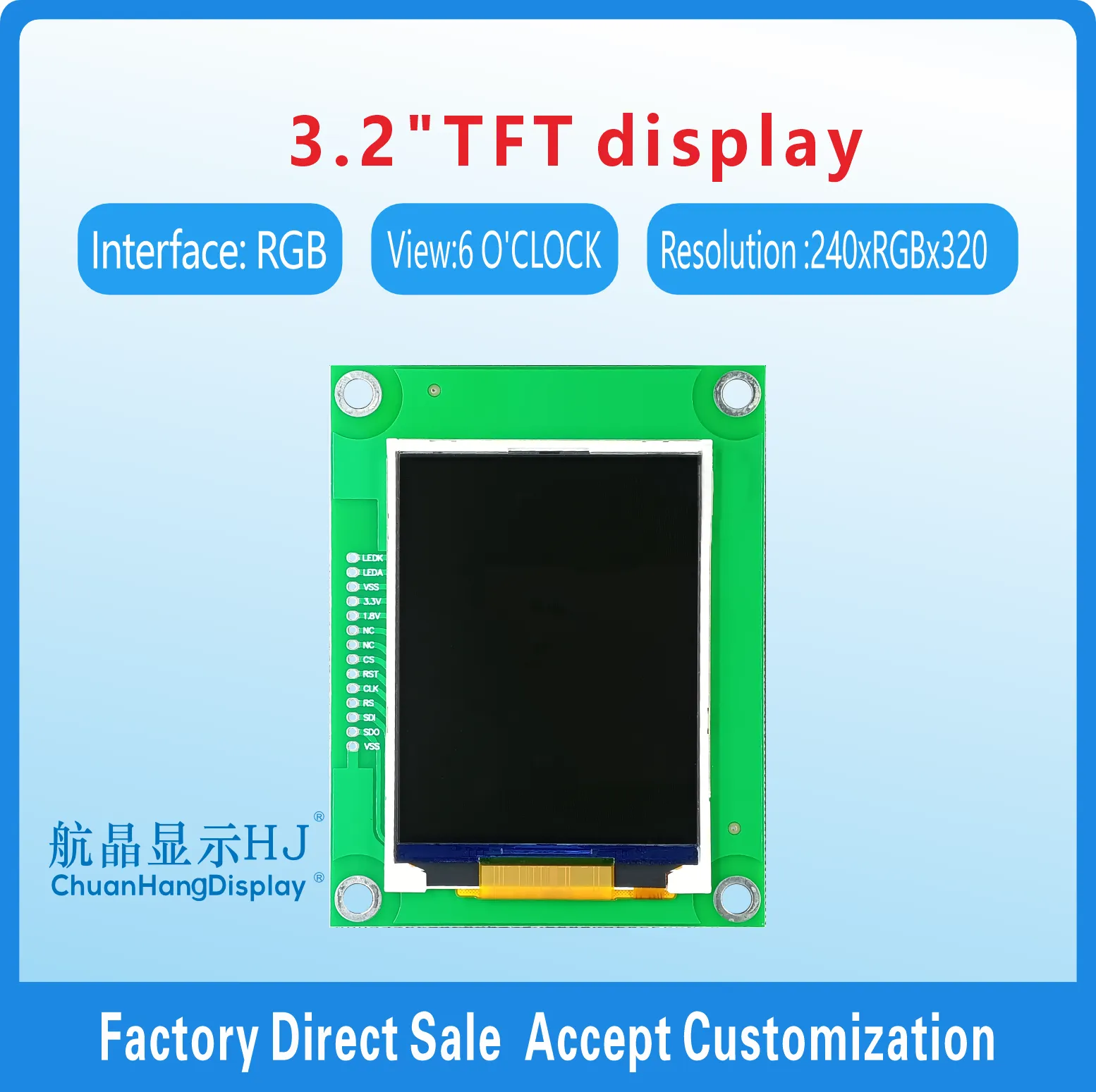

Product Description
1.1 Product size: 3.2 inches
1.2 Resolution: 240xRGBx320
1.3 Viewing angle: 6 o'clock viewing angle
1.4 Driver chip: ST7789T3
1.5 Interface type: Parallel port 8-bit/16-bit

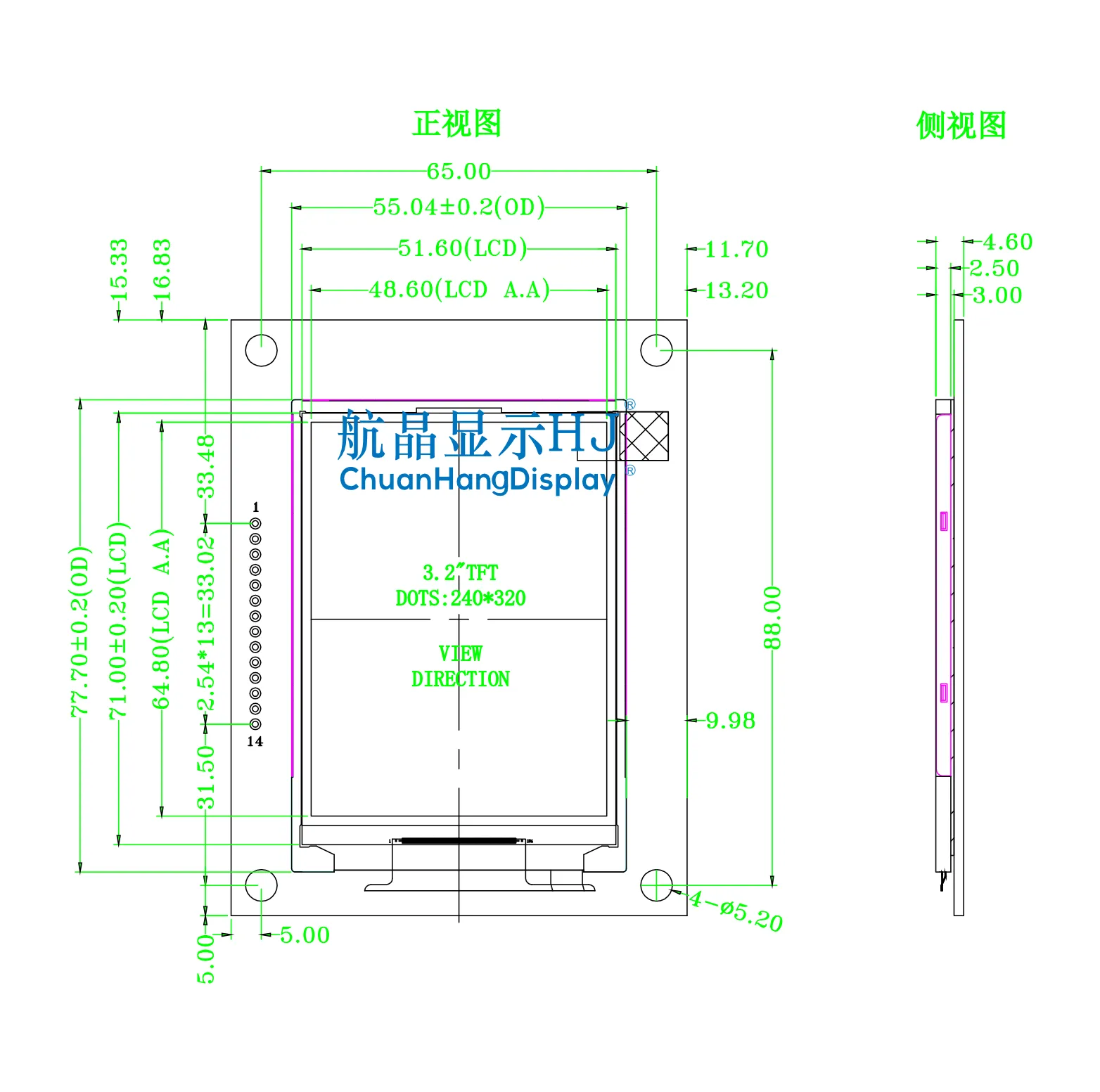

1.6 Module size: 65x77.07x4.6mm
1.7 Display area: 48.6x64.8 mm
1.8 Cable interface: 14 interface positions
1.9 Operating voltage: 3.3V
2.0 Operating temperature: -20℃~+70℃
2.1 Display color: TFT
Video Presentation

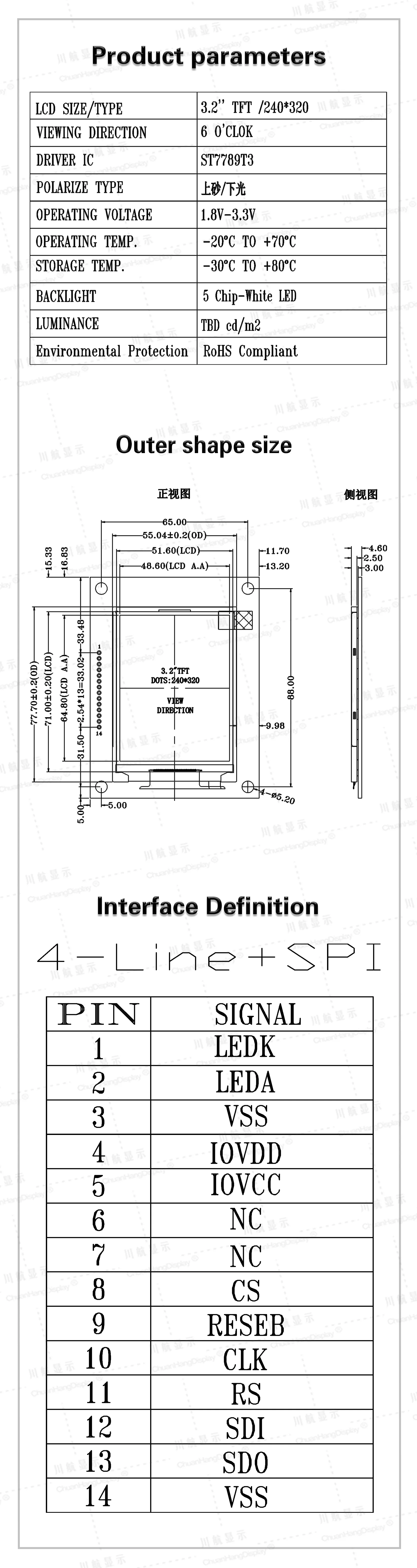

Product Parameters
Product BrandChuanHangDisplayProduct ModelCH032A-S with PCB board
Resolution240xRGBx320screen size3.2"
Outline Dimension(L*W*H)65.00x77.70x4.60mmVisible Area(L*W)
Active Area(L*W)48.60x64.80mmProcess typeCOG
Interface Type14PINOperating Voltage3.3V
Communication interfaceParallel port 8-bit/16-bitViewing Direction6 O'CLOCK
Display colorTFTDriver ICST7789T3
Operating Temperature-20℃~+70℃Storage Temperature-30℃~+80℃
production capacitySelf-producedWhether to bring PCBYES
Product Datasheet

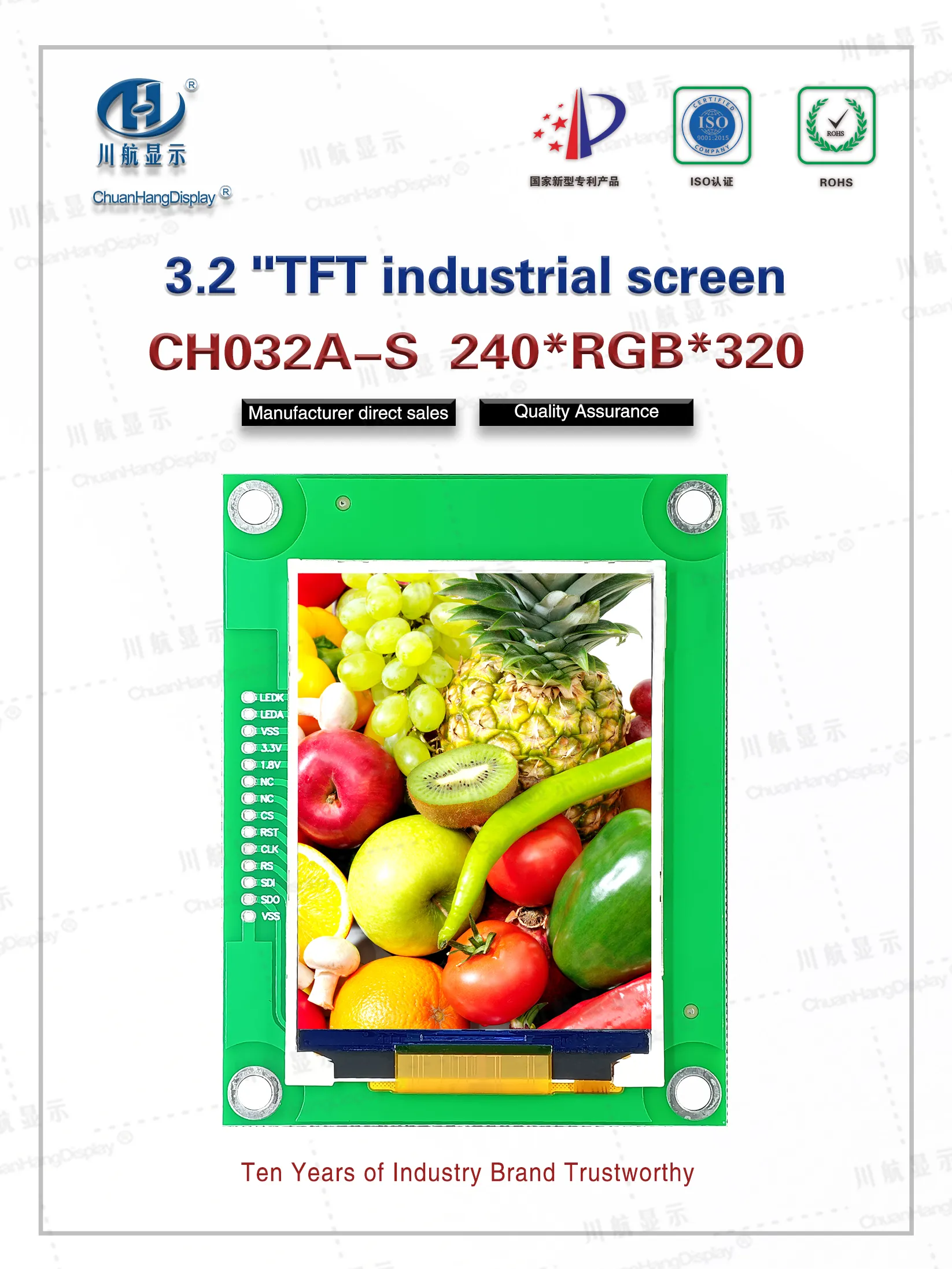

Product Display
