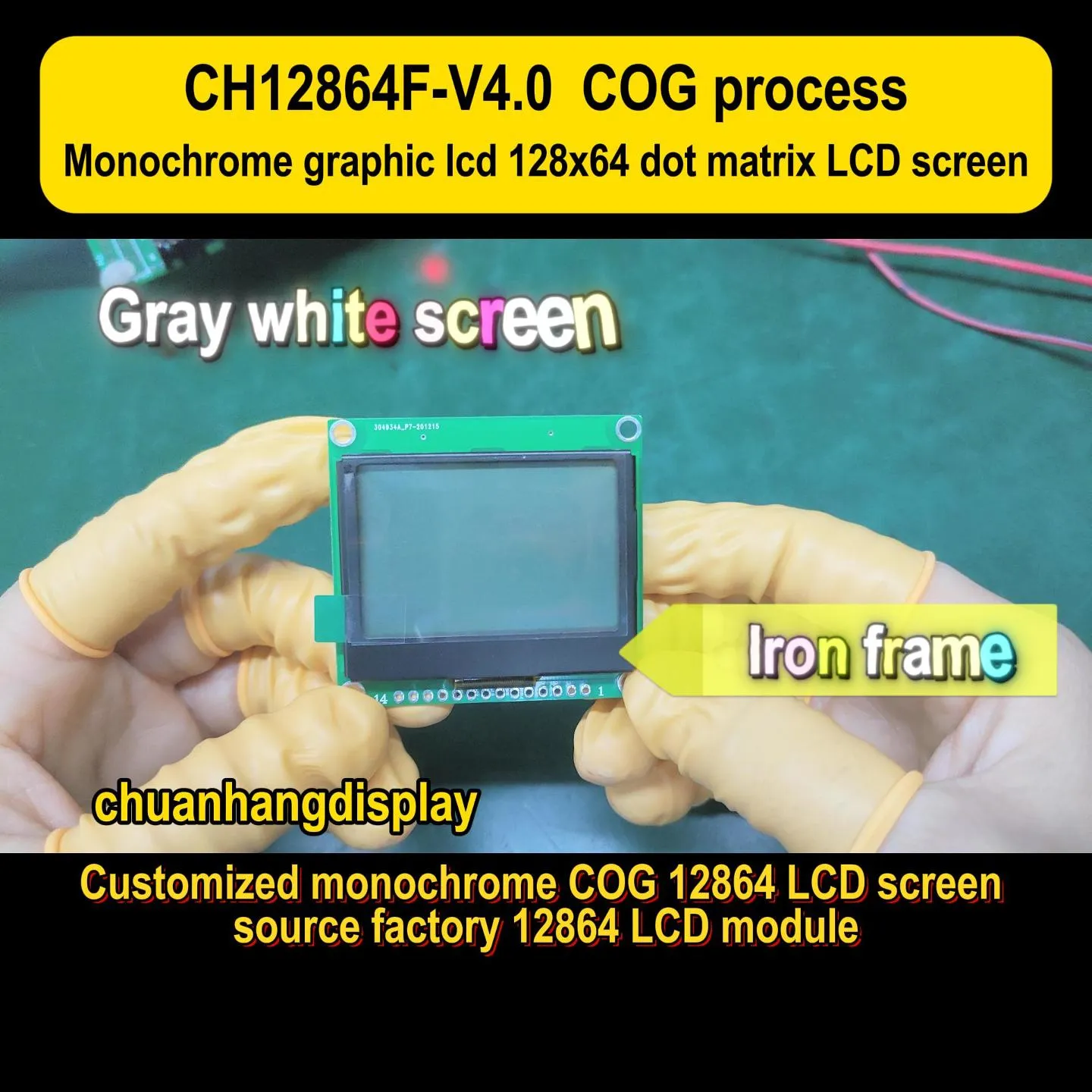

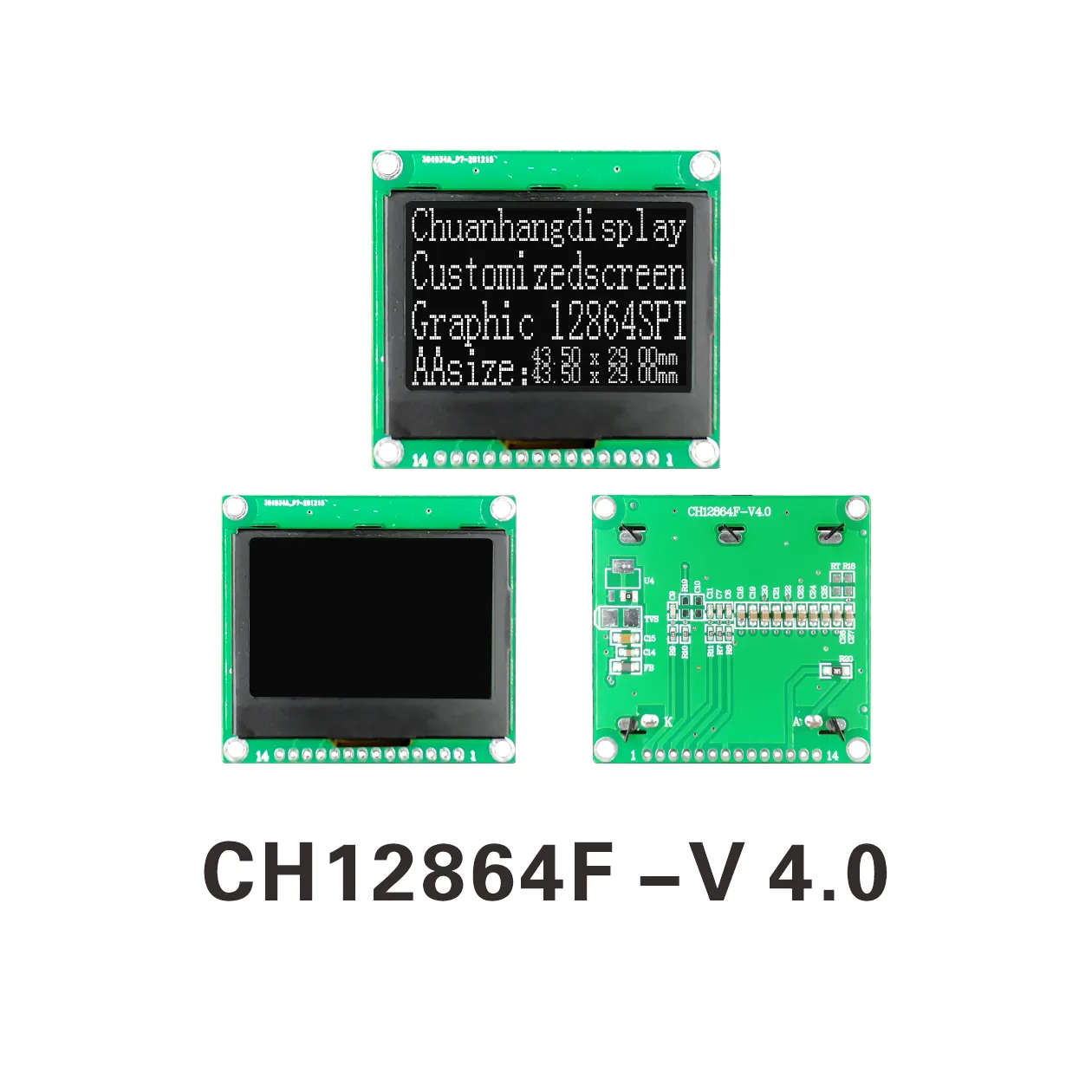

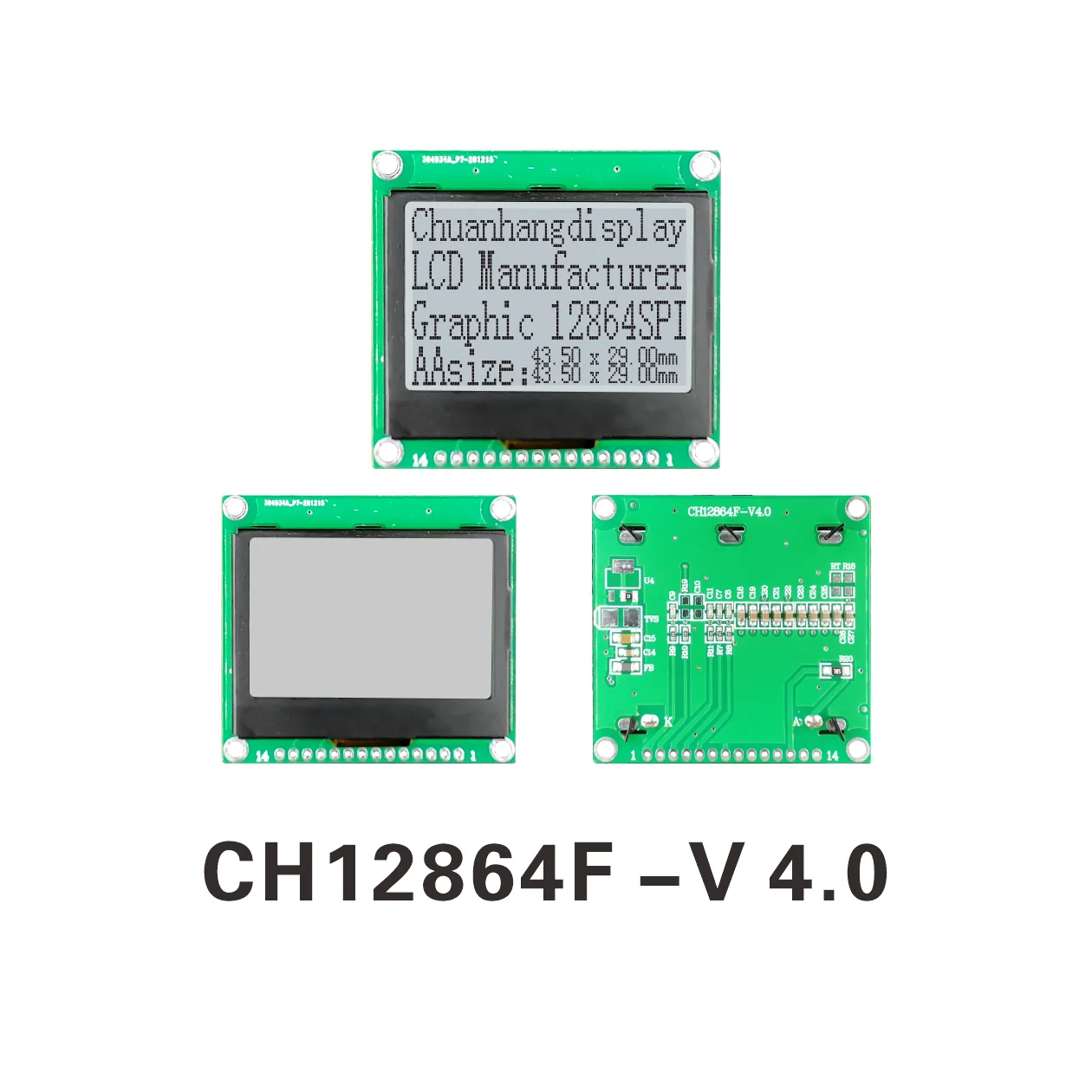

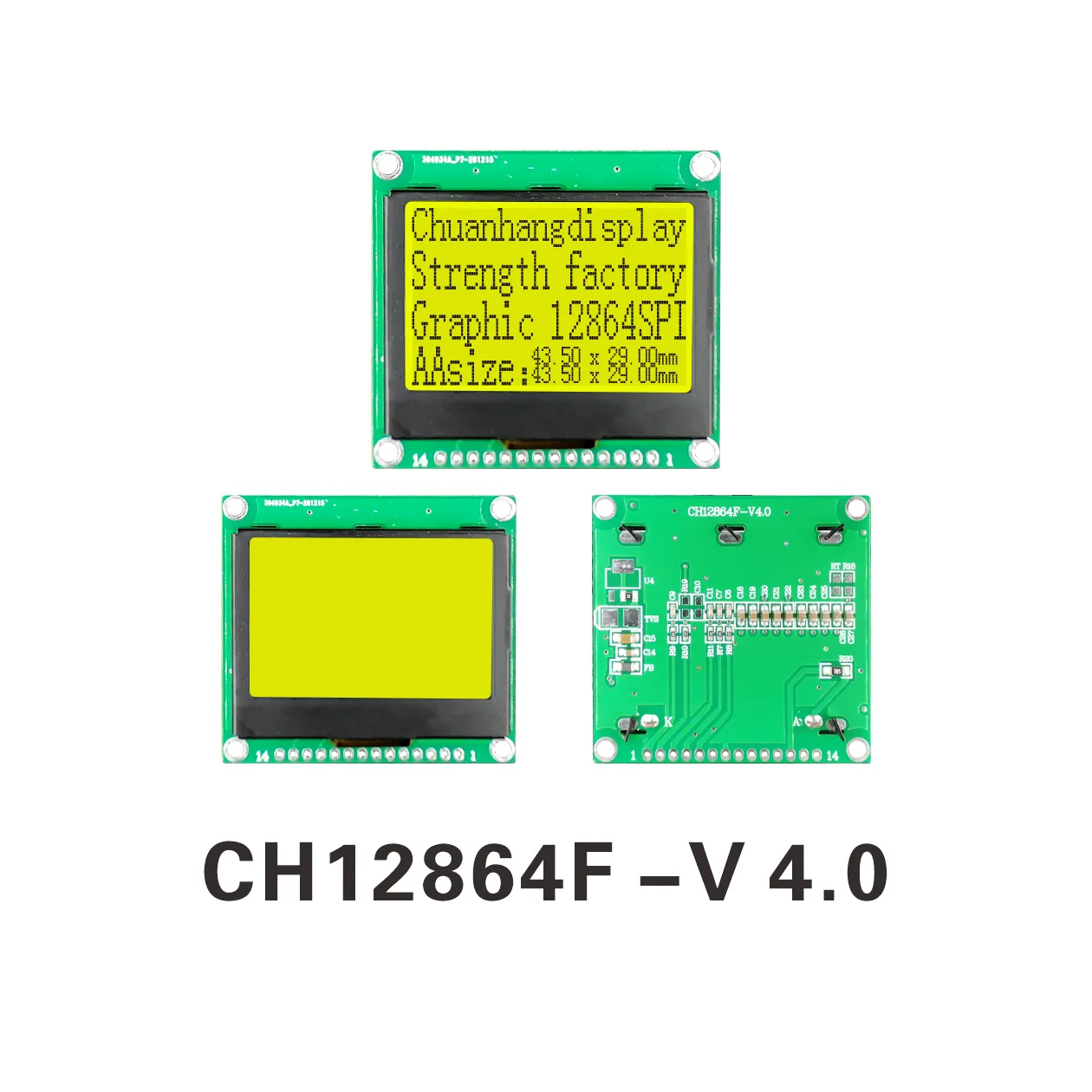

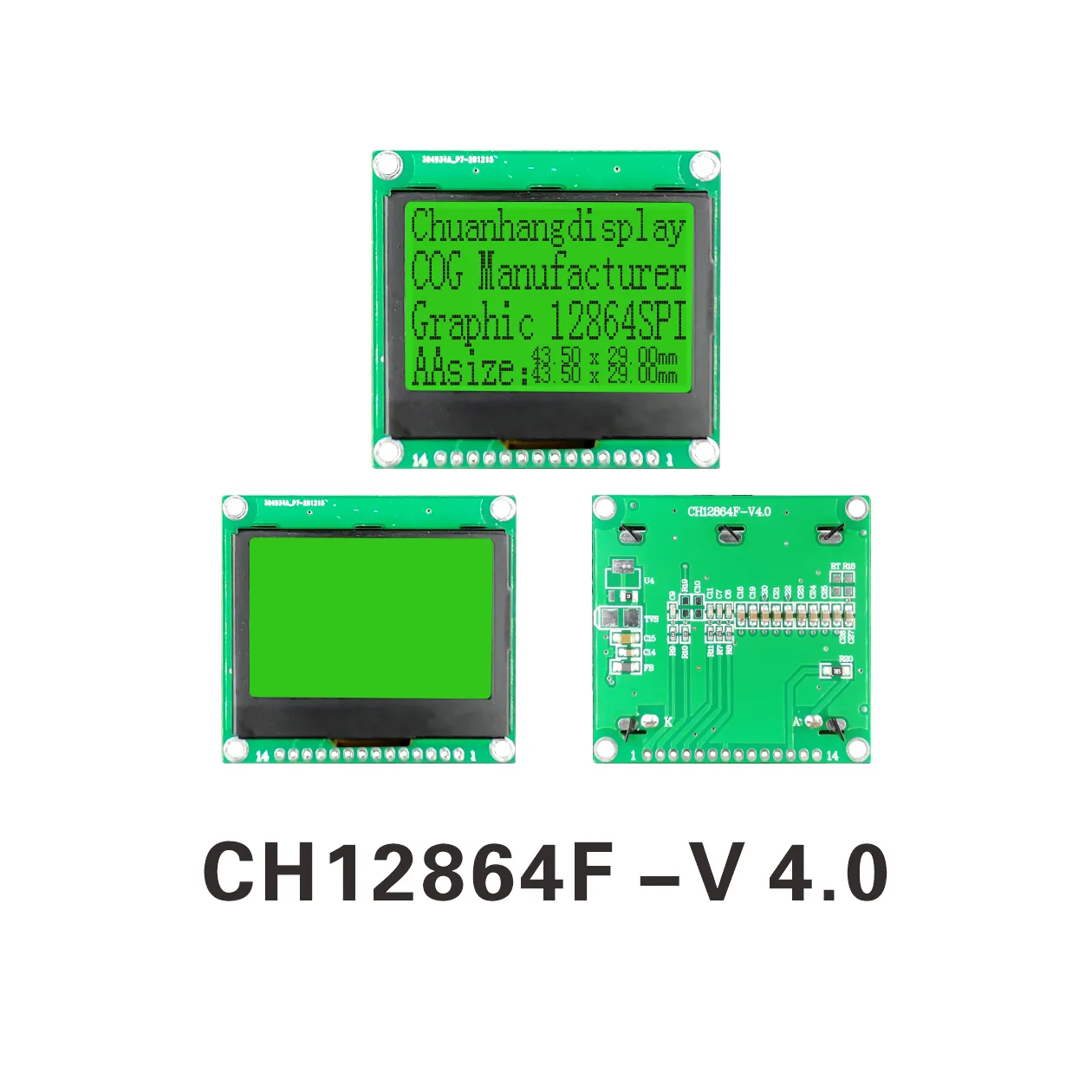

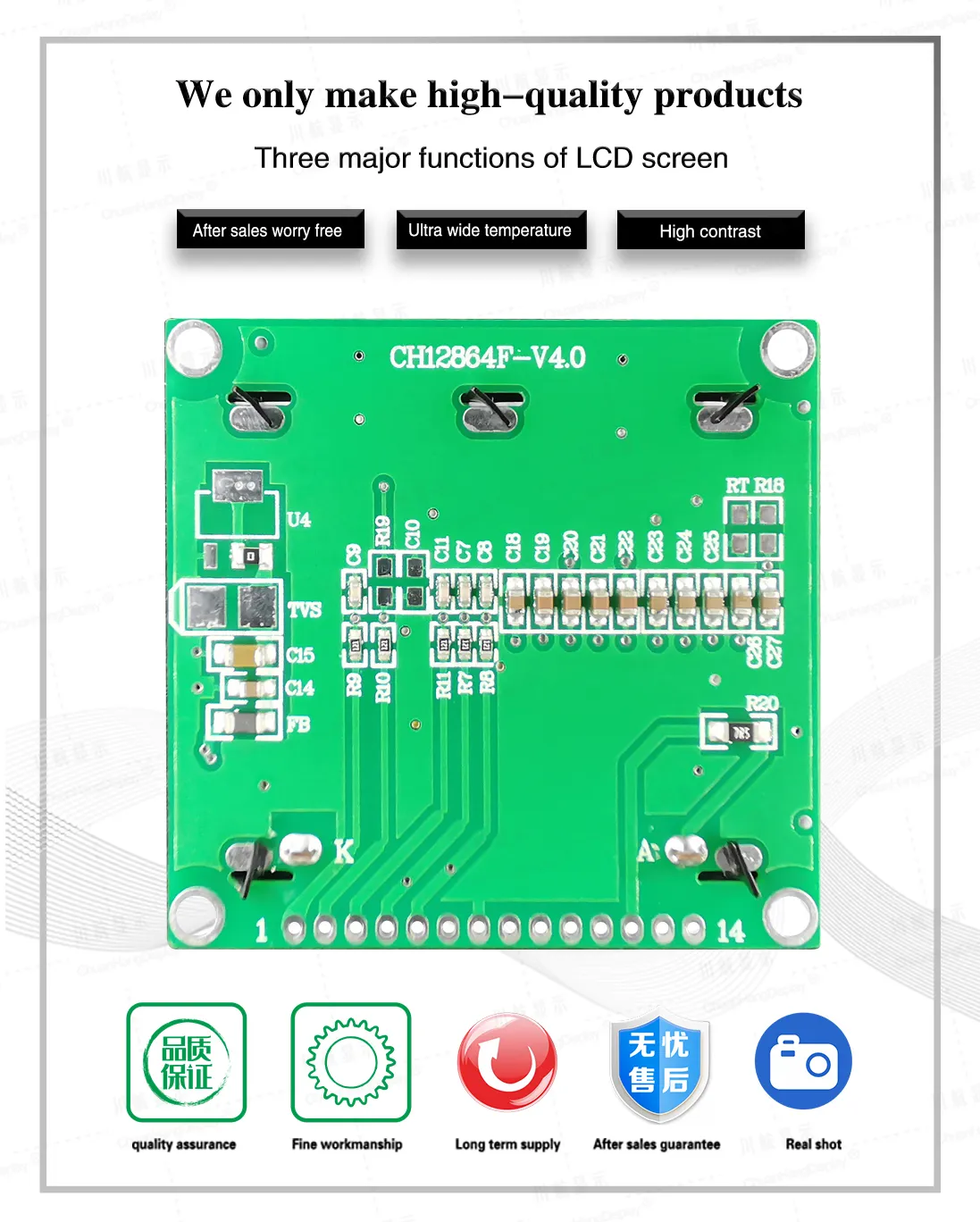

CH12864F-V4.0 With iron frame 12864 lcd module
Product Description
1.1 COG process, FPC wiring welding process, product with pcb board, backlight, thin thickness and stable structure.

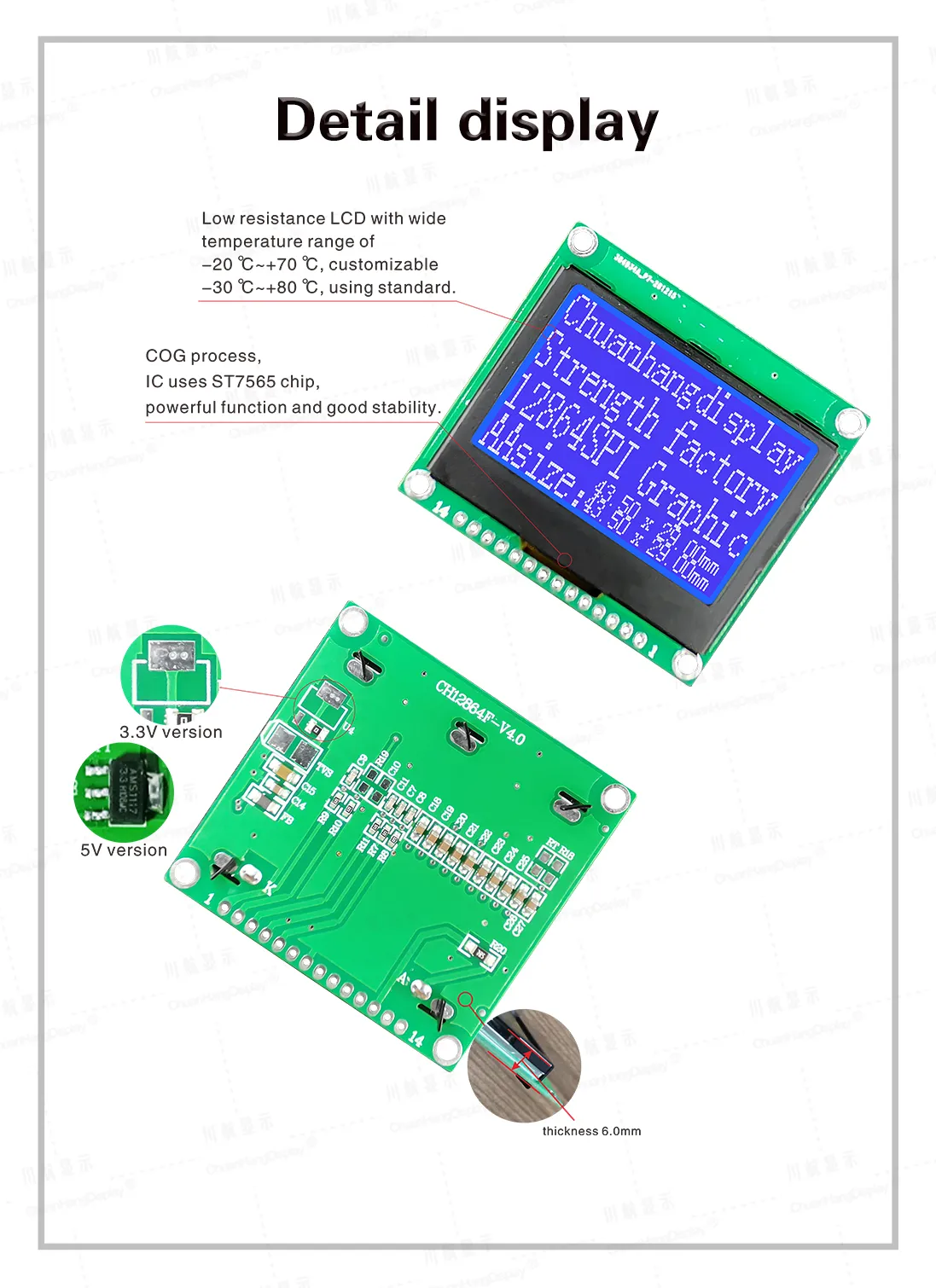

1.2 IC uses ST7565. There is no font library in the chip, and programmers have their own font libraries.
1.3 Low power consumption, default 3.3V power mode, no backlight current within 1mA, backlight current in 80mA Inside.
1.4 LED backlights A and K are PCB boards that have been welded to PCB boards. LED can be driven by PIN6,PIN7,PIN12,PIN13. Move.
1.5 Product Features:
●The built-in display data RAM is 64x128 bits. Built-in boost circuit.
●The contrast ratio is deeply to shallow by the software.
●One screen displays 8 characters x 4 lines (16x16 dot matrix).
●Single picture ≦128x64 dot matrix. 4-wire SPI interface communication.
●Rich functions: interface display on/off, positive display/reverse display.
