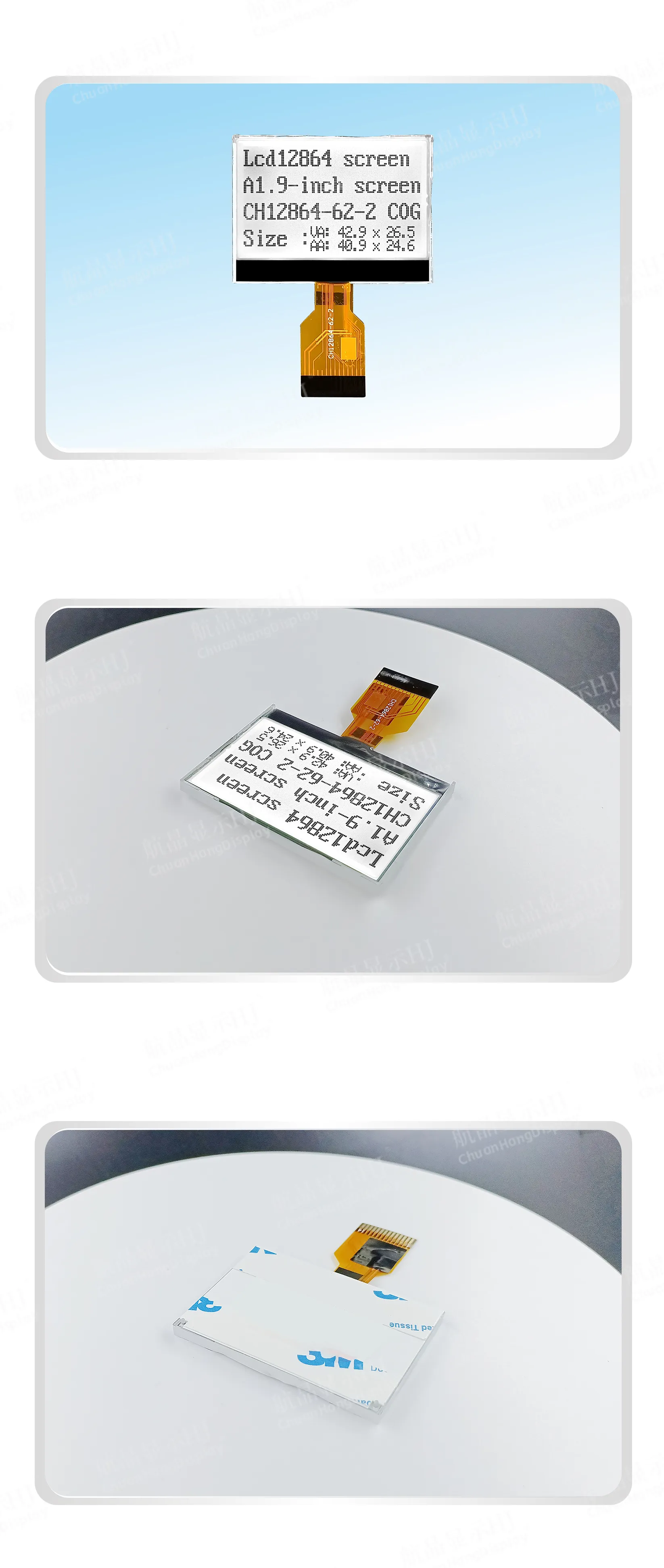

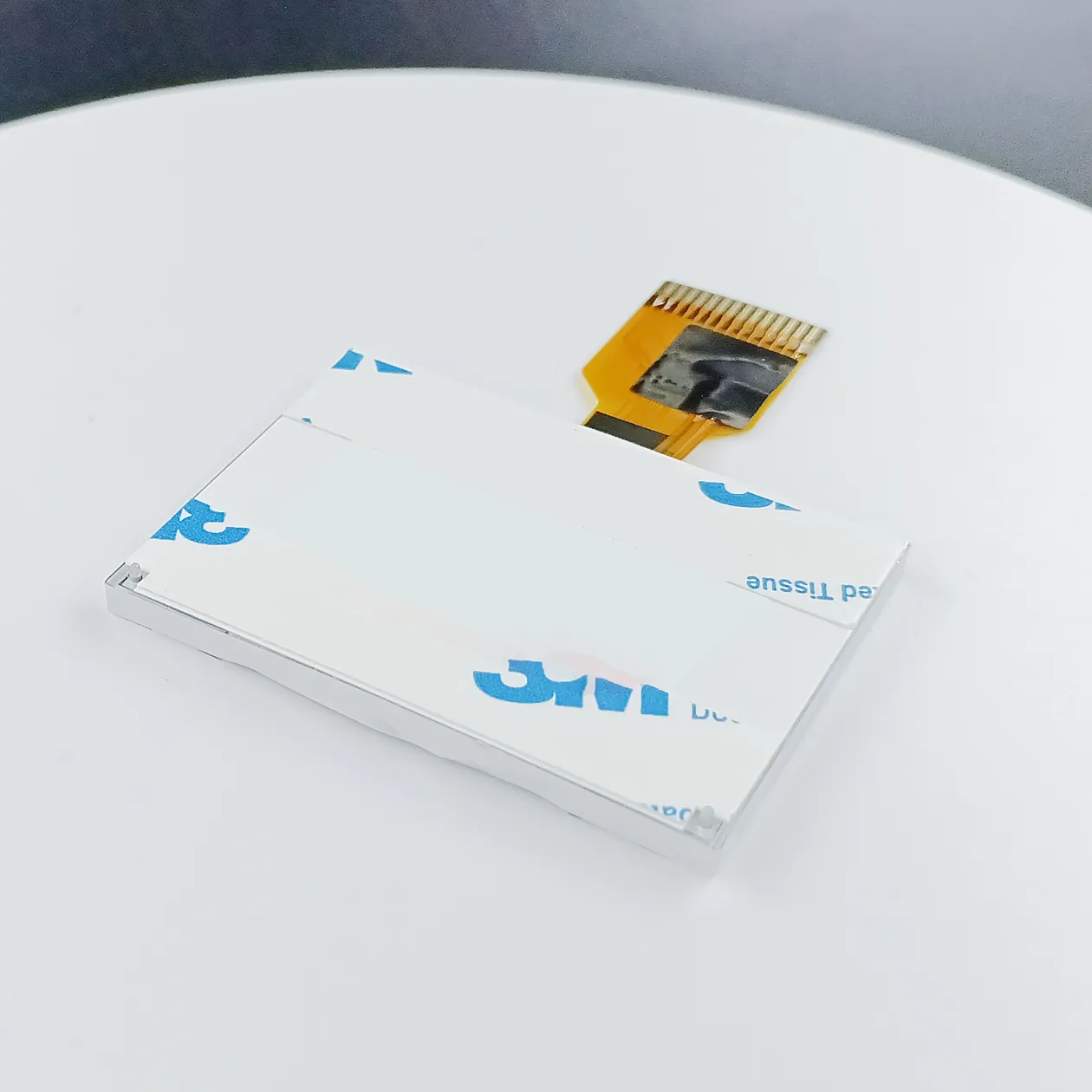

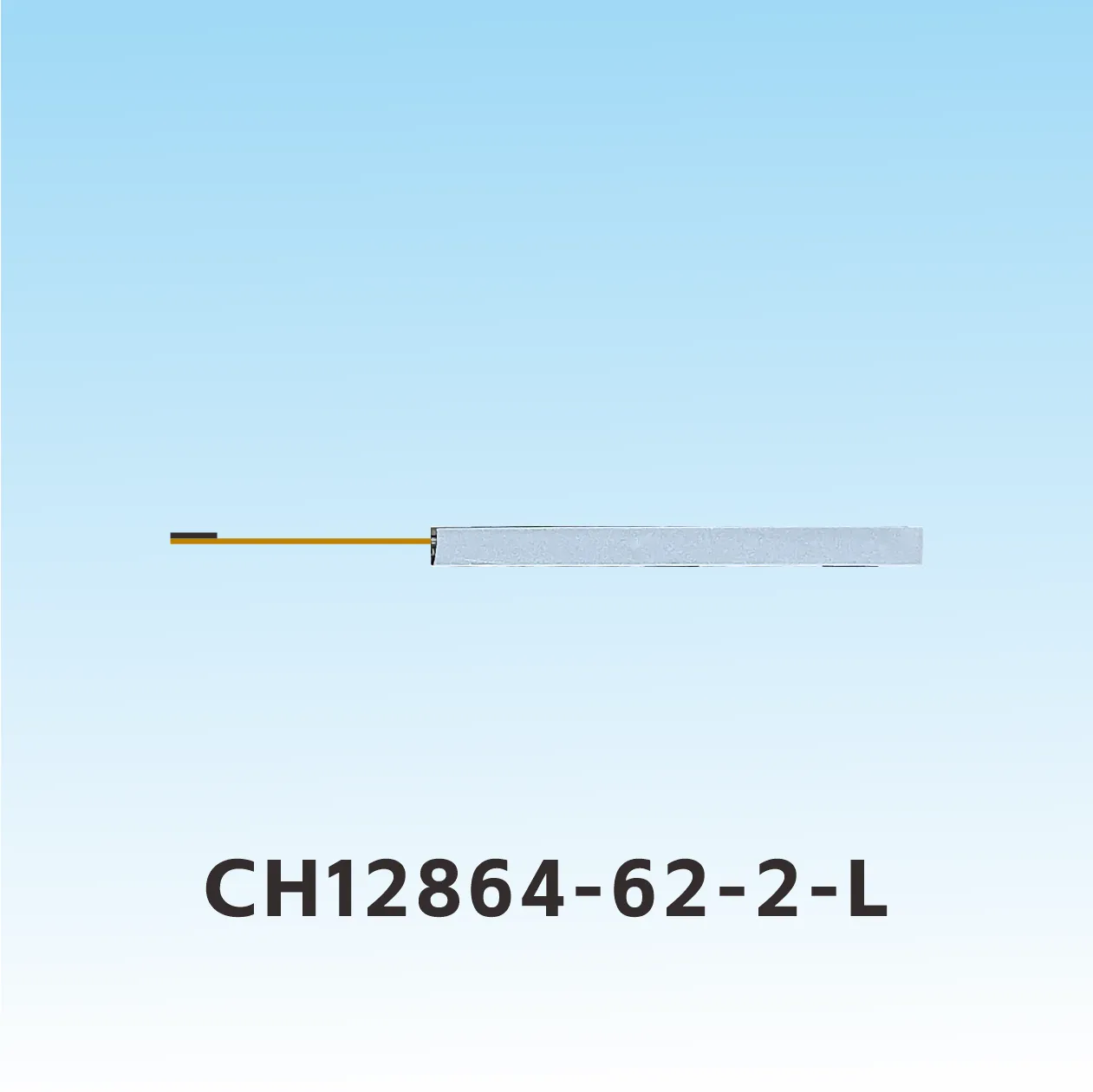

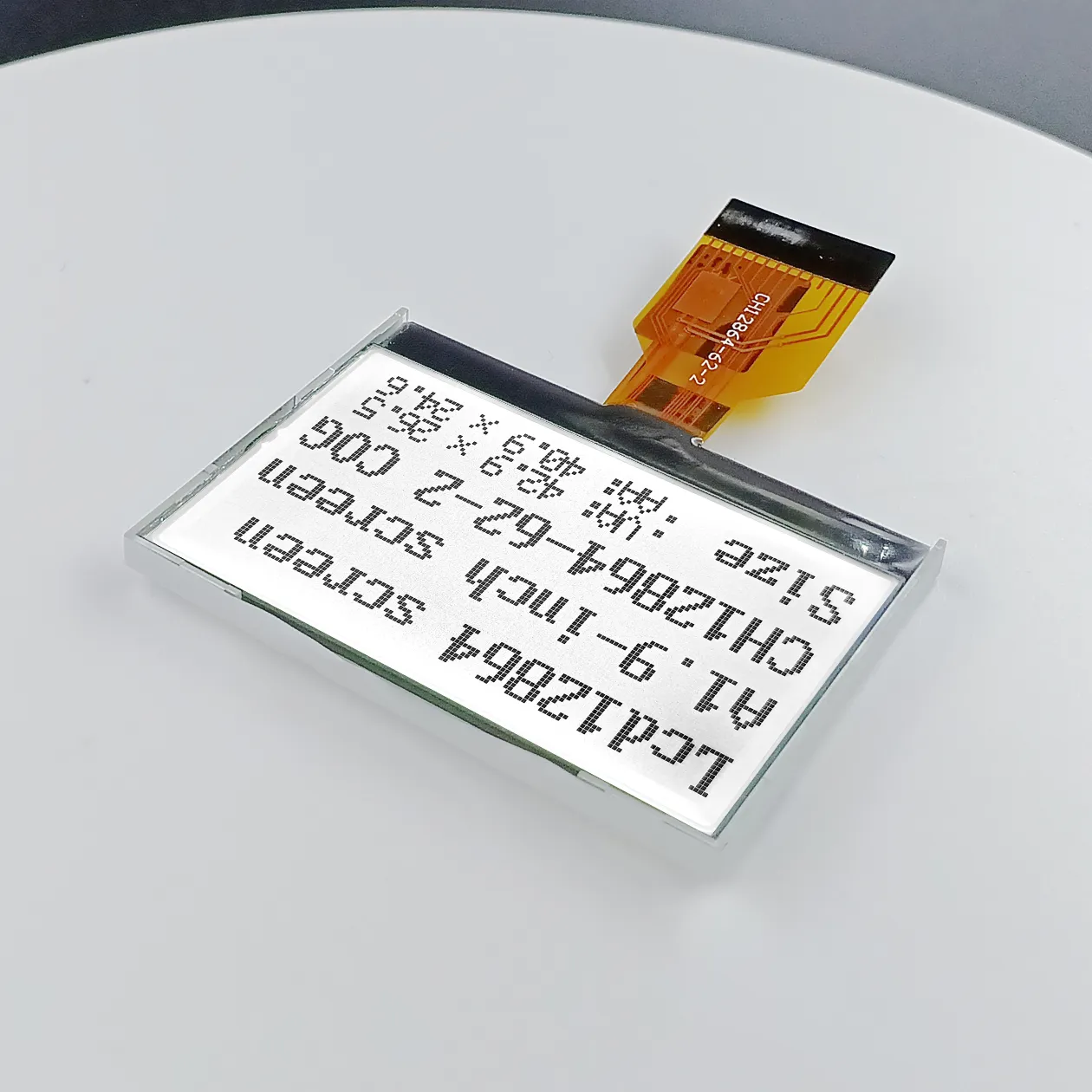

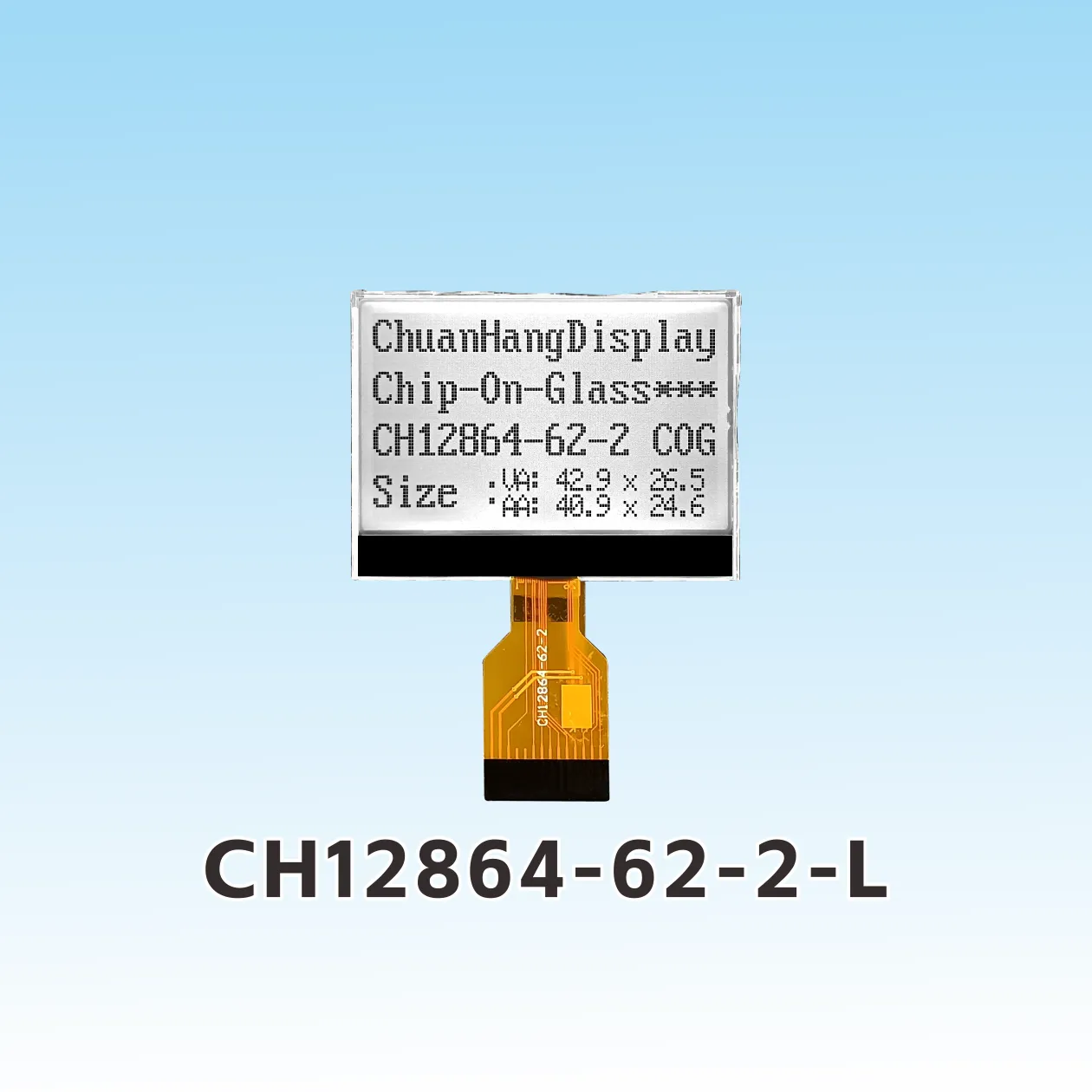

CH12864-62-2- L Plug in reprap lcd 12864
Product Description

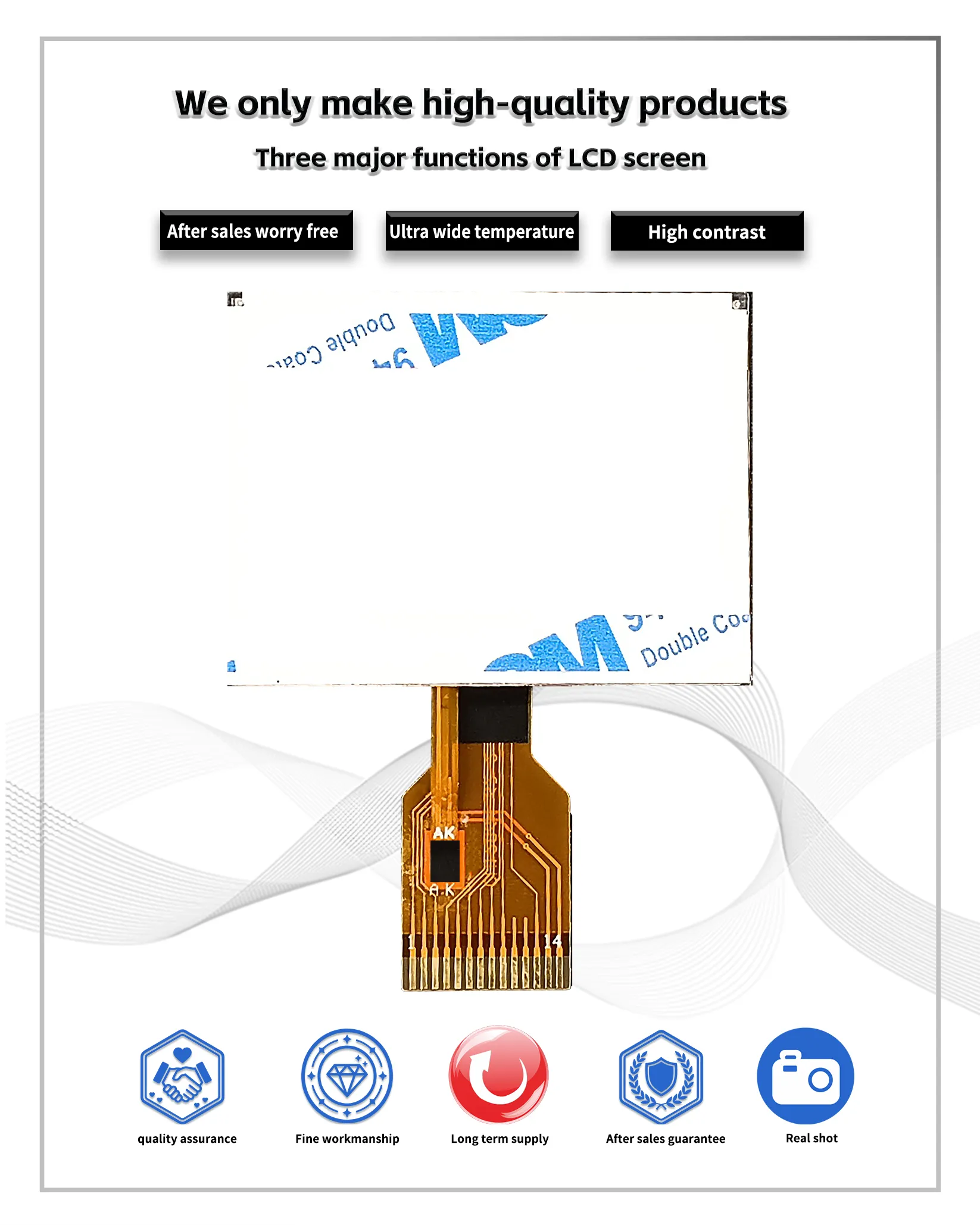

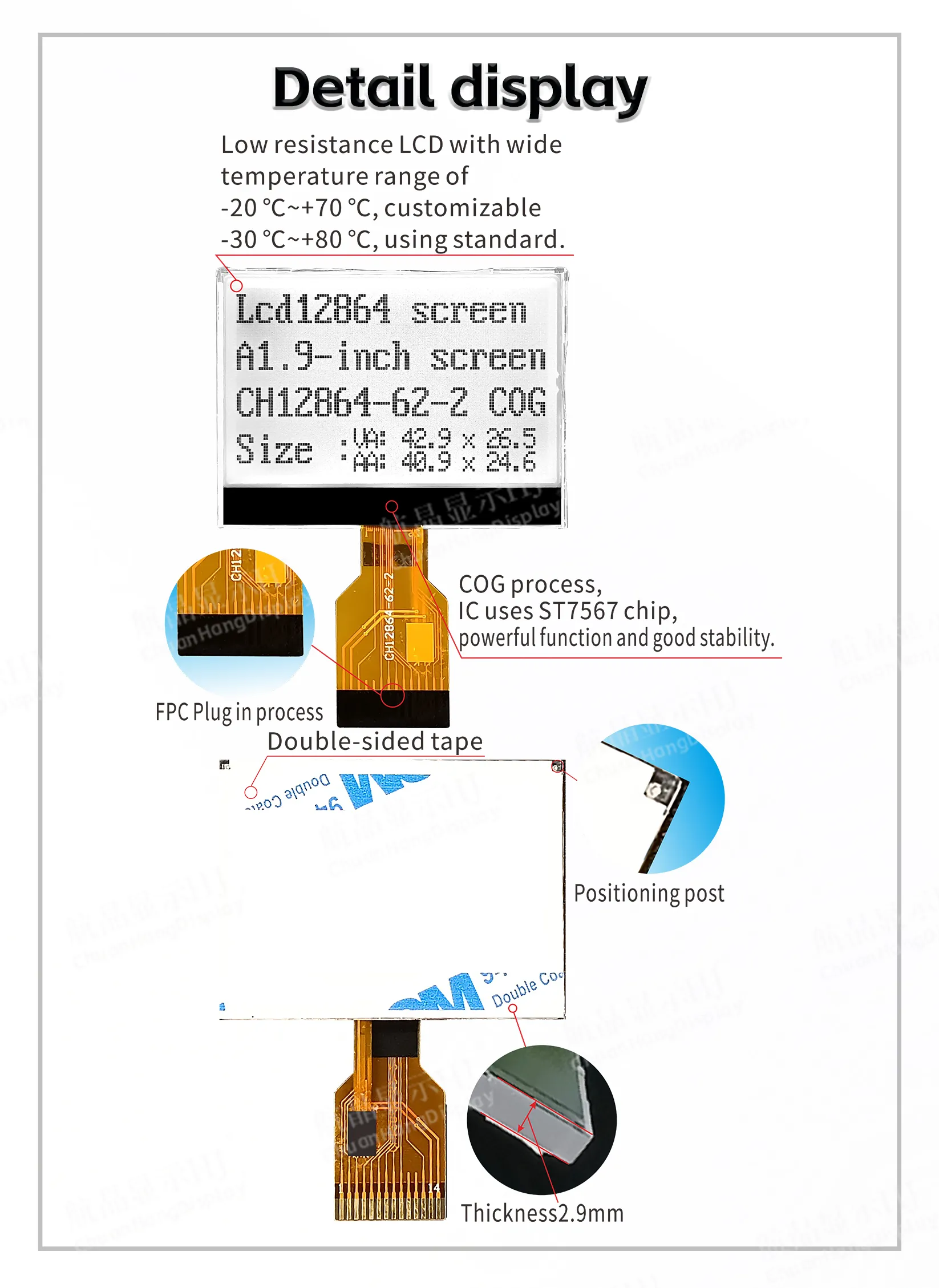

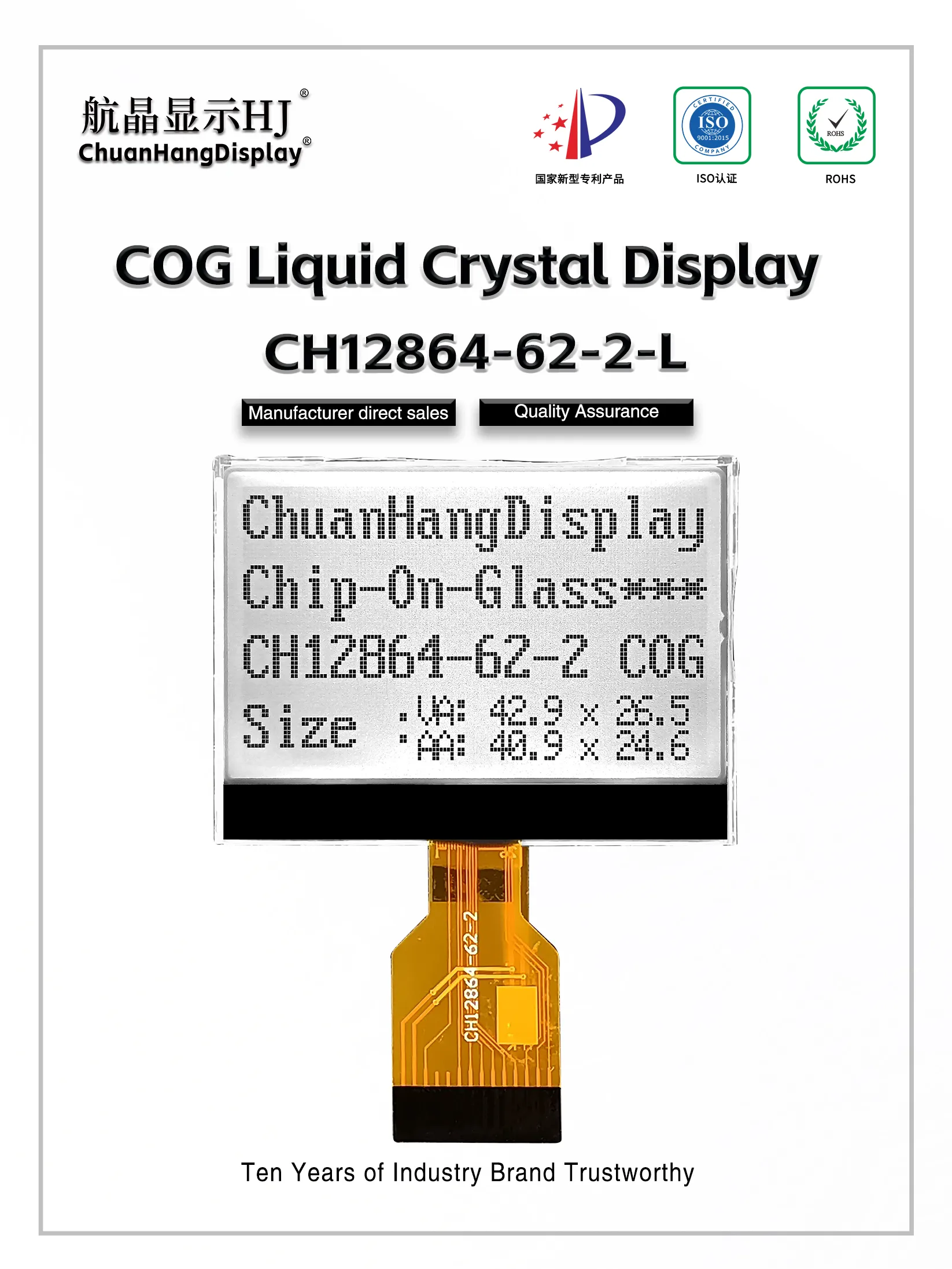

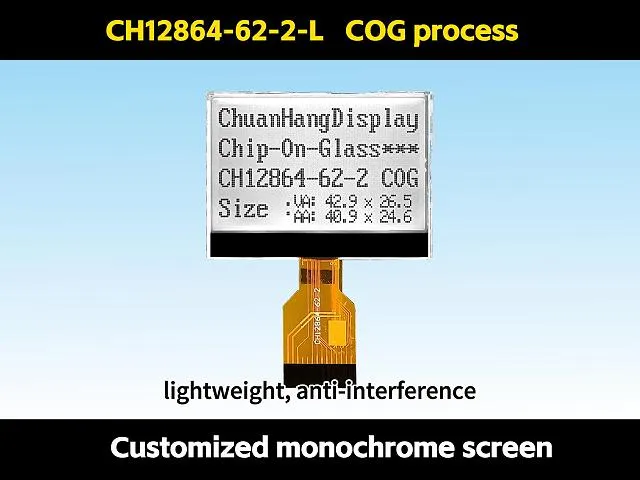

1.1 COG technology, FPC soft line is welded, the product has backlight, has been assembled, thin thickness, stable structure.
1.2 IC uses ST7567, there is no word library in the chip, and the programmer compiles his own word library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 60mA.
1.4 LED backlights A and K are FPC wiring, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product features:
●The built-in display data RAM is 64x128 bits.
●The external capacitor generates a boost.
●The contrast is adjusted by the software.
●One screen displays 8 characters x 4 lines (16x16 dot matrix).

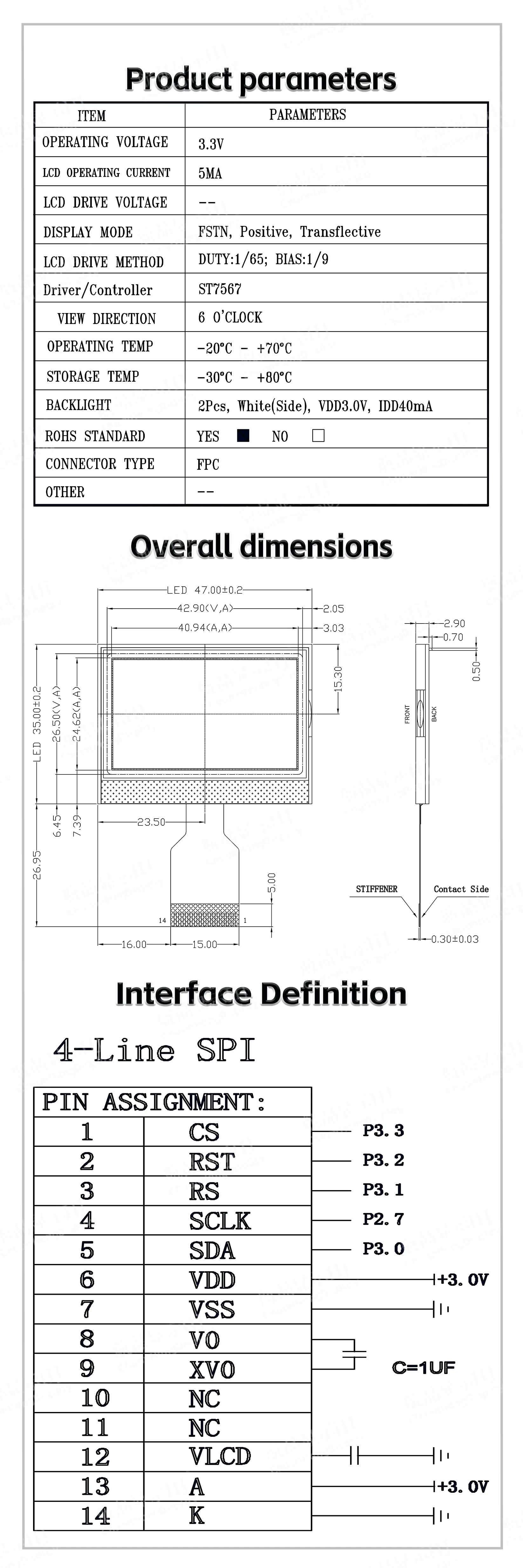

●Single picture ≤128x64 dot matrix. 4-wire SPI interface communication.
●Rich functions: interface display on/off, positive/reverse display.
